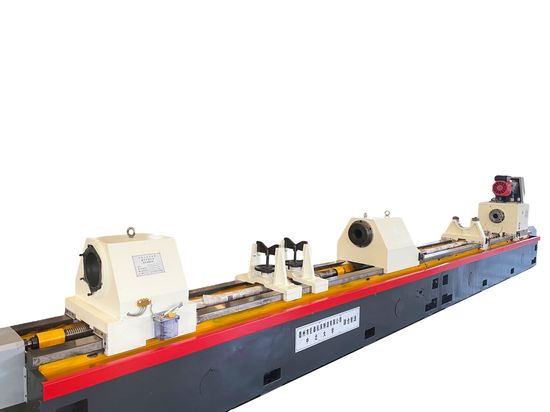

Video Description
Product Overview

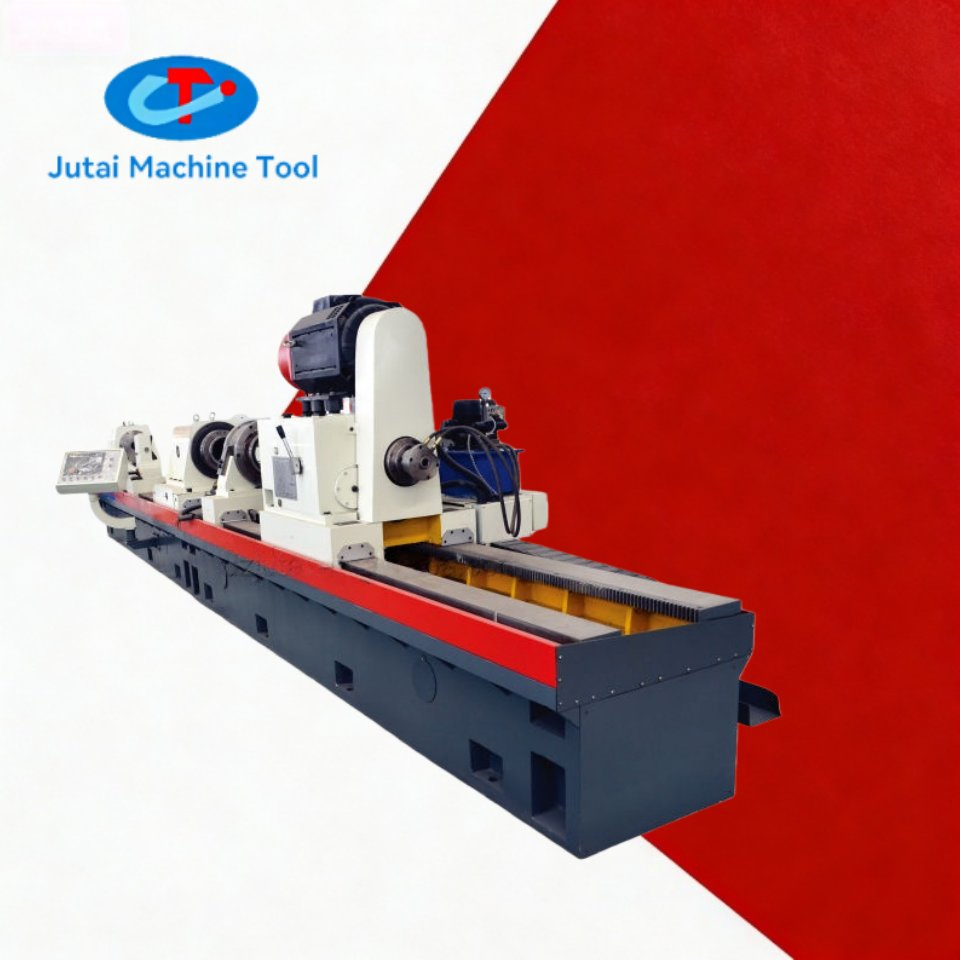

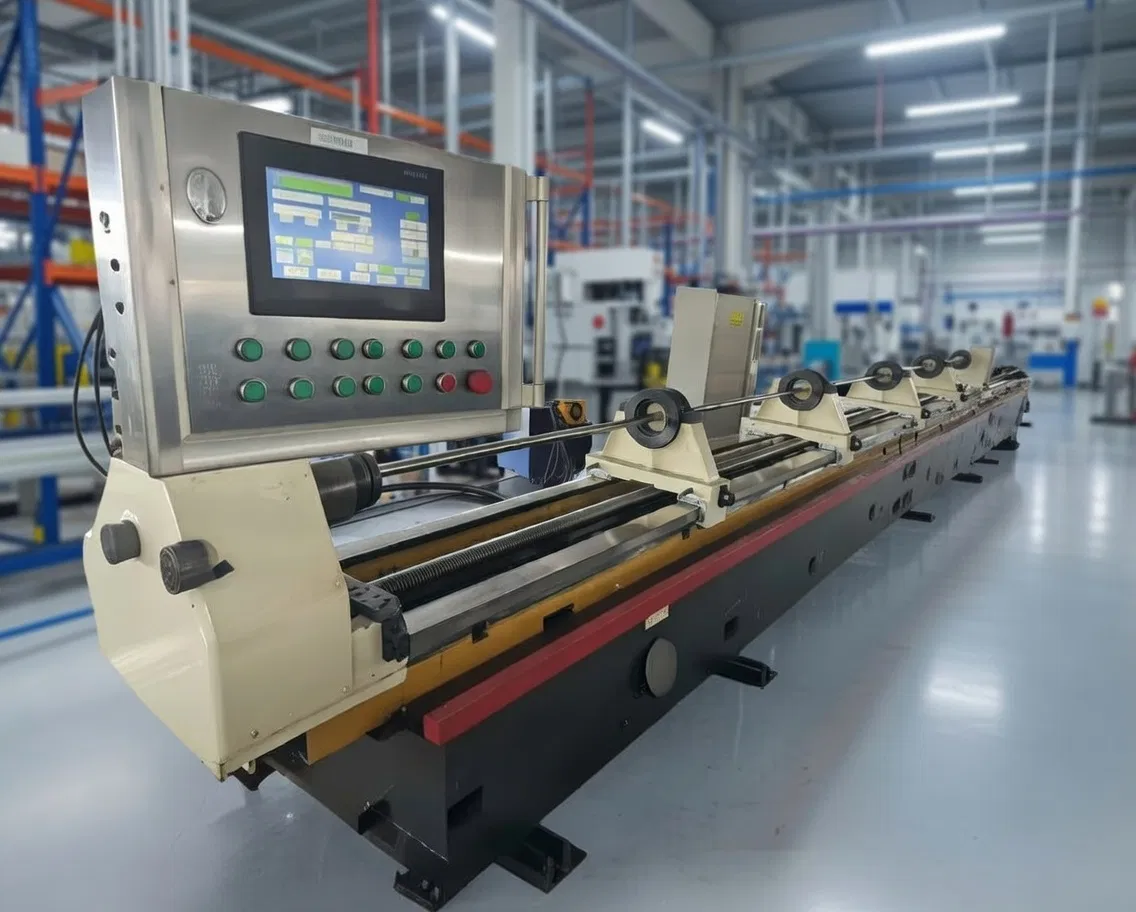

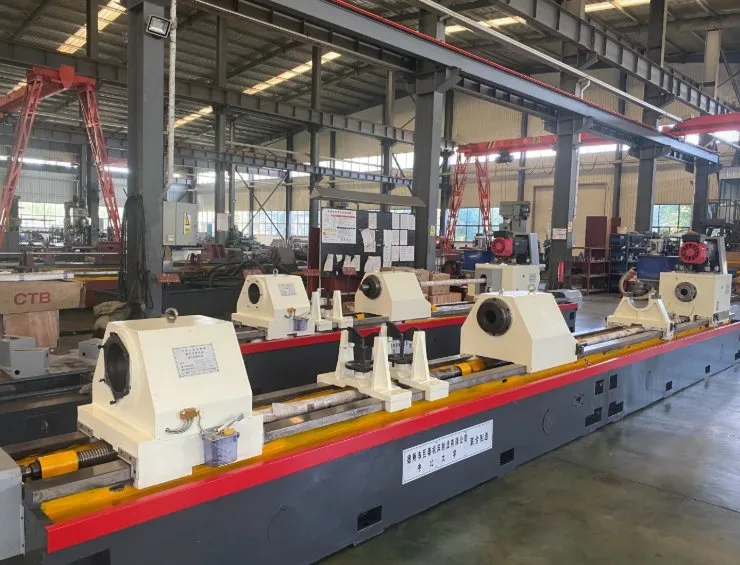

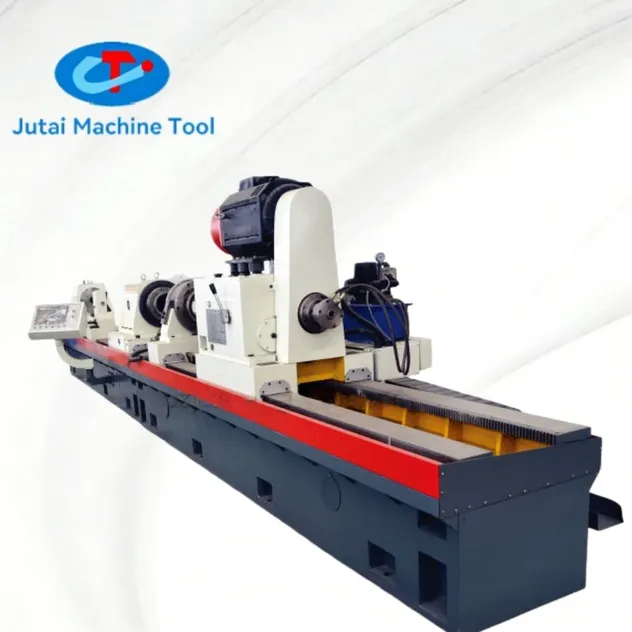

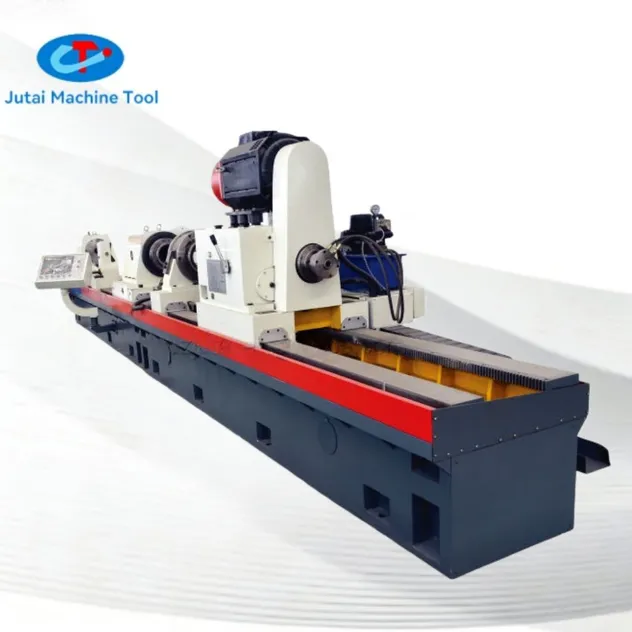

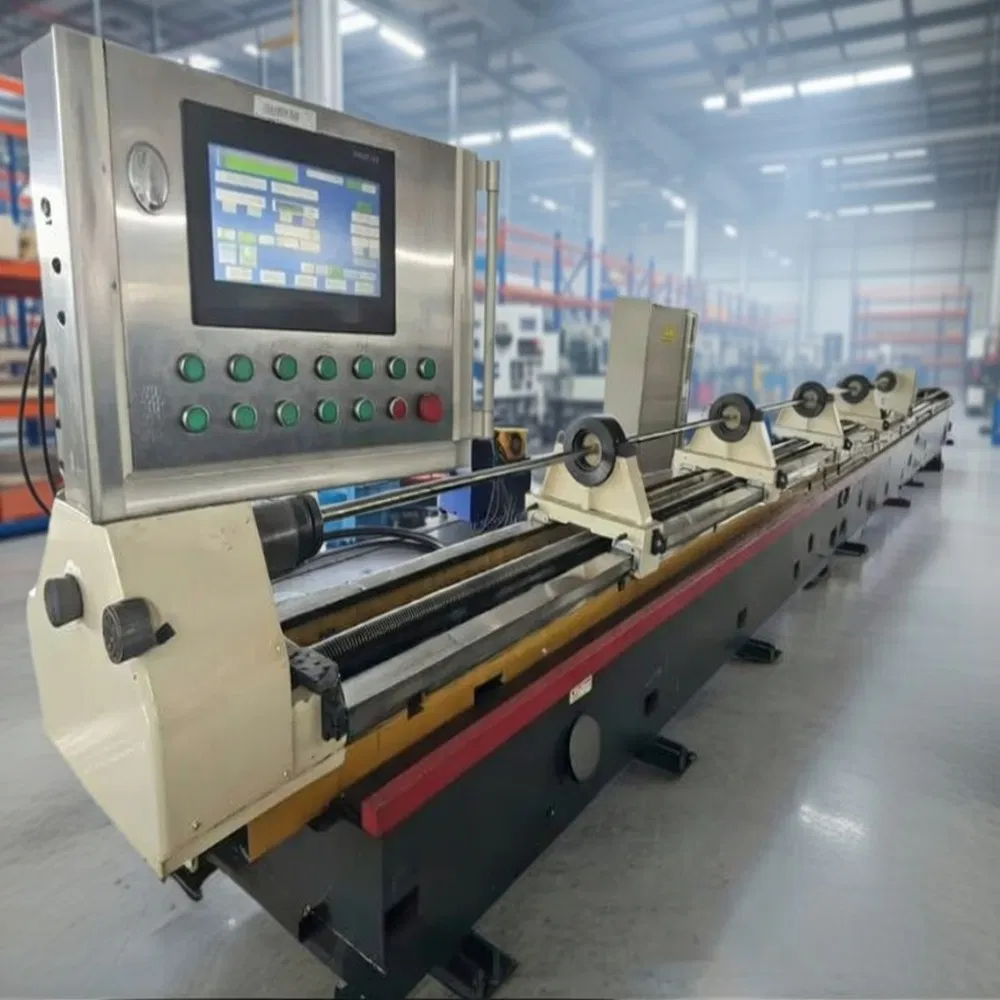

TGK2115 CNC Deep Hole Scraping and Polishing Machine Tool
The CNC deep hole scraping and polishing machine tool is an independently developed, highly efficient machine designed to replace traditional deep hole drilling and boring machines. This machine tool features substantial supply power, strong rigidity, and a wide processing margin. It is ideal for processing various mechanical hydraulic cylinder parts, cylindrical workpieces with through holes, and stepped holes.

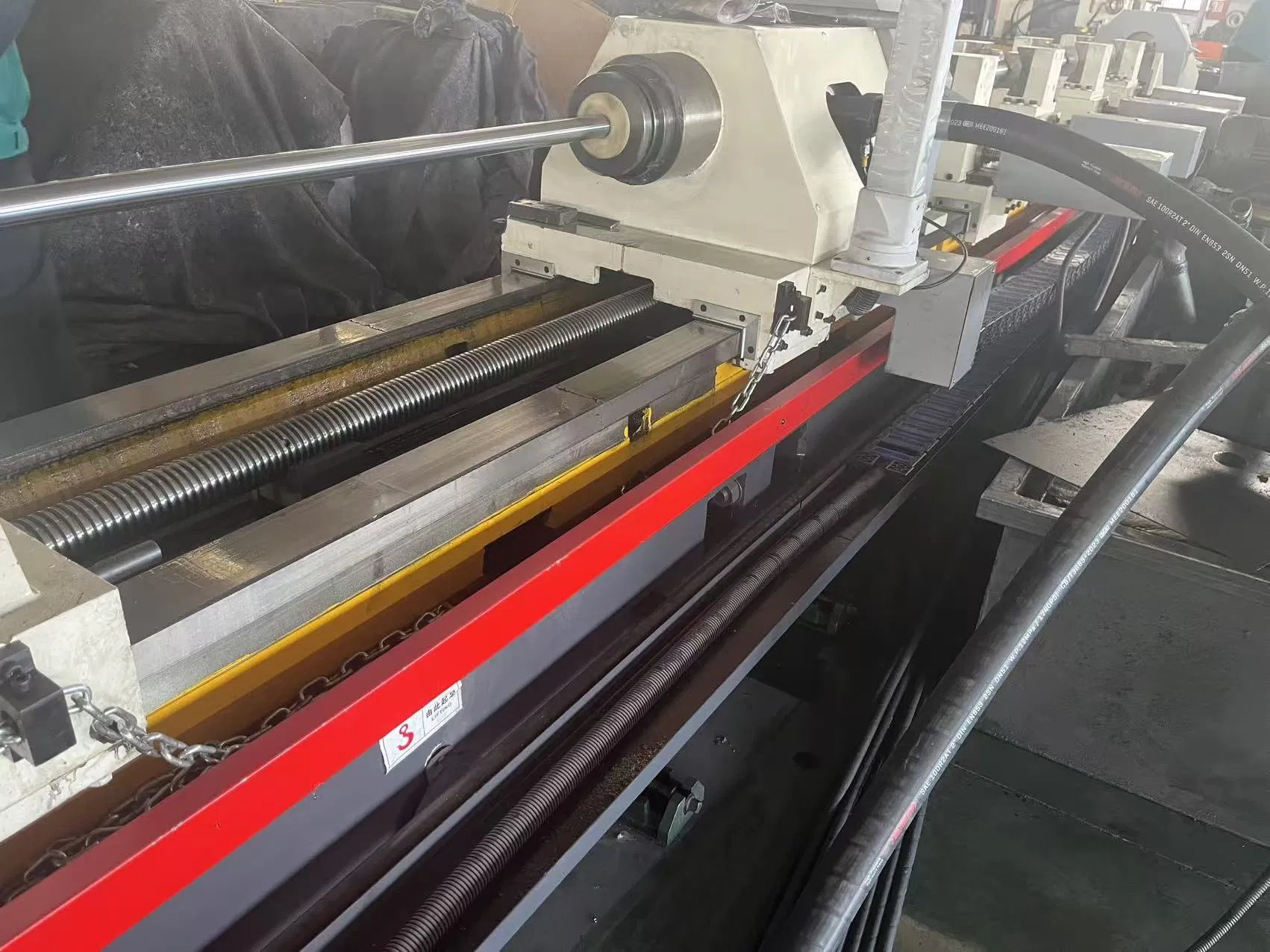

Mainly used for boring and rolling, the machine utilizes a stationary workpiece and a rotating boring head. Chips are discharged through the boring rod or the headstock. By employing efficient scraping and boring technology, the production efficiency is significantly improved—reaching 5-6 times that of traditional processes such as rough boring, fine boring, and honing.
Features At A Glance
Specification Comparison
| Project | TGK2115 | TGK2125 |
|---|---|---|
| Maximum bore diameter /mm | 40-150 | 40-150 |
| Workpiece length /m | 2-12 | 2-12 |
| Range of workpiece clamping /mm | 50-200 | 50-300 |
| Width of machine bed /mm | 500 | 650 |
| Center height /mm | 300 | 400 |
| Spindle speed range r/min | 50-1800 | 50-1000 |
| Feed speed range /mm/min | 5-1000 | 5-1000 |
| Rolling precision | IT6-IT9 | IT6-IT9 |
| Surface roughness (Rolled) /μm | ≤ Ra 0.8 | ≤ Ra 0.8 |
| Motor Power (Boring head) /kW | 22 | 30 |
Product Details
1. Machine Bed: Rigid construction with high wear resistance after quenching treatment.

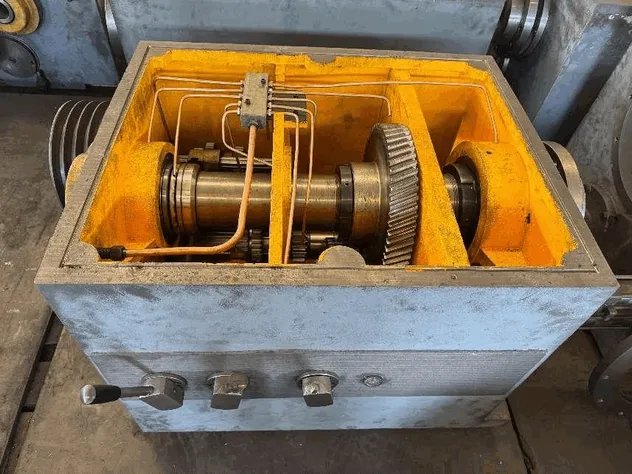

2. Gearbox: Servo-driven spindle with two-stage stepless speed regulation and double thrust bearings.

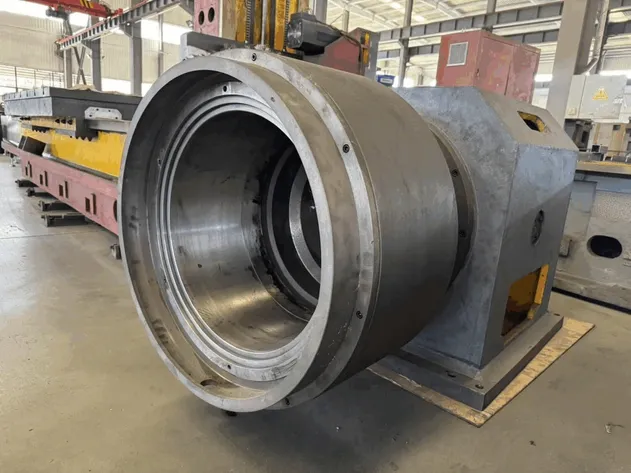

3. Oil Dispenser: Supplies oil to the tool and workpiece with a hydraulic clamping device for safety.

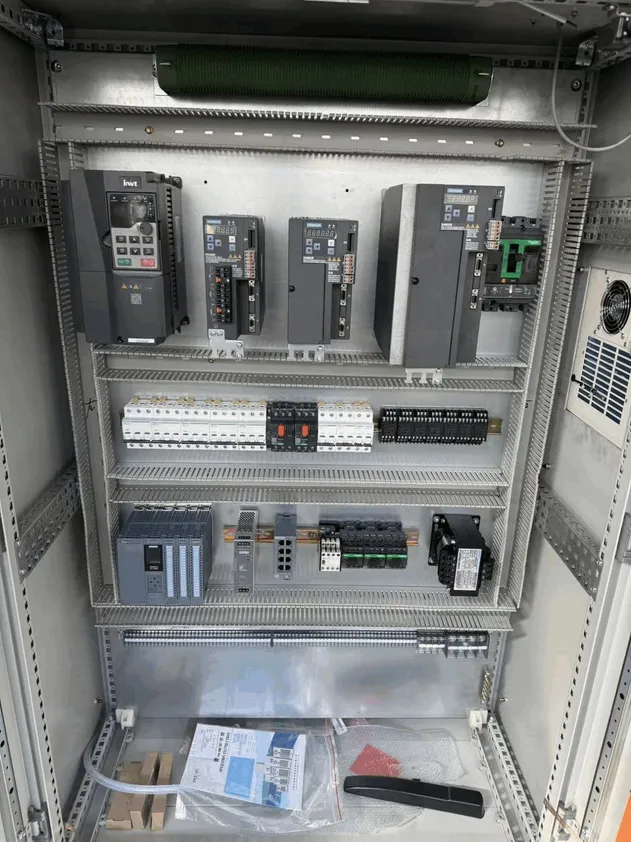

4. Power Distribution: High-end electrical accessories for reliable control.

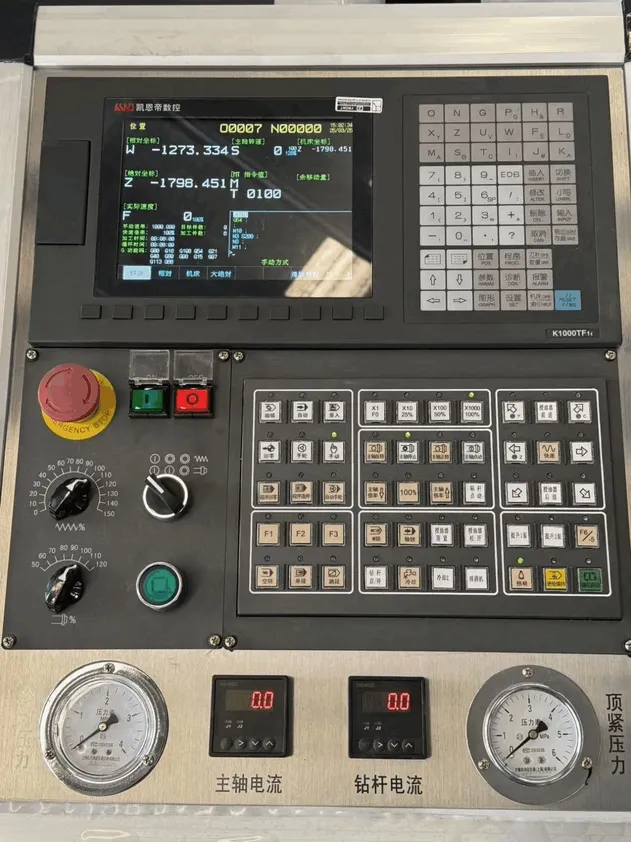

5. Control System: High-end NC system offering simple operation and powerful precision.

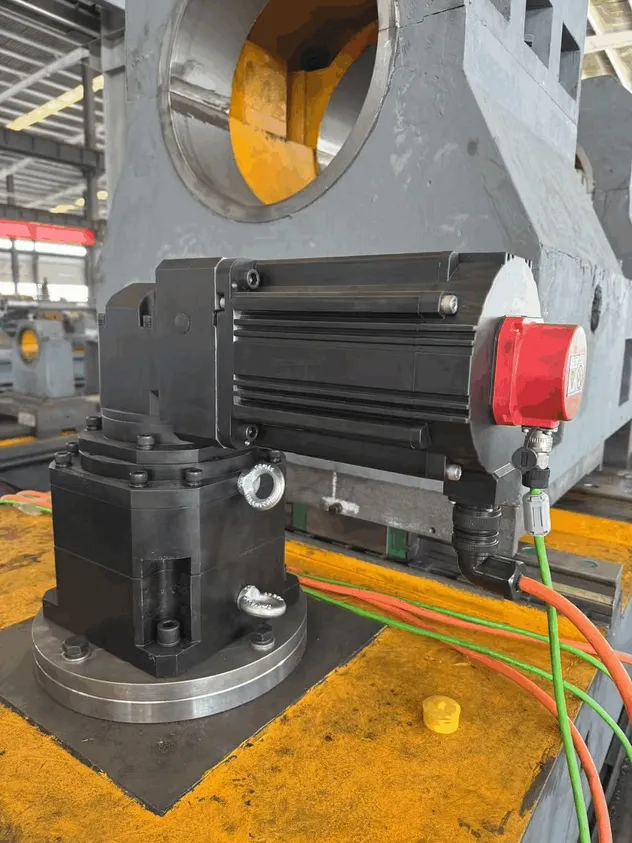

6. Servo Motor: Constant torque performance with high precision regulation.

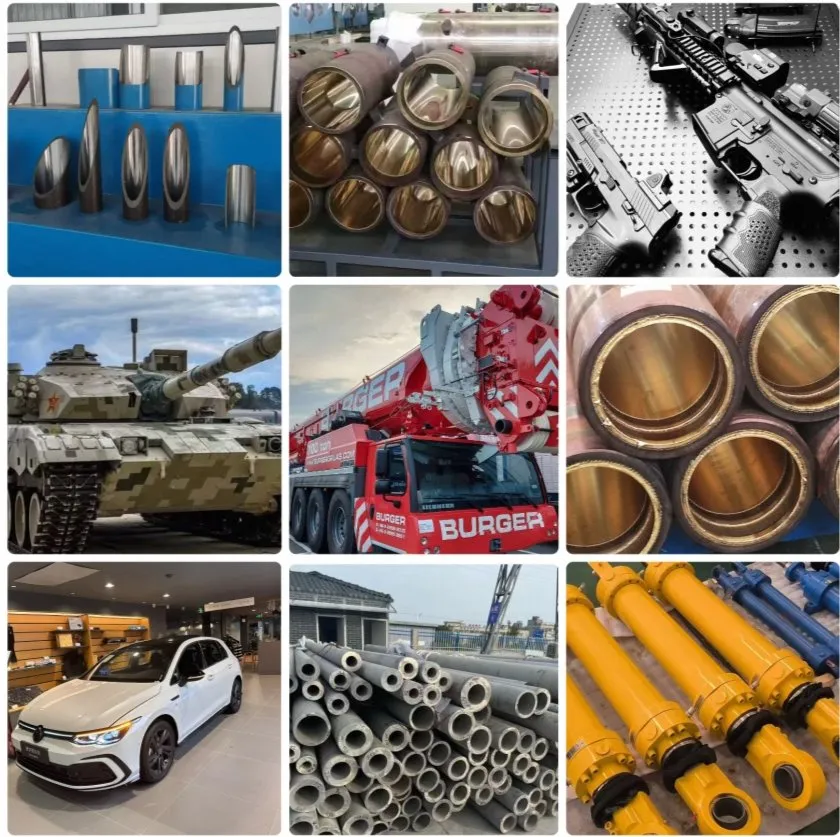

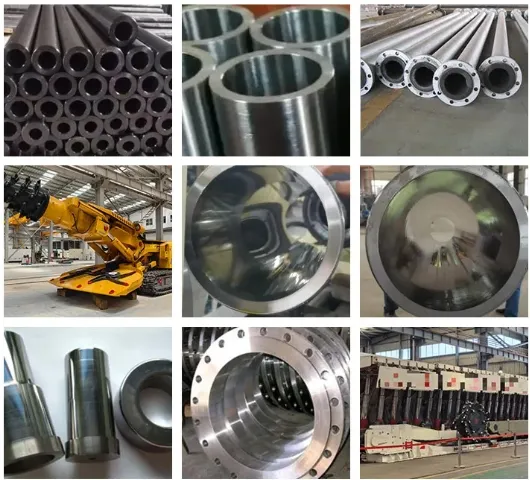

Processed Finished Products
