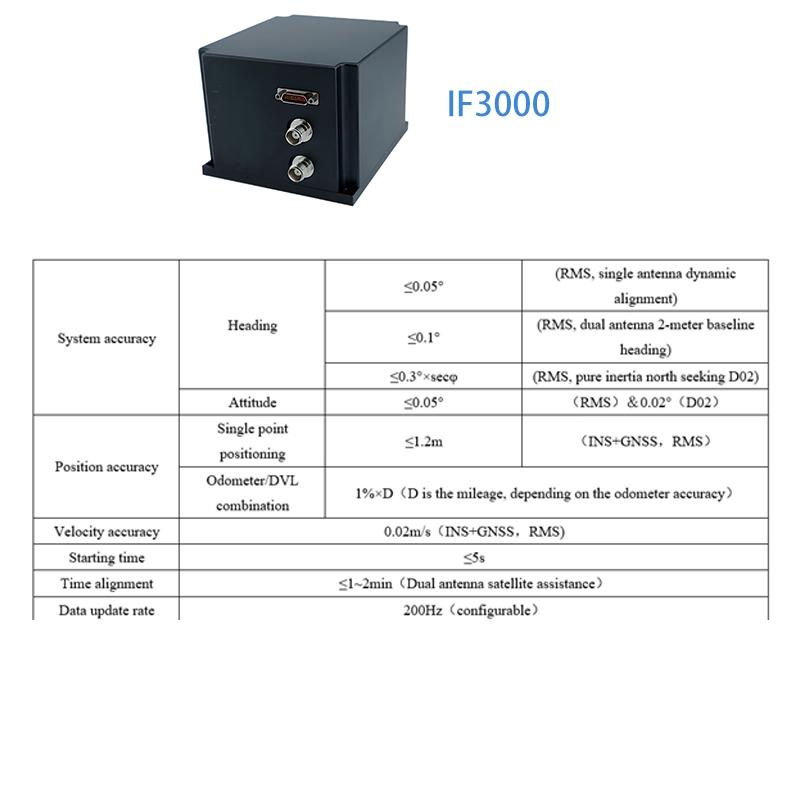

Fiber Optic Inertial Navigation System: IF3000

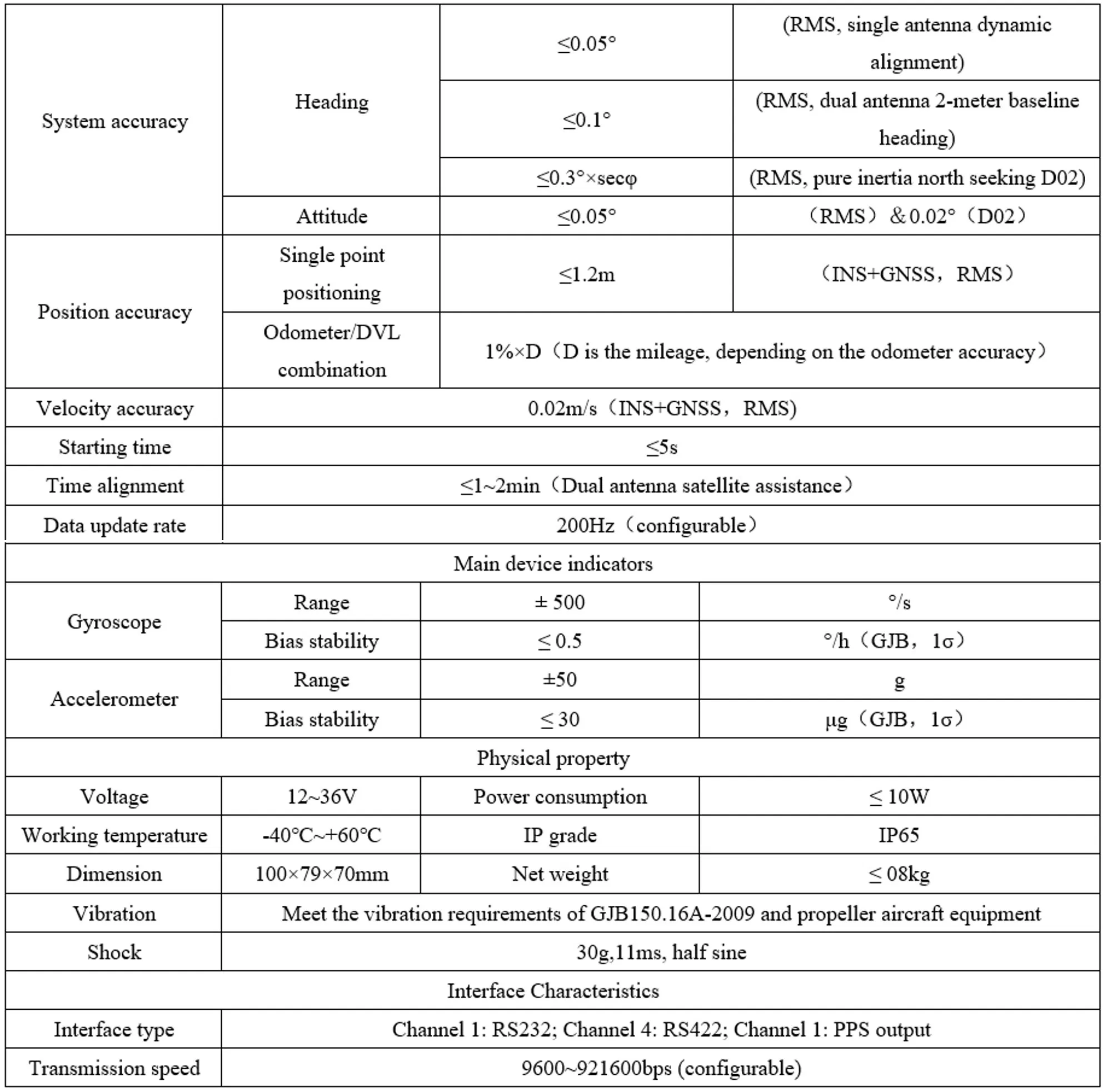

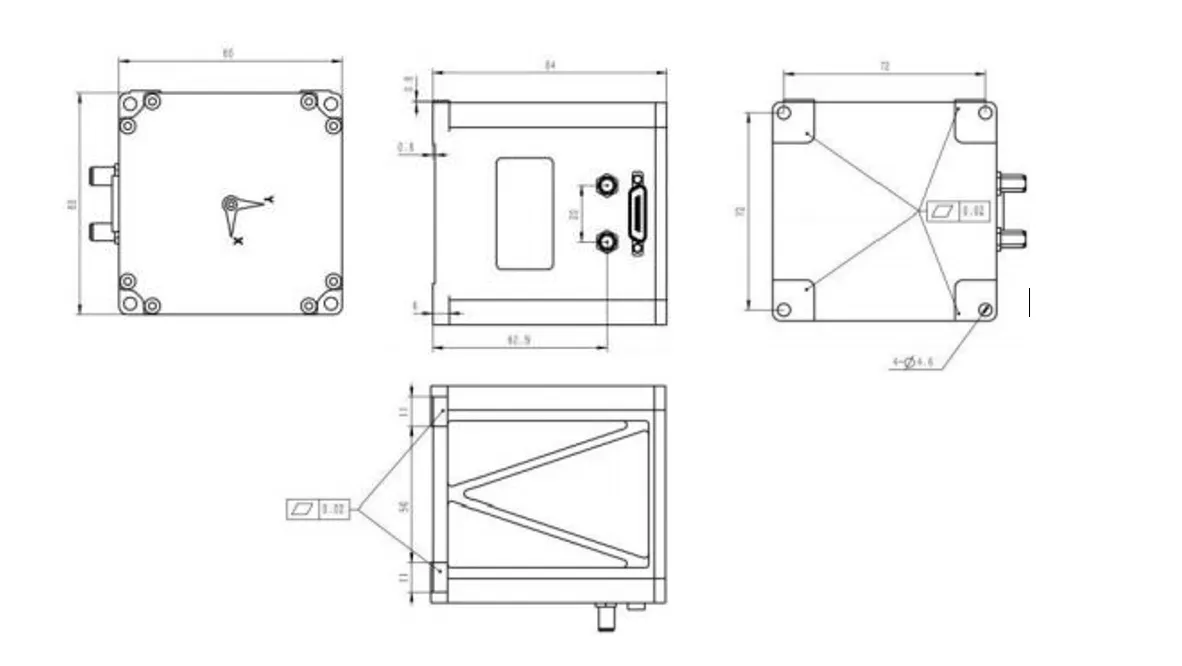

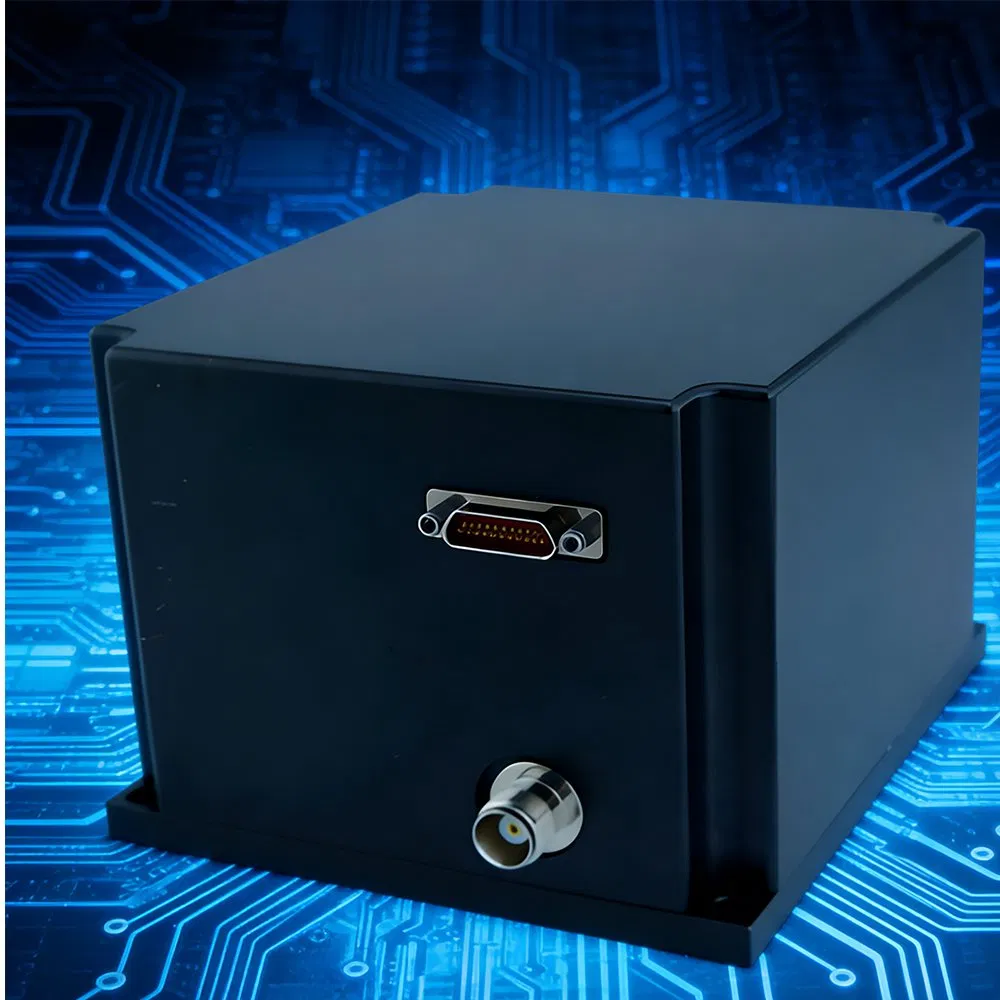

IF3000 is a miniaturized fiber optic inertial navigation system with a compact volume of only 80*80*84mm and a weight of only 0.8kg. The system consists of a three-axis integrated fiber optic gyroscope, quartz accelerometer, and a multi-frequency satellite module for the entire system.
This product is equipped with a high-performance navigation fusion algorithm, which can continuously output stable and reliable navigation information even in the event of satellite loss of lock. The product undergoes rigorous temperature compensation and calibration to ensure system accuracy throughout the entire temperature range.

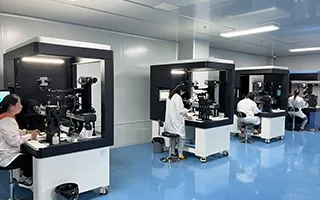

The inertial sensors are known for their high precision, long life, and reliability, widely used in industries such as aerospace, automobiles, robotics, and consumer electronics. Strict production and factory inspection processes ensure that each sensor meets industry requirements. Customized solutions are provided to meet specific needs and help drive technological innovation.

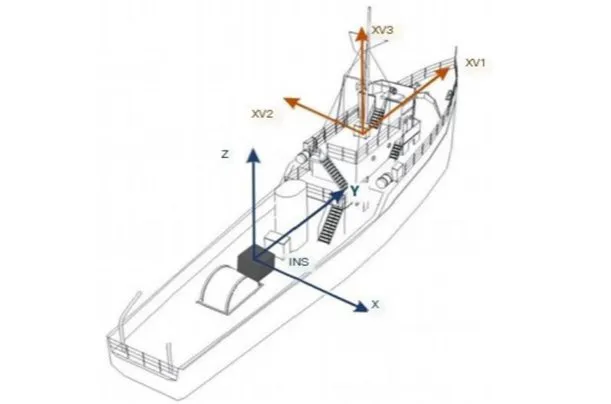

Marine: Install close to the ship's center. Align X-axis to starboard and Y-axis to the bow.

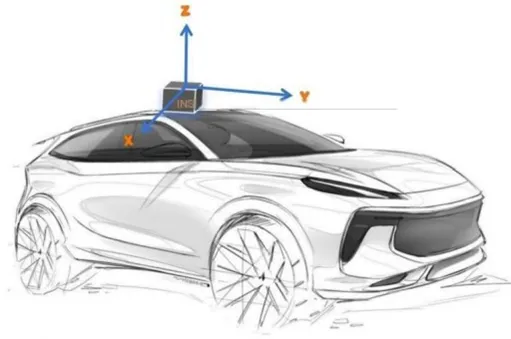

Land: Fixed on the carrier with XYZ coordinate system alignment. Positive Y-axis matches forward direction.

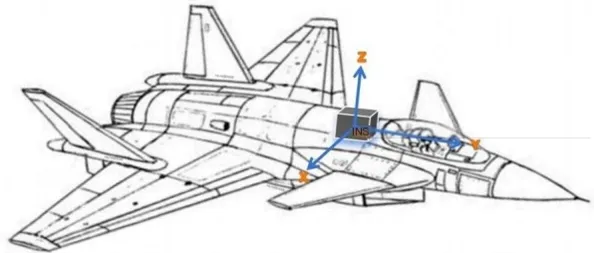

Airborne: Installed at the aircraft center to ensure pitch, roll, and azimuth accuracy.
