Certification:
ISO 9001:2008, ISO 9001:2000, CE
Transport Package:
Plastic Box or Plywood
Origin:
Hunan
HS Code:
8207809000
Capacity:
20,000 PCS/Month

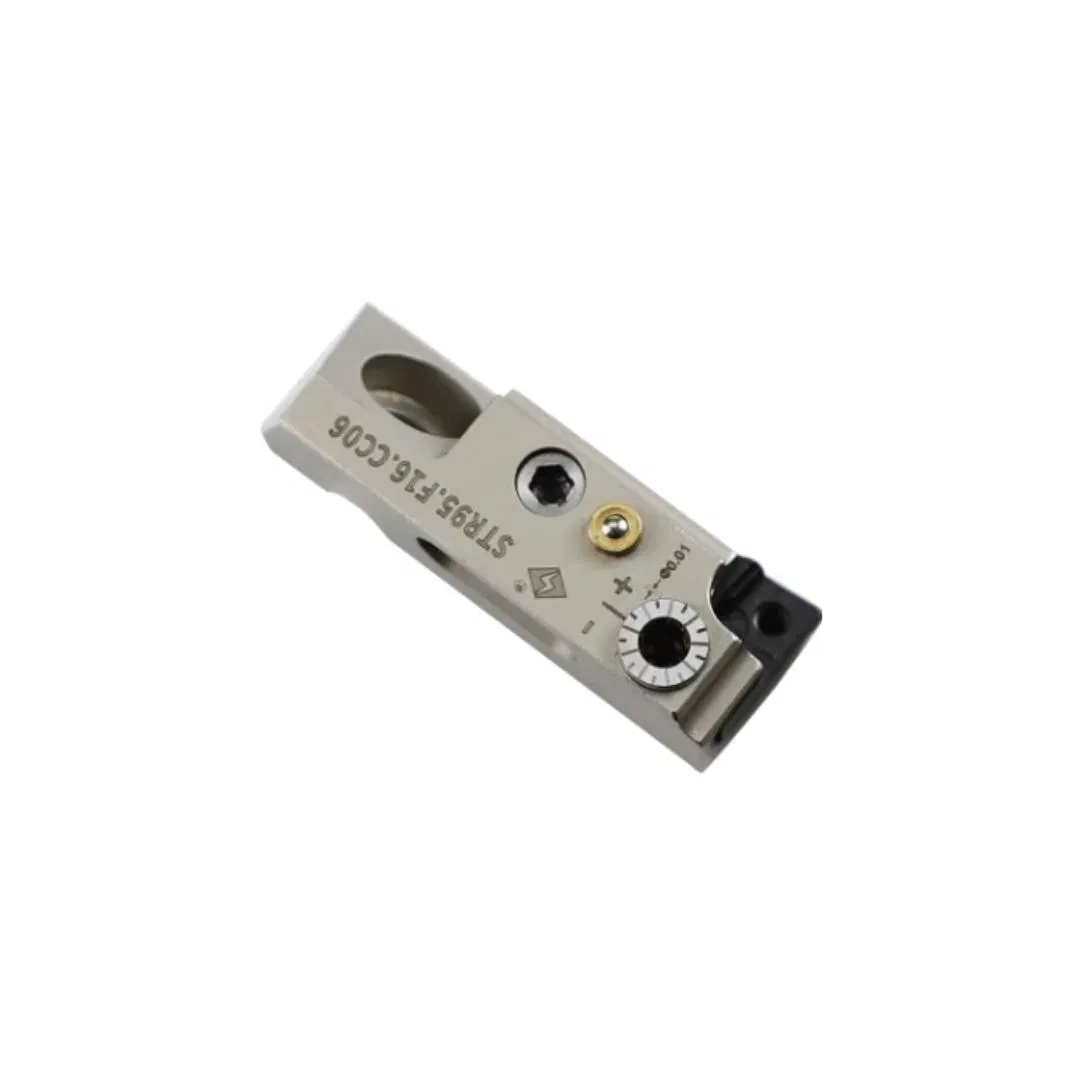

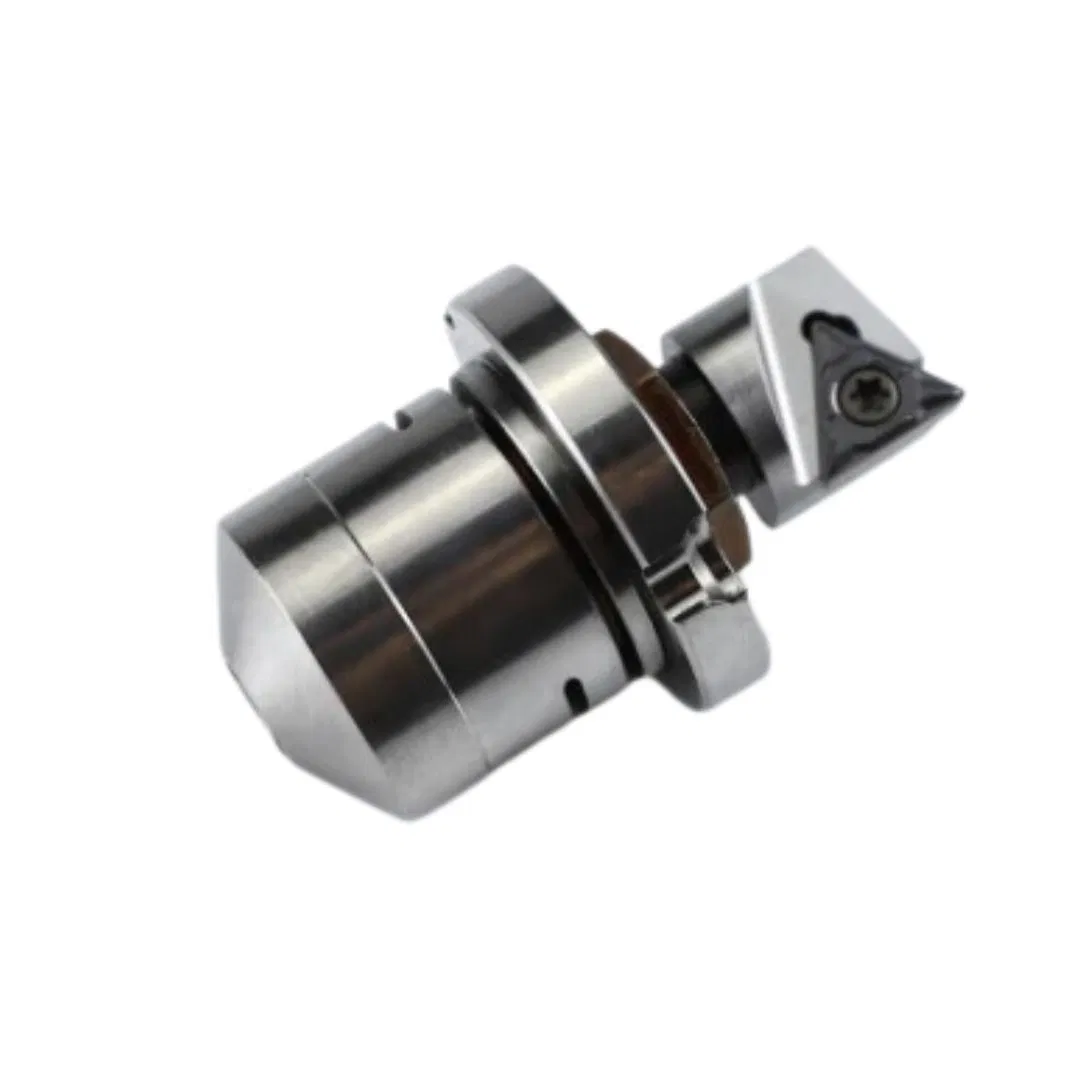

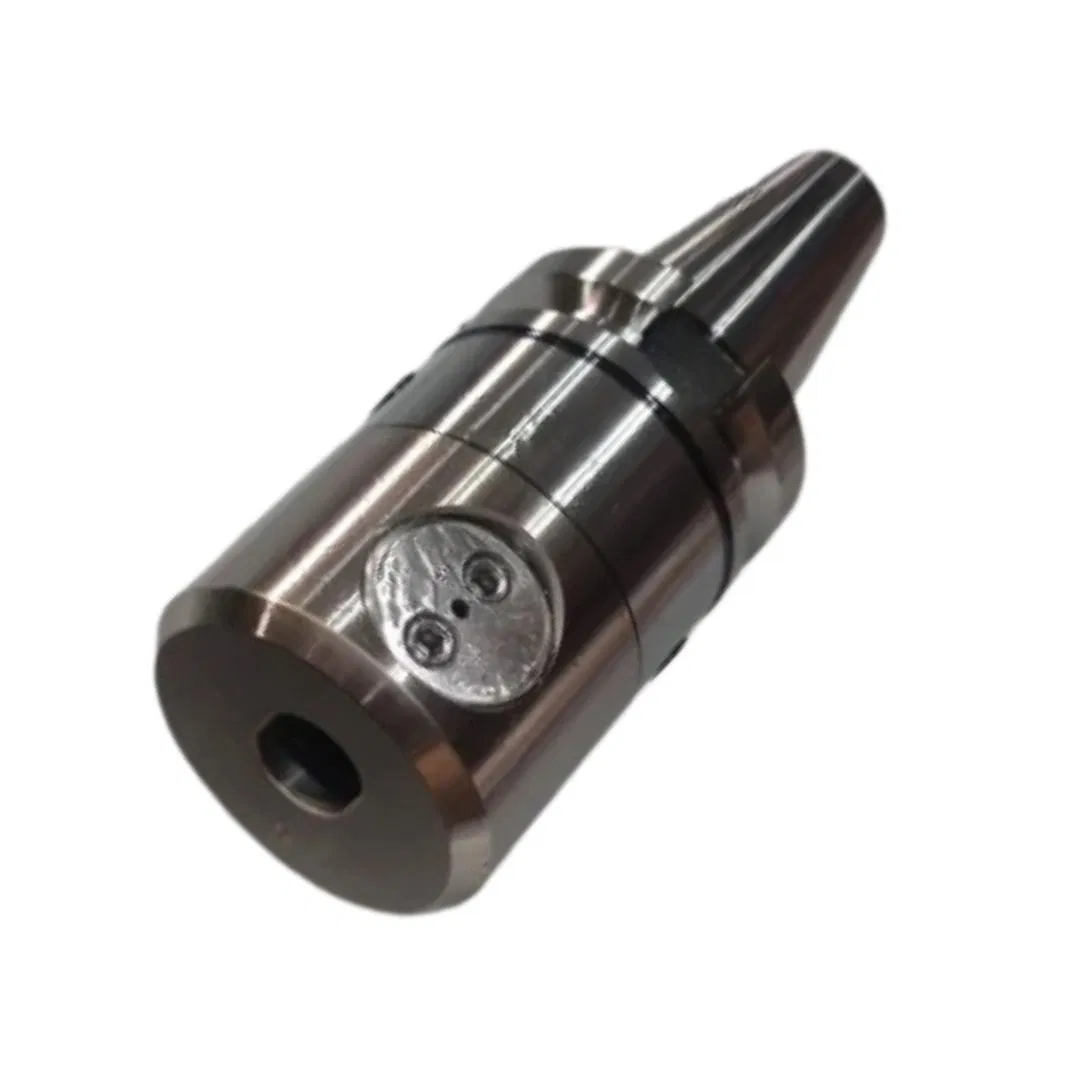

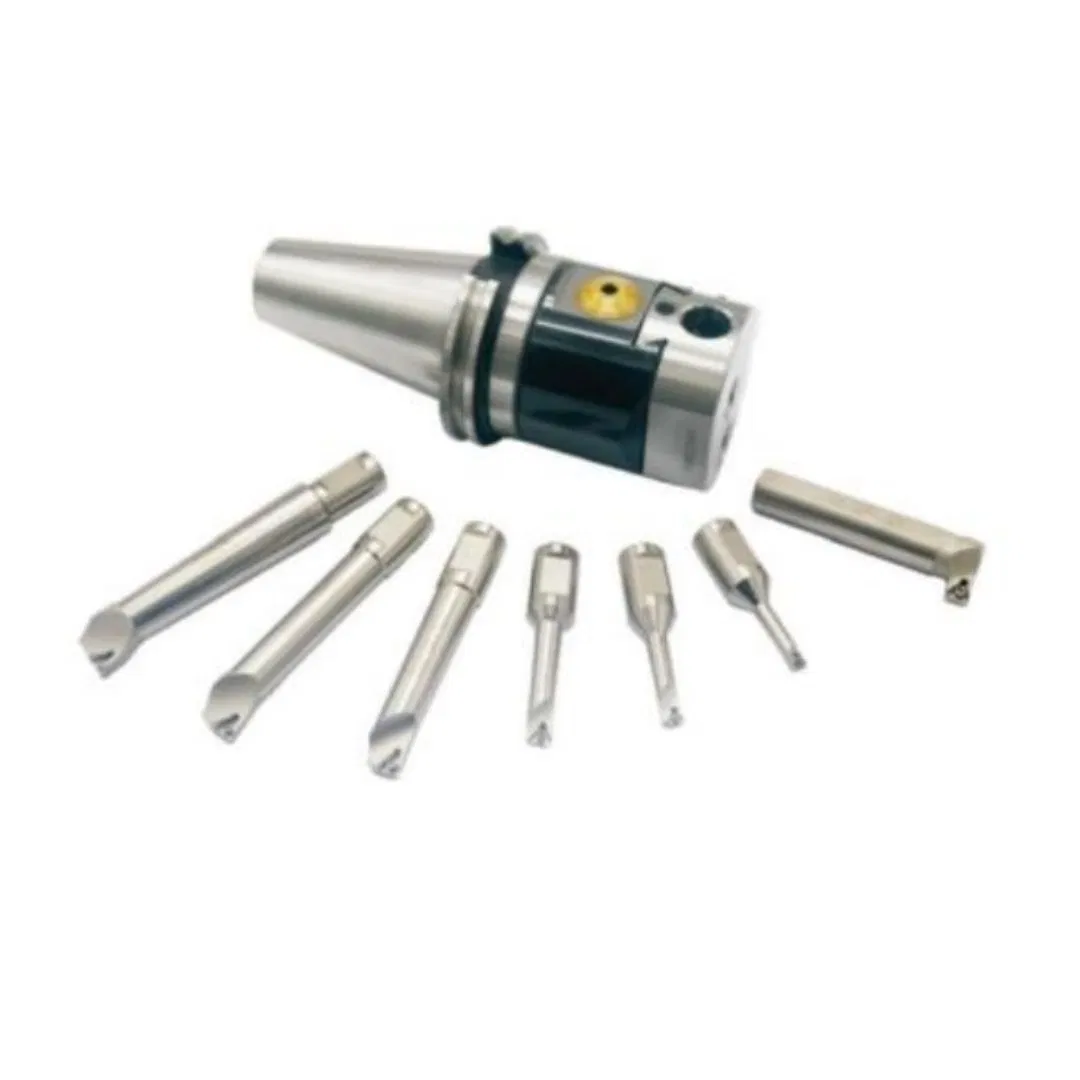

WBJ16 Fine-tune Precision Boring System Parameters
| Model No. |
Boring Range |
Tuning Precision |
Stroke |
Weight (KG) |
| WBJ 16 |
Ø6-Ø51 |
Ø0.01mm Each |
6.0mm |
1.2 |
| Type |
Range φDmm |
D |
L |
Applicable Inserts |
Weight (KG) |
| SBJ1606-24 | 6-9 | 16 | 73 | WBGT0601**L | 0.014 |
| SBJ1608-32 | 8-11 | 16 | 80 | TBGT0601**L | 0.077 |
| SBJ1612-53 | 12-15 | 16 | 98 | TPGHO902**L | 0.095 |
| SBJ1620-83 | 20-26 | 16 | 125 | TPGH1103**L | 0.203 |
| SBJ1640-90 | 40-51 | 16 | 128 | TPGH1103**L | 0.286 |
NBH2084 Fine-tune Precision Boring System (Large Range)
| Model No. |
Boring Range |
Tuning Precision |
Stroke |
Weight (KG) |
| NBH2084 |
Ø8-Ø280 |
Ø0.01mm Each |
28.0mm |
3.0 |
Frequently Asked Questions
Q1: What is the tuning precision of the boring system?
The system offers high-precision adjustment with a tuning accuracy of Ø0.01mm per scale division.
Q2: What materials are the tools made from?
The tools are made from 42CrMo steel, which provides excellent tool life, strength, and rigidity for heavy-duty operations.
Q3: Are these boring systems compatible with CNC machines?
Yes, they are specifically designed for use on both CNC machining centers and general production machinery.
Q4: Where are the internal spare parts sourced from?
Critical spare parts, including the grade 12.9 screws, are imported from Taiwan, Korea, and Switzerland to ensure maximum durability.
Q5: What is the maximum boring range available?
Depending on the model, the range spans from Ø6mm (WBJ series) up to Ø280mm (NBH2084 series).
Q6: How is the heat treatment handled?
We cooperate with NIHONG-TECHNO for professional heat treatment to enhance wear resistance and structural integrity.
