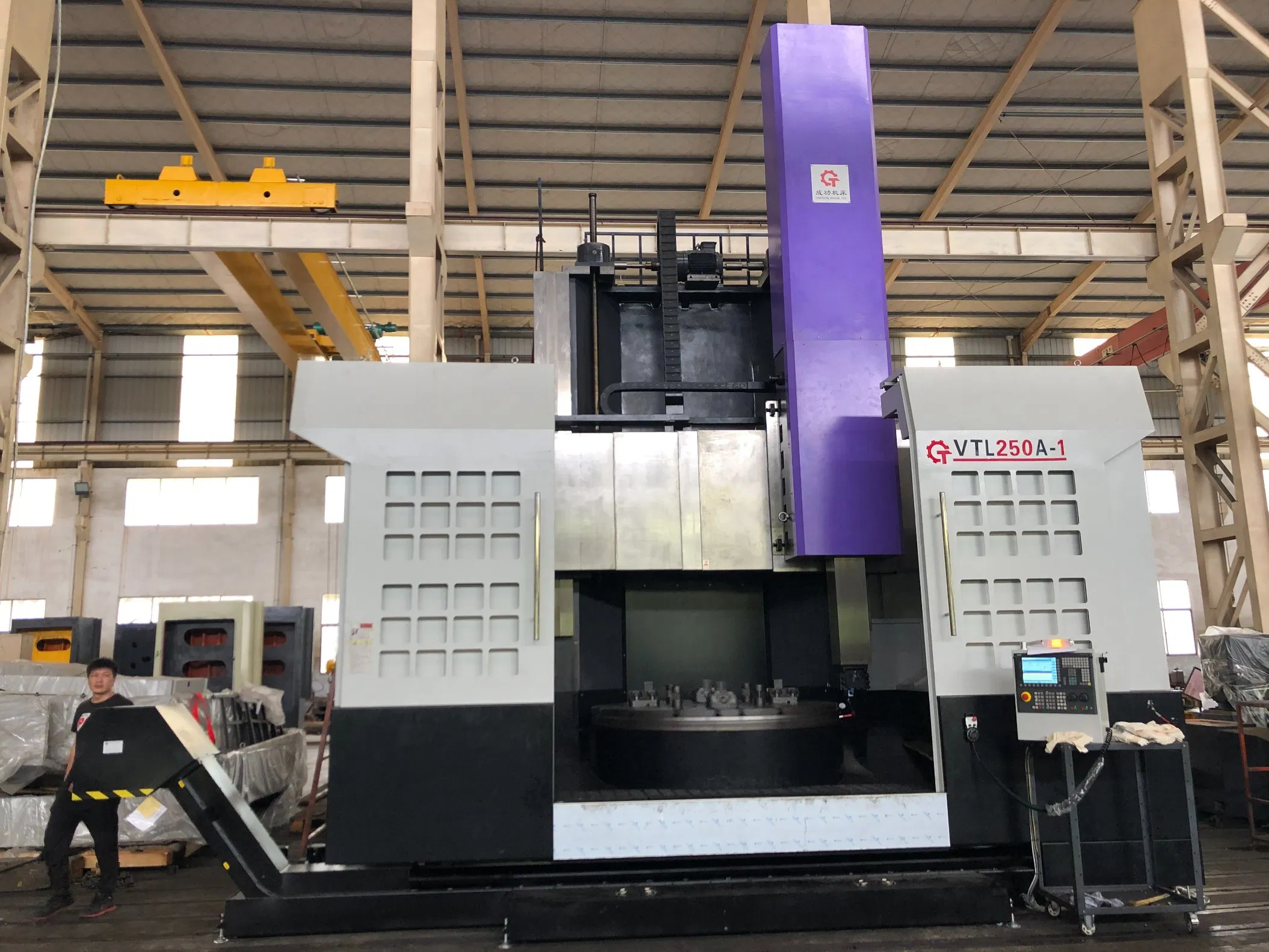

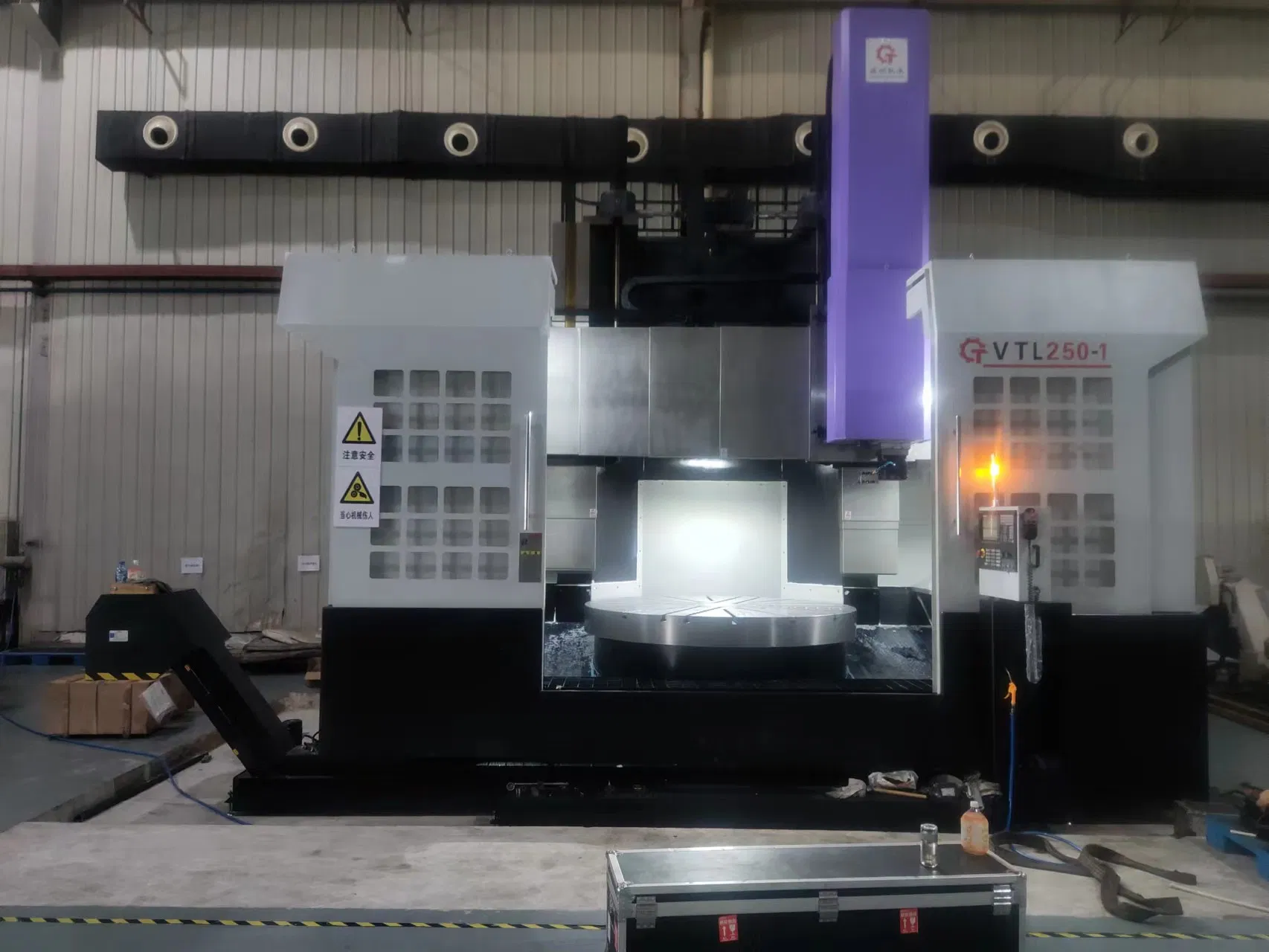

Precision Horizontal Boring Milling Machine and Vertical Lathe System

Customization: Available
After-sales Service: Good After-Service
Warranty: 1 Year

Product Description

ℹ️

Basic Information

Model NO.
VTL250
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
CNC
Control Method
CNC Control
Processing Precision
0.01~0.02(mm)
Certification
CE, ISO 9001
CNC Device Model
Siemens 828d
Specification
7900*5300*7265mm
Origin
China
⚙️

Product Description

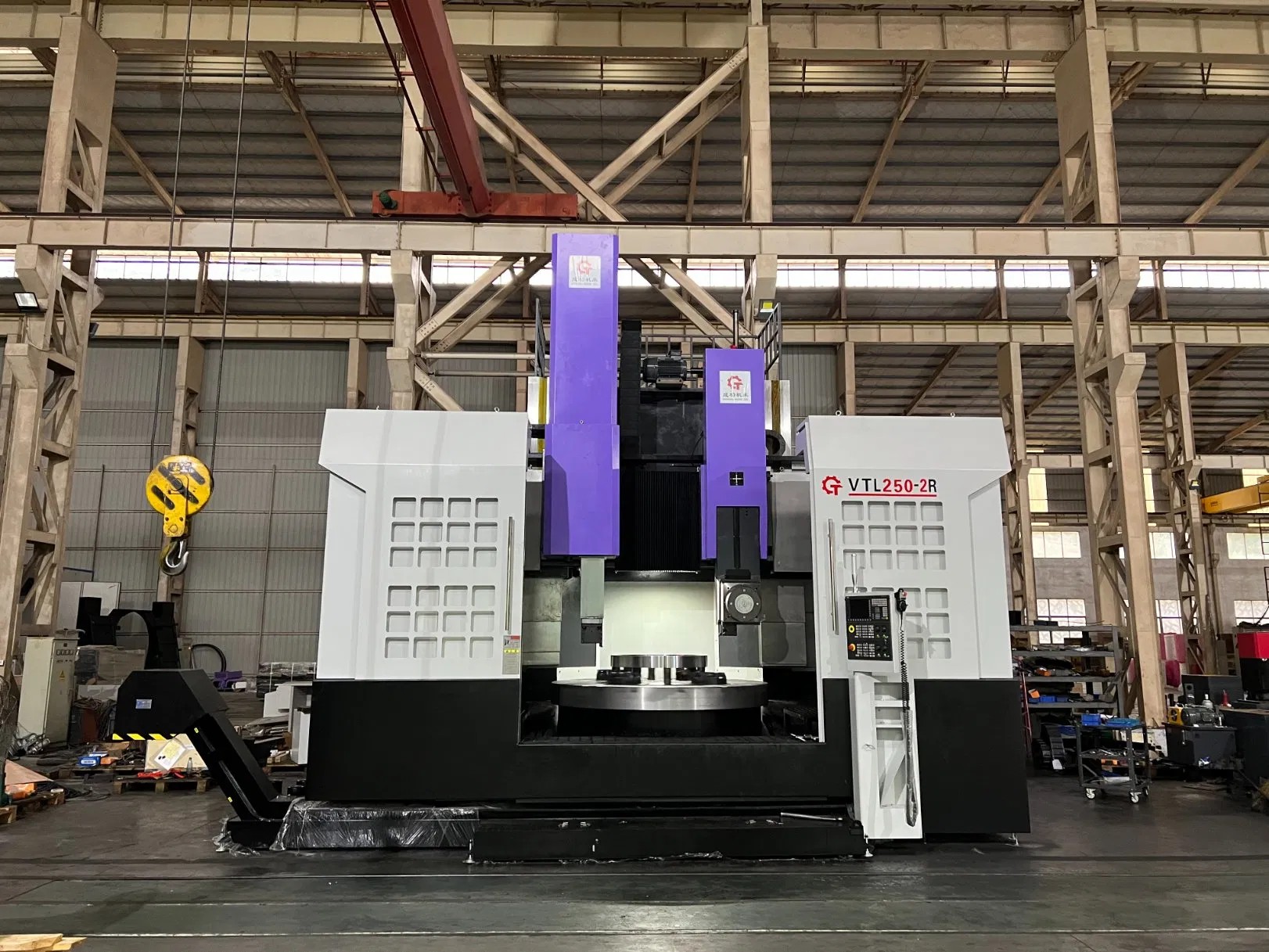

Precision Horizontal Boring Milling Machine

The VTL CNC Vertical Lathe Machine is a pioneering design that caters to ever-evolving market demands, addressing critical processing challenges. This innovative moving beam, single-column CNC vertical lathe boasts a fresh structural design, groundbreaking technology research, and meticulous machine debugging.

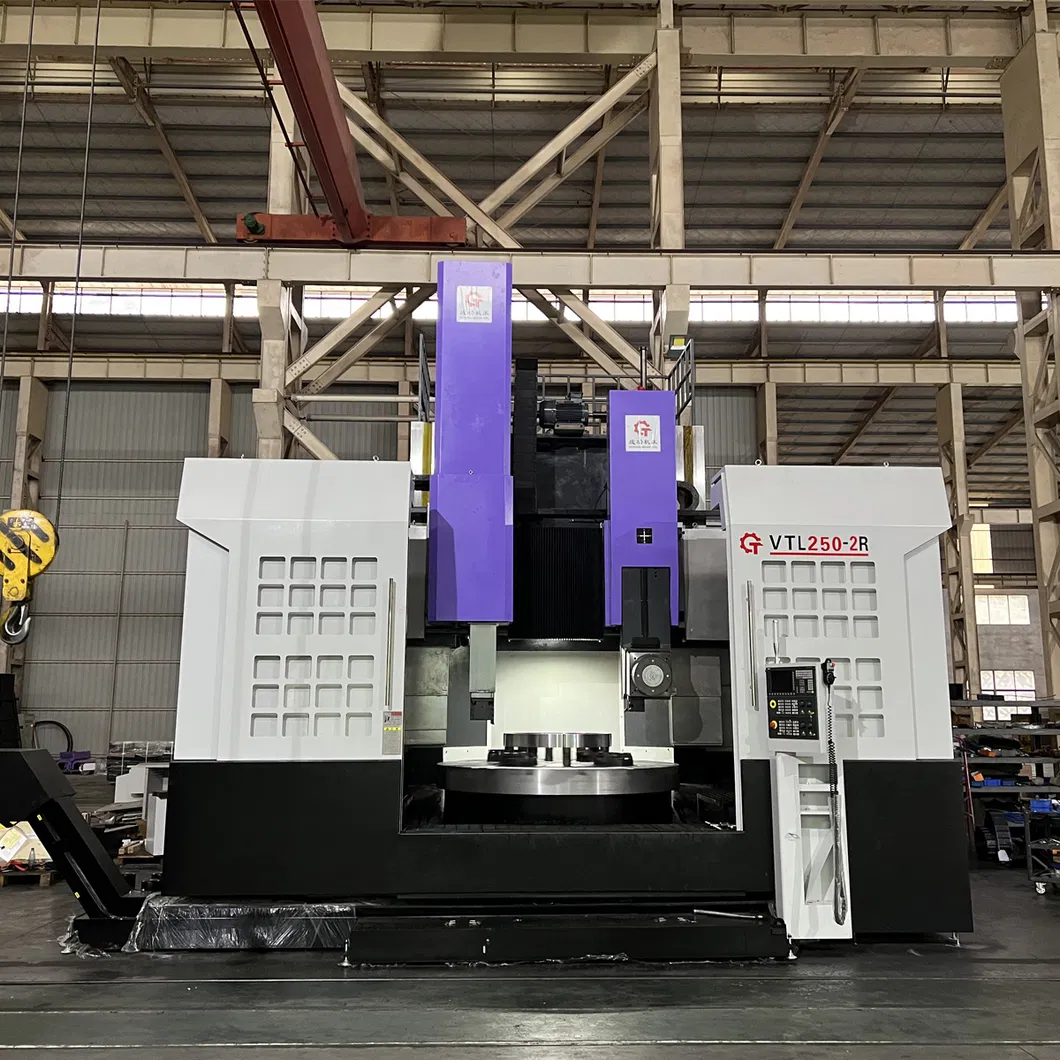

VTL System View

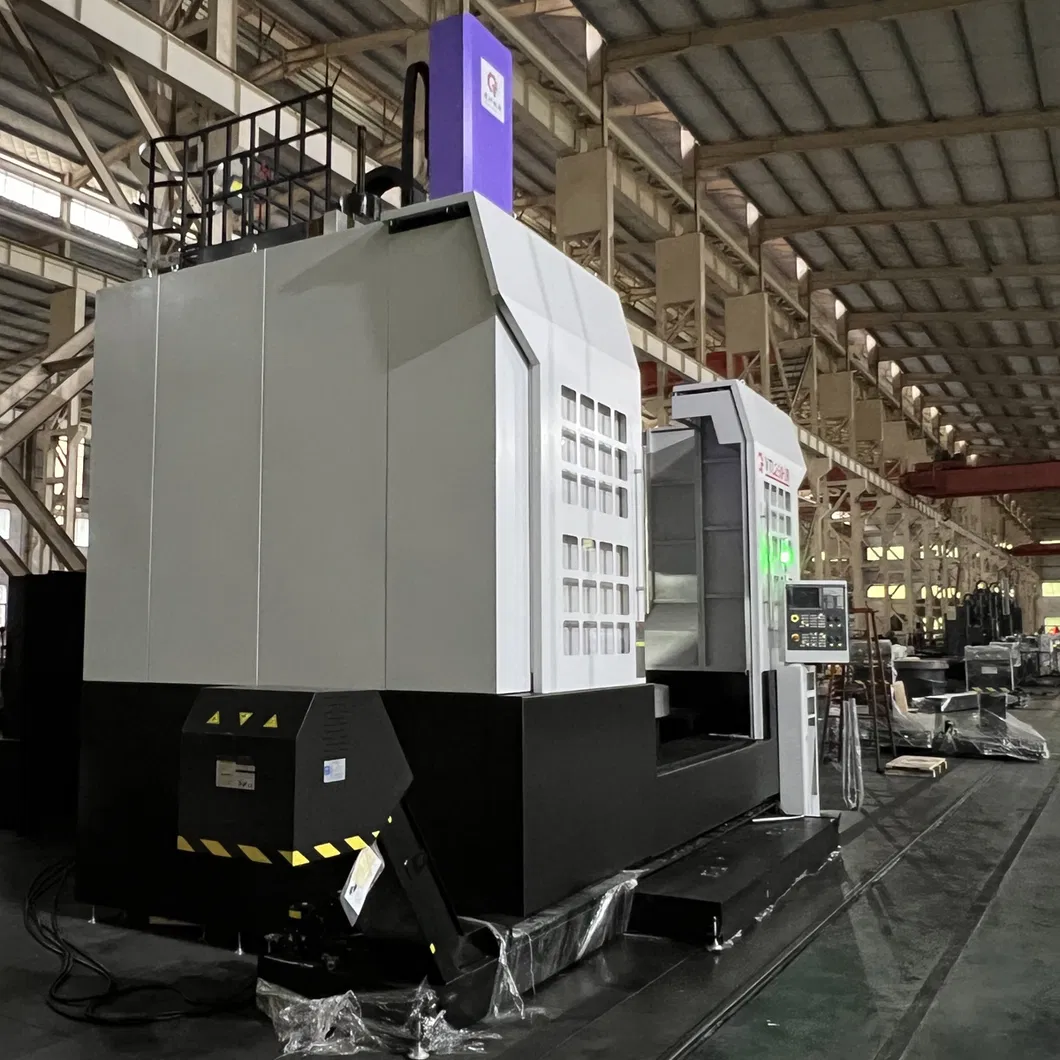

CNC Component

Incorporating advanced technology and precision engineering, we employ reliable imported fittings and superior processing and testing methodologies. This results in machines with exemplary machining accuracy, incredible rigidity, and robust reliability. Our designs feature intuitive layouts, effortless operation, and high degrees of automation.

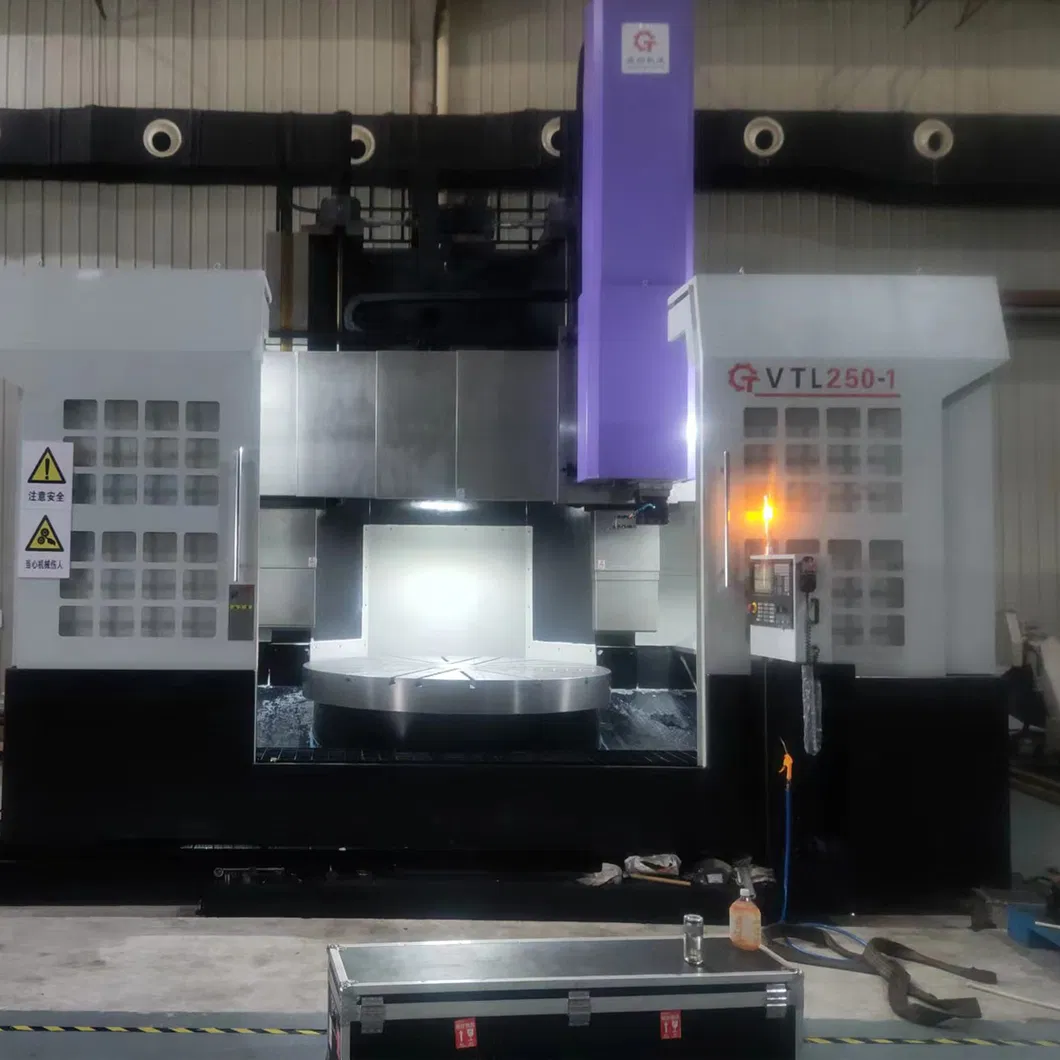

Precision Engineering

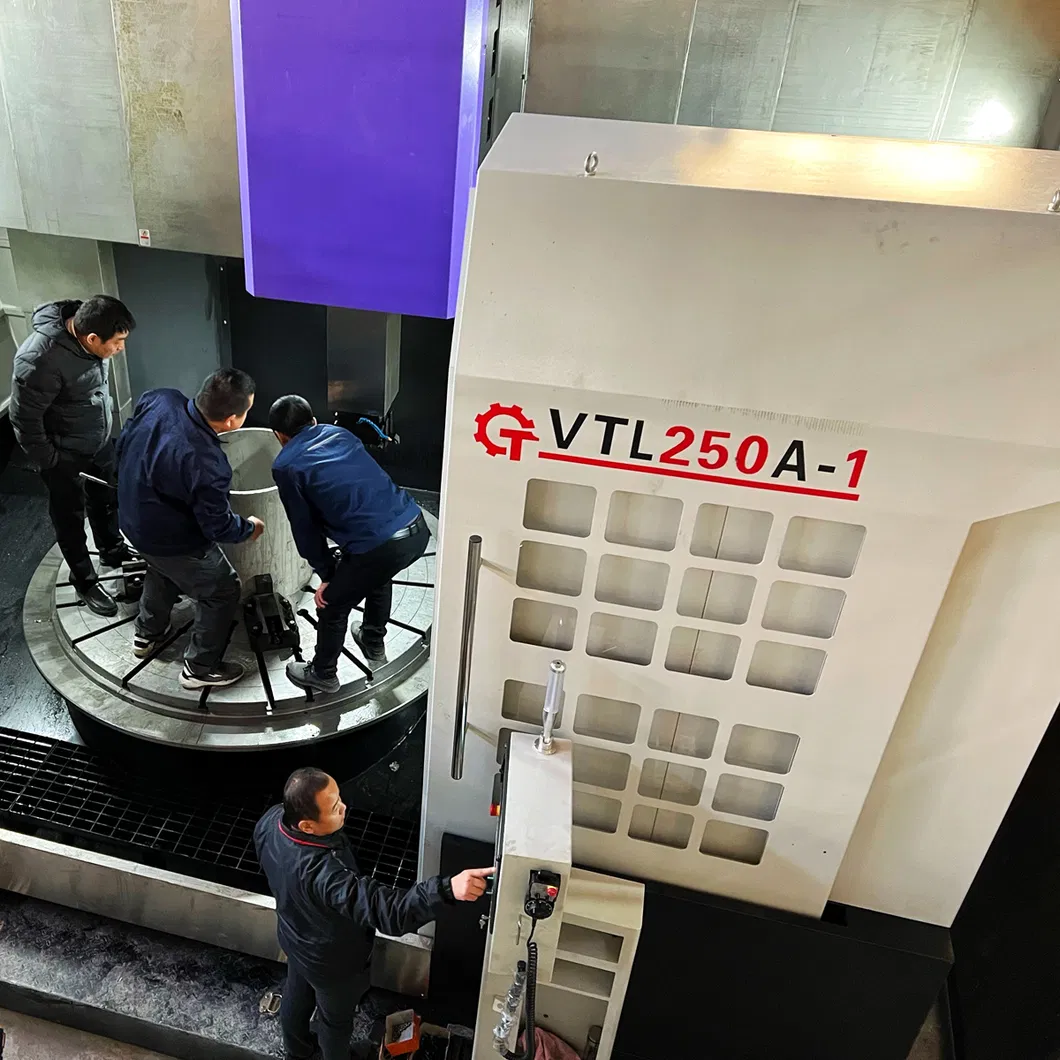

Vertical Lathe Detail

The machine harmoniously accommodates organic tooling devices, enabling automated tool changes and streamlined automated processing. This enhances machining quality while significantly reducing operational costs. Ideally suited for sectors like power generation, shipbuilding, metallurgy, and mining, this machine excels in processing large-scale components with unparalleled efficiency.

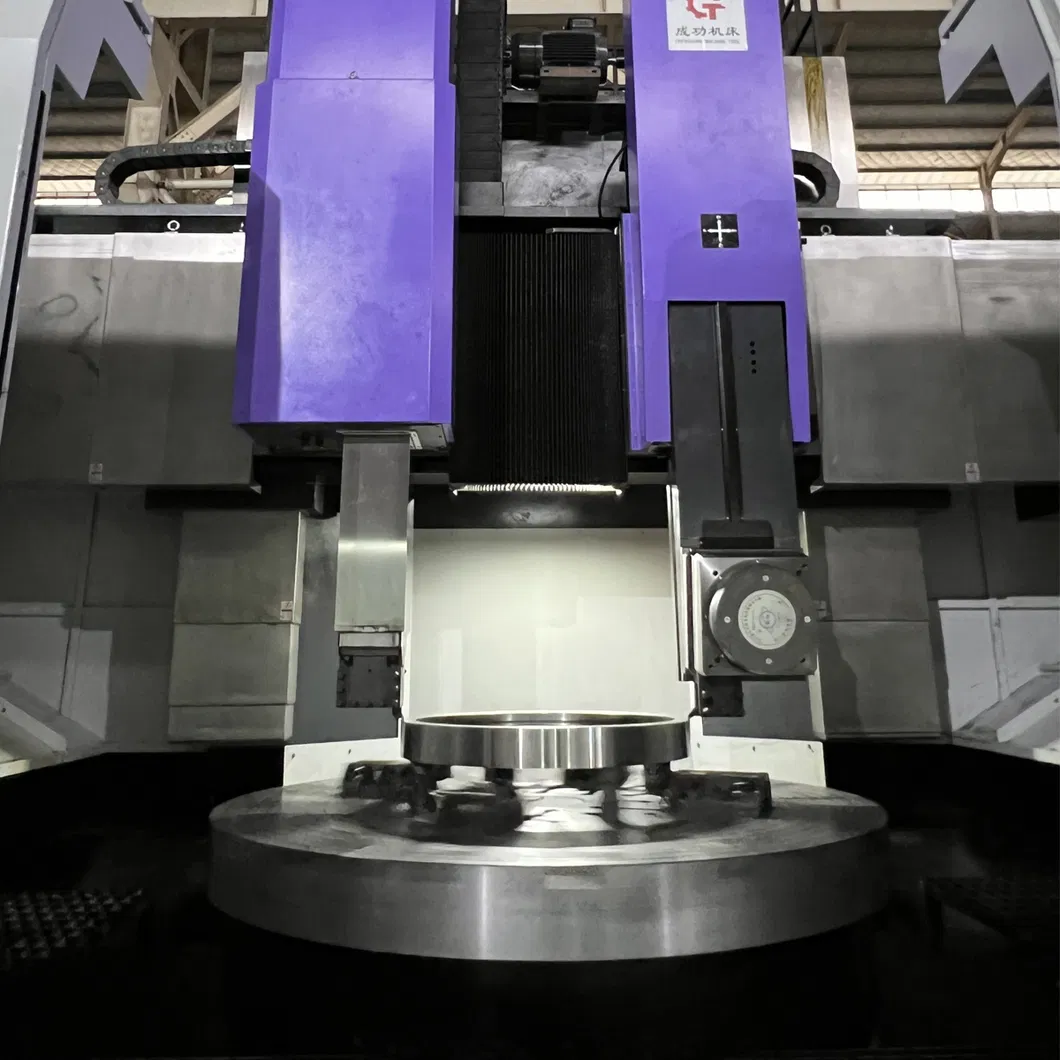

Heavy Component Processing
📊

Technical Specifications

Specification Unit VTL125/125A VTL160/160A VTL200/200A VTL250/250A
Processing capacity Work table diameter mm 1100 1400 1800 2200
Max.swing diameter mm 1350 1700 2100 2600
Max.turning diameter mm 1250 1600 2000 2500
Max.weight of workpiece kg 4000 8000 10000 16000
Accuracy XZ position accuracy mm 0.018/0.02 0.02/0.02 0.02/0.02 0.02/0.02
XZ repeat accuracy mm 0.008/0.01 0.008/0.01 0.008/0.01 0.01/0.01
System CNC device model - SIEMENS 828D SIEMENS 828D SIEMENS 828D SIEMENS 828D
🏢

Company Capability

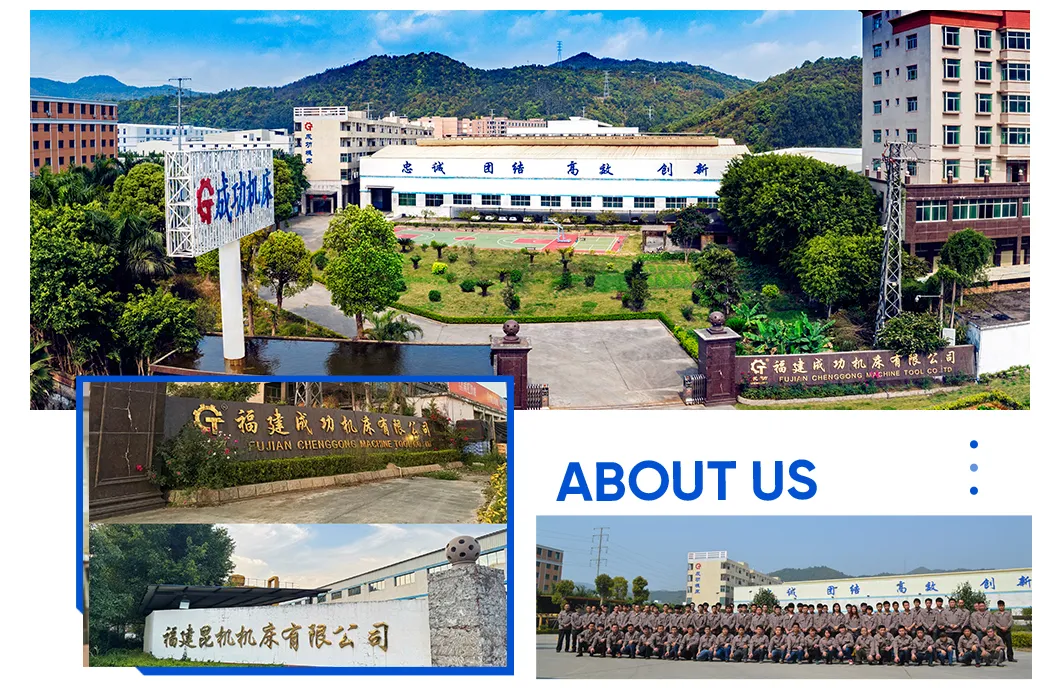

Factory Overview

Founded in 1995, the enterprise steadfastly adheres to principles of "people-oriented, quality assurance, and integrity management". Our expansive industrial park spans 250 acres, boasting an annual casting production exceeding 30,000 tons. We specialize in processing large-scale nodular and grey cast iron, weighing up to 50 tons in a single piece.

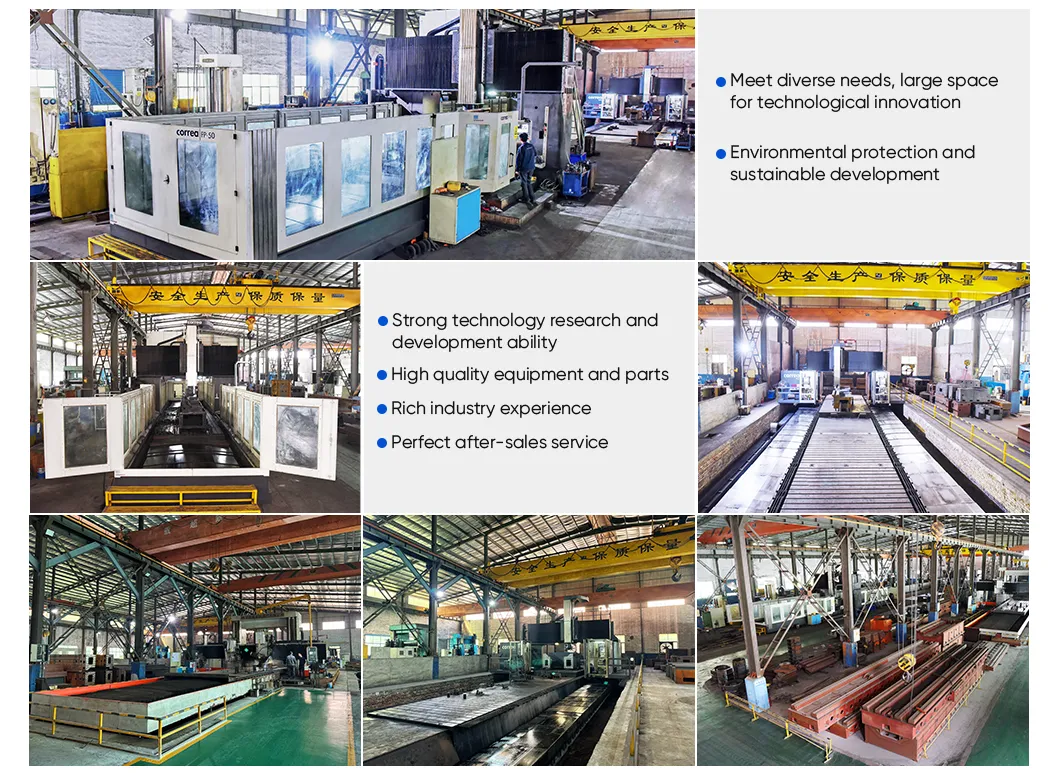

Processing Equipment
Large Scale Machinery

Equipped with heavy machinery including CNC gantry milling machines, large gear hobbing machines, and imported CNC guideway grinders, our facility is a hub of advanced manufacturing. Cutting-edge detection methods, such as CMM and Laser Interferometers, empower us to create high-end machine tools.

Advantage 1
Advantage 2
Exhibition
🛠️

Service System

SALE SERVICE
Sale Service

We diligently issue production instructions and coordinate manufacturing processes in accordance with specific requirements, guaranteeing timely delivery.

AFTER-SALES SERVICE
After Sales

We provide on-site training to ensure users can safely operate the equipment. During the warranty period, we take full responsibility for quality-related replacements.

📦

Packaging & Shipping

Packaging and Shipping

Frequently Asked Questions

What is the maximum turning diameter for the VTL250 series?
The VTL250 model features a maximum turning diameter of 2500mm and a work table diameter of 2200mm.
Which CNC control system is used in these vertical lathes?
Our VTL series is equipped with the SIEMENS 828D CNC control system for high precision and reliable performance.
What industries benefit most from using the VTL CNC Vertical Lathe?
These machines are ideal for heavy-duty sectors such as power generation, shipbuilding, metallurgy, and mining, where large-scale component processing is required.
What is the processing accuracy of this equipment?
The machine offers a processing precision of 0.01~0.02mm and meets IT6 accuracy standards.
Does the machine support automatic tool changes?
Yes, the design incorporates organic tooling devices that enable automated tool changes (Dota4/ATC 12) for streamlined processing and reduced operational costs.
What certifications do your machine tools carry?
Our equipment is certified with CE and ISO 9001 standards, ensuring compliance with international quality and safety requirements.
