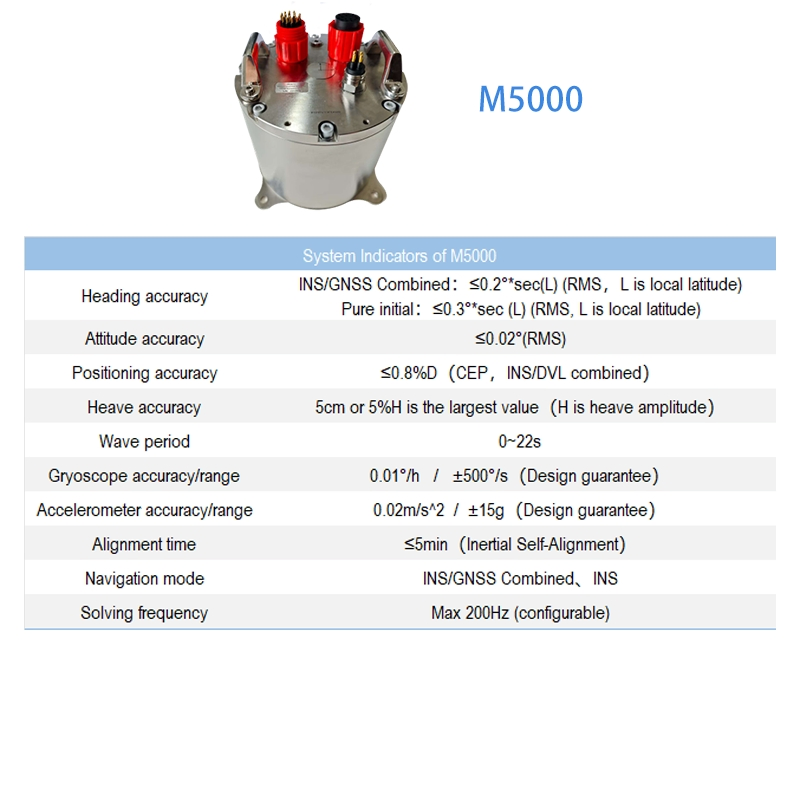

| System Indicators of M5000 | |
|---|---|
| Heading accuracy | INS/GNSS Combined: ≤0.2°*sec(L); Pure initial: ≤0.3°*sec (L) (RMS) |
| Attitude accuracy | ≤0.02°(RMS) |
| Positioning accuracy | ≤0.8%D(CEP, INS/DVL combined) |
| Heave accuracy | 5cm or 5%H (H is heave amplitude) |
| Wave period | 0~22s |
| Gyroscope accuracy/range | 0.01°/h / ±500°/s |
| Accelerometer accuracy/range | 0.02m/s^2 / ±15g |
| Alignment time | ≤5min (Inertial Self-Alignment) |
| Navigation mode | INS/GNSS Combined / INS |

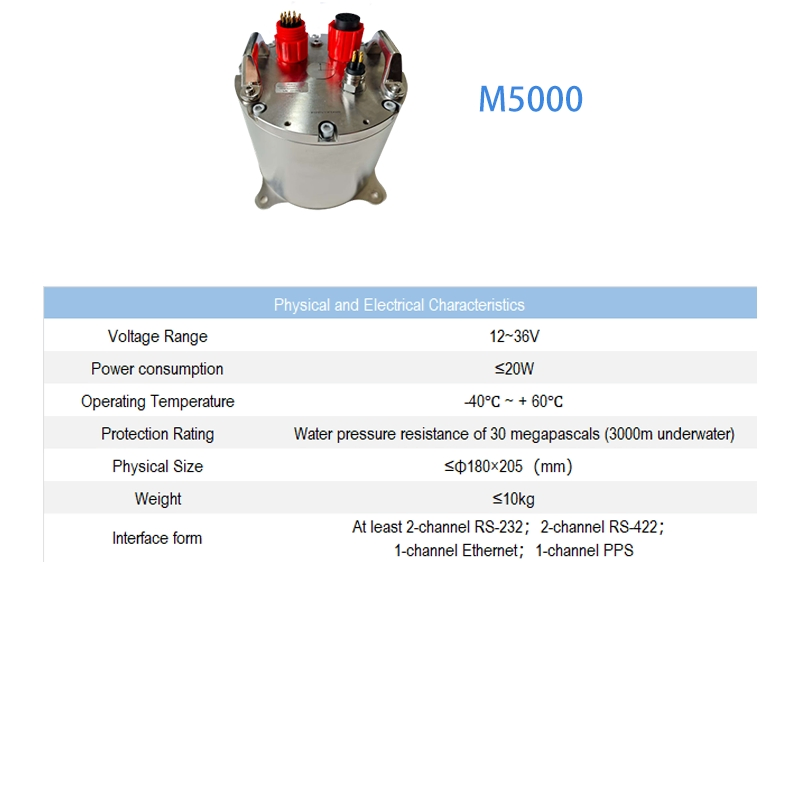

| Voltage Range | 12~36V |
| Power consumption | ≤20W |
| Operating Temperature | -40℃ ~ + 60℃ |
| Protection Rating | Water pressure resistance of 30 MPa (3000m underwater) |
| Physical Size | ≤Φ180×205(mm) |
| Weight | ≤10kg |
| Interface form | RS-232, RS-422, Ethernet, PPS |
Our inertial sensors are known for their high precision, long life and reliability, and are widely used in a variety of industries such as aerospace, automobiles, robotics, and consumer electronics. Strict production and factory inspection processes ensure that each sensor can meet the high requirements of the industry. We provide customized solutions to meet customer-specific needs and help technological innovation in various industries.
