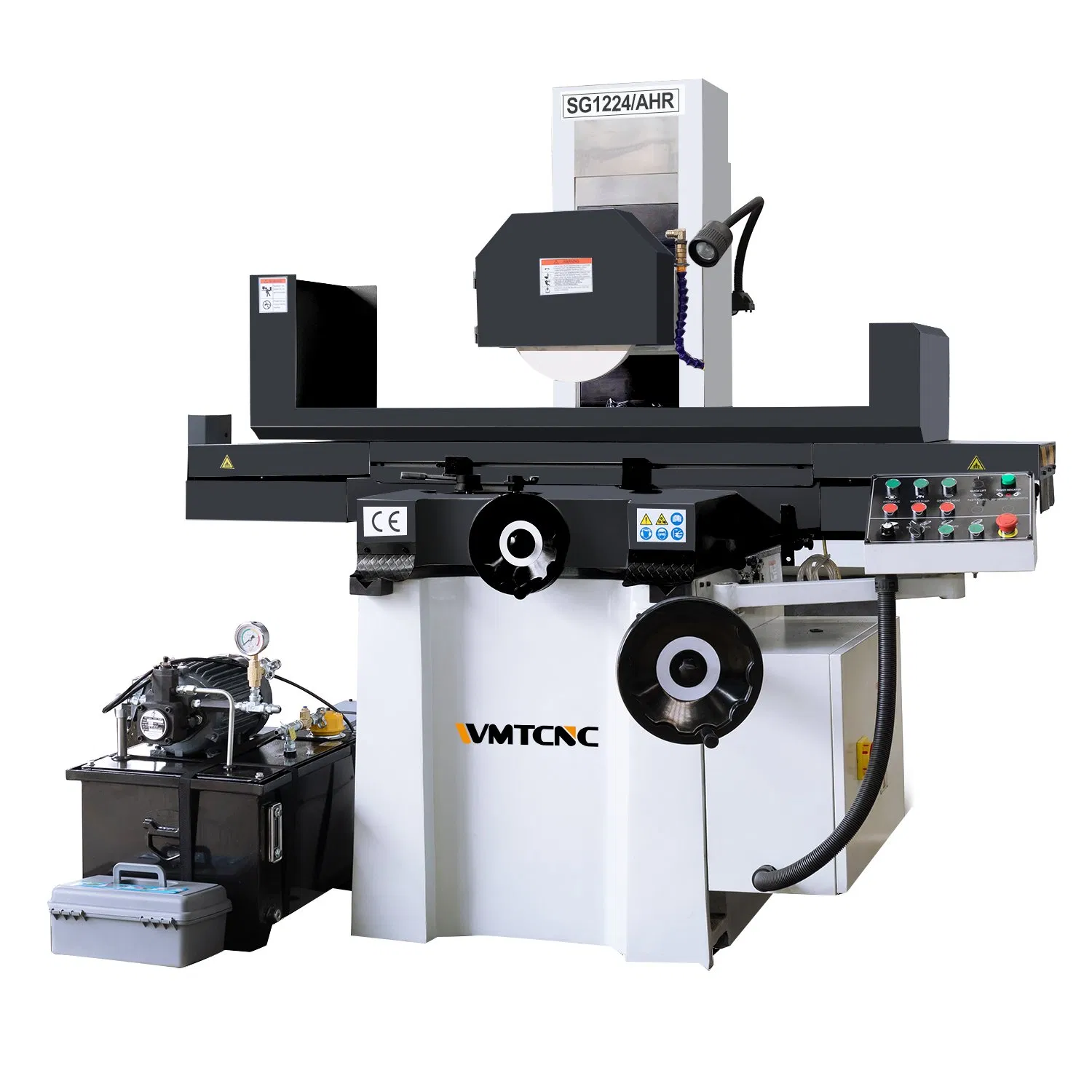

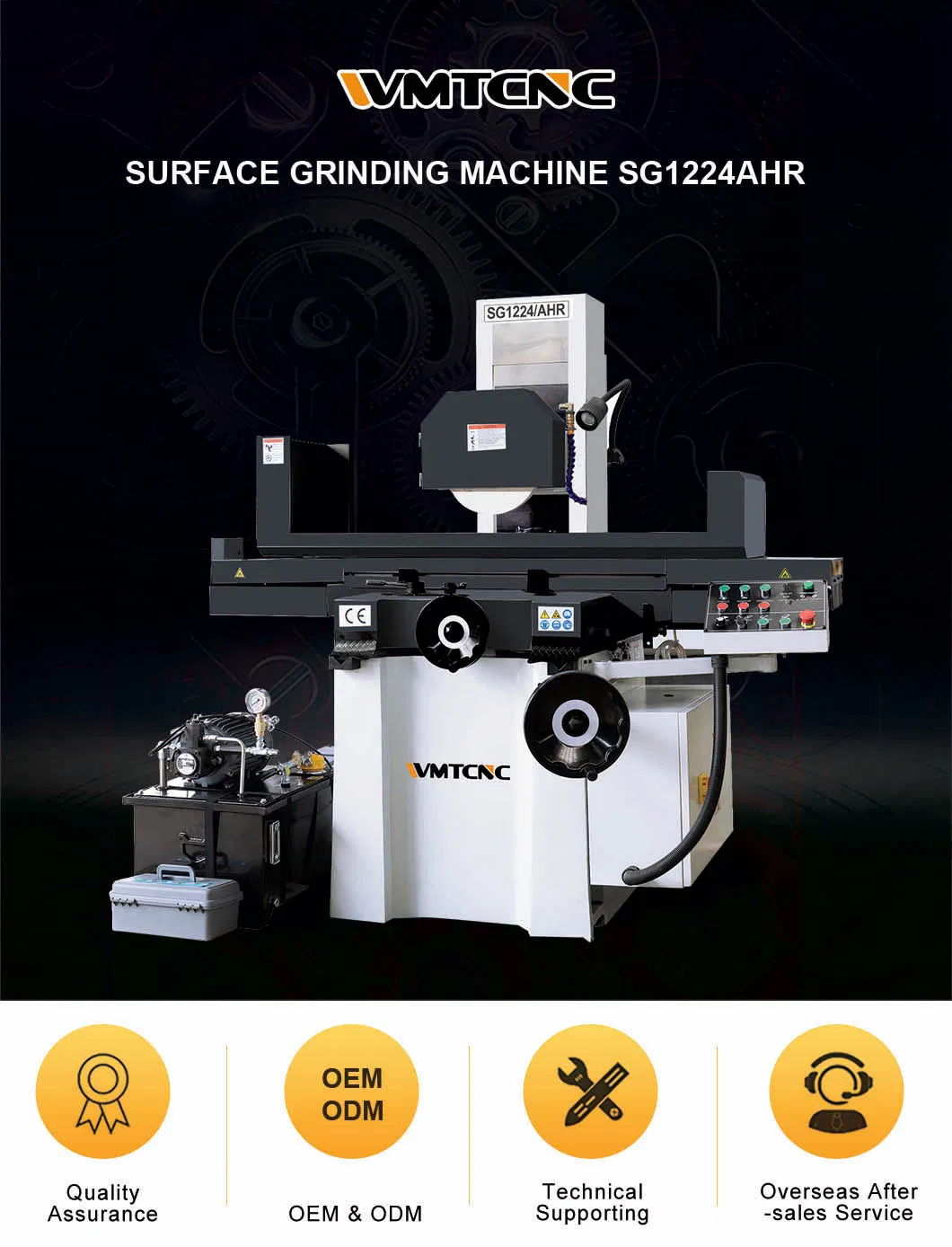

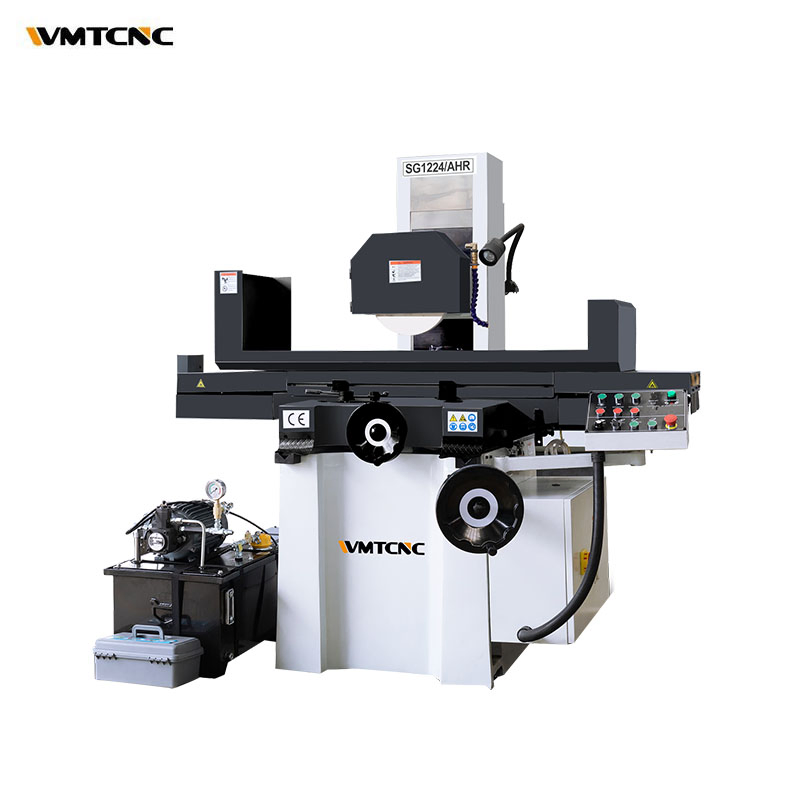

Precision surface grinding machine SG1224AHR surface grinding machines

1 / 2

Precision surface grinding machine SG1224AHR surface grinding machines

Customization:	Available
After-sales Service:	Video technical support, Online support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

SG1224AHR

Type

Surface Grinding Machine

Processing Object

Curve

Abrasives

Grinding Wheel

Controlling Mode

Artificial

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Table size(L*W)

600*300 mm

Wheel size

350x30x127 mm

Spindle motor

4 kw

Product Description

Surface Grinding Machine Main Features:

AH Series:
X axis (longitudinal) electric; Y axis (cross) hydraulic; Z axis manual.

AHR Series:
X axis (longitudinal) electric; Y axis (cross) hydraulic; Z axis lifting motor rapid up and down.

AHD Series:
X axis (longitudinal) electric; Y axis (cross) hydraulic; Z axis PLC control, servo drive.

Specification	SG1224AH/AHR/AHD	SG1230AH/AHR/AHD	SG4080AH/AHR/AHD
Table size(L×W)	600×300 mm	700×300 mm	800x400 mm
Max. Workpiece (L×W×H)	600×300×270 mm	680×300×270 mm	800x400x350 mm
Max. Grinding length	630 mm	680 mm	830 mm
Max. Grinding width	320 mm	300 mm	420 mm
Distance table to spindle	490 mm	490 mm	480 mm
Maximum work load	200 kg
Table Speed	18 m/min
Wheel size	Φ350x30x127 mm
Spindle speeds	1440 rpm
Spindle motor	4 kw
Surface roughness	Ra0.63 μm

Technical Showcase

Frequently Asked Questions

What is the standard warranty period for these machines?

The standard warranty period is 13 months from the Bill of Lading (BL) date.

Do you provide customized machine solutions?

Yes, we have professional engineers and designers who can design and manufacture equipment according to your specific technical requirements.

What quality certifications do the products hold?

Our manufacturing processes are ISO9001:2008 certified. Most products carry European and American safety approvals including CE, GS, EMS, and UL.

Is there a minimum order quantity (MOQ)?

The minimum order quantity is just one set.

Are the grinding machines available in stock?

Most machines are produced according to specific orders. However, occasionally we may have limited samples available from trade exhibitions.

What are the main differences between the AH, AHR, and AHD models?

The differences lie in the Z-axis control: AH is manual, AHR features a rapid lifting motor, and AHD includes PLC control with a servo drive for higher automation.
