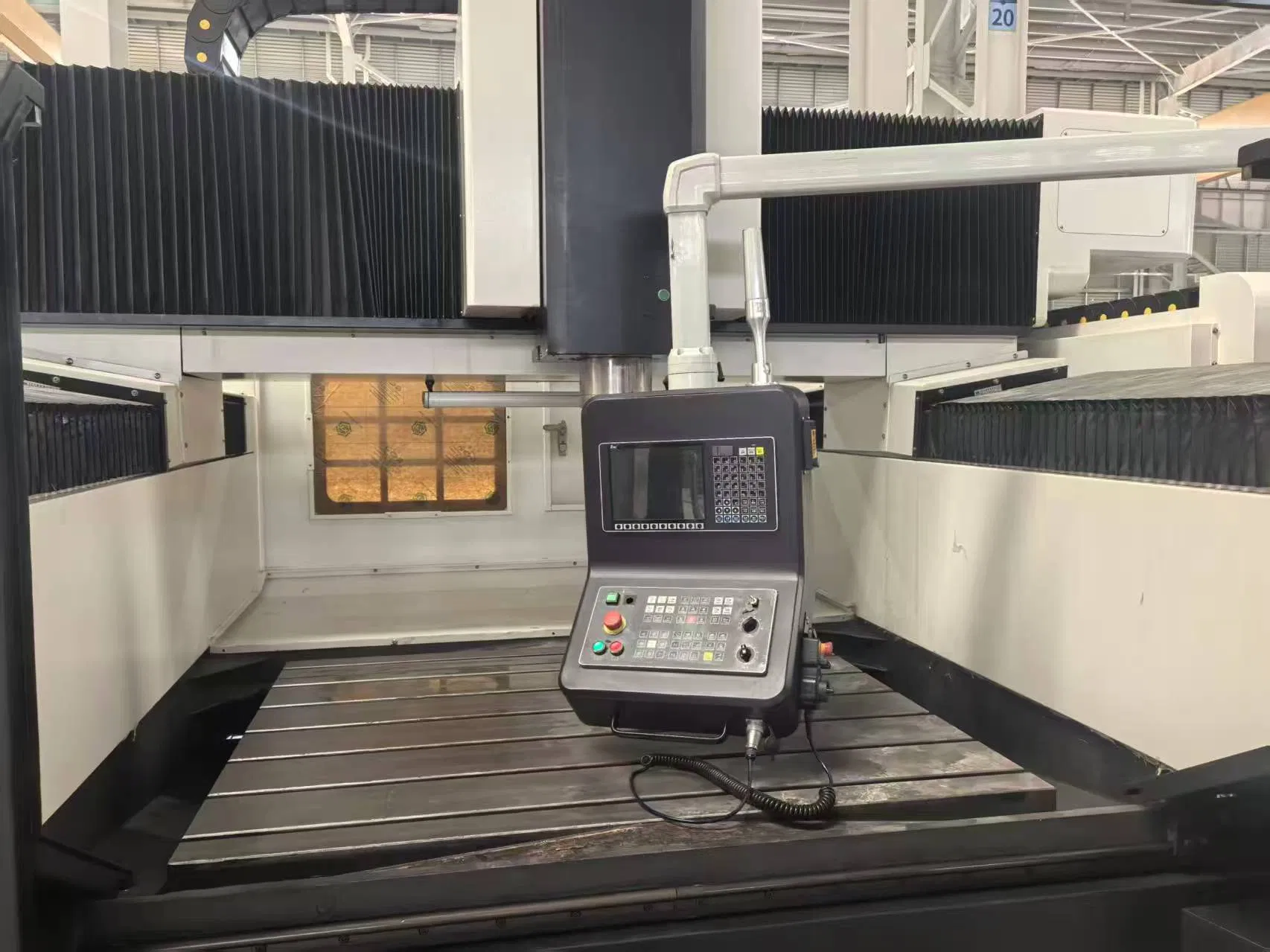

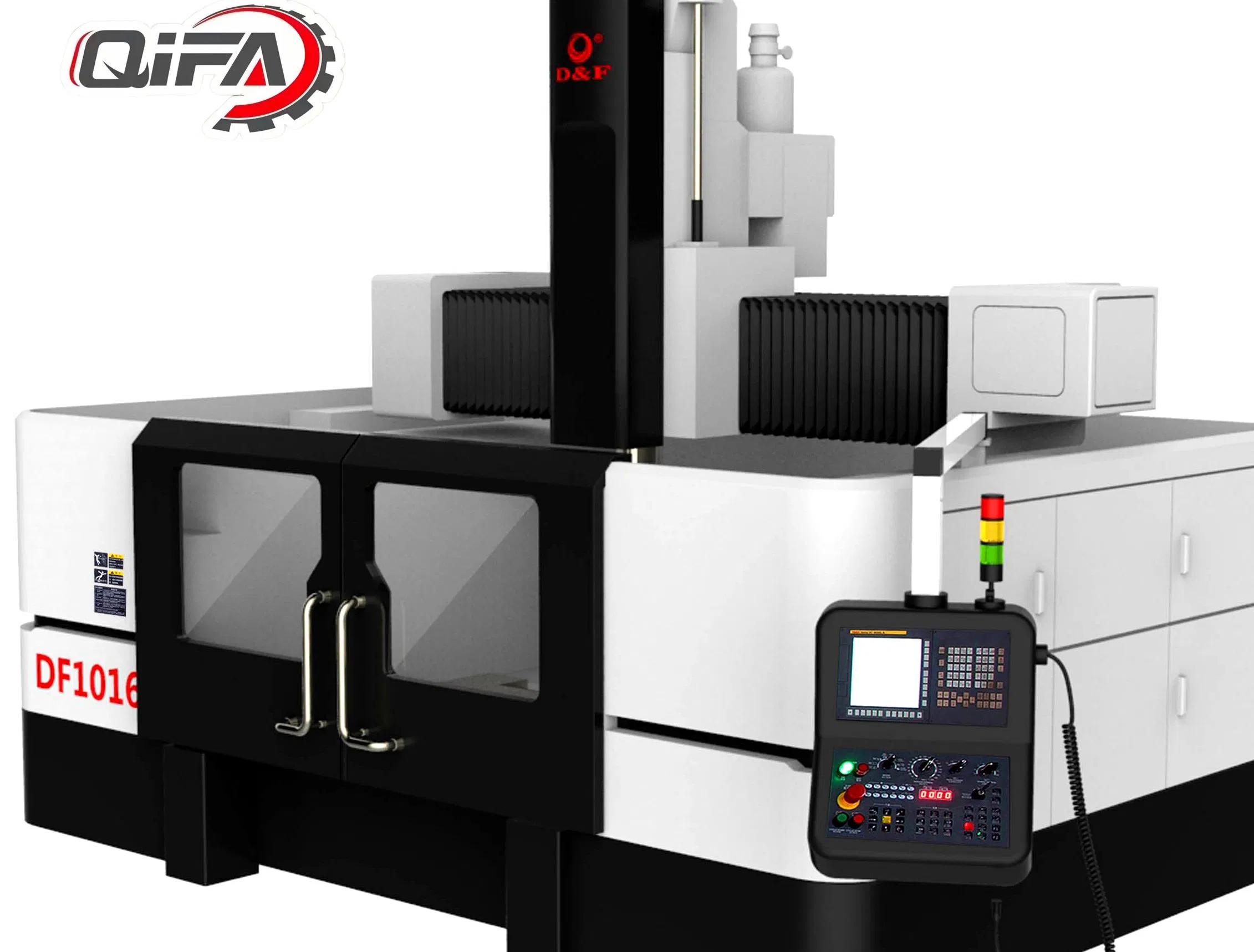

The DF1016 machine tool innovatively adopts an overhead bridge-type gantry structure design, combined with an integrated one-piece casting process for the worktable and bed. This dual guarantee from structural design to manufacturing process ensures the machine tool's outstanding overall rigidity and operational stability.
This optimized design enables the machine tool to effectively resist deformation caused by cutting forces when tackling high-intensity and high-precision machining tasks. It ensures precise control of dimensional accuracy and geometric tolerances during the machining process.
| Item | Unit | DF1016 Specification |
|---|---|---|
| Table Area | MM | 1650×1400 |
| T-slot Dimension | MM | 22×7×200 |
| Maximum Cutting Load | T/M² | 8 |
| X-axis Travel | MM | 1000 |
| Y-axis Travel | MM | 1600 |
| Z-axis Travel | MM | 600 |
| Distance Between Columns | MM | 2140 |
| Linear Guide Width | MM | X: 45, Y: 45, Z: Hard Rail |
| Spindle Taper | - | BT50 |
| Spindle Speed | R.P.M | 20-6000 |
| Positioning Accuracy | MM | 0.01/1000 |
| Repeat Positioning Accuracy | MM | 0.008/1000 |
| Machine Net Weight | KG | Approx. 14000 |
Free Operation Training: Covering equipment operation, maintenance, and troubleshooting.
Software Upgrades: Provided free of charge for the life of the equipment.
Warranty: 12 months from the date of final acceptance, including free repair or replacement for quality issues.
