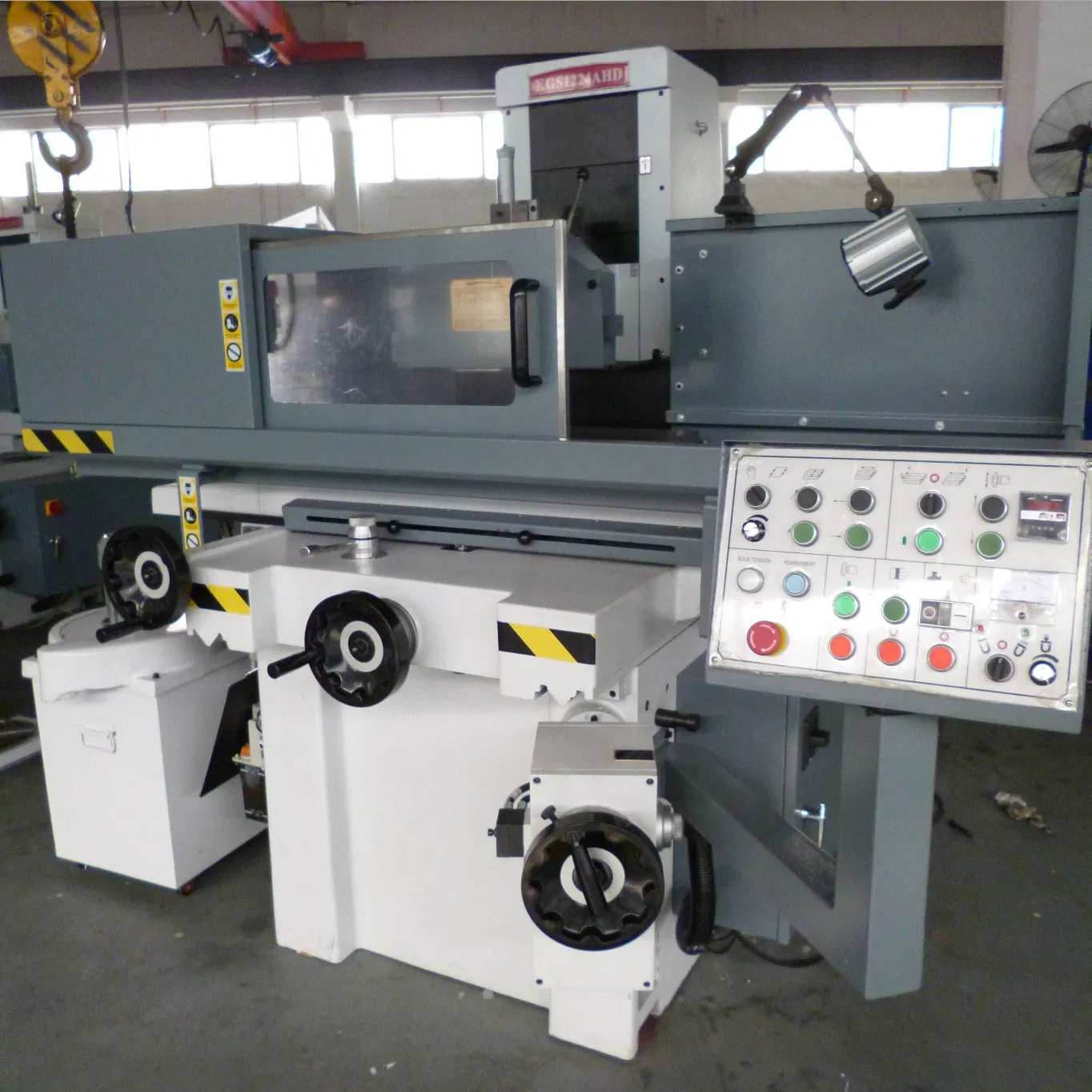

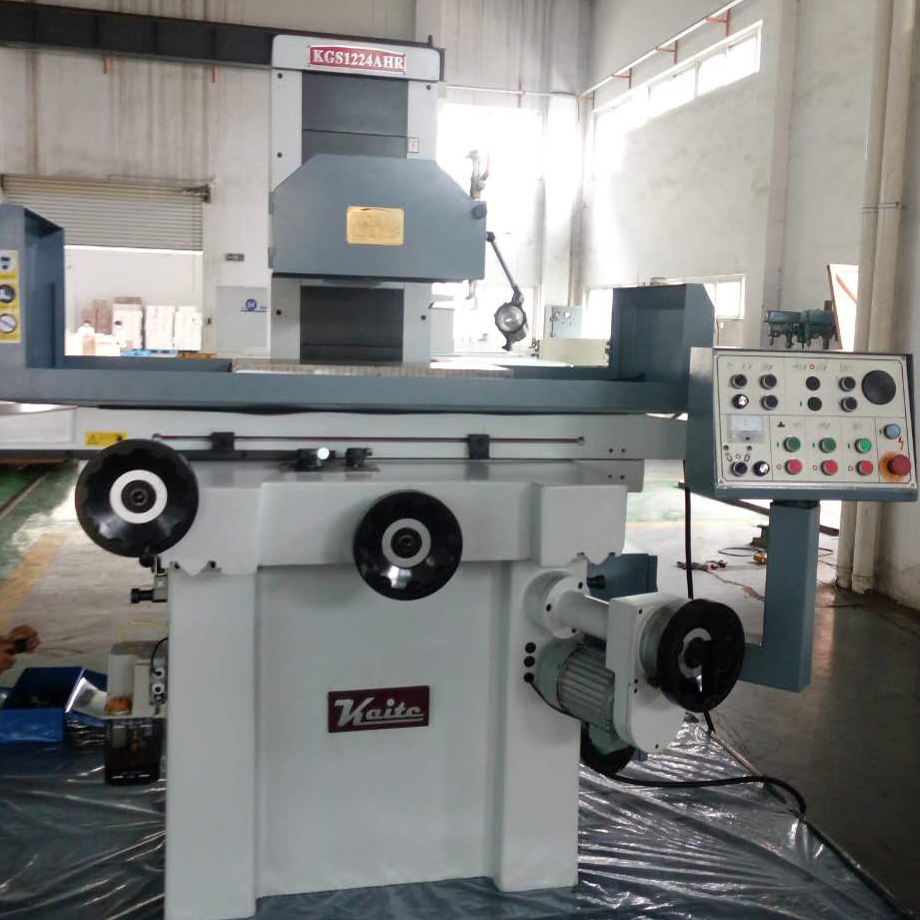

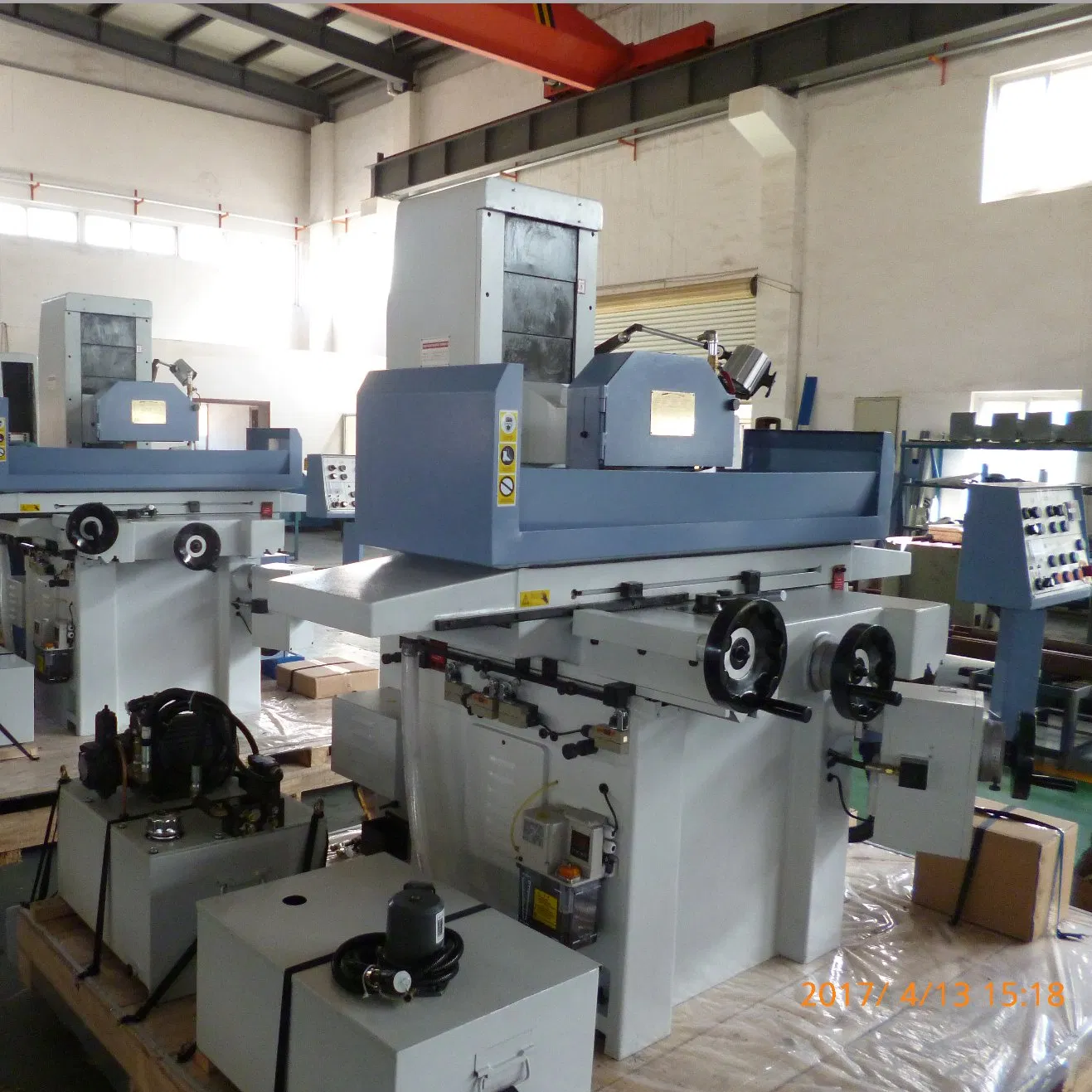

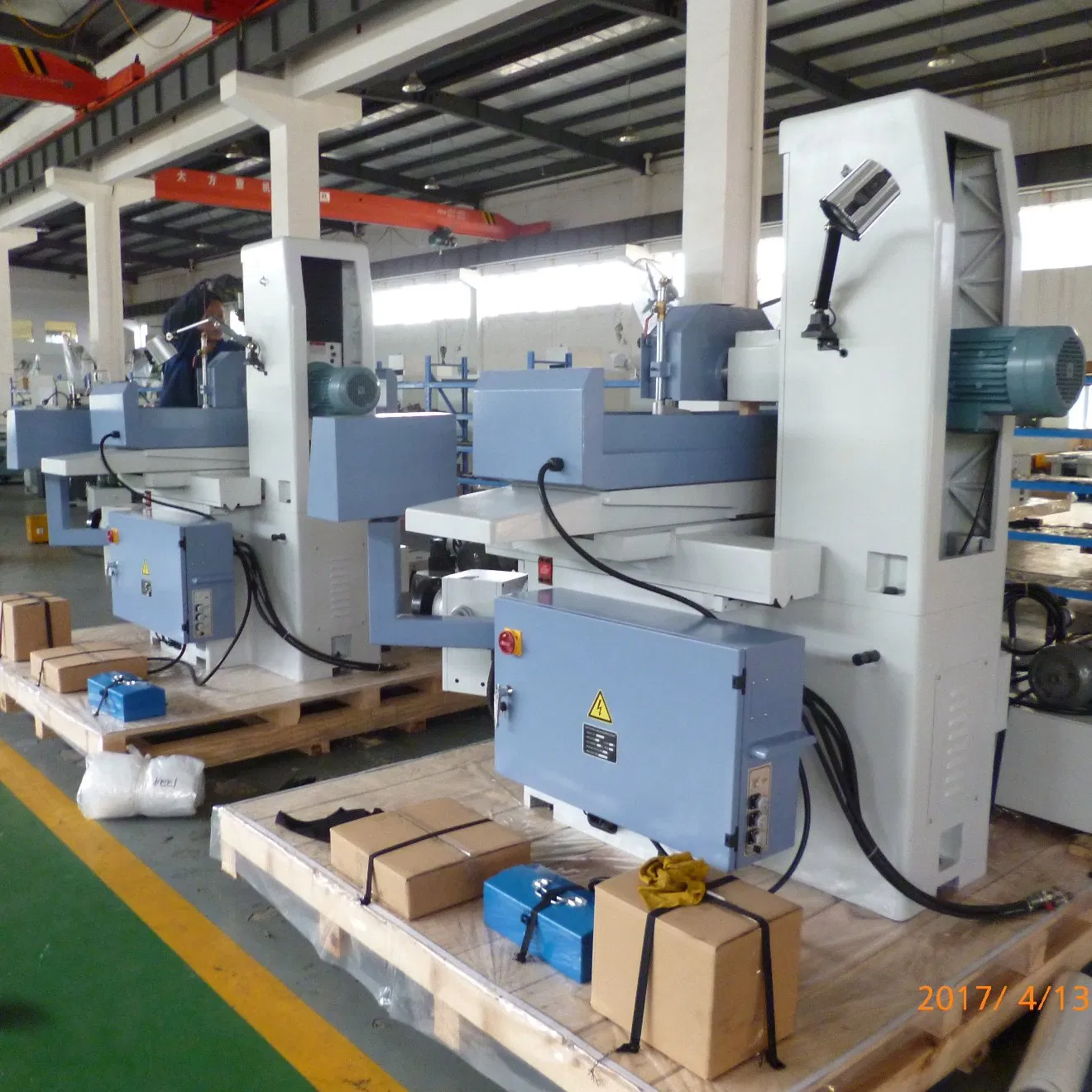

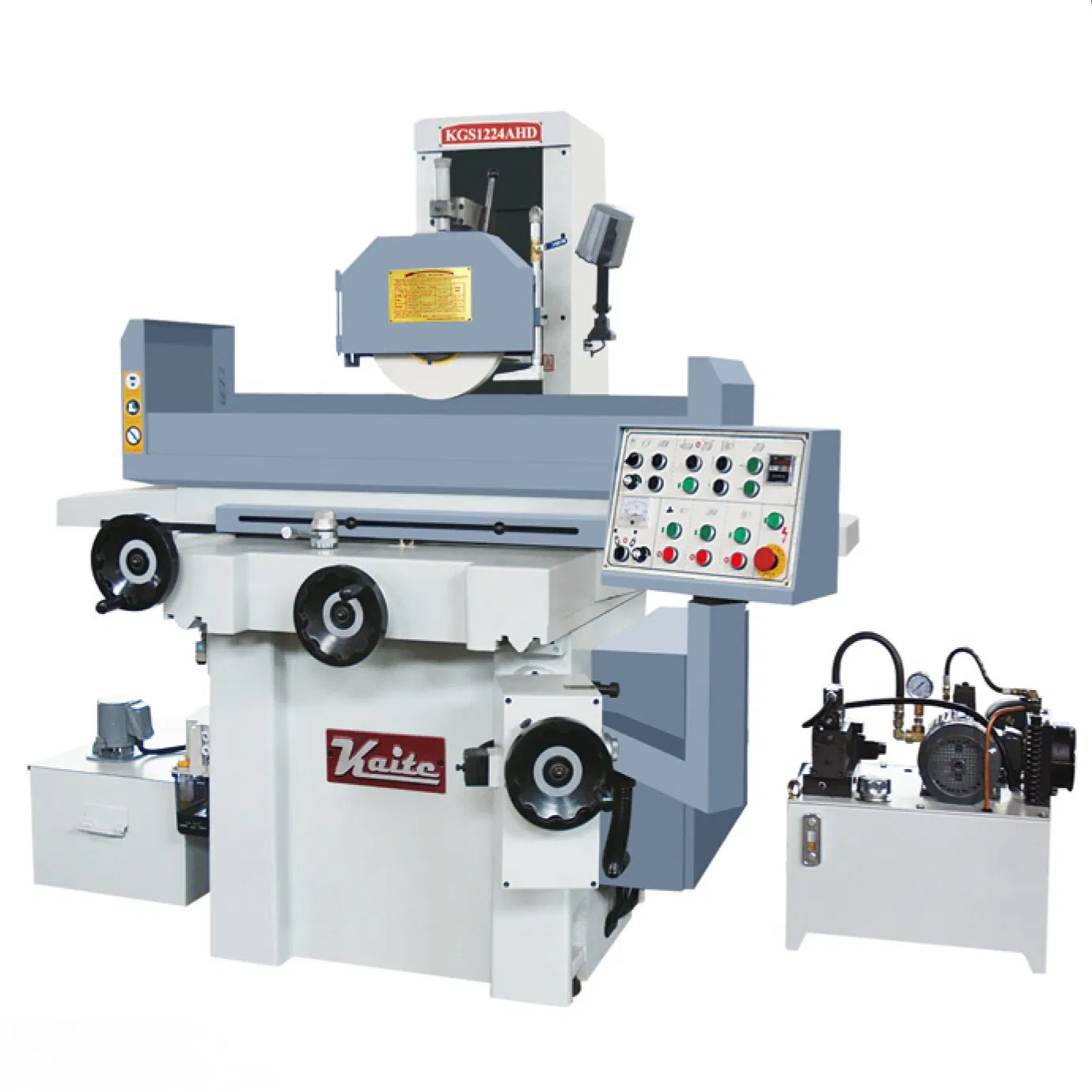

KGS1224AHD-300X600mm Three- Axis Surface Grinder Surface Grinding Machine Manufacturer

1 / 5

KGS1224AHD-300X600mm Three- Axis Surface Grinder Surface Grinding Machine Manufacturer

Customization:	Available
Type:	Surface Grinding Machine
Processing Object:	Metal, Ceramics and So on

Send Inquiry

Product Description

Basic Information

Model NO.

KGS1224AHD

Abrasives

Grinding Wheel

Controlling Mode

Hydraulic

Automatic Grade

Automatic

Grinder Type

Surface Grinding Machine

Precision

High Precision

Certification

CE, ISO 9001

Table Surface

300X600mm (12X24 Inch)

Max. Table Load

420 Kg

Table Speed

5~25 M/Min

Spindle Motor

ABB Brand

Spindle Bearing

NSK Brand P4 Grade

Electricals

Siemens Brand

HS Code

8460191000

Product Overview

🚀 AHD: 3-Axis Automatic Feed Features

Hydraulic automatic longitudinal feed
Electronic automatic cross feed
Incremental auto down feed (utilizing hydraulic system and gear box)

Technical Parameters

Parameters	Unit	KGS1224AHD
Working Surface of Table	mm	300×600 (12"×24")
Max. Table Travel	mm	660
Max. Cross Travel	mm	340
Distance Table Surface to Spindle Center	mm	520
Max. Table Load	kgs	420
Table Speed	m/min	5~25
Automatic Cross feed of Saddle	mm	0.5~12
Grinding Wheel Dimensions	mm	355×40×127
Spindle Speed (50HZ/60HZ)	rpm	1450 / 1740
Automatic Down Feed Rate	mm	0.005~0.025
Spindle Motor	kw	4
Packing Dimensions	mm	2080×1850×2195
Gross Weight	kgs	2210

Main Configuration

Spindle Motor: High-efficiency ABB brand.
Spindle Bearing: NSK brand P4 grade precision ball bearing (Japan).
Cross Screw: P5 grade precision ball screw.
Electrical Components: Reliable SIEMENS brand.
Hydraulic Components: Premium brand from TAIWAN.

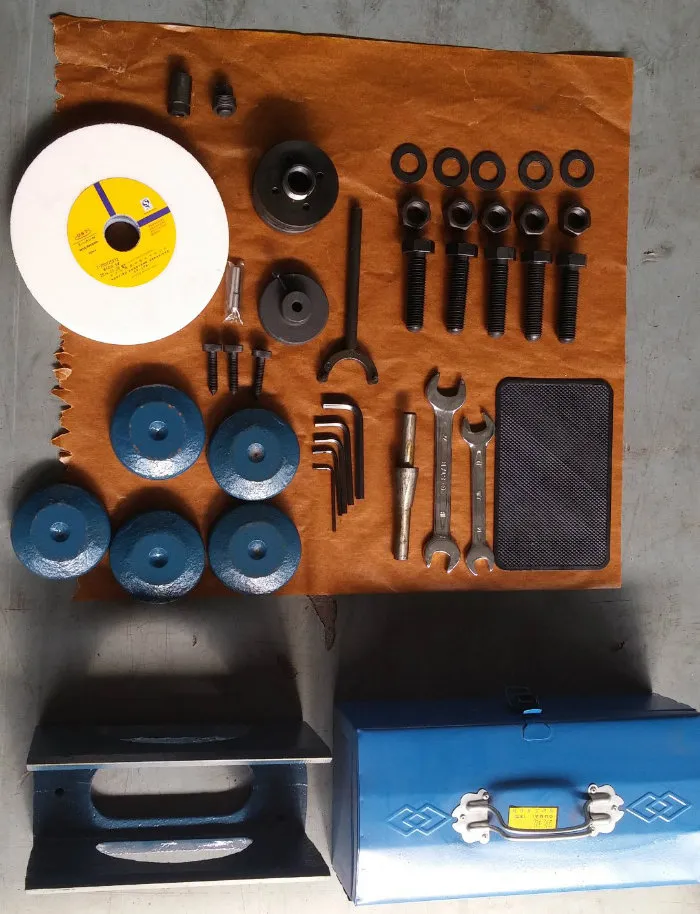

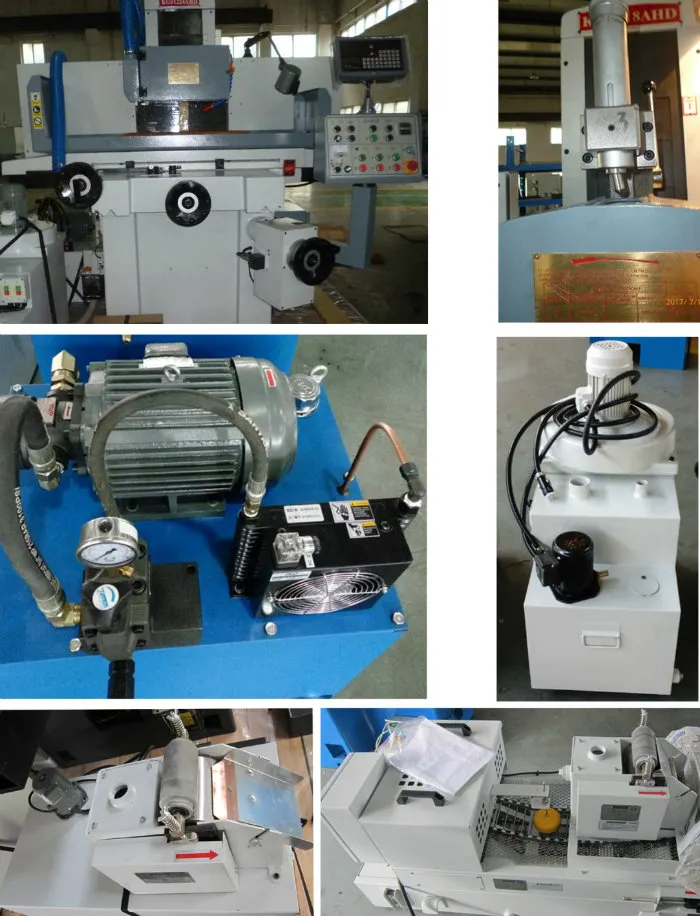

Standard & Optional Accessories

Key Features

Well designed cast iron structure provides excellent dampening
Flange mount spindle cartridge for superior side grinding rigidity
Low-maintenance preloaded NSK P4 precision ball bearings
"V" and flat type guide way with hand-scrapped Turcite saddle ways
Hardened and ground table guideways with PTFE (TEFLON) coating
Centralized automatic lubrication system for all critical components
Separate hydraulic tank to prevent heat and vibration transfer
Safety 24V control circuit power for operator protection

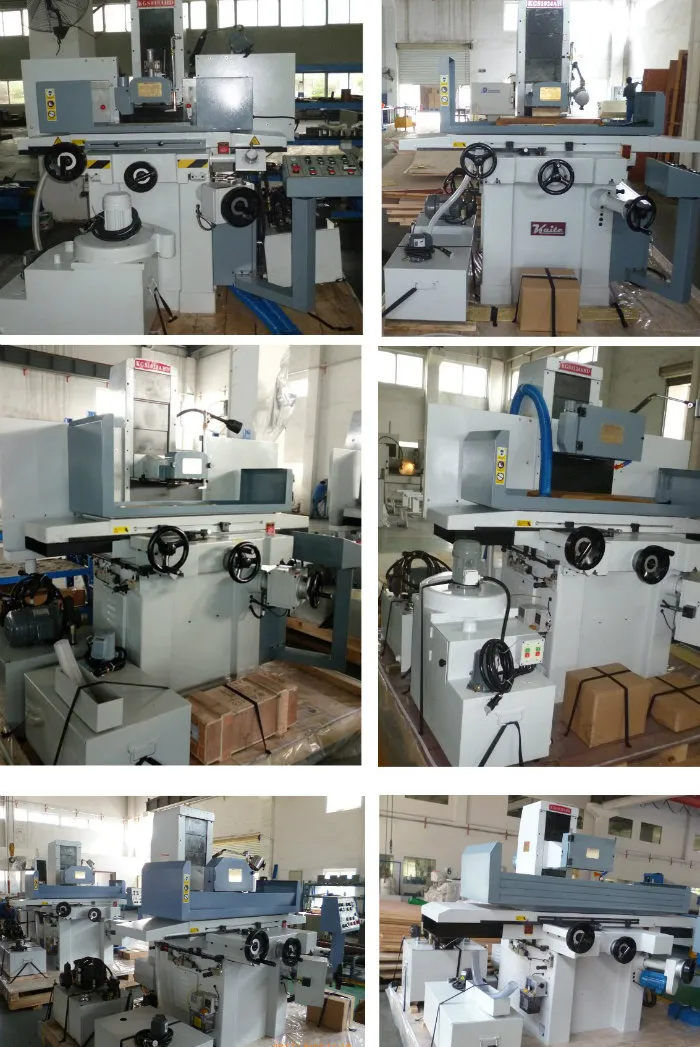

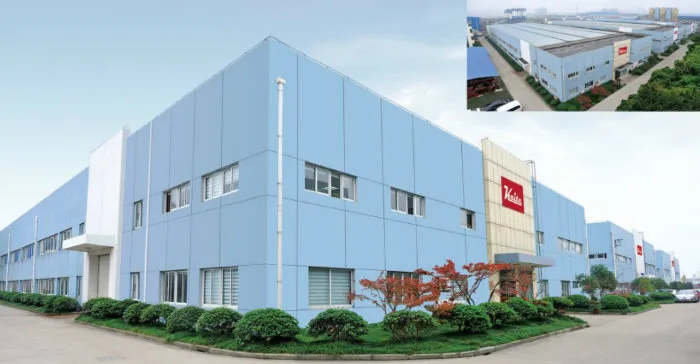

Factory & Delivery

Frequently Asked Questions

What are the key advantages of the AHD model's 3-axis system?

The AHD model provides fully automatic movement including hydraulic longitudinal feed, electronic cross feed, and incremental auto down feed driven by a gear box.

Which brands are used for the machine's critical components?

We use world-class components including ABB spindle motors, Siemens electrical components, and NSK P4 grade precision bearings from Japan.

Does the machine require manual lubrication?

No, the machine is equipped with a centralized automatic lubrication system that ensures all guideways and lead-screws receive the correct amount of oil during operation.

What is the maximum workload the KGS1224AHD can handle?

The machine is designed to handle a maximum table load of 420 kg, making it suitable for a wide range of industrial grinding tasks.

How does the machine handle heat dissipation from the hydraulic system?

It features a separate hydraulic tank design which prevents heat and vibrations from being transferred to the main machine structure, ensuring higher precision.

Is the spindle suitable for side grinding?

Yes, the flange mount spindle cartridge design provides superior rigidity specifically for heavy-duty side grinding applications.
