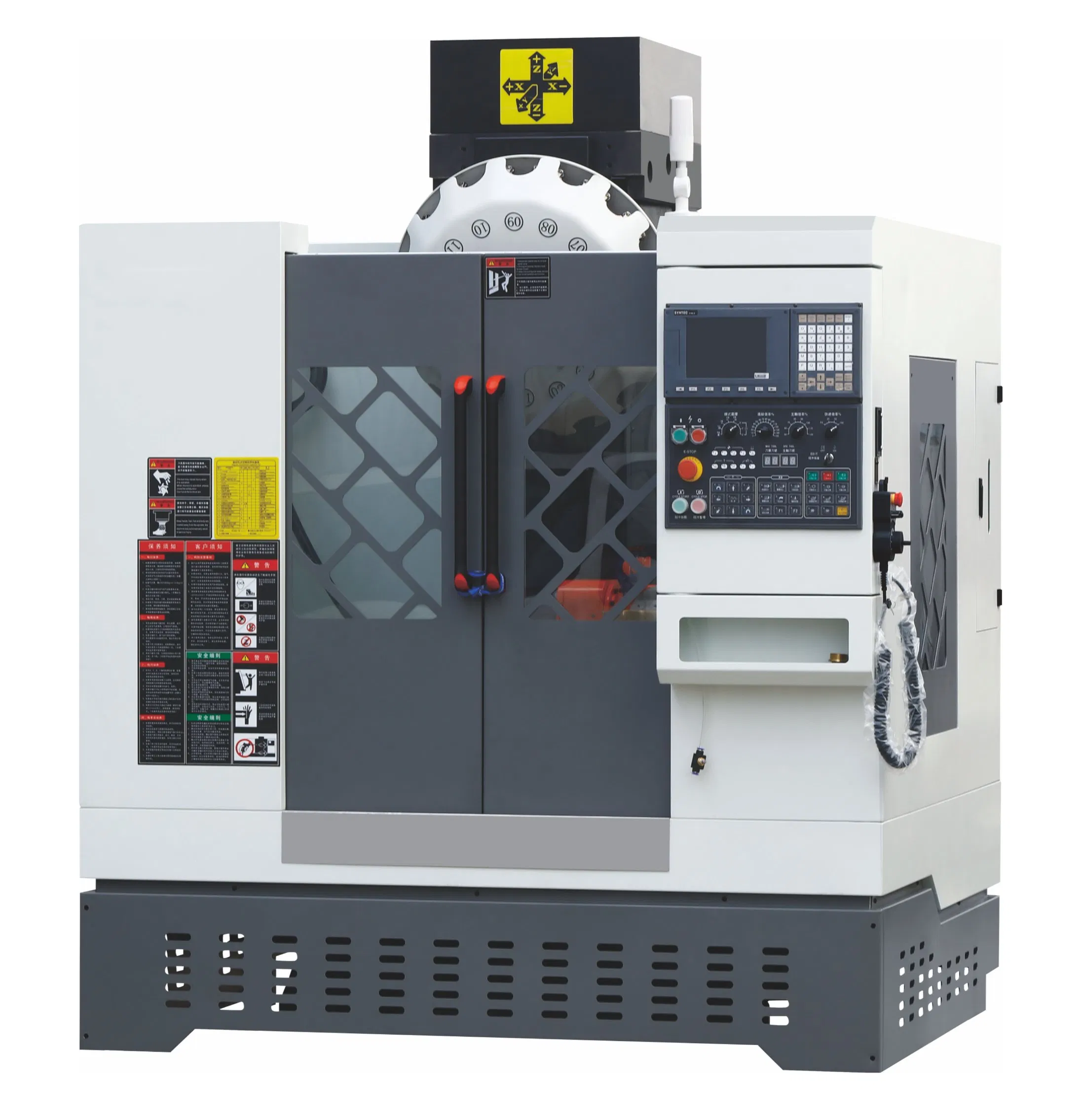

Jz-530-16 High-Precision Heavy CNC Milling Metal /Wood Cutting/Drilling/Router/Engraving/Turning Machine Center

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

📋

Basic Specifications

Model NO.

JZ-530-16

Application

Metal Processing

Numerical Control

CNC

Precision

0.01~0.02(mm)

Certification

CE, ISO 9001

Condition

New

Spindle Motor

3.7kw*2

X/Z Servo Motor

1.6kw/2kw*2

Processing

Metal-Cutting & Forming

Body Design

Flat Bed, Cast Iron

⚙️

Product Description

Efficient and Accurate Fully Servo CNC Lathe Machine

Suitable For:

Aviation equipment and optical precision parts.
Auto parts and electronic connectors.
Advanced button accessories, small valves, and watch parts.
Threaded joints, precision shaft pins, and spindle sleeves.
Non-ferrous metals: copper, aluminum, and stainless steel parts.

Key Features:

The machine tool is constructed using high-strength resin sand casting, featuring a wide guide rail base for superior stability. It utilizes a 3210/4010 double nut ball screw driven by a high-performance AC servo motor.

Designed for high rigidity and precision, the system is equipped with an RS232 communication interface. It is ideal for processing complex small and medium-sized parts with strict precision requirements.

📊

Technical Parameters

Workbench	Size (W*L)	850x330 mm
	T-shaped Groove	Three grooves / 100mm pitch
	Groove Width	14 mm
	Max Load	180 KG
Spindle	Spindle Speed	12000 rpm
	Spindle Power	5.5 kw
	Spindle Taper	BT30
Travel & Feed	X/Y/Z Axis Travel	500 / 300 / 380 mm
	Quick Movement	48 m/min
	Feed Rate	10000 mm/min
ATC System	Tool Magazine Capacity	16 Tools
	Tool Change Time	1.2 Seconds
	Repeatability	±0.003 mm
Physical	Machine Size / Weight	1700x1900x2300 mm / 2400 KG

📸

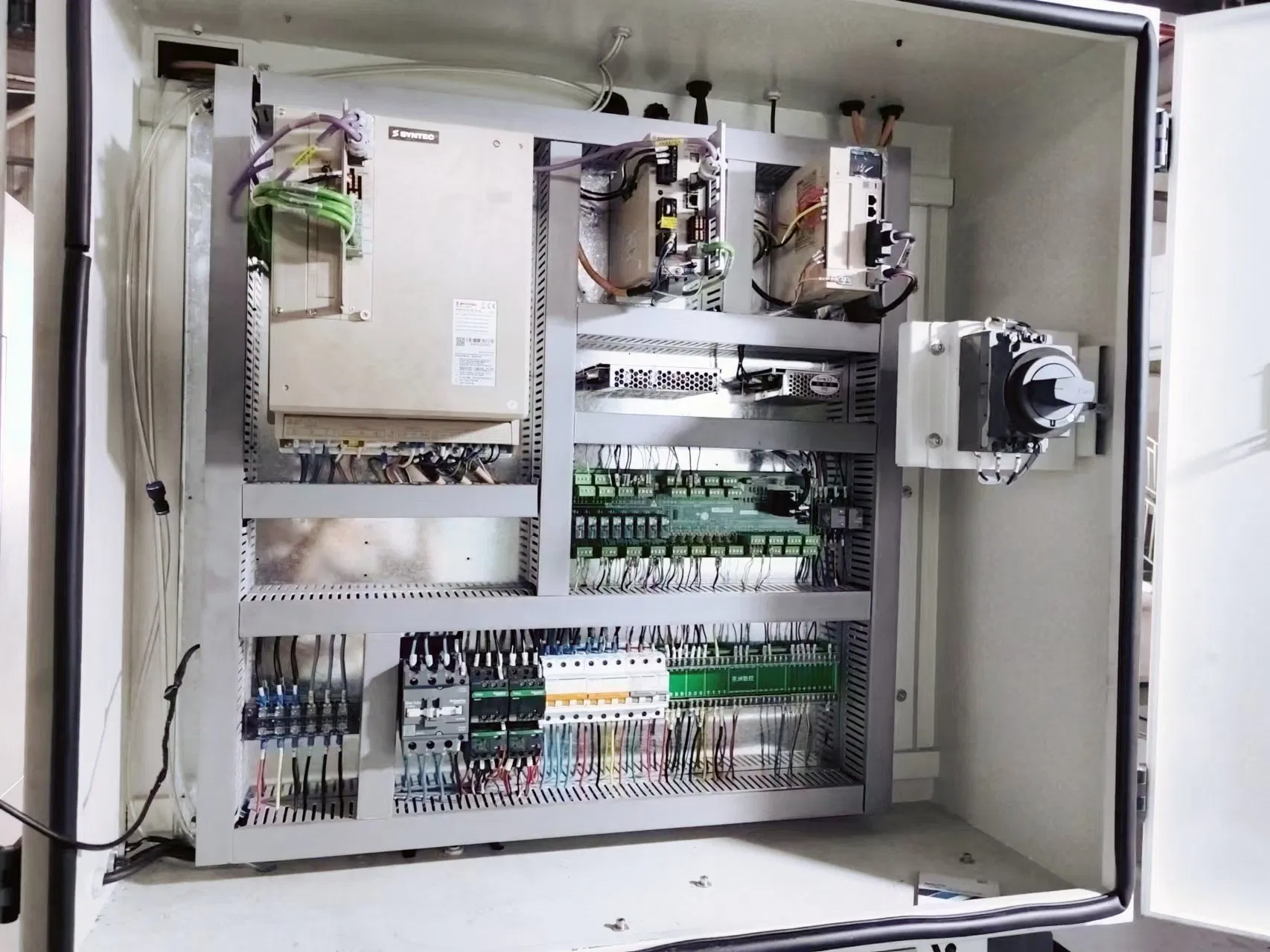

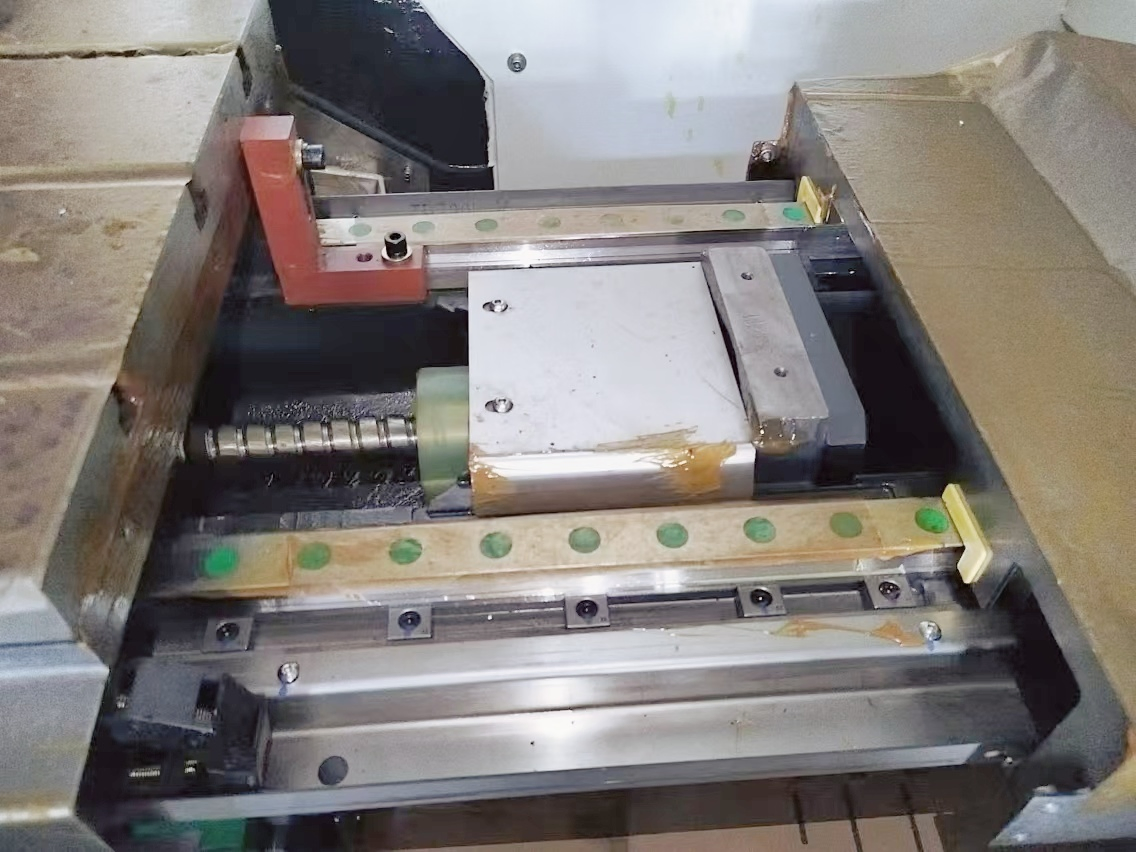

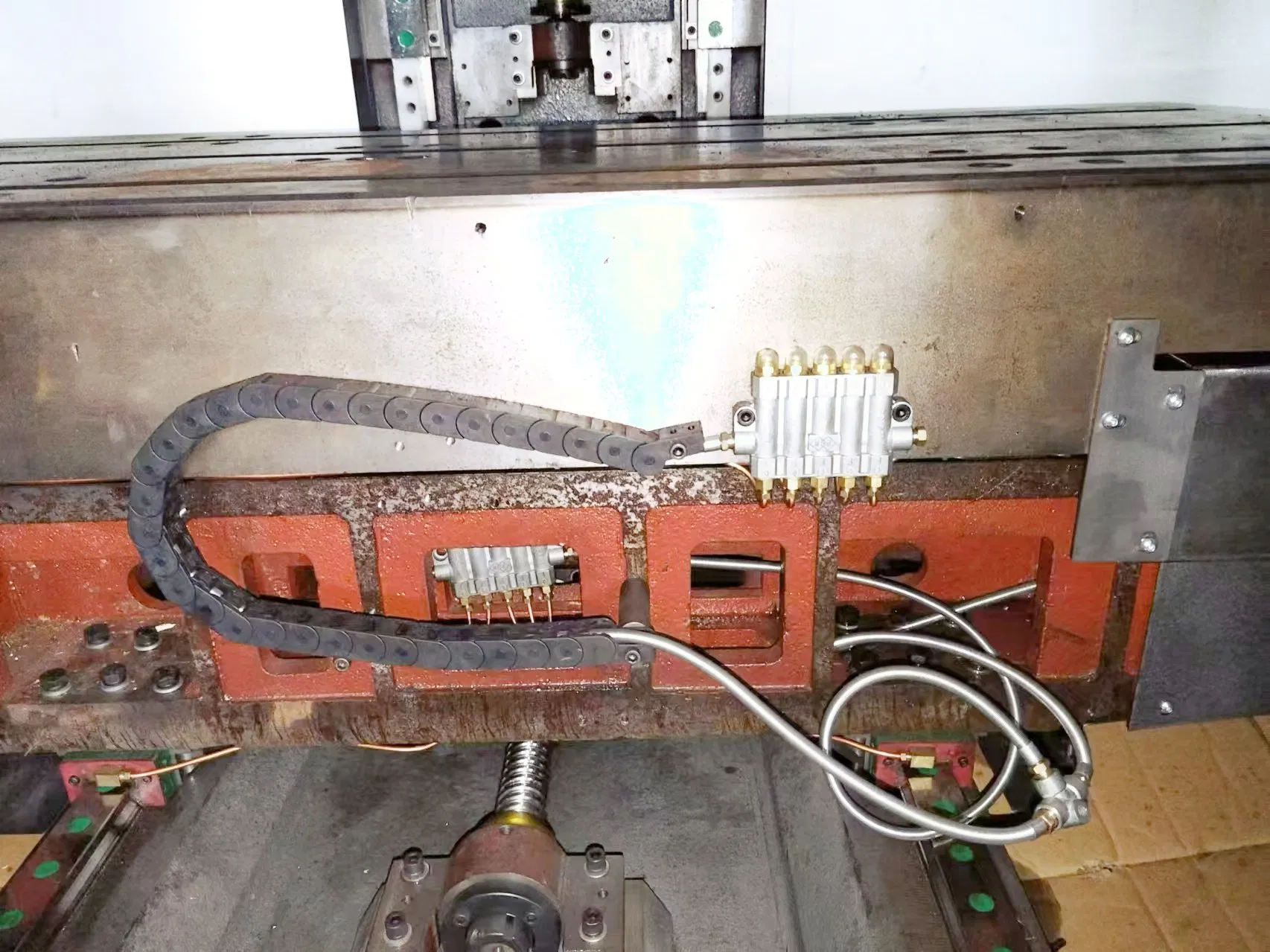

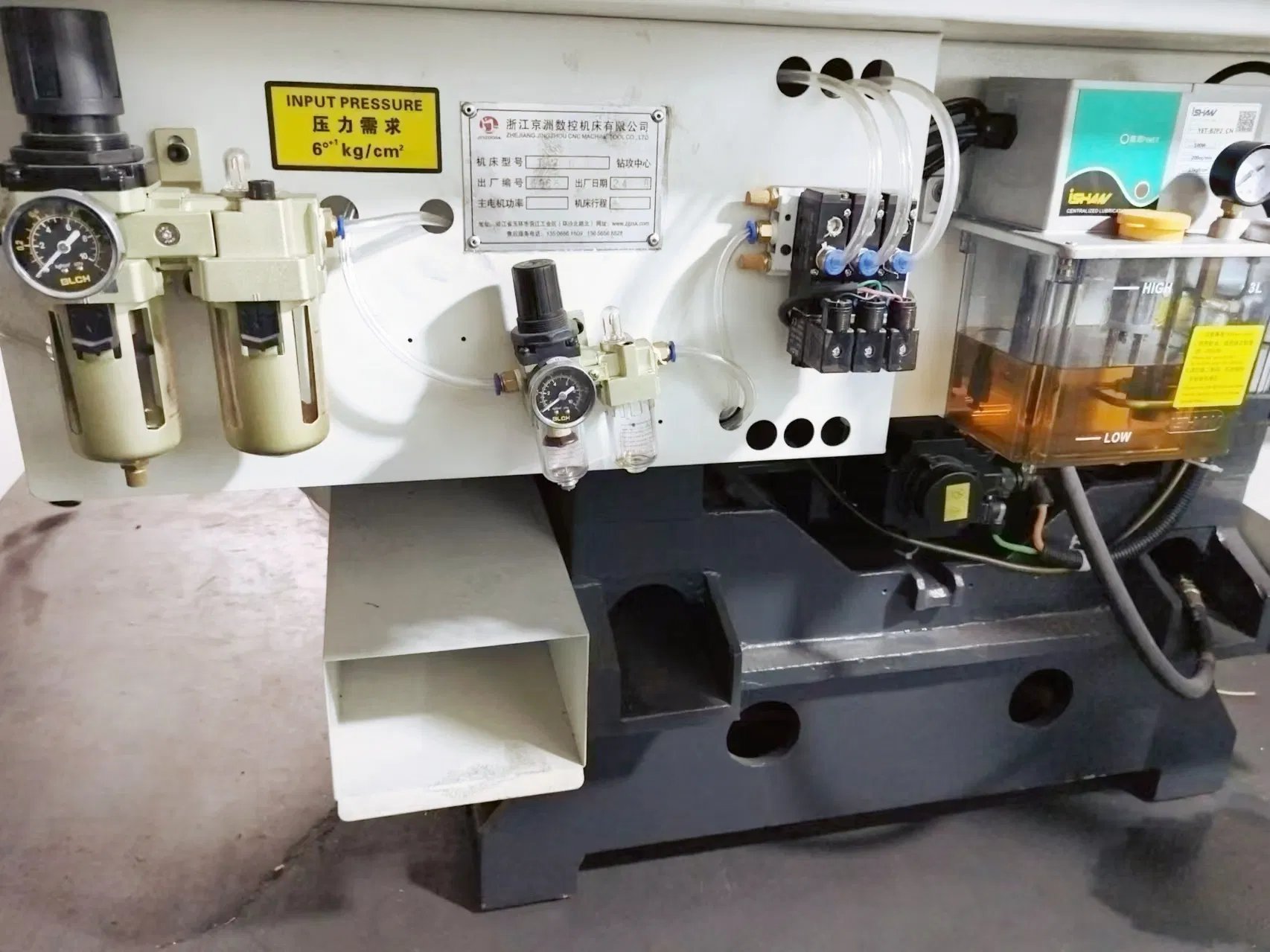

Detailed Photos

🏢

Industry Expertise

Our manufacturing specialty lies in valve machines and aluminum product machinery. Our product range includes CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, and Long Bar Feeder Lathes.

Equipped with expert engineers in structural design and product development, we provide custom-structured machine solutions tailored to specific client needs. With over 20 years of experience, we have supplied high-quality equipment to global markets including India, Egypt, Turkey, Vietnam, Australia, and the United States.

❓

Frequently Asked Questions

1. How can I choose the most suitable machine?

Please provide your technical specifications or product drawings. Our engineers will analyze your requirements and recommend the most suitable model for your specific production needs.

2. What is your Minimum Order Quantity (MOQ)?

The MOQ for our CNC machine tools is 1 set.

3. How do you guarantee product quality?

We implement a strict quality control process, including a pre-production sample evaluation before mass production and a final comprehensive inspection of every machine before shipment.

4. What types of machines can I purchase from you?

We offer a wide range of equipment, including CNC lathe machines, CNC transfer machines, CNC milling centers, CNC turn-milling compound lathes, punching machines, and automated assembly machines.

5. What are the main applications for these machines?

Our machines are ideal for manufacturing high-precision parts in aviation, automotive, electronics, and hardware industries, particularly for non-ferrous metals and complex small components.

6. How are the machines packaged for international transport?

All machine tools are securely packaged into specialized wood cartons to ensure safety and prevent damage during long-distance maritime or land transportation.
