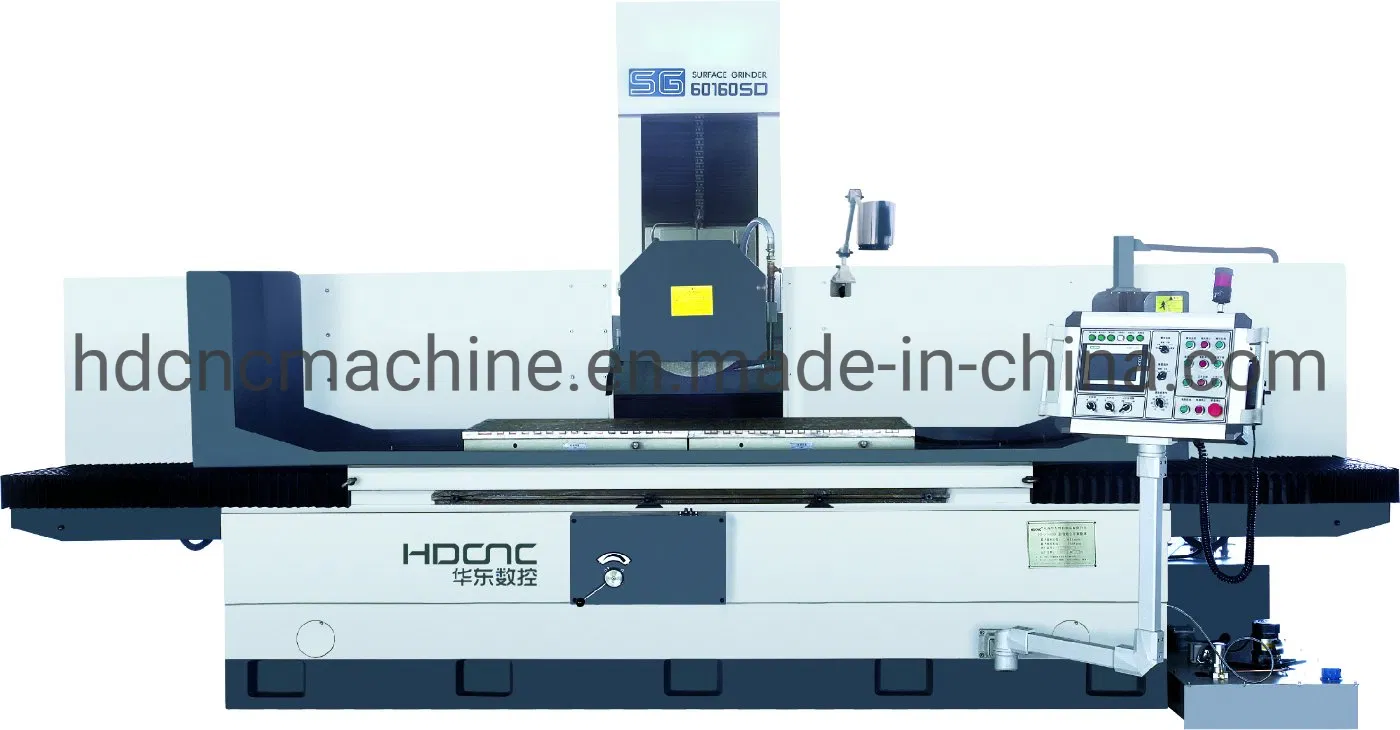

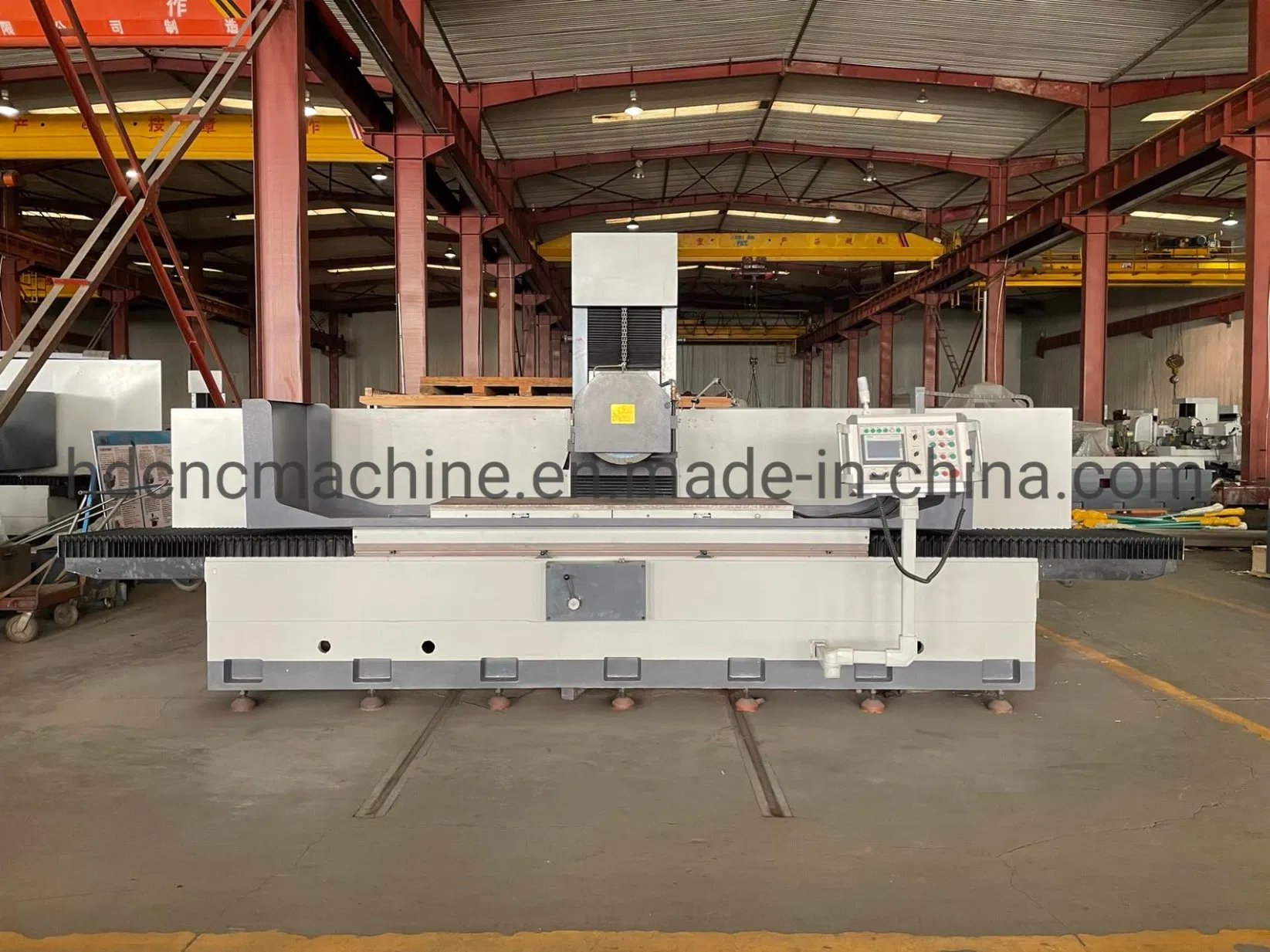

Huadong CNC High Quality Column Moving Surface Grinder Grinding Machine

1 / 5

Huadong CNC High Quality Column Moving Surface Grinder Grinding Machine

Customization:	Available
After-sales Service:	All Free Within Warranty
Warranty:	1year

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.:SG60160SD

Type:Surface Grinding Machine

Processing Object:Metallic & Ceramic Materials

Abrasives:Grinding Wheel

Controlling Mode:PLC

Automatic Grade:Automatic

Precision:Normal Precision

Certification:CE, RoHS, ISO 9001

Condition:New

Spindle Bearing:NSK P4 Grade

PLC Brand:Siemens

Structure:Column Moving

Production Capacity:60 set/Month

Dimensions:2850*2270*2180mm

⚙️

Machine Main Features

Column moving screw and grinding head lifting screw adopt Taiwan precision screw, driven by servo motor.

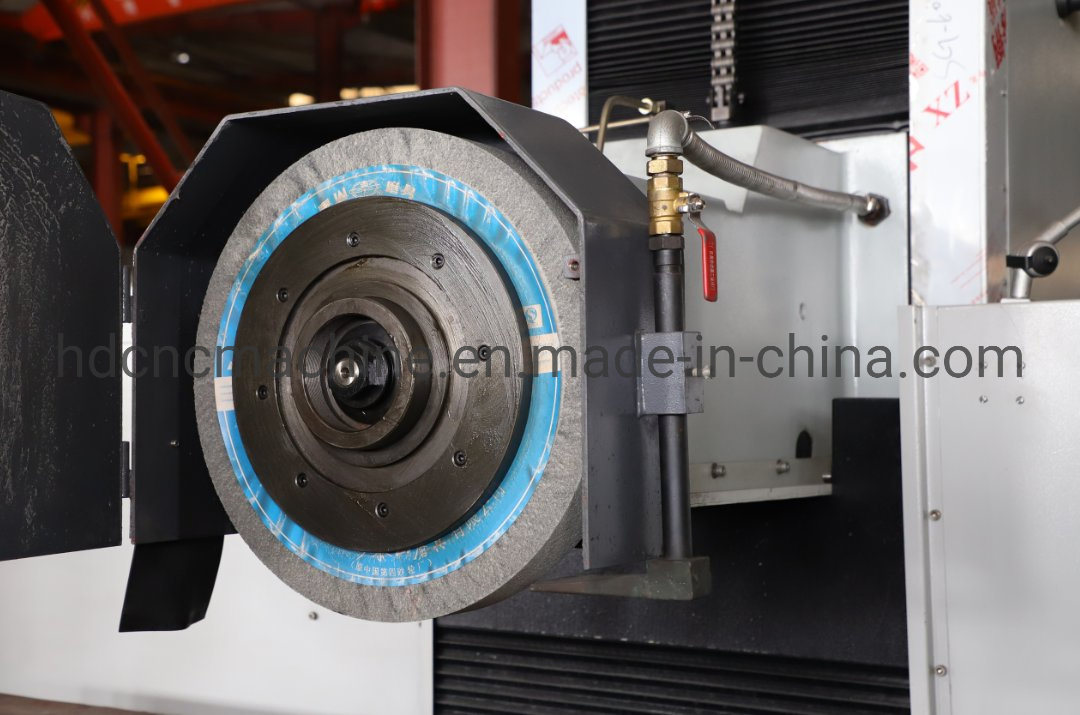

The grinding head body features a box structure with a sleeve into the spindle; special dynamic and static spindle for high stability.
The working table is hydraulically driven with stepless speed control.

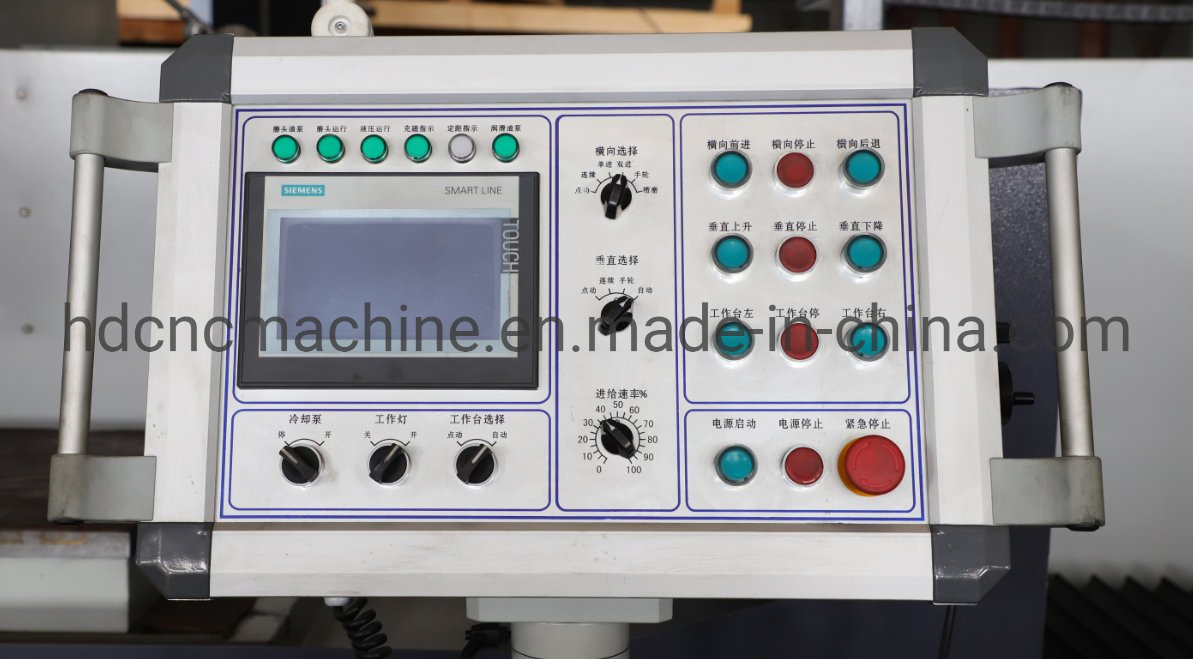

User-friendly control panel for easy parameter setting, equipped with MPG for convenient wheel-to-workpiece control.

📝

Detailed Series Parameters

Specifications		SG60160SD	SG60220SD	SG80160SD	SG80220SD	SG80300SD	SG110300SD
Table Size (W*L)	mm	610*1600	610*2200	810*1600	810*2200	810*3000	1100*3000
Max. Grinding Size	mm	610*1600	610*2200	810*1600	810*2200	810*3000	1100*3000
Max. Transverse Travel	mm	238	275	340	450	340	450
Spindle Center to Table	mm	820/1050					1050
Magnetic Chuck Size	mm	6008002	60010002	8008002	80010002	80010003	110010003
Longitudinal Feed	m/min	5-25
Spindle Motor	Kw	18.5
Gross Weight	Kg	8500	9500	10000	11500	14000	18000

🔧

Accessories

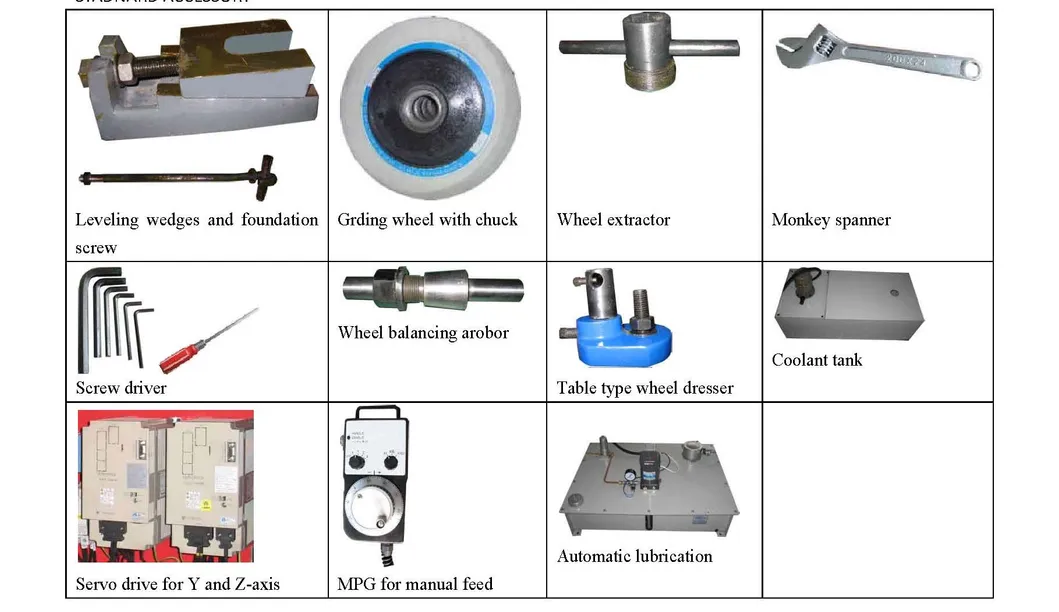

Standard Accessories:

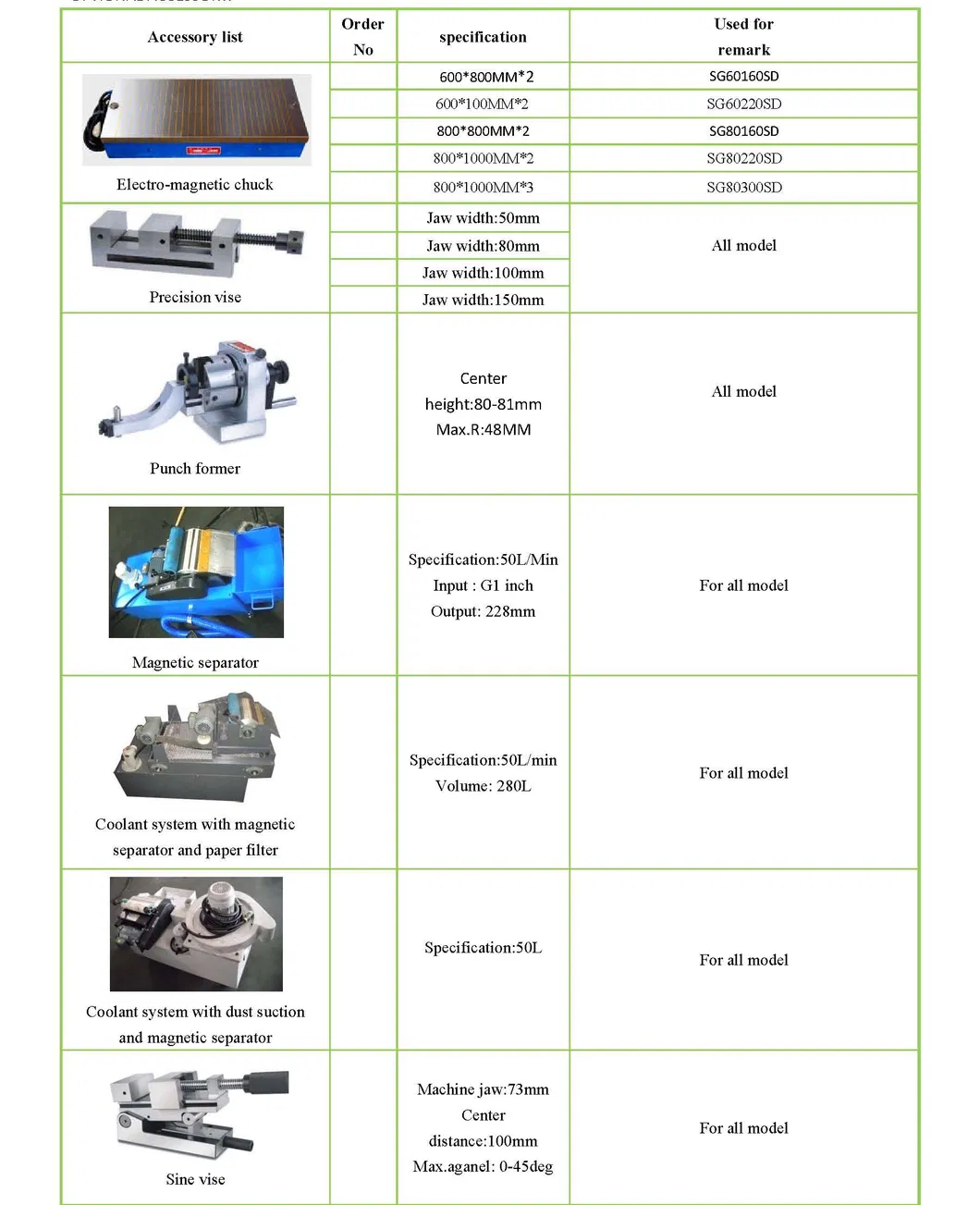

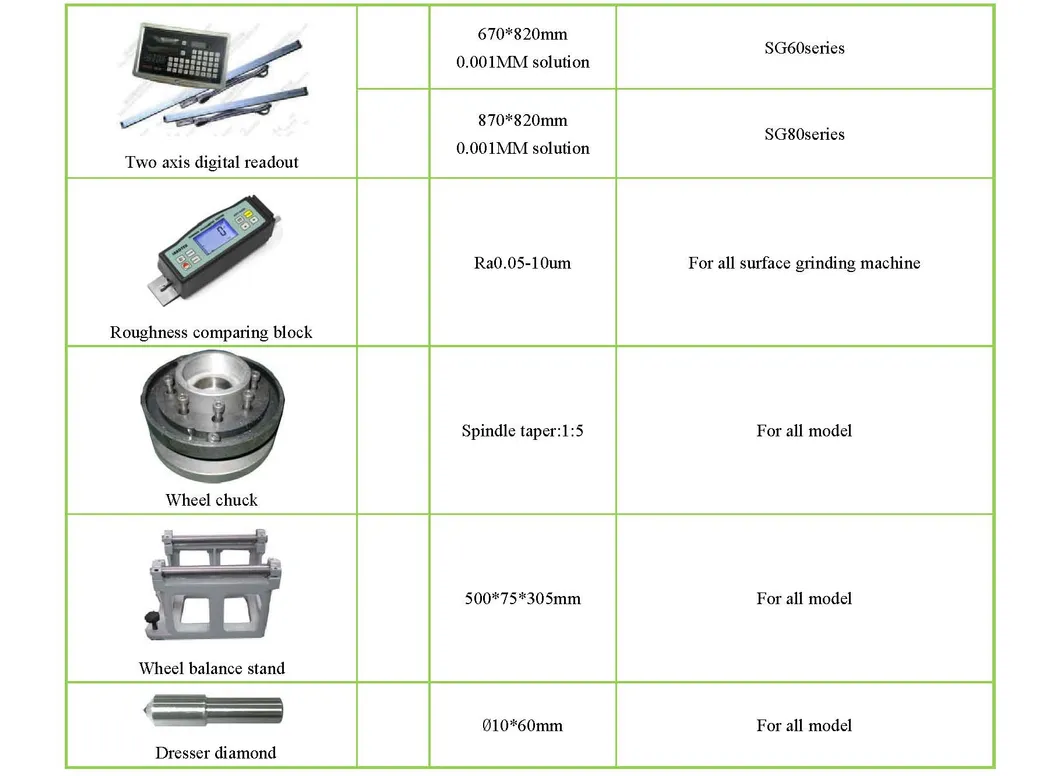

Optional Accessories:

🏭

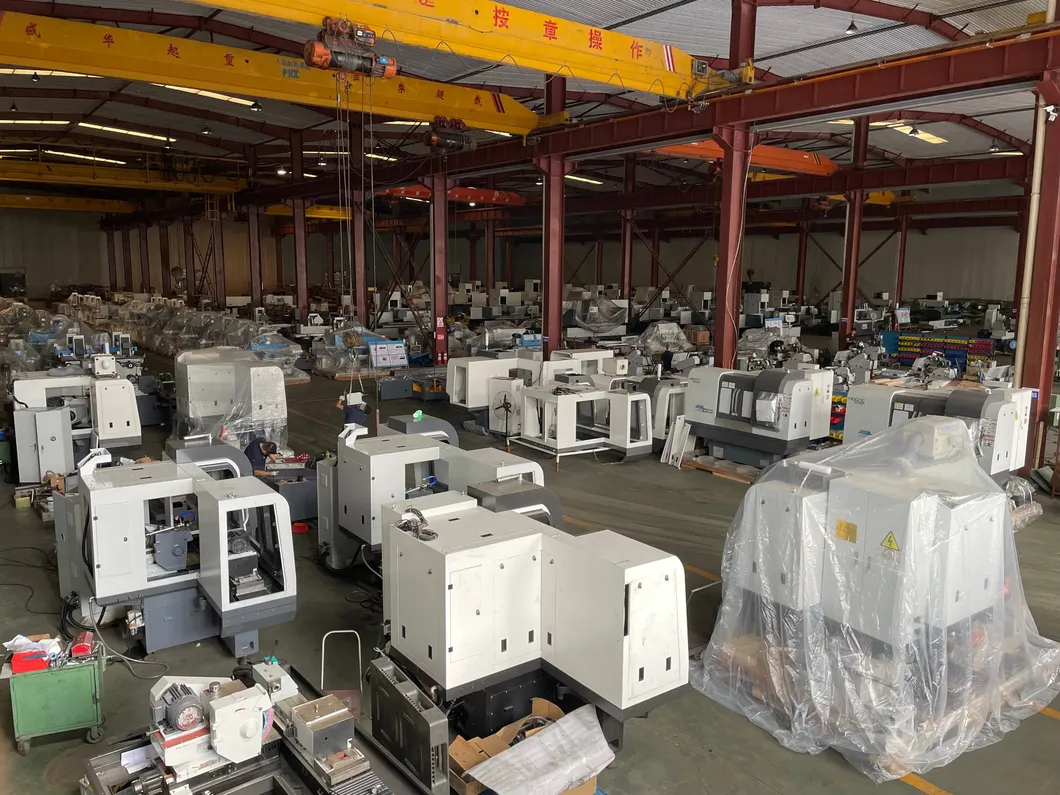

Workshop & Advantages

Factory direct sales ensuring product quality and after-sales support.
Listed company with over 50 years of manufacturing and 30 years of international trade experience.
Extensive cooperation with international agents in Germany, Austria, and USA.

🛠️

Service & Exhibitions

After-sale Services:

Warranty: Free treatment or replacement for parts due to manufacturing faults during the warranty period (one year).
Lifelong maintenance and technical support provided after the warranty period.
Supply of spare parts at preferential prices long-term.

❓

Frequently Asked Questions

Q1: What materials can this surface grinding machine process? The machine is designed to process both Metallic and Ceramic materials effectively.

Q2: What is the control system used in the SG60160SD? It utilizes a Siemens PLC control system for reliable and precise operation.

Q3: What brand of spindle bearings are installed? The machine is equipped with high-quality NSK P4 Grade spindle bearings.

Q4: How long is the warranty period for the machine? The standard warranty is one year after the machine leaves our facility, covering manufacturing and quality faults.

Q5: Is the worktable movement adjustable? Yes, the working table is hydraulically driven with stepless speed control for flexible operations.

Q6: Does the machine support automatic feeding? Yes, it features automatic grade operation with an auto-downfeed rate of 0.005mm and transverse auto feed of 1-30mm.
