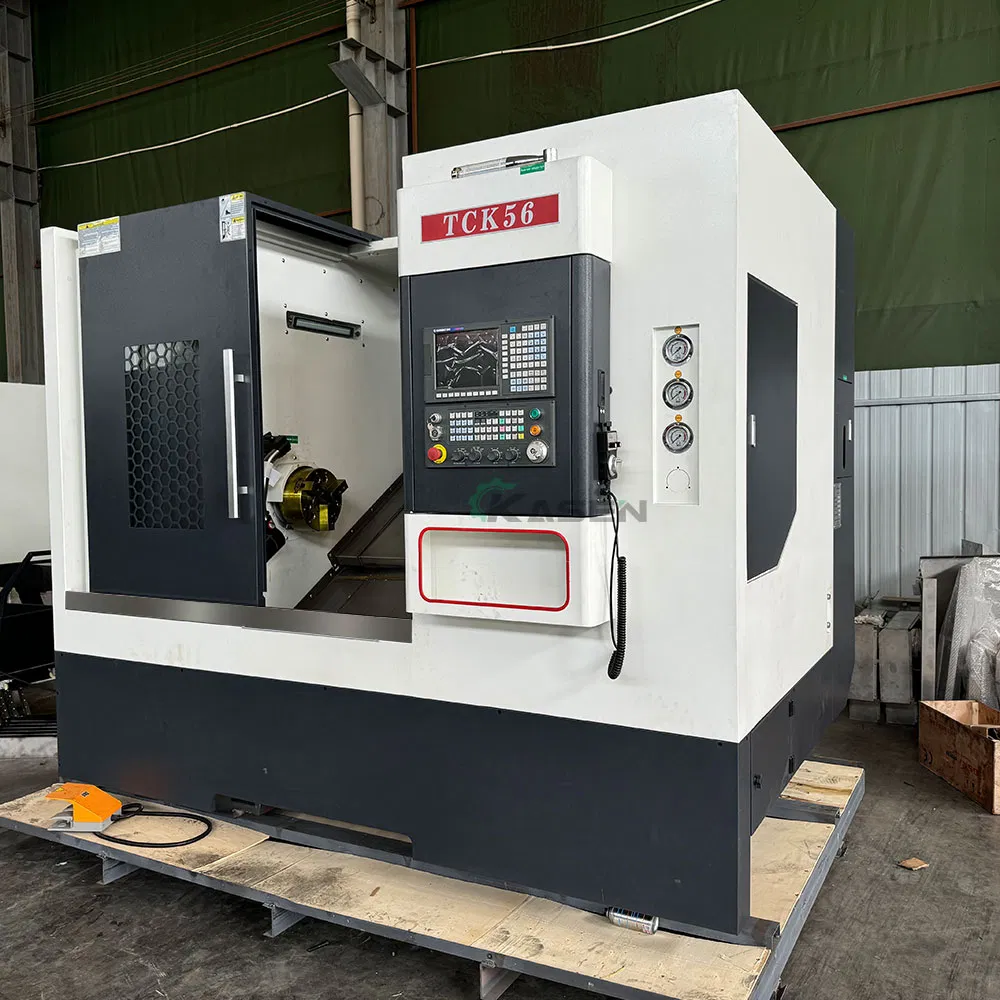

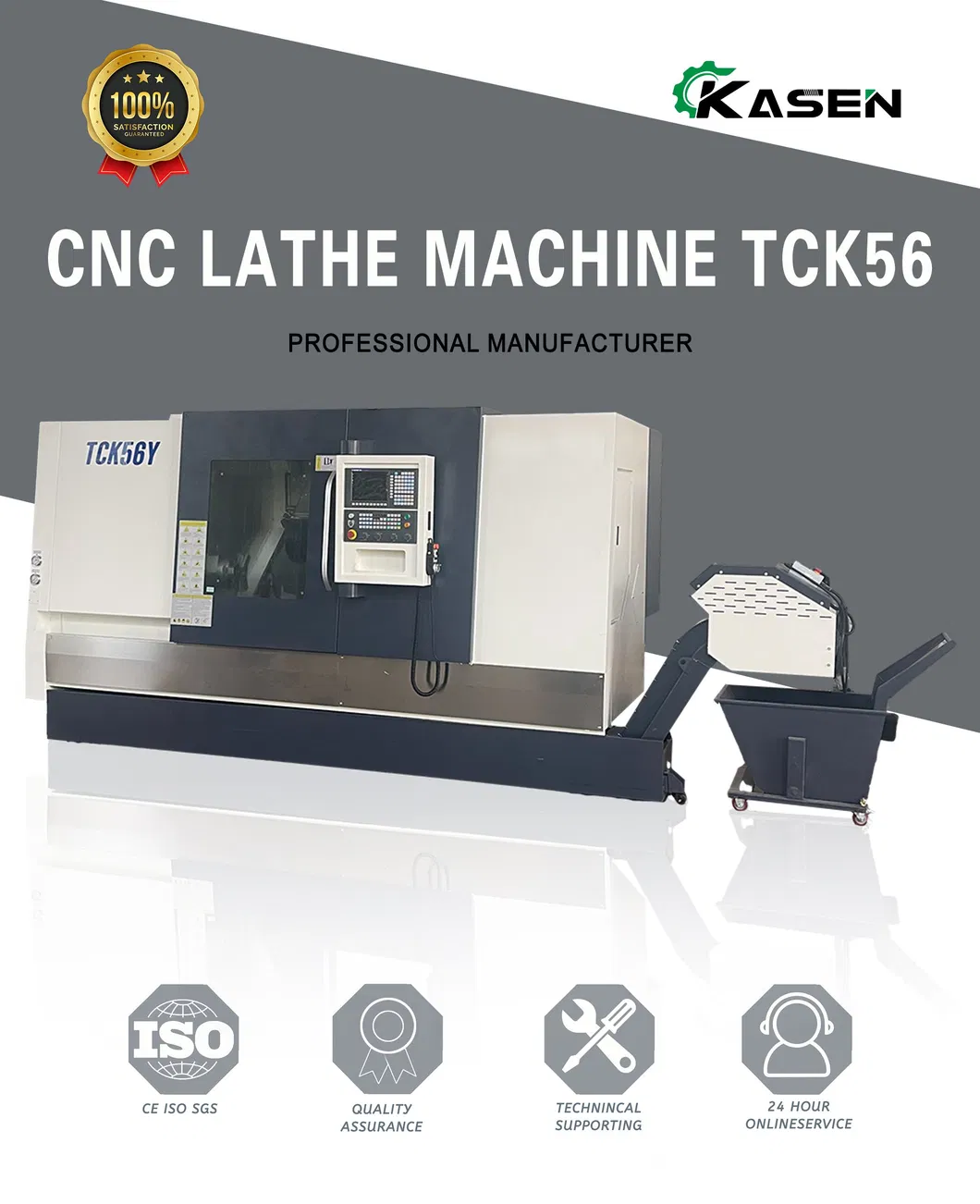

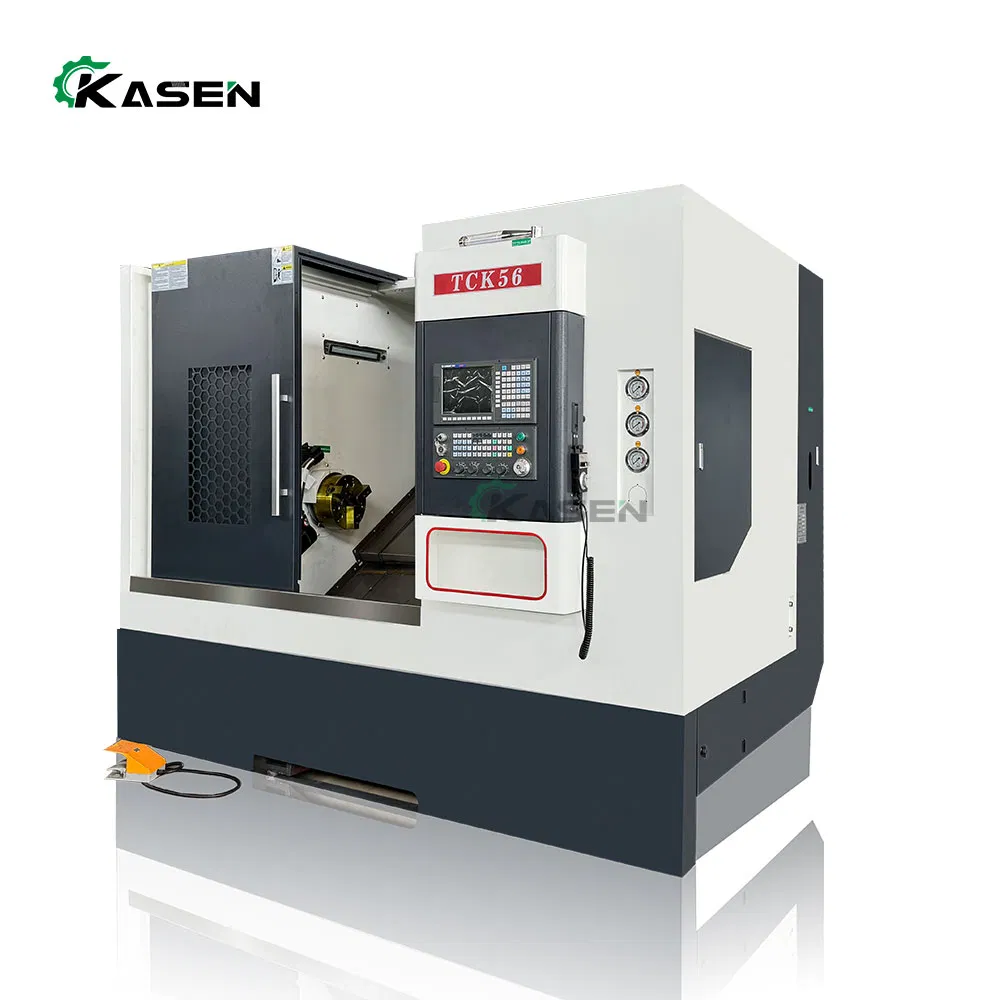

High Quality Lathe Machine Tck56 Tck56y Fanuc CNC Turning Lathe Center

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	2 Years

i

Basic Information

Model NO.

TCK56 TCK56Y

Type

Turret Lathe

Processing Accessory

Centre CNC Lathe

Guide Rail

Inclined Guide Rail

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Max Rotation Diameter

650mm

Spindle Speed

10-3000rpm

Number of Tool Holders

12 Workstations

Transport Package

Plywood Wooden Box

★

Product Description

Key Features:

Multi-Axis Capability: This CNC turning center features X/Y/Z/C four linkage axes, with a Y-axis travel of ± 30mm, supported by C-axis linkage for complex operations.
Integrated Functions: Combines turning, milling, drilling, boring, and tapping into a single platform for both end and side face composite processing.
One-Time Clamping: Designed for revolving parts with complex shapes and extreme precision requirements. The entire machining process is completed with a single clamping setup.

⚙

Product Parameters

Category	Project Details	TCK56Y Specifications
Processing Range	Max Rotation Diameter on Bed	Φ650 mm
	Max Cutting Diameter	Φ540 mm
	Max Cutting Length	540 mm (Powered Turret)
Travel and Feed	X/Y/Z Axis Travel	280 / ±50 / 750 mm
	X/Z Movement Speed	24000 mm/min
	Hand wheel Resolution	0.001/0.01/0.1 mm
	Feed Speed Range	0~5000 mm/min
Accuracy	X/Z Repeat Positioning Accuracy	0.005 / 0.006 mm
Accuracy	X/Z Positioning Accuracy	0.008 mm
Spindle	Spindle Speed	10-3000 rpm
	Spindle Nose	A2-6

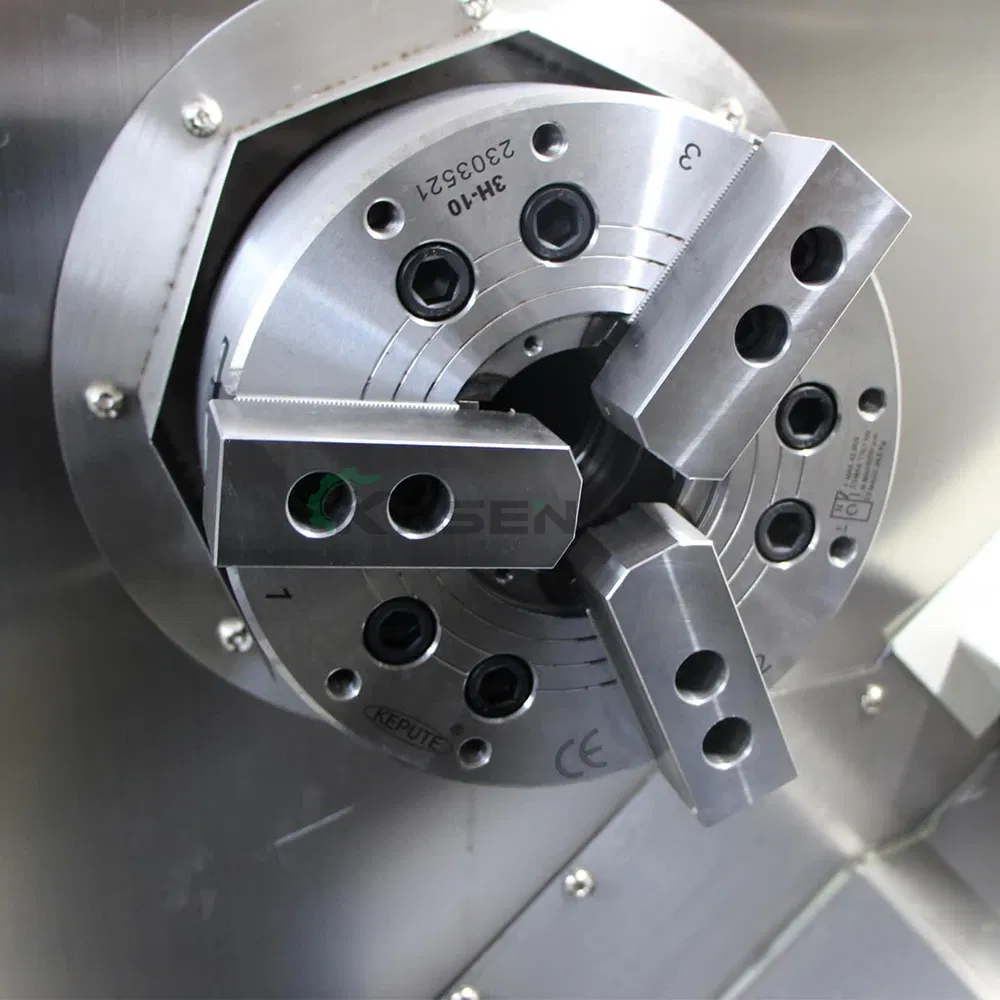

	Chuck Size	10"

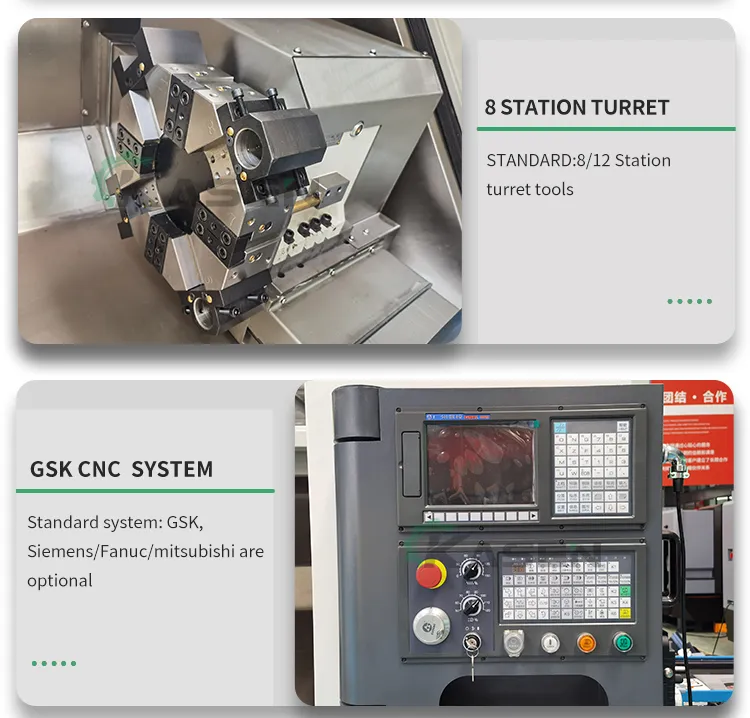

Turret	Number of Stations	12 Workstations
	Tool Speed	6000 rpm
	Power Tool Size	BMT55/ER32

📷

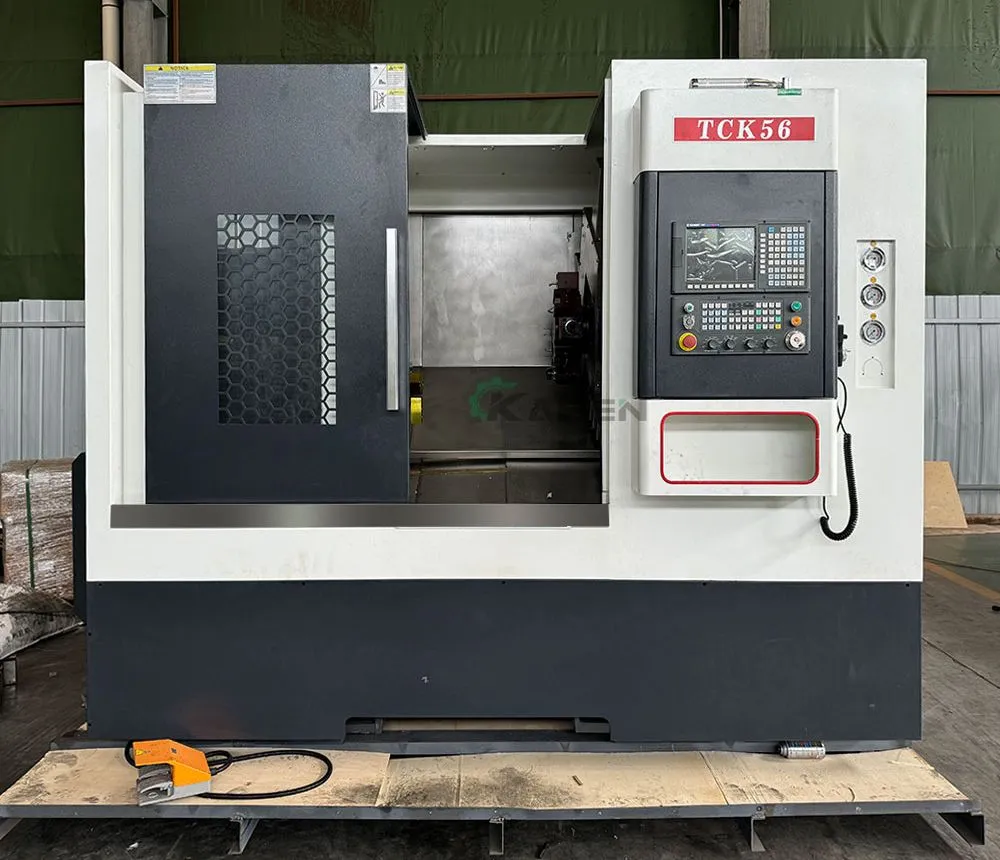

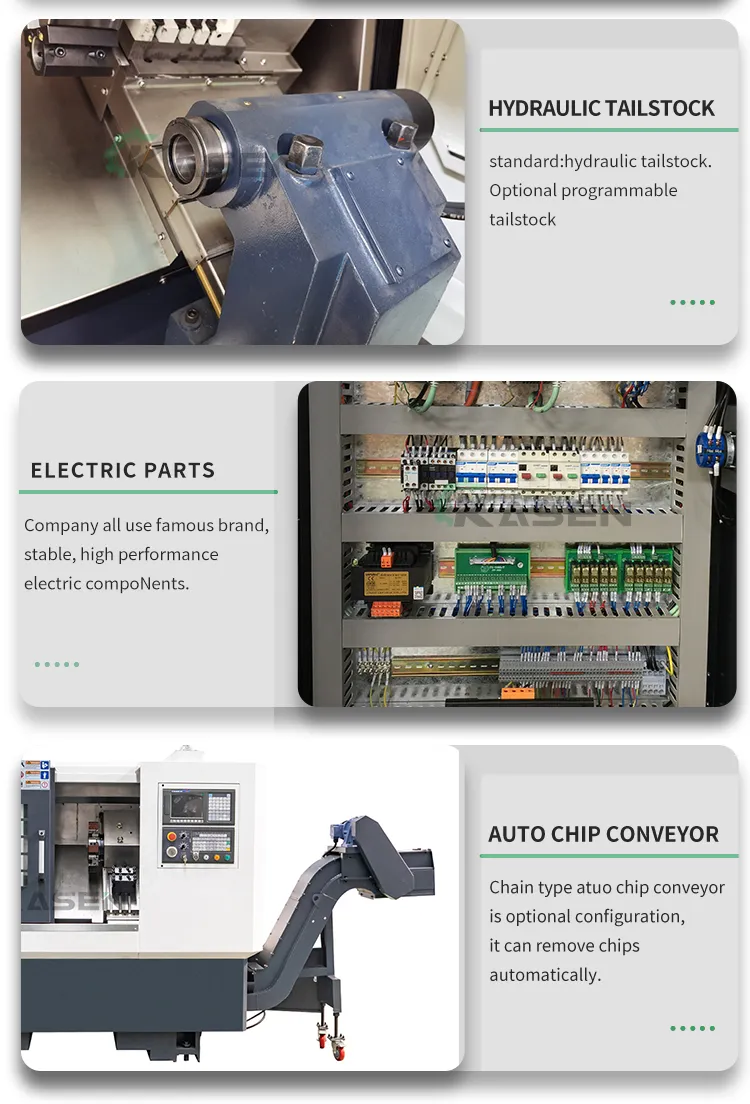

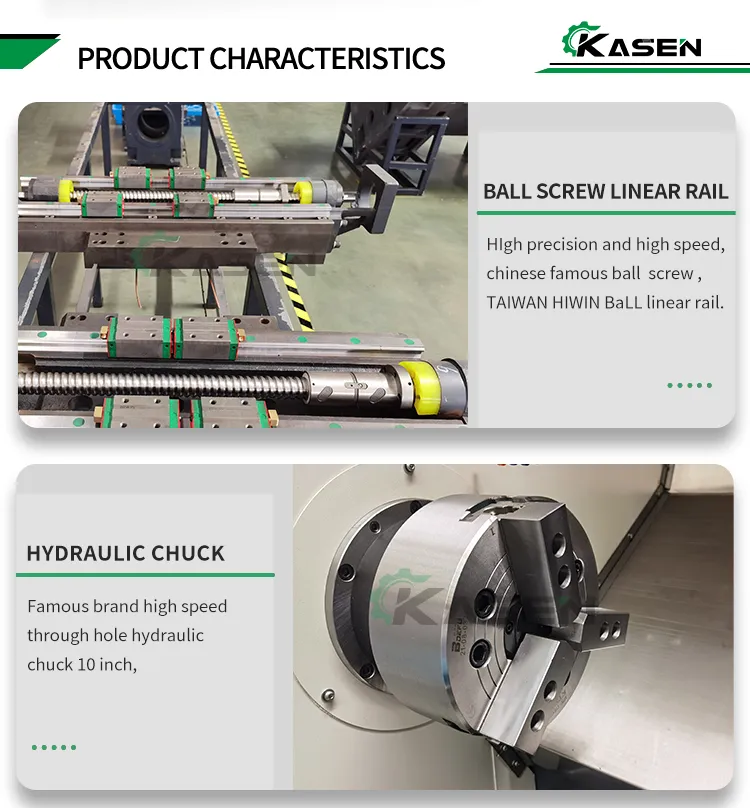

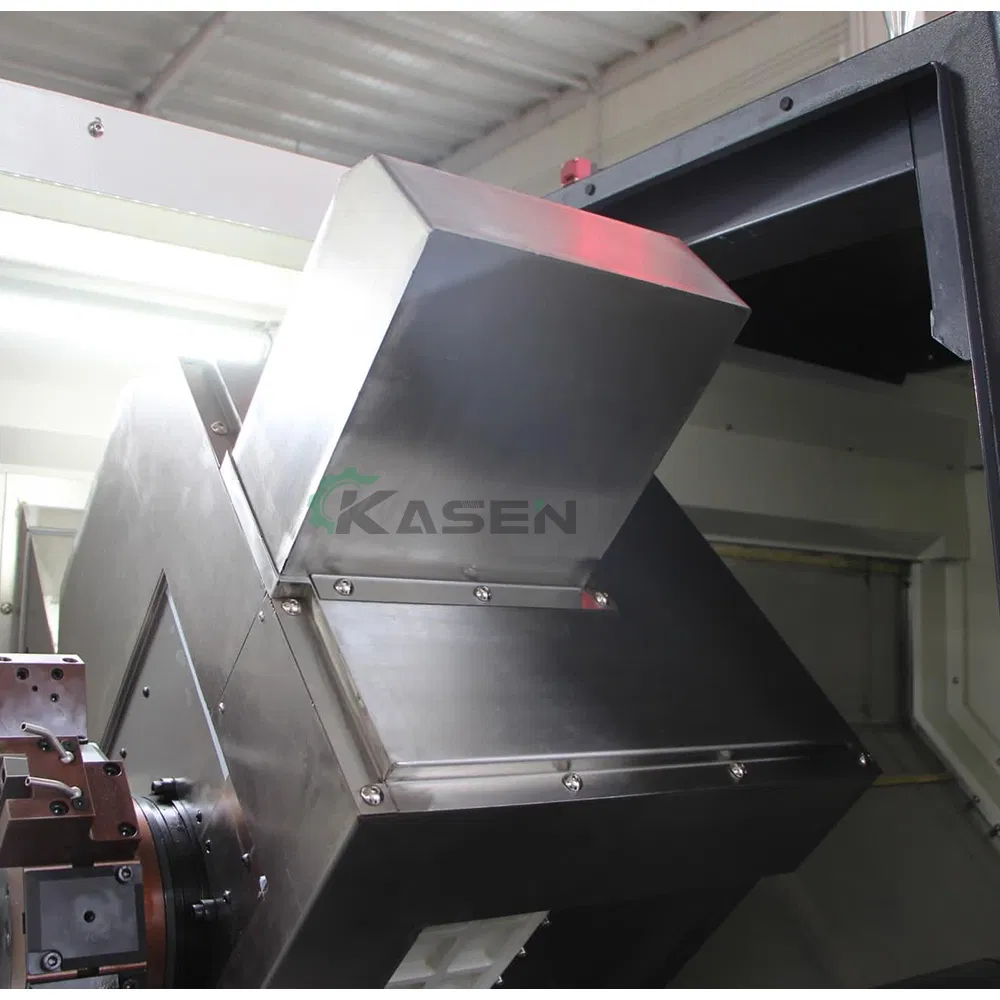

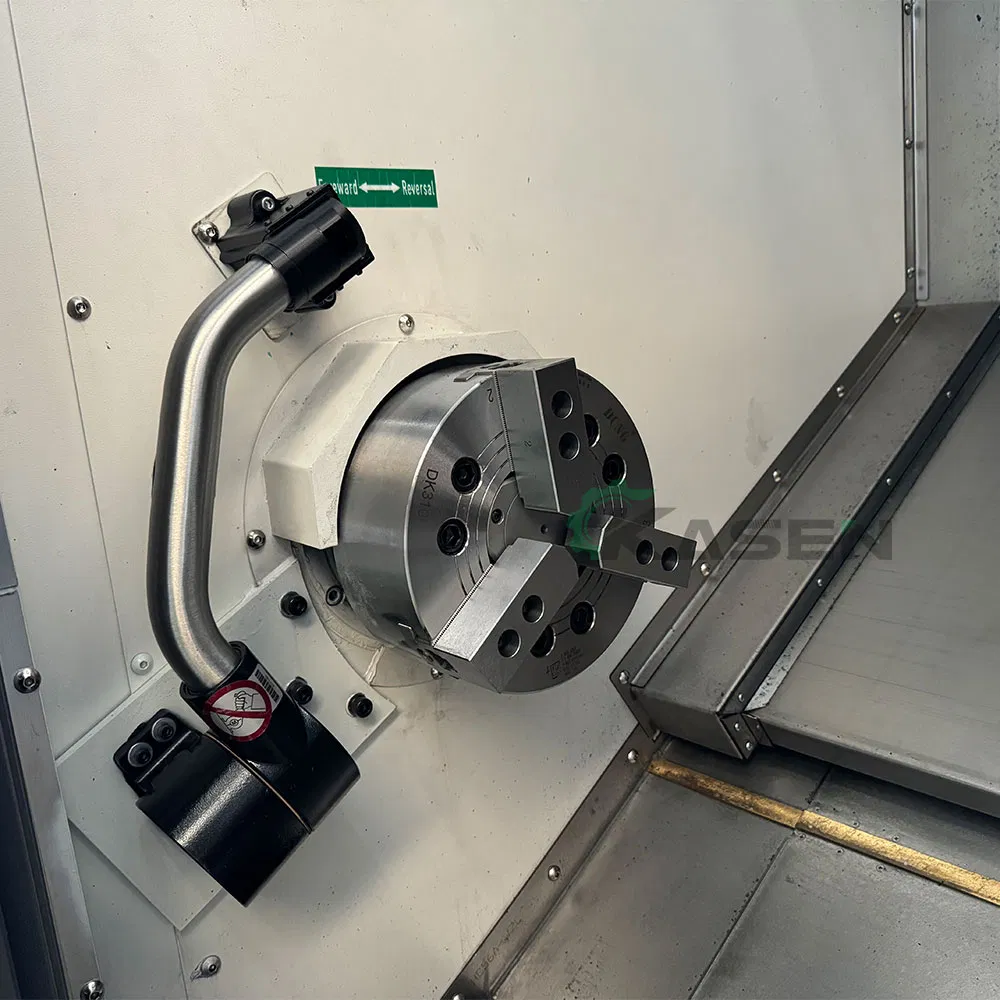

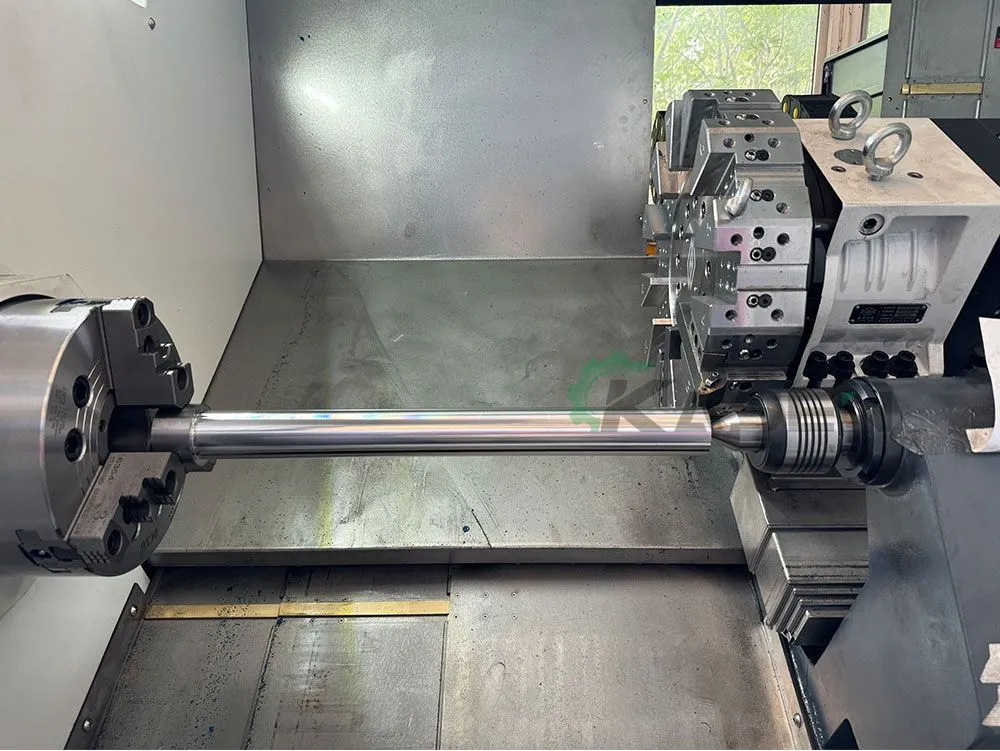

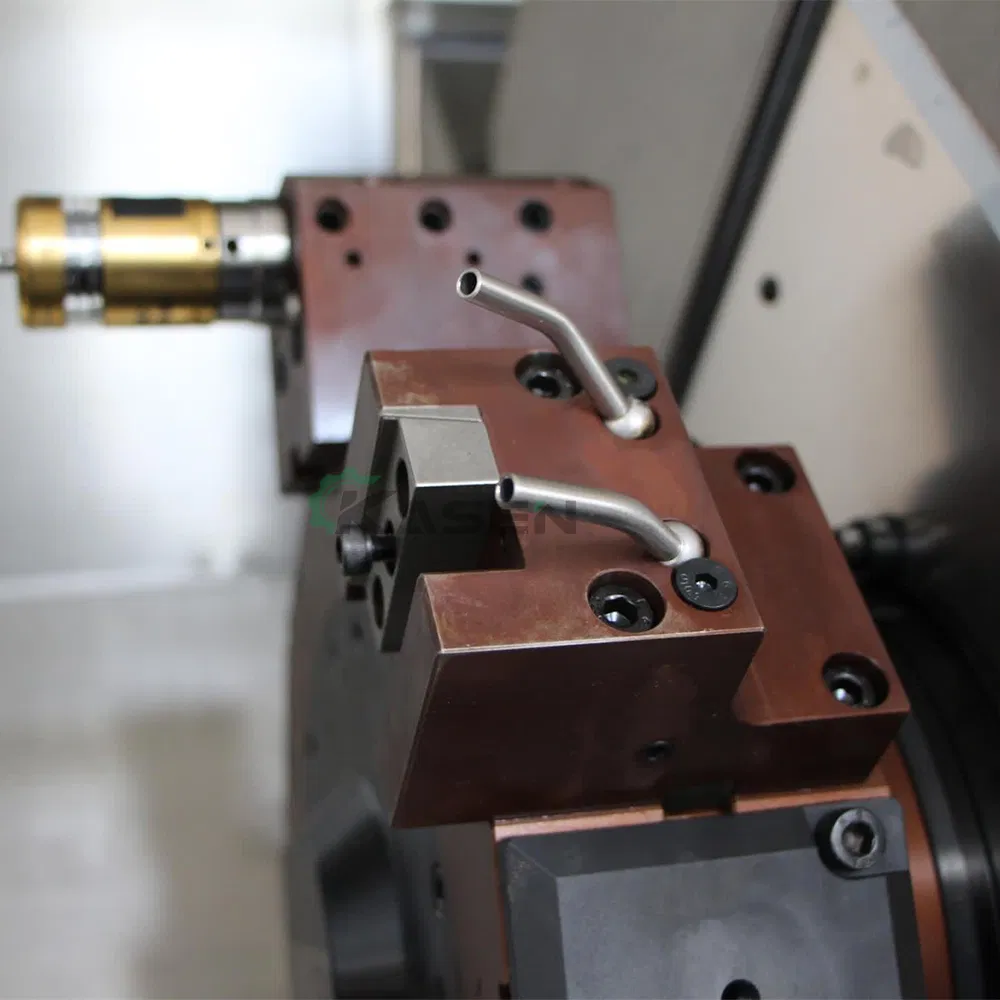

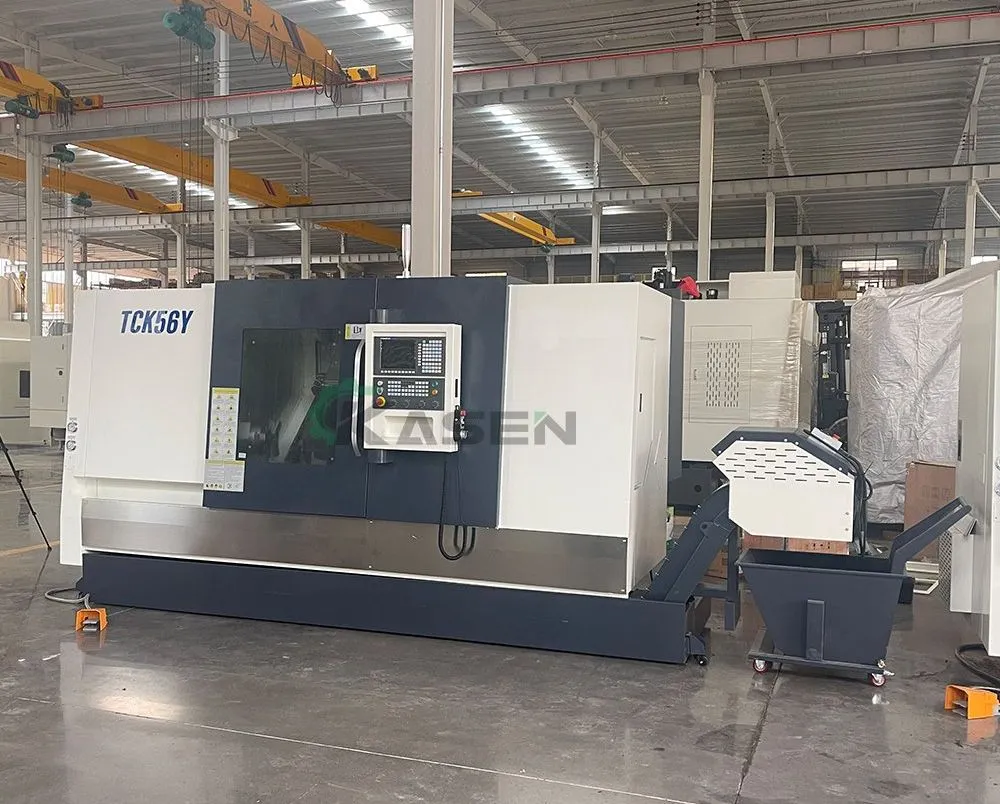

Detailed Photos

🏭

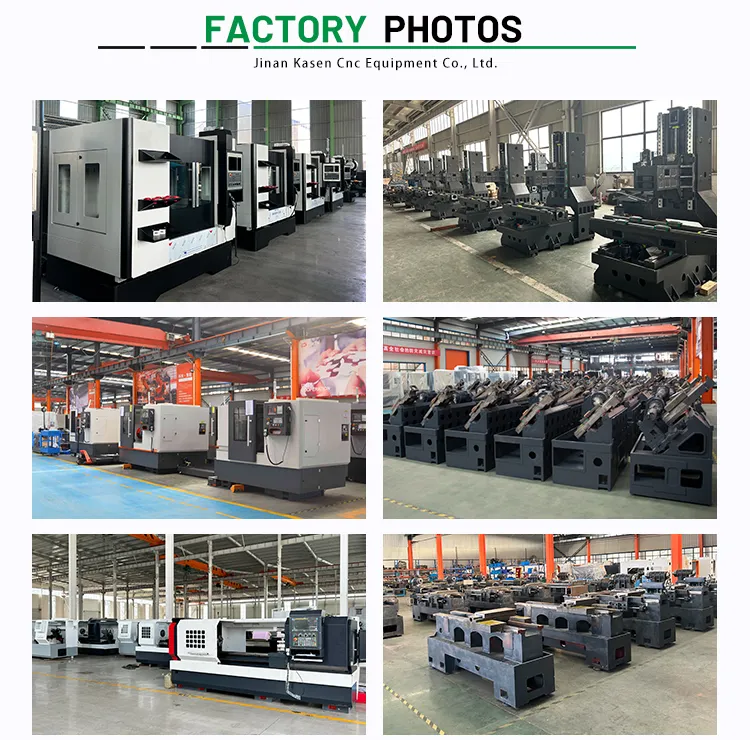

Production Environment

?

Frequently Asked Questions

How is the product quality guaranteed?

We conduct pre-production sample testing before mass production and perform a comprehensive final inspection before shipment to ensure high standards.

What types of machinery can I purchase from you?

We offer a wide range of equipment including Milling machines, CNC machining centers, CNC lathe tools, wire cutting machines, and laser cutting machines.

Why should I choose your machines over other suppliers?

Our manufacturing process—from casting and processing to assembly—is fully controlled across three specialized factories, ensuring complete quality oversight of the final product.

What payment methods and currencies are accepted?

We accept payment via Telegraphic Transfer (T/T), Letter of Credit (L/C), D/P, and D/A. Accepted currencies include USD and CNY.

What are the available delivery conditions?

We primarily operate under FOB and CIF delivery conditions to accommodate international shipping needs.

Which languages can your service team communicate in?

Our team is proficient in English, Chinese, and Russian to provide seamless support for our global clients.
