High-Precision My3060 Hydraulic Surface Grinding Machine for Metal Finishing

1 / 5

High-Precision My3060 Hydraulic Surface Grinding Machine for Metal Finishing

Customization:	Available
After-sales Service:	Overseas Third-Party Support Provided Available
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

MY3060

Type

Surface Grinding Machine

Processing Object

Splined Shaft

Abrasives

Grinding Wheel

Controlling Mode

Manual+ Auto Movement

Automatic Grade

Semiautomatic

Precision

High Precision

Table Size

300X600mm

Power

2.2 Kw / 3 Kw Spindle Motor

Weight

1400 Kg

Movement

Auto Hydraulic Movement

Roughness

0.02 M / Ra0.63

Product Description

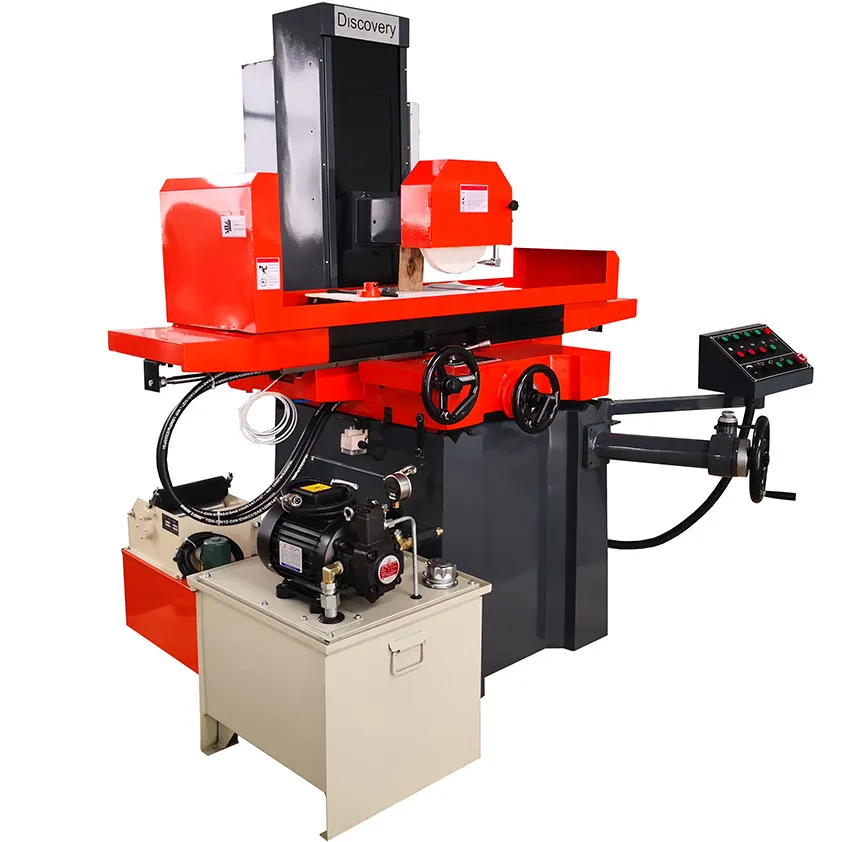

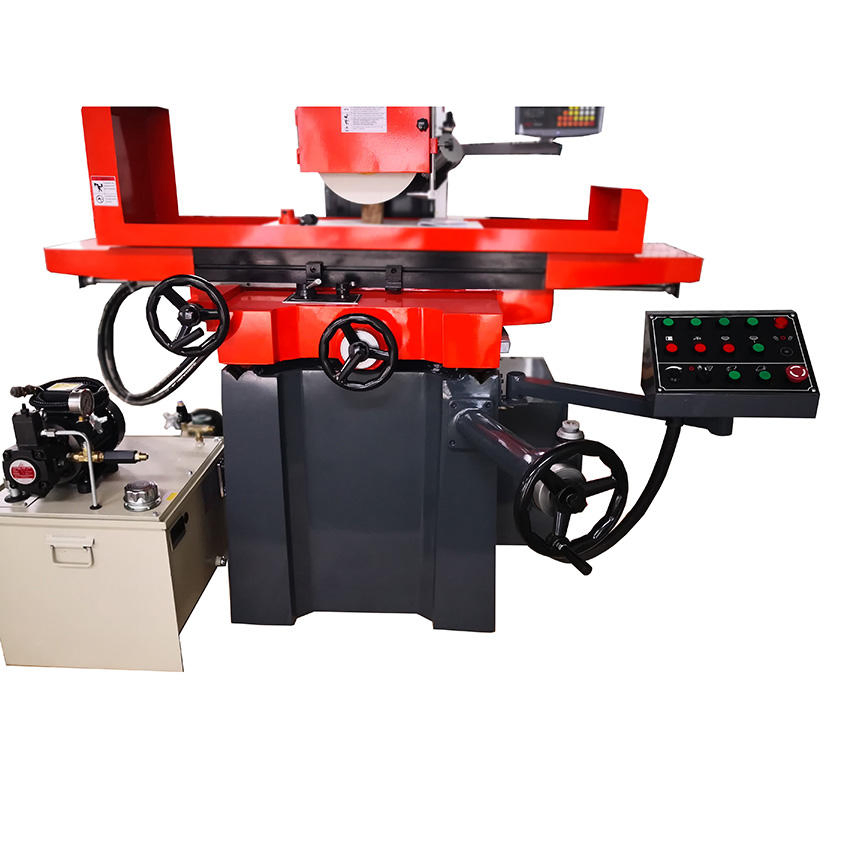

MY3060 Hydraulic Surface Grinding Machine

This precision machine is designed for professional metal finishing, offering a table size of 680X300mm and a robust 3Kw spindle motor.

Compact structure and easy operation.
Hydraulic transmission on longitudinal manual and auto feed on transverse.
Rapid movement and micro-adjust mechanism on vertical axis.
V-type and plane guide ways for saddle and bed, ensuring smooth and light movement.
DRO (Digital Readout) can be selected as an option.
Rapid moving up/down driven by micro motor with micro-setting handle.

Technical Parameters

Parameter Item	Unit	MY3060	MYS3060
Max. Workpiece (L×W×H)	mm	630×310×390	630×310×390
Max. Grinding Length	mm	630	630
Max. Grinding Width	mm	320	320
Table Size (L×W)	mm	600×300	600×300
Wheel Size (dia×width×bore)	mm	250×25×76.2	250×25×76.2
Spindle Speeds (50Hz)	rpm	1450	1450
Total Power	Kw	3.79	3.8
Surface Roughness	μm	Ra0.63	Ra0.63
Machine Size (L×W×H)	mm	1900×1530×1750	1900×1530×1750

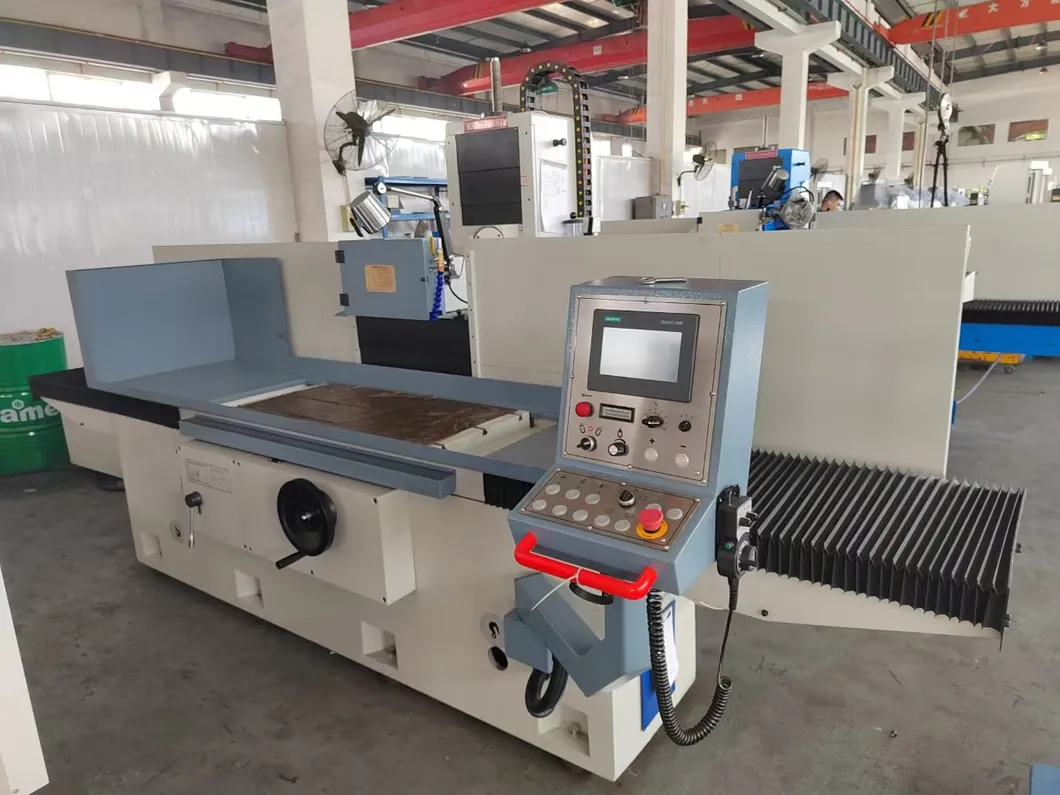

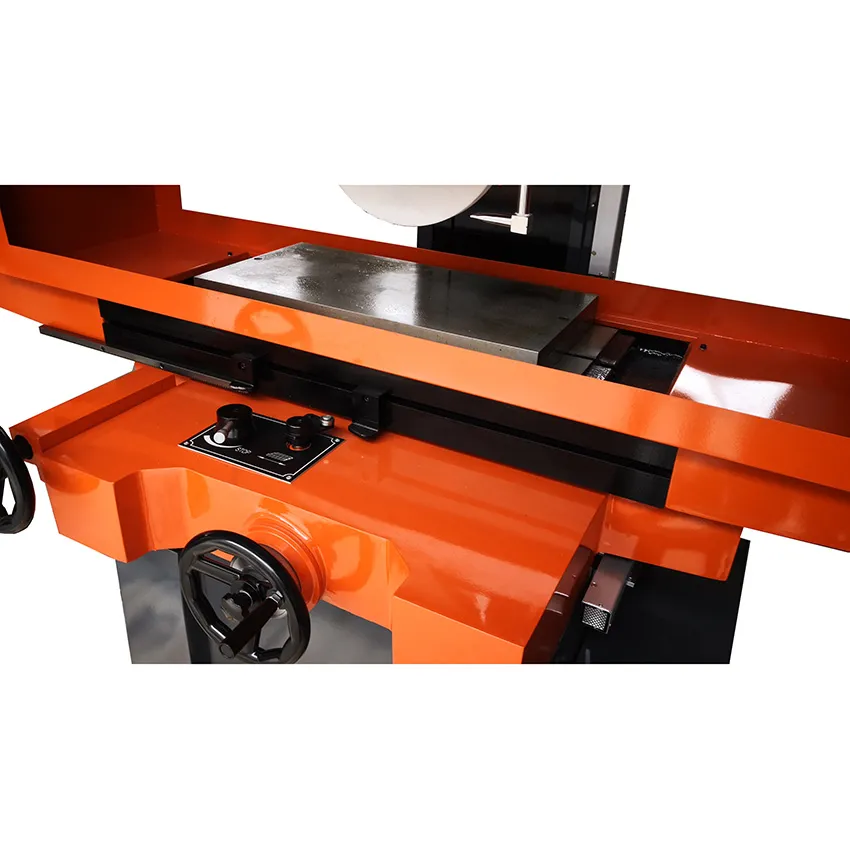

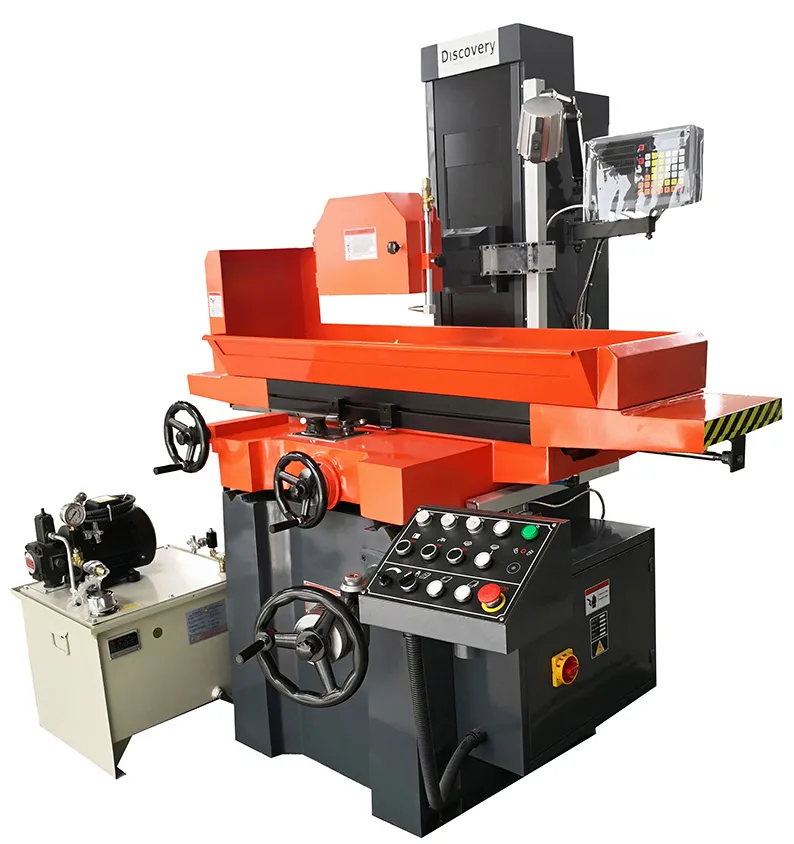

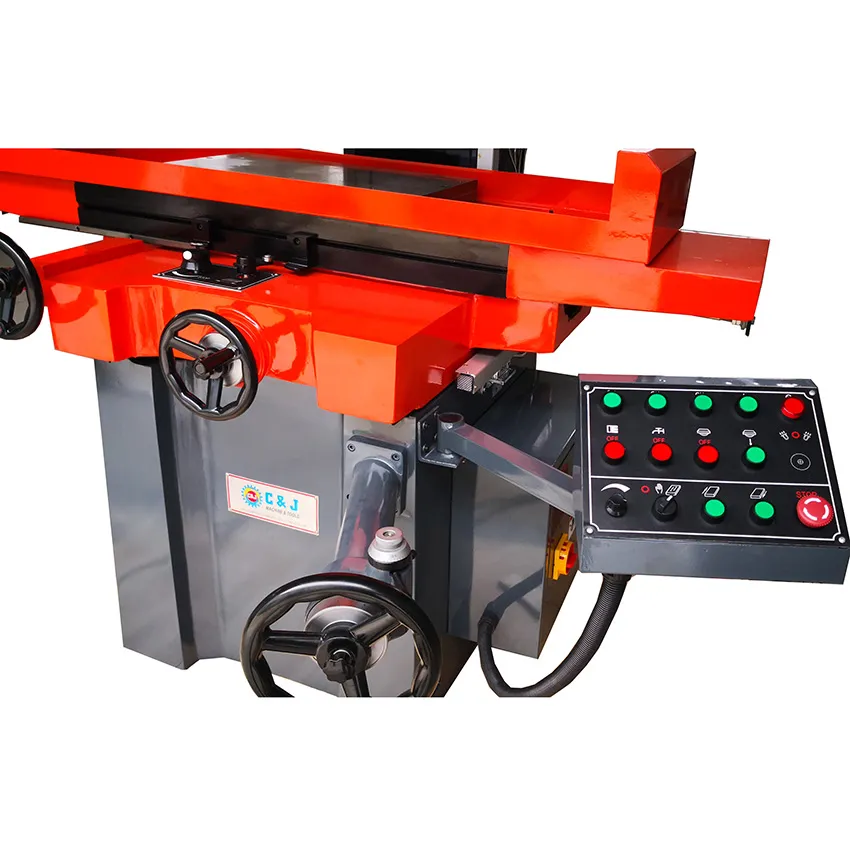

Machine Photo Gallery

Service & Quality Assurance

Quality Inspection

Each machine is thoroughly inspected and tested under load before leaving the factory to ensure optimal performance.

After-Sales Service

Training on installation and machine usage. Engineers are available to service machinery overseas if required.

Guarantee

One year guarantee under normal working conditions (excluding wearing spare parts). 24-hour technical support provided.

Related Machine Tools

Frequently Asked Questions

What are the main features of the MY3060 grinding machine?

The MY3060 features a compact structure, hydraulic longitudinal transmission, and automatic transverse feed. It also includes a micro-adjust mechanism for vertical precision and high-quality V-type guide ways.

What is the standard table size for this model?

The standard table size for the MY3060 is 600 x 300 mm, providing ample space for grinding various workpieces.

What materials can be processed with this machine?

It is primarily designed for high-precision finishing of metal workpieces, such as splined shafts and other precision components requiring high surface smoothness.

What is included in the standard accessories?

Standard accessories include a tool box, balancing stand and bar, wheel dresser holder, wheel flange, chuck, and various wrenches/screwdrivers for maintenance.

How is the quality of the machine ensured?

Every machine undergoes a strict inspection process and is tested under load before shipping. We also provide a one-year warranty and lifetime technical support.

Can I add a Digital Readout (DRO) to the machine?

Yes, a DRO system can be selected as an optional configuration to enhance operational precision and ease of use.
