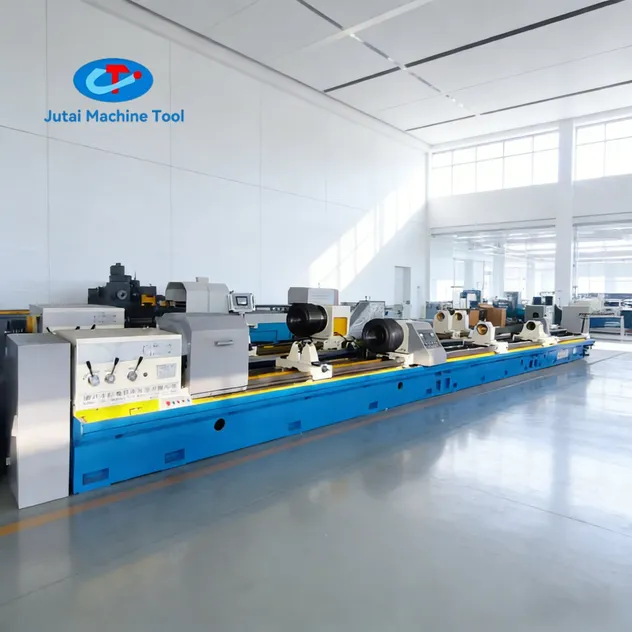

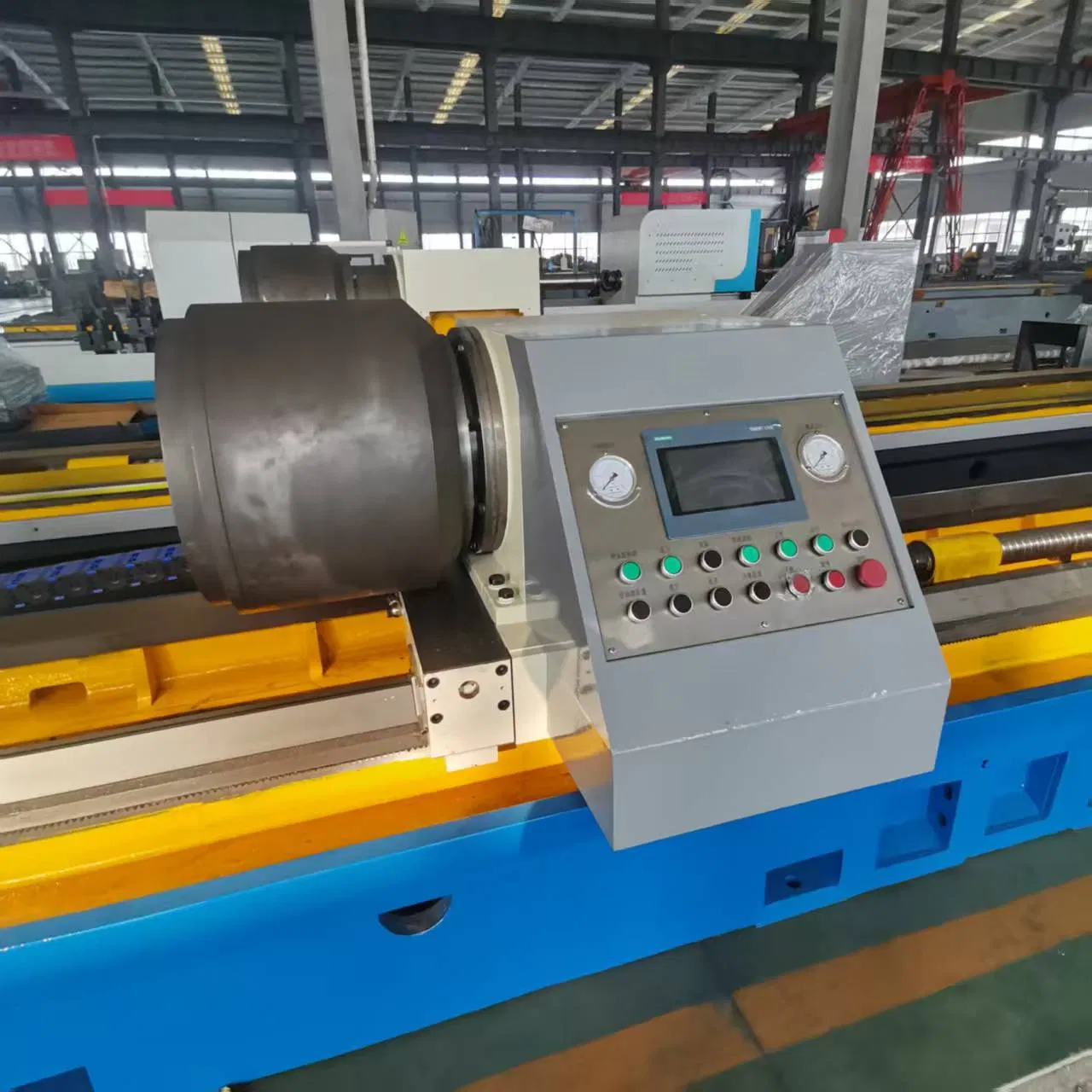

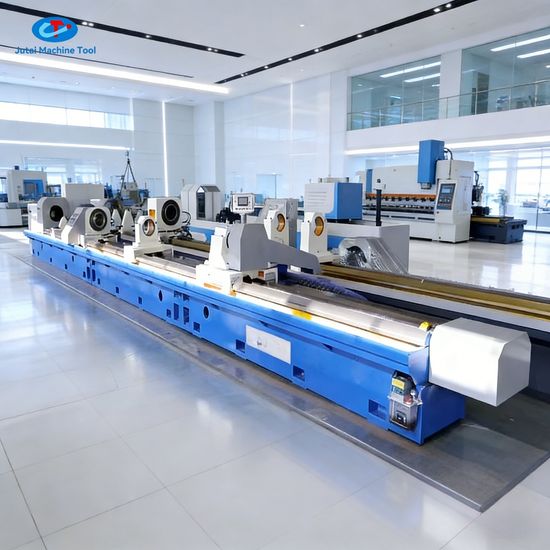

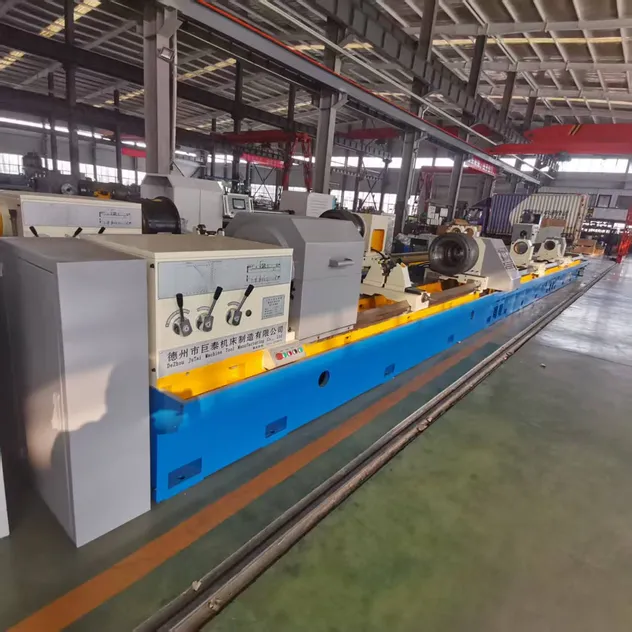

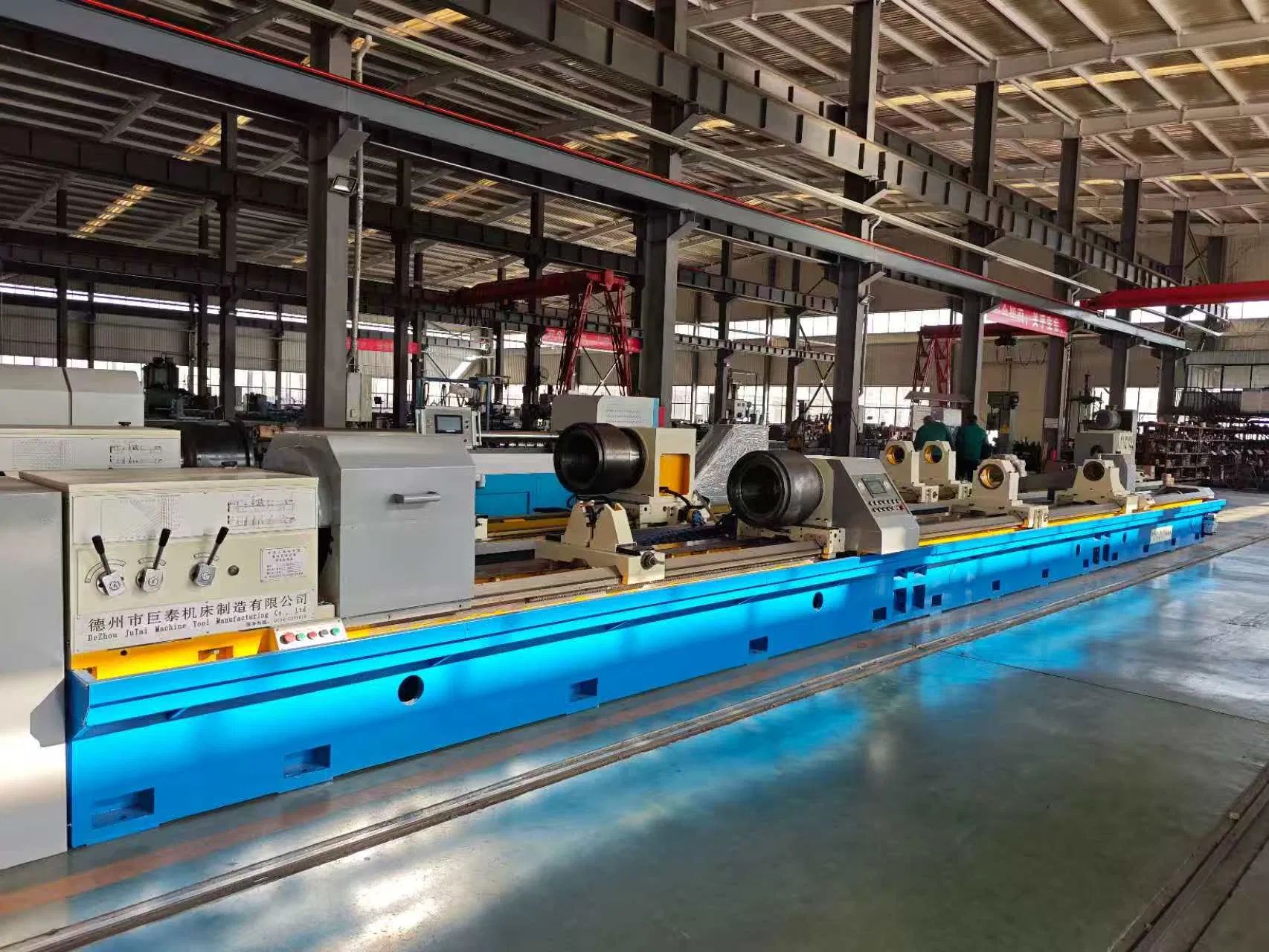

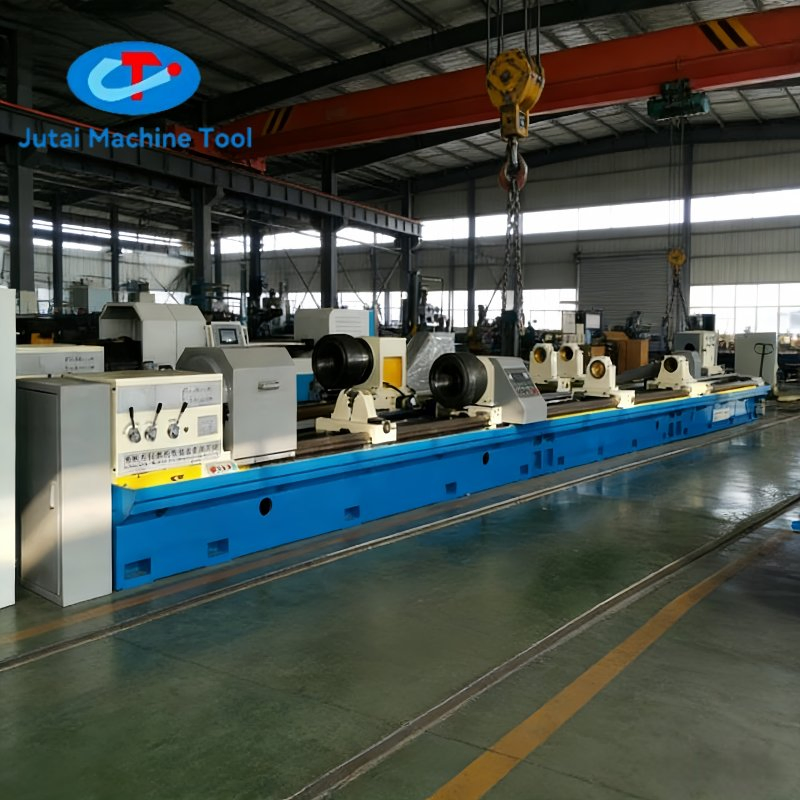

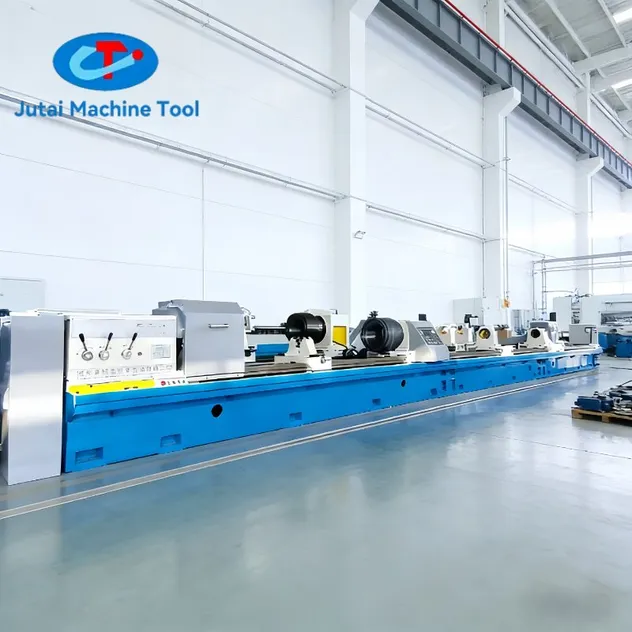

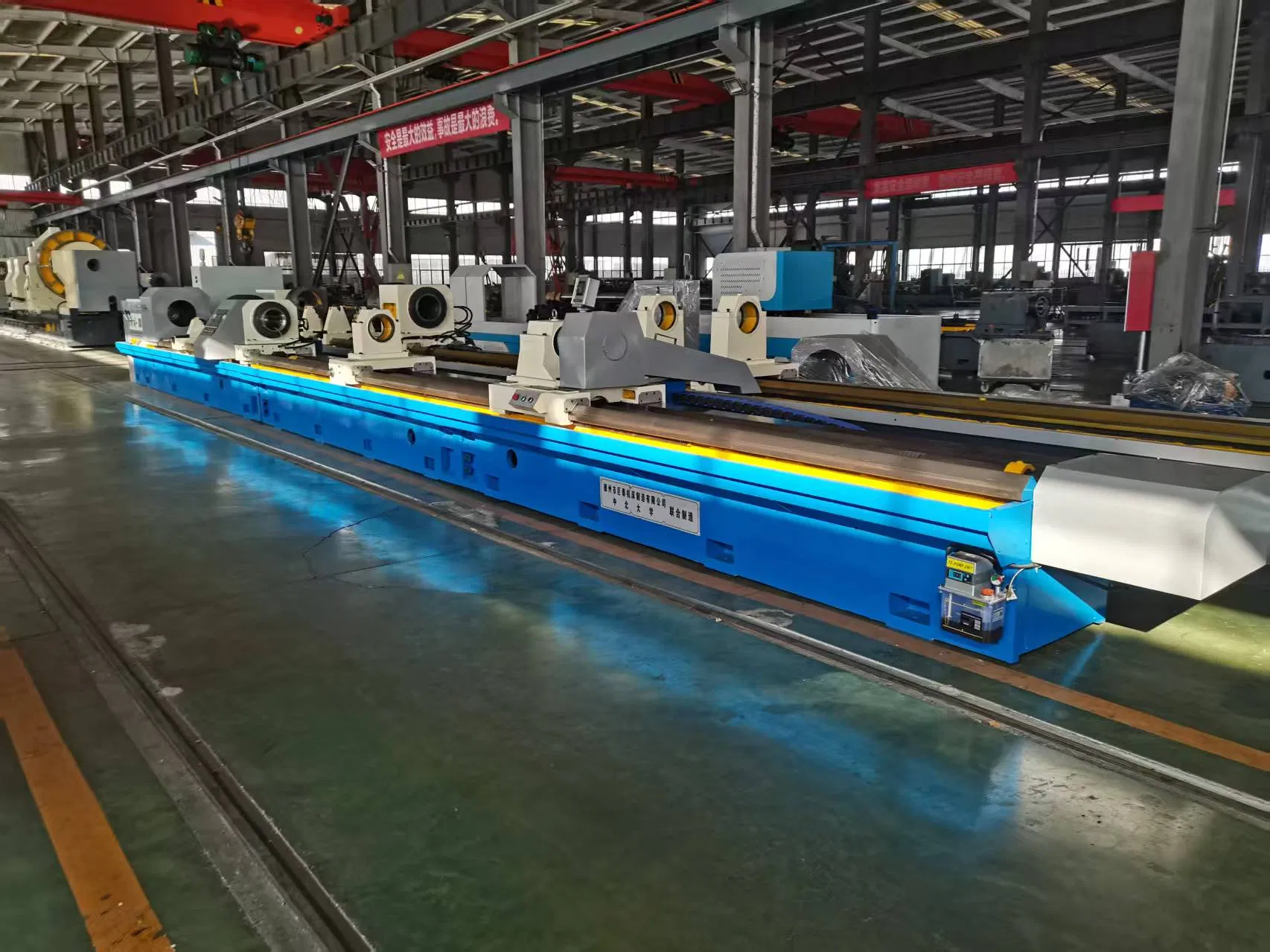

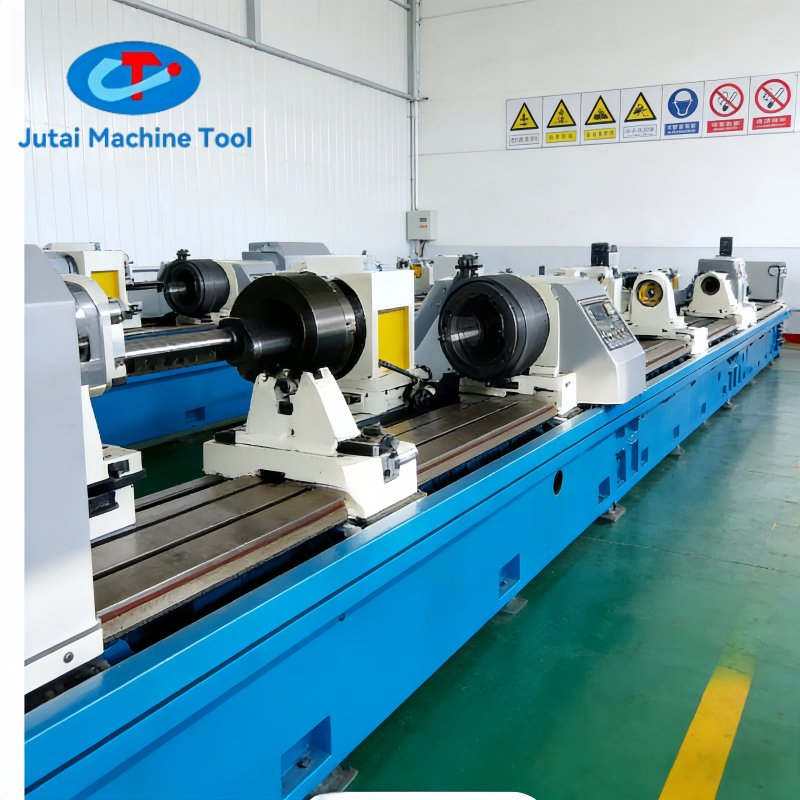

CNC Deep Hole Drilling and Boring Machine is a professional finishing equipment for deep-hole workpieces, integrating high precision with multi-process capabilities.
| Technical Specifications | TK2216 | TK2220 | TK2225 | TK2235 | TK2240 |
|---|---|---|---|---|---|
| Max boring diameter / mm | 160 | 200 | 250 | 350 | 400 |
| Drilling diameter range / mm | 30-80 | 30-120 | 30-120 | 30-120 | 30-120 |
| Max machining depth / mm | 1500-3000 | 1000-12000 | 1000-12000 | 1000-12000 | 1000-12000 |
| Workpiece supporting range / mm | 60-200 | 60-260 | 60-330 | 60-450 | 100-500 |
| Guide rail width / mm | 510 | 650 | 650 | 650 | 650 |
| Spindle speed range / r/min | 82-1250 | 61-1000 | 61-1000 | 65-523 | 65-523 |
| Main motor power / KW | 15 | 30 | 30 | 30 | 37 |
| Control System | High Stability CNC System (Siemens Compatible) | ||||
This series of machine tools is specialized for machining cylindrical deep-hole workpieces, such as spindle bores, mechanical hydraulic cylinders, and air cylinders. It supports multiple operations including drilling, boring, trepanning, and rolling.

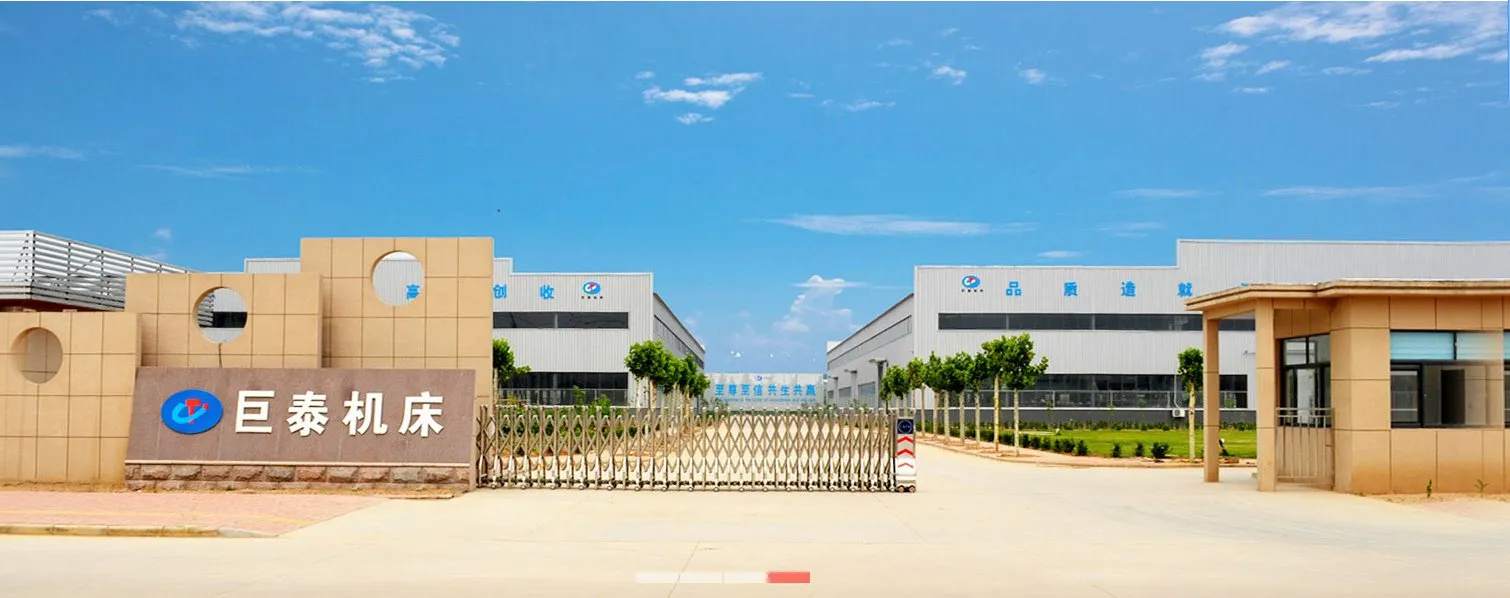

Equipped with over 80 types of advanced processing equipment, including large gantry planers and digital display milling machines, we provide a full range of deep hole solutions from 30mm to 1000mm. Our products follow strict ISO 9001 quality standards.
Package Type: Heavy-duty Wooden Box
Package Size: 1355cm * 235cm * 270cm
Gross Weight: 27,000kg
