Heavy Duty High Efficiency GSK/Siemens/Fanuc Tck600 CNC Turning Center with Bar Feeder with Chip Conveyor for Metal Turning with CE/ISO Living Tool

1 / 5

Heavy Duty High Efficiency GSK/Siemens/Fanuc Tck600 CNC Turning Center with Bar Feeder with Chip Conveyor for Metal Turning with CE/ISO Living Tool

Customization:	Available
After-sales Service:	Provide
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.TCK600

ApplicationMetal Cutting

Control MethodSemi-Closed Loop Control

Numerical ControlCNC/MNC

Processing Precision0.03~0.04(mm)

CertificationGS, CE, ISO 9001

Max. Swing Dia. Over Bed600 mm

Max. Processing Length500 mm

Spindle NoseA2-8

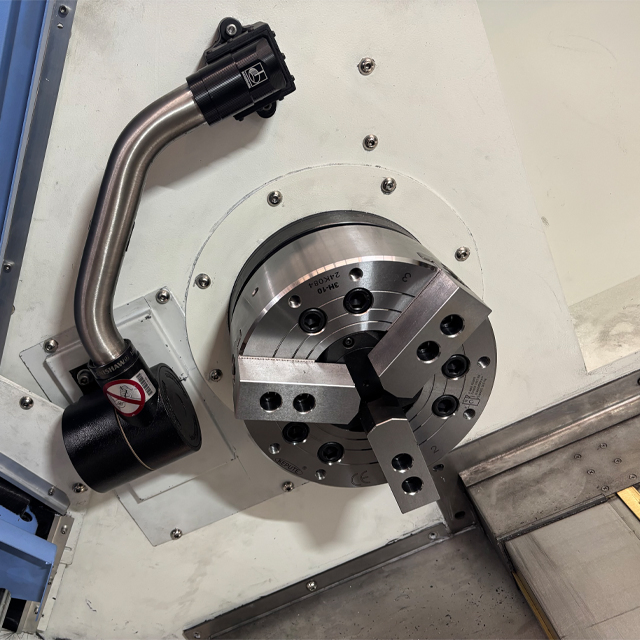

Chuck TypeHydraulic Chuck

Tool Post Type8/12 Station

Product Description

⚙️

Use of CNC Lathe

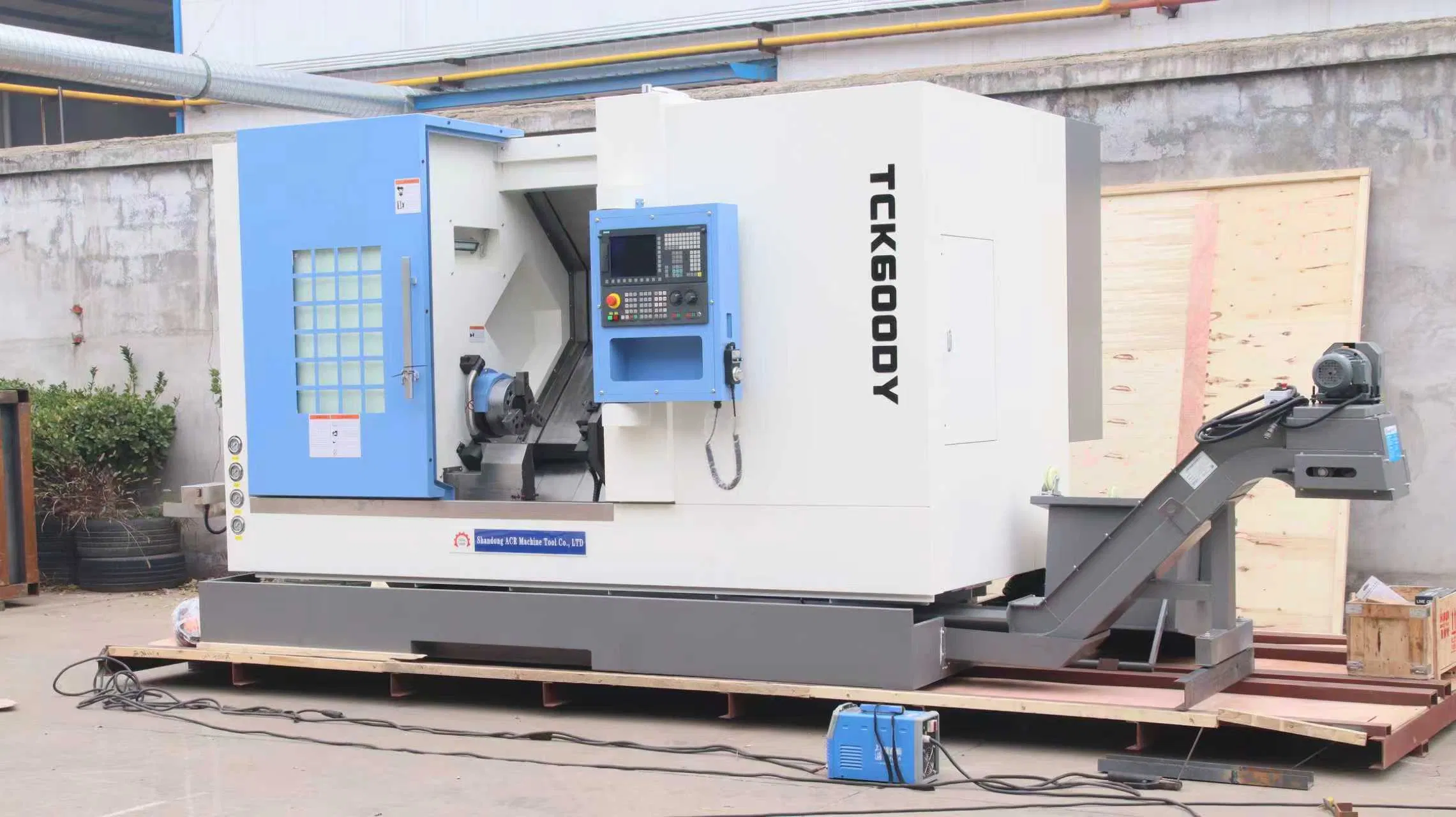

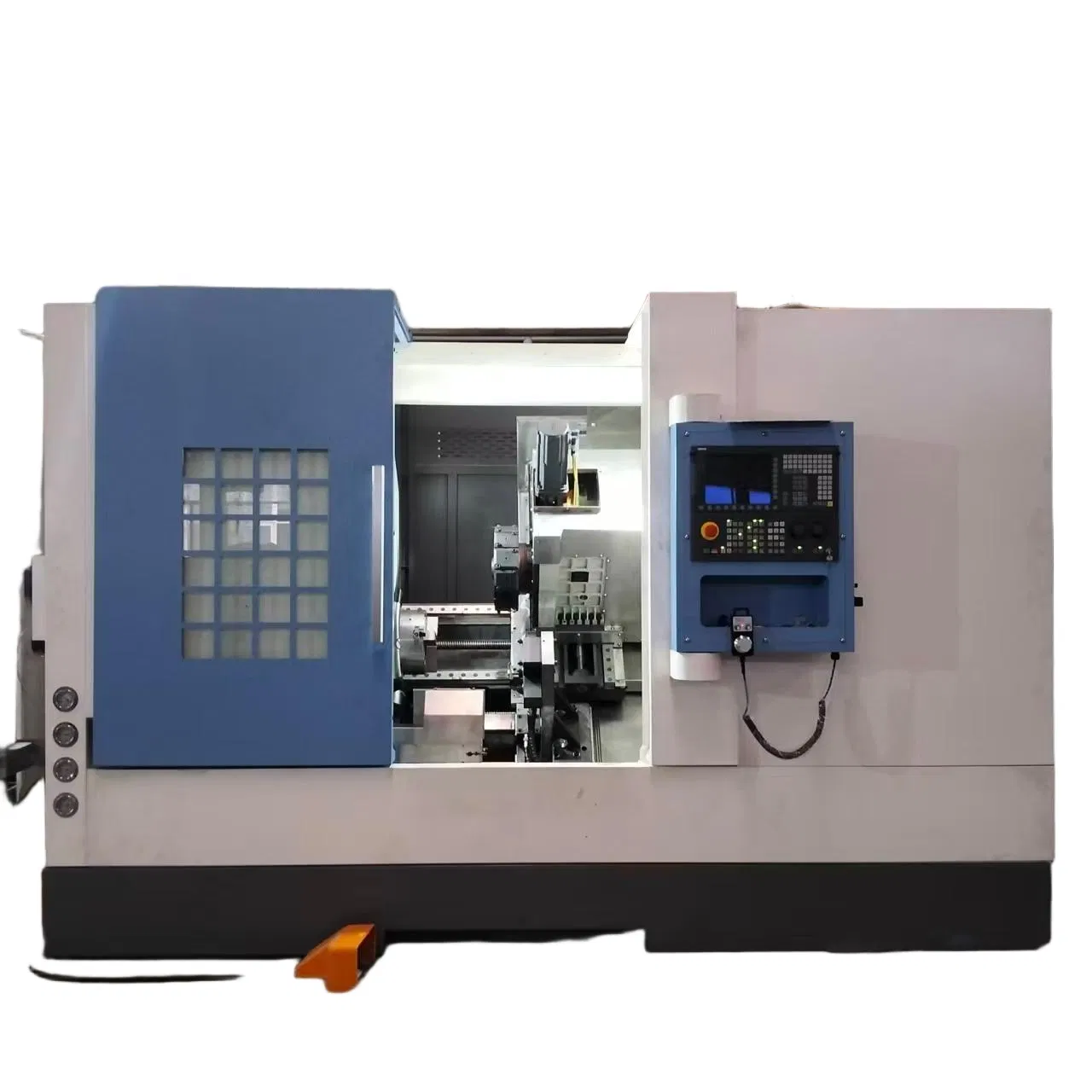

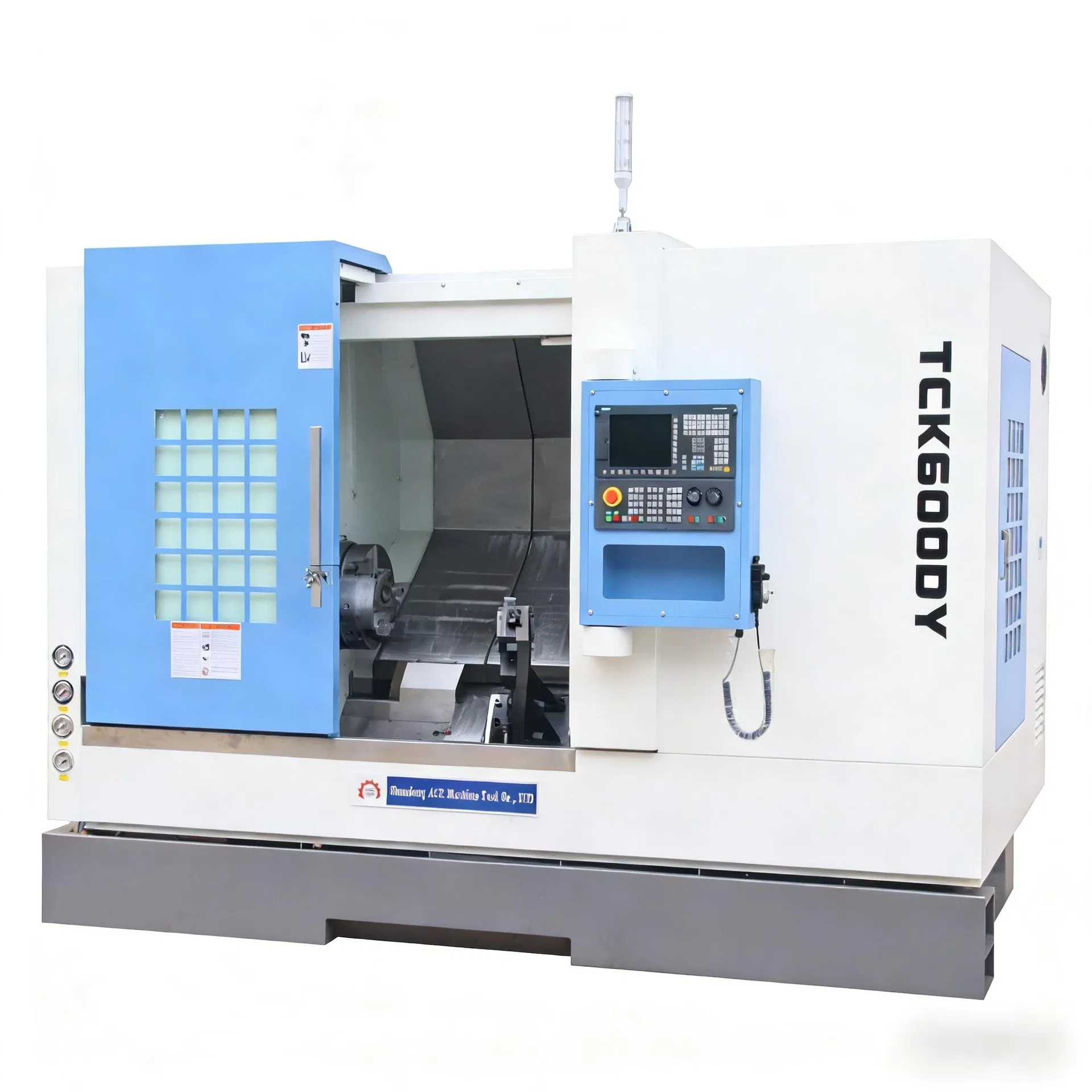

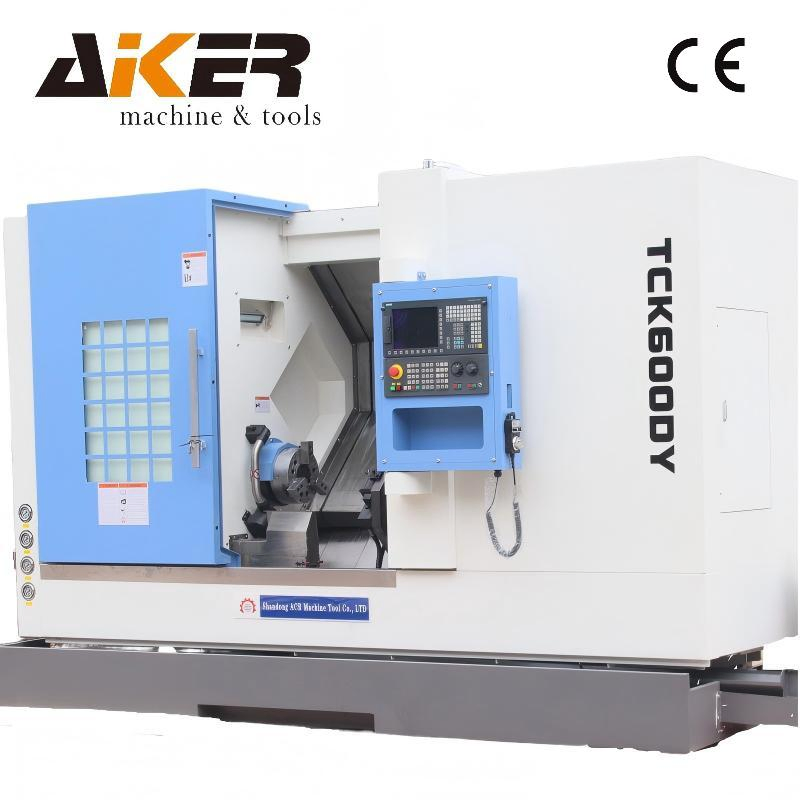

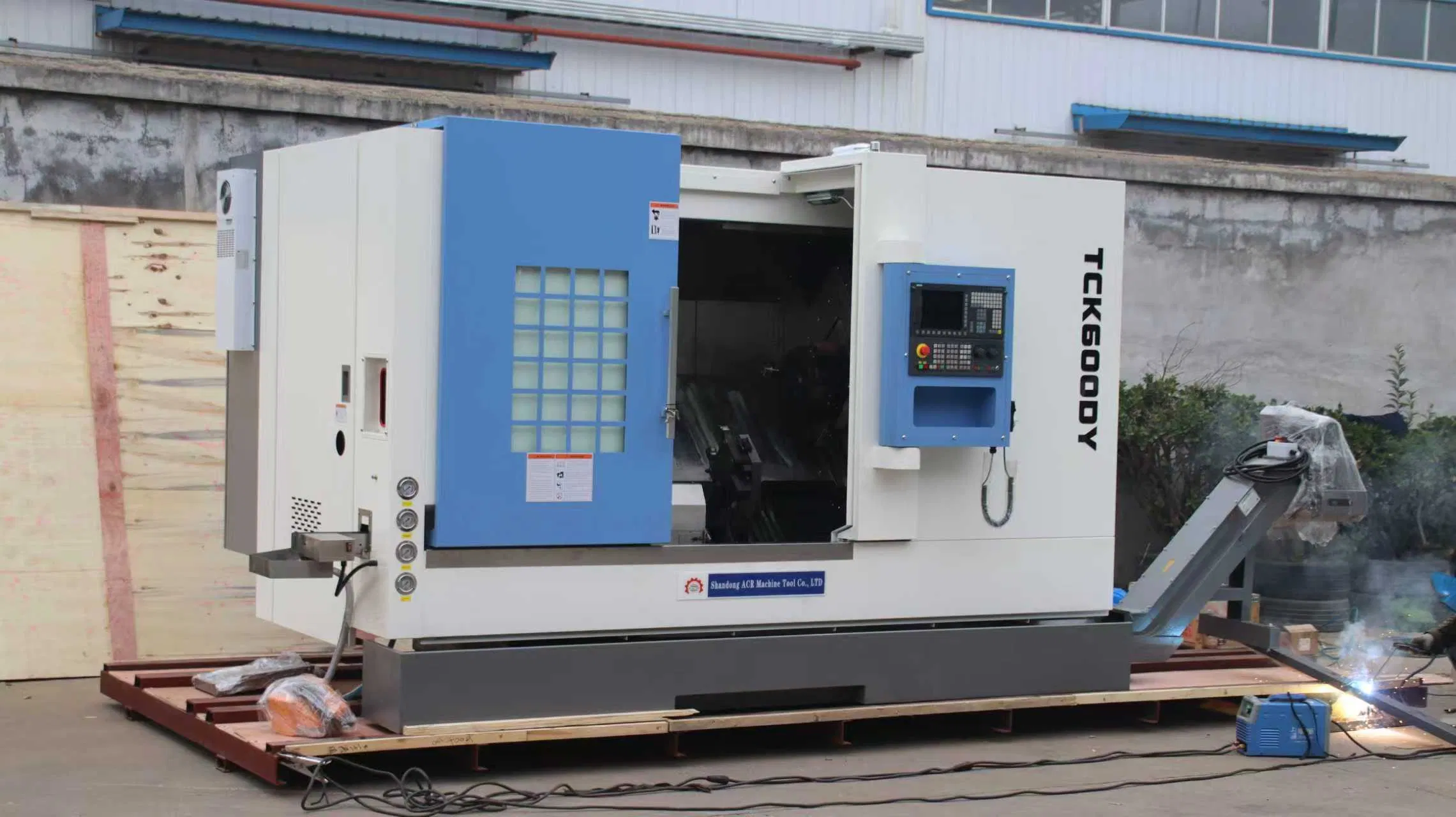

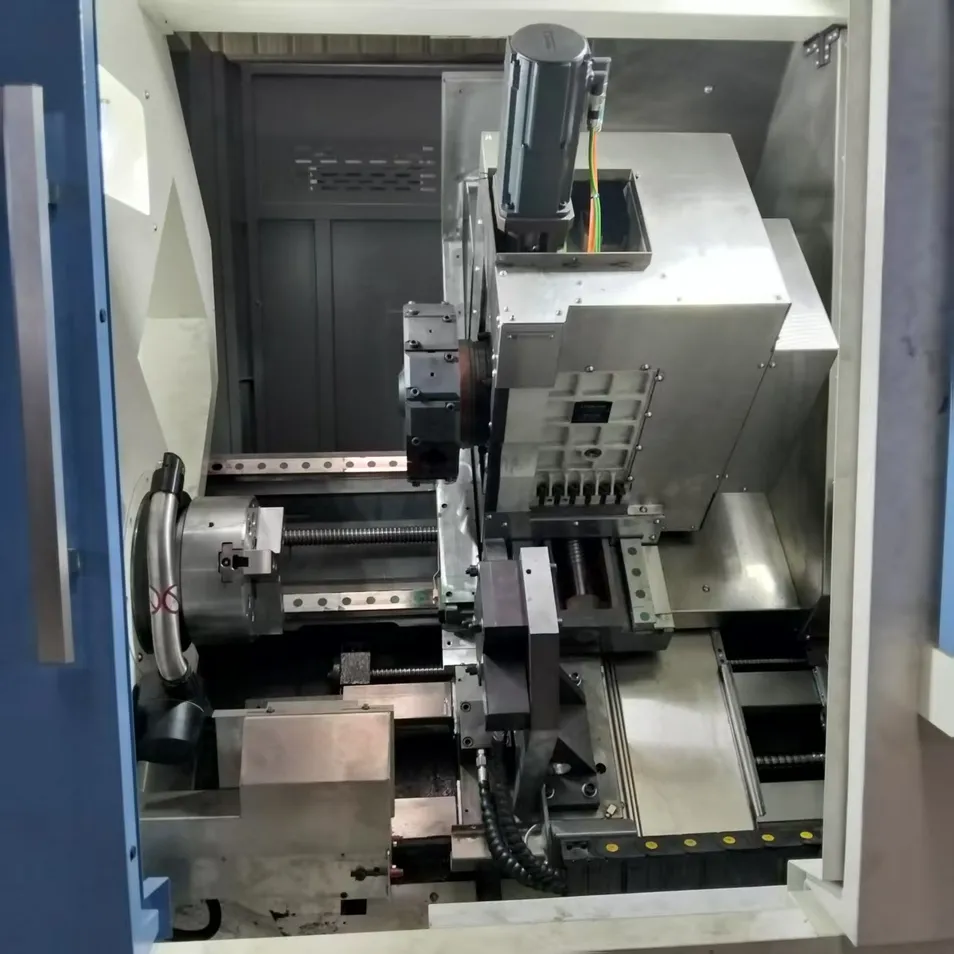

The TCK600 CNC inclined bed lathe adopts an inclined bed structure and a fully enclosed protective cover design. It is equipped with an integrated CNC operation panel and an automatic chip removal machine. It is a batch precision processing equipment for shafts, discs, and sleeve parts. It can complete multiple processing procedures such as turning, boring, and tapping in one step. The compact inclined bed layout not only optimizes the chip removal efficiency but also saves workshop space.

💡

Key Advantages

Maximum efficiency in chip removal: The inclined bed structure allows chips to slide off naturally, combined with an automatic chip removal system.
Stable processing accuracy: Rigid bed and CNC system ensure dimensional tolerances and surface roughness are consistently met.
Easy operation and maintenance: Fully enclosed cover isolates chips and noise; integrated CNC panel has a low learning curve.

Technical Specifications

PROJECT	UNIT	TCK600
Swing over the bed	mm	560
Swing over the slide	mm	350
Turning length	mm	500
MECHANICAL SPINDLE
Spindle speed	rpm	3500
Main motor power	kw	11-15
Spindle nose specification	-	A2-6 (Optional A2-8)
Spindle through hole diameter	mm	65 (Optional 86)
FEED & ACCURACY
X/Z axis travel	mm	210/560
X/Z axis Fast moving speed	m/min	30/30
X/Z axis Positioning accuracy	mm	0.008/0.008
X/Z axis Repeat positioning accuracy	mm	0.004/0.004
DIMENSIONS
Machine weight	kg	4200
Machine size (L×W×H)	mm	3600x2000x2500

Packaging & Delivery

Package Size350.00cm * 200.00cm * 250.00cm

Gross Weight6600.000kg

Lead Time15 days (1 Set); Negotiable (> 1 Set)

Frequently Asked Questions

Q1: What materials can the TCK600 CNC lathe process? A1: The TCK600 is primarily designed for high-precision metal cutting, suitable for processing shafts, discs, and sleeve parts made of various metals.

Q2: What is the benefit of the inclined bed structure? A2: The inclined bed structure allows for natural chip removal, higher rigidity during heavy-duty cutting, and better ergonomic access for the operator.

Q3: Does the machine come with a warranty or certification? A3: Yes, the machine is GS, CE, and ISO 9001 certified, ensuring it meets international safety and quality standards.

Q4: Can the spindle specifications be customized? A4: Yes, while the standard spindle nose is A2-6, there is an option for an A2-8 nose and a larger spindle through-hole of 86mm.

Q5: What is the standard lead time for a single unit? A5: The standard lead time for one set of the TCK600 CNC lathe is approximately 15 days.

Q6: What type of control system does it use? A6: It utilizes a semi-closed loop control system and is compatible with major CNC/MNC controllers such as GSK, Siemens, or Fanuc.
