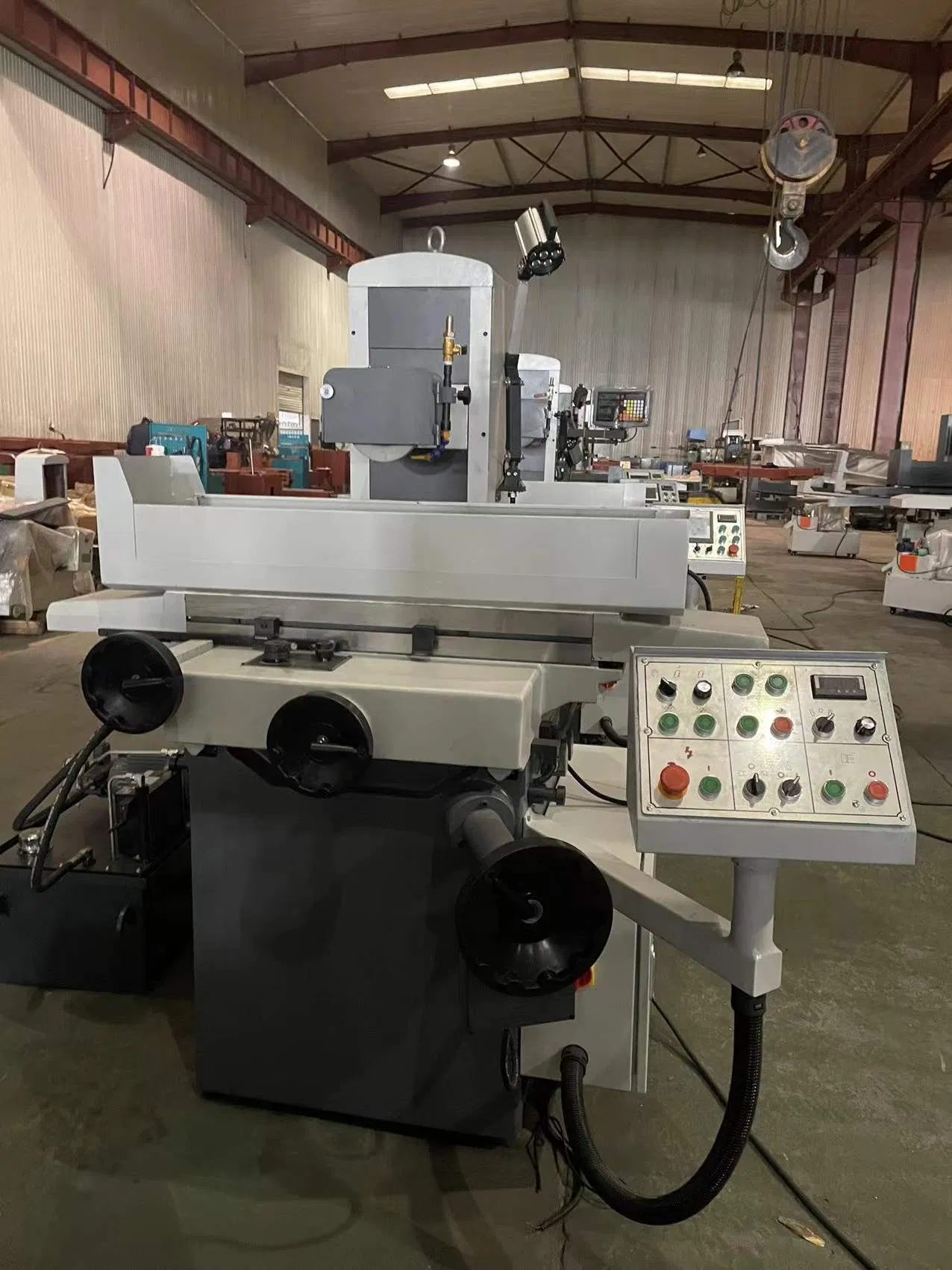

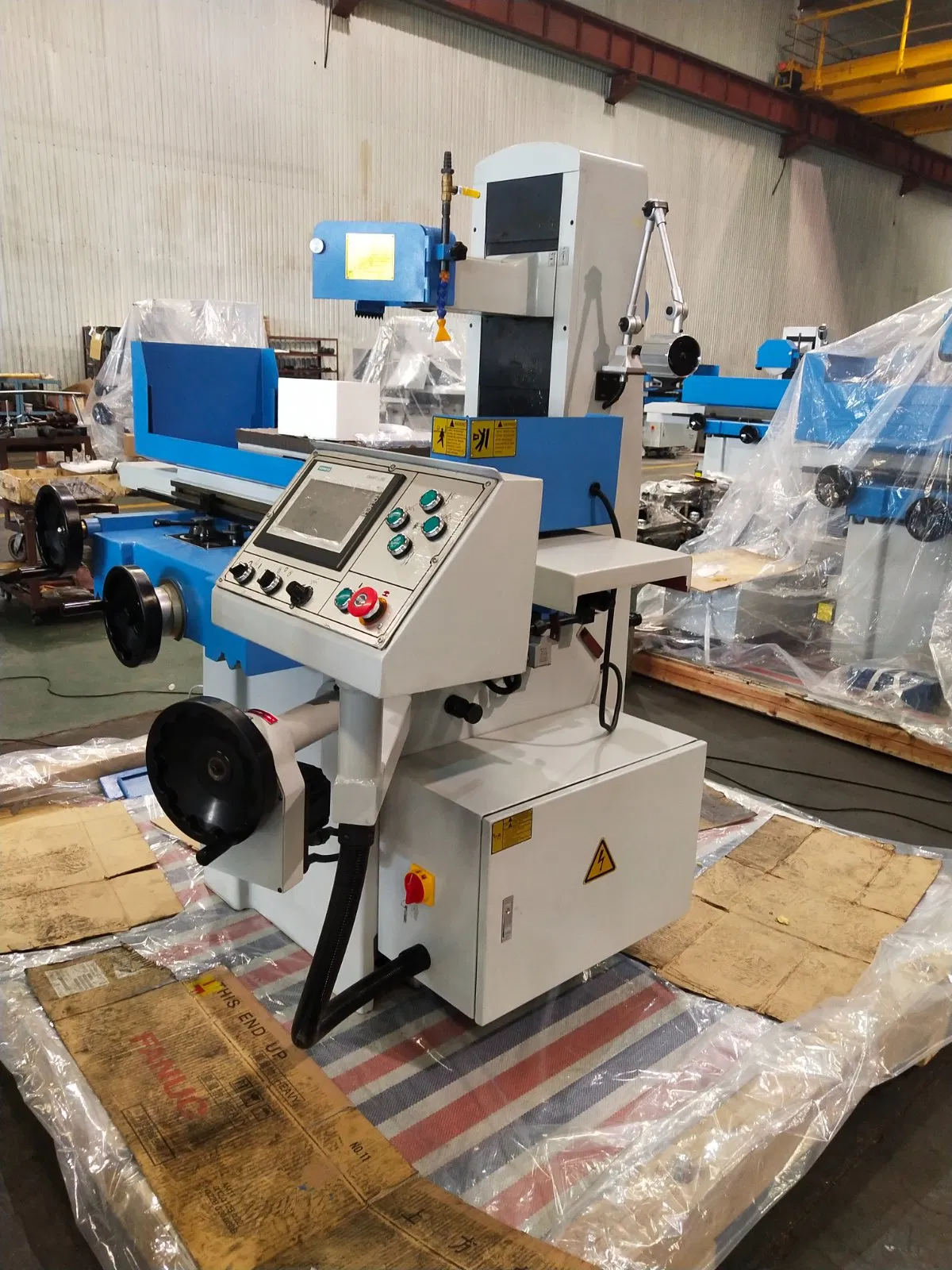

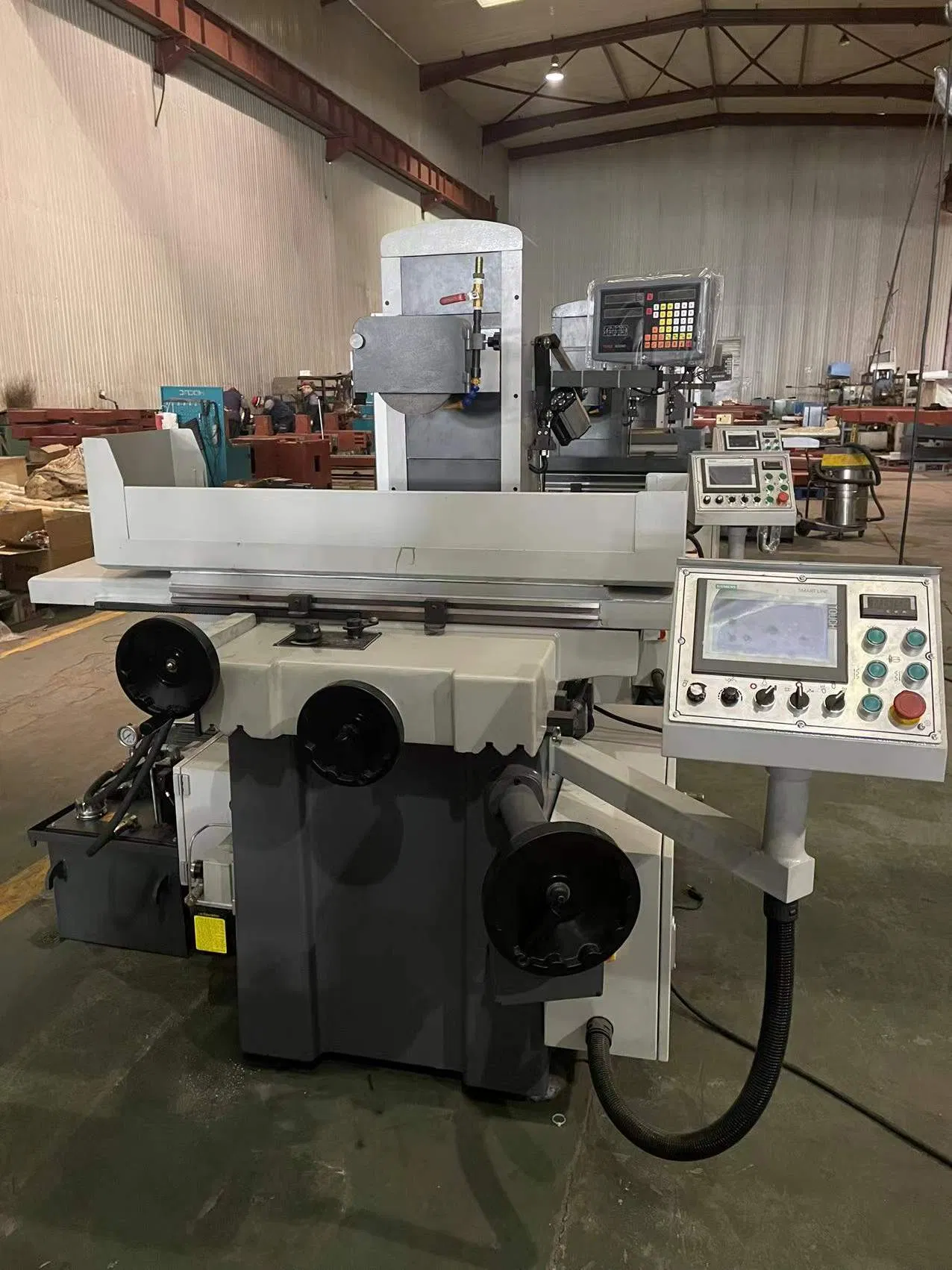

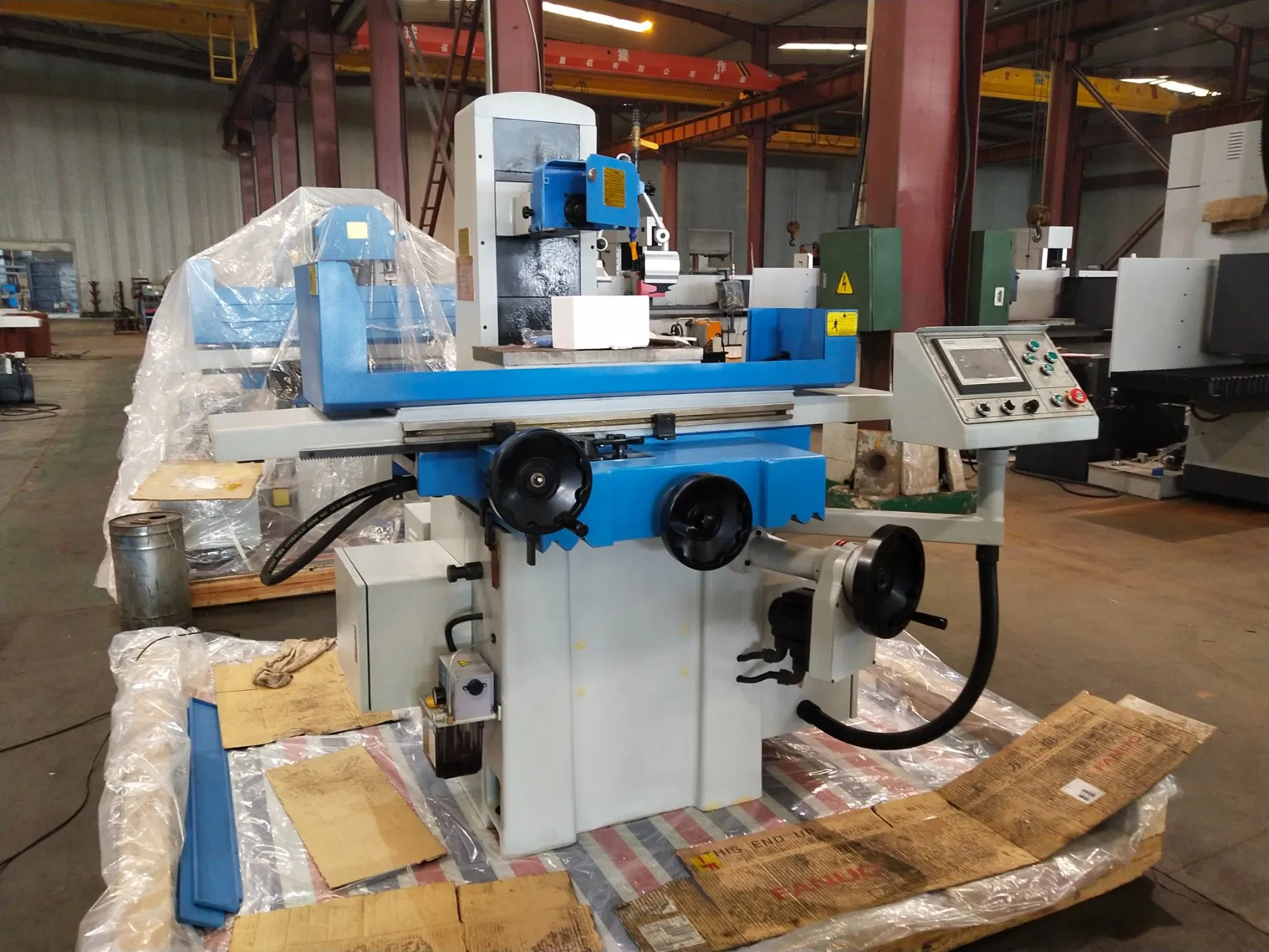

Gt20 /Esg2050ahr/Ahrdautomatic Hydraulic Surface Grinding Machine Sg2050ahr/Ahd

Customization:	Available
After-sales Service:	All Free Within Warranty
Warranty:	1 Year

1

Basic Specifications

Model NO.

SG2050AHR/AHD

Type

Surface Grinding Machine

Processing Object

Metal, Ceramic, etc

Abrasives

Grinding Wheel

Automatic Grade

Automatic

Precision

Normal Precision

Certification

CE, RoHS, ISO 9001

Spindle Bearing

NSK P4 Grade

PLC

Siemens

Origin

China

2

Machine Features

The machine adopts the layout form of "+" , and the transverse guide rail is covered with teflon soft belt. The table movement adopts closed hydraulic system. The front and back feed can be manually fed or the screw rod can be driven by the motor for intermittent feed.

The grinding head can be moved up and down by lifting motor for fast lifting (AHR), or servo motor for fast lifting and automatic feeding (AHD), or manually controlled. Sliding screw, high strength cast iron foundation, grinding head spindle adopts precision angular contact rolling bearing, high rigidity sleeve structure, the overall quality of the machine is stable, smooth operation.

3

Detailed Parameters

Specifications		SG2050 Series	SGA2550 Series	SGA3063 Series	SGA4080 Series	SGA30100 Series	SGA40100 Series
Table Size (W*L)	mm	200*460	250*500	305*635	406*813	305*1020	406*1020
Max. Longitudinal Travel	mm	510	560	765	910	1130	1130
Max. Transverse Travel	mm	238	275	340	450	340	450
Wheel Speed	Rpm	2850	2850	1450	1450	1450	1450
Spindle Motor	Kw	1.5	2.2	5.5	5.5	5.5	5.5
Gross Weight	Kg	1600	1800	2600	3300	3200	3800

4

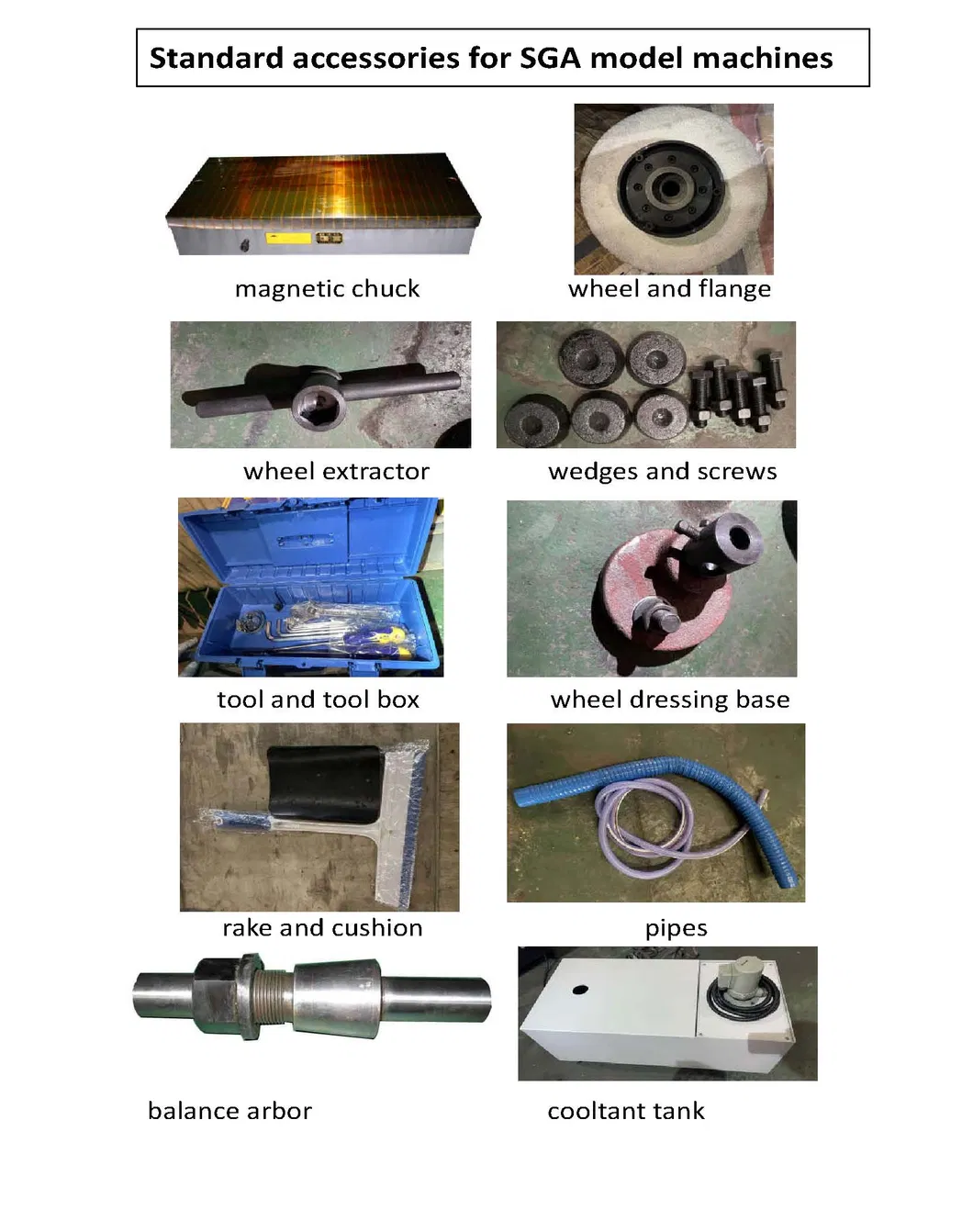

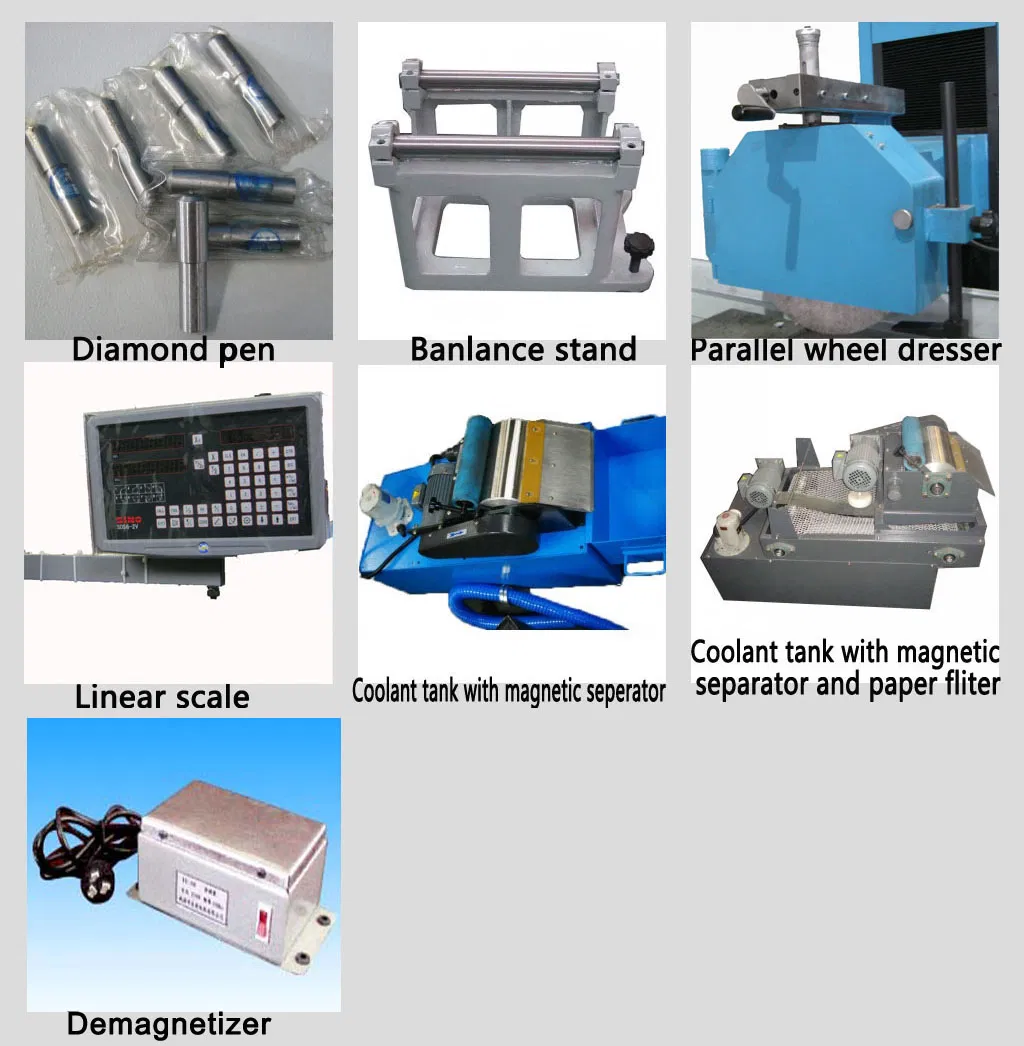

Standard & Optional Accessories

5

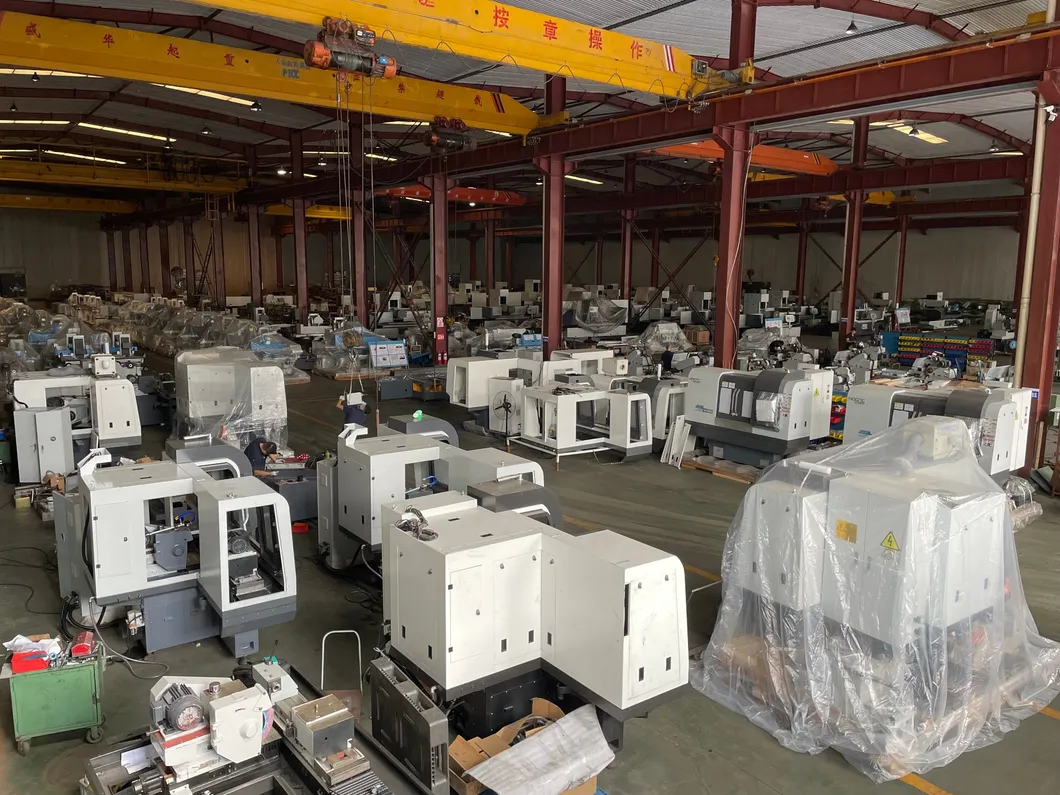

Workshop & Certifications

6

Key Advantages

✔ Factory direct sales ensures quality and after-sale support.

✔ Over 50 years of manufacturing and 30 years of international trade experience.

✔ Proven reputation through cooperation with global industry leaders.

7

After-Sales Service

I. Warranty Coverage: During the warranty period, faults due to design, manufacturing, or part quality will receive free treatment or replacement.

II. Lifelong Service: After the warranty, lifelong paid maintenance and permanent technical support are provided.

III. Spare Parts: Long-term availability of spare parts at preferential prices.

IV. Warranty Period: One-year standard warranty after machine dispatch.

8

Exhibitions

?

Frequently Asked Questions

What materials can the SG2050 series surface grinder process?

The machine is designed to process a variety of materials including metals, ceramics, and other hard workpieces requiring precision surface grinding.

What is the difference between the AHR and AHD models?

The AHR model features a lifting motor for fast vertical movement, while the AHD model utilizes a servo motor for both fast lifting and automatic incremental feeding.

What brand of bearings and controls are used in this machine?

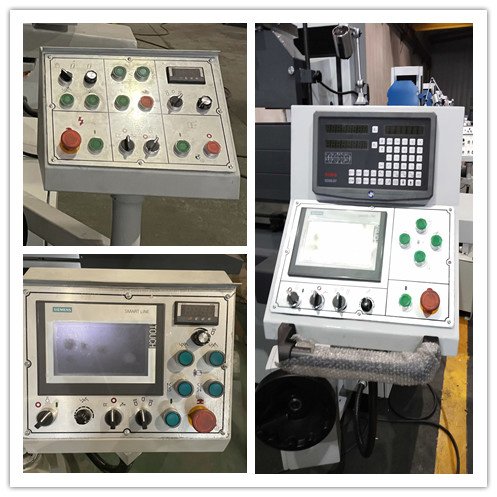

The spindle uses NSK P4 grade precision angular contact rolling bearings, and the control system is powered by a high-quality Siemens PLC.

How is the machine protected during international transport?

All machines are packed using professional-grade wooden pallets or wooden cases to ensure safe delivery during shipping.

What certifications does this surface grinding machine hold?

Our machines are fully certified with CE, RoHS, and ISO 9001 standards, ensuring compliance with international safety and quality regulations.

What kind of after-sales support can I expect?

We provide a one-year warranty, lifelong technical support, and the ability to purchase spare parts at preferential prices long-term.
