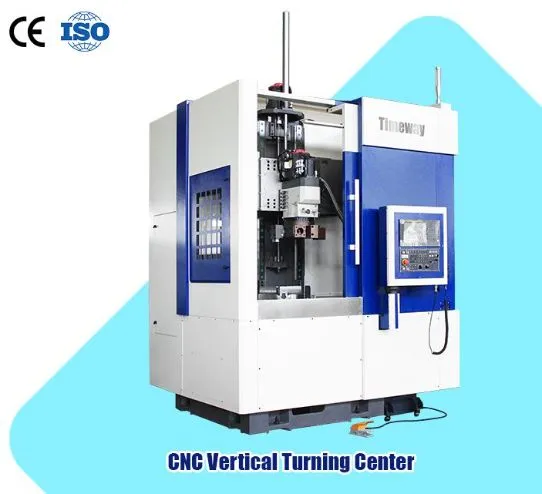

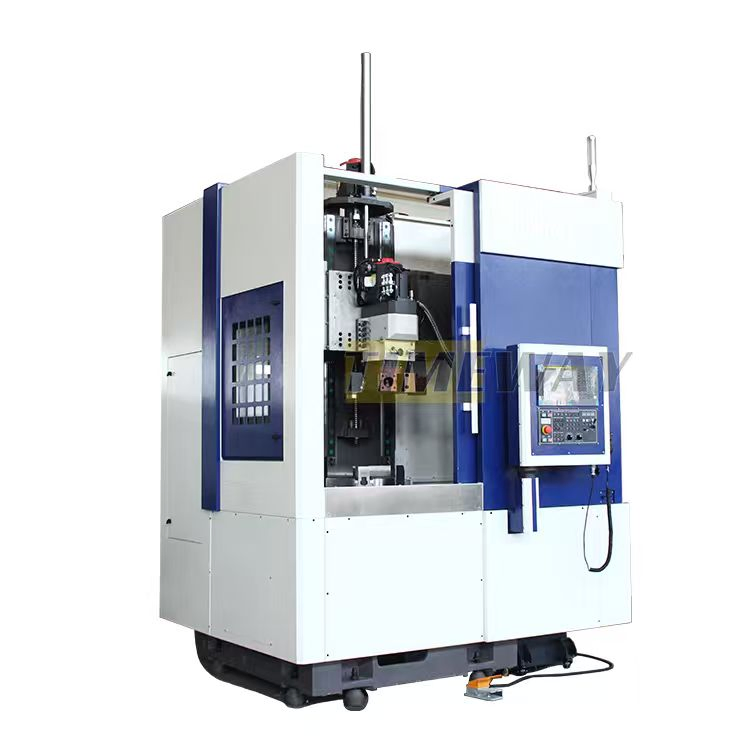

Efficient CNC Vertical Lathes Vtc630 CNC Turning Center

1 / 5

Efficient CNC Vertical Lathes Vtc630 CNC Turning Center

Customization:	Available
After-sales Service:	Free Maintenance
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

VTC630

Application

Metal

Process Usage

Metal-Cutting CNC

Movement Method

Contour Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.02~0.03(mm)

Performance

High-End CNC

Certification

CE, ISO 9001

Condition

New

Transport Package

in Wooden Case

Product Description

SPECIFICATION	UNIT	VTC630
Max. turning diameter	mm	630
Max. swing diameter	mm	700
Chuck size	''	12'/15''/18''
Spindle speed	rpm	10-1000
Tool post cross travel (X)	mm	630
Tool post vertical travel (Z)	mm	600
X/Z-axis feed speed	mm/min	0.1-1000
X/Z-axis rapid feed speed	m/min	10/15
Tool section size	mm	32x32
X/Z-axis positioning accuracy	mm	0.01
X/Z-axis repositioning accuracy	mm	0.008
Main motor power	kw	15/18.5
X/Z-axis feed motor power	kw	2.3
Machine weight	kg	5000
CNC system	-	FANUC/GSK/SIEMENS

Frequently Asked Questions

What is the maximum turning diameter for the VTC630?

The VTC630 CNC vertical lathe has a maximum turning diameter of 630 mm and a maximum swing diameter of 700 mm.

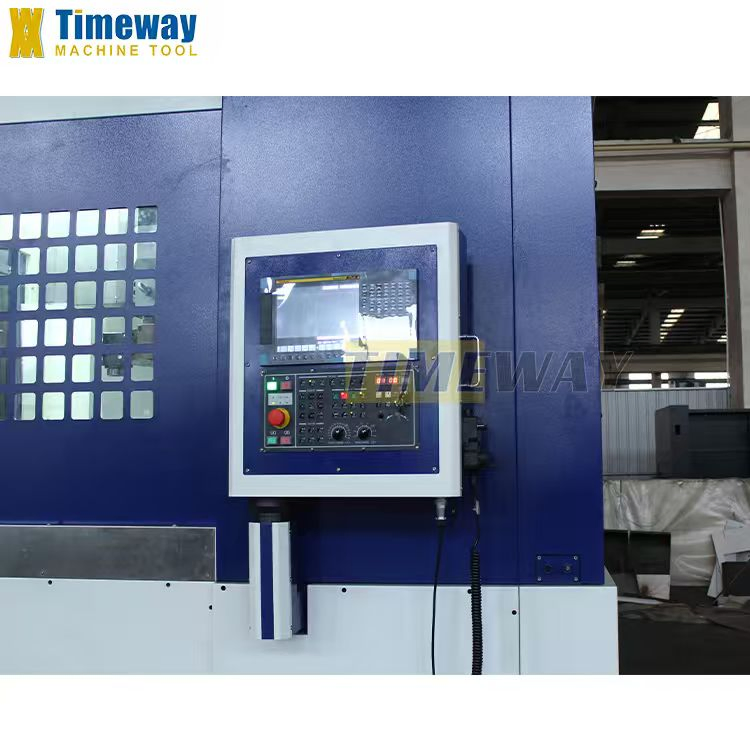

Which CNC systems are available with this model?

The machine is compatible with high-end CNC systems including FANUC, GSK, and SIEMENS, allowing for flexible integration into your production line.

What level of processing precision can I expect?

The VTC630 offers high processing precision ranging from 0.02 to 0.03 mm, with a positioning accuracy of 0.01 mm for the X and Z axes.

Is the machine suitable for heavy-duty metal cutting?

Yes, it is specifically designed for metal-cutting processes, featuring a powerful 15/18.5 kw main motor and a sturdy 5000 kg structure for stability.

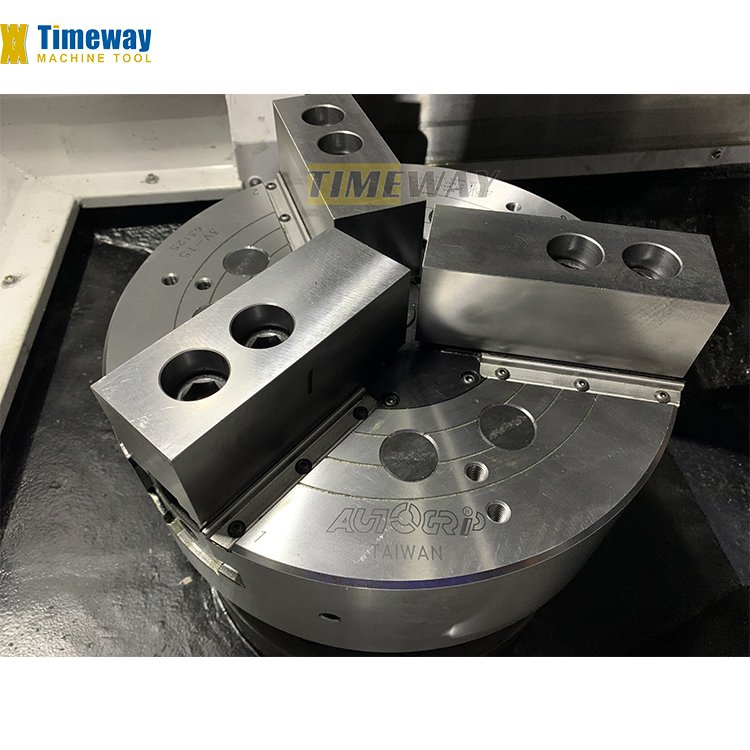

What are the chuck size options for the VTC630?

The machine supports various chuck sizes including 12-inch, 15-inch, and 18-inch options to accommodate different workpiece requirements.

What certifications does the VTC630 hold?

The VTC630 CNC Vertical Lathe is fully certified with CE and ISO 9001 standards, ensuring compliance with international quality and safety regulations.
