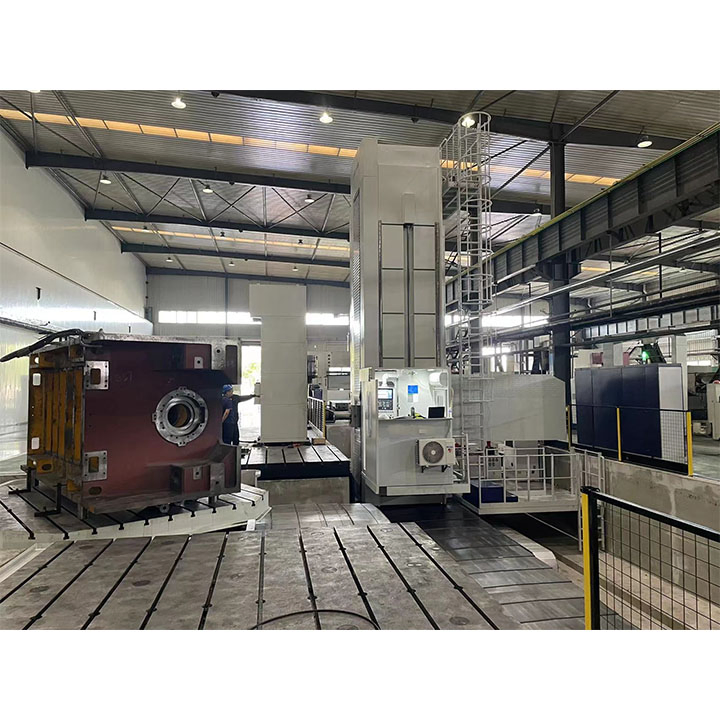

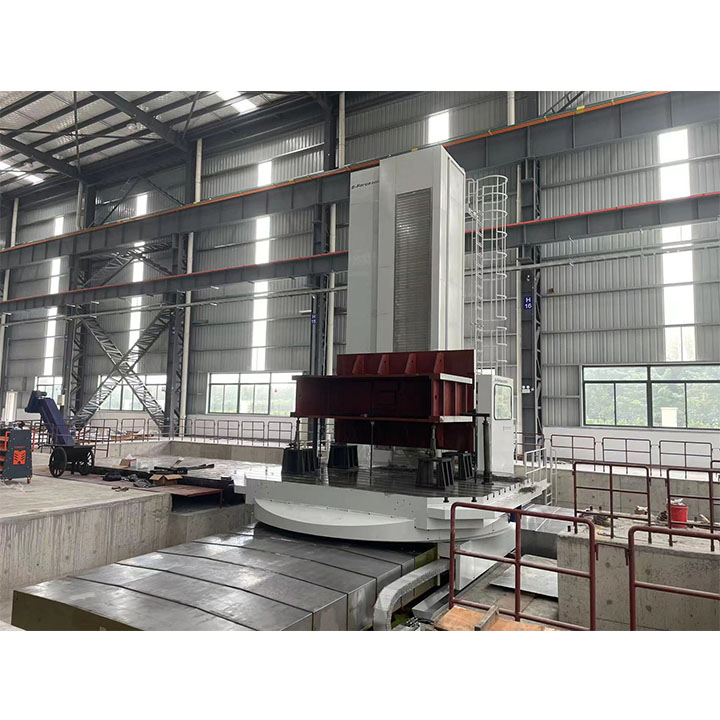

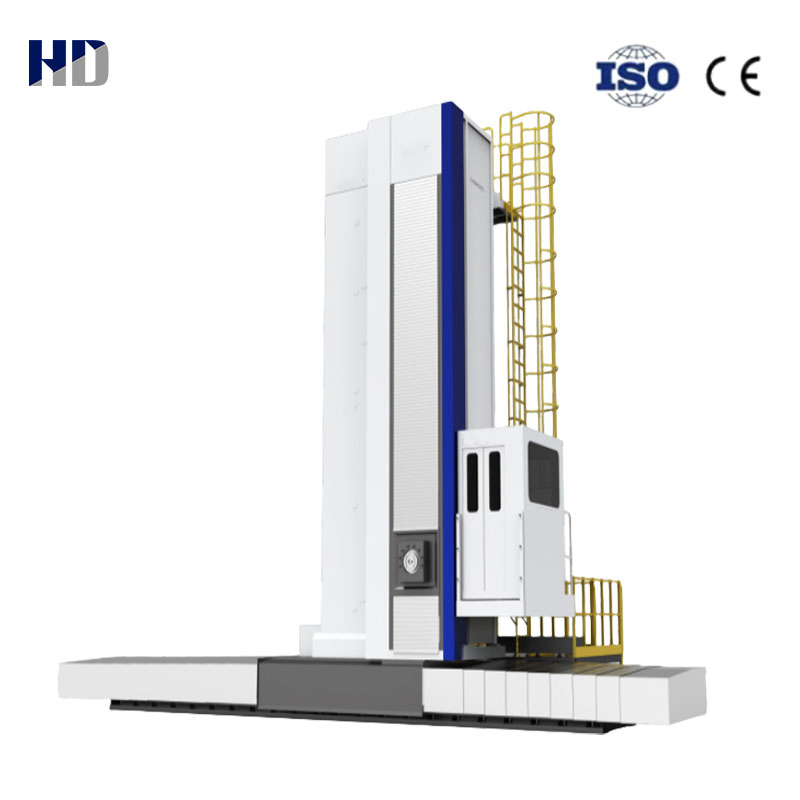

E-Force 200rh Advanced Boring System with Metric 80 Spindle Taper

Still deciding? Get samples of $ !
Order Sample

Product Description

⚙️ Basic Information
Model NO.
P-Force130R
Boring Shaft Diameter
130mm
Precision
High Precision
Automatic Grade
Automatic
Certification
CE, ISO 9001
Spindle Speed Range
4-800r/Min
Worktable Size
1600*1400
Max. Table Loading
10000kg
Main Motor Power
15kw
Machine Weight
29300kg
🖼️ Product Showcase

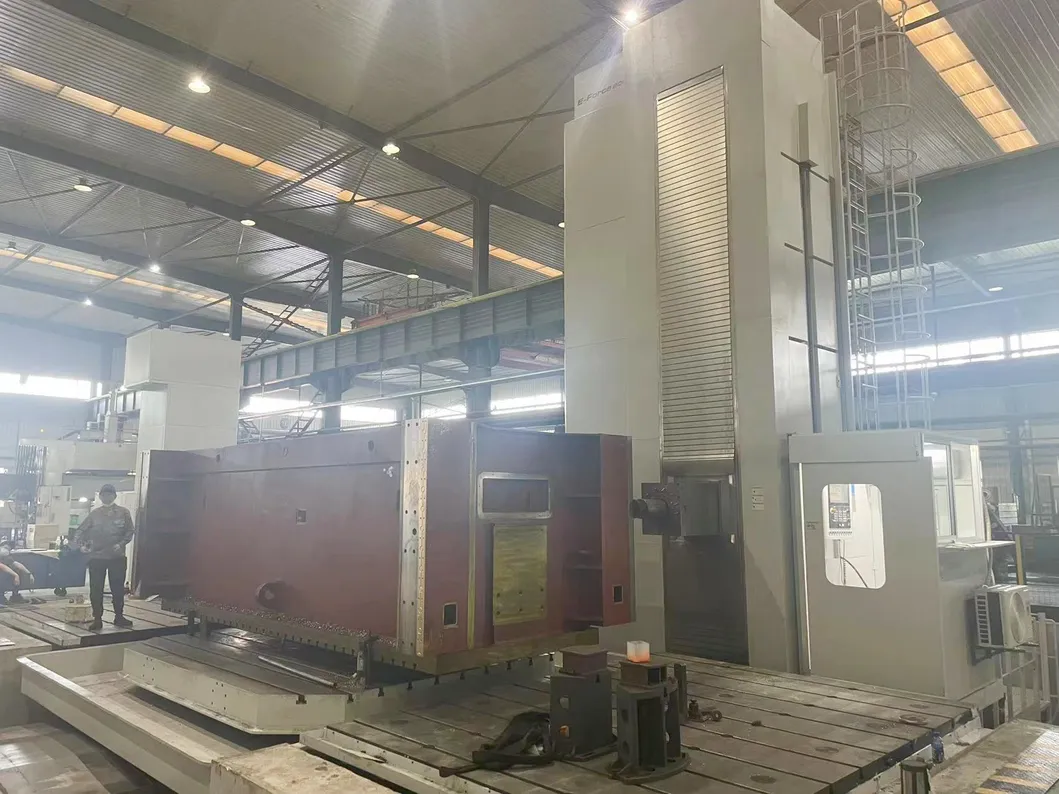

Product Overview
📊 Technical Specifications
Items Unit P-Force130R P-Force160R
Spindle diameter mm 130 160
Spindle speed r/min 10~1500 10~1000
Max. Spindle Torque N·m 1700/2100 2900/3500
Spindle Motor Power kW 41/49 41/49
X axis Travel mm 4000 6000
Y axis Travel mm 2000/3000 2000/3000
Z axis Travel mm 700 700

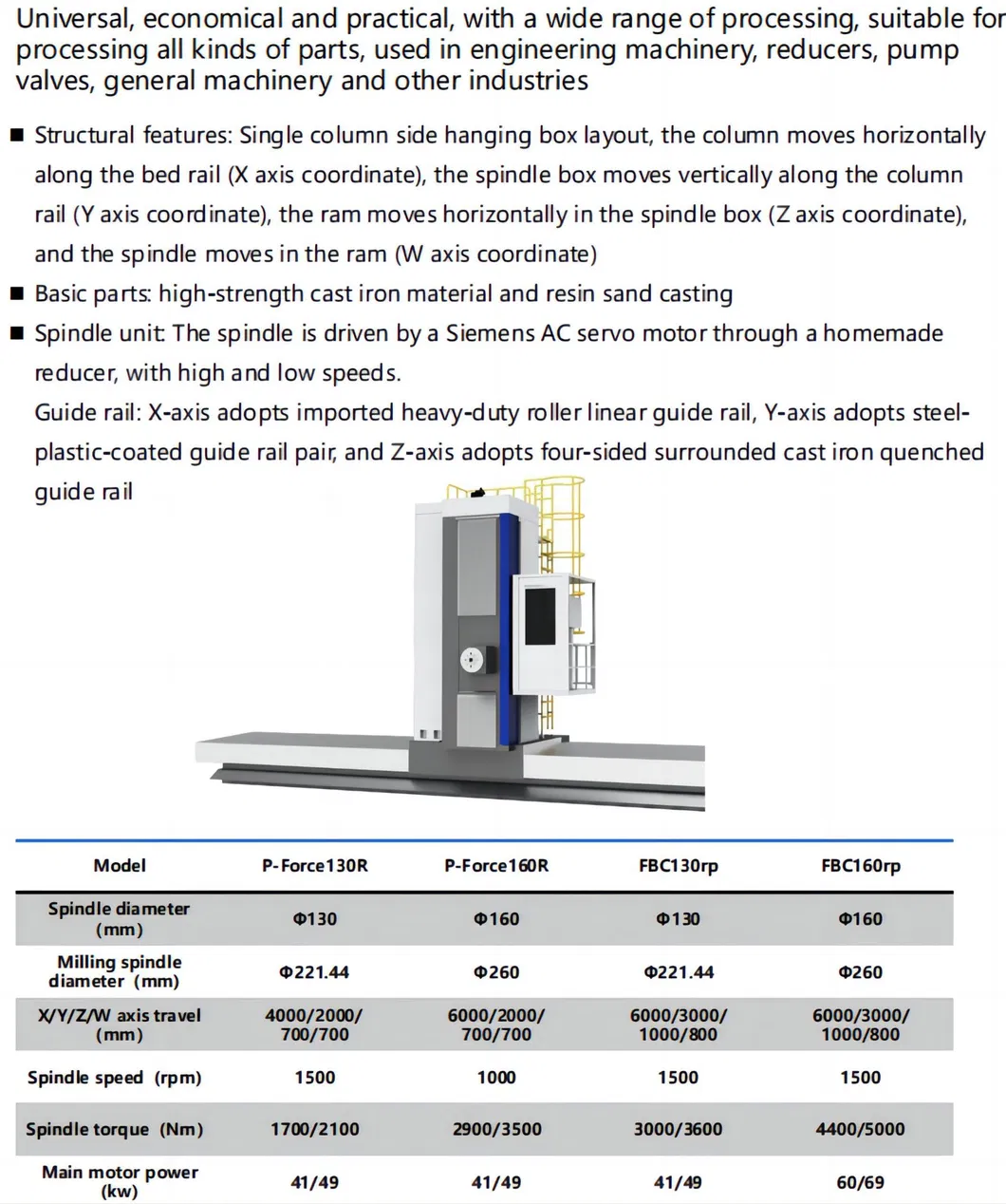

Technical Drawing
🏢 Professional Profile

We are a professional manufacturer that specializes in the development, research, and production of single-column vertical lathes, double-column vertical lathes, horizontal lathes, radial drilling machines, slotting machines, boring-milling machines, machining centers, and customized special machine tools. Our products offer advantages such as great variety, complete specification, advanced technology, and outstanding quality.

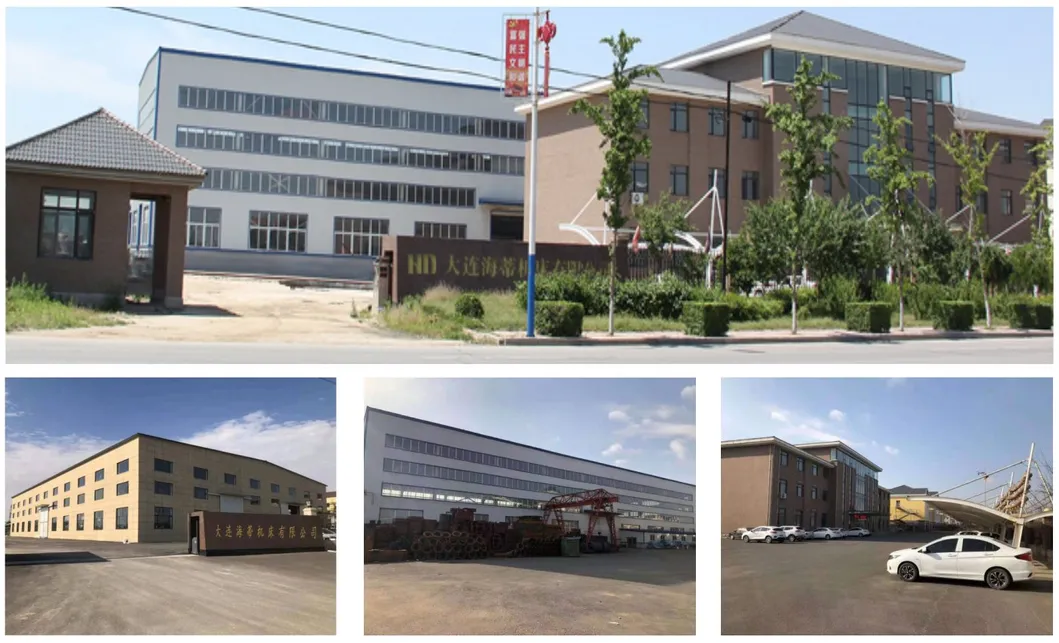

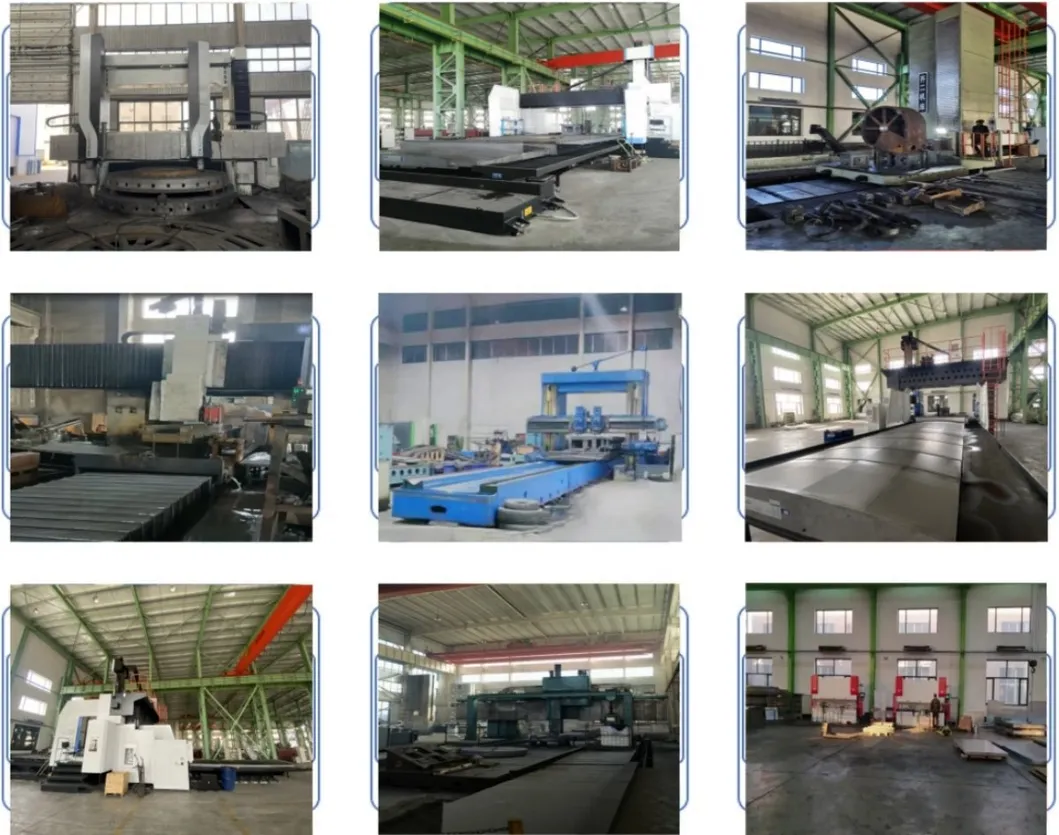

With a production area covering 30,000 square meters and a team of over 200 staff members, including 11 senior engineers and 160 technical workers, we ensure high standards in every piece of equipment. Our casting facility, established in 1983, has an annual output of over 20,000 tons, providing significant support for product research and ensuring rapid supply duration for our customers.

🏆 Exhibition & Certificates
Exhibition
📦 Packing & Shipping
Logistics
Package Size
50.00cm * 50.00cm * 50.00cm
Gross Weight
100.000kg
Package Type
Wooden Cases
❓ Frequently Asked Questions
What is the boring shaft diameter of the P-Force130R?
The boring shaft diameter is 130mm, designed for high-precision operations.
What certifications does this boring system hold?
The machine is fully certified with CE and ISO 9001 standards, ensuring international quality compliance.
What is the maximum table loading capacity?
The worktable can handle a maximum loading weight of 10,000kg.
Is the machine's operation manual or automatic?
This system features an automatic grade controlling mode for increased efficiency and precision.
What type of packaging is used for delivery?
We use professional-grade wooden cases to ensure the safety and integrity of the machine during transport.
What is the spindle speed range?
The spindle speed range is between 4 and 800 r/min across 24 steps.
