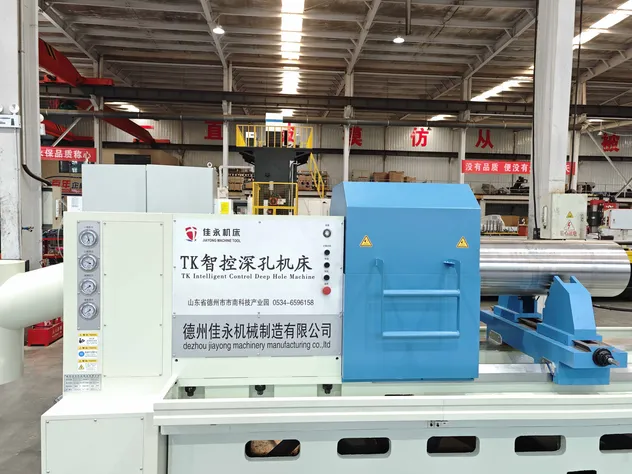

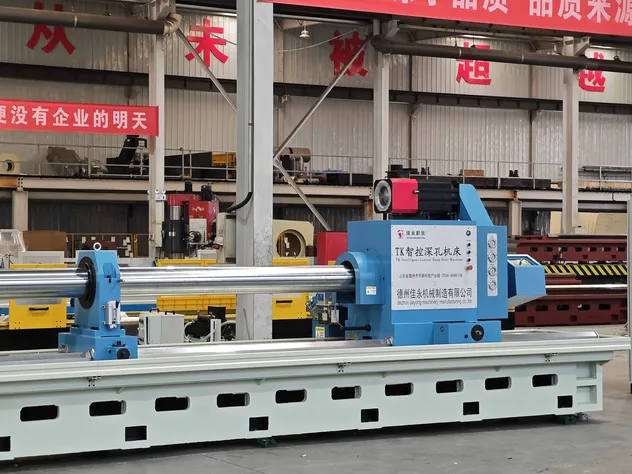

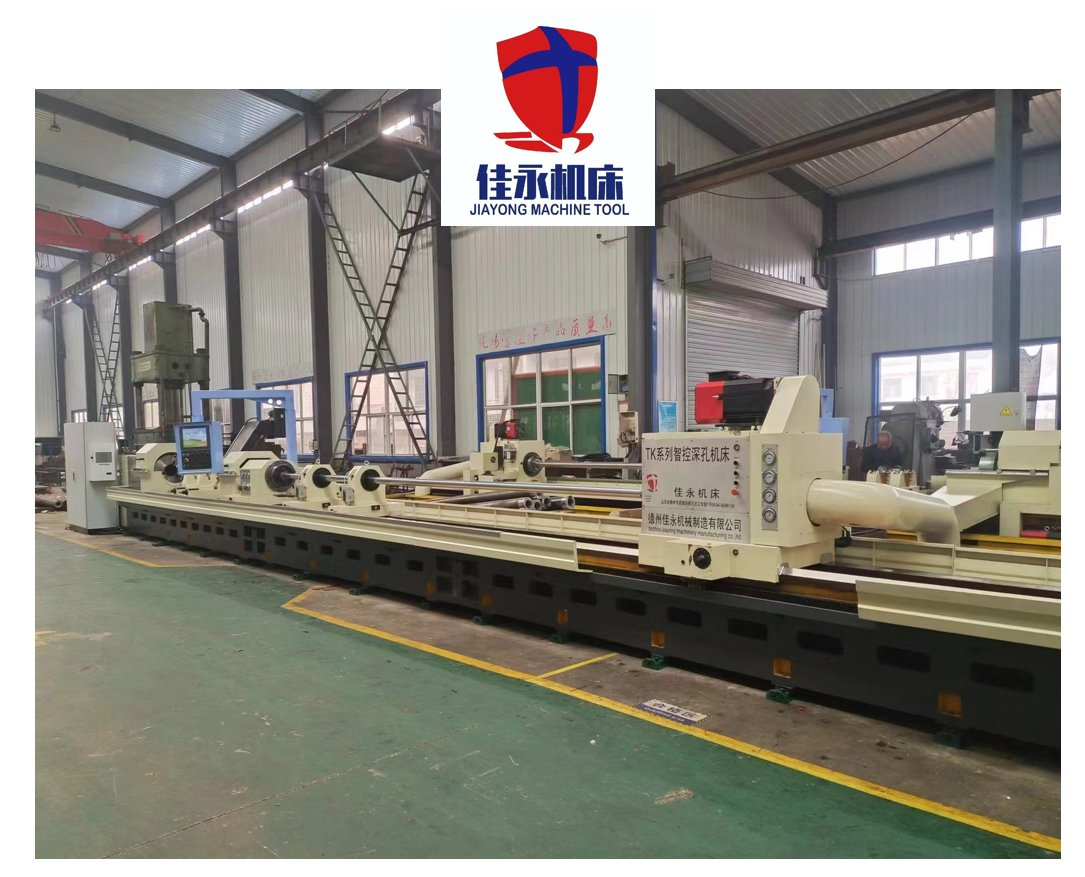

Dezhou Jiayong High-Precision Tk25-1X6m CNC Deep Hole BTA Drilling and Boring Machine Tool for Cylinder Tube

1 / 5

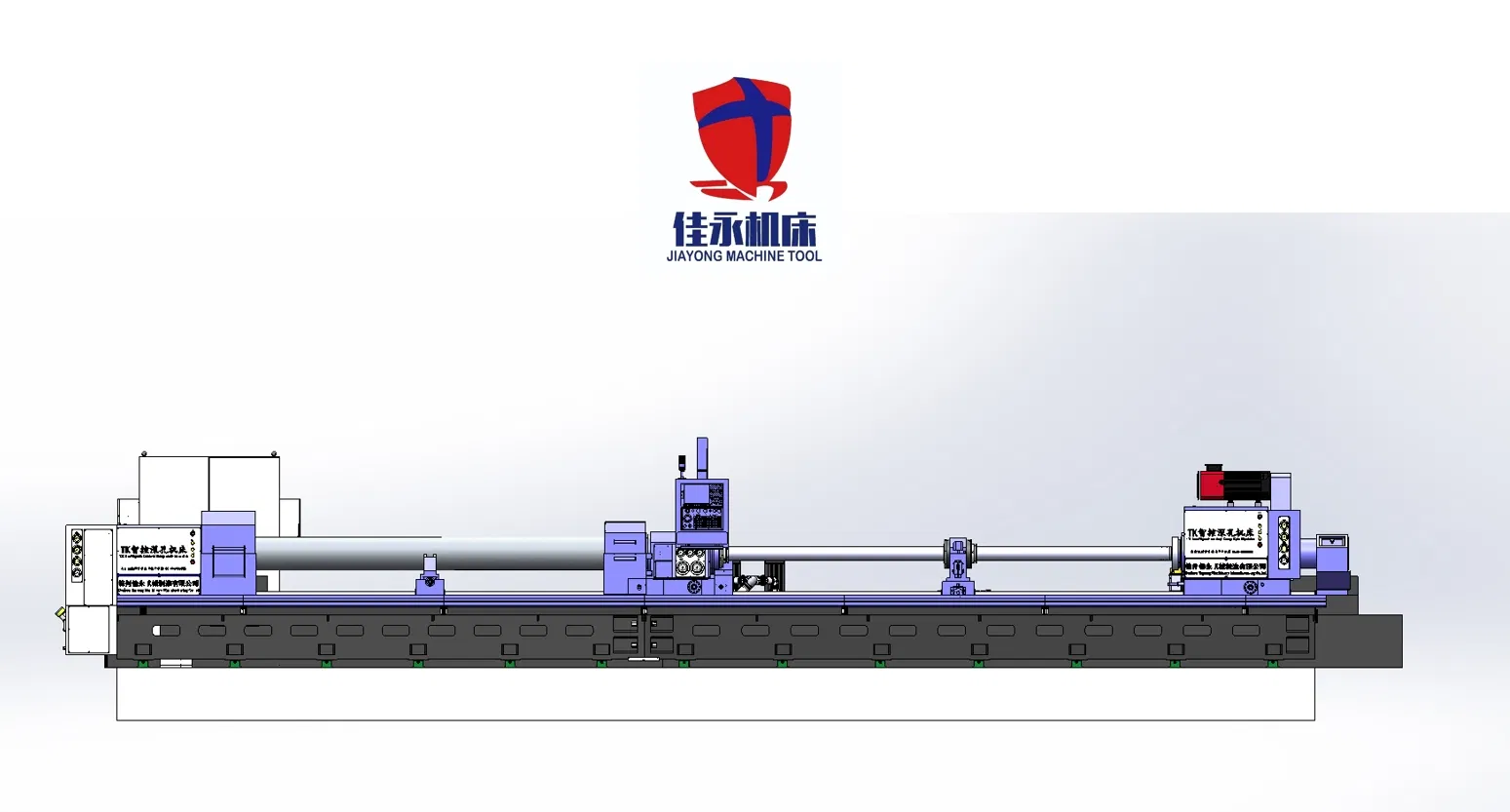

Dezhou Jiayong High-Precision Tk25-1X6m CNC Deep Hole BTA Drilling and Boring Machine Tool for Cylinder Tube

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	1 Year Warranty

Send Inquiry

Product Description

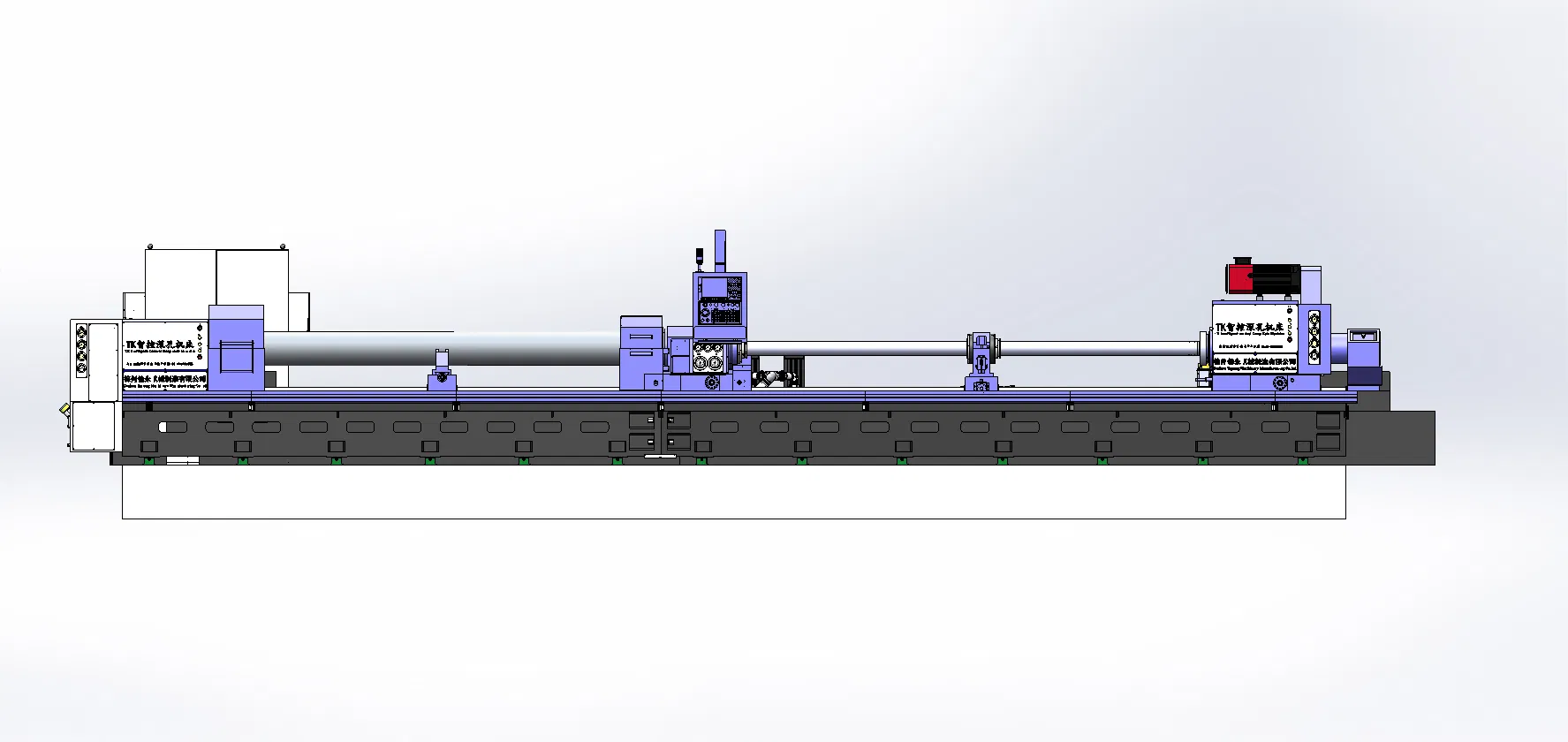

High-Precision CNC Deep Hole BTA Drilling and Boring Machine Tool

📋 Basic Information

Model NO.

TK25-1X6M

Structure

Horizontal Drilling Machine

Layout

Horizontal

Controlling Mode

CNC

Number of Shaft

Hole Diameter

>200mm

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Origin

Shandong Province

HS Code

8459210000

⚙ Product Description

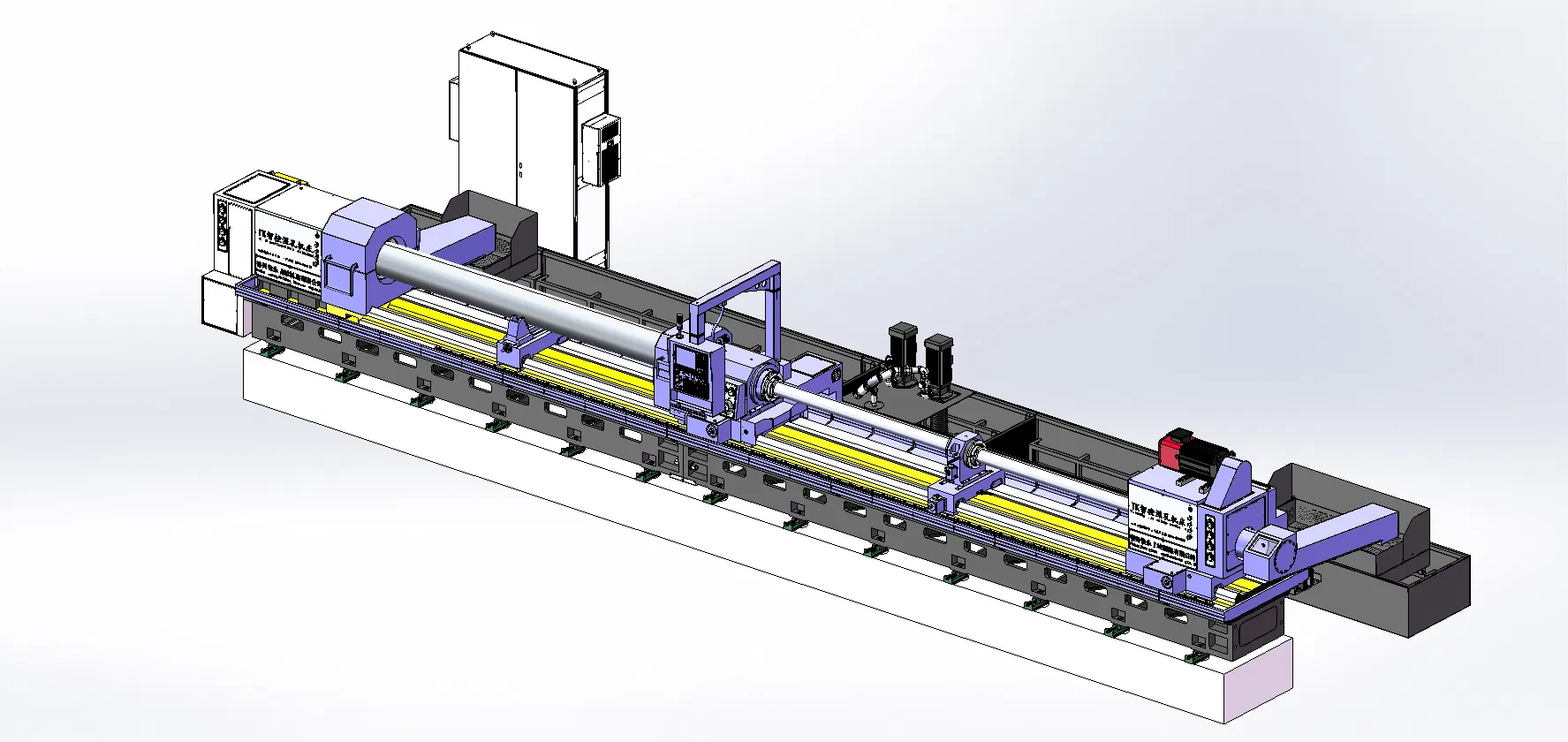

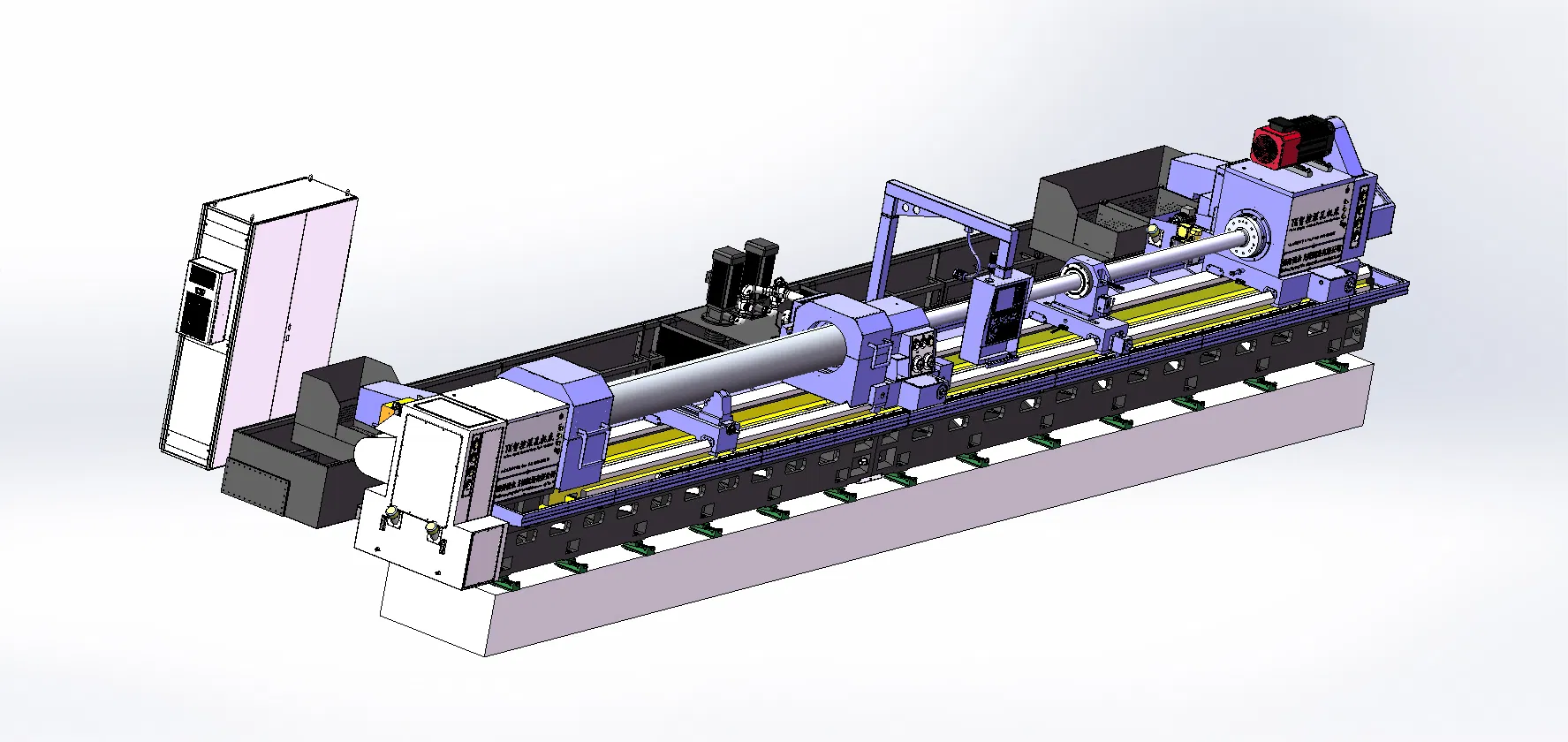

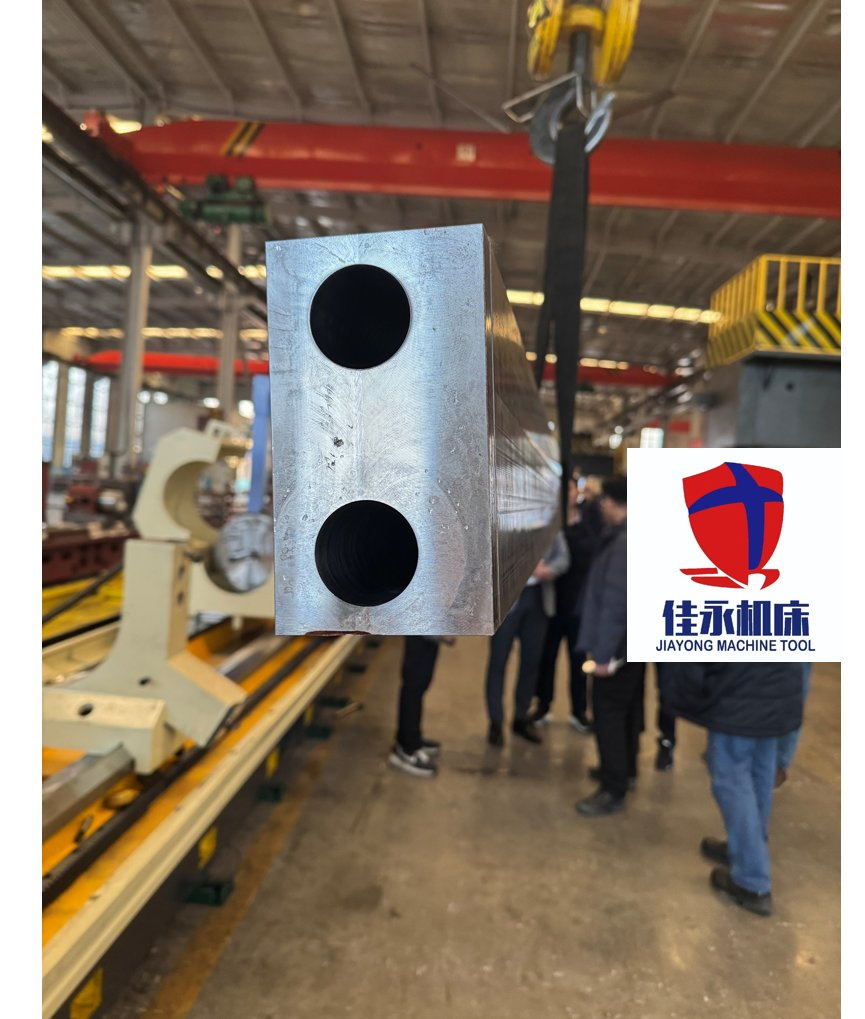

The machine is designed for precision drilling and boring of cold-drawn and hot-rolled steel pipes, as well as non-magnetic materials. It can also perform drilling and trepanning on round steel bars. The use of specialized tools improves the dimensional accuracy and surface quality of the inner holes of steel pipes. Materials that can be processed include ordinary carbon steels, high-quality carbon steels, and low alloy steels such as 20, 45, 16Mn, 25Mn, 27SiMn.

➠ Three Basic Machining Methods

1. Workpiece Rotation (Drill Head brake)

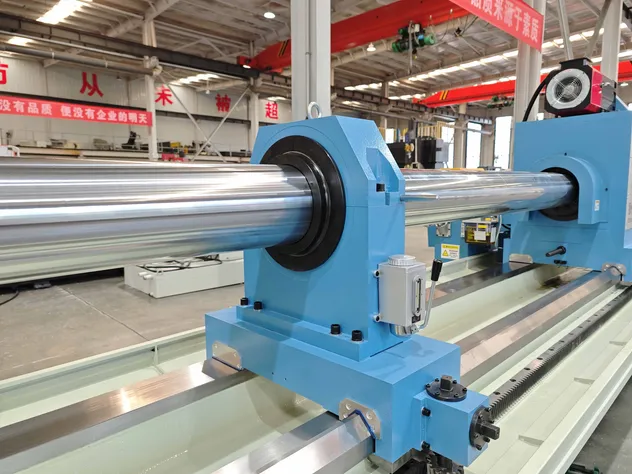

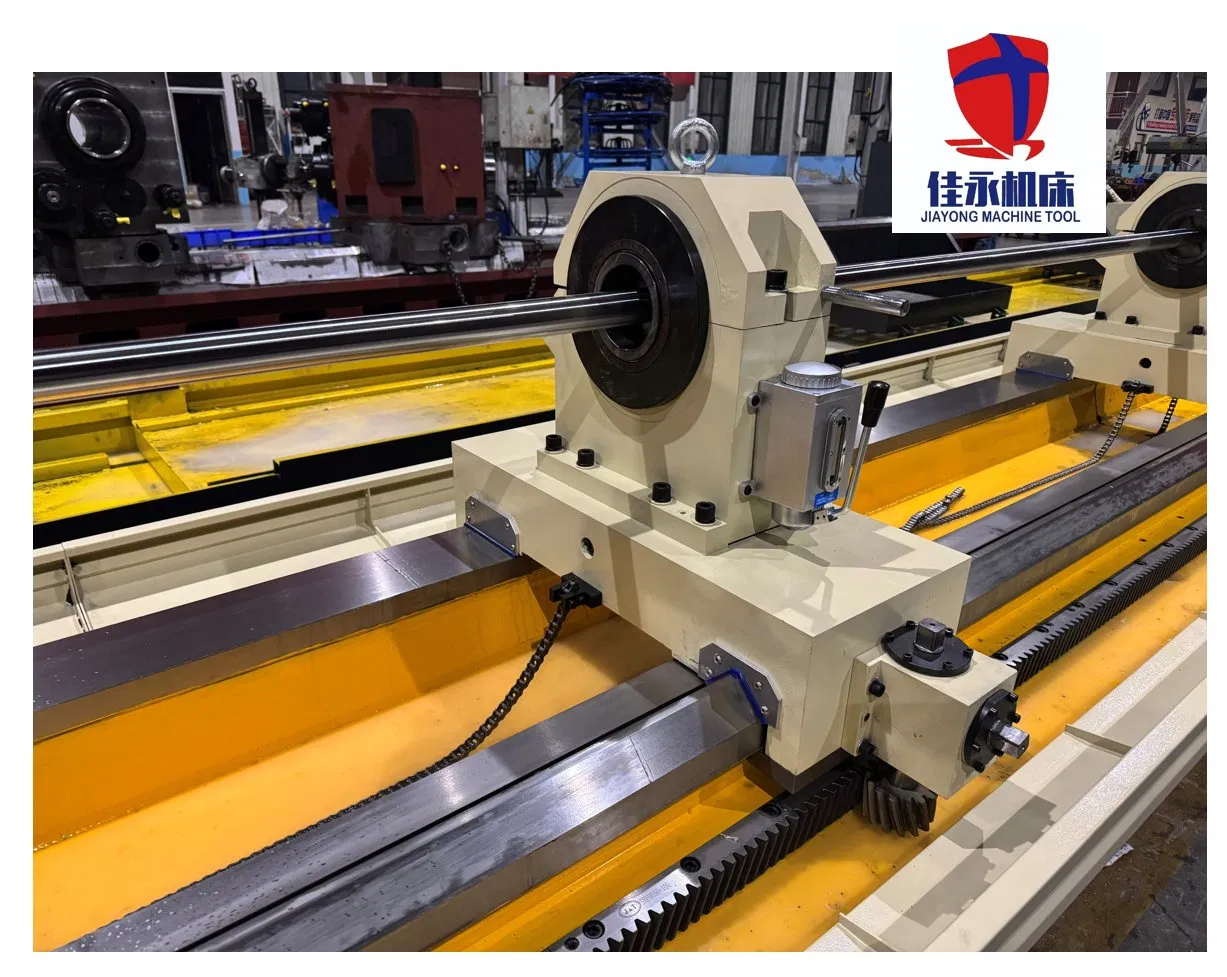

The headstock drives the workpiece to rotate, while the boring bar drives the combination head, drill bit and German-style hydraulic fine boring and rolling tools to feed. This setup is used for precision machining on hot-rolled steel pipes.

2. Tool Rotation (Headstock brake)

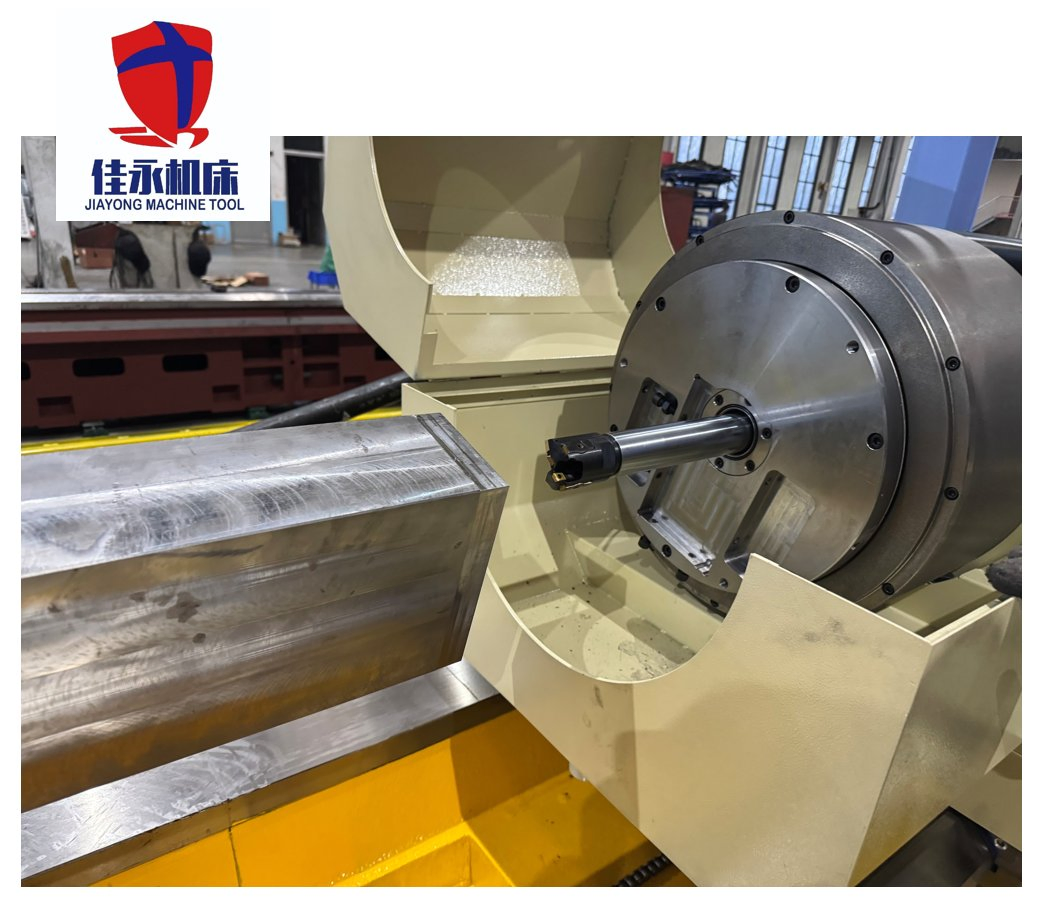

The headstock is braked to keep the workpiece stationary. The boring bar head drives the boring bar to rotate. Using combination head, drill bit, and German-style hydraulic fine boring and rolling tools, this function performs fine boring and rolling on hot-rolled or cold-drawn steel pipes with the pre-bored inner holes. This function can correct drilling deviations and is particularly suitable for machining drill collars and petroleum components.

3. Dual Rotation of Workpiece and Drill Bar
The headstock drives the workpiece to rotate, while the boring bar head drives the boring bar to rotate and feed simultaneously. This machining method improves the straightness and efficiency of the machined parts.

📊 Technical Specifications

Category	Item	Specification
Working Range	Boring Diameter Range	Ø30-250MM
	Drilling Diameter Range	Ø25-150MM
	Max. Machining Length	500-12000MM
Spindle Head	Center Height	400MM
	Spindle Bore Diameter	Ø210
	Spindle Speed Range	10-400r/min (Hydraulic Four-Speed)
Feed System	Feed Rate Range	0-5000mm/min
	Rapid Traverse Rate	0-5000mm/min
	Rack Module	5Mx2
Precision	Boring Surface Roughness	Ra1.6-3.2
	Roller Burnishing Roughness	Ra0.2-0.8
	Cylindricity	500/0.02mm
	Roundness	0.02mm
Power System	Headstock Spindle Motor Power	30KW (AC Servo Motor)
	Hydraulic System Power	1.5KW
	Feed Motor Torque	19NM (Absolute Value)

❓ Frequently Asked Questions

What are the primary machining methods supported by this CNC deep hole machine?

The machine supports three basic methods: Workpiece Rotation (for precision machining on hot-rolled pipes), Tool Rotation (suitable for correcting drilling deviations in stationary workpieces), and Dual Rotation (which improves straightness and overall efficiency).

What range of hole diameters can this machine handle?

It features a boring diameter range of Ø30mm to 250mm and a drilling diameter range of Ø25mm to 150mm.

What materials are suitable for processing with the TK25-1X6M?

It is ideal for cold-drawn and hot-rolled steel pipes, non-magnetic materials, and round steel bars. Specific compatible materials include carbon steels (20, 45) and low alloy steels (16Mn, 25Mn, 27SiMn).

What level of surface precision can be achieved?

The machine achieves a boring surface roughness of Ra1.6-3.2 and a roller burnishing roughness of Ra0.2-0.8, ensuring high-quality internal finishes.

Is the machine equipped with CNC control for the feed system?

Yes, the machine uses a CNC control mode with an AC Servo Motor for the feed system, offering a feed rate range of 0-5000mm/min.

What is the maximum workpiece length the machine can accommodate?

The machine is capable of processing workpieces with a maximum machining length ranging from 500mm up to 12000mm.
