| Machine Feature | Specification Details |
|---|---|
| Machine Type | CNC & Slant-bed & Turning Center |
| Max. Swing Diameter | 660mm |
| Max. Turning Length | Standard: 1000mm (Optional: 1500/2000mm) |
| Max. Spindle Speed | 4000rpm |
| 3-jaw chuck | 8'' / 10'' hydraulic chuck |
| Power turret | BMT55 / 65 Driven Turret |

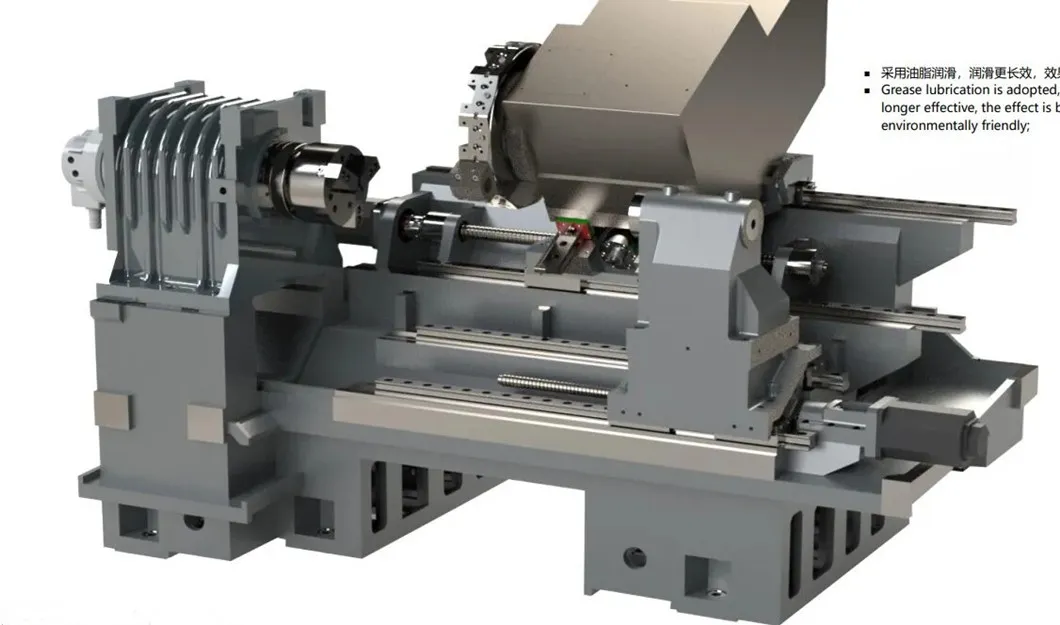

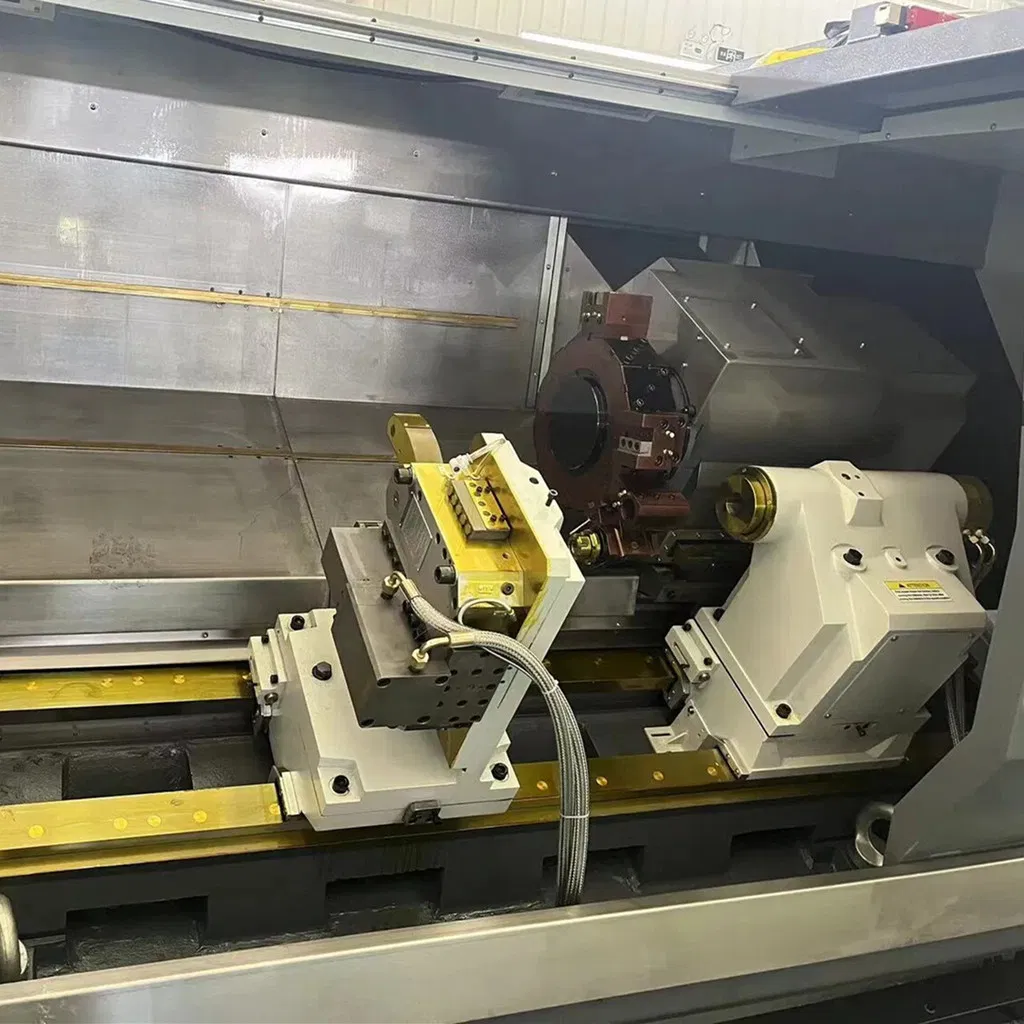

The bed adopts Gray iron (HT300), 30° monoblock castings, featuring high load, wear resistance, and high rigidity for heavy turning.
High-accuracy spindle structure with high-rigid double-row cylindrical roller bearings ensures excellent machining accuracy. Power: 11/15kW (Optional 15/18kW).

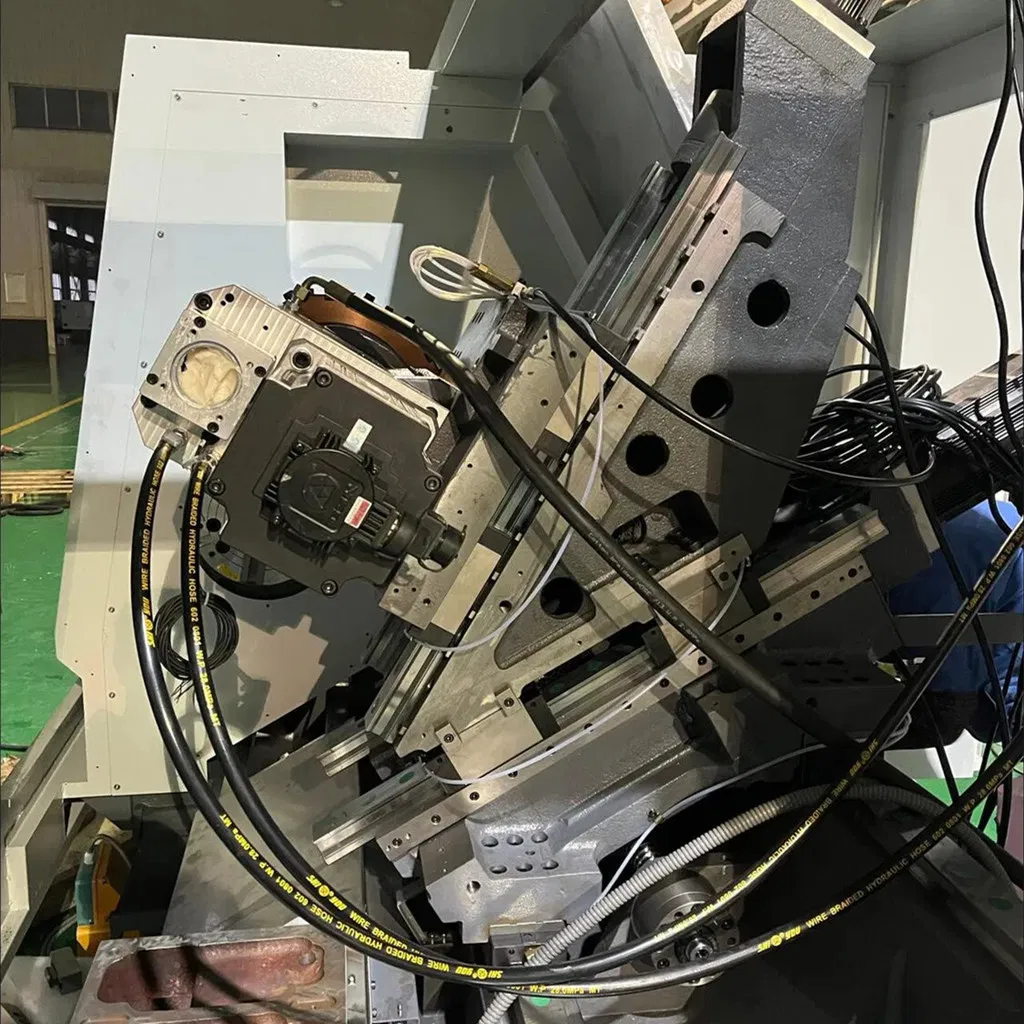

Imported precision ball screws with pre-tightening dual nuts. The high rigid Y-axis with 4 guides allows for drilling, milling, and tapping at end or side faces in a single setup.

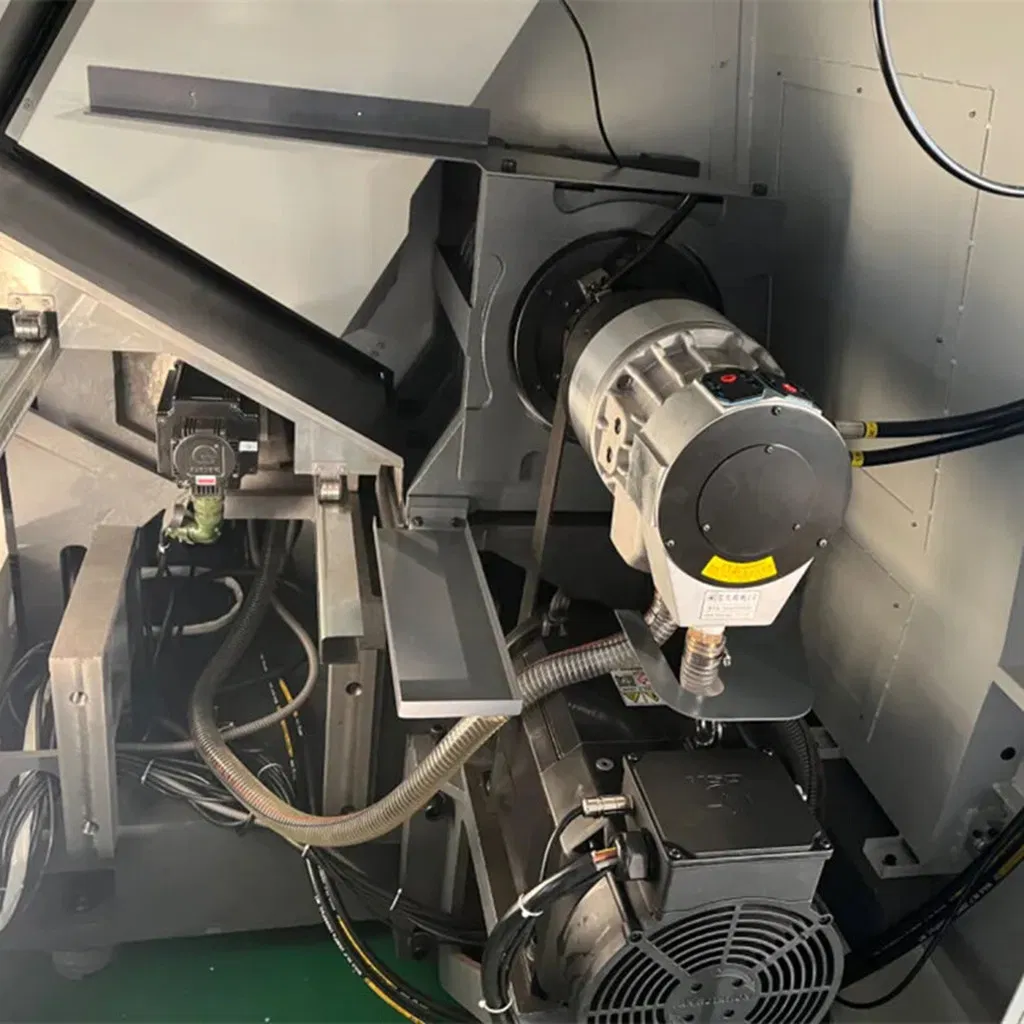

Indexing by servo motor, positioning by crankset and hydraulic clamping. Milling spindle driven by servo motor for combined turning and milling operations.
| Technical Item | CTN600*1000 | Unit |
|---|---|---|
| Maximum swing diameter over bed | 660 | mm |
| Maximum turning diameter | 360 | mm |
| Travel of X-axis | 240 | mm |
| Travel of Z-axis | 1050 | mm |
| Spindle speed | 10~4000 | rpm |
| Spindle bore diameter | 85/120 | mm |
| Servo power turret | 12-station | - |
| Positioning accuracy of X/Z | 0.019 / 0.029 | mm |
| Net weight of machine | 6000 | kg |
| S.N | Item | Remark |
|---|---|---|
| 1 | Fanuc System | English Interface |
| 2 | BMT65 Driven Turret | Higher Torque |
| 3 | Servo Tailstock | Programmable |
| 4 | Hydraulic Steady Rest | For long workpieces |
| 5 | Cutter Setter | Renishaw Brand |
