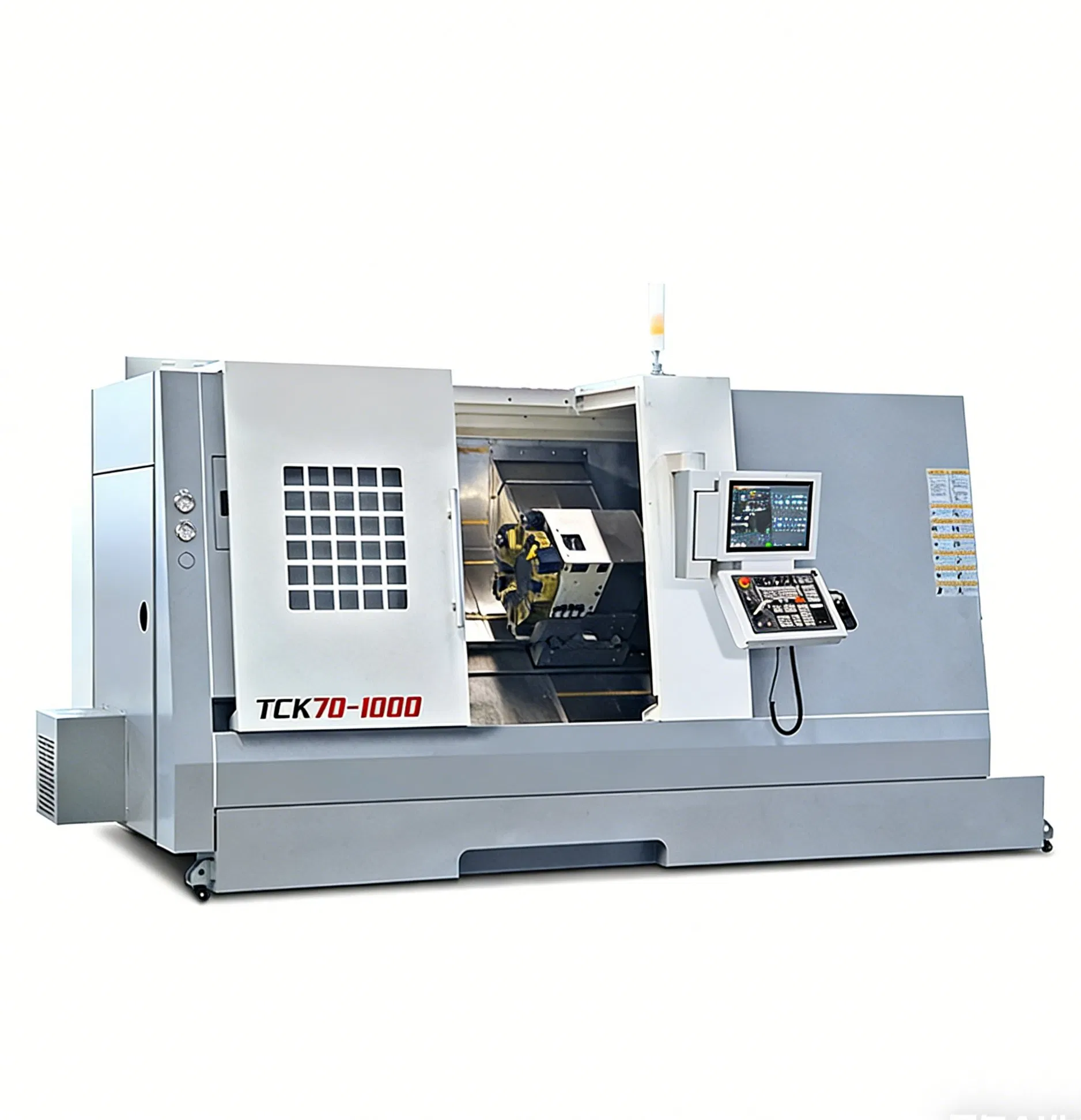

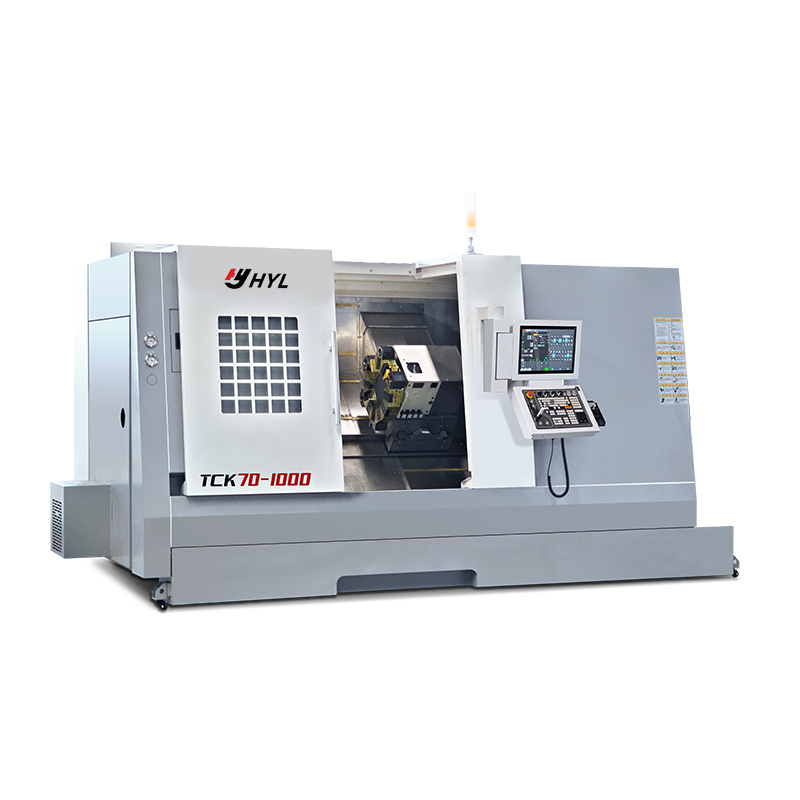

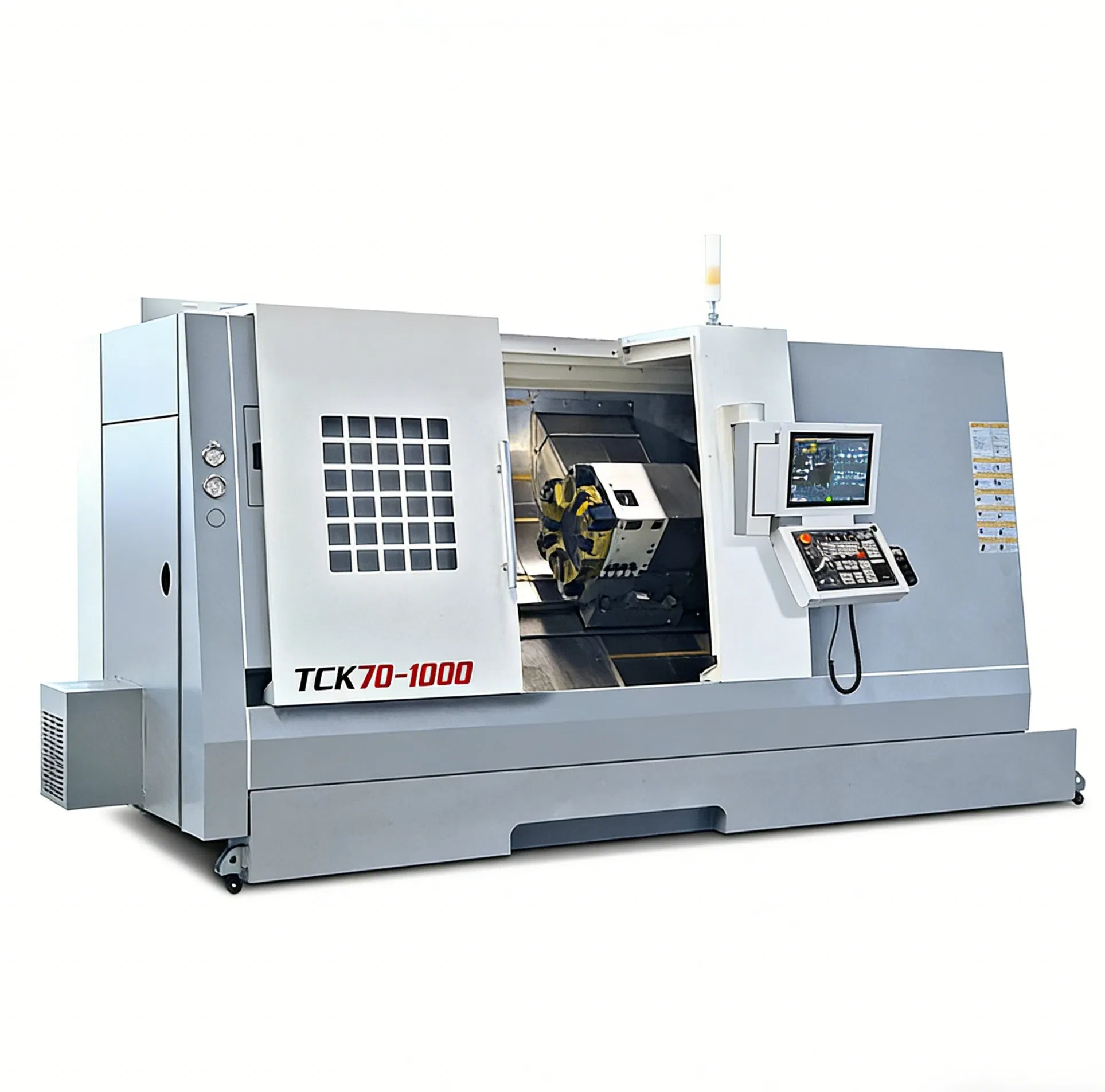

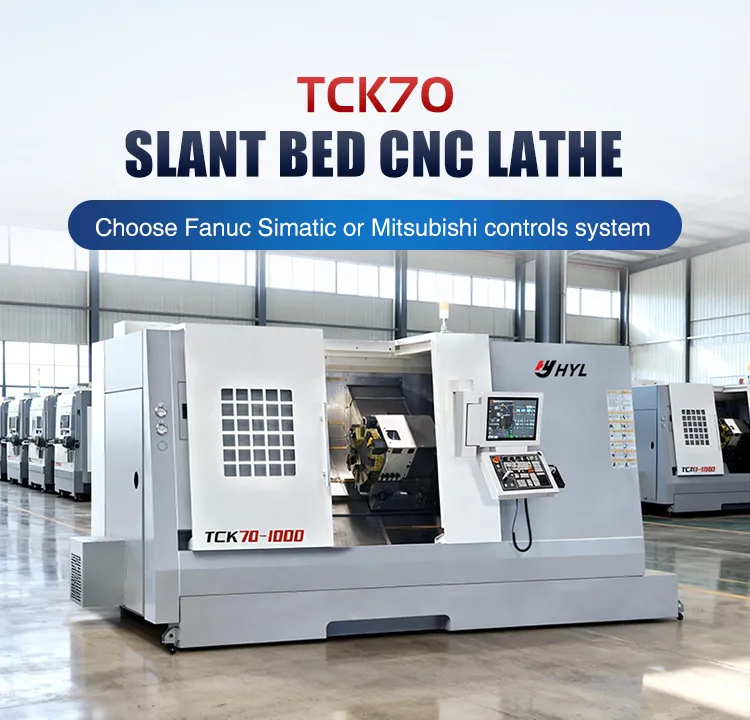

Tck70-1000 Industrial CNC Turning Center for Long Workpiece Turning

1 / 5

Tck70-1000 Industrial CNC Turning Center for Long Workpiece Turning

Customization:	Available
After-sales Service:	Five Year Warranty
Warranty:	Five Year Warranty

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

TCK70-1000

Type

Horizontal Lathe

Processing

Chuck CNC Lathe

Guide Rail

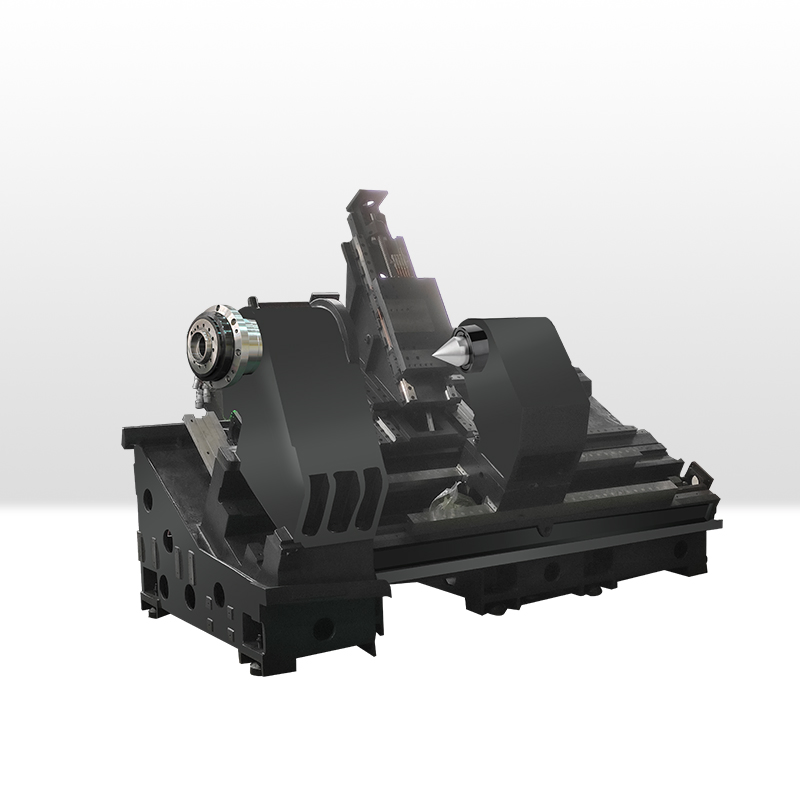

Inclined Guide Rail

Tool Holder

Single-tool Holder

Power Source

Hydraulic Pressure

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

ISO 9001

Condition

New

Repeatability

0.003mm

📦

Packaging & Delivery

Package Size

413.00cm * 215.00cm * 223.00cm

Gross Weight

8000.000kg

📊

Technical Specifications

Project	Units	Specifications	Remarks
Maximum turning diameter on bed	mm	720	-
Maximum cutting length	mm	1000	-
Maximum cutting diameter	mm	500	12 stations
Standard cutting diameter	mm	380	-

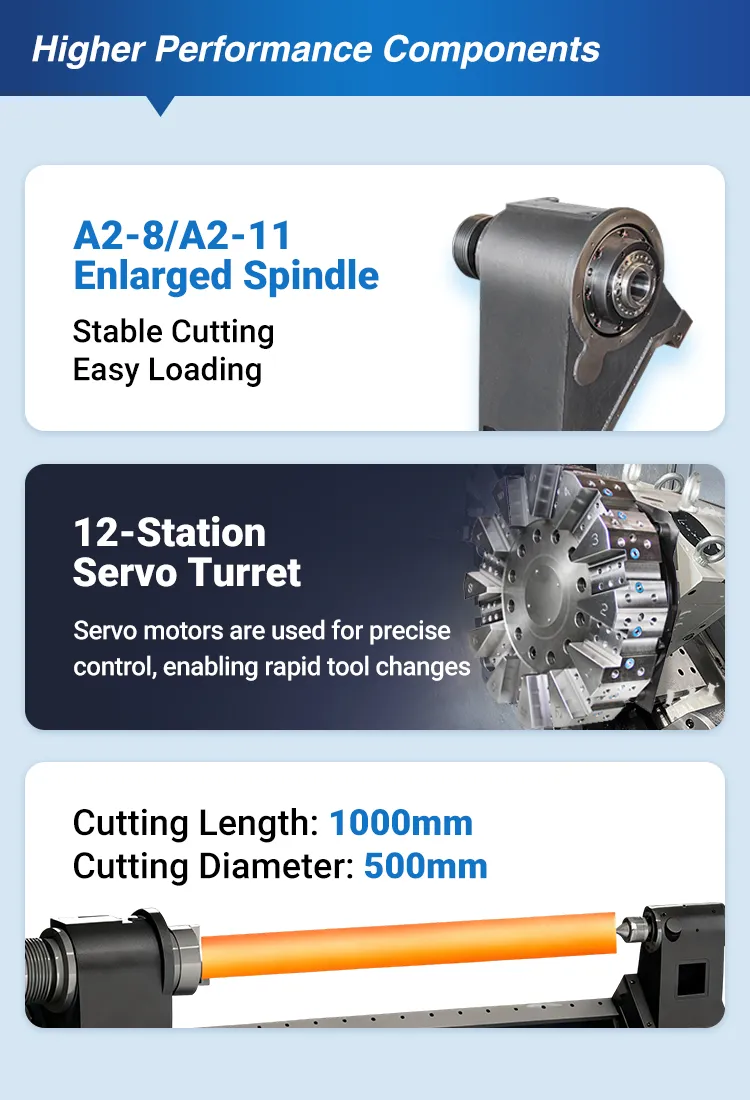

Spindle end type	-	A2-8 (optional A2-11)	Spindle unit
Main shaft hole diameter	mm	80	-
Spindle speed range	r/min	50 ~ 3500	Output torque 215Nm
Main motor output power	kW	18.5/15	Continuous
X-axis fast shift speed	m/min	12	-
Z-axis fast shift speed	m/min	16	-
X-axis / Z-axis stroke	mm	250 / 1020	-
Tailstock travel	mm	900	Diameter 138mm

❓

Frequently Asked Questions

How can I choose the most suitable machine?

Please provide your technical specifications or product drawings, and we will recommend the best model for your specific production requirements.

What are the main products available?

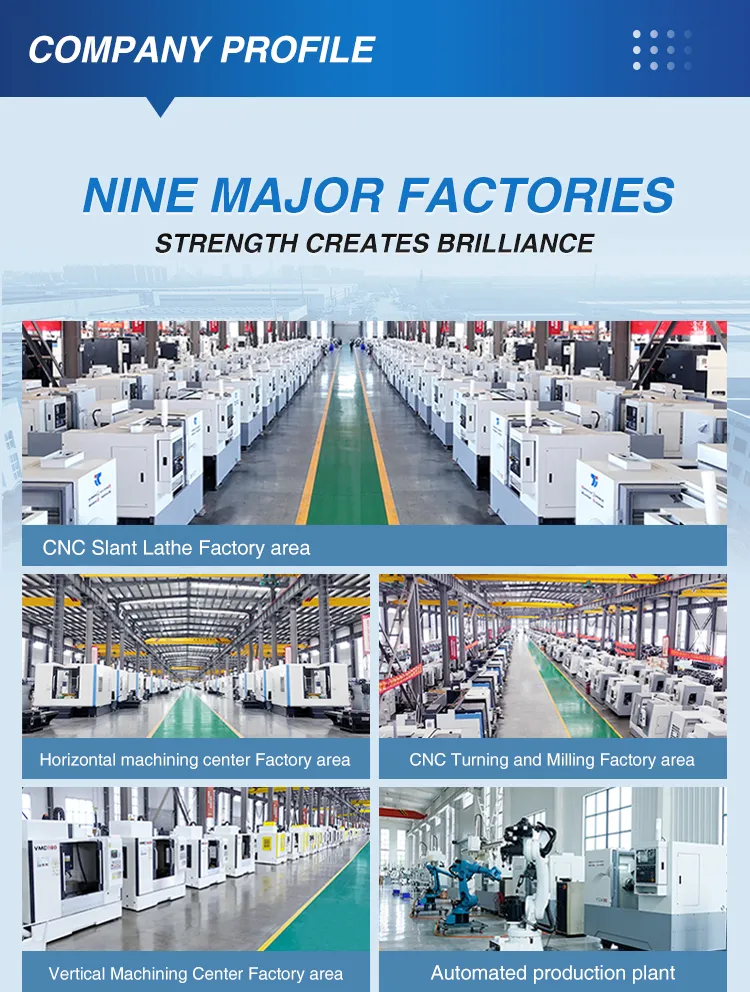

We specialize in a wide range of industrial equipment, including CNC Lathe Machines, Vertical Machining Centers, and various other metal-cutting lathe machines.

What are your standard trade terms?

We accept various international trade terms, including FOB, CFR, and CIF, to ensure a smooth shipping process.

What are the payment terms for orders?

Our standard terms are 30% initial payment upon order confirmation and 70% balance payment before shipment. Irrevocable LC at sight is also acceptable.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 set for most of our machines, allowing for single unit industrial applications.

What kind of warranty and after-sales service is provided?

We offer a five-year warranty for non-human factor damages. Technical support is provided online via video and photo analysis to solve problems efficiently.
