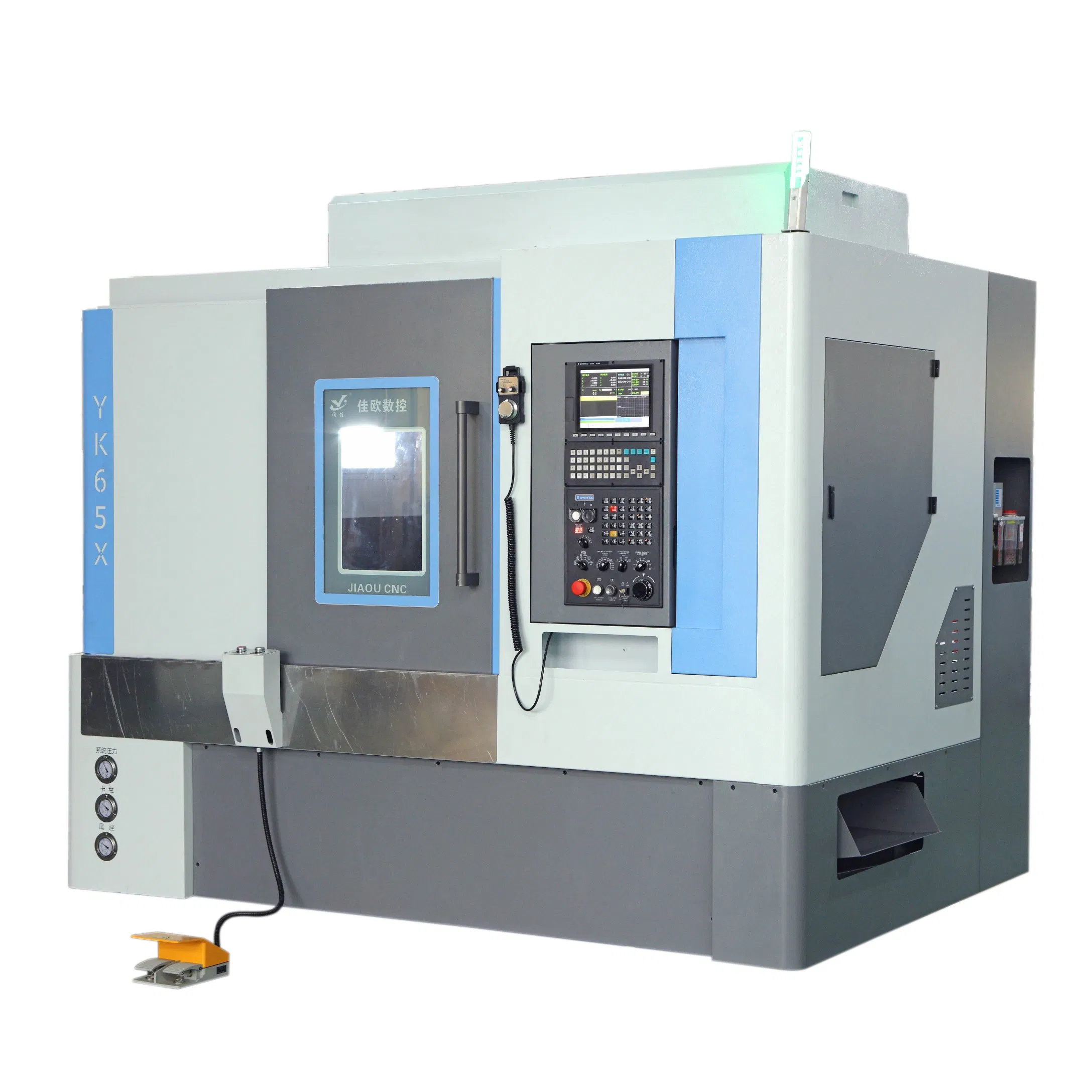

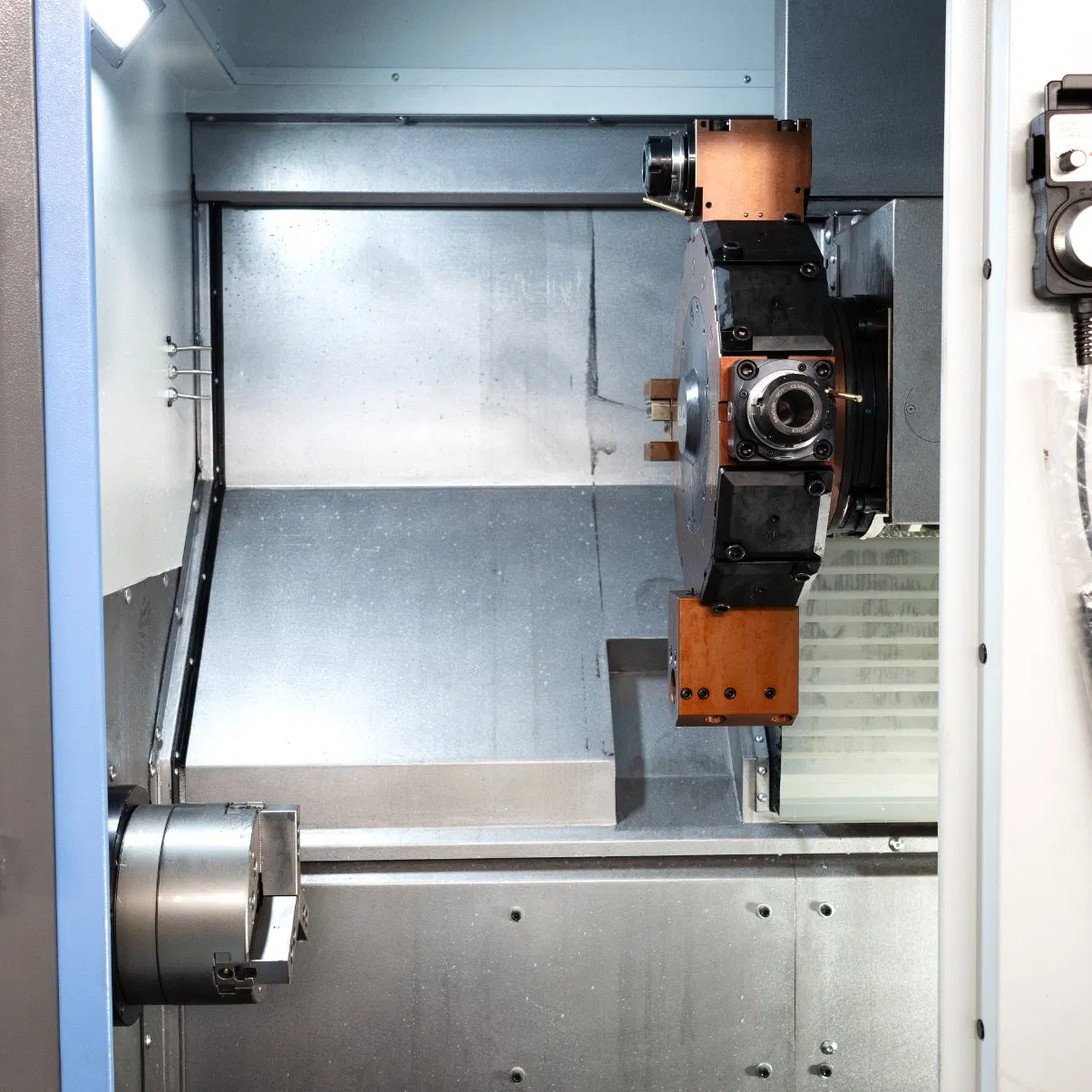

Fast Process CNC Torno Turning Center with Bmt65 Power Turret

Customization: Available
After-sales Service: Negotiable
Warranty: Negotiable

Product Description

Basic Info

Model NO.YK65X
ApplicationMetal
Process UsageMetal-Cutting CNC Machine Tools
Movement MethodPoint to Point Control
Control MethodClosed-Loop Control
Numerical ControlCNC/MNC
Processing Precision0.003-0.005mm
CNC SystemSyntec/Fanuc/Siemens
Max. Machining Length450
Max. Turning Dia400
Tool TypeBmt65 Power Turret
Tool Position12 Positions

Product Description

YK65X TURNING & MILLING COMPOUND CNC MACHINE

The basic model, the YK65X, features large, precision, heavy-duty roller guideways on the X, Y and Z axes, offering strong support rigidity and high guiding accuracy. Equipped with the BMT65 power turret, it boasts high rigidity and a large toolhead, adapting to machining larger workpieces. Its unique 90-degree vertical structure provides a powerful, all-in-one machining solution.

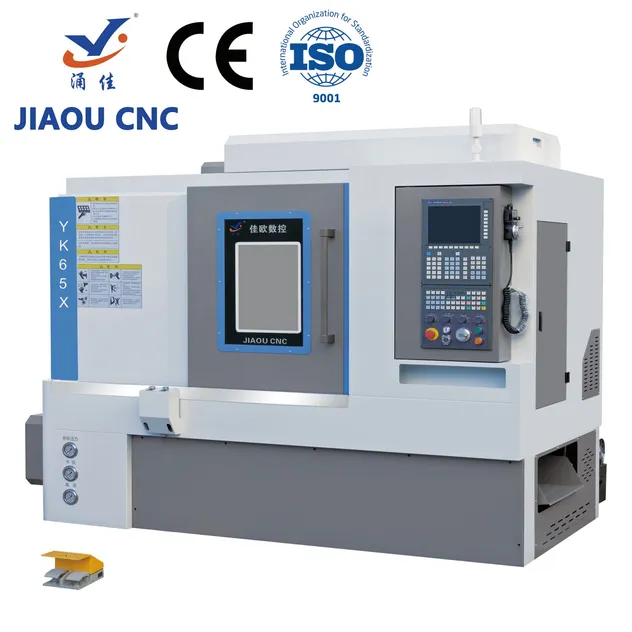

CNC Machine View 1

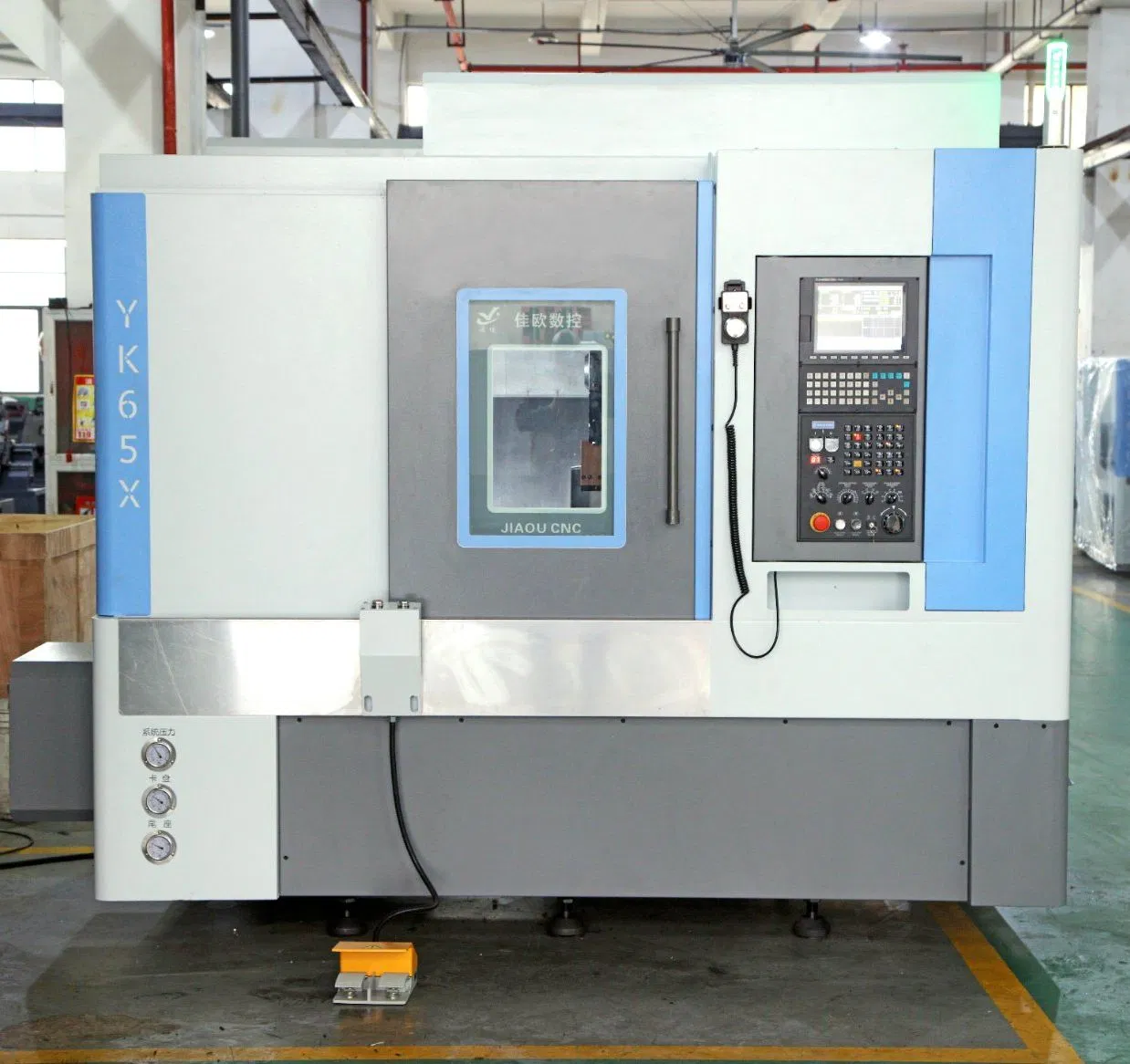

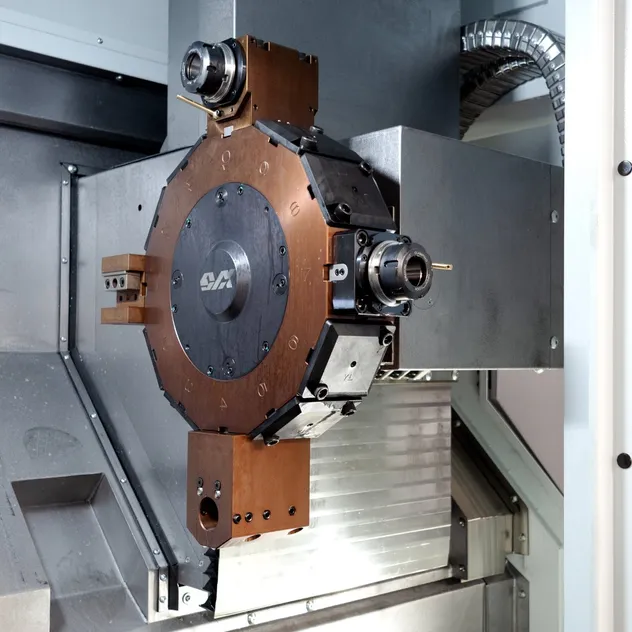

CNC Machine View 2

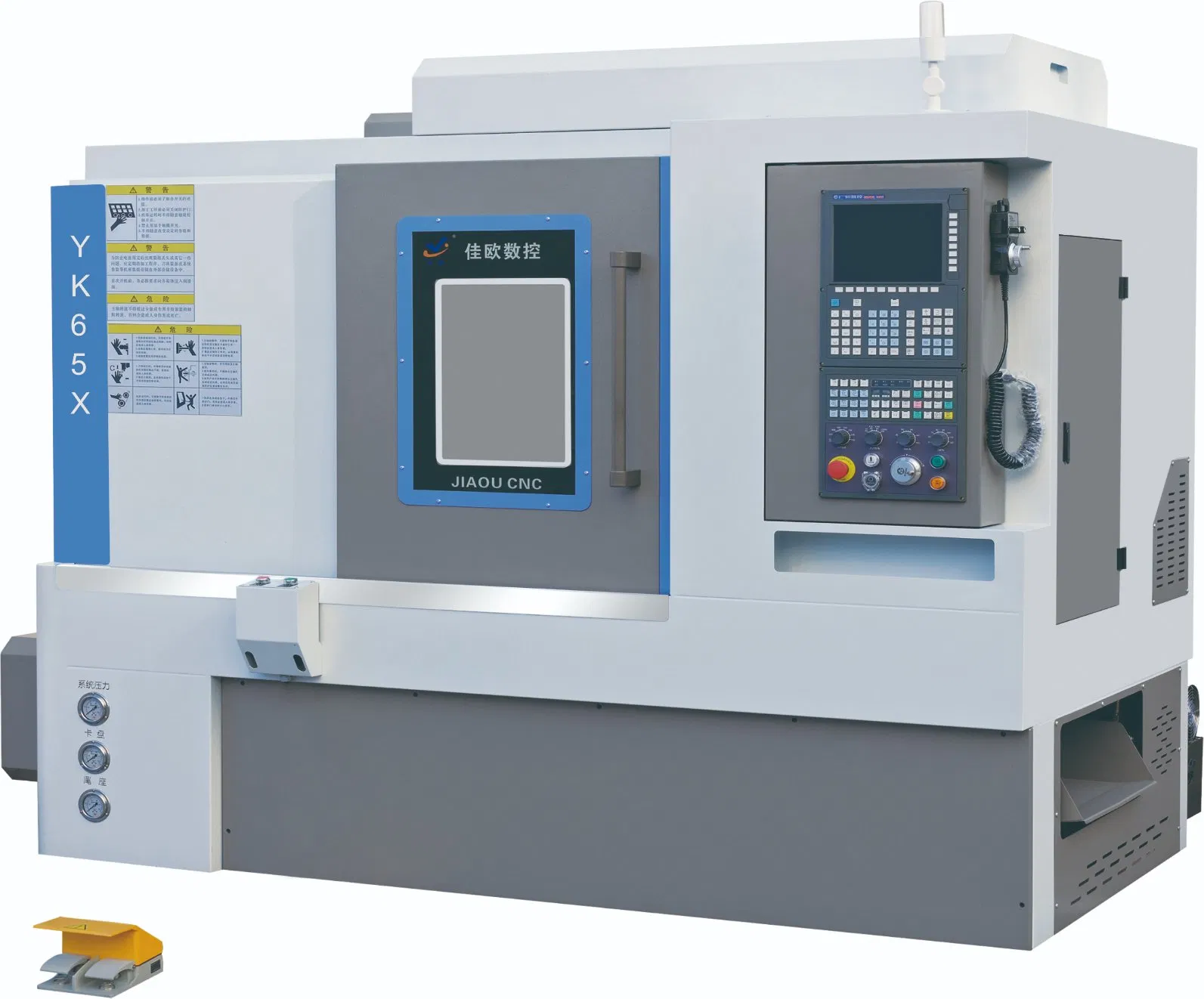

CNC Machine View 3
High-Precision Multi-Axis Machining

Single-spindle CNC lathe with 90-degree Y-axis capability for complex 3D contouring and off-center milling operations.

Integrated Mill-Turn Functionality

Combines turning and milling capabilities in one machine, reducing setup time and increasing productivity.

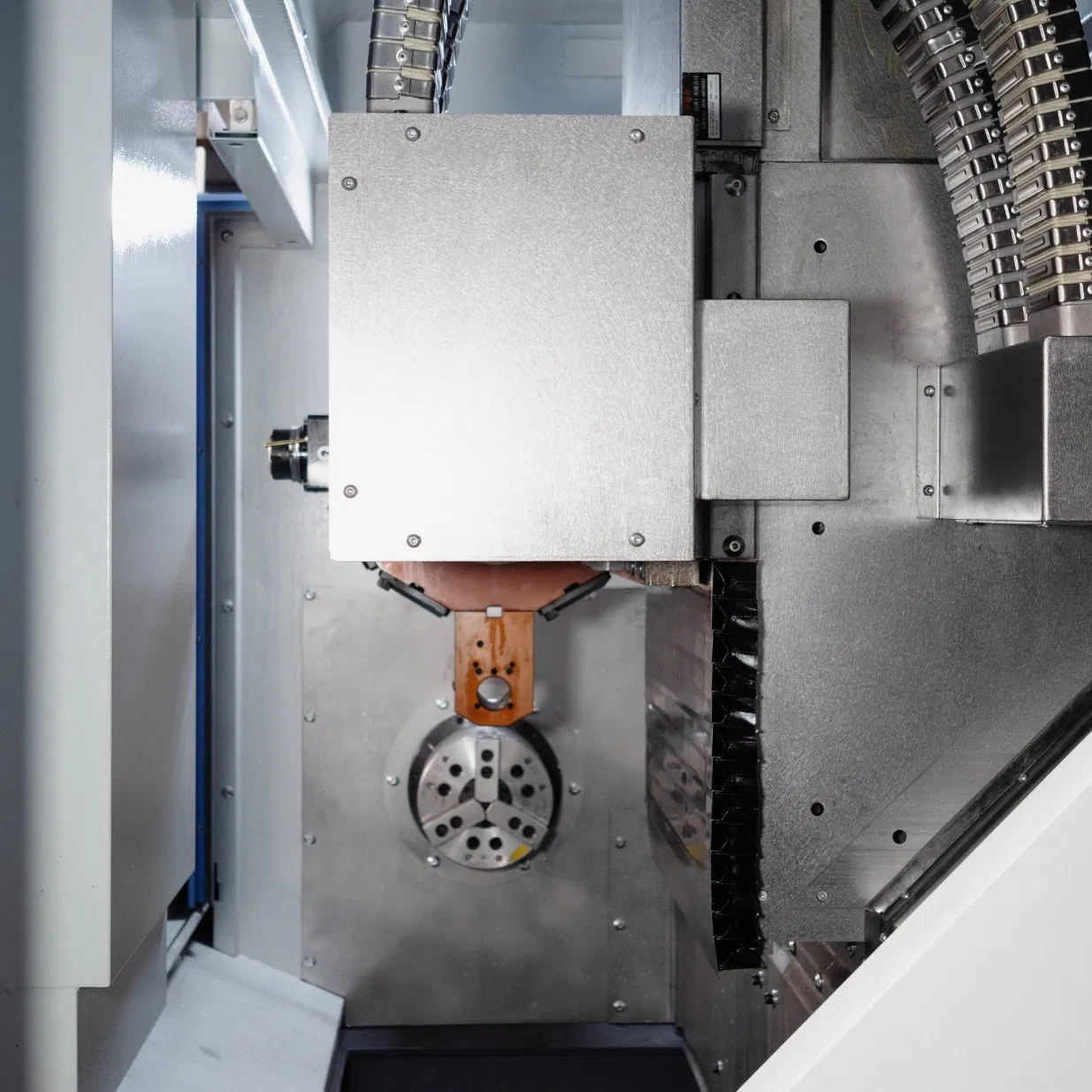

BMT65 Power Turret

Robust turret system enables high-speed tool changes and superior rigidity for enhanced machining performance.

Premium Component Sourcing

Critical precision parts sourced from industry leaders in Taiwan, Japan, and Germany, ensuring reliability.

Efficient Complex Part Production

Ideal for manufacturing intricate metal components in a single setup, minimizing handling and improving accuracy.

Reduced Cycle Times

Multi-tasking capabilities allow for simultaneous operations, significantly decreasing overall processing time.

High-Precision Contouring

Advanced control system enables smooth, accurate contouring for superior surface finishes on complex geometries.

Versatile Machining Solutions

Suitable for industries including aerospace, automotive, medical, and general precision engineering.

Enhanced Productivity

Single-setup machining reduces work-in-progress and streamlines production workflows.

Precision-Engineered Spindle

High-speed, thermally-stable spindle design for consistent accuracy in both turning and milling operations.

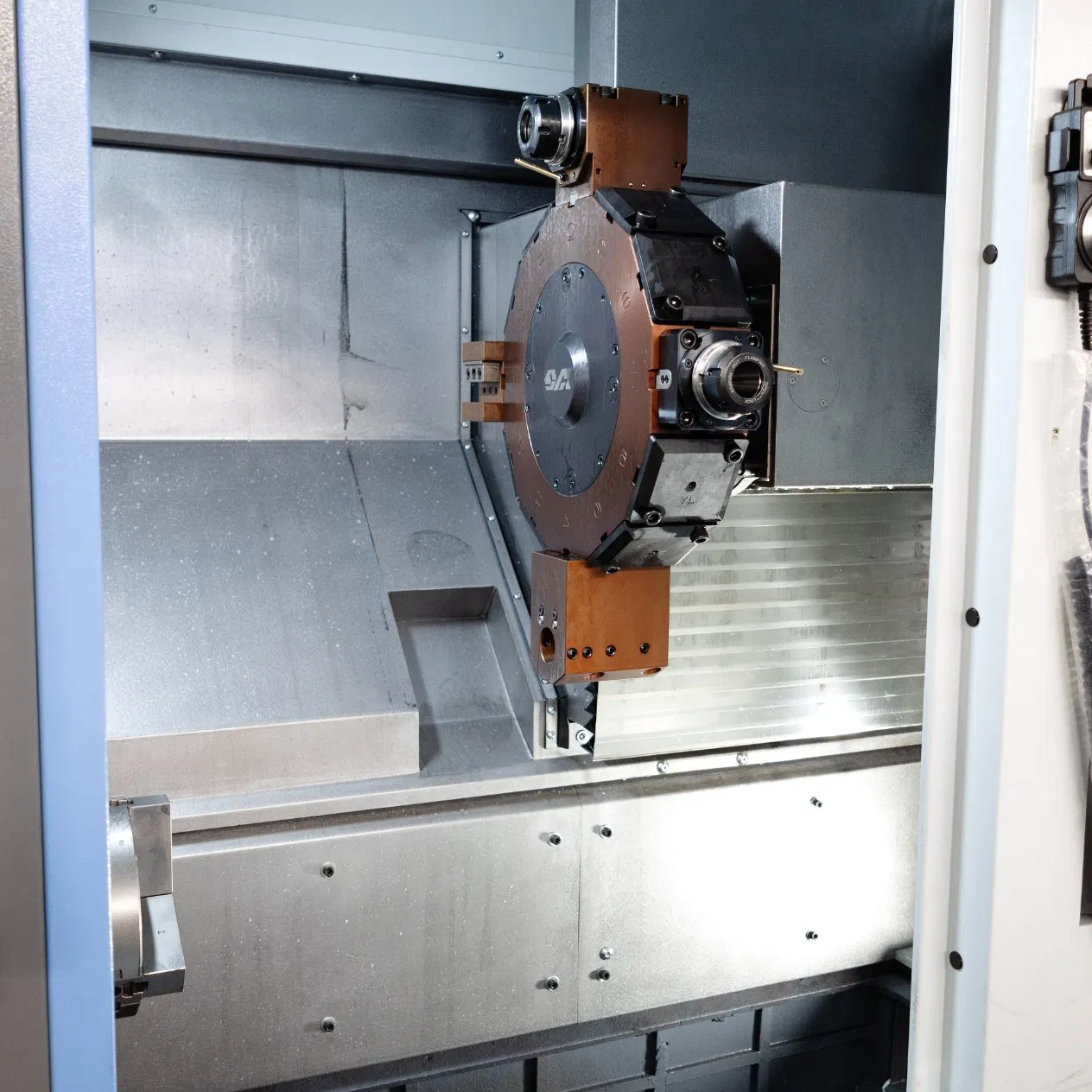

Full Machine Specs Illustration

Technical Specifications

YK65X TURNING & MILLING COMPOUND CNC MACHINE
Machining Capacity Swing over bedmmΦ500
Swing over carriagemmΦ250
Max machining lengthmm450
Max turning diammΦ400
Distance between centersmm500
Max bar material sizemmΦ52
Max bar material sizemmΦ230
Spindle Spindle nose-A2-6
Spindle boremmΦ66
Spindle motor powerkw15
Spindle motor torqueN·m90-180
Chuck sizeinch8
Spindle speed rangerpm200-3000
Axes Specs Axes travelmmX270 Z540 Y±100
Axes fast movingm/minX20 Z22 Y18
Repeatable positioning accuracymmX0.003 Z0.005 Y0.003
Tool Type Turret-12-125-380-BMT65
Tool holder sizemm25*25 ΦΦ40

Certifications & Delivery

Certifications
Packing and Delivery

Company Profile

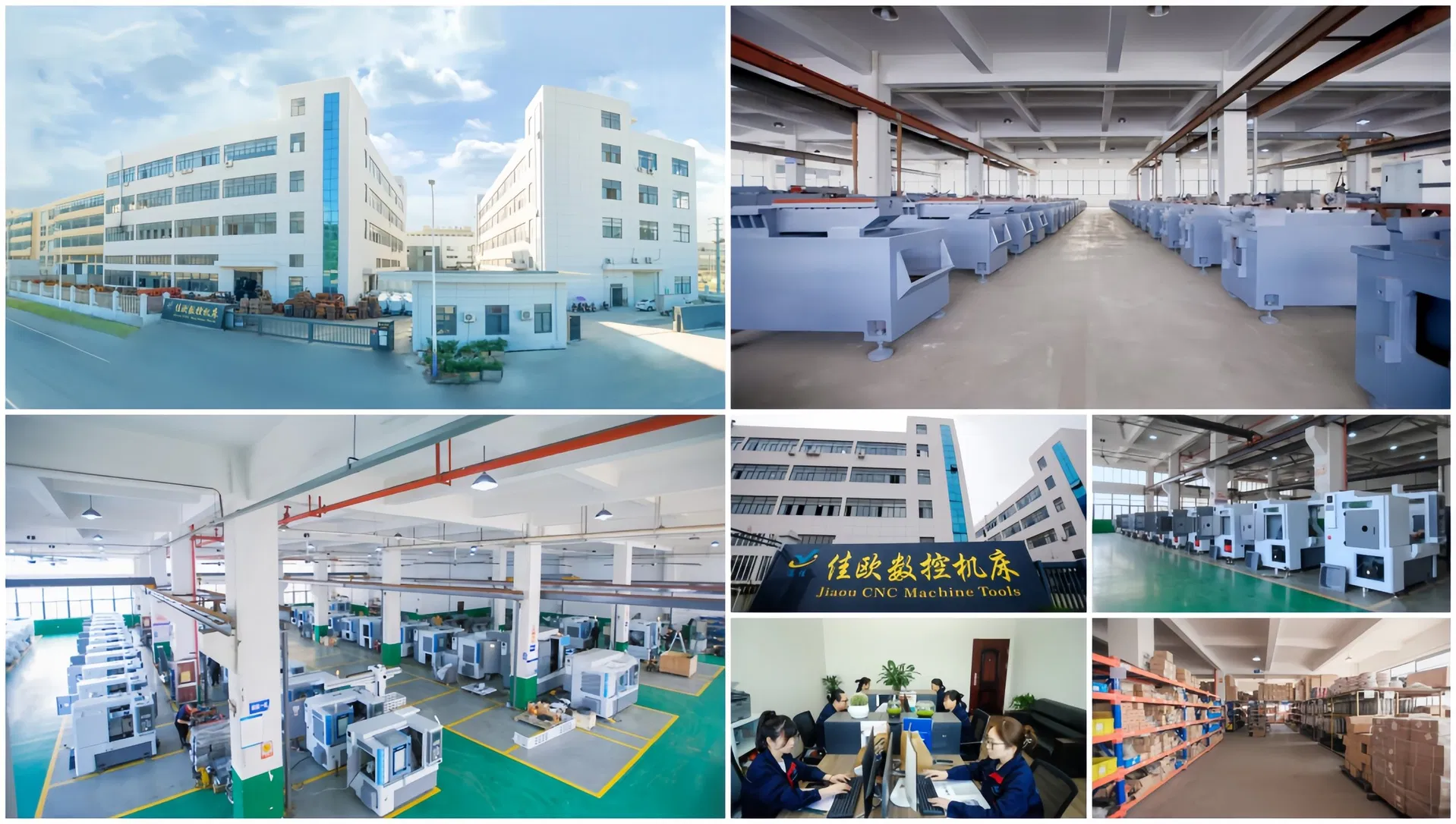

Workshop

Our company is a technology-based enterprise, specializing in the R&D, production and sales of CNC machine tools. We have a professional technical and sales service team who has long been engaged in the design and development of CNC machine tools, constantly innovating and advancing with the times. The precision CNC lathes designed for metal working, including gang type, turret type, mill-turn compound type, can easily handle complex, precise, small-batch, and multi-variety part processing problems.

Equipped with a complete quality testing system and sophisticated testing instruments, we have passed the ISO9001 system certification to ensure that we provide customers with high-quality equipment and fast after-sales service. We adhere to the business philosophy of "Detail first, customer first, and creating maximum value for customers".

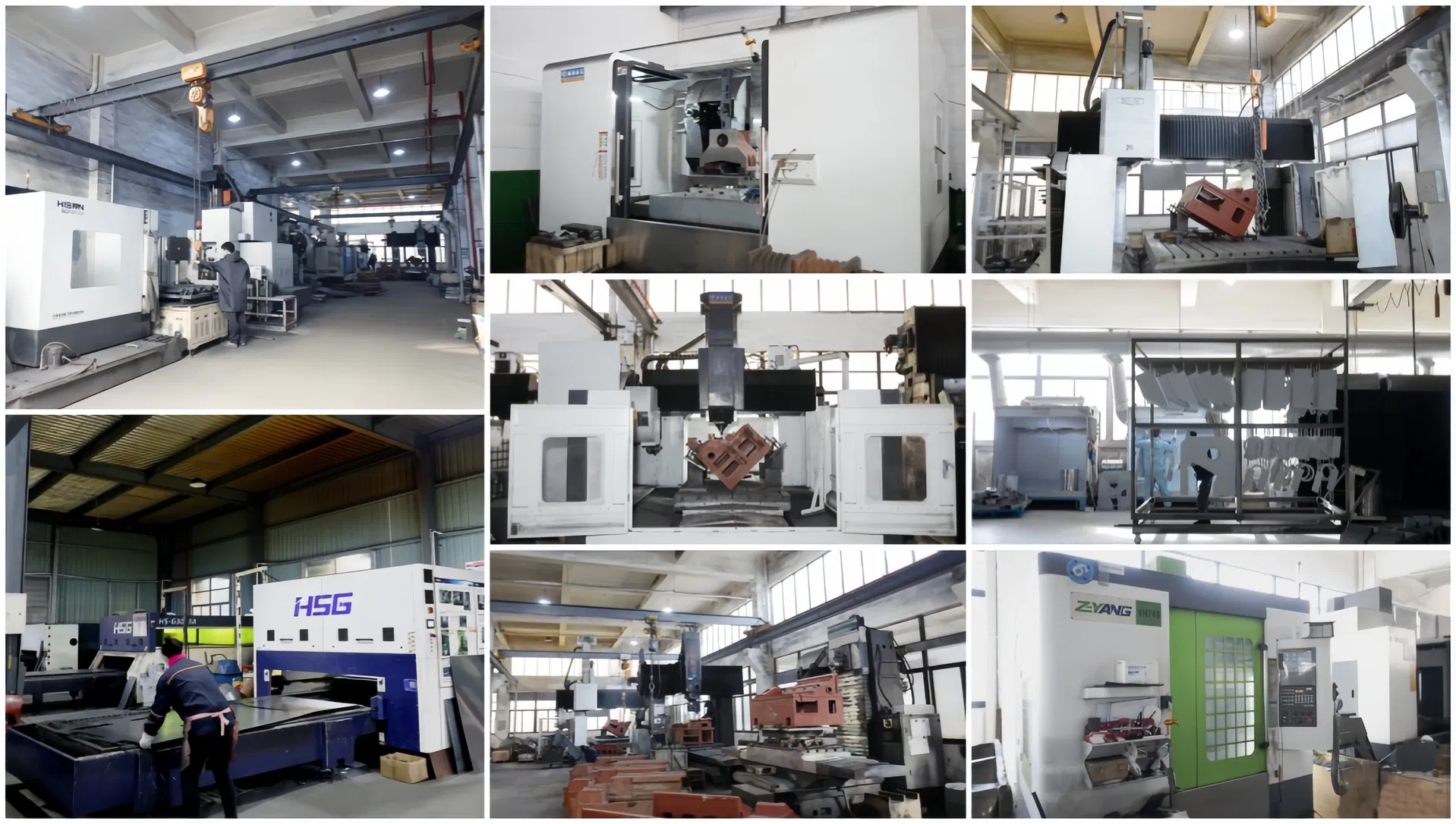

Manufacturing Facility

We have multiple production workshops, from bed component blank processing, optical and mechanical assembly, installation and debugging, sheet metal laser cutting and bending, external protective sheet metal spraying, etc., all of which are independently produced and processed.

Frequently Asked Questions
What's the availability of spare parts?
We maintain a comprehensive stock of spare parts with quick delivery options to ensure minimal downtime for your operations.
What CNC control system does it use?
Our machines can be equipped with different brands of CNC control systems, such as FANUC, SIEMENS, SYNTEC, KND, GSK, etc., depending on customer requirements.
Do you provide operator training?
Yes. We welcome your engineers or operators to have operator training at our site. We are also able to provide comprehensive online technical support.
What's the lead time for delivery?
We offer fast delivery times: 10-20 days for our standard regular machines. The delivery time for customized machines will be negotiated based on complexity.
Is customization available?
Yes. We have rich experience in custom processing and can provide flexible customization services from the machine bed to processing parameters and appearance.
What industries are these machines suitable for?
These machines are ideal for a wide range of industries including aerospace, automotive, medical, and general precision engineering.
