| Model NO. | HT2 |
| Type | Turret Lathe |
| Processing Accessory | Chuck CNC Lathe |

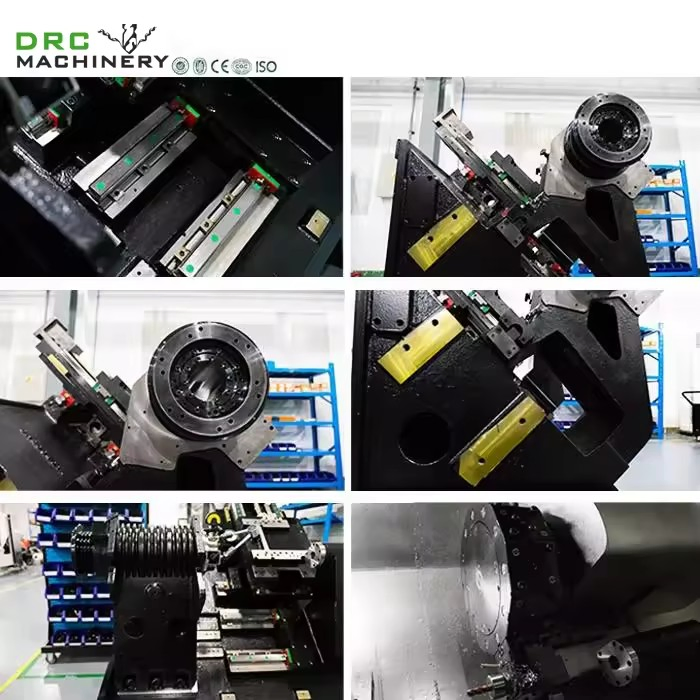

| Guide Rail | Inclined Guide Rail |
| Tool Holder | Single-tool Holder CNC Lathe |
| Power Source | Hydraulic Pressure |
| Controlling Mode | CNC |
| Automatic Grade | Automatic |
| Setting Mode | Floor-type |
| Precision | High Precision |
| Certification | CE |
| Condition | New |
| Spindle Head | A2-5 |
| Spindle Maximum Speed | 5000 RPM |
| Spindle Power | 5.5-7.5 kW |
| Chuck Diameter | 165 mm |
| Spindle Bore | 52 mm |
| Transport Package | Packing in Seaworthy Wooden Cases |

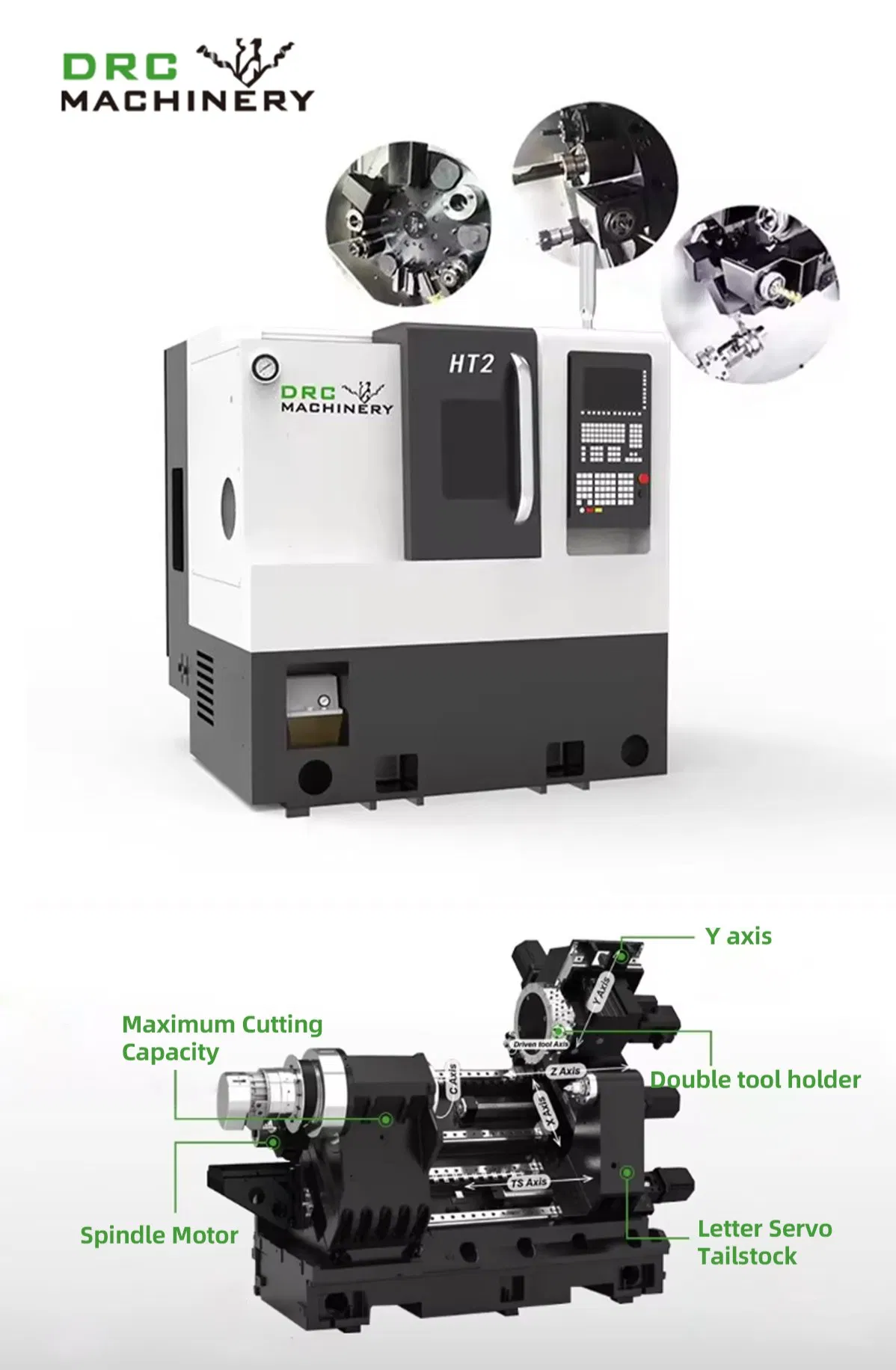

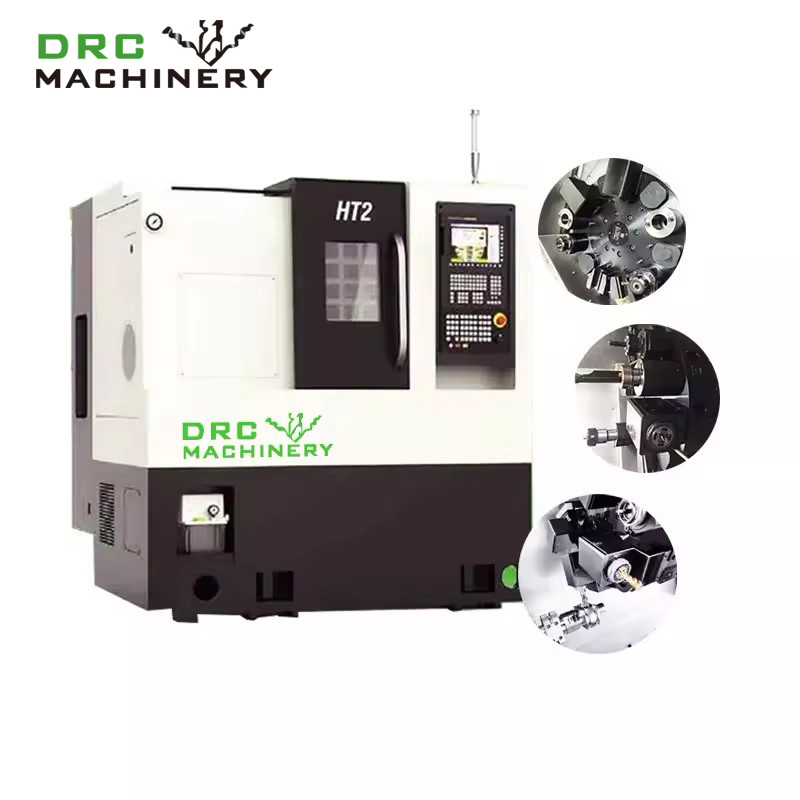

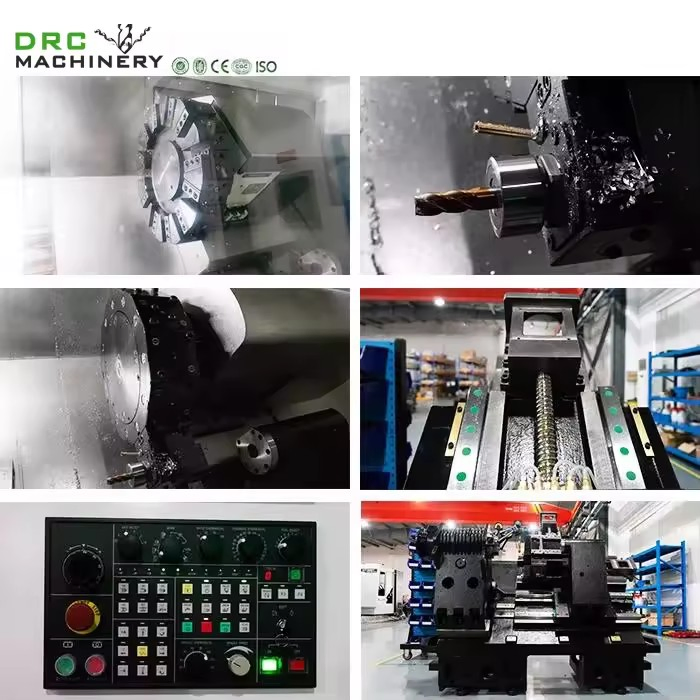

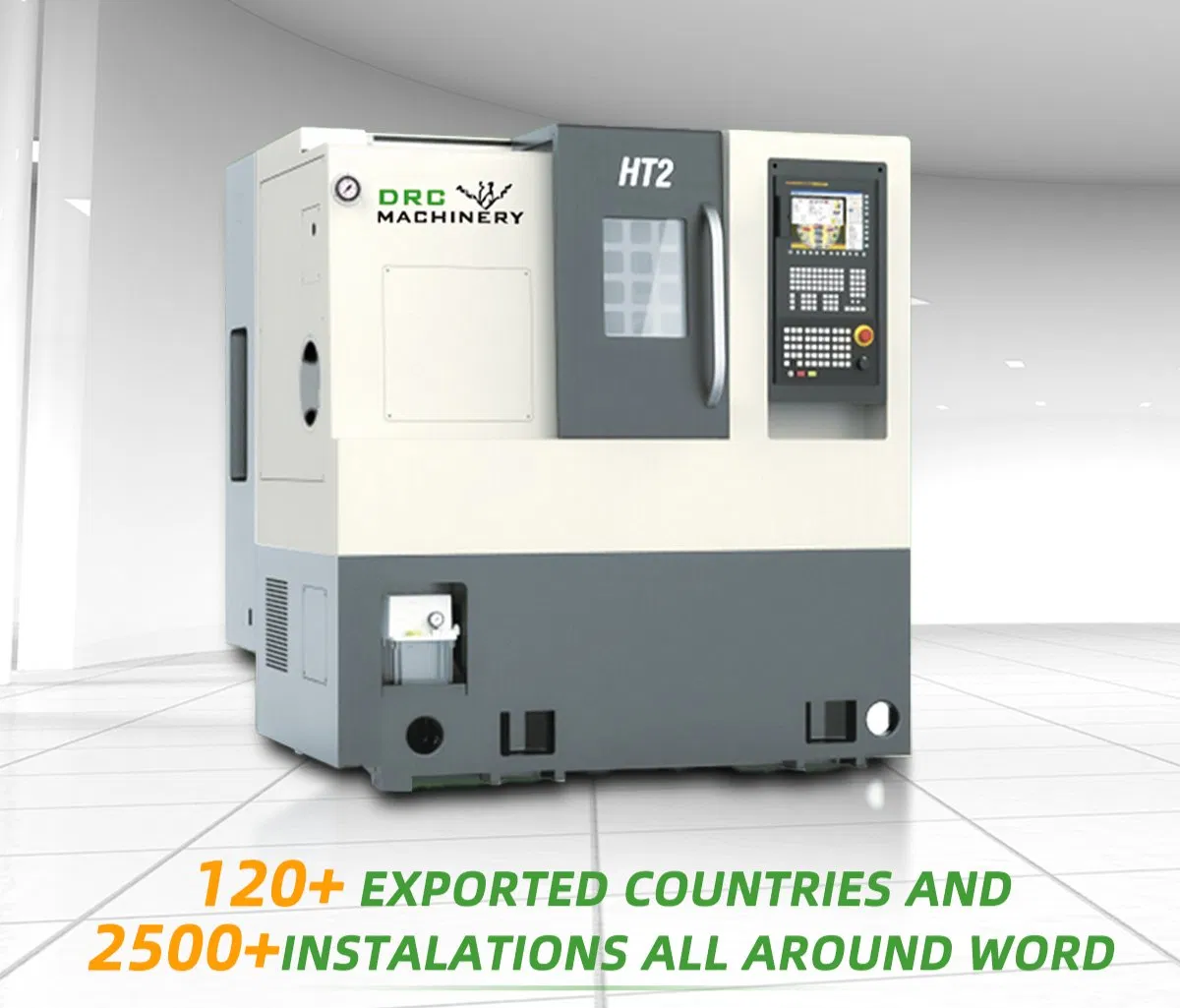

HT2 CNC lathe is a two-axis linkage, fully closed-loop CNC machine tool. The machine-electric-hydraulic integrated layout adopts a fully enclosed protective cover, providing a safe and clean working environment. Each servo feed shaft adopts high-speed silent ball screws and elastic couplings for direct connection, ensuring fast moving speed, low noise, and high positioning accuracy. The servo motor is equipped with an absolute value encoder, eliminating cumulative errors and the need to find reference points after power cuts. This machine tool features strong functionality, high precision, reasonable layout, and convenient maintenance.
| Parameter Item | Unit | Value |
|---|---|---|
| Maximum swing over bed | mm | 520 |
| Maximum cutting diameter | mm | 260 |
| Maximum cutting length | mm | 200 |
| Travel of Z-axis | mm | 250 |
| Travel of X-axis | mm | 150 |
| Rapid traverse X/Z | m/min | 30 |
| X/Z axis ballscrew DxP | mm | 32 x 10 |

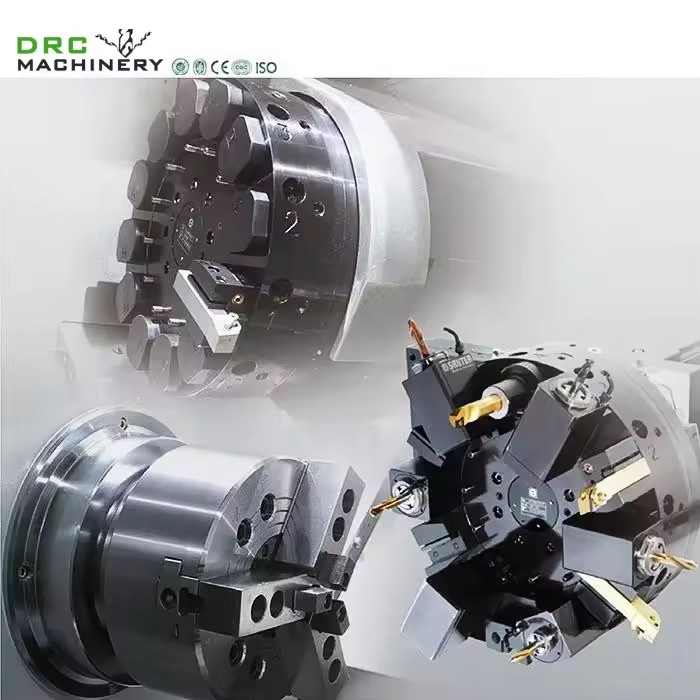

| Number of tool stations | - | 12 |
| Positioning Accuracy | mm | 0.006/0.006 |
| Repeatability | mm | 0.004/0.004 |
| Max. installed power | KVA | 20 |

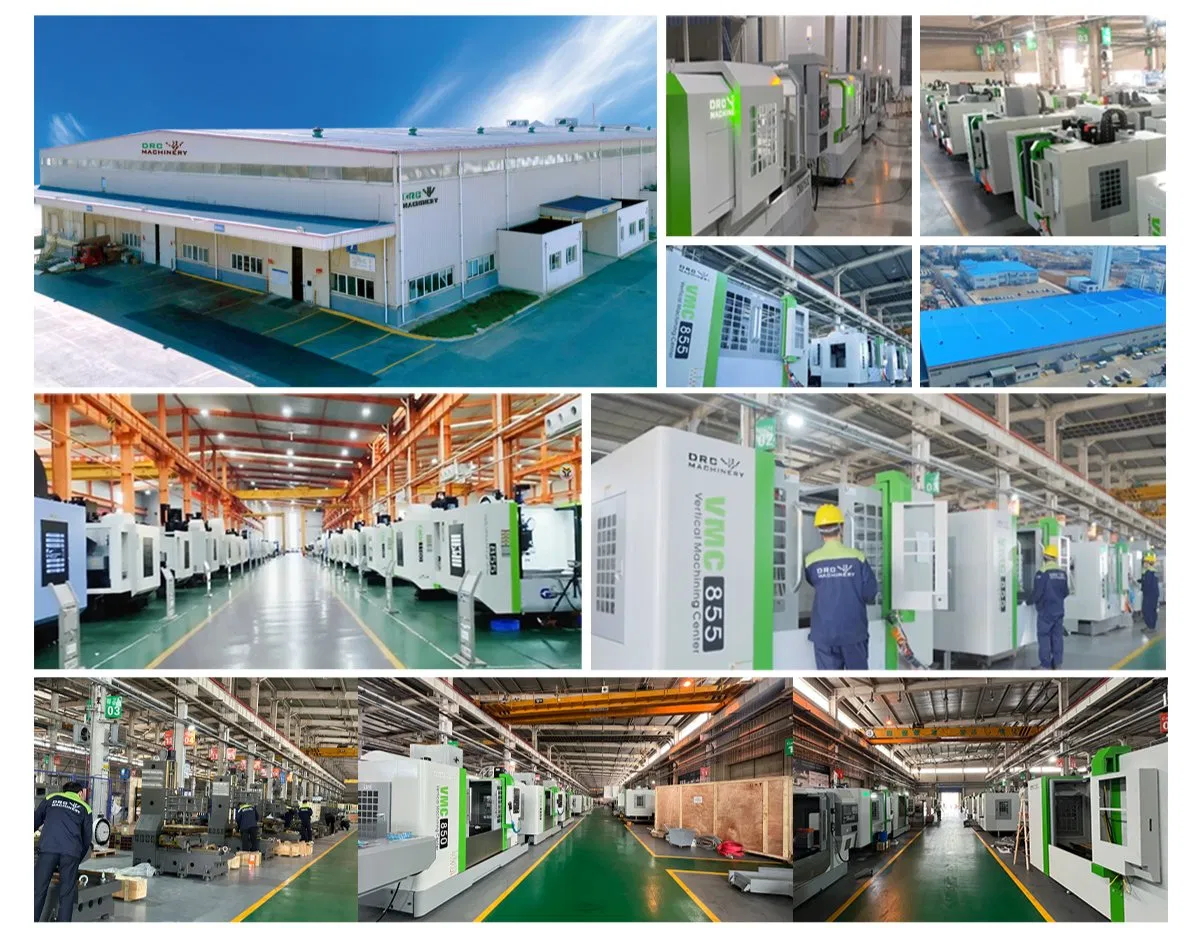

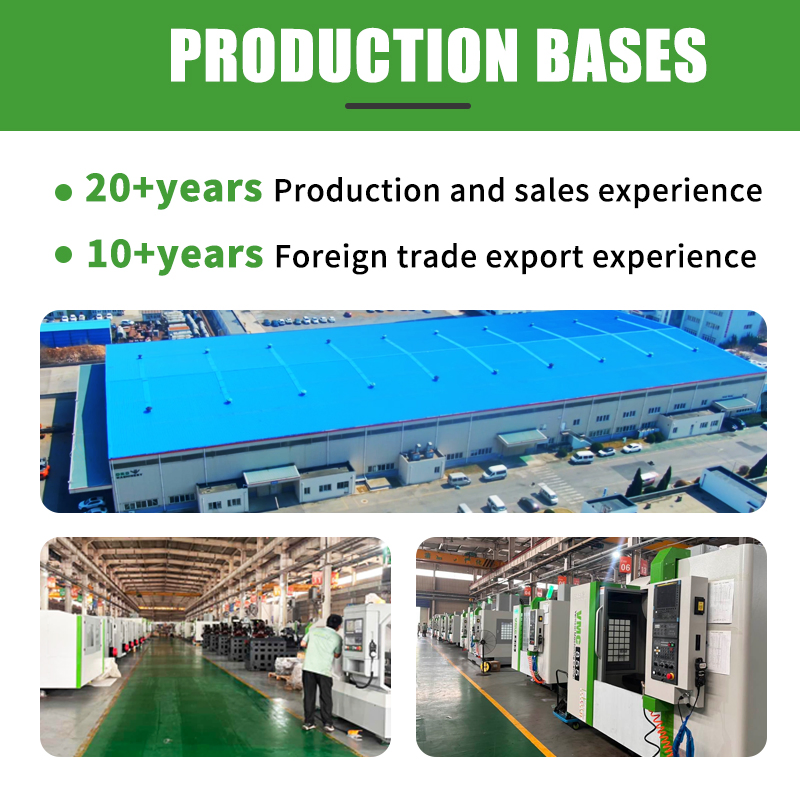

With over 30 years of experience in CNC machine tool production, the manufacturing base is dedicated to R&D and precision engineering. Core products cover CNC lathes, vertical machining centers, and horizontal boring machines, serving aerospace, automotive, and petroleum industries globally. Every machine undergoes a comprehensive quality control system throughout the entire production process to ensure international standards are met.
