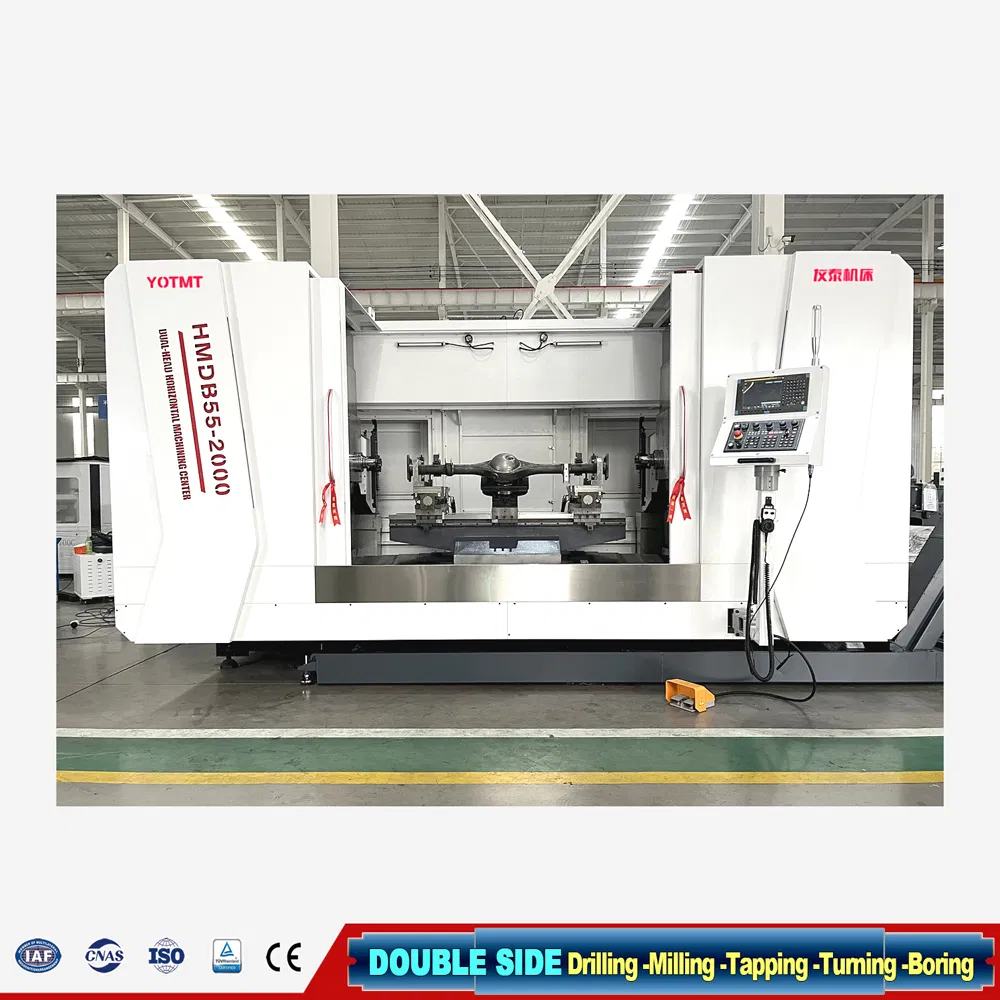

CNC Milling Drillign Tapping Boring Turning Double Sided Horizoontal CNC Machining Center with Double Spindle

1 / 5

CNC Milling Drillign Tapping Boring Turning Double Sided Horizoontal CNC Machining Center with Double Spindle

Customization:	Available
After-sales Service:	on Site / Online
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

HMDB

Application

Metal

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Certification

GS, CE, RoHS, ISO 9001

Structure

Horizontal CNC Machining Center with Atc

Core Advantage

Double Side Spindle Drilling Milling with Atc

Automation

Support

Product Description

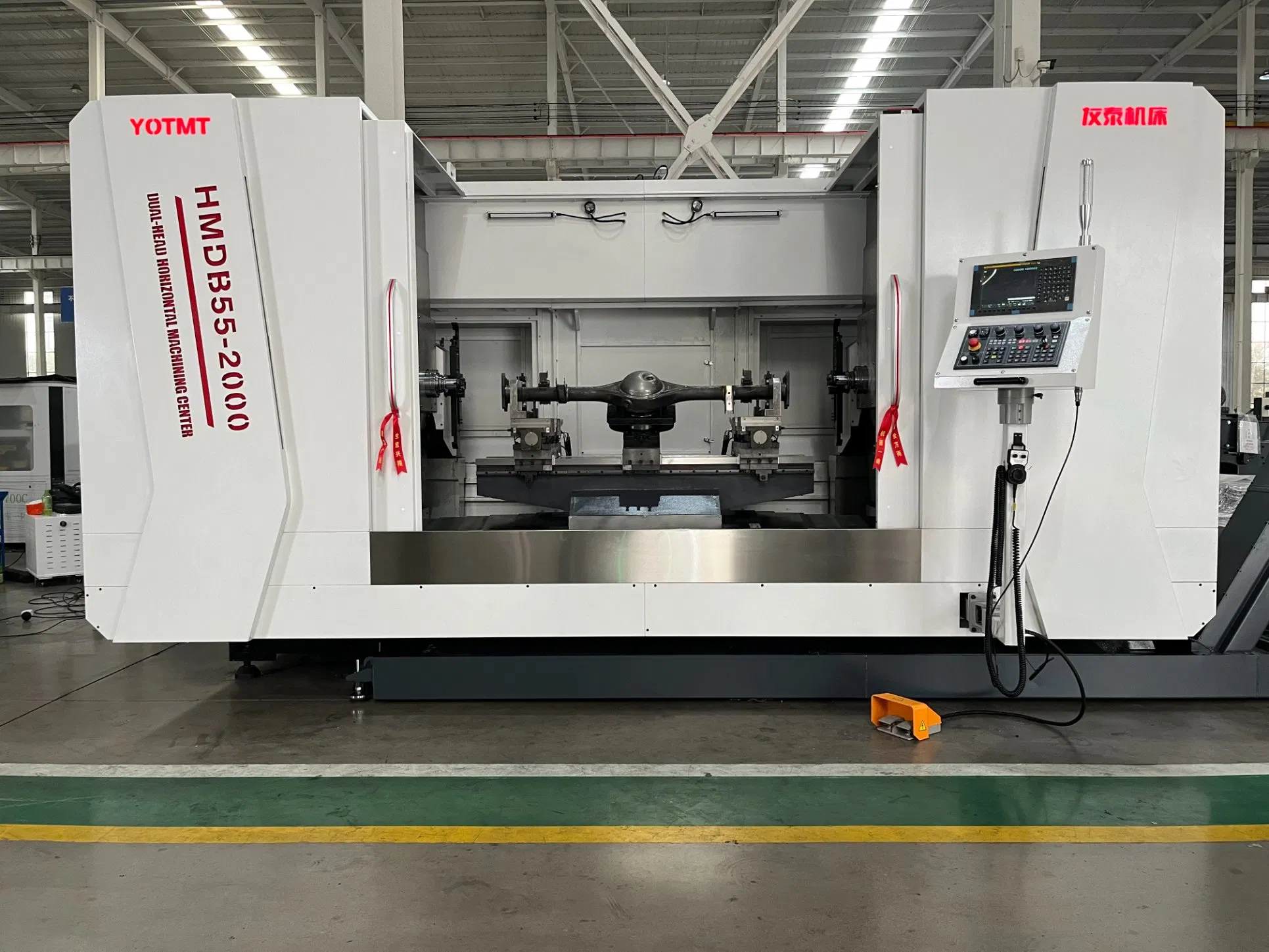

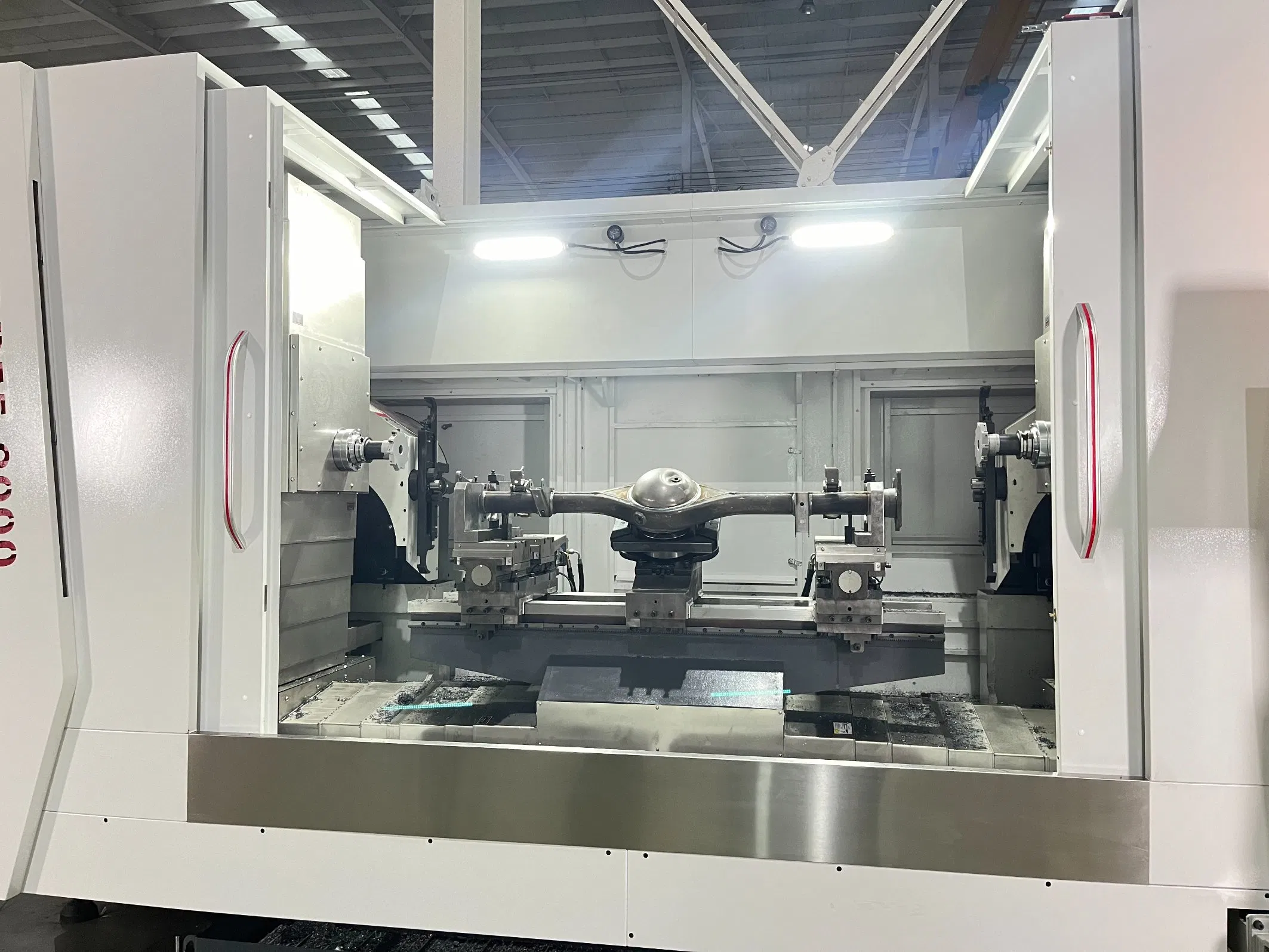

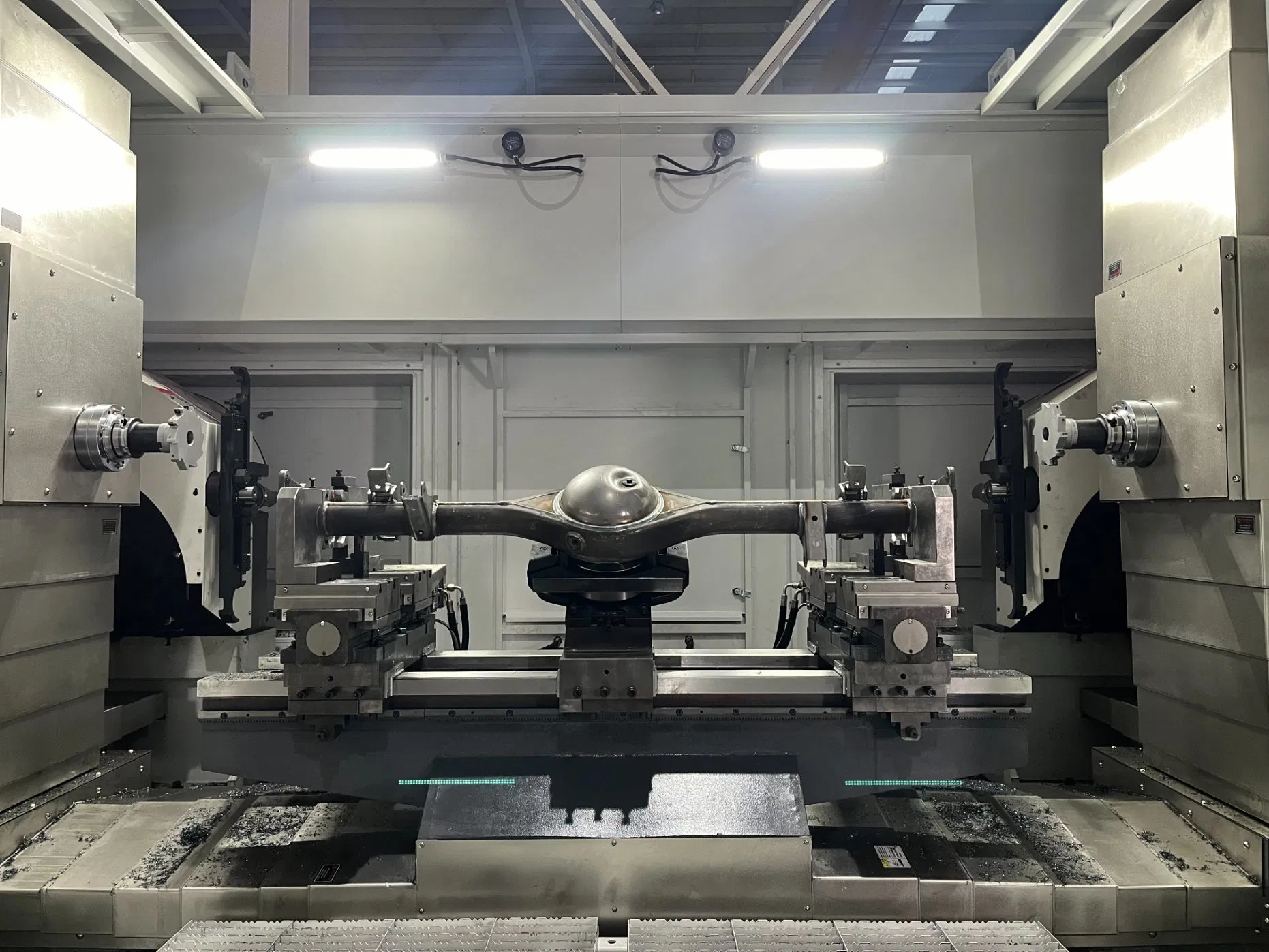

Double Spindle Horizontal CNC Machining Center

For shaft metal drilling milling tapping

Grating interactive safety protection
System active positioning
Support axisymmetric processing
Drilling, milling, boring, turning and tapping full processing
Dual-channel system control, high coaxiality processing in one clamping, double efficiency
Customized production available

Technical Parameters

Project	Unit	Parameter
Usage Details
Workpiece diameter	mm	50~200
Workpiece length	mm	500~4000 (Customizable)
Process details	-	Heavy milling, edge hole drilling, tapping, boring, turning
Machine Specs
Axis each side	-	3
Tool magazine	P	16~32
CNC controller	-	Double channel (KND, GSK, FANUC, SIEMENS optional)
Overall size	mm	6400×2100×2600
Overall weight	kg	15000

Detail Presentation

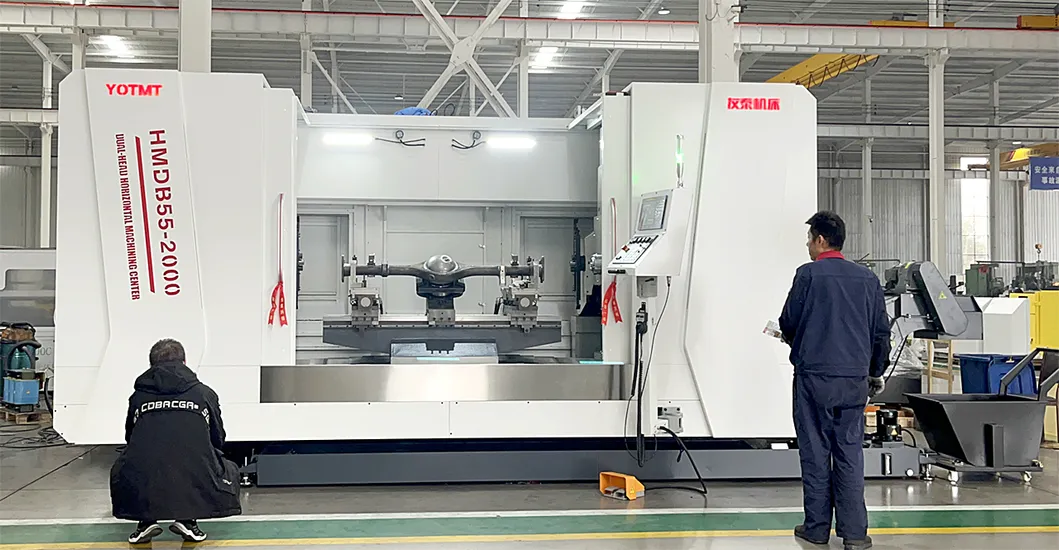

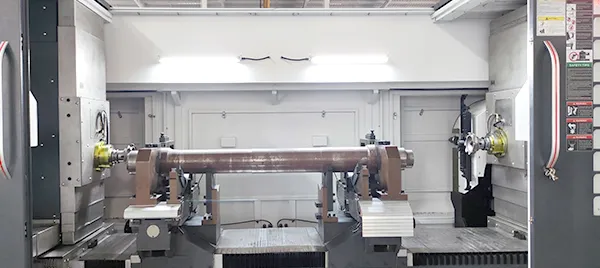

STRUCTURAL DESIGN

Featuring an innovative double-ended spindle design, our machine integrates a horizontal spindle box layout with three dynamic moving axes on each side, enabling the simultaneous execution of milling, drilling, and tapping on two sections of the workpiece.

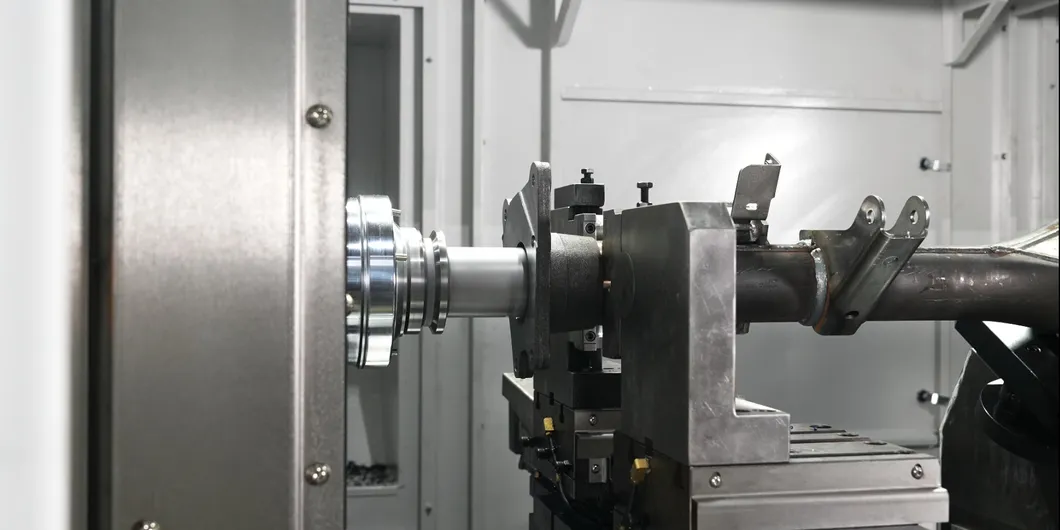

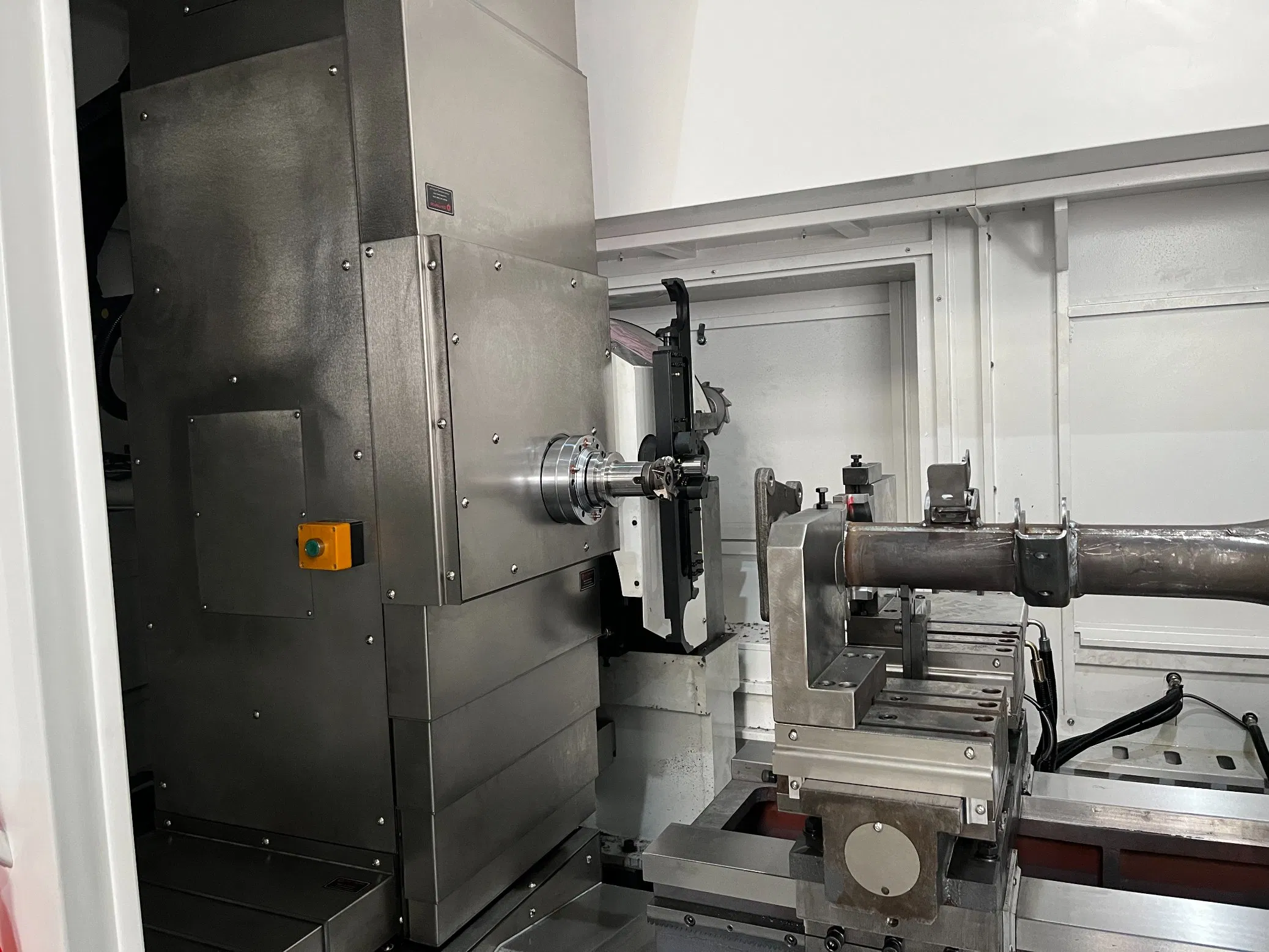

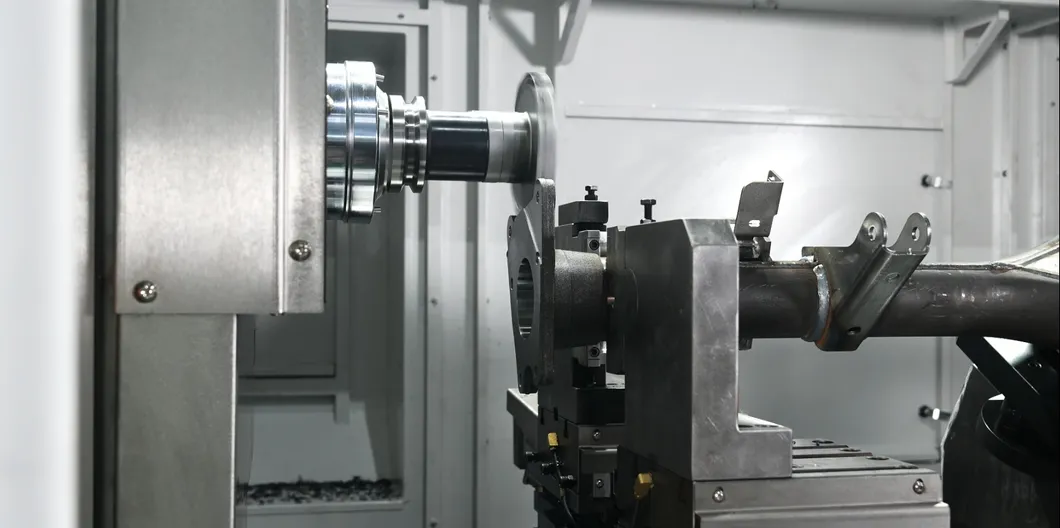

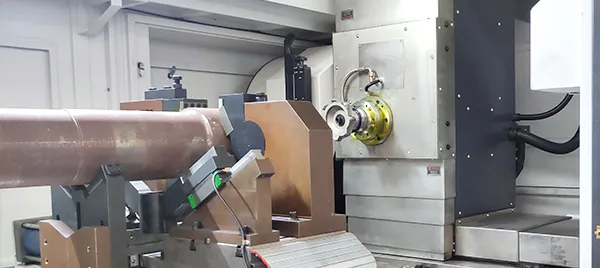

SPINDLE DESIGN

Experience precision with our dual-end face processing, as each side is equipped with a sophisticated automatic tool change magazine, accommodating various drilling and tapping needs with ease and flexibility.

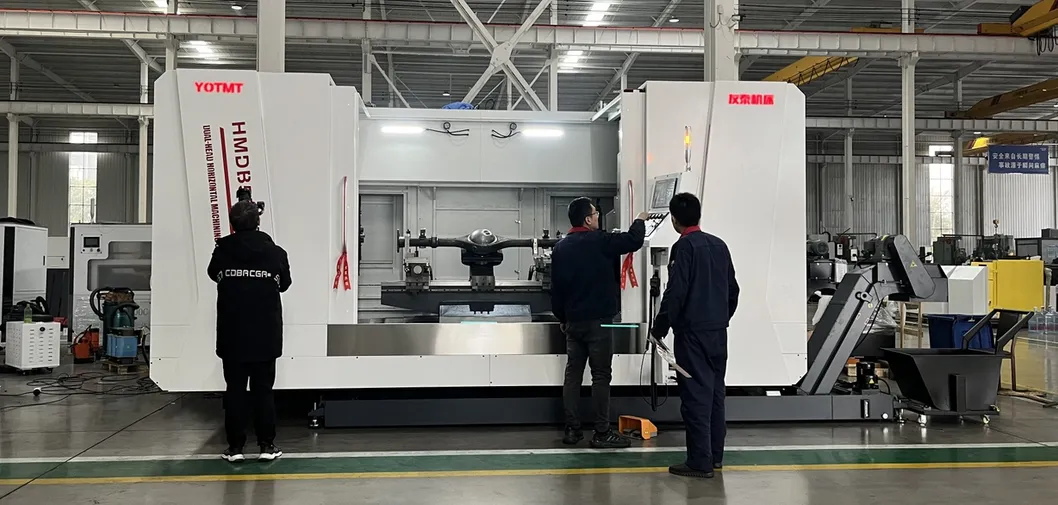

HARDWARE DESIGN

The machine boasts an integrated casting base and spindle box, complemented by an enclosed double-layer protective design, featuring first-class domestic quality accessories to ensure durability and reliability. Customizable global brand accessories are available.

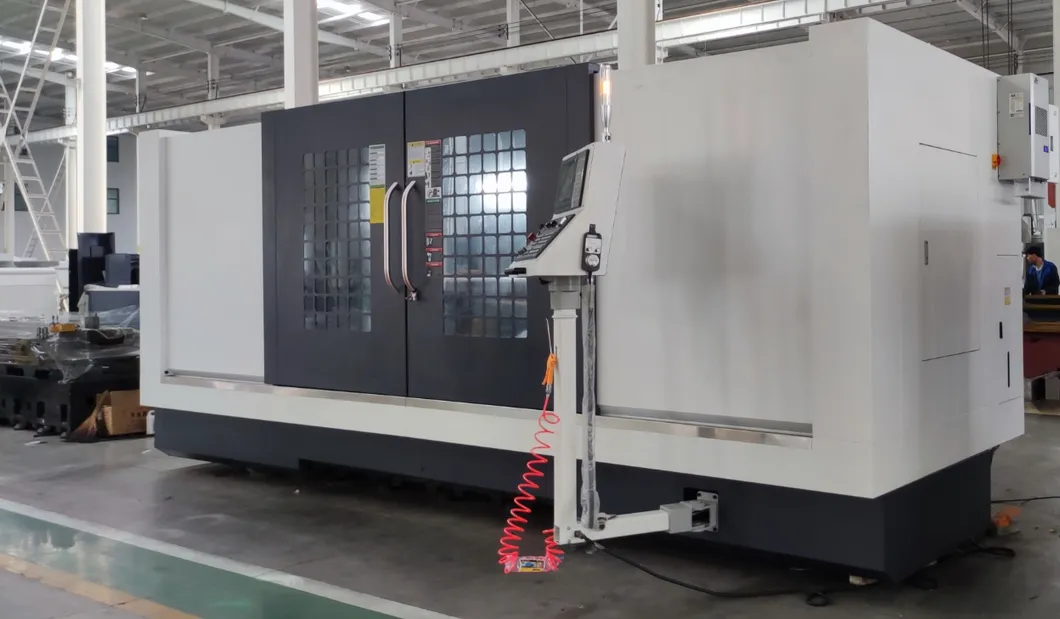

USE DESIGN

Utilize the convenient foot switch and manual trimmer, along with robust BT50 spindles, incorporating a dual-channel CNC system for enhanced precision, coupled with an adjustable self-centering hydraulic clamp.

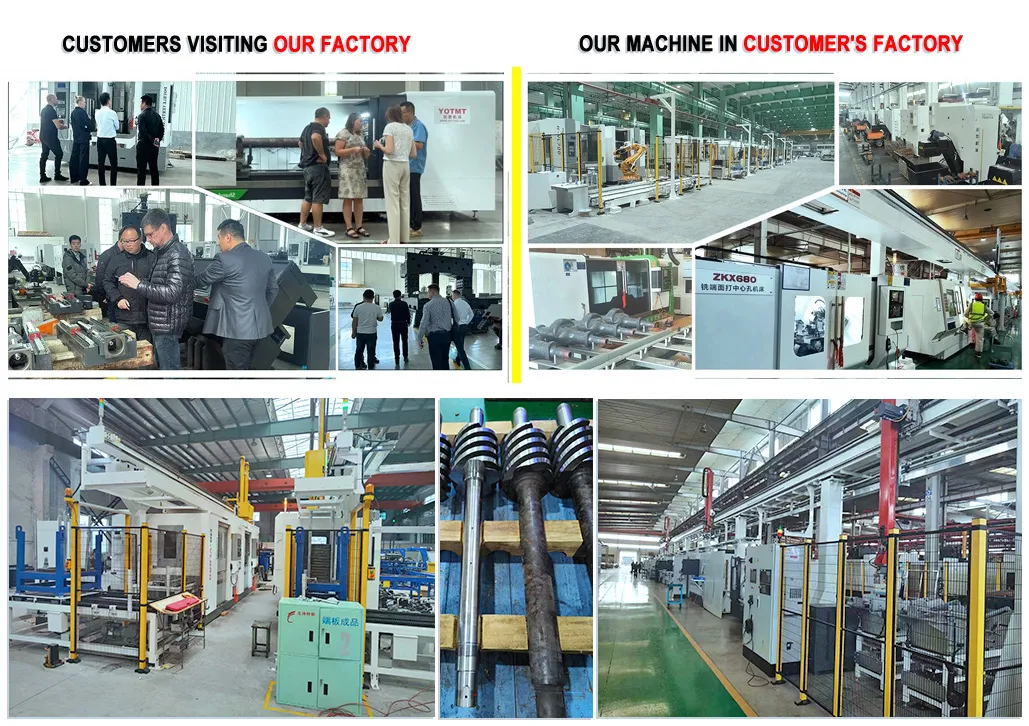

Certifications & Manufacturing Excellence

Recognized as a leader in manufacturing CNC machine tools for double-sided processing, distinguished by an array of technical patents. We specialize in advanced drilling, milling, and turning of shaft parts, delivering unparalleled precision to global users.

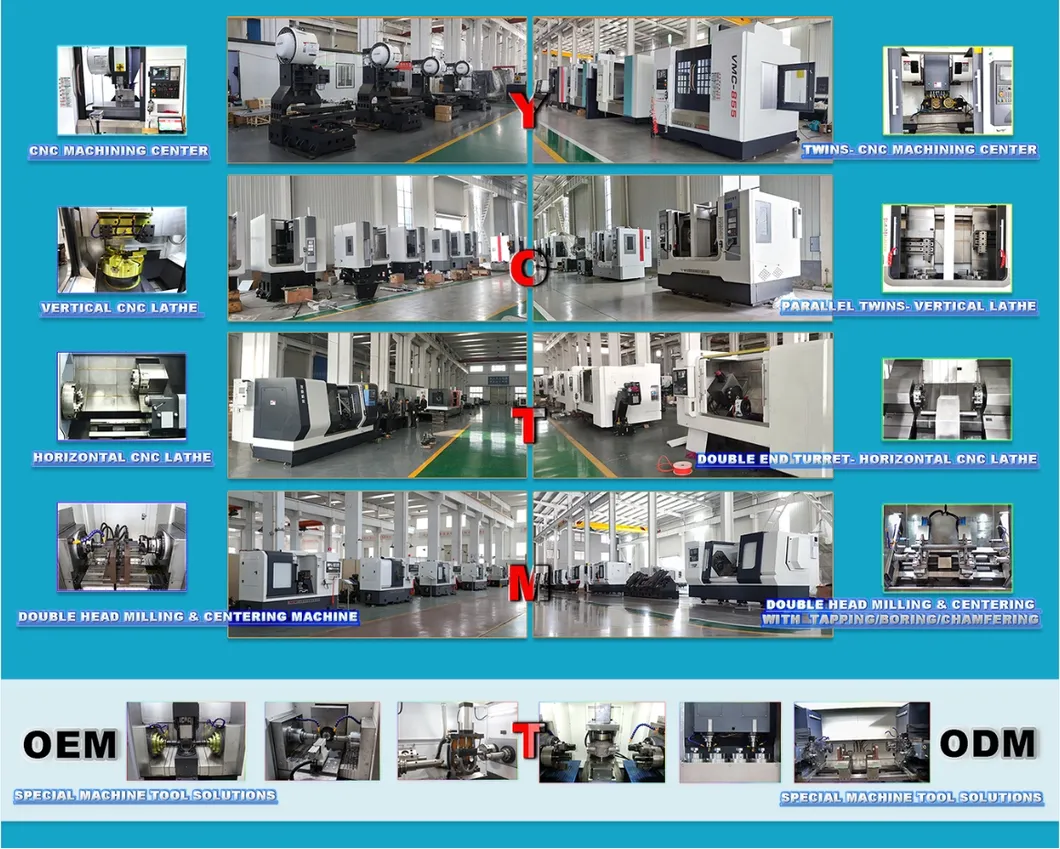

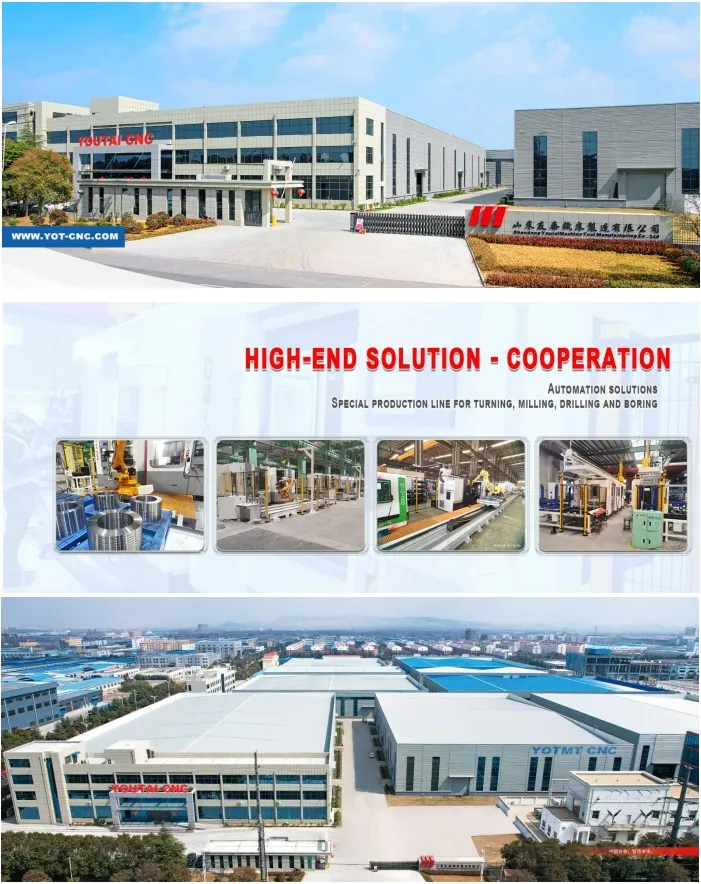

Factory Overview

Founded in 2011, the facility covers over 50 acres with 30,000 square meters of state-of-the-art workshops. Equipped with gantry machining centers and CNC guide rail grinders, we ensure products meet the highest quality standards. Our team includes over 30 technical experts and numerous engineering specialists dedicated to innovative milling and drilling solutions.

More Recommended Models

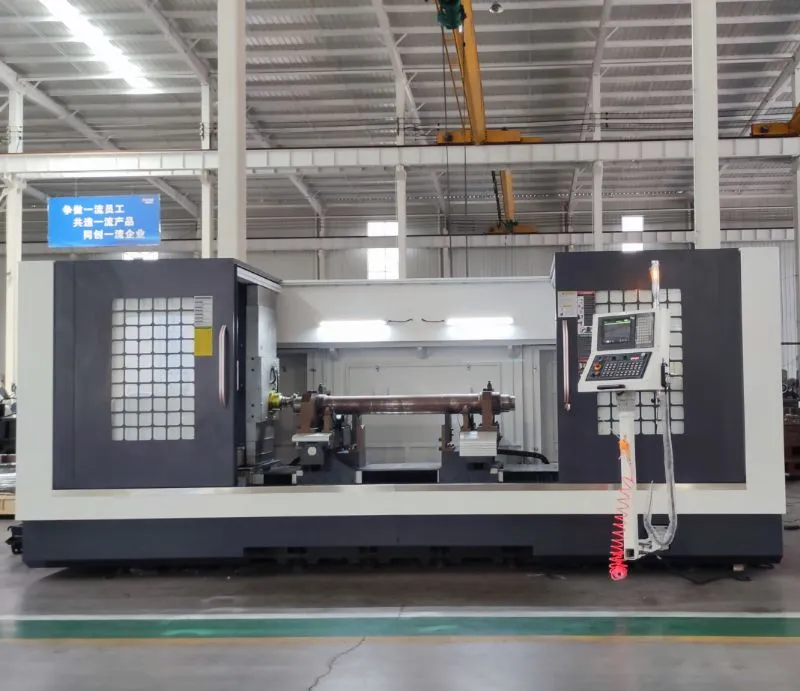

Double-Sided Machining Center

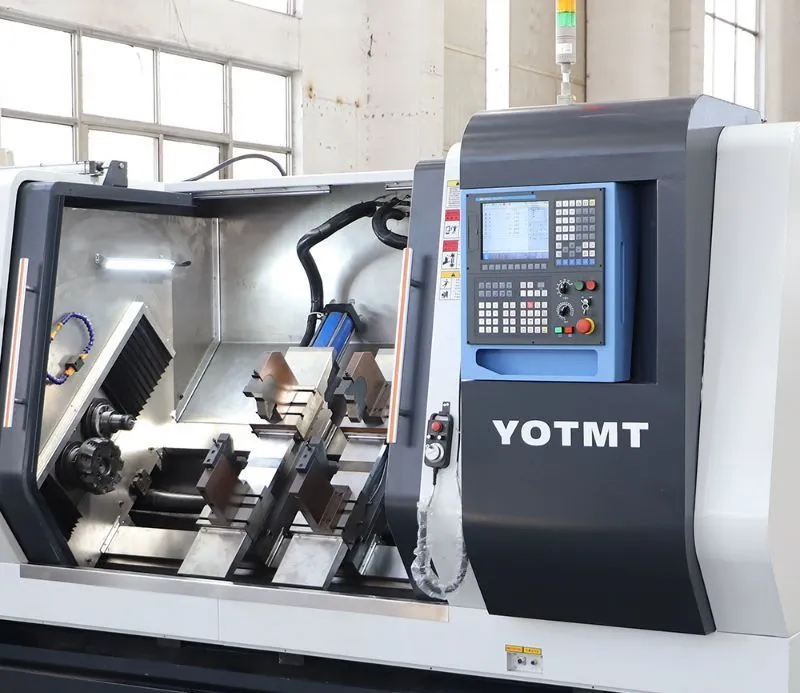

Precision Facing and Centering Machine

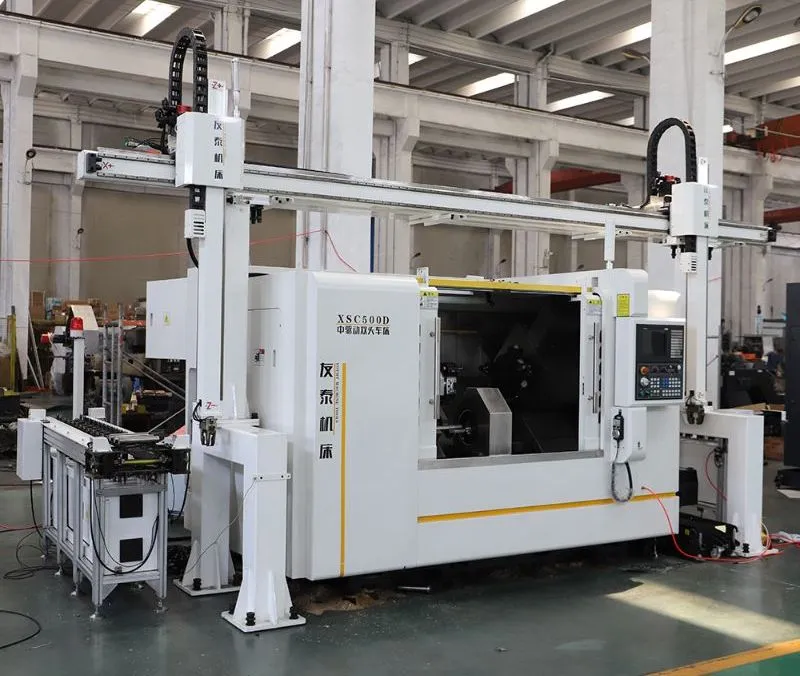

Advanced Double-Side Turning CNC Lathe

Frequently Asked Questions (FAQ)

What is the main advantage of the double spindle design?

The double spindle design allows for simultaneous processing of both ends of a workpiece. This significantly improves coaxiality and doubles production efficiency by completing multiple operations in a single clamping.

What types of metal processing can this machine perform?

This horizontal machining center is versatile and supports heavy milling, edge hole drilling, tapping, boring, and turning specifically for shaft-type metal workpieces.

Is the machine compatible with different CNC control systems?

Yes, the machine features a dual-channel system and supports various controllers including FANUC, SIEMENS, GSK, and KND, depending on your specific requirements.

Can the machine accommodate different workpiece lengths?

Absolutely. While standard models support lengths from 500mm, we offer model extensions and customized production to handle workpieces up to 4000mm in length.

What kind of tool magazines are included?

The machine is equipped with automatic tool change (ATC) magazines on each side, typically ranging from 16 to 32 tools (P), ensuring seamless transitions between different machining tasks.
