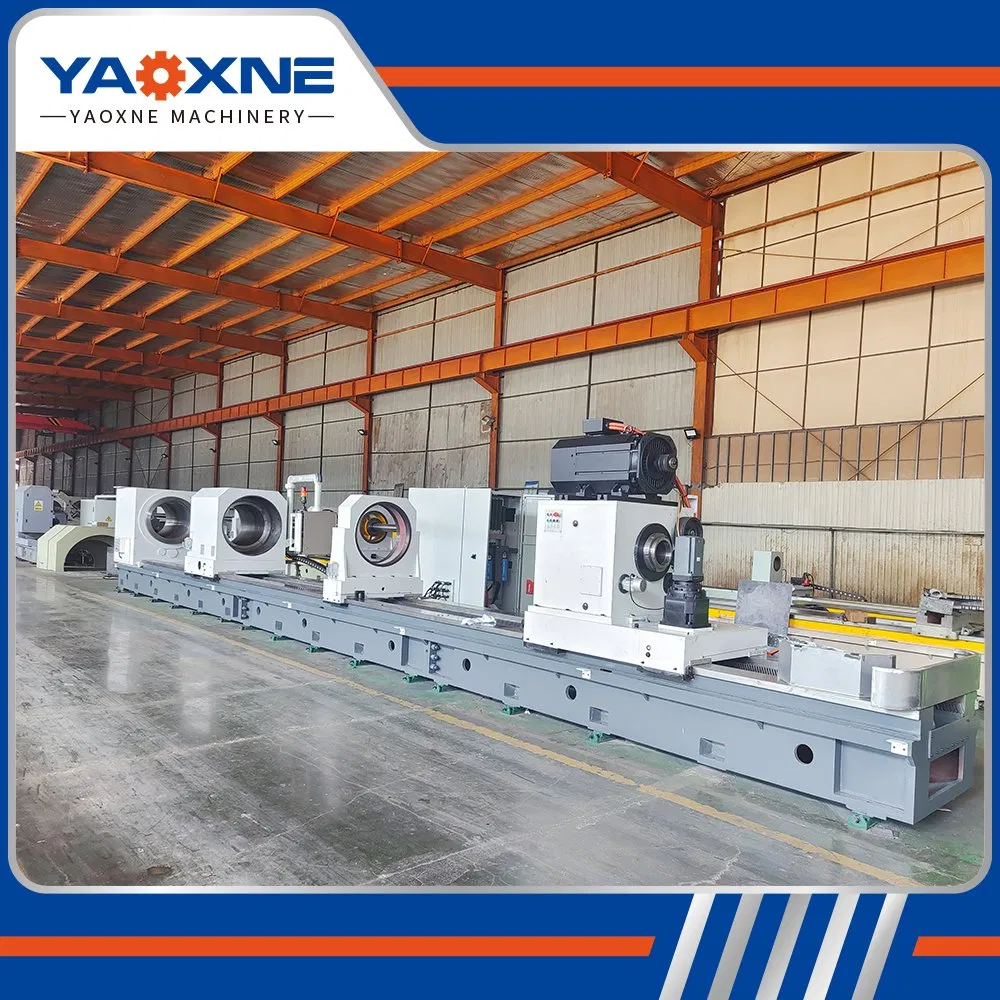

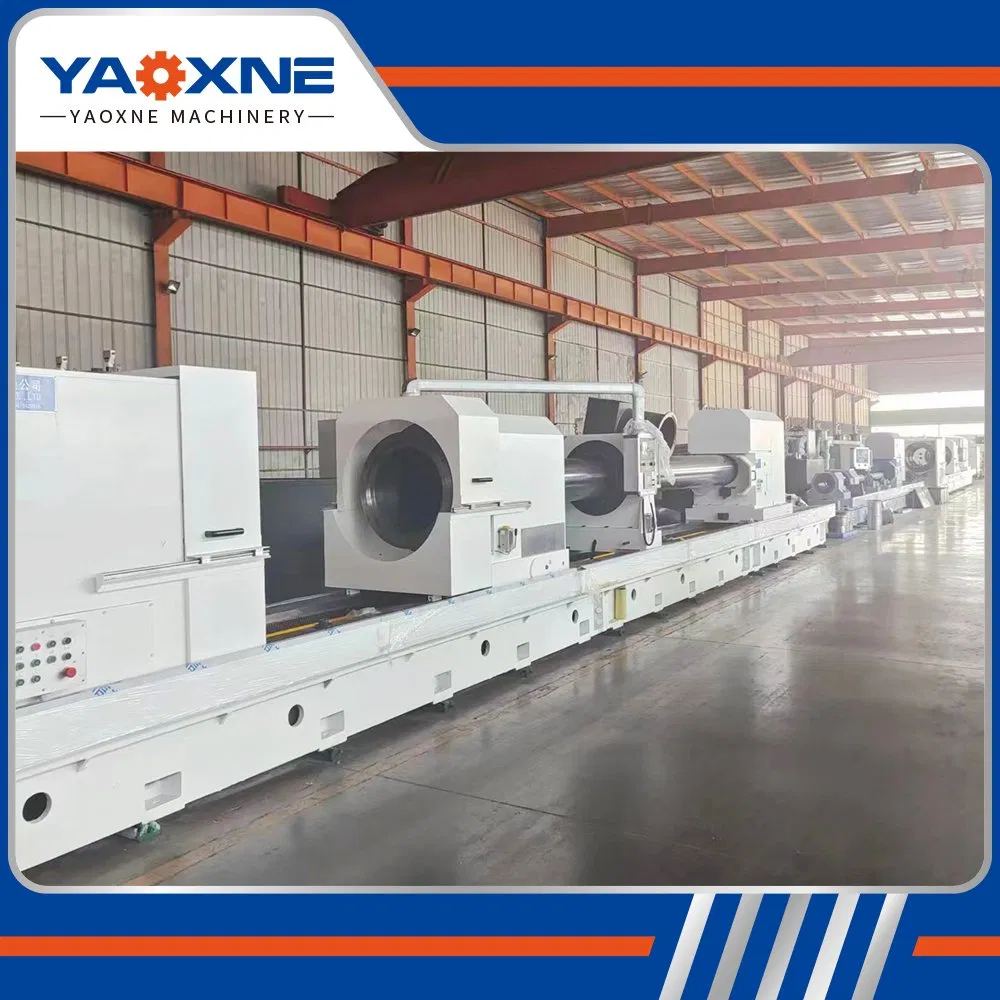

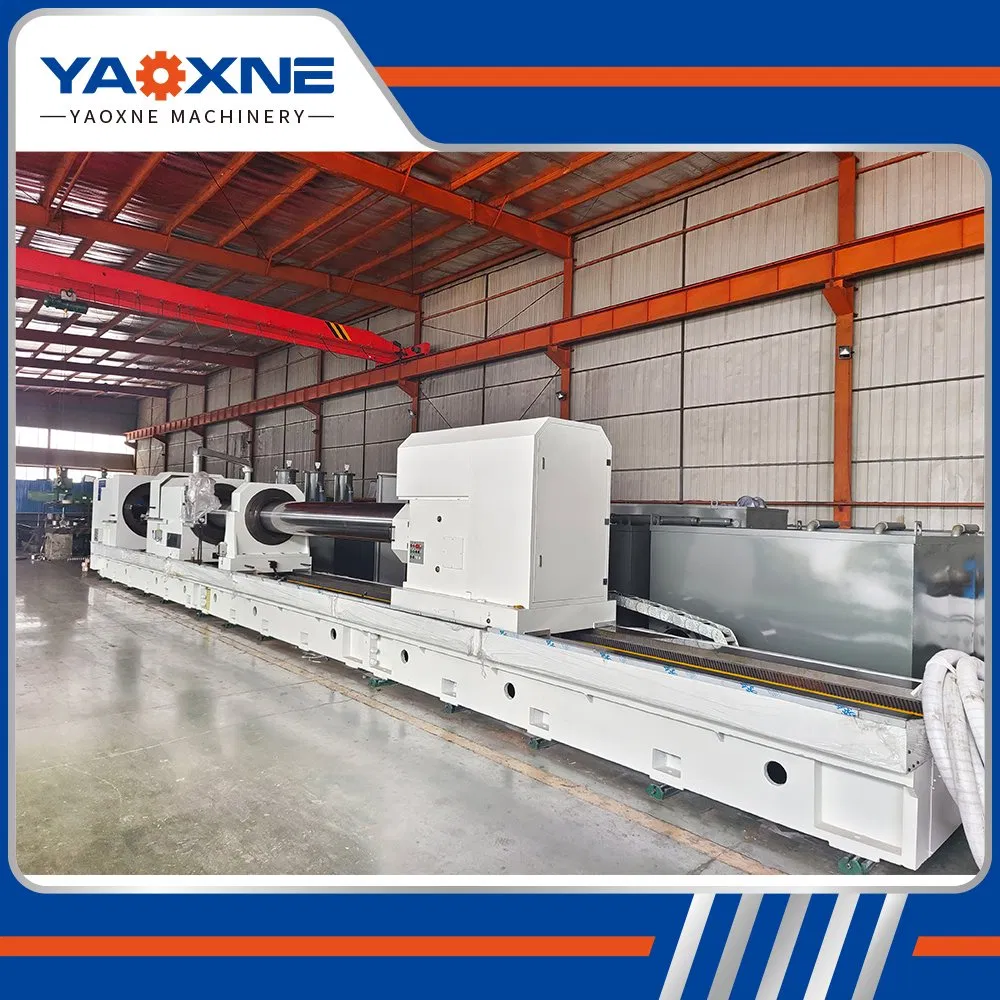

CNC Deep-Hole Drilling and Boring Machine for High-Efficiency Precision Machining of Hydraulic-Cylinder Pipe Holes

Customization:	Available
After-sales Service:	After Sales Service
Warranty:	One Year

i

Basic Specifications

Model NO.TK40/1X4M

StructureDeep Hole Boring Machine

TypeHorizontal CNC Type

Control ModeCNC (Siemens System)

PrecisionHigh Precision (IT7-IT8)

Main Motor55 KW Servo Spindle Motor

Boring DiameterΦ60-Φ400 mm

Boring LengthMax 4000 mm

P

Detailed Product Overview

TK40/1 CNC Deep Hole Boring Machine - High Efficiency Precision Machining

T

Technical Parameters

Main Specification	TK40/1X4M Data
Boring diameter range	Φ60-Φ400 mm
Maximum boring length	Φ4000 mm
Machine center height	500 mm
Main motor power	55 KW (servo spindle motor)
Spindle speed range	5-260 r/min (2 gears stepless)
Boring rod box motor	45 KW (servo spindle motor)
Boring rod box speed	10-500 r/min (4 gears stepless)
Feeding motor	7.1 KW (Siemens Servo)
Feeding speed range	5-3000 mm/min (stepless)
Clamping diameter range	Ф80-Ф650 mm

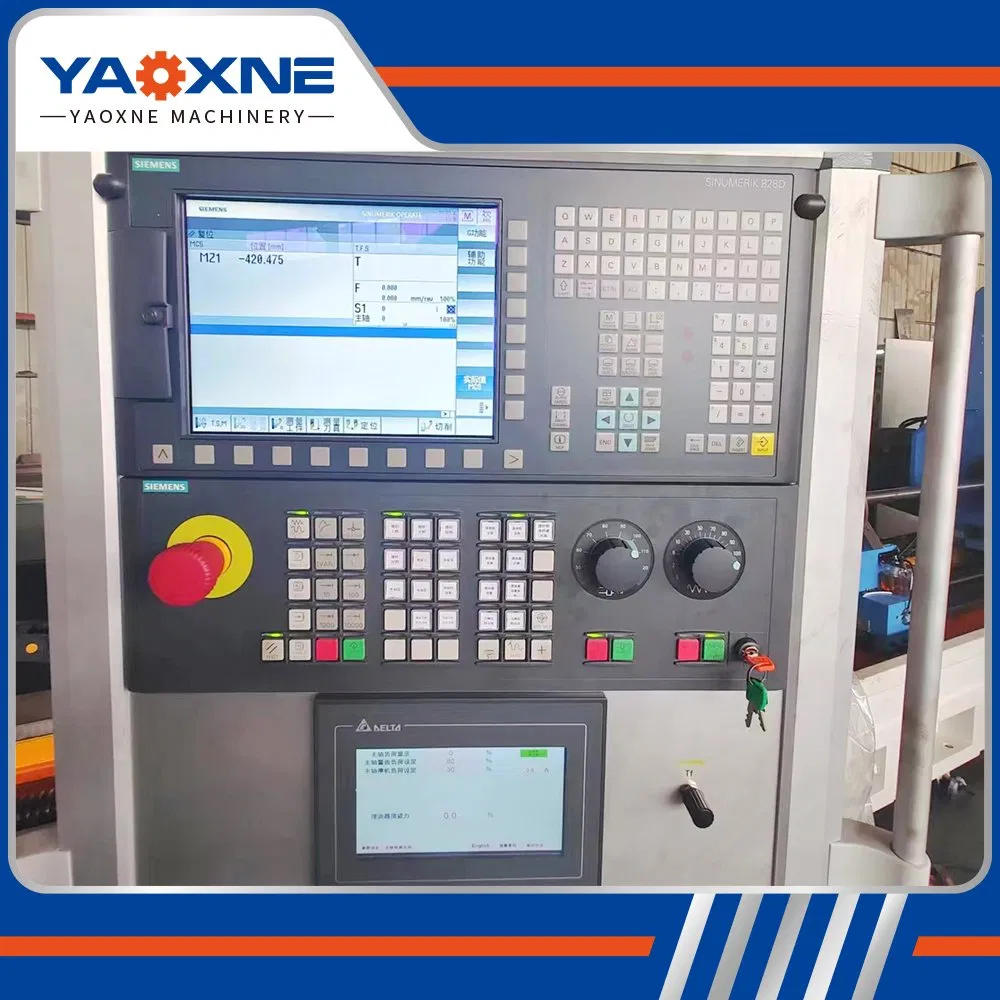

Control system	Siemens 808D
Cooling pump flow	800 L/min (2 groups)
Processing precision	IT7-IT8
Processing roughness	Ra0.1-0.4

S

Packaging & Logistics

Package Size11800.00cm * 2250.00cm * 2500.00cm

Package Gross Weight10000.00kg

C

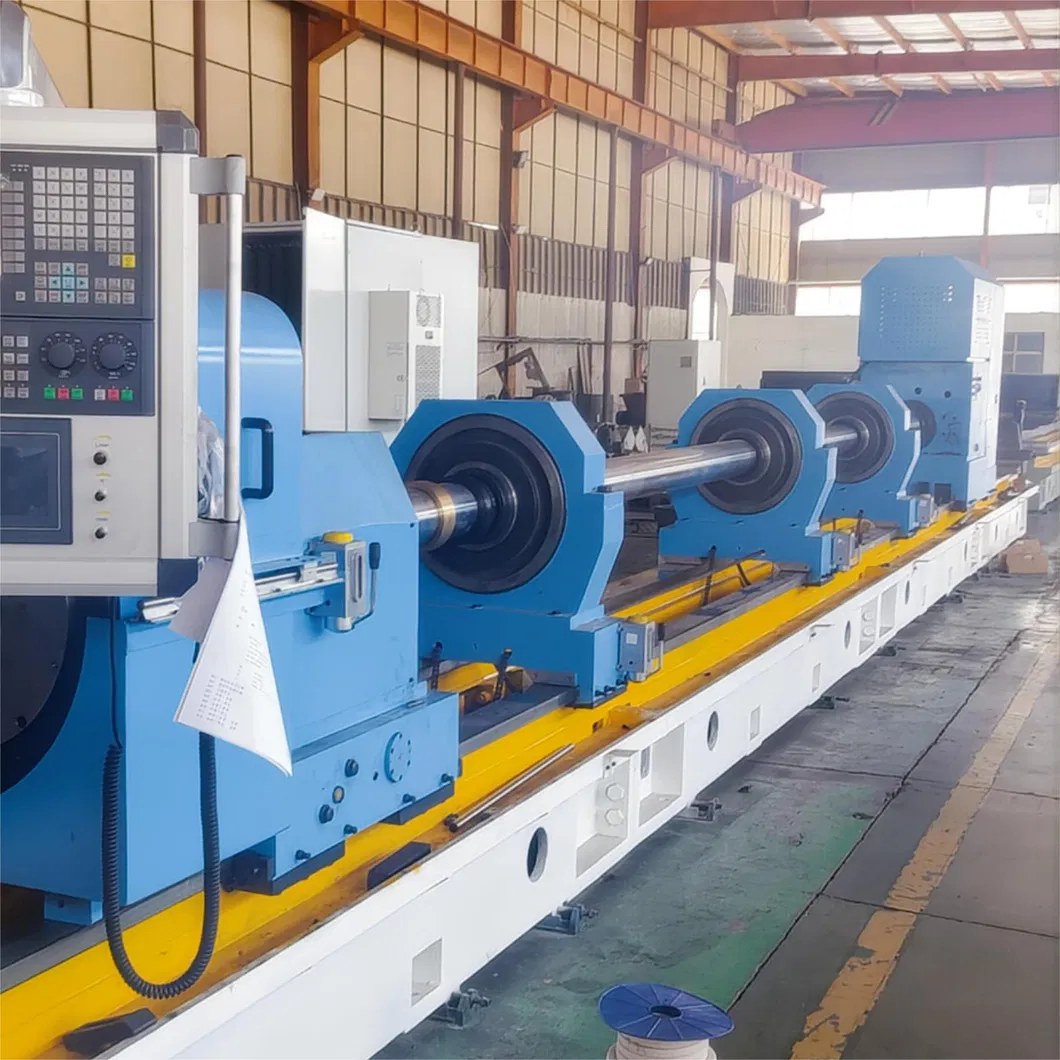

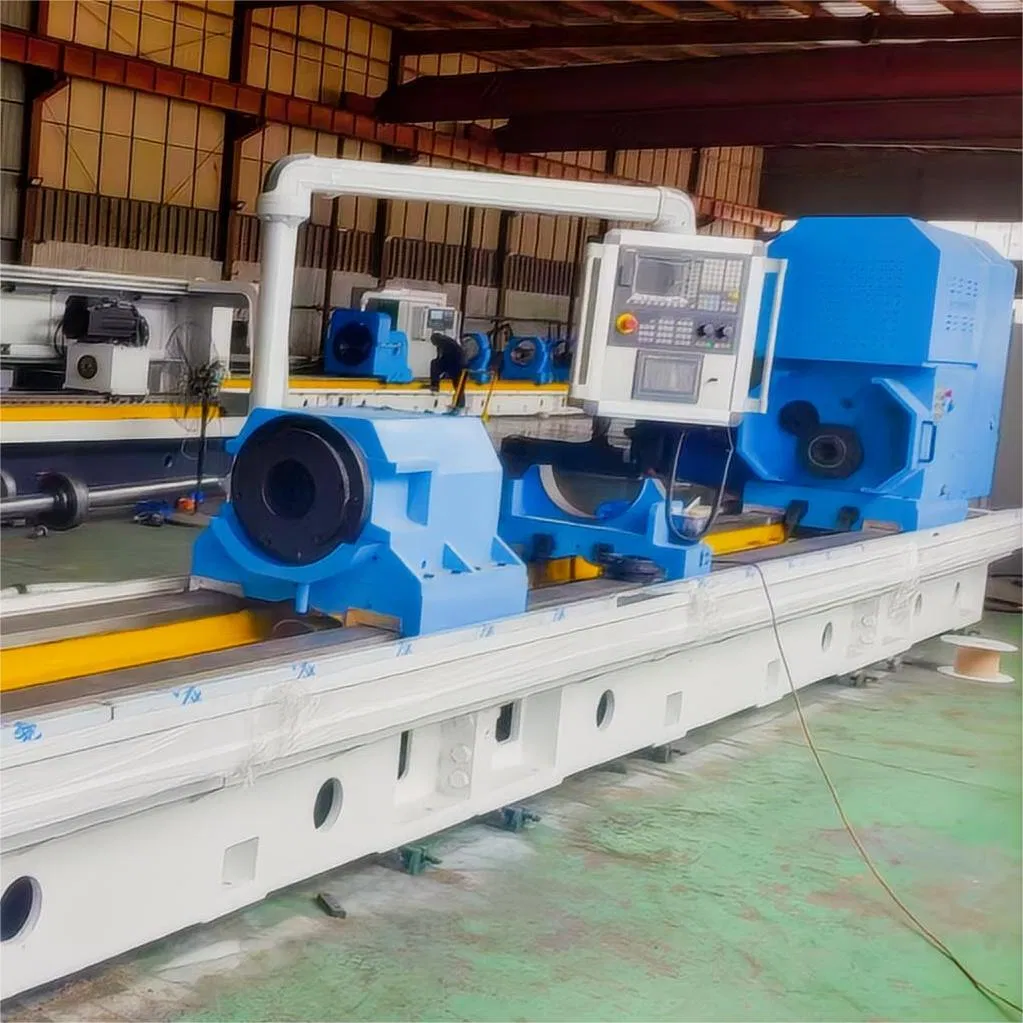

Manufacturing Excellence

We are professional manufacturers specializing in the development, design, and manufacturing of CNC deep hole machine tools, including honing machines, drilling and boring machines, skiving and roller burnishing machines, and gun drilling machines. Our factory maintains a focus on continuous innovation with an excellence-driven scientific research and production team. We adhere to a "customer demand-oriented" policy, focusing on every detail to provide economic, high-quality, and reasonable equipment.

Our capabilities cover a processing aperture range of 1mm to 3000mm. Specifically, our deep hole drilling and boring machines handle diameters up to 3000mm and lengths up to 30,000mm, while our honing machines reach lengths of 25,000mm.

A

Our Advantages

High quality with competitive price and professional R&D team.
Six years of export experience to more than 12 countries.
Full CE and ISO Certification for all machinery.
24-hour online service via multiple communication channels.
12-month quality warranty with lifetime service availability.
Overseas engineers available for technical problem resolution.

?

Frequently Asked Questions

1. Do you have QC or safety standards for your machinery?

Yes, we have established a highly strict quality control department to guarantee high-quality standards and safe operation.

2. What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 set. Only for certain low-cost auxiliary machines might the MOQ be higher.

3. What are your standard payment terms?

We accept T/T (30% advanced payment, 70% balance before shipment), Irrevocable LC at sight, Western Union, and MoneyGram.

4. How long is the warranty period?

The warranty period is one year after delivery. Beyond this period, we continue to supply lifetime maintenance and service for the machine.

5. Can you provide customized deep hole processing solutions?

Yes, we customize special deep hole processing machines based on client requests, including the design and manufacture of special tools, fixtures, and measuring tools.

6. Is technical support available after purchase?

Absolutely. We offer 24-hour online support and have overseas engineers available to assist with problem resolution and installation if required.
