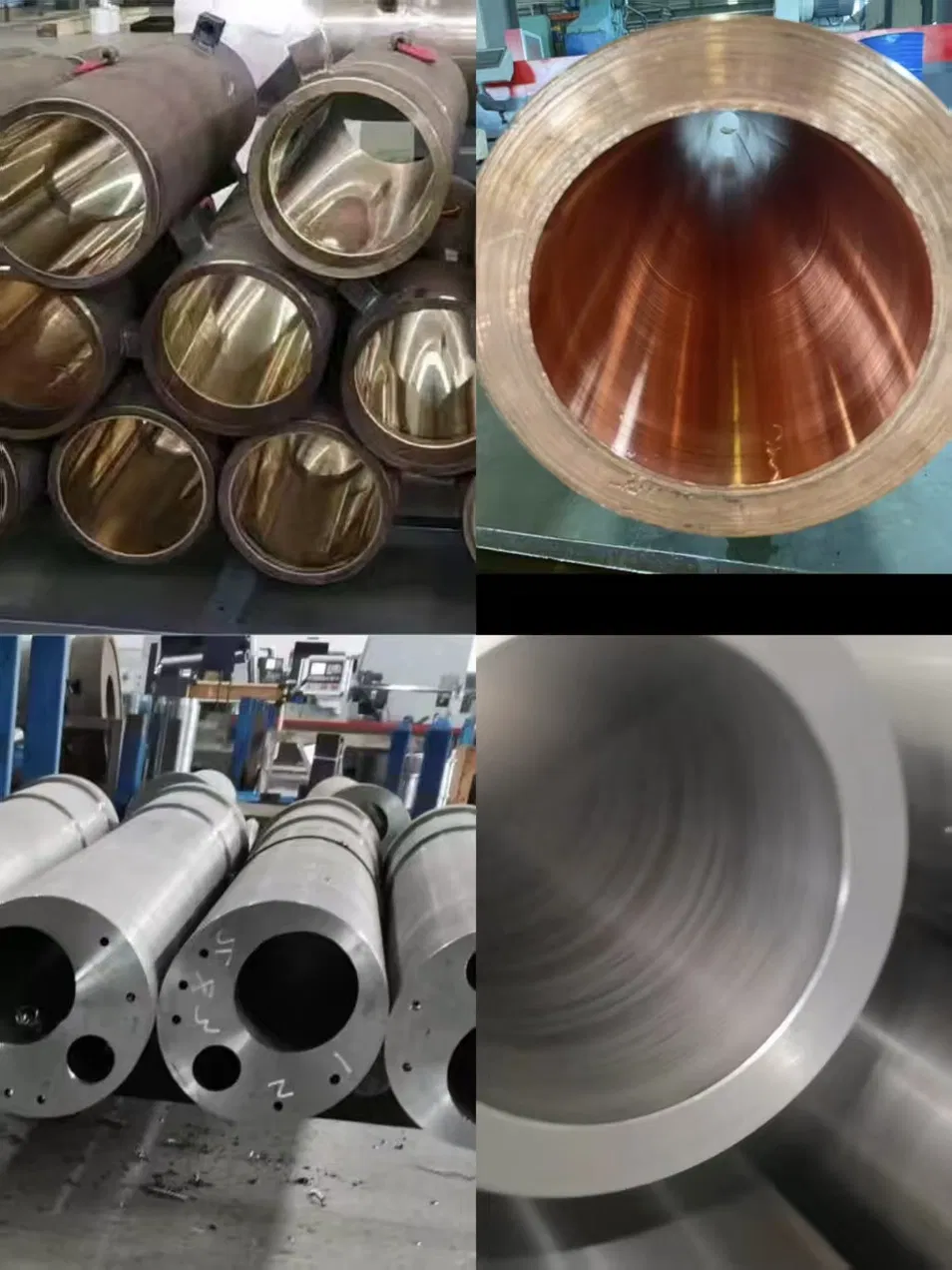

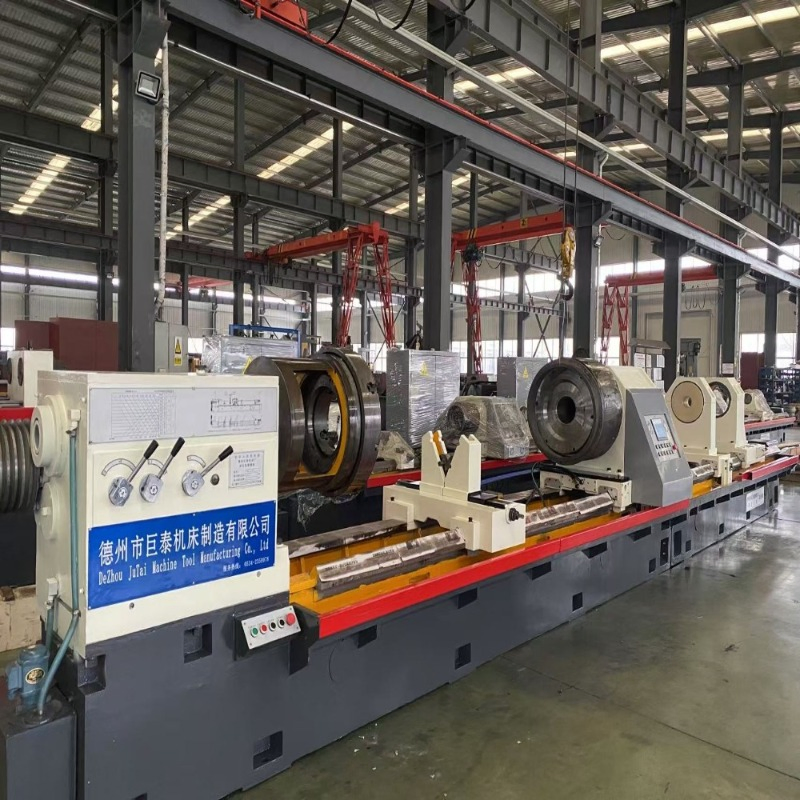

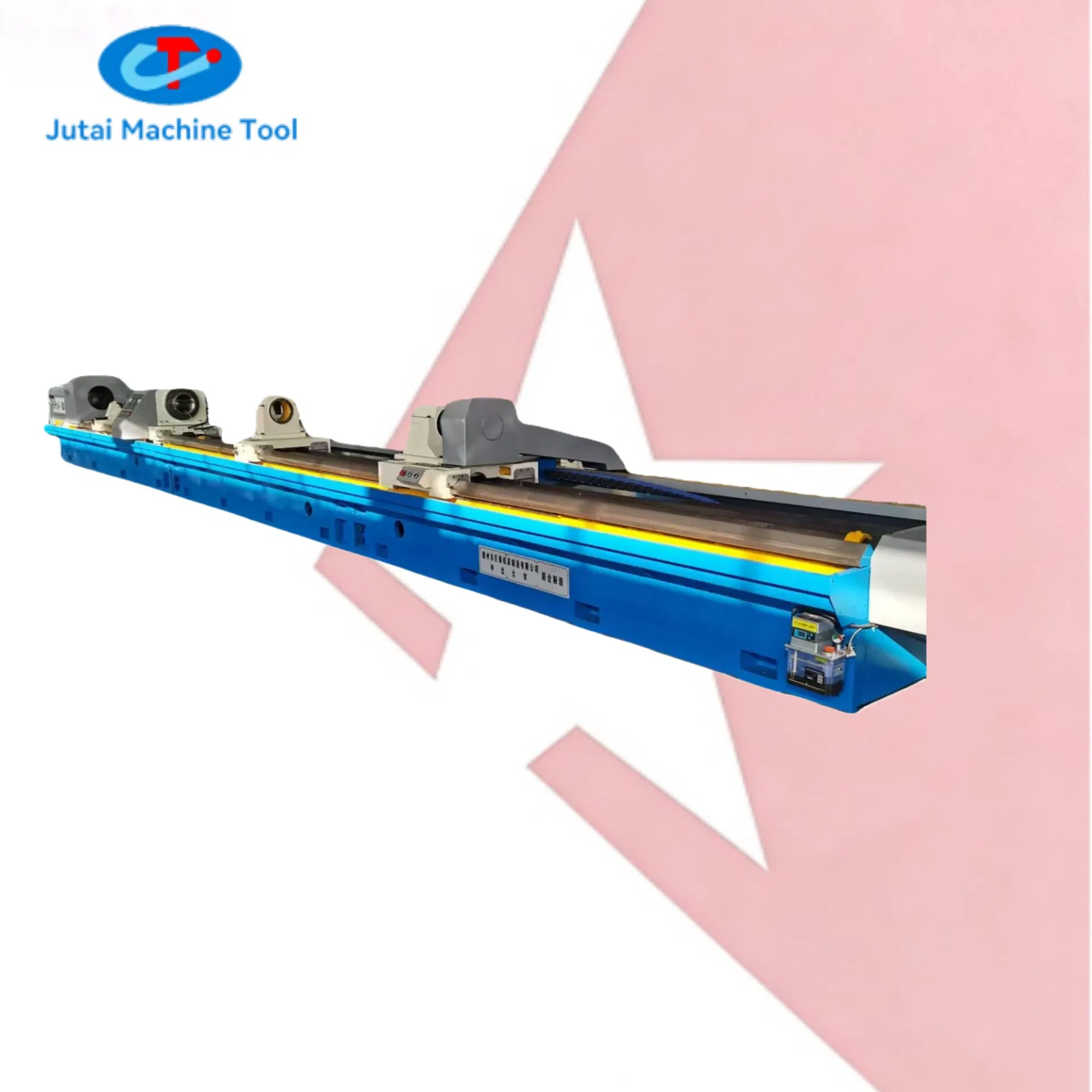

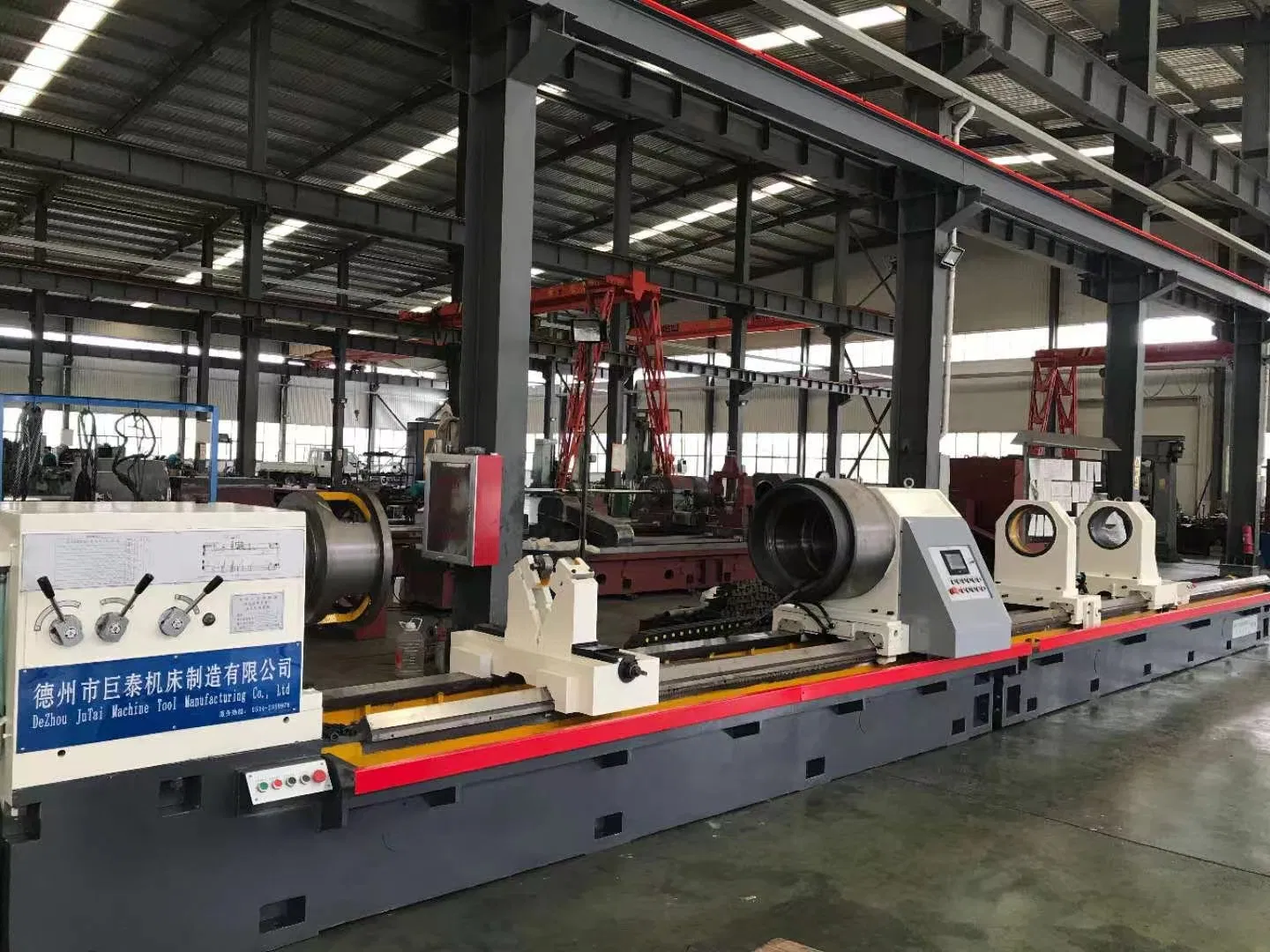

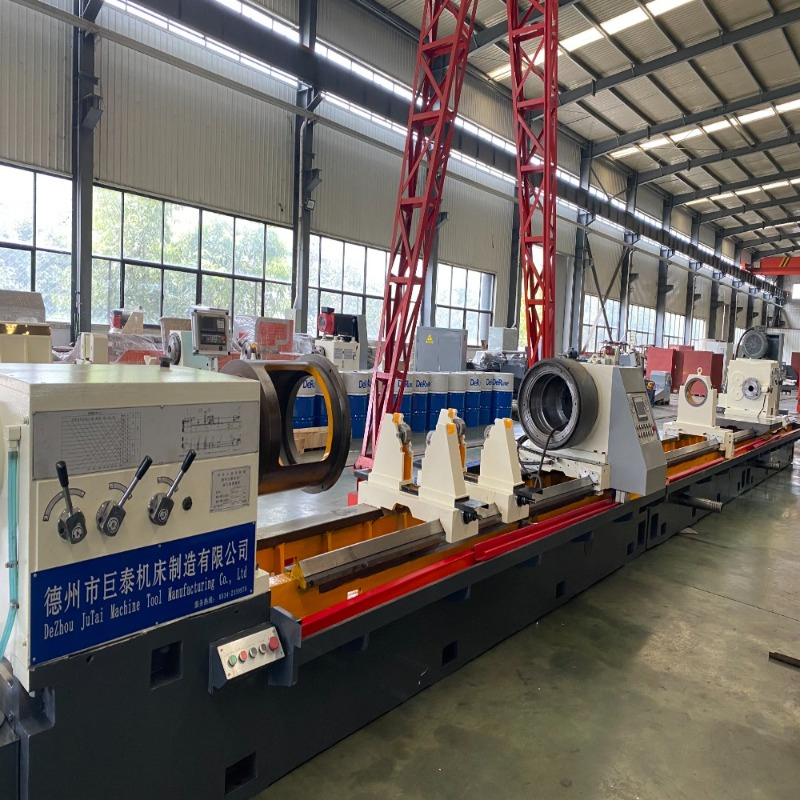

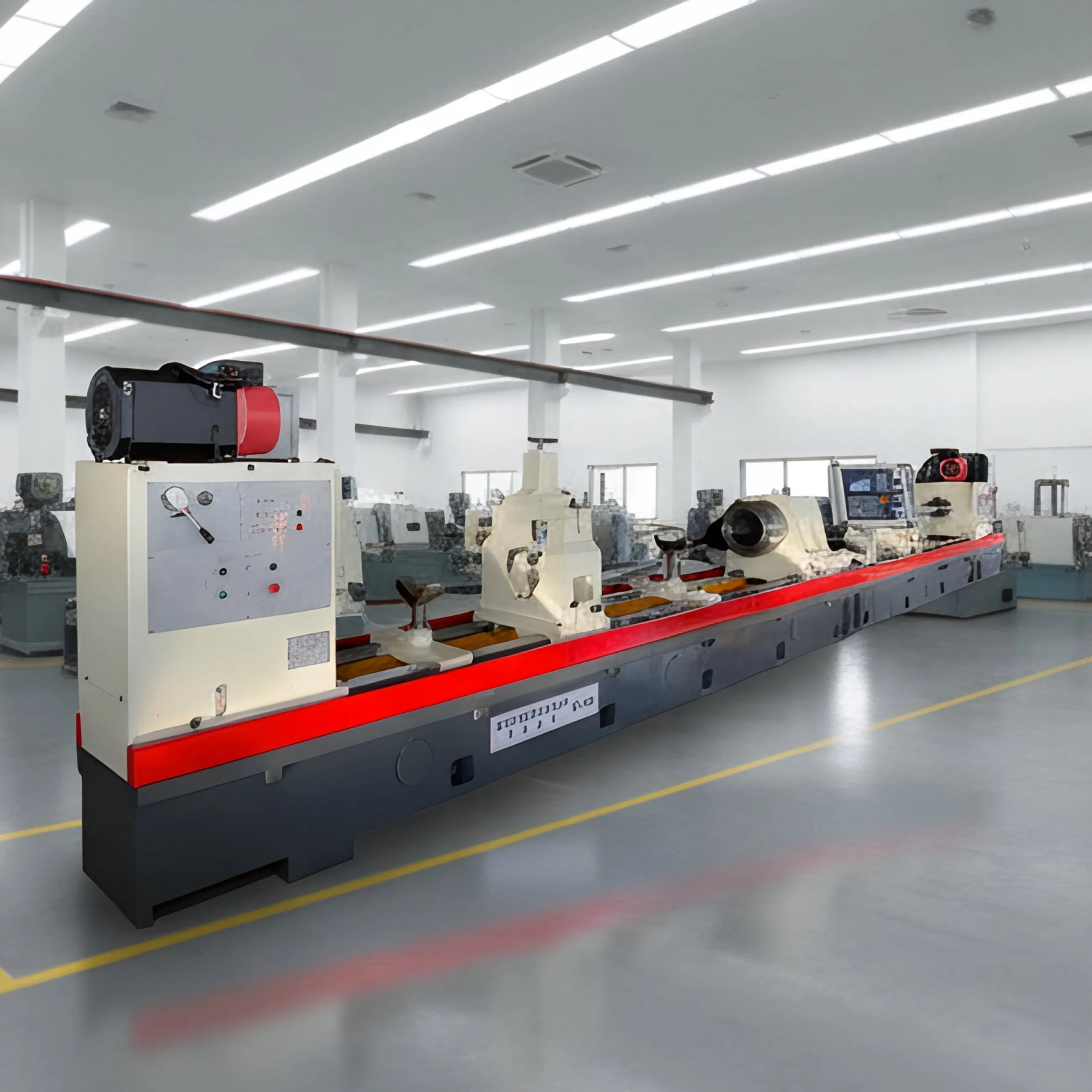

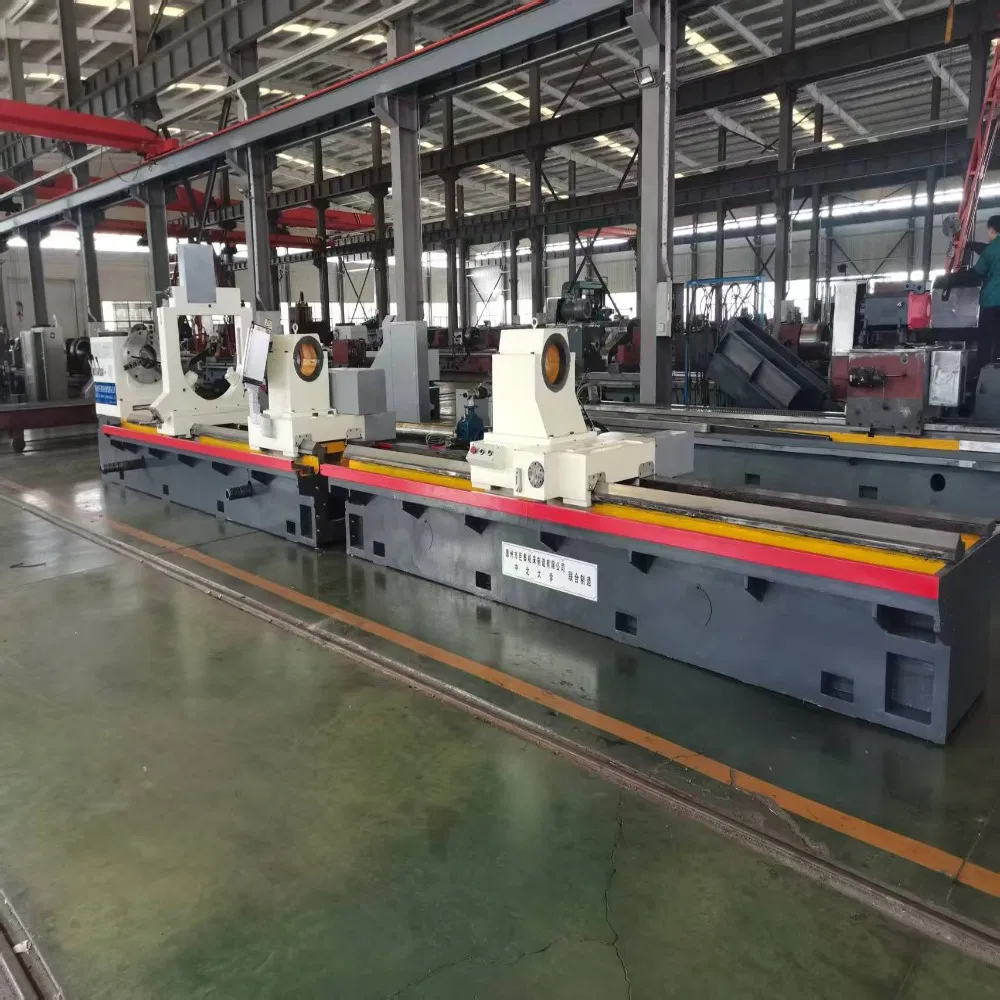

The CNC deep hole drilling and boring machine is a versatile machine tool designed to meet diverse market demands. It offers a wide range of applications, including drilling, expanding, nesting, and boring. For boring operations, it supports both combination tools and single-process tools, such as rough boring, fine boring, and rolling heads.
| Model | TK2216 | TK2220 | TK2225 | TK2235 | TK2240 |
|---|---|---|---|---|---|
| Max Boring Diameter (mm) | 160 | 200 | 250 | 350 | 400 |
| Boring Diameter Range (mm) | 30-80 | 30-120 | 30-120 | 30-120 | 30-120 |
| Max Machining Depth (mm) | 1500-3000 | 1000-12000 | 1000-12000 | 1000-12000 | 1000-12000 |
| Guideway Width (mm) | 510 | 650 | 650 | 650 | 650 |
| Spindle Speed Range (r/min) | 82-1250 | 61-1000 | 61-1000 | 65-523 | 65-523 |
| Main Motor Power (kW) | 15 | 30 | 30 | 30 | 37 |

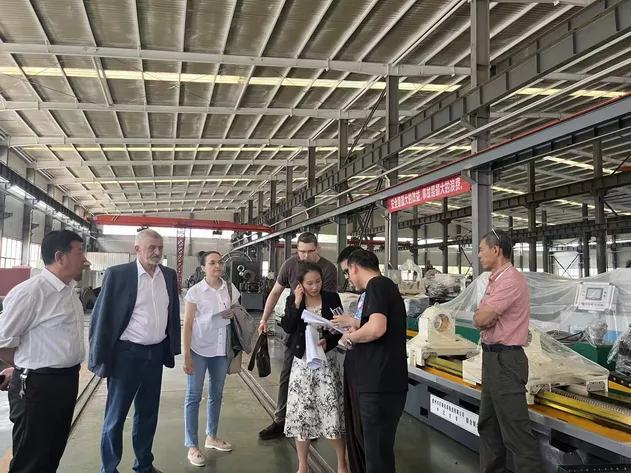

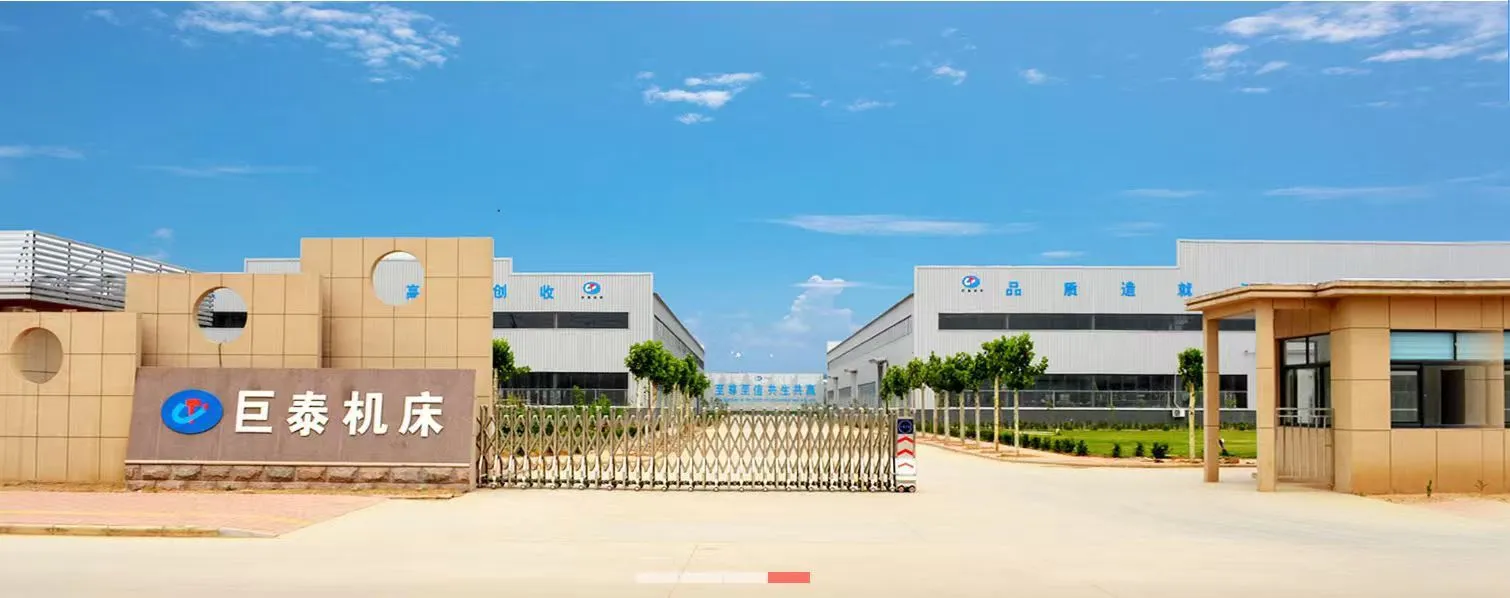

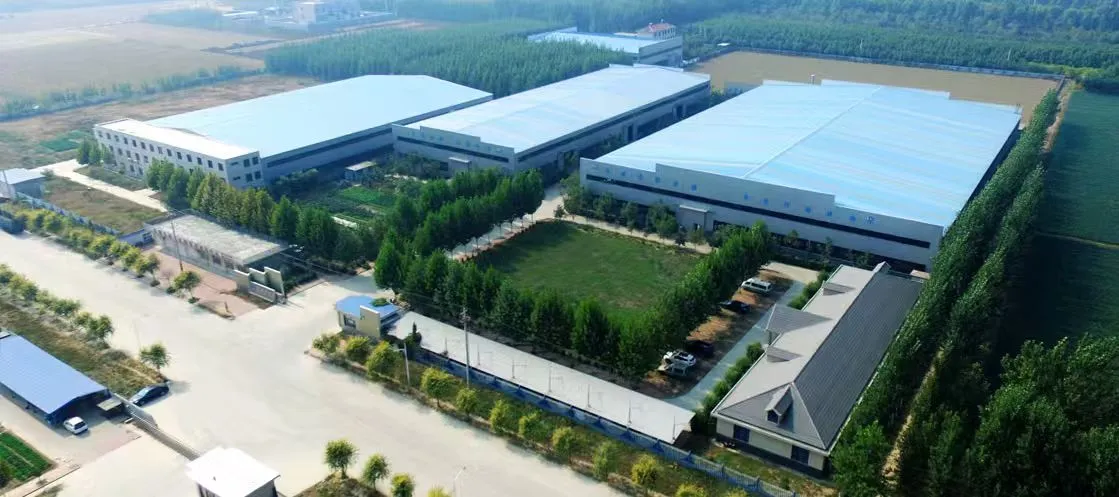

Our facility is equipped with over 80 types of advanced machinery, including grinding machines, lathes, drilling machines, and milling machines. We utilize large-scale processing equipment such as gantry planers (up to 9000mm) and CNC machining centers to ensure the highest quality for our standard and customized deep hole tools.
