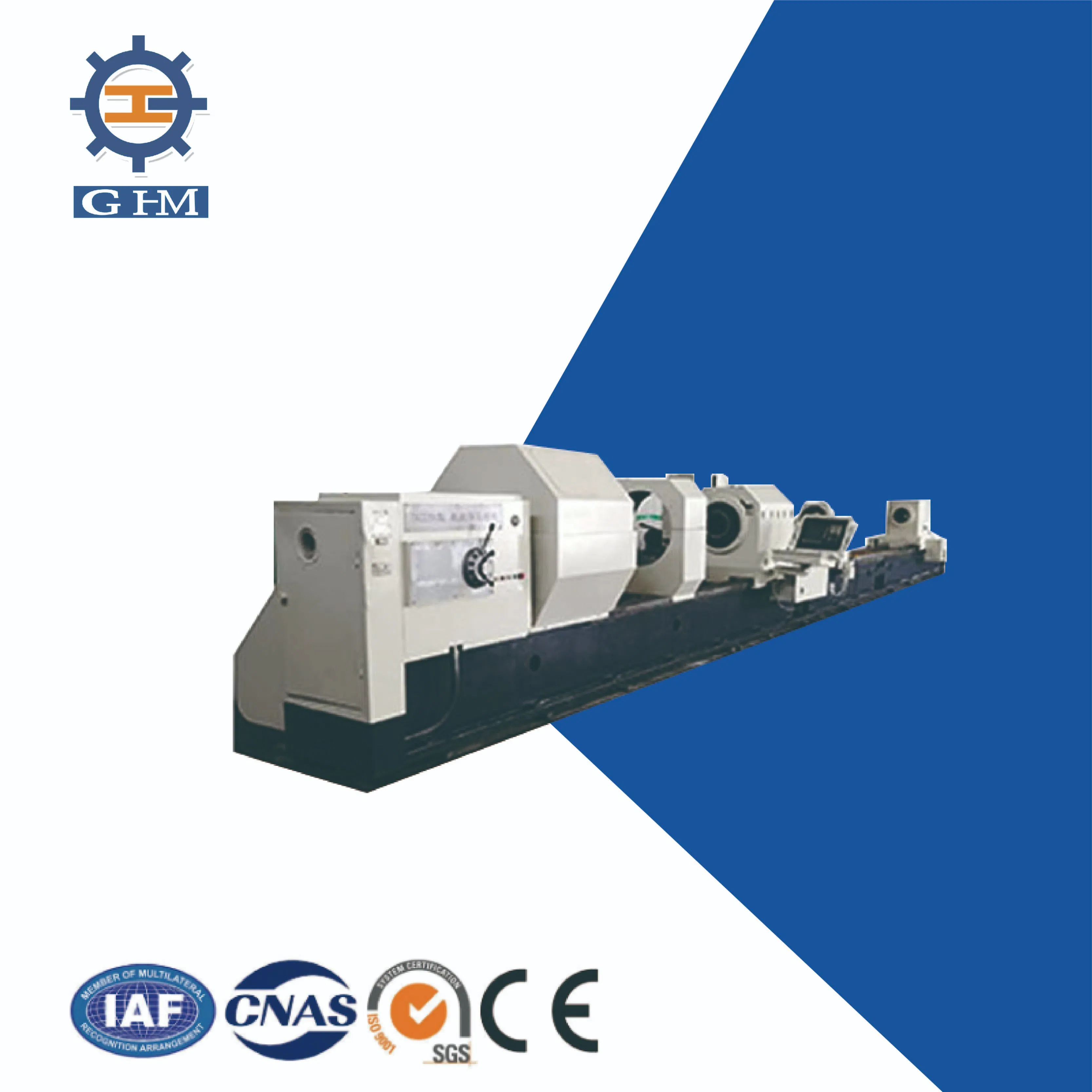

for Metal Material Workpieces Deep Hole Drilling and Boring CNC Bench Machine

Customization:	Available
After-sales Service:	Provided
Warranty:	5 Years

Basic Product Information

Model NO.

TK2242

Structure

Bench Drilling Machine

Layout

Horizontal

Controlling Mode

CNC

Number of Shaft

2

Hole Diameter

>200mm

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

HS Code

845941

Capacity

800 pieces/Year

Product Overview & Application

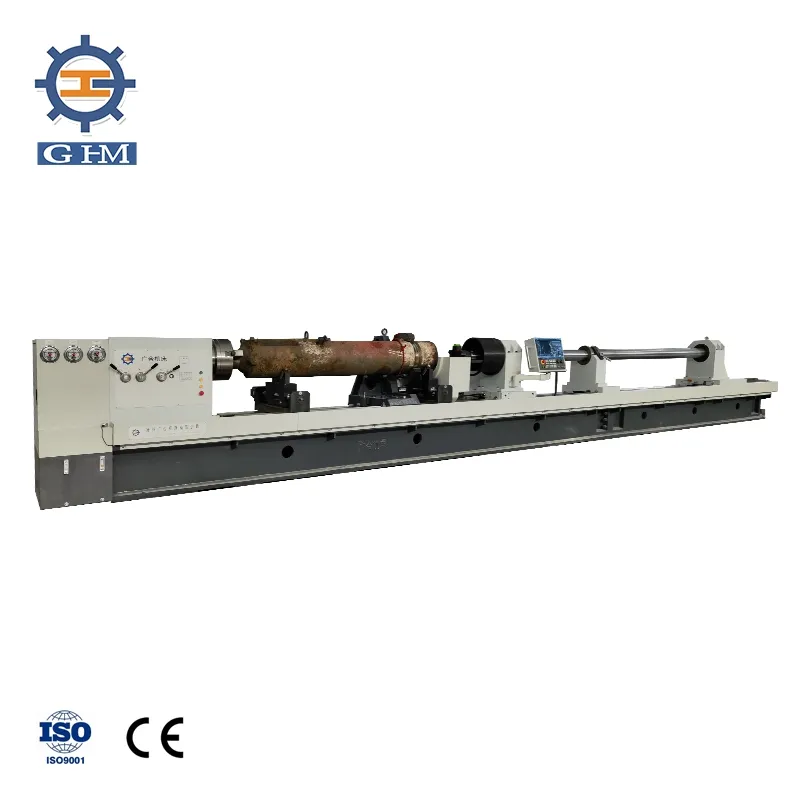

The TK2242 CNC Deep Hole Drilling and Boring Machine is designed for high-precision boring and rolling processes. It is widely used in industries such as machine tool manufacturing, locomotives, ships, coal mining, hydraulic systems, and power machinery.

This equipment is ideal for machining various hydraulic cylinders, spindle holes, cylinder holes, and cooling holes. We offer deformation products tailored to specific user requirements.

Technical Features

⚙️

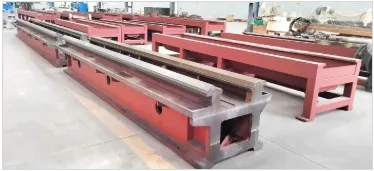

High Strength Bed

Made of high-strength cast iron with a reinforced plate design for excellent rigidity.

💧

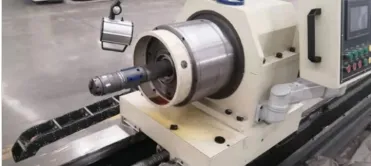

Oil Pressure Head

Ensures tool oil supply, drilling guidance, and secure workpiece clamping.

🖥️

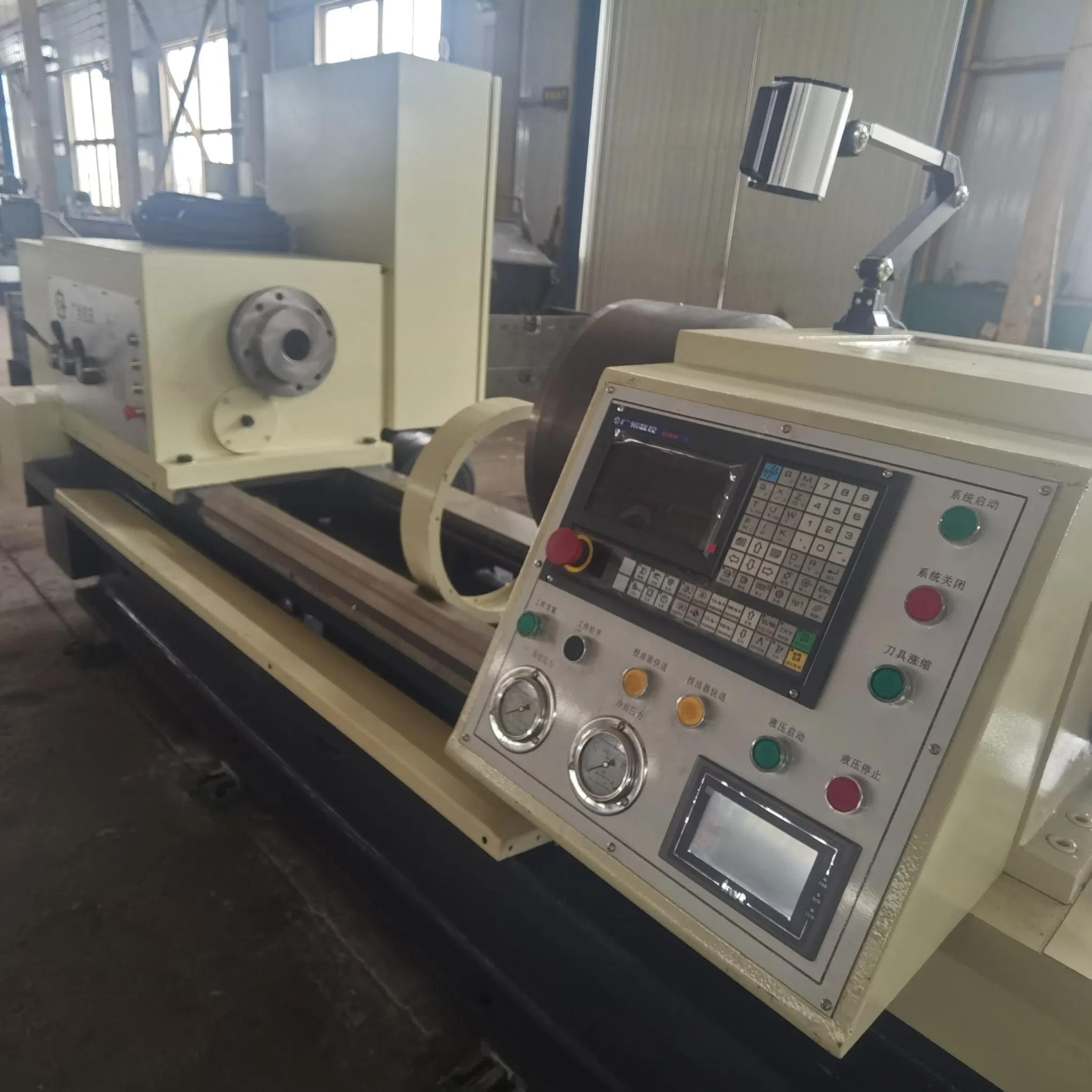

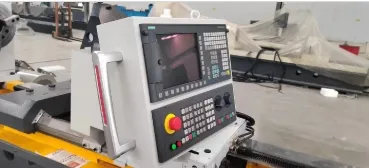

Precision Control

Equipped with advanced CNC systems and horizontal adjustment pads.

⚡

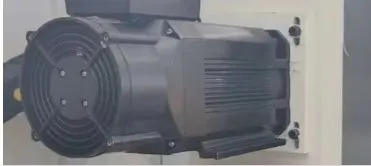

Siemens Servo Motor

Utilizes high-performance Siemens brand motors for feed and oil systems.

🚨

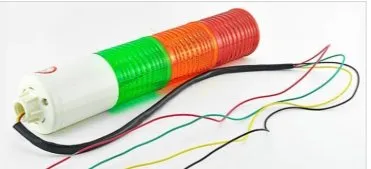

Safety Protection

Three-color alarm lights and interlock devices to prevent accidental damage.

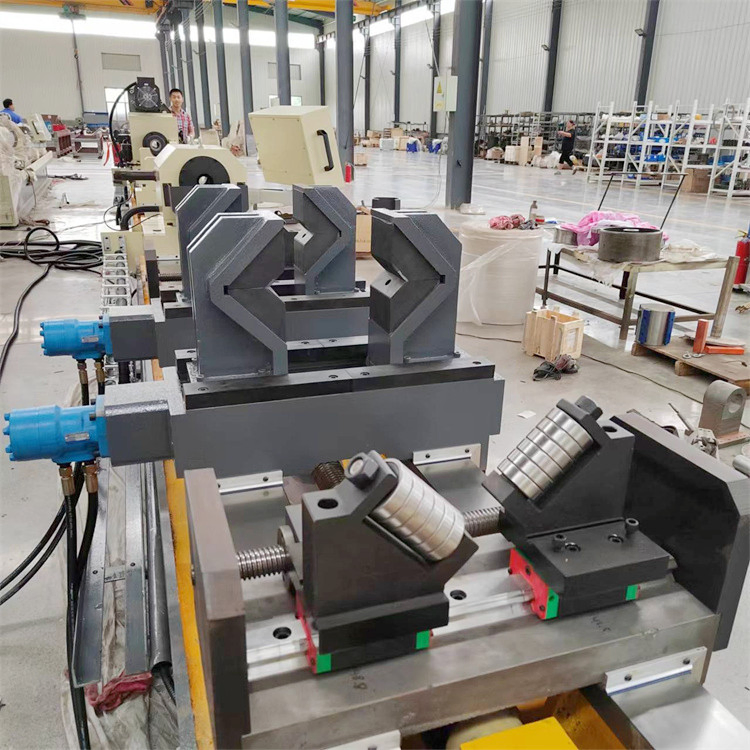

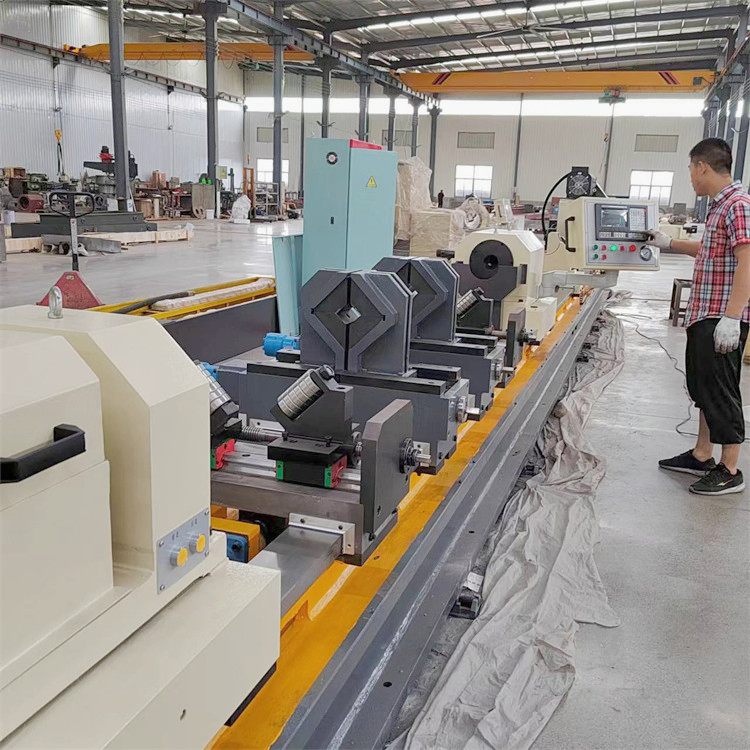

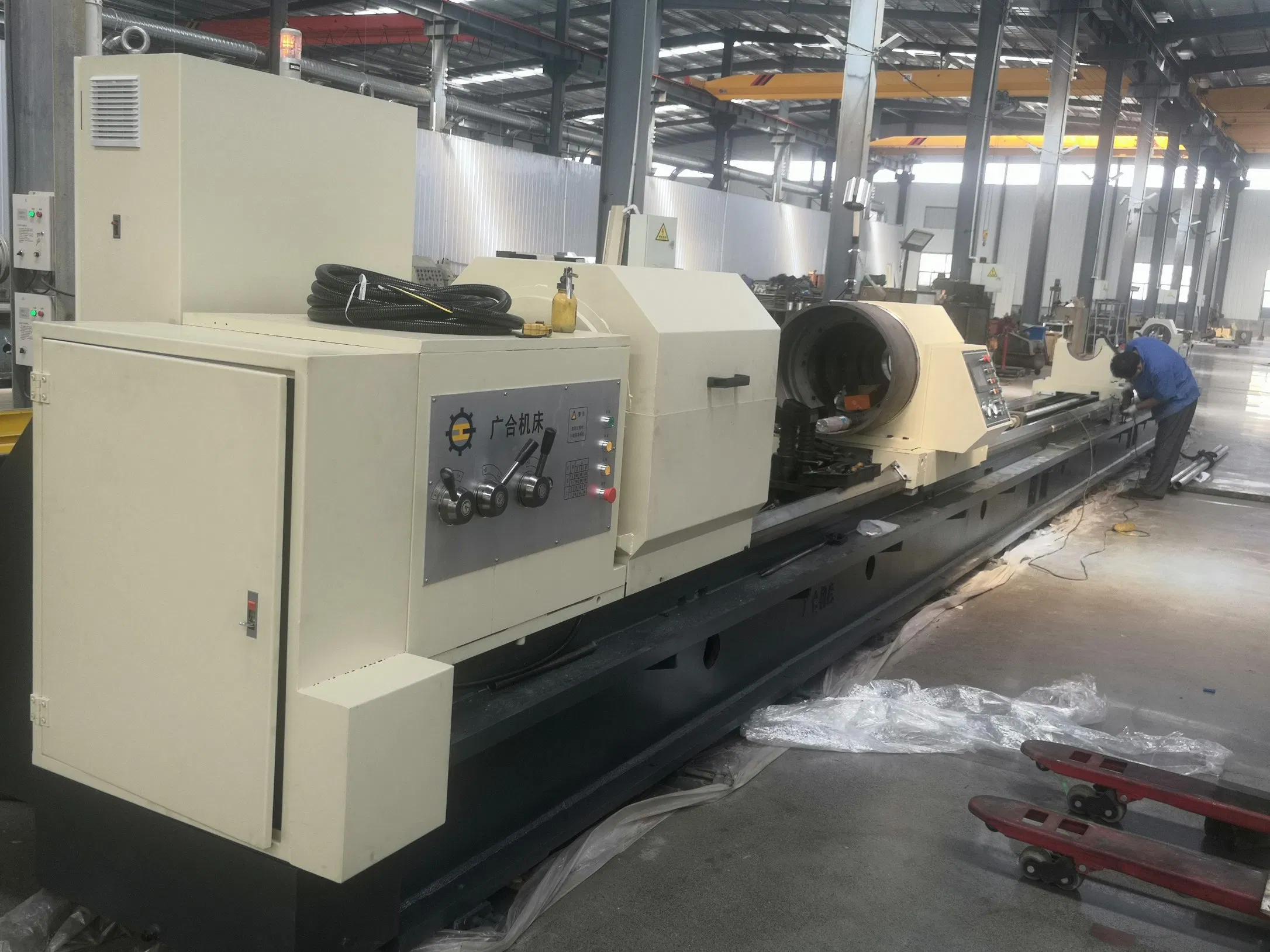

Equipment Demonstration

Technical Specifications

Bore diameter range (mm)	60 - 420
Center height (mm)	450
Maximum depth range (mm)	4000
Chuck diameter (mm)	70 - 500
Central frame clamping (mm)	20-180 (Std) / 50-400 (Special)
Main spindle speed	30 - 500 r/min (12 levels)
Main motor power	30 kW
Feed rate range	5 ~ 2000 mm/min stepless
Feed motor	4.5 kW Servo Motor
Cooling pump motor	5.5 kW (Two groups)
System Flow rate	80, 180, 280 L/min

Quality Certification

Frequently Asked Questions

What are the primary applications for this machine?

It is ideal for deep hole processing of hydraulic cylinders, spindles, and power machinery components with high precision requirements.

How is the product quality ensured?

Each machine is tested layer by layer from R&D to production. We use international well-known brand spare parts like Siemens to ensure consistency and reliability.

What is the typical lead time for an order?

For small quantities, we ship within 7-15 days. For larger, customized orders, the lead time is approximately 30 days.

Do you provide after-sales technical support?

Yes, we provide free training at our facility and our engineers are available for overseas machinery service if required.

What safety features are included?

The equipment includes short-circuit protection, power failure protection, unexpected shutdown interlocks, and a fault alarm system with a three-color signal light.

Can the machine handle different hole diameters?

Yes, the TK2242 supports a boring diameter range from 60mm up to 420mm with high-precision results.
