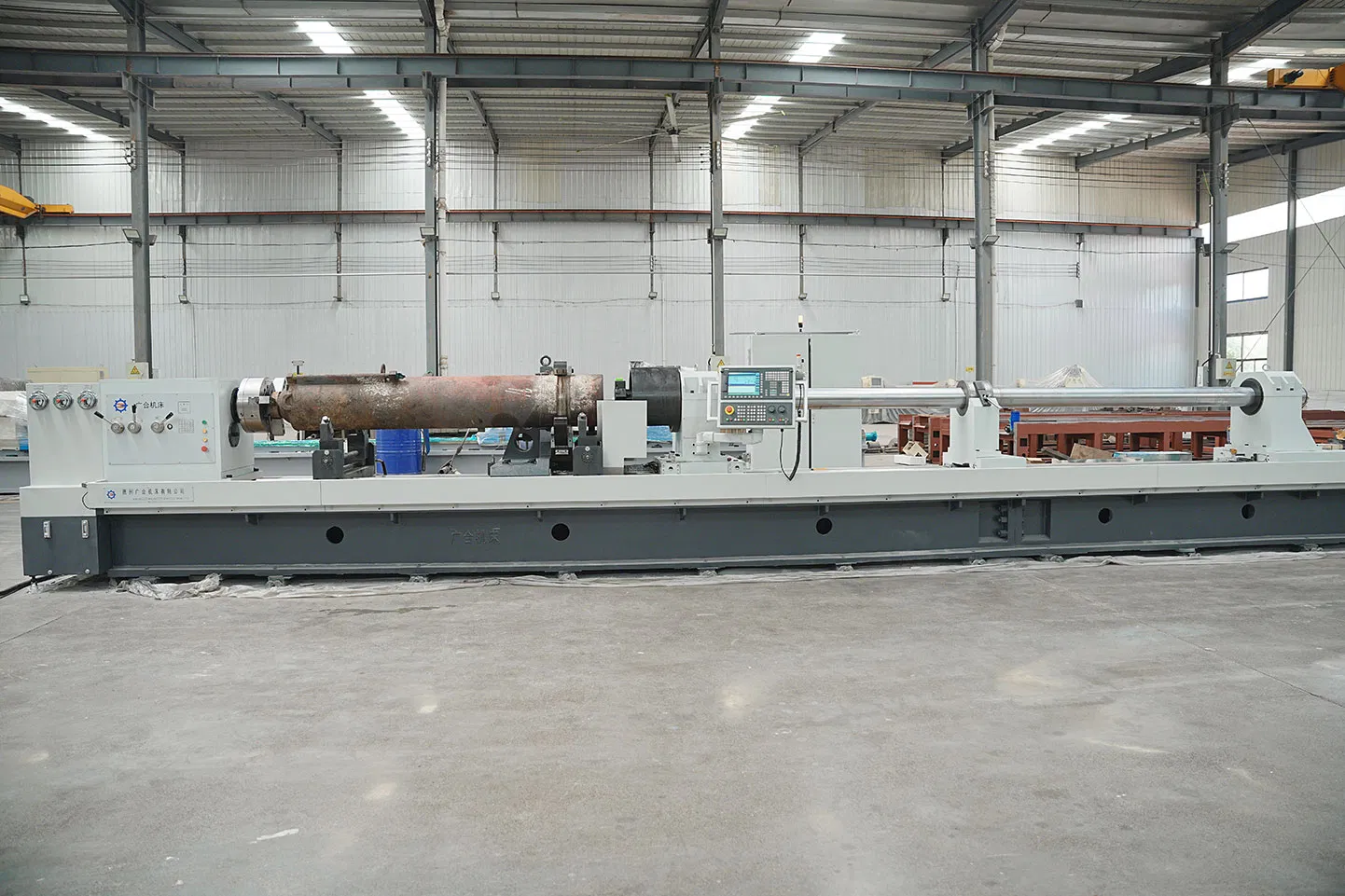

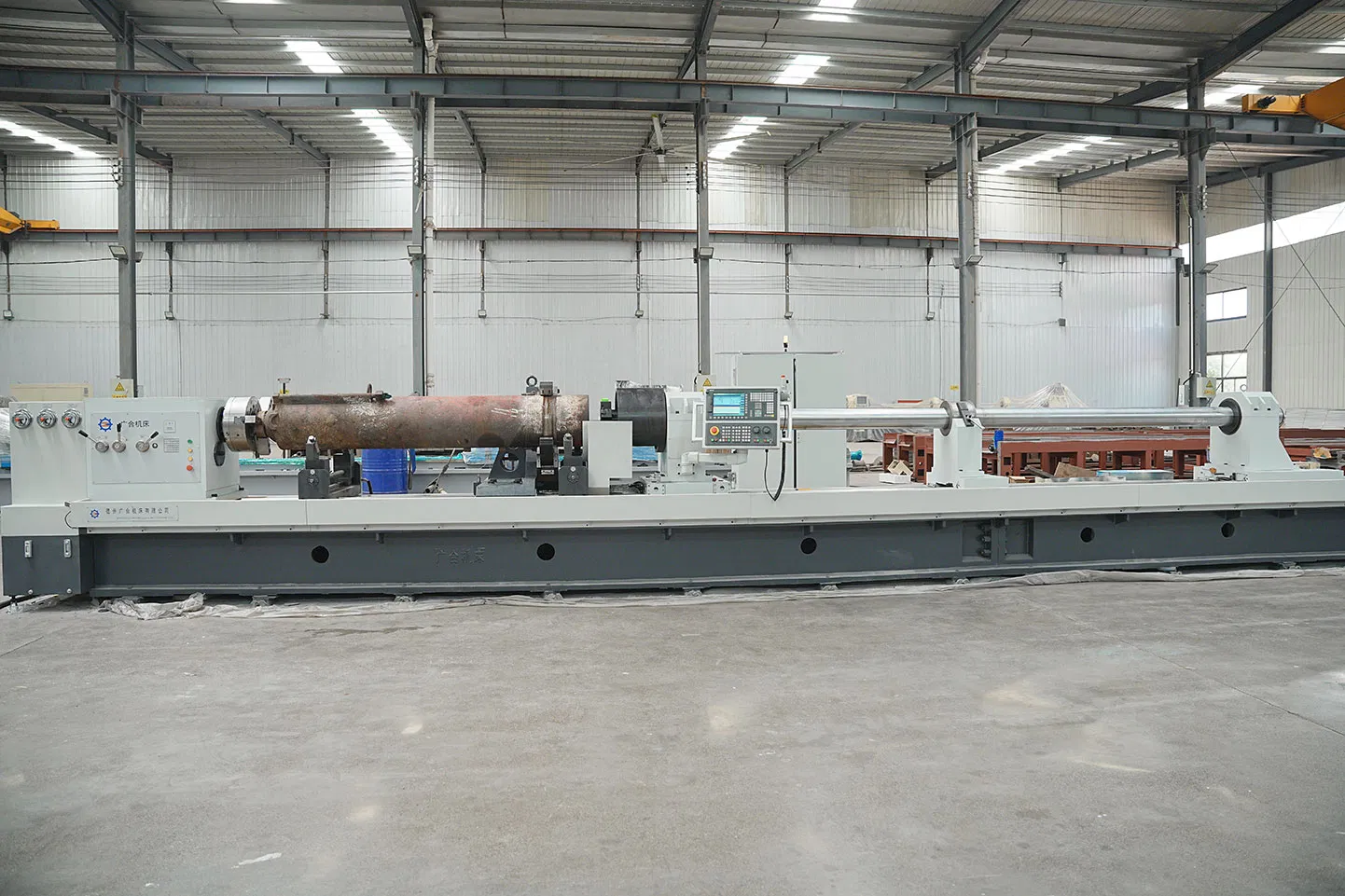

High Quality Horizontal CNC Deep Hole Drilling and Boring Machine Tool for Hydraulic Cylinders Tube Pipe

1 / 5

High Quality Horizontal CNC Deep Hole Drilling and Boring Machine Tool for Hydraulic Cylinders Tube Pipe

Customization:	Available
After-sales Service:	Provide
Warranty:	1 Year

Send Inquiry

Product Description

Basic Technical Information

Model NO.

TK2242

Structure

Horizontal Boring Machine

Tool Type

Fine Knife

Controlling Mode

CNC

Precision

High Precision

Certification

CE, ISO 9001

Motor

Servo Motor Option

Weight

5.1t

Workpiece Length

1m-15m

Production Capacity

800pics/Year

Product Overview

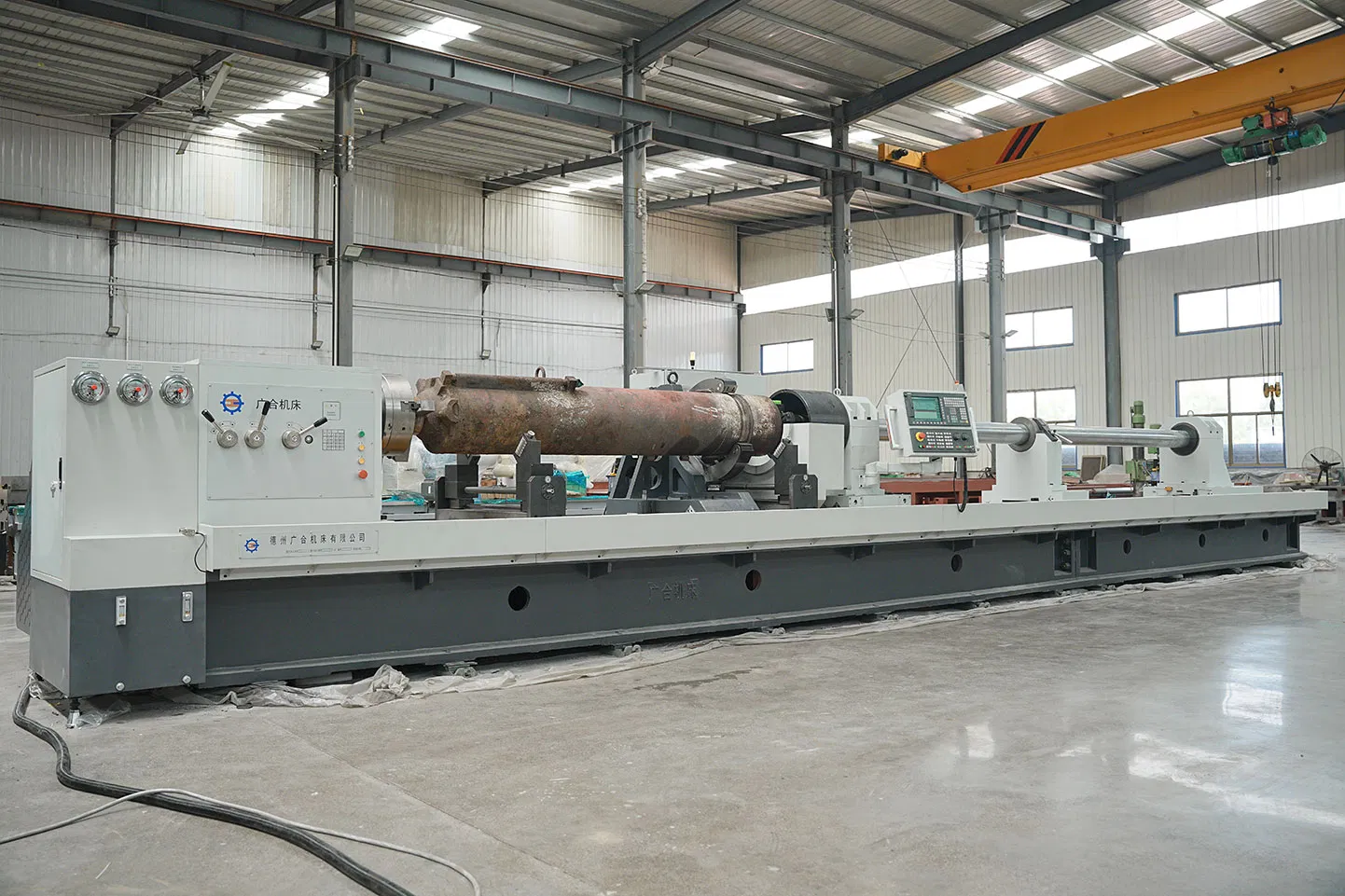

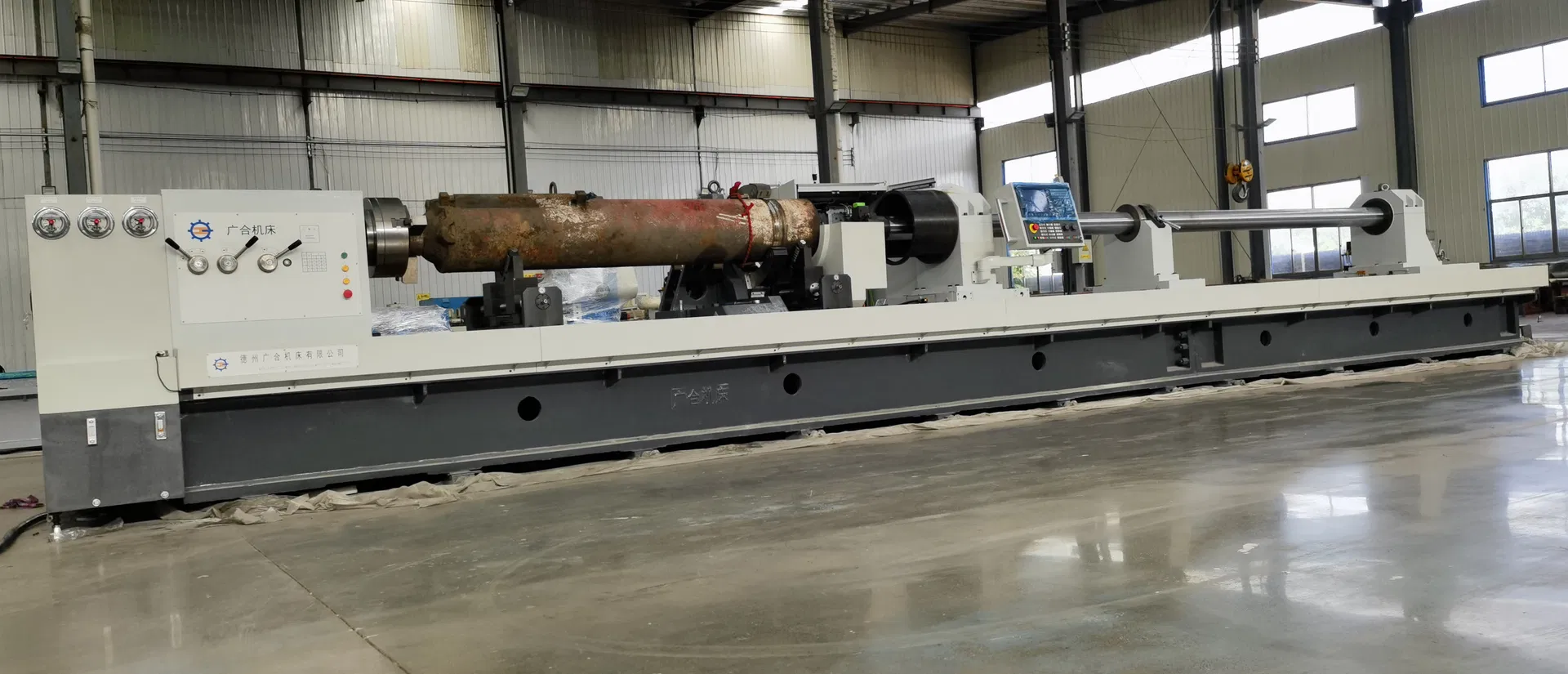

TK2110 CNC Deep Hole Drilling Machine
Our CNC Deep Hole Drilling and Boring Machine stands at the frontier of precision engineering, utilizing advanced drilling, boring, and scraping-rolling technology for flawless finishing of cylinder barrel interiors. This masterpiece operates with a static workpiece while the tool dynamically rotates and feeds, resulting in an impressive leap in processing efficiency compared to traditional machines.

Enhanced with cutting-edge features like a vigilant tool monitoring function, a state-of-the-art mechanical damping drill pipe support device, optimal lighting, and a self-locking mobile security door with robust plexiglass windows, this machine is designed for both performance and safety.

Technical Specifications

Drilling diameter range (mm)	30-140
Maximum boring diameter (mm)	420
Maximum processing depth (mm)	3000
Computer numerical control system	Siemens 808D
Processing method	BTA (internal chip removal)
Surface roughness	Ra1.6~Ra 6.3um
Aperture accuracy	IT7~IT11
Feed speed range	0-500mm/min
Center height (spindle to table)	450mm
Total machine power	45kW

Customization Available According to Your Requirements

Key Machine Components

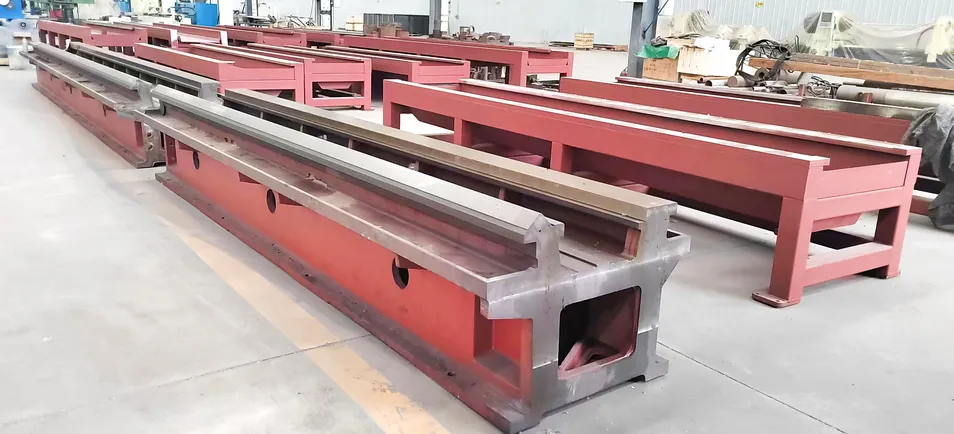

The Bottom of the Bed
High strength cast iron with reinforced plate design for maximum rigidity.

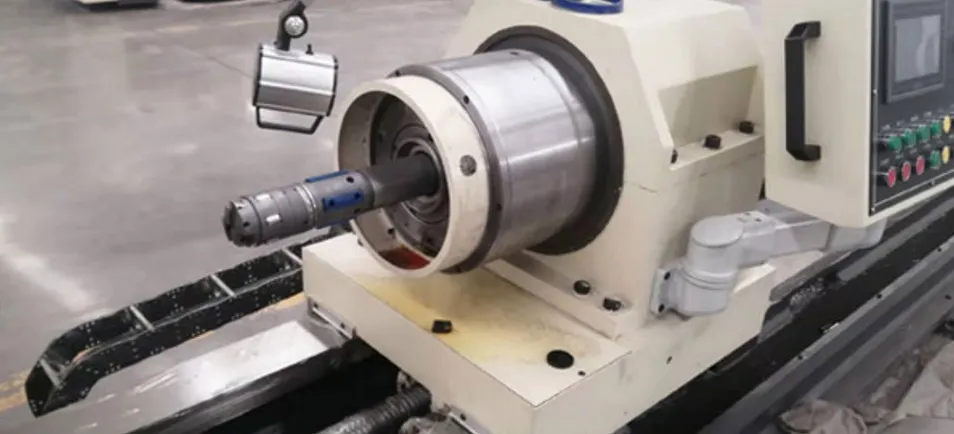

Oil Pressure Head
Essential for tool oil supply, drilling guidance, and workpiece clamping.

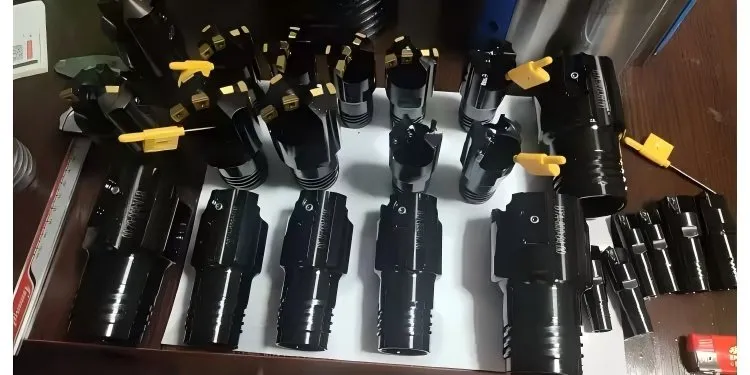

BTA Drill Bit
Uses high-pressure cutting fluid for cooling, lubrication, and chip removal.

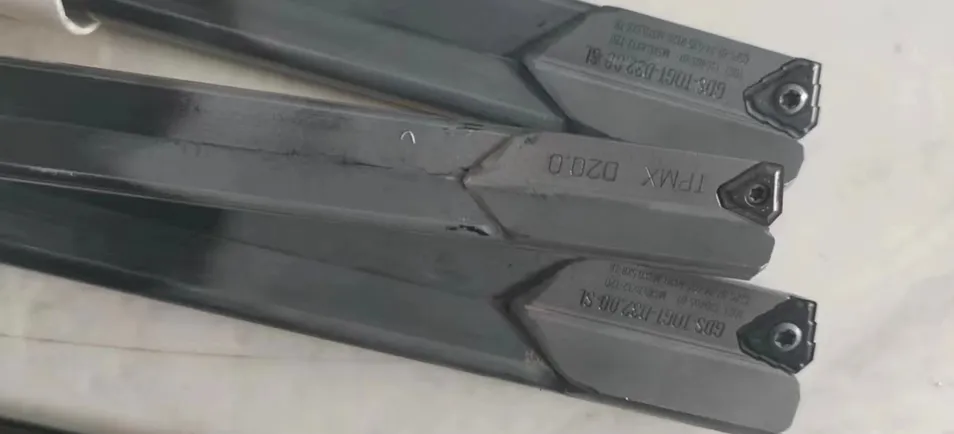

External Chip Drill Bit
Sourced from internationally recognized premium brands.

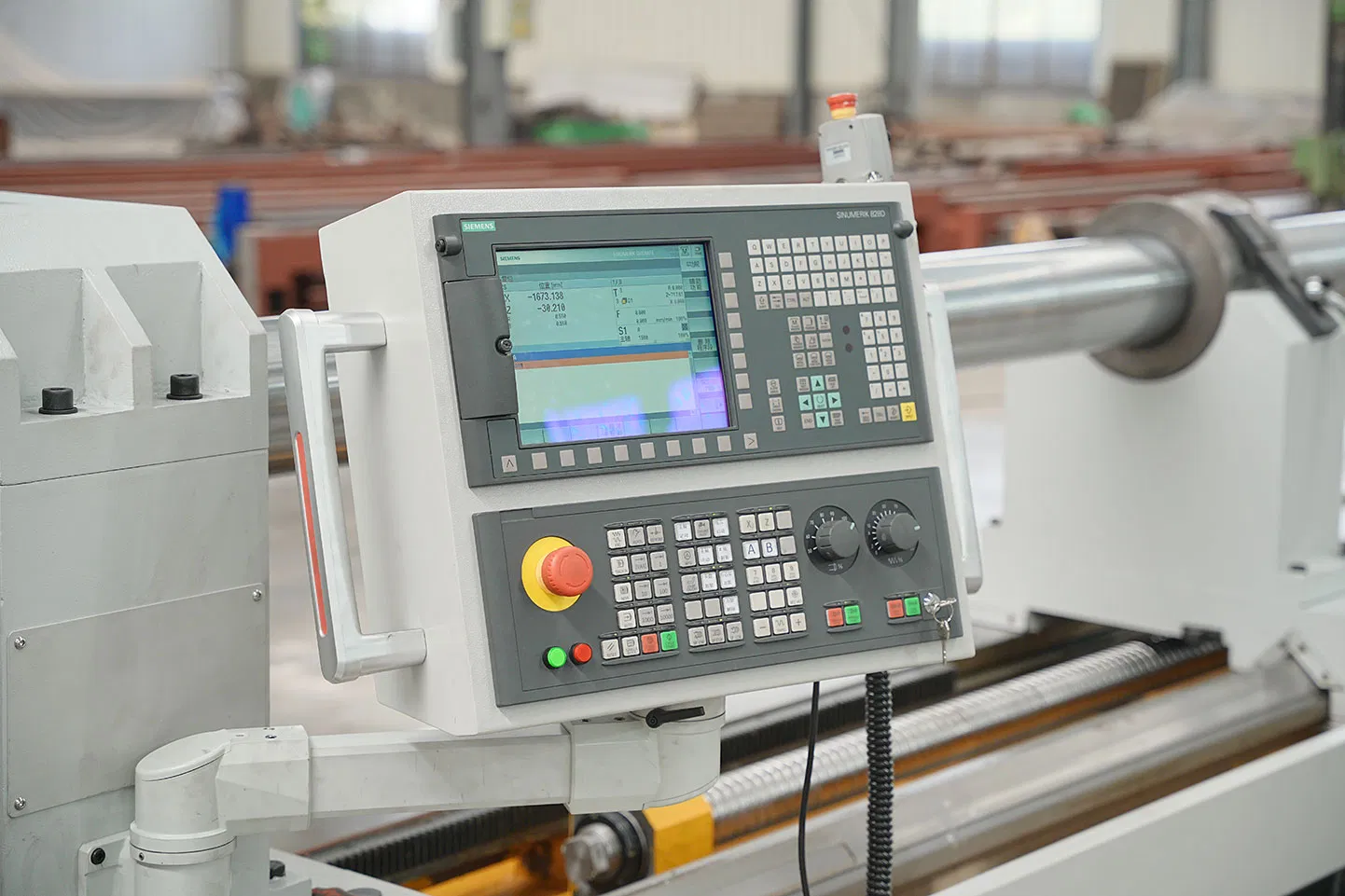

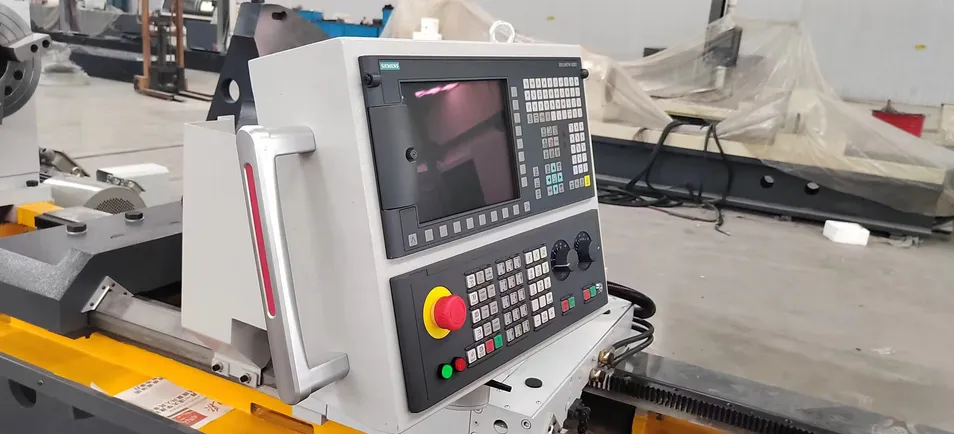

Siemens Control System
Equipped with high-performance Siemens servo motors.

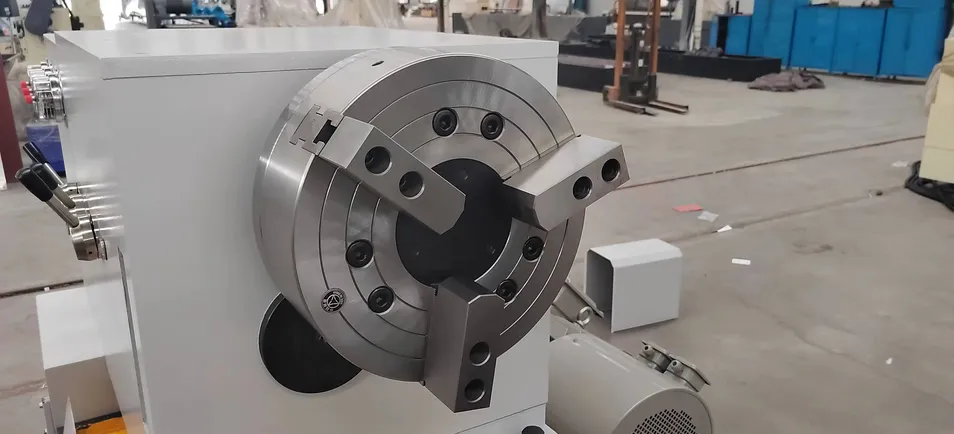

Three-jaw Chuck
Ensures high stability and a firm grasp on the workpiece.

Professional Manufacturing Facility

We specialize in the R&D, production, and sales of high-precision deep-hole machine tools. Our expertise covers deep-hole boring machines, drilling and boring machines, scraping and rolling tools, and honing equipment. Since our establishment in 2007, we have focused on delivering customized CNC solutions that meet global standards.

Frequently Asked Questions

Q: How do you ensure the quality of the machine tools?

A: We use international well-known brand spare parts. Every piece of equipment undergoes rigorous layer-by-layer testing from R&D through production to ensure no omissions before delivery.

Q: What is the standard warranty and maintenance?

A: The complete machine comes with a one-year warranty and lifetime technical maintenance support.

Q: Can you provide training for our operators?

A: Yes, we provide free training at our facility. Additionally, if required, our engineers are available to provide overseas machinery servicing and on-site support.

Q: What is the typical lead time for an order?

A: Lead times depend on the order size and season. Generally, small quantities can be shipped within 7-15 days, while larger or customized orders take approximately 30 days.

Q: Is it possible to customize the machine specifications?

A: Absolutely. We have a dedicated R&D team of over 50 experts who specialize in customizing CNC deep-hole equipment to meet specific client requirements.

Q: What should I do if the machine encounters an issue?

A: Our after-sales service centers and 24/7 online support team are ready to assist. Simply contact us, and our technical team will provide a solution as quickly as possible.
