CE Tk2125 Deep Hole Drilling and Boring Machine for Paper Mill Rollers

1 / 5

CE Tk2125 Deep Hole Drilling and Boring Machine for Paper Mill Rollers

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1-Year Warranty and Lifetime Maintenance

Send Inquiry

Product Description

⚙️ Basic Specifications

Model NO.	TK2125	Structure	Deep Hole Drilling
Layout	Horizontal	Controlling Mode	CNC
Precision	High Precision	Hole Diameter	101-150mm
Max Boring Diameter	φ100mm	Max Boring Depth	1000-15000mm
Automatic Grade	Automatic	Certification	GS, CE, RoHS, ISO 9001
Spindle Speed	61-1000r/Min (12 Step)	Feed Speed Range	5-600mm/Min

📦 Product Description

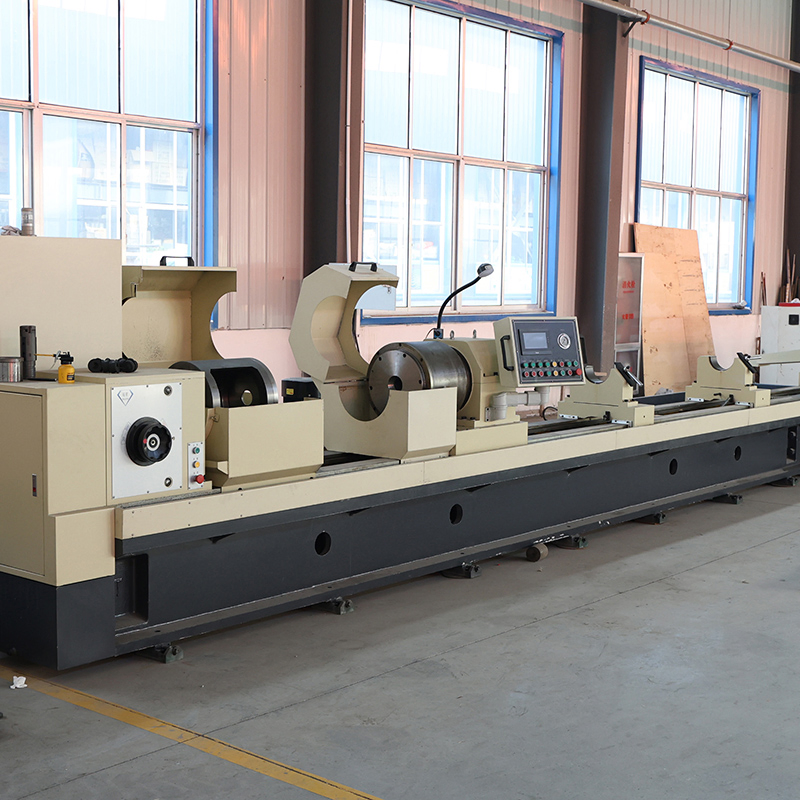

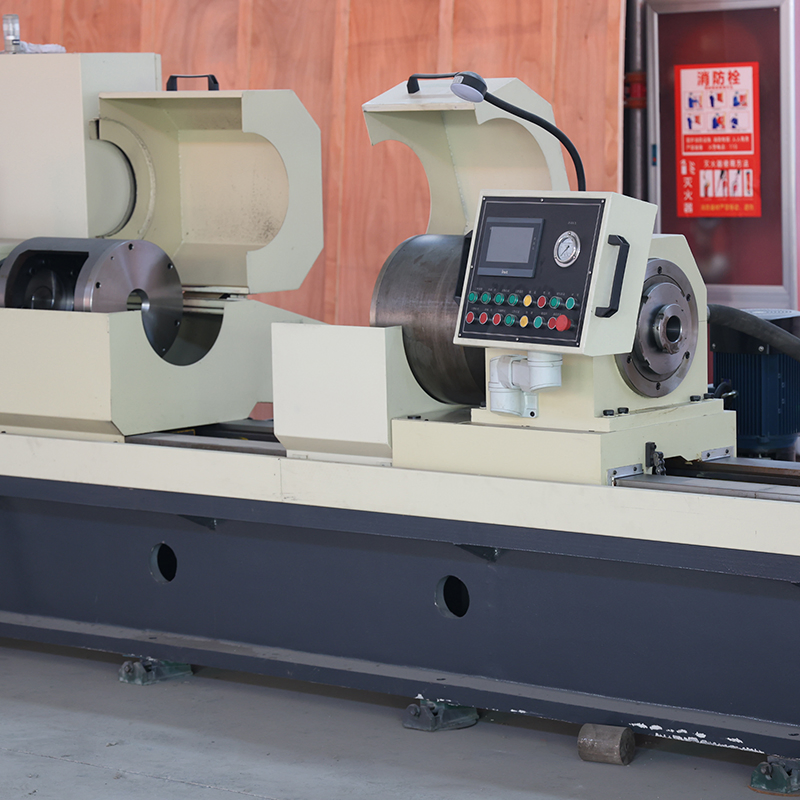

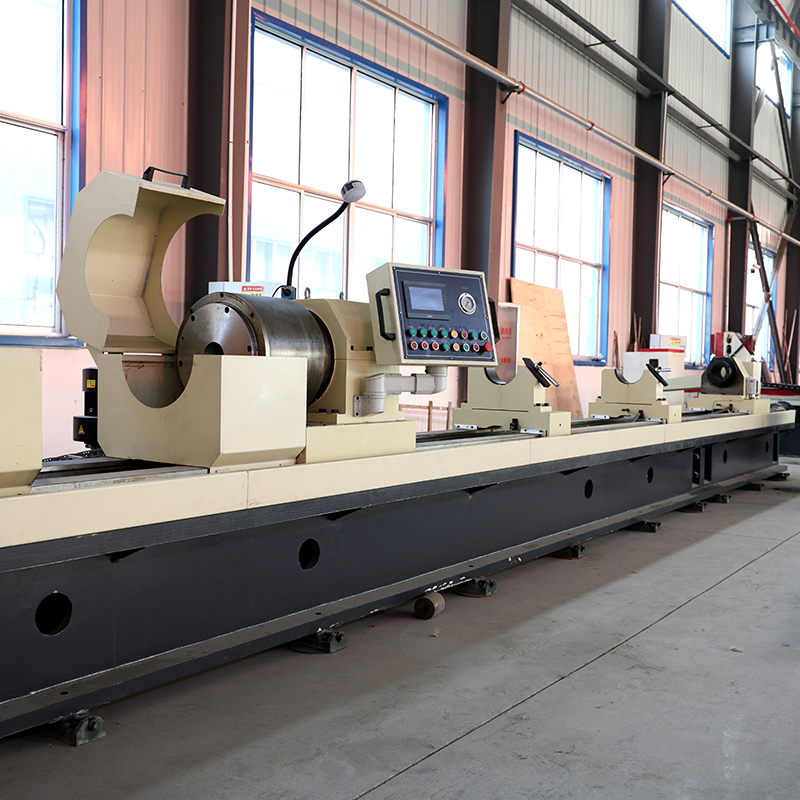

Deep hole drilling and boring machine TK2125 / TK2225

The machine is specialized in machining cylindrical deep-hole workpieces, such as spindle holes for machine tools, various mechanical hydraulic cylinders, cylindrical through-holes for cylinders, blind holes, and stepped holes. The processing aperture accuracy can be up to IT7~IT8 or above, and the surface roughness can reach Ra0.4μm.

Key Capabilities:

Internal chip removal method used for drilling.
Rigid machine bed with excellent precision.
AC servo motor driven feed system.
Hydraulic clamping device for secure workpiece fastening.
Supports both drilling, boring, and rolling processing.

📊 Technical Data

Specification Item		Technical Data (TK2125)
Capacity	Boring Diameter	φ250mm
	Max Drilling Diameter	φ100mm
	Workpiece Clamped Dia.	φ60-φ330mm
Spindle	Center Height to Bed	350mm
	Spindle Bore Diameter	φ75mm
	Taper of Spindle Bore	85mm 1:20
Motors	Main Motor Power	30KW
Motors	Feed Motor Power	3.7KW AC Servo

📏 Dimensions and Weight Reference

Length (mm)	1000	3000	5000	8000
Net Weight (t)	11.2	15.7	20.3	27.0
Gross Weight (t)	11.8	16.5	21.5	28.3

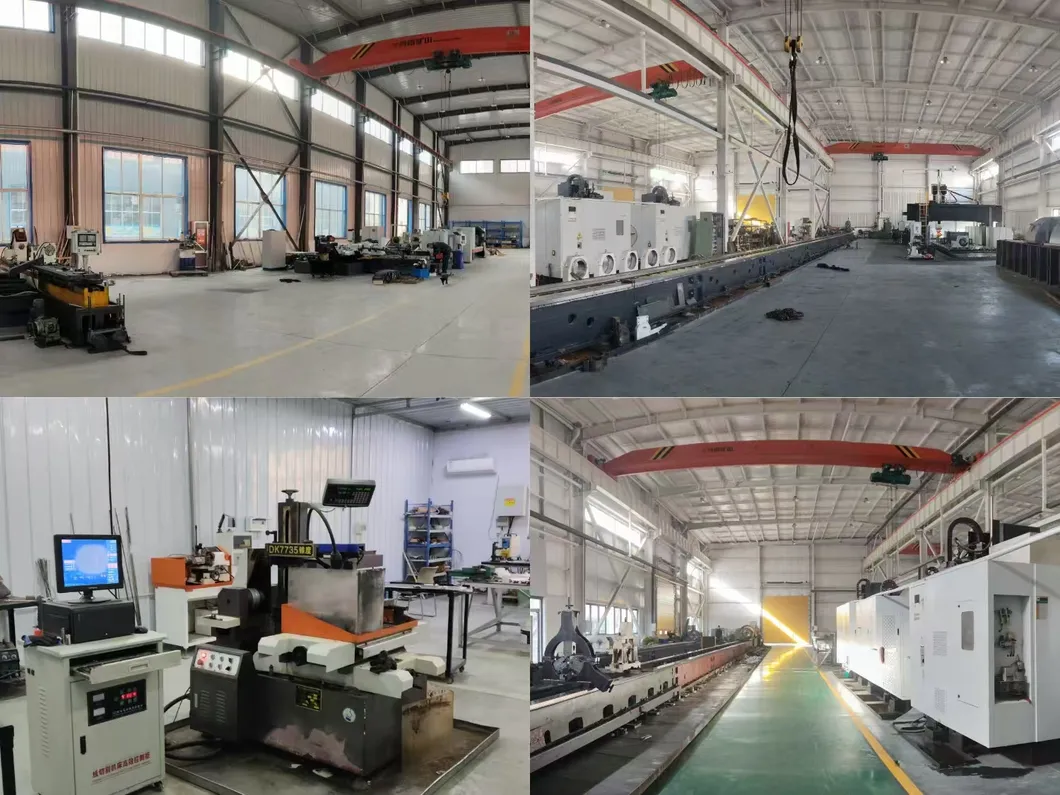

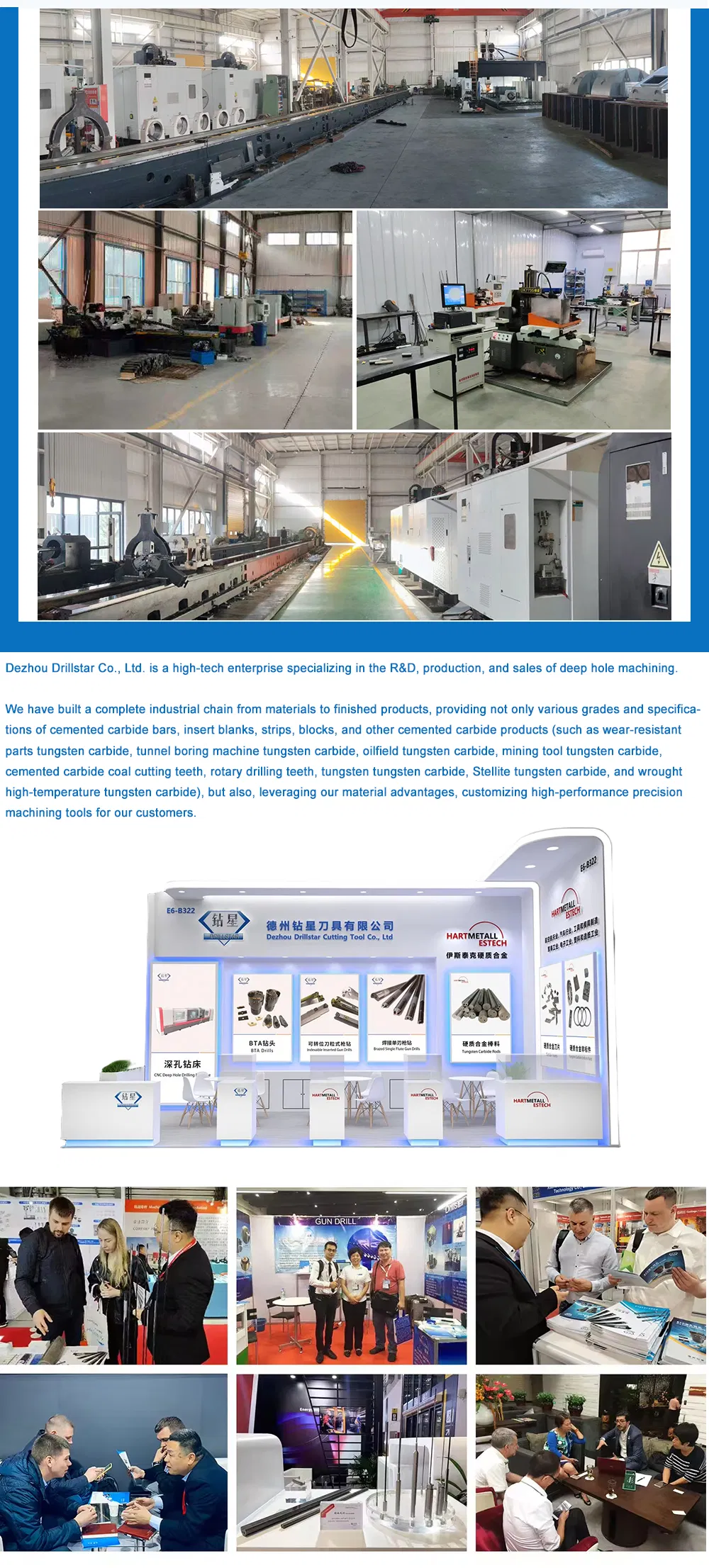

🏭 Production & Packaging

❓ FAQ

What is the warranty for the high-precision products?

We utilize high-precision grading machines to control geometry dimensions and apply ultra-fine grain size substrates with high-performance coatings to guarantee product life. If any quality problems occur, we provide support for replacement.

Do you provide samples for testing?

Yes, we usually provide samples for testing under the condition that the freight is covered by the customer.

What is your minimum order requirement (MOQ)?

MOQ is indicated for each item in the quotation sheet. We accept sample and trial orders. If a single item doesn't reach the MOQ, the price is adjusted to the sample rate.

What is the typical delivery time?

Delivery depends on inventory. In-stock items are delivered within 8 work days, while custom or out-of-stock items take approximately 20 work days.

Can you manufacture special-shaped or custom products?

Yes, we can produce both standard and special tools according to your specific drawings and samples.

Will I receive updates on my order schedule?

Yes, we provide weekly working schedules. All merchandise is inspected and tested before shipment, and detailed inspection pictures are sent for confirmation.
