Home > Precision Boring Systems > Advanced CNC Deep Hole Drilling System for Mass Manufacturing

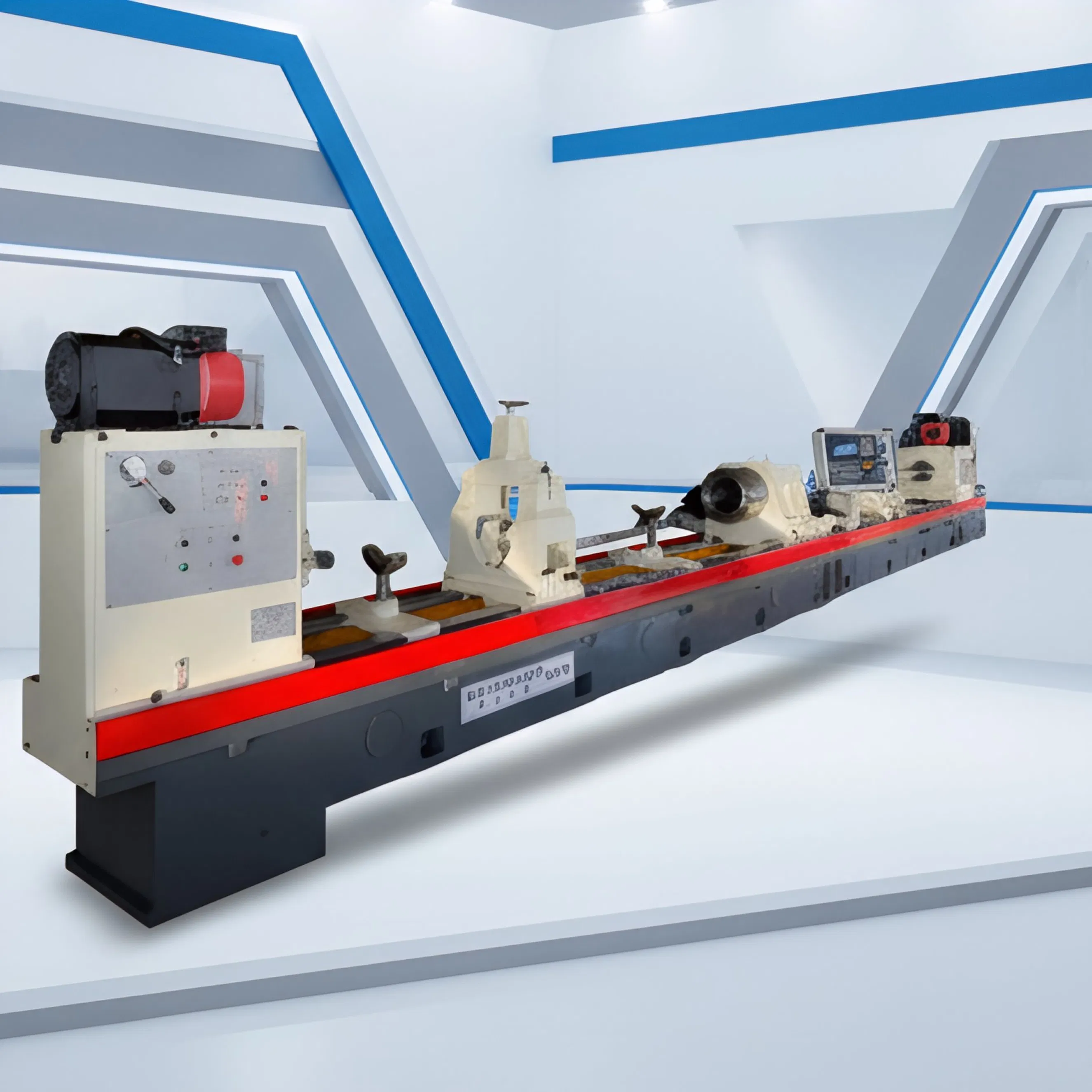

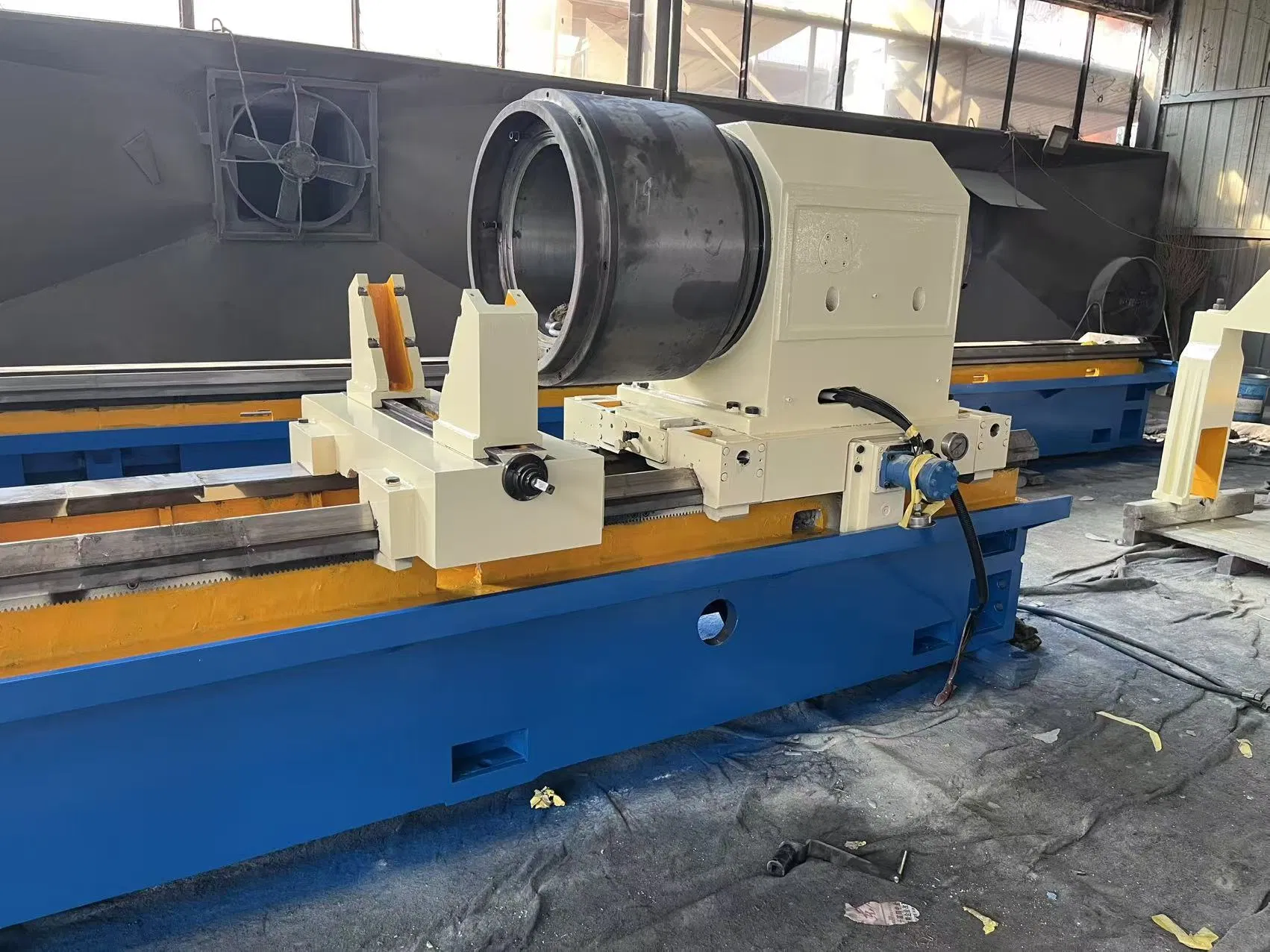

Advanced CNC Deep Hole Drilling System for Mass Manufacturing
Advanced CNC Deep Hole Drilling System for Mass Manufacturing
Advanced CNC Deep Hole Drilling System for Mass Manufacturing
Advanced CNC Deep Hole Drilling System for Mass Manufacturing
Advanced CNC Deep Hole Drilling System for Mass Manufacturing
1 / 5
Advanced CNC Deep Hole Drilling System for Mass Manufacturing
Advanced CNC Deep Hole Drilling System for Mass Manufacturing
Advanced CNC Deep Hole Drilling System for Mass Manufacturing
Advanced CNC Deep Hole Drilling System for Mass Manufacturing
Advanced CNC Deep Hole Drilling System for Mass Manufacturing

Advanced CNC Deep Hole Drilling System for Mass Manufacturing

Customization: Available
After-sales Service: Life Warranty
Warranty: 5
Send Inquiry

Product Description

i
Basic Product Information
Model NO.: TK2216 / TK2220 / TK2225 / TK2235 / TK2240
Structure: Horizontal Boring Machine
Controlling Mode: CNC
Precision: High Precision
Certification: ISO 9001
Power: 30 Kw
Voltage: 380V / 220V
Max Boring Hole: 250 mm
CNC Deep Hole Drilling System
CNC Machine Component
★
Product Description

The CNC deep hole drilling and boring machine is an advanced solution designed for industrial market demands. It features a wide range of applications including drilling, expanding, nesting, and boring. For boring operations, users can employ combination tools or single-process tools such as rough boring, fine boring, and rolling heads.

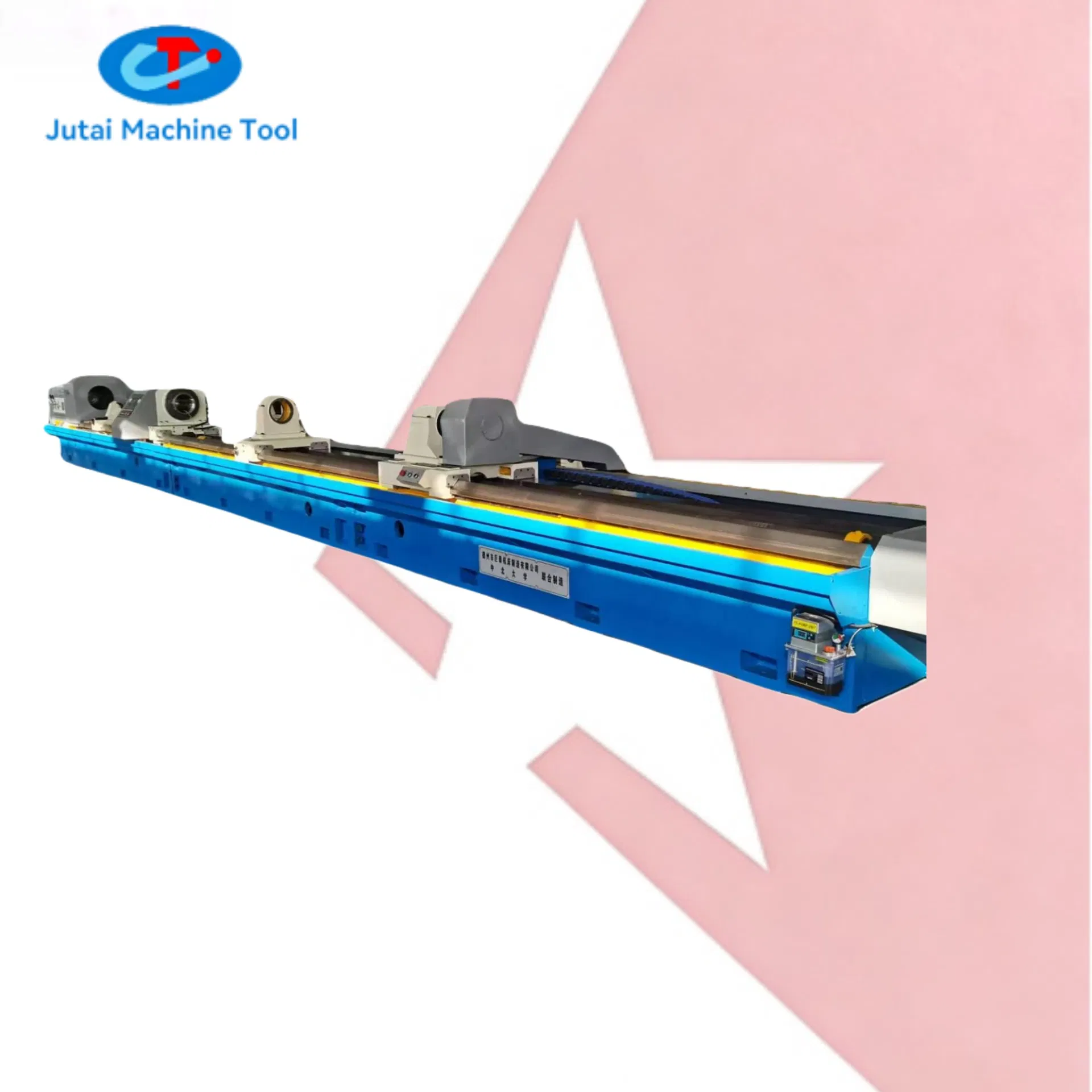

Internal Mechanism

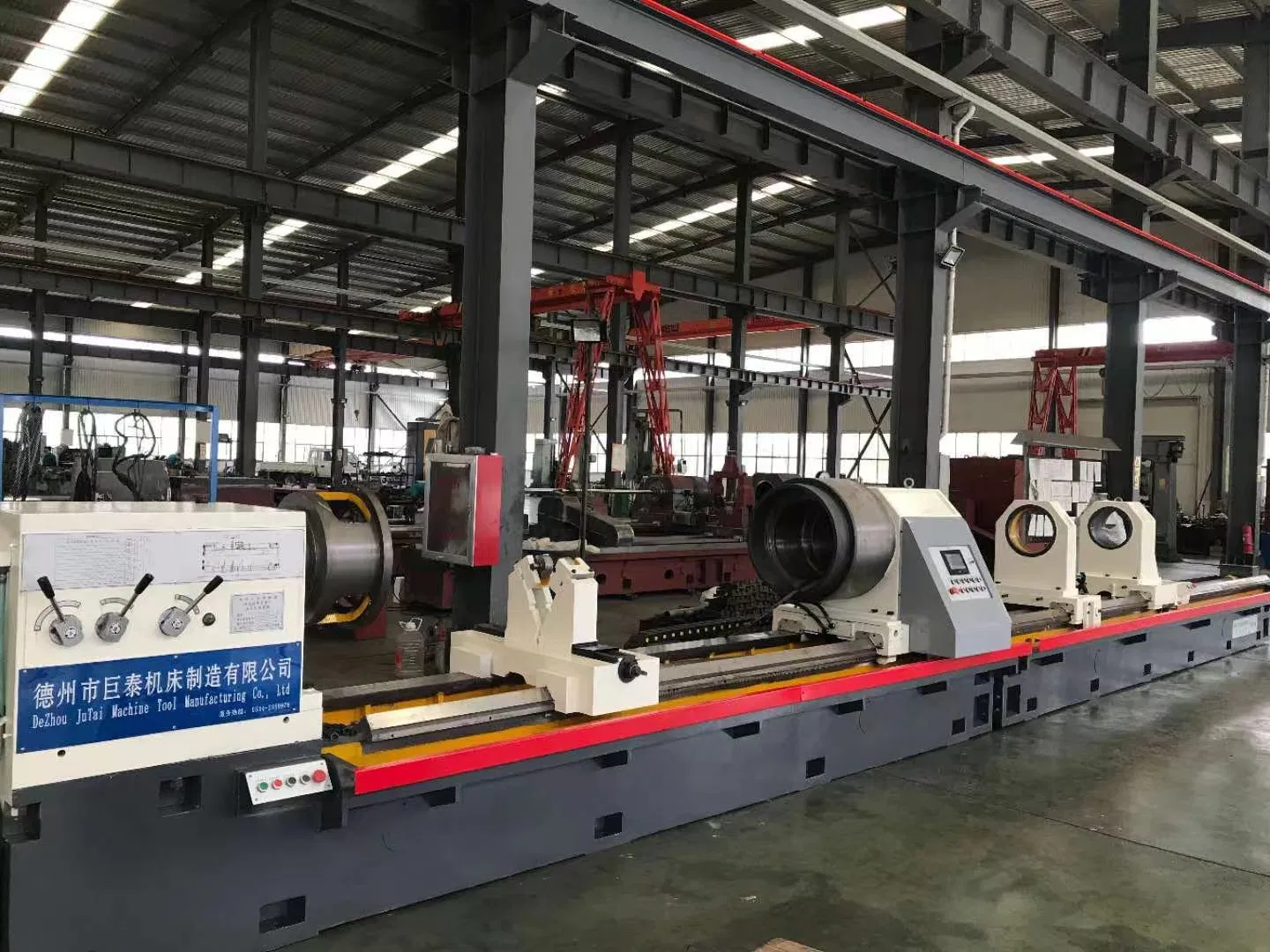

Machine Overview
⚙
Technical Specifications
Model TK2216 TK2220 TK2225 TK2235 TK2240
Max Boring Diameter (mm)160200250350400
Boring Diameter Range (mm)30-8030-12030-12030-12030-120
Max Machining Depth (mm)1500-30001000-120001000-120001000-120001000-12000
Workpiece Diameter Range (mm)450-2000600-2400600-3000600-45001000-5000
Spindle Speed Range (r/min)82-125061-100061-100065-52365-523
Main Motor Power (kW)1530303037
Cooling System Flow Rate (L/min)200300300300300
✔
Core Applications
1. Hydraulic Cylinders: Precision boring and surface finishing for construction and industrial machinery.
2. Oil & Gas: Finishing drill pipes, well casings, and valve bodies for high-pressure use.
3. Aerospace & Defense: Machining gun barrels, landing gear, and missile launch tubes.
4. Energy Sector: Processing turbine shafts and nuclear reactor components.
5. Heavy Machinery: Refining piston rods and mining equipment bores.

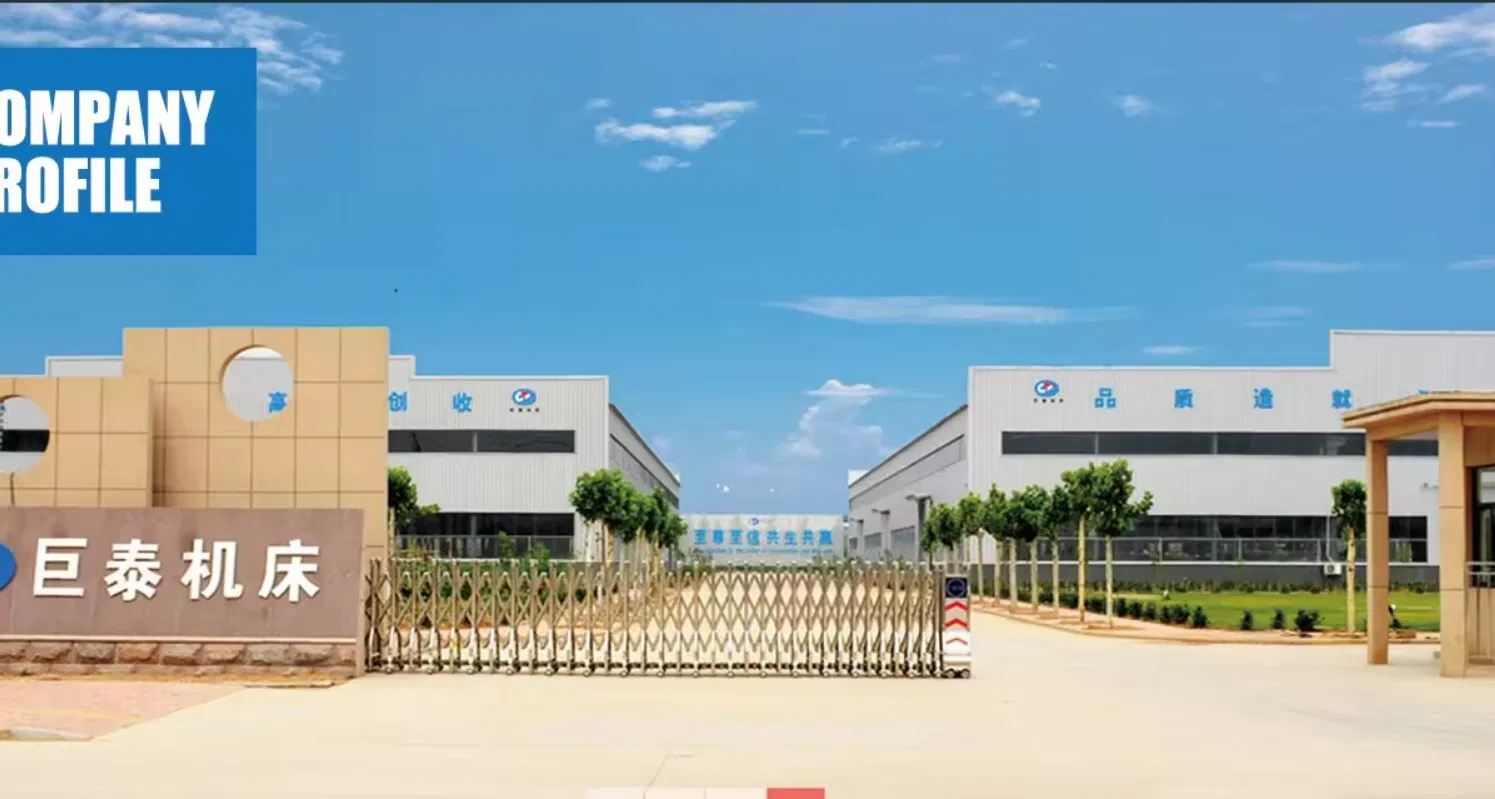

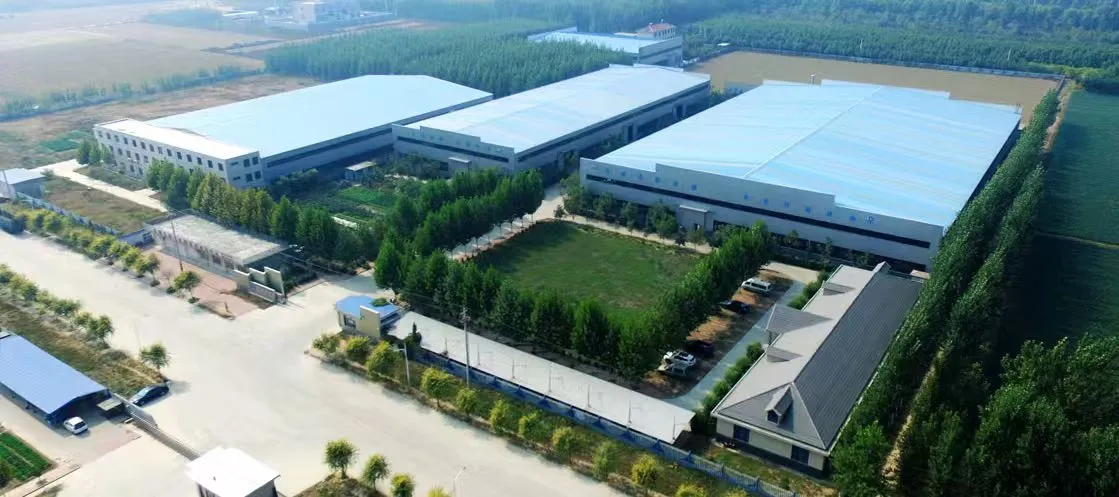

Manufacturing Facility
Precision Component
Workpiece Detail
Processing View
Finished Product
✈
Packaging & Delivery
Package Size: 1023.20cm * 232.30cm * 268.90cm
Gross Weight: 26000.00kg
Lead Time: 30 days (standard sets)
Package Type: Frame, Wooden Box
Export Packaging
Shipping Logistics
?
Frequently Asked Questions
Q: What kind of after-sales service do you provide? A: We provide free training within our facility. Additionally, if required, technical engineers are available to provide machinery service overseas.
Q: What is the warranty period for this machine? A: The complete machine comes with a one-year warranty and lifetime maintenance support.
Q: How do you ensure the quality of the machinery? A: Every machine is thoroughly tested before packaging. We utilize international well-known brand spare parts and perform layer-by-layer inspections from R&D to production.
Q: What is the standard lead time for an order? A: Usually, small quantities can be shipped within 7-15 days, while large or customized orders typically take about 30 days.
Q: Can the machine handle different boring diameters? A: Yes, the boring diameter range typically spans from 30mm up to 120mm depending on the specific model and tooling used.
Q: What are the main selling points of this CNC system? A: High productivity, precision boring capabilities, and the use of core components like advanced PLCs for automatic operation.
CNC Equipment Assembly
