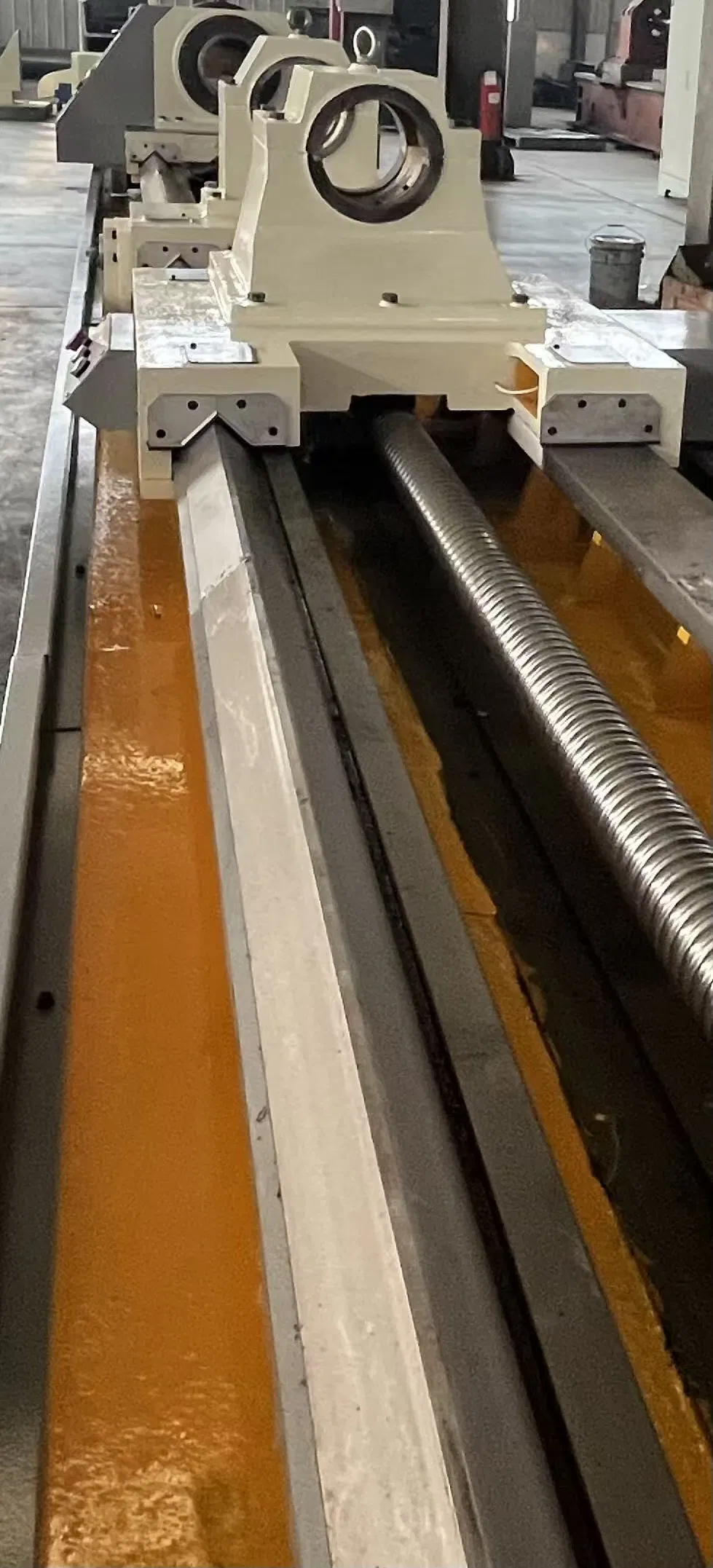

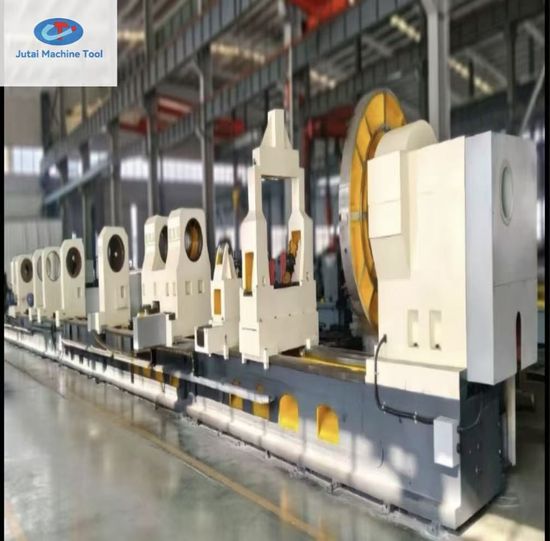

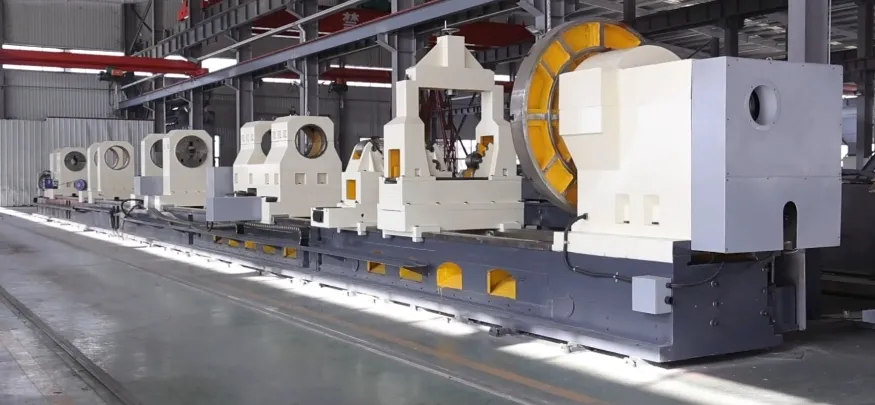

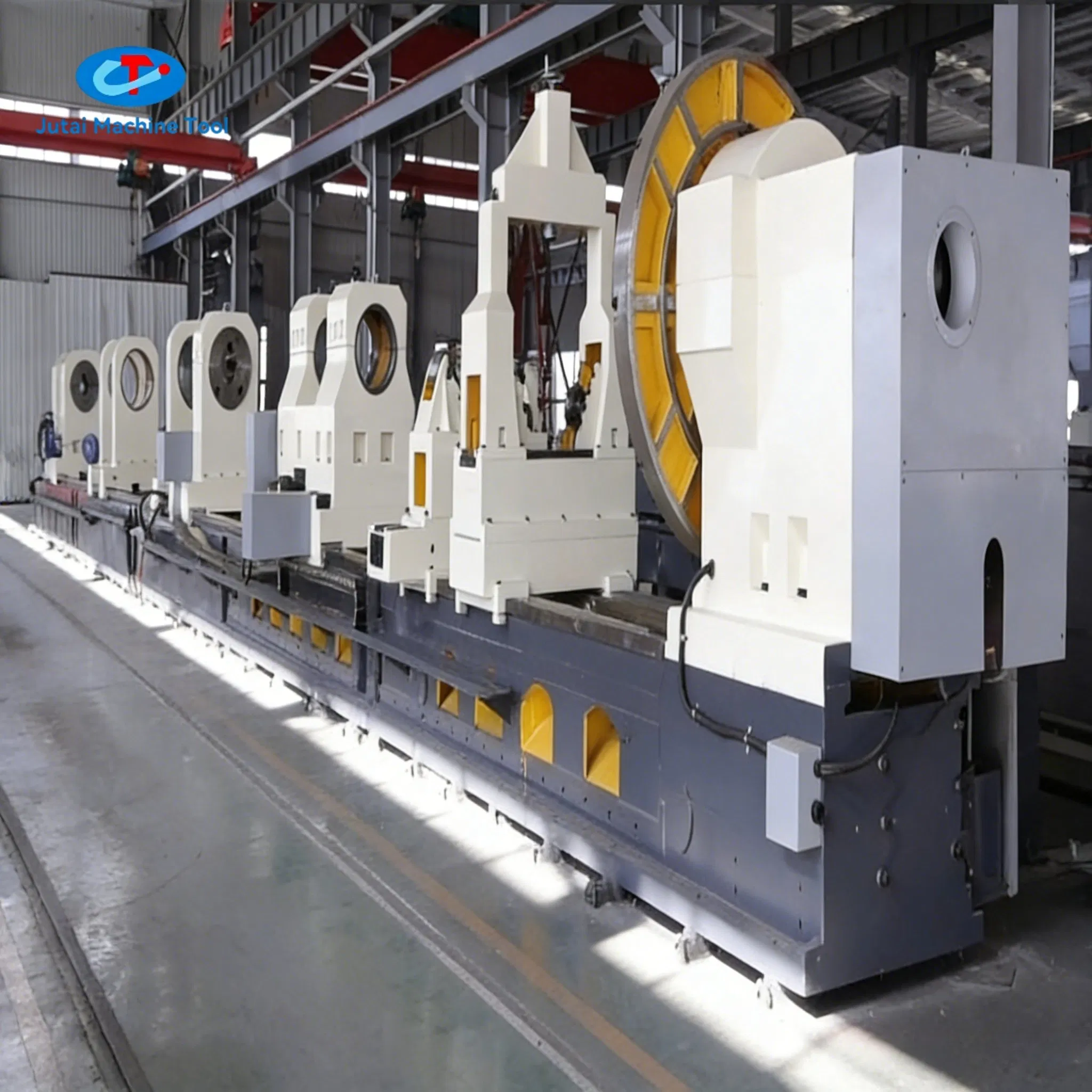

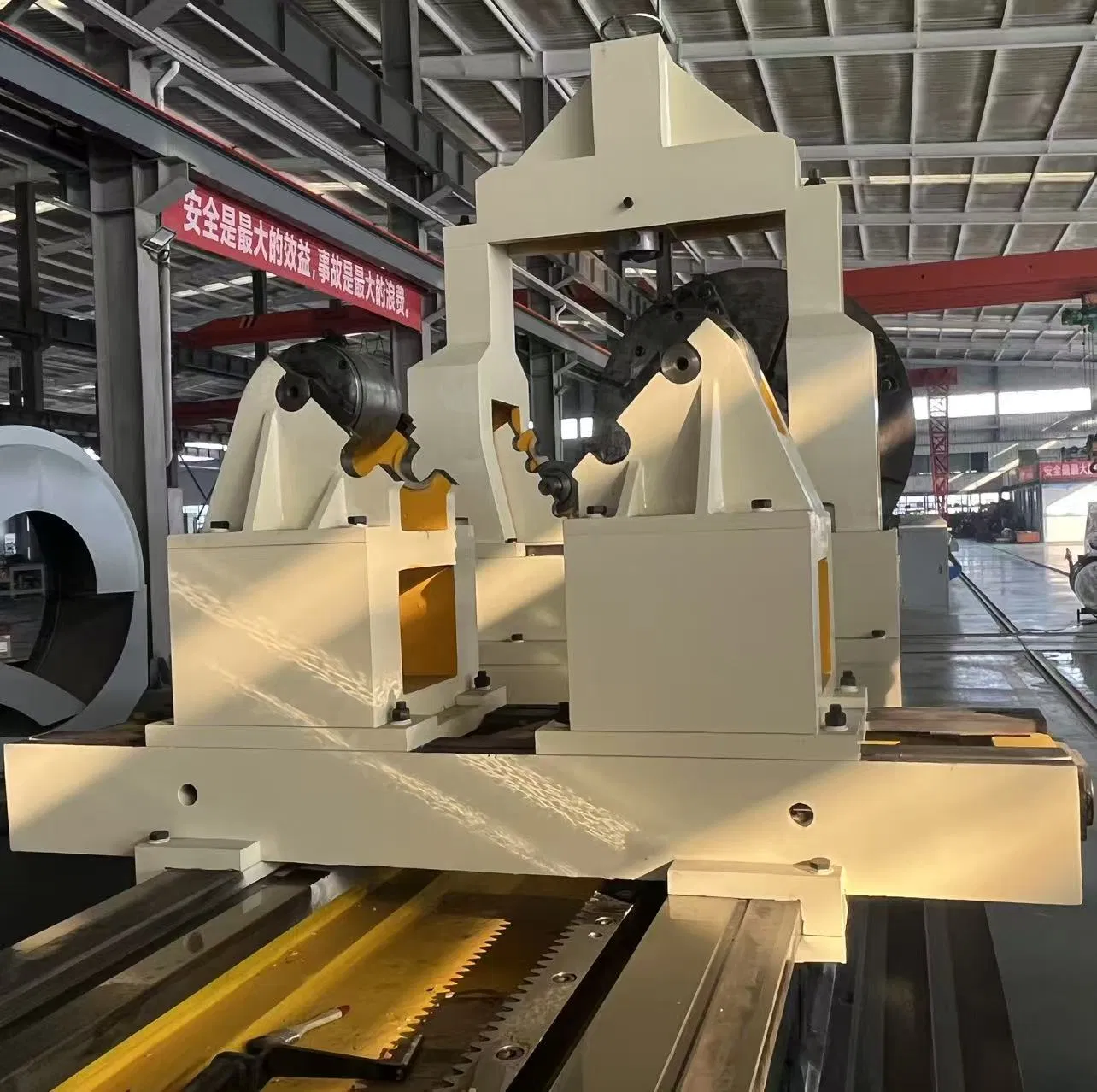

The T2180 deep hole drilling and boring machine is specifically engineered for processing large-diameter, heavy-duty deep hole components. Utilizing a double rectangular guideway and a robust rack-and-pinion drive system, it ensures maximum stability during intense operations.

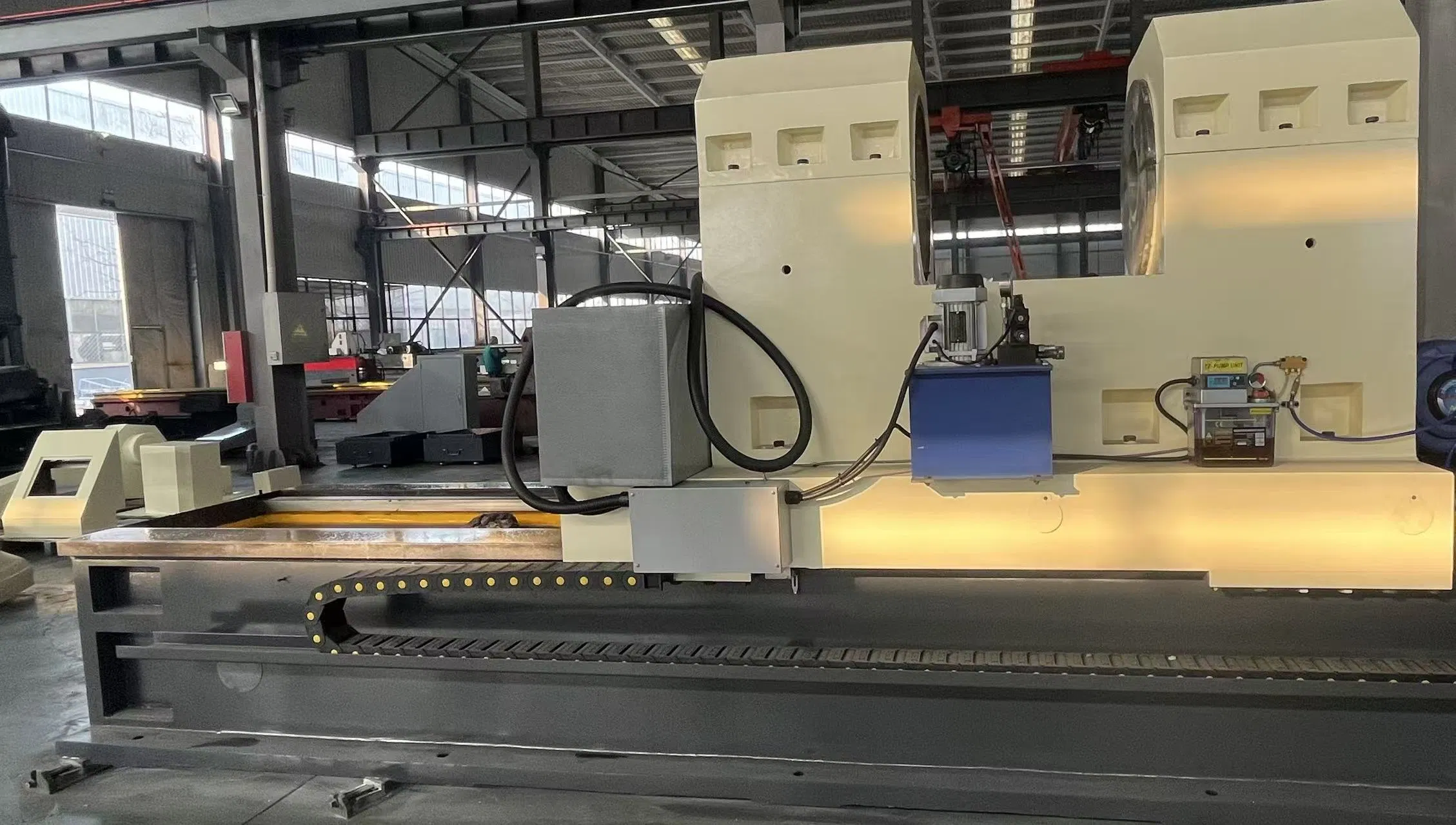

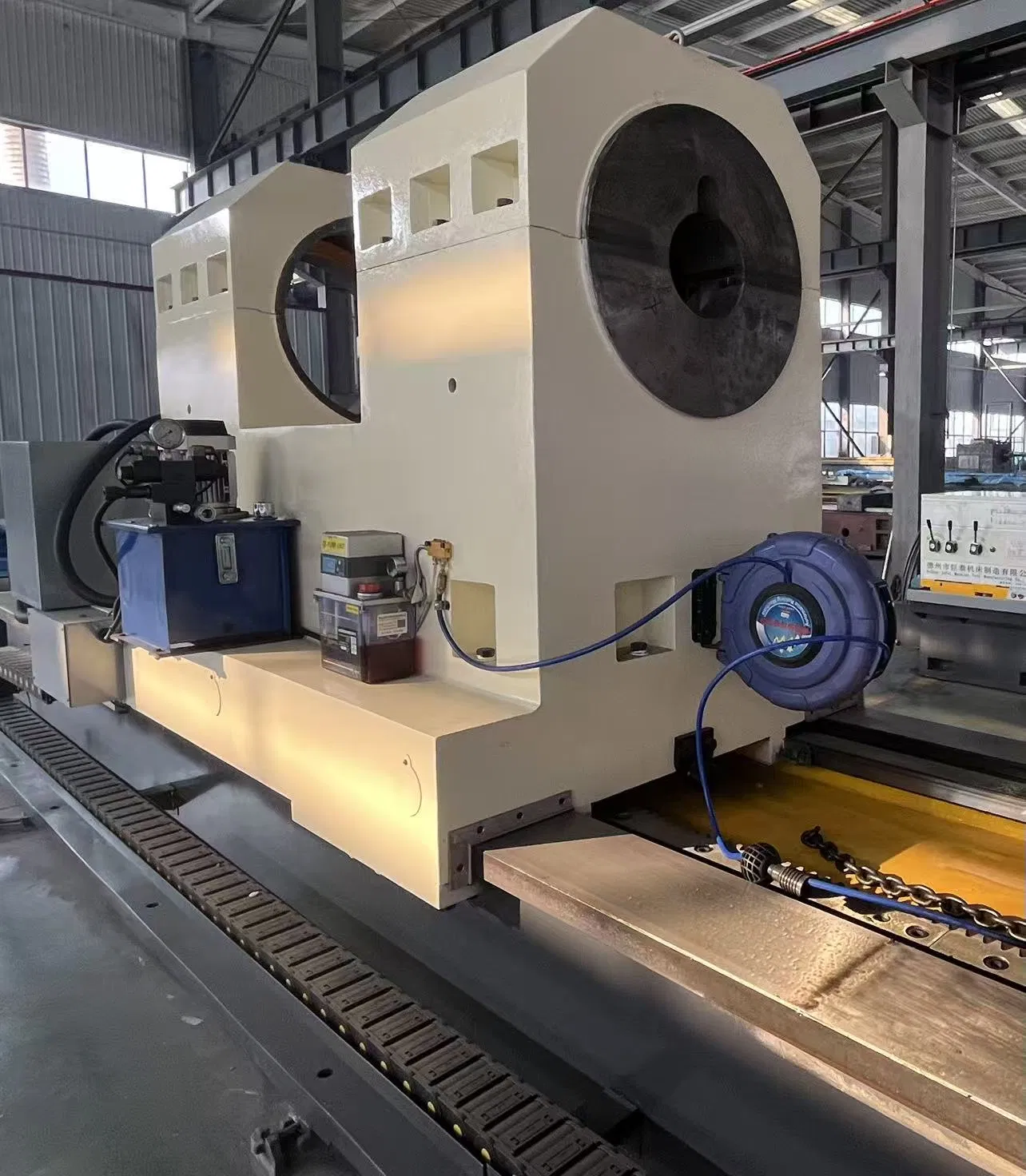

The machine features a hydraulically clamped oil feeder and instrument-monitored support systems. Equipped with a drill pipe box, it allows for simultaneous rotation of the workpiece and the tool, providing superior adaptability for various machining requirements.
For drilling, the BTA method is employed, while the push boring method is used for boring tasks. This flexibility allows operators to choose the most efficient processing method based on specific industrial needs.
| Technical Specification | Parameter |
|---|---|
| Boring Diameter Range | 100-800 mm |
| Drilling Diameter Range | 60-150 mm |
| Maximum Machining Depth | 1-16 m (customizable) |
| Center Height (spindle to guideway) | 800 mm |
| Guideway Width | 1250 mm |
| Main Motor Power | 55 kw (Servo) |
| Feed Speed Range | 3-300 mm/min (Stepless) |
| Load Capacity | 25t - 35t |
| Cooling System Flow Rate | 300, 600 L/min |
