Multi-Function 7-Axis 5-Simultaneous CNC Milling and Turning Machine Center

Customization:	Available
After-sales Service:	Online After-Sale Service
Warranty:	1 Year

Send Inquiry

Product Description

Machine Overview

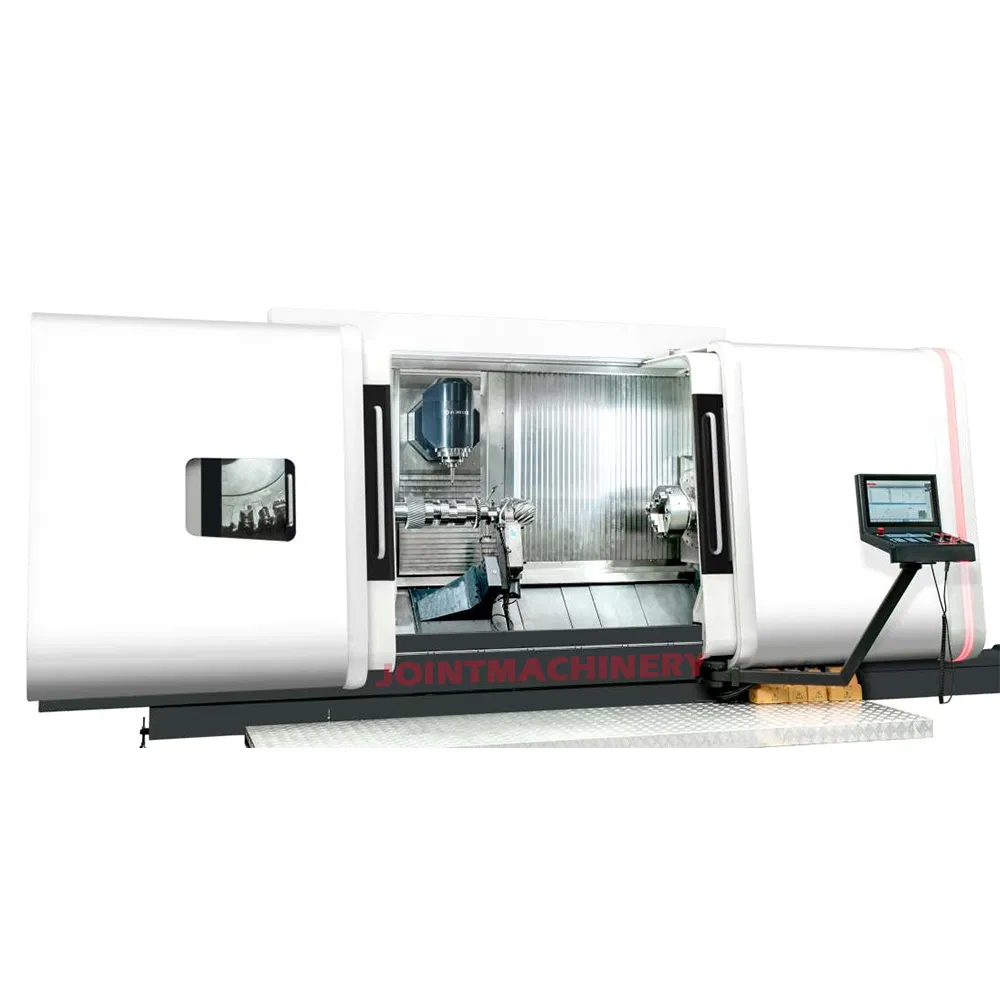

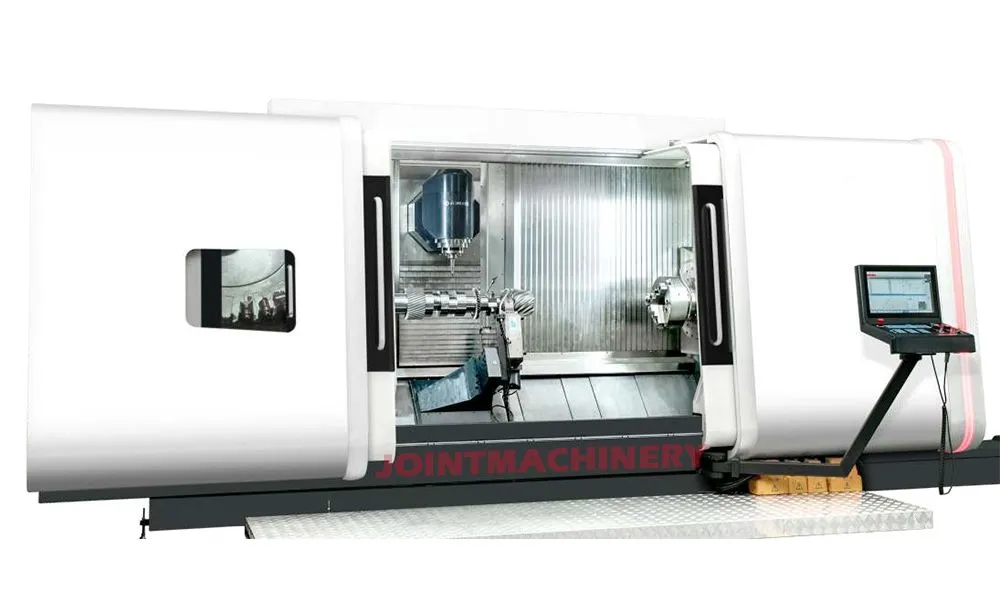

This 7-axis 5-simultaneous CNC milling and turning machine center represents the pinnacle of industrial innovation. Ideal for aerospace, shipbuilding, and precision instrument manufacturing, it allows for complex tasks like turning, milling, and drilling in a single clamping operation.

⚙️Technical Specifications

Model

CX500-3000

Application

Metal Cutting

X/Y/Z Axis Travel

560mm * 300mm * 2000mm

Max Swing Diameter

500mm

Max Turning Length

3000mm

Control Method

Closed-Loop Control

Certification

CE, ISO 9001

B Axis Range

±120°

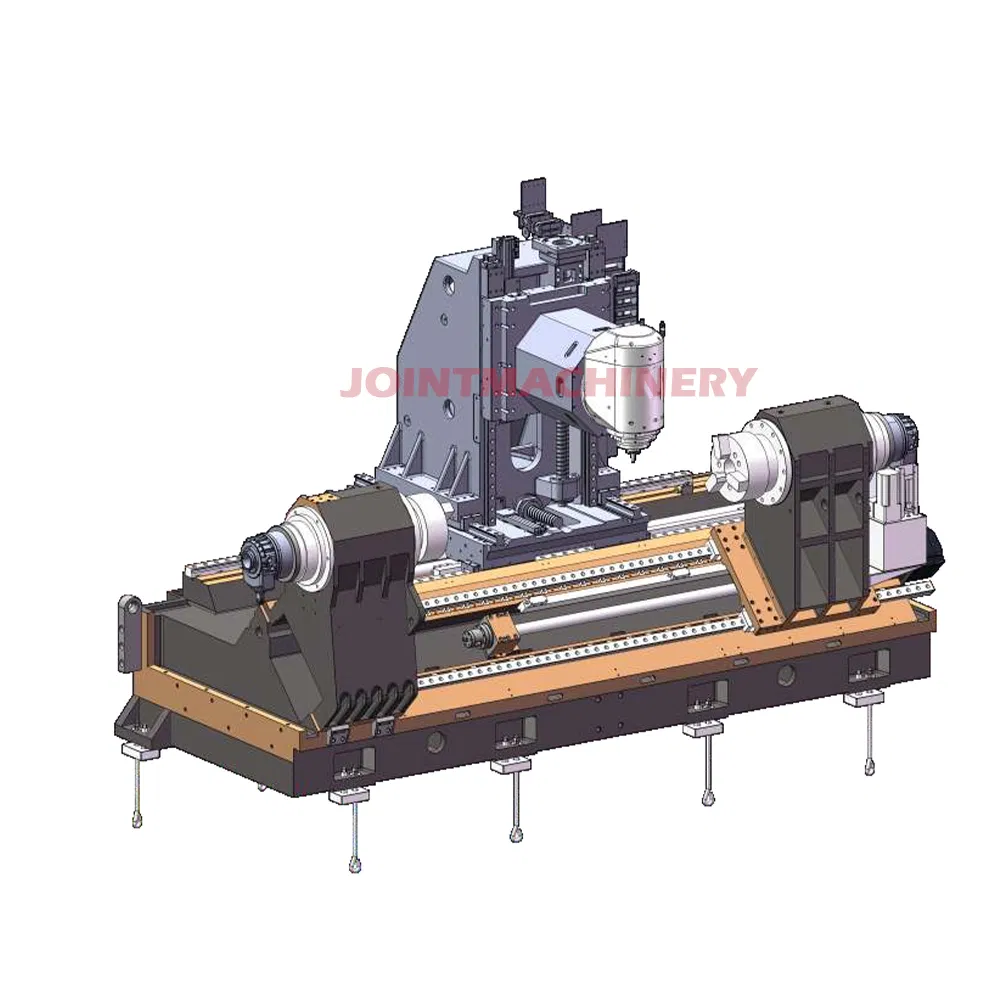

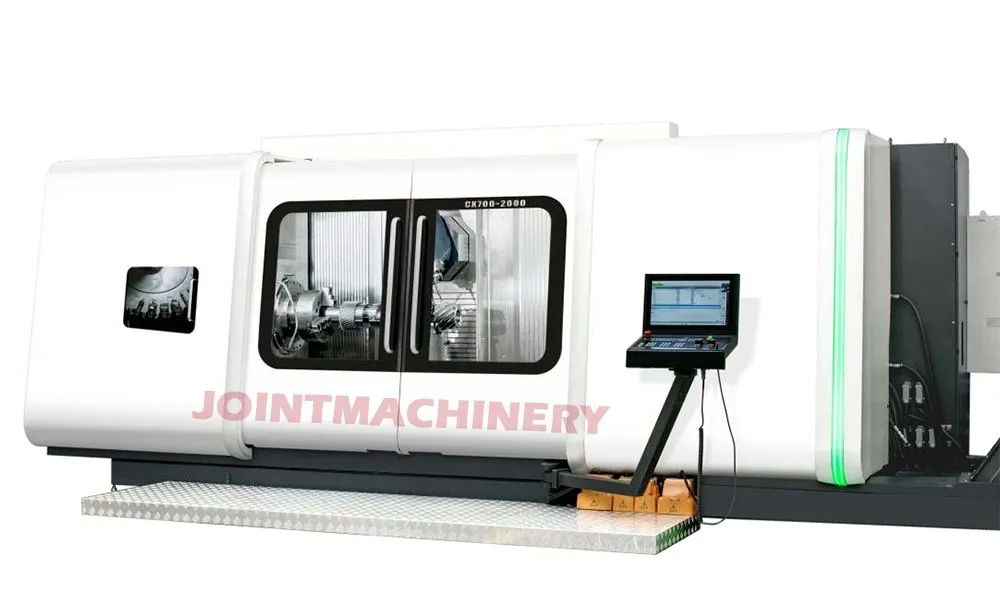

Machine Structural Features

Premium Construction: Base and moving parts are crafted from premium-grade Meehanite cast iron for maximum strength and resilience.
Energy Efficiency: Innovative energy-efficient measures can reduce consumption by up to 29%.
High Precision: B-axis direct drive motor ensures positioning accuracy within <5μm.
Advanced Motion Control: Siemens S120 drive system with 1FT series motors for superior dynamics.

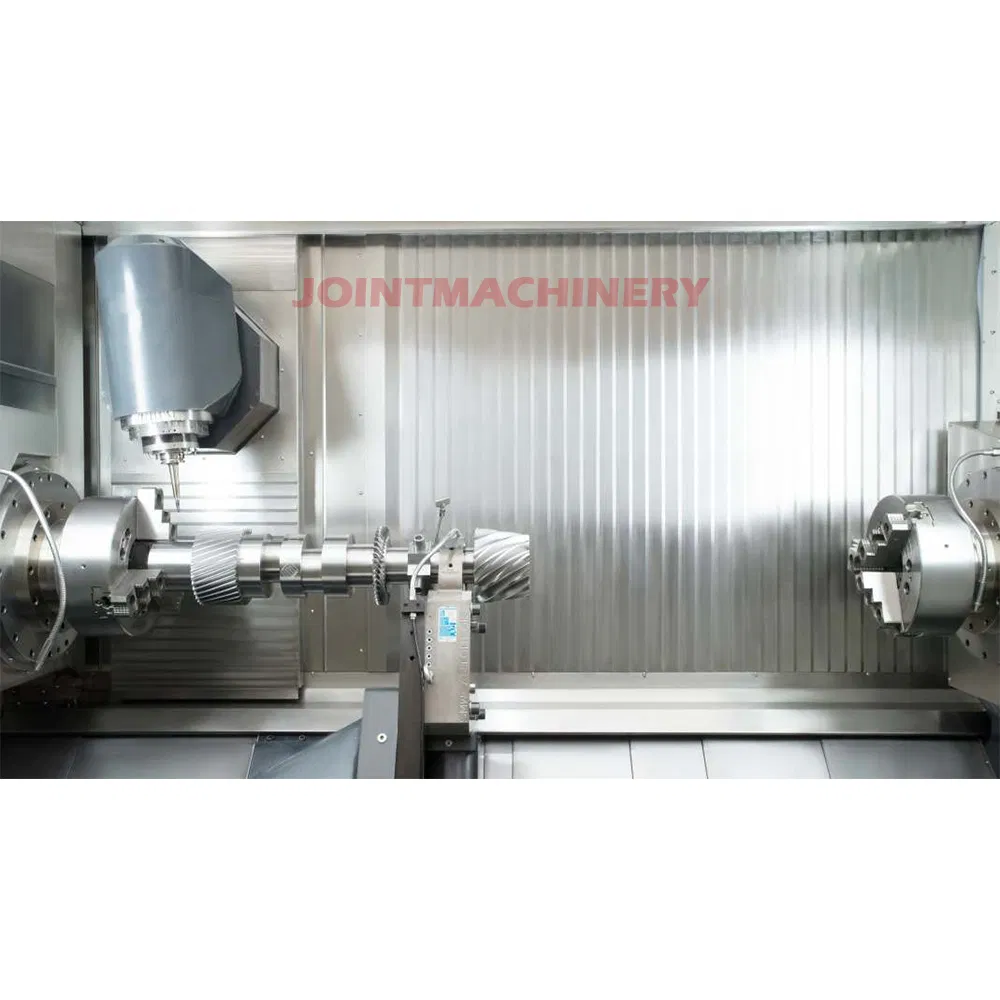

Versatile Machining: Integrated milling and turning processes with high stability.

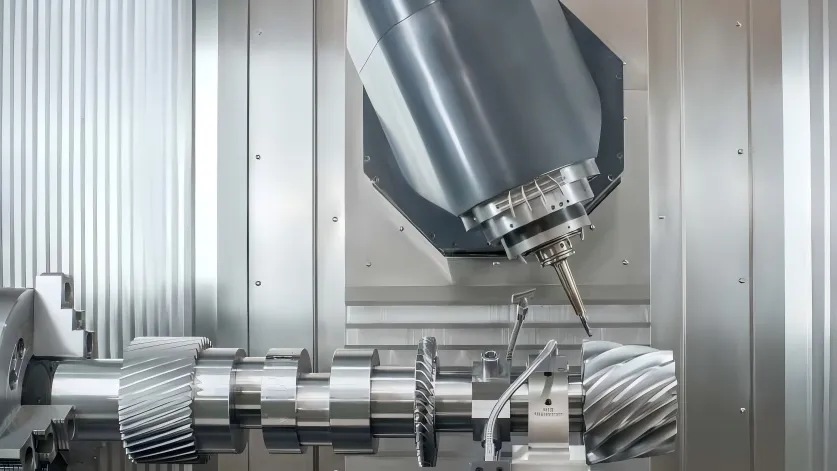

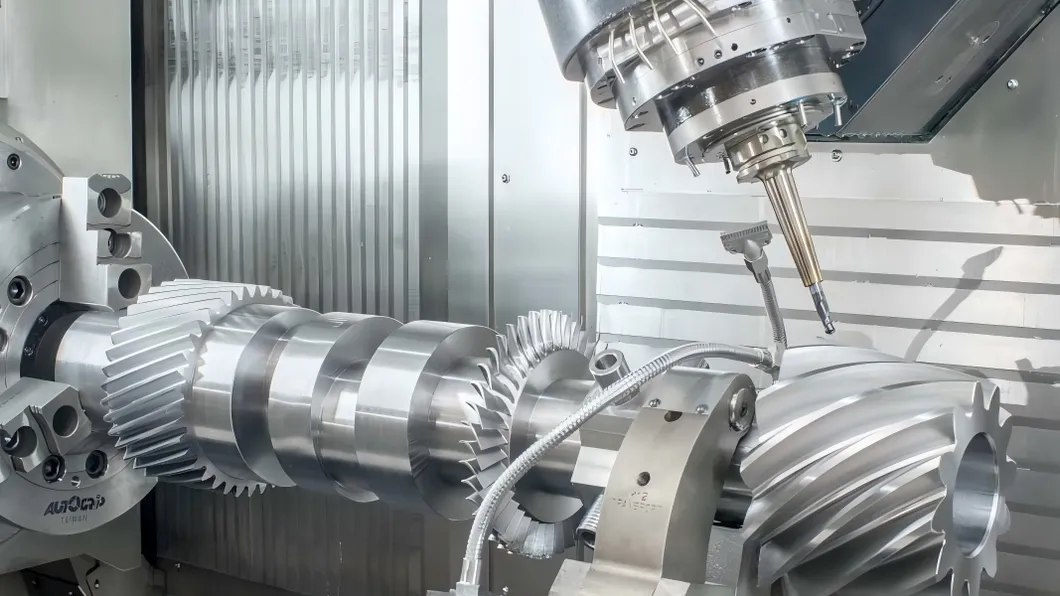

🎯CNC Swing Milling Head

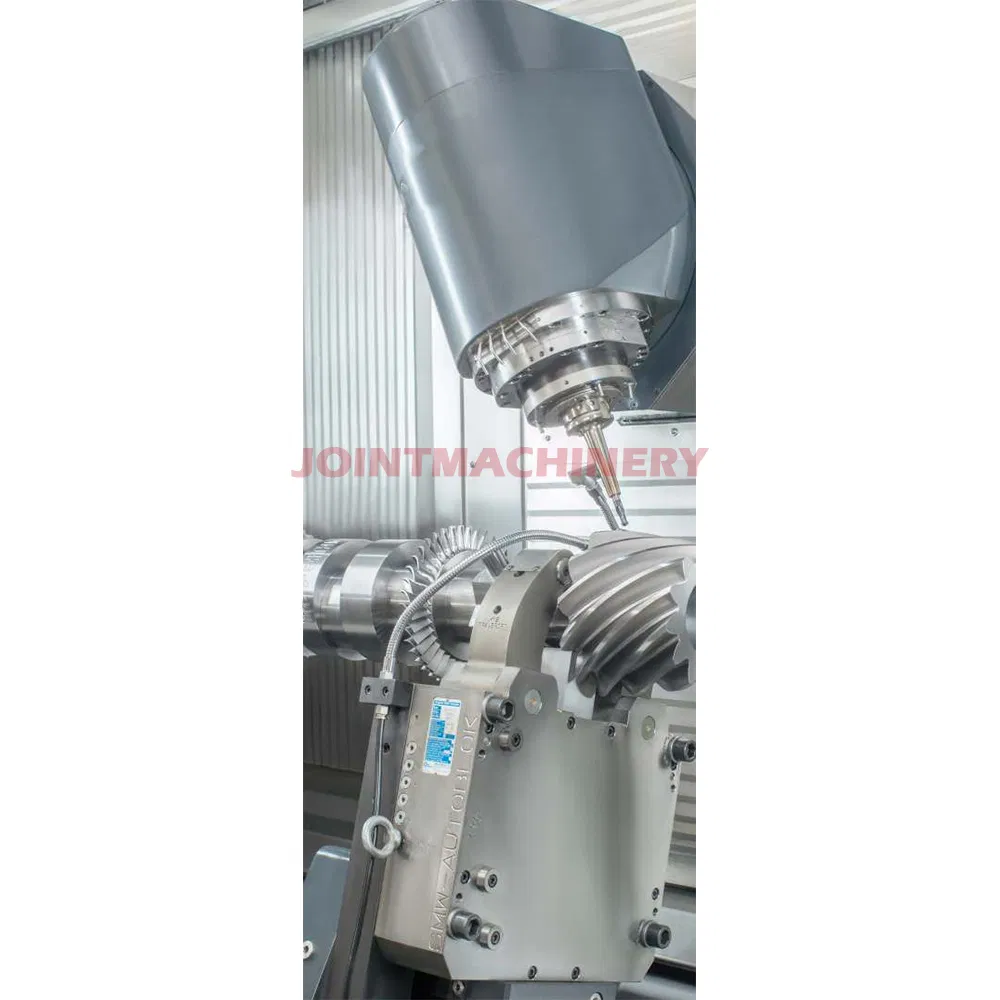

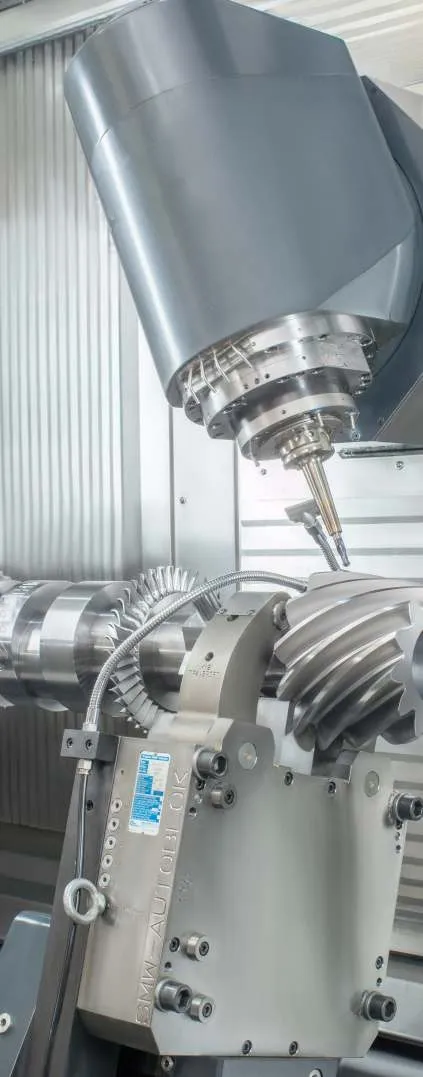

The Swing Milling Head features a state-of-the-art direct drive motor providing a rotation range of ±120°. This technology is designed for high-performance milling and five-axis linkage processing.

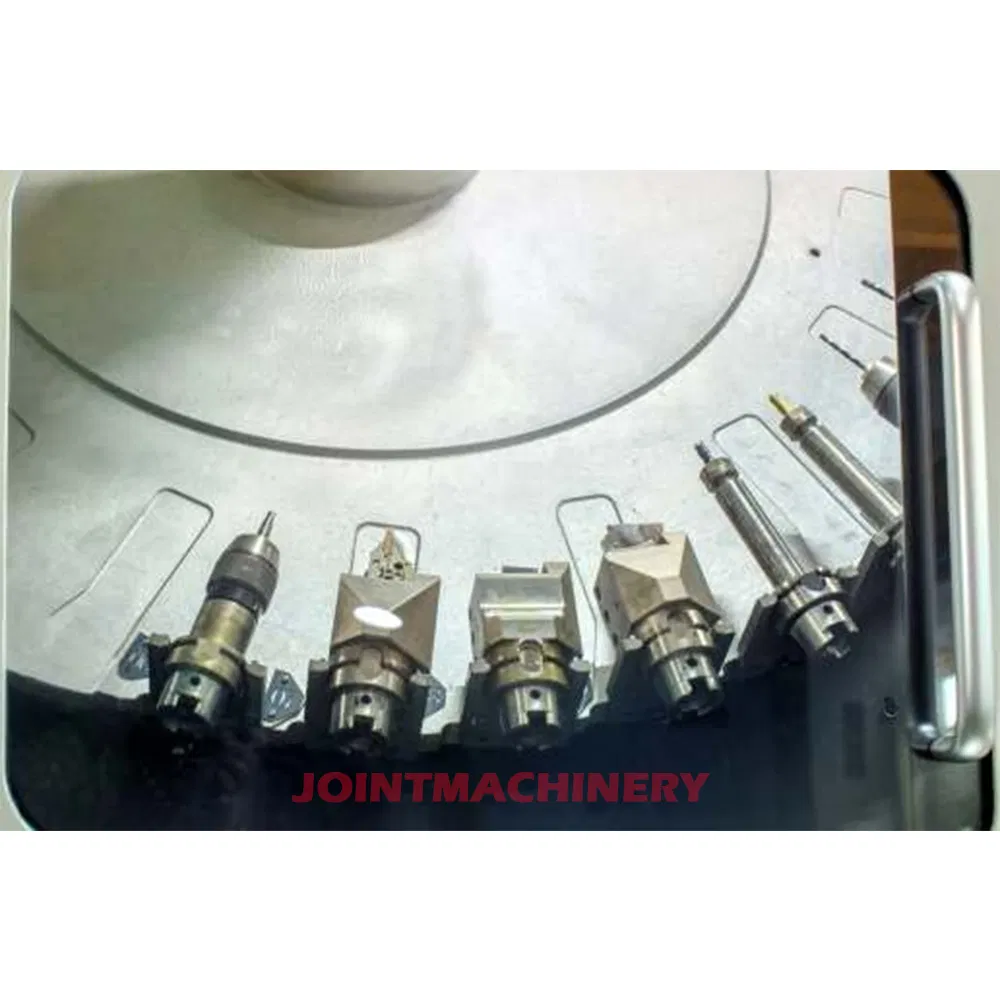

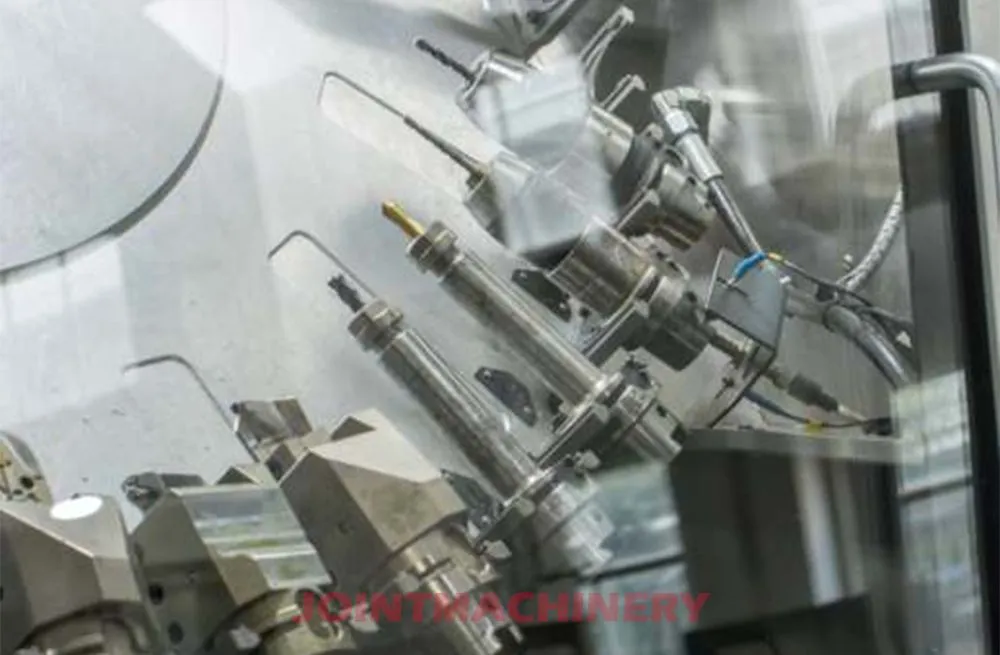

🔧Automatic Tool Changing System

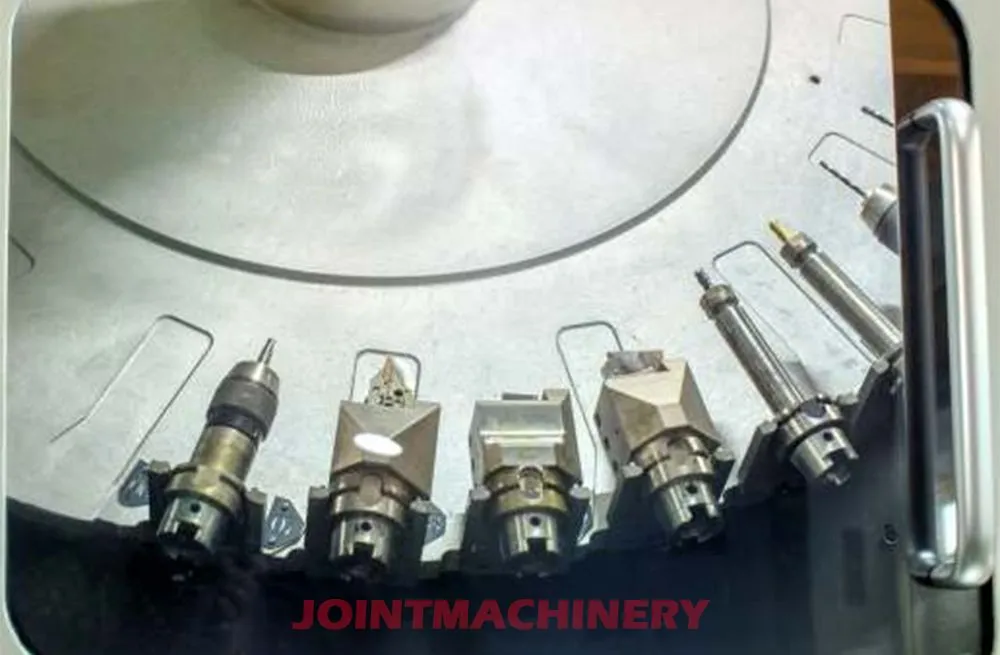

Standard disc magazine with 24 positions (expandable to 36 or 48).
Servo motor controlled selection for flawless tool changes.
Integration with SINUMERIK ONE tool management.
Automatic tool setting instrument for wear detection and correction.

Detailed Parameter Table

Specification Detail		Turning/Milling Spindle	Sub-Spindle
Max Speed	-	12000 rpm	5000 rpm
Power (S1-100%)	-	54 kW	35.5 kW
Max Torque	-	175/211 Nm	282/398 Nm
X/Y/Z Accuracy	0.008mm	Repeat: 0.006mm
Rapid Traverse	40m/min	Tool Change Time: 4s
Tool Interface	HSK-T63	Magazine: 24PCS

Frequently Asked Questions

What are the main industrial applications for this machine?

This machine is widely used in aerospace, shipbuilding, precision instruments, and the automotive industry for complex tasks like aircraft engine rotors, large ship propellers, and crankshafts.

What is the rotation range of the B-axis?

The B-axis swing milling head features a rotation range of ±120°, powered by a direct drive motor for precision positioning accuracy of less than 5μm.

How many tools can the automatic magazine hold?

The standard disc tool magazine holds 24 positions, but it can be optionally expanded to 36 or 48 positions to suit complex machining needs.

What material is the machine base made of?

The base and moving parts are constructed using premium-grade Meehanite cast iron, which undergoes tempering and natural aging treatments to eliminate internal stress.

Which control system does the machine use?

The standard configuration features the Siemens SINUMERIK ONE system, with an optional Heidenhain system available upon request.

What is the rapid traverse speed of the axes?

The machine achieves a high-efficiency rapid traverse speed of 40m/min for the X, Y, and Z axes.
