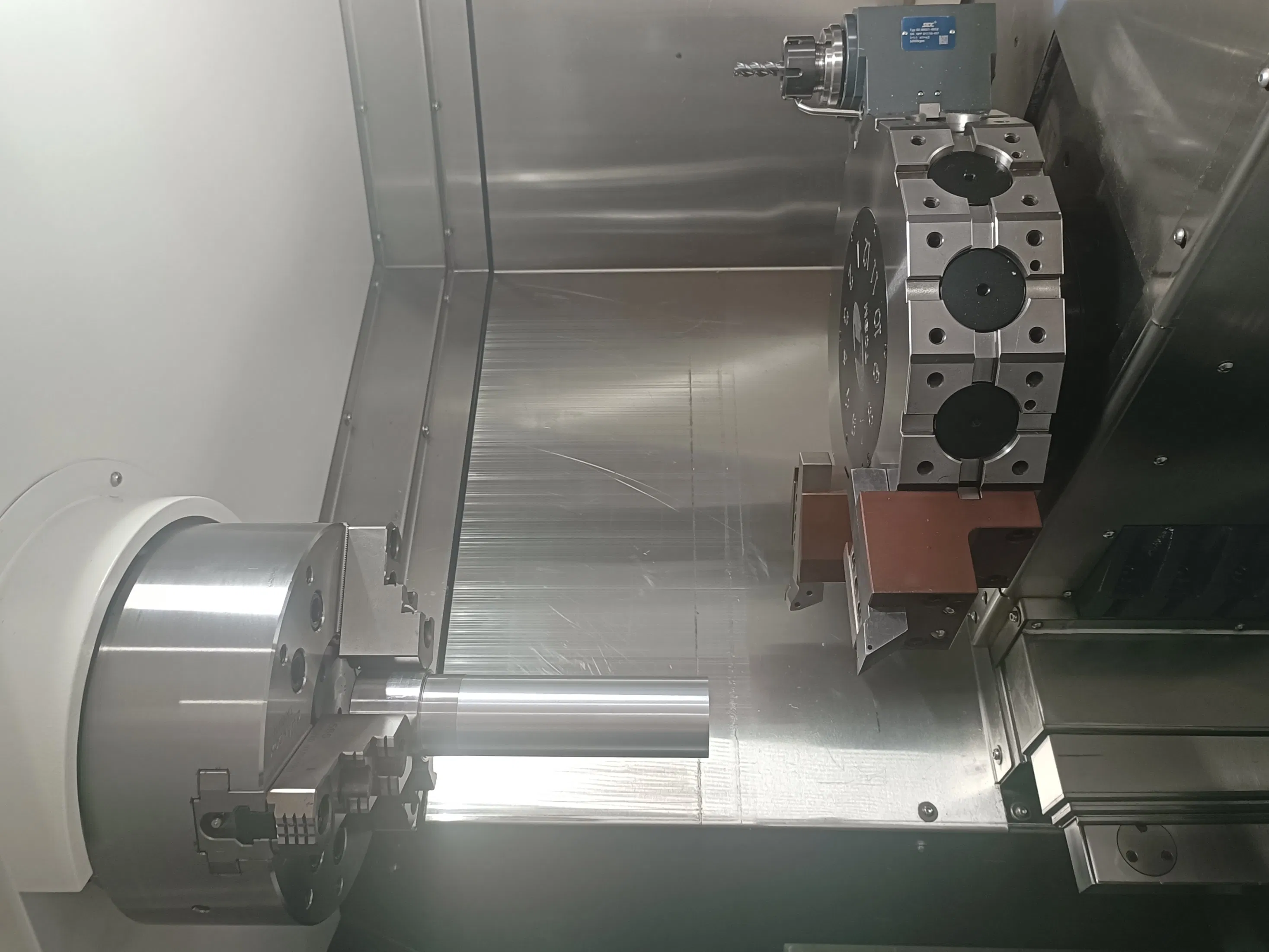

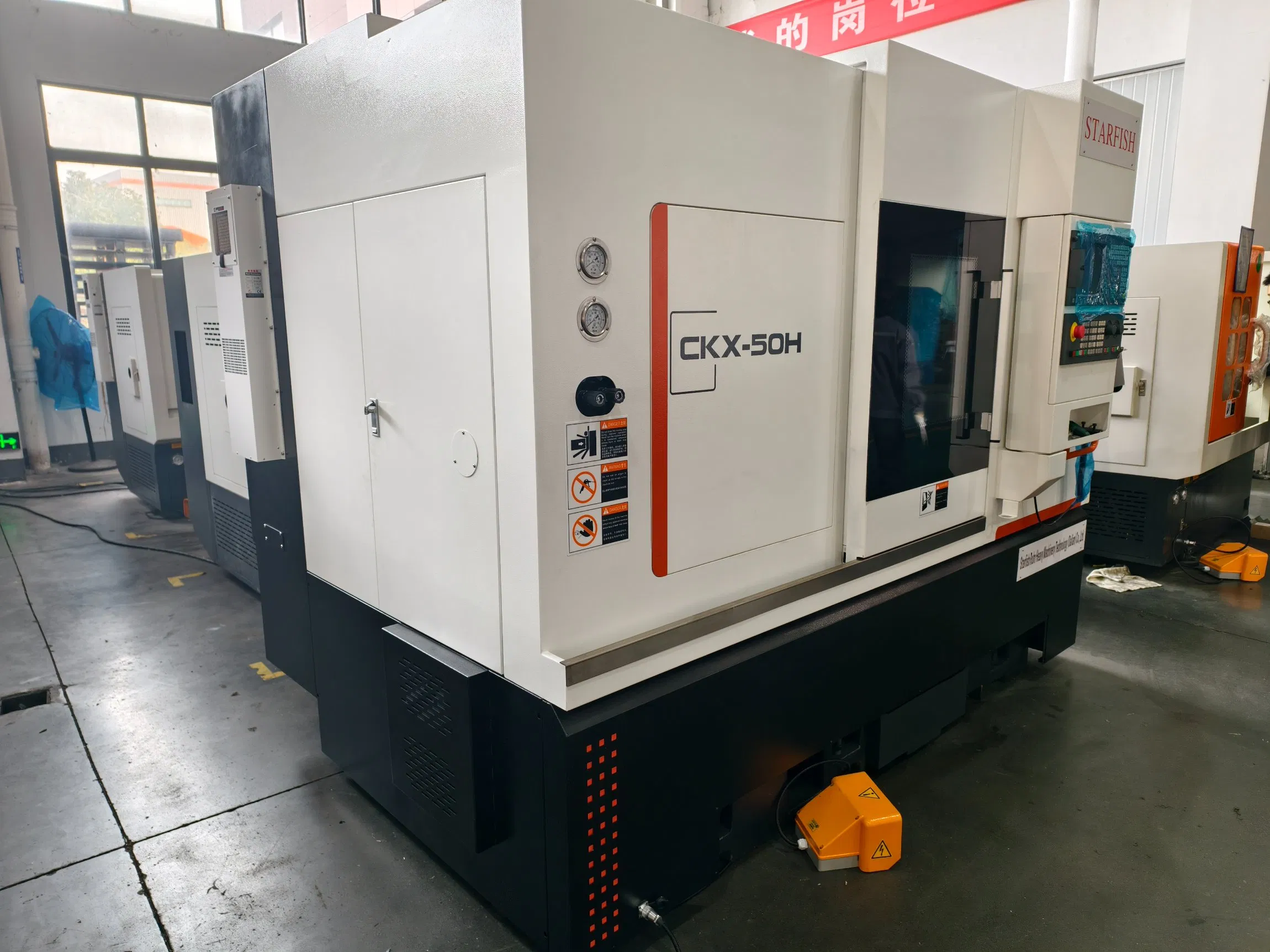

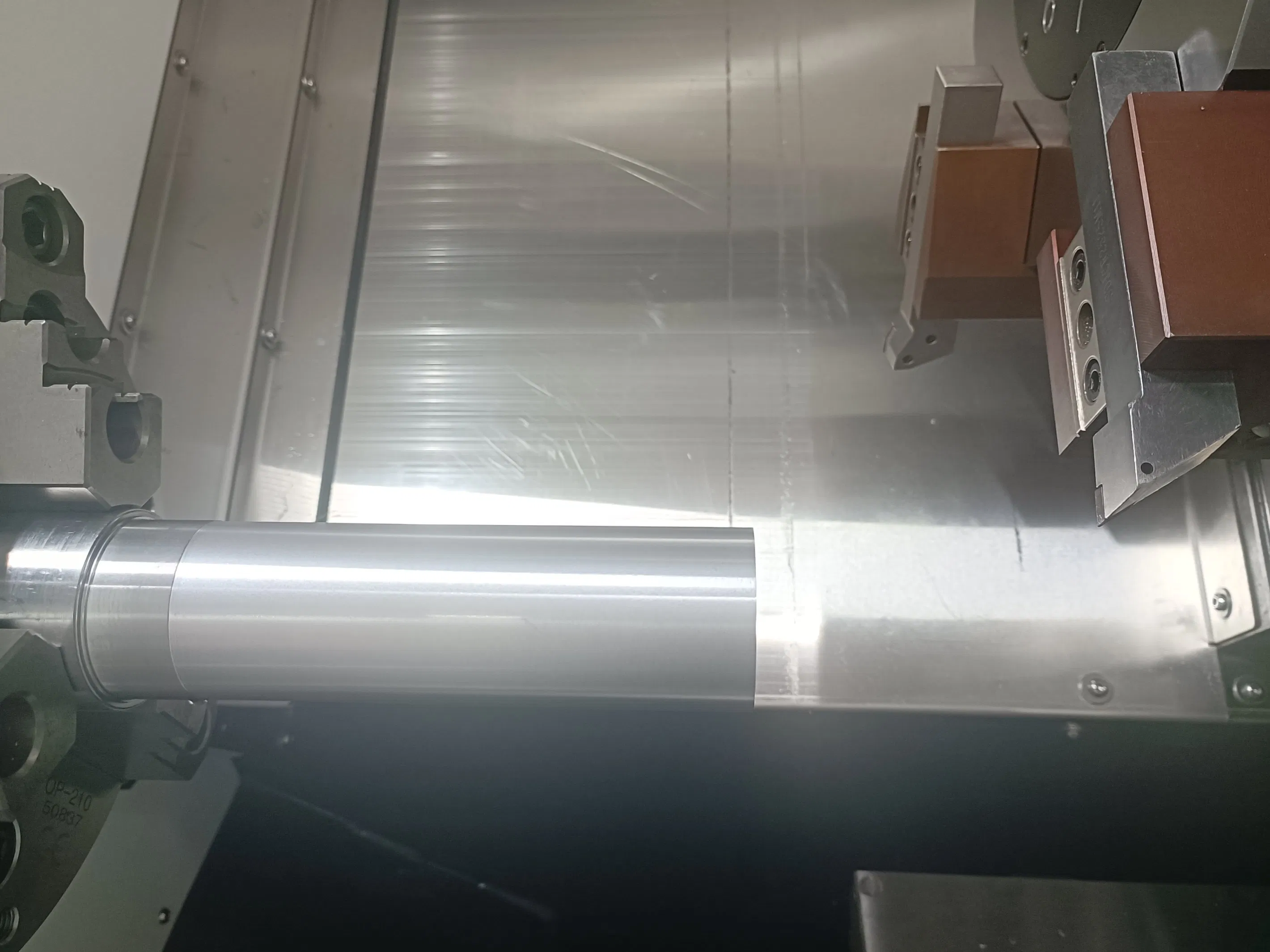

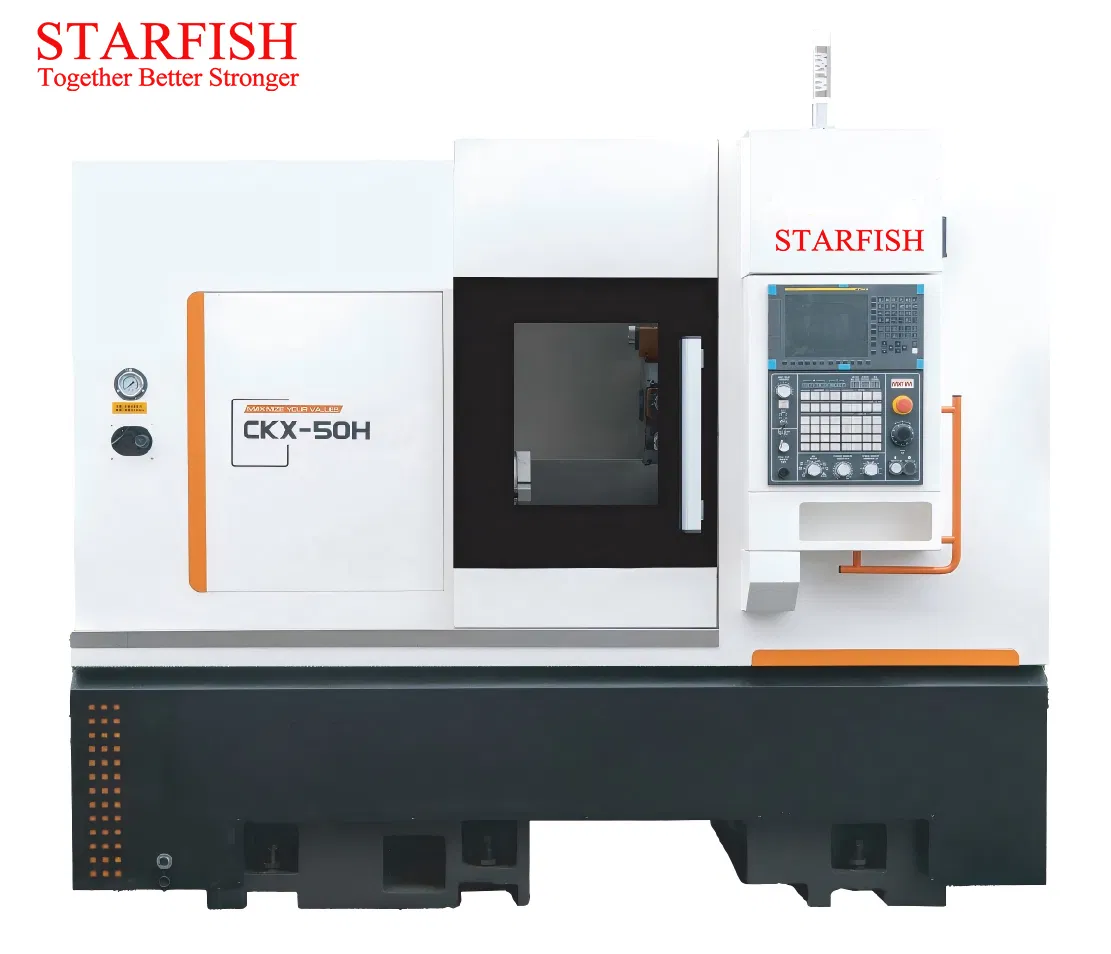

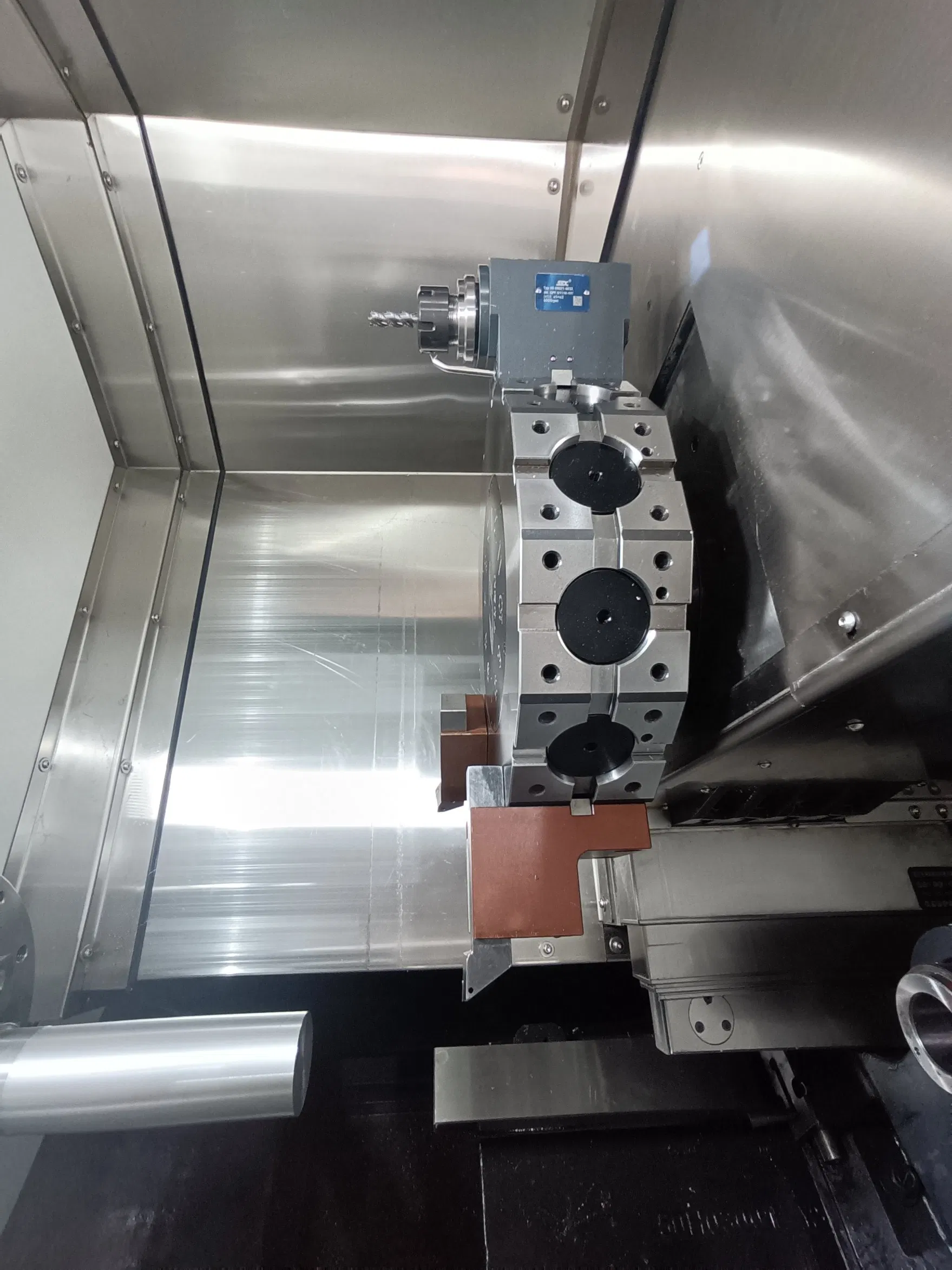

3 Axis Slant Bed CNC Turning Milling Center with Turning Preicision 0.003mm

1 / 5

3 Axis Slant Bed CNC Turning Milling Center with Turning Preicision 0.003mm

Customization:	Available
After-sales Service:	Provided
Warranty:	1 Year

Send Inquiry

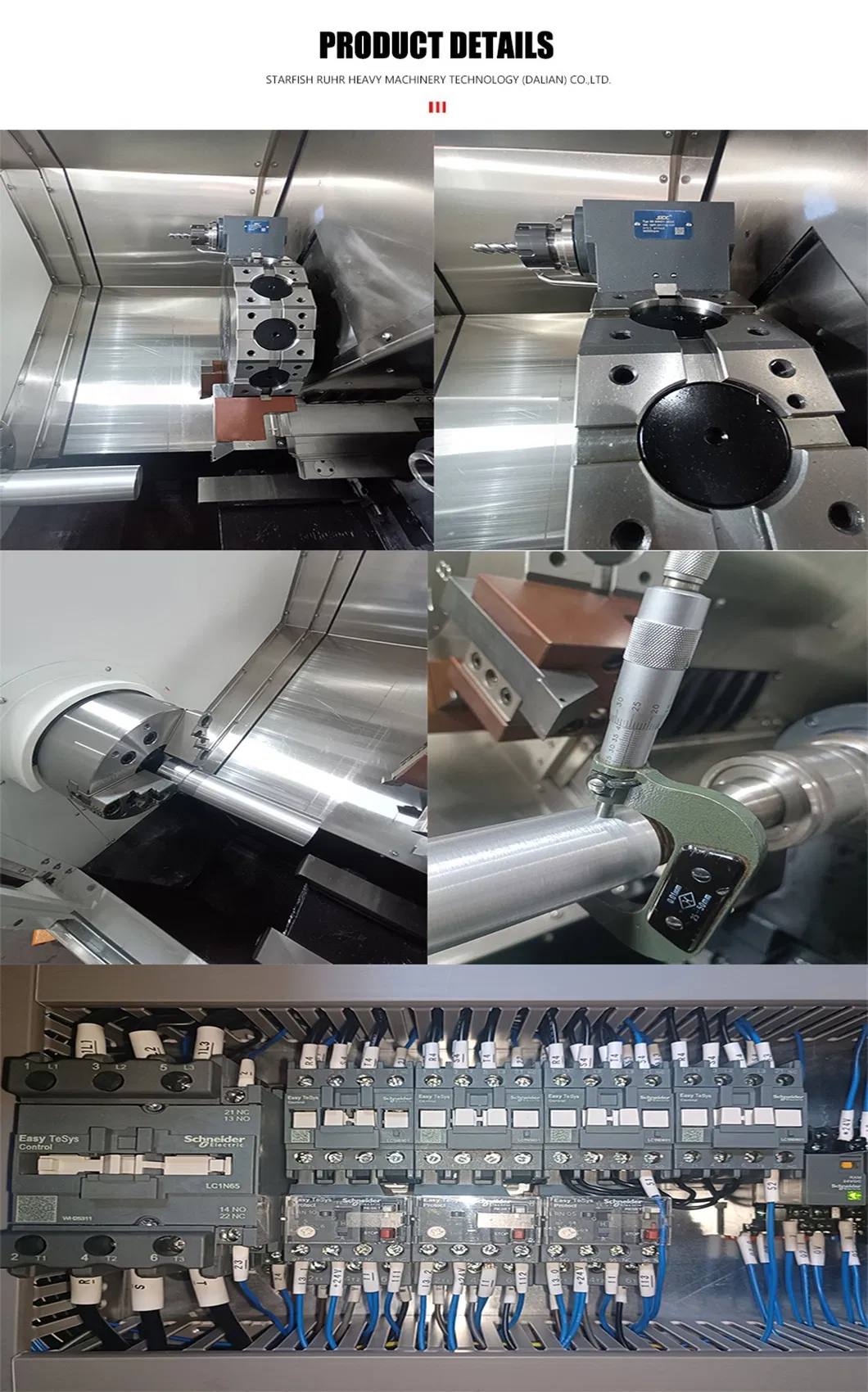

Product Description

Basic Information

Model NO.

CKX40H CKX50H CKX60H

Type

Horizontal Lathe

Processing Accessory

Centre CNC Lathe

Guide Rail

Horizontal Guide Rail

Tool Holder

Single-tool Holder CNC Lathe

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

Product Name

CNC Heavy Duty Lathe

Swing Over Bed

1250 to 2000mm

Packaging & Delivery

Package Size

500.00cm * 200.00cm * 200.00cm

Gross Weight

12000.000kg

Product Description

We provide advanced technical and engineering solutions for key industries, focused on high-precision heavy machinery. Our products are backed by CE, ISO, and SGS certifications to ensure the highest quality standards.

Product Parameters

Item	Unit	CKX40HM	CKX50HM	CKX60HM
Max. swing over bed	mm	Ф460	Ф560	Ф700
Max. swing over carriage	mm	Ф230	Ф280	Ф320
Max. Turning dia (disc/shaft)	mm	Ф280/Ф220	Ф310/Ф260	Ф400/Ф300
Max. turning length	mm	250	400	630
Hollow hydraulic chuck	inch	6''/8''	8''/10''	10''
Spindle head type	mm	A2-5	A2-5	A2-8
Spindle bore diameter	mm	Ф56	Ф66	Ф93
Spindle motor power	kW	7.5/11	11/15	15/18.5
Spindle speed range	RPM	30-4000	30-4000	50-2500
Axis travel X/Z/Y	mm	230/470/±35	235/480/±50	250/720/±50
Position accuracy (X/Z)	mm	0.005/0.006	0.006/0.007	0.008/0.008
Repeatability (X/Z)	mm	0.003/0.004	0.003/0.004	0.004/0.006
Machine Weight	kg	~3000	~4000	~5700

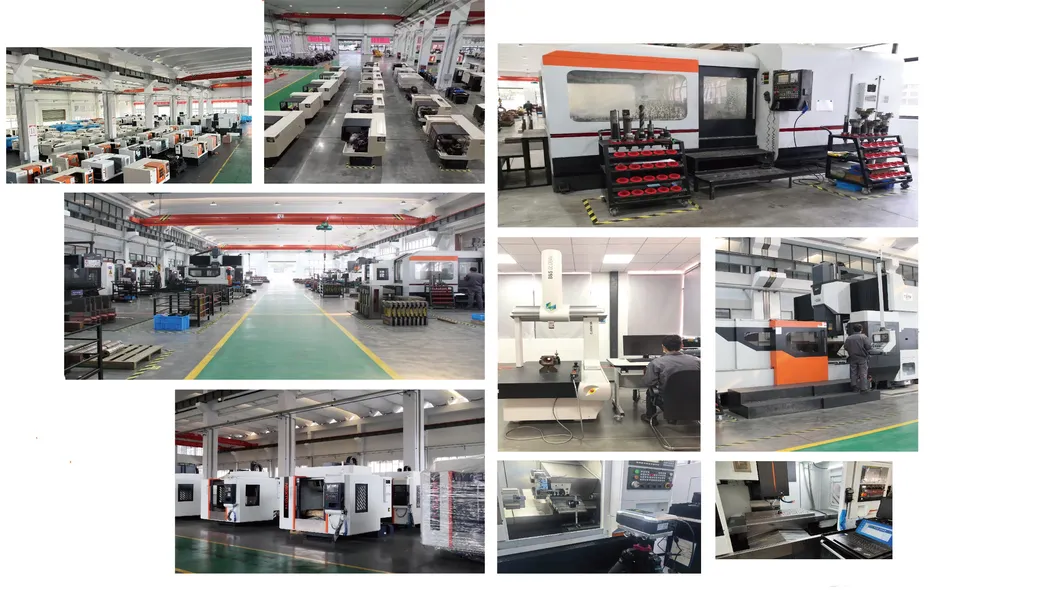

Factory Overview

Certifications

Service & Support

✔

Acceptance: Machines are pre-accepted based on standard machine acceptance content and precision inspection sheets.

✔

Installation: Technical guidance for foundation preparation, power supply, and compressed air connection is provided.

✔

Training: 1-2 days of onsite training covering component functions, operation steps, and maintenance methods.

✔

Warranty: 14 months warranty from the date of debugging in the customer workshop.

Frequently Asked Questions

How is the machine acceptance process handled?

Acceptance is performed according to standard machine acceptance protocols and includes a detailed precision inspection sheet to ensure all specifications are met.

What are the requirements for onsite installation?

The buyer must prepare the foundation based on provided charts, along with three-phase power supply, four-core cables, and a compressed air source before our technicians arrive for debugging.

What is included in the operator training program?

Training typically lasts 1-2 days and covers cable connection inspections, component identification, workpiece calibration, machine operation steps, and daily maintenance procedures.

What does the warranty cover?

The 14-month warranty covers free replacement of parts due to product quality issues. For non-quality related issues, technician support is available for a reasonable fee.

How do you provide technical support for troubleshooting?

We offer immediate online support via email, video calls, or WhatsApp. For complex issues, we can dispatch engineers directly to your workshop for onsite repair.

Do you offer support after the warranty period?

Yes, we continue to support our customers after the warranty expires. Replacement parts will be provided at a reasonable and competitive cost.
