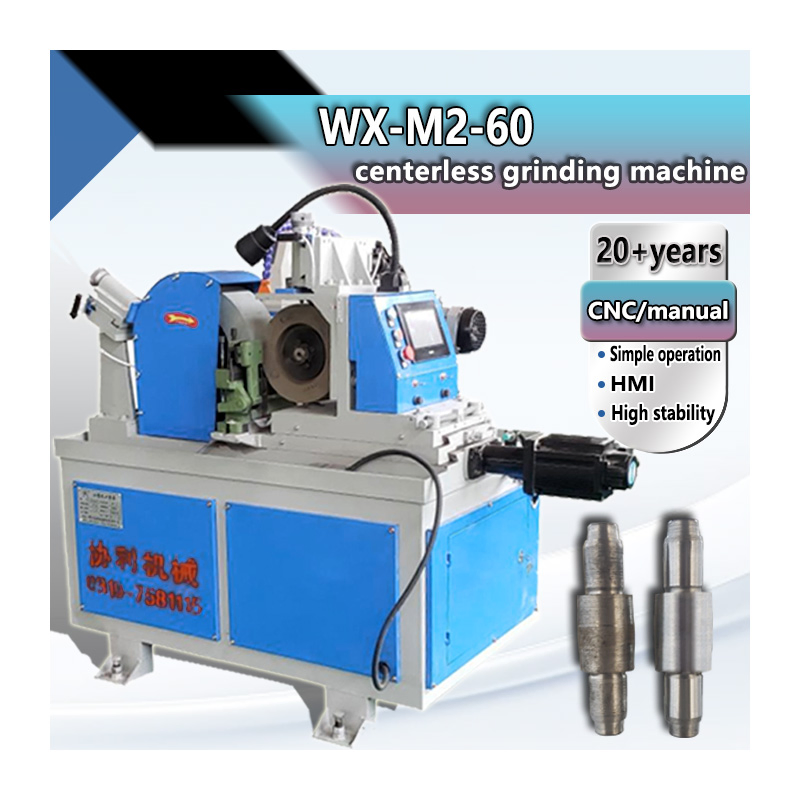

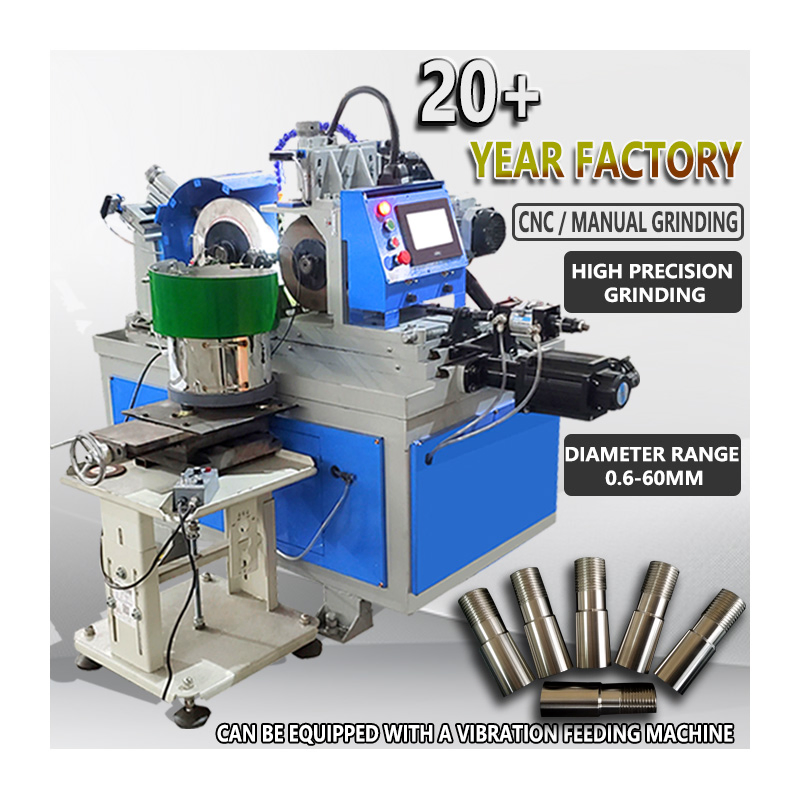

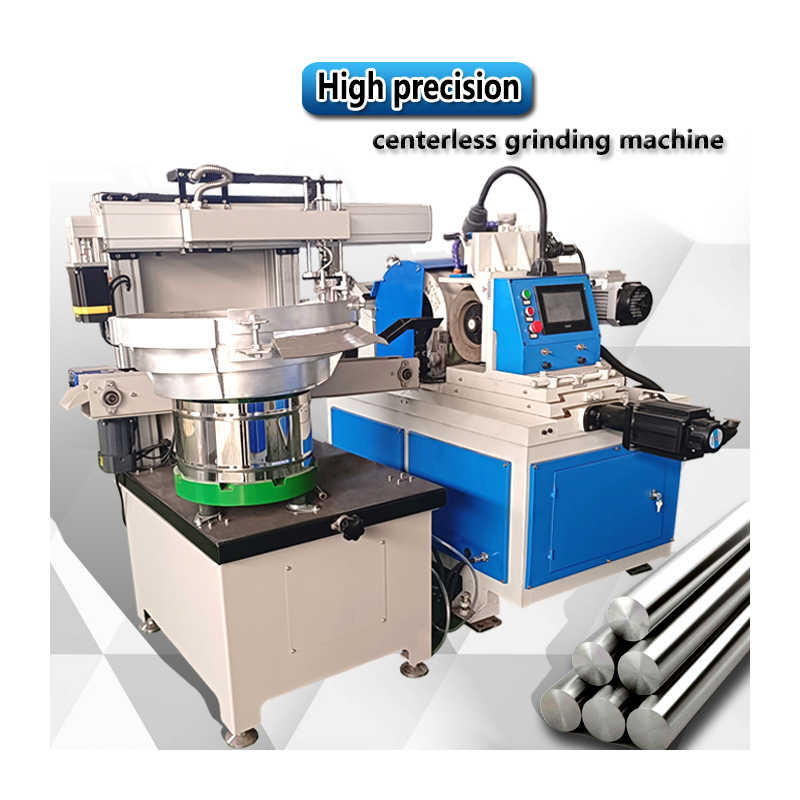

Xieli Machinery Precision CNC Centerless Grinding Machine Small Centerless Grinder with Automatic Feeding Machine
Xieli Machinery Precision CNC Centerless Grinding Machine Small Centerless Grinder with Automatic Feeding Machine
Xieli Machinery Precision CNC Centerless Grinding Machine Small Centerless Grinder with Automatic Feeding Machine
Xieli Machinery Precision CNC Centerless Grinding Machine Small Centerless Grinder with Automatic Feeding Machine
Xieli Machinery Precision CNC Centerless Grinding Machine Small Centerless Grinder with Automatic Feeding Machine
1 / 5
Xieli Machinery Precision CNC Centerless Grinding Machine Small Centerless Grinder with Automatic Feeding Machine
Xieli Machinery Precision CNC Centerless Grinding Machine Small Centerless Grinder with Automatic Feeding Machine
Xieli Machinery Precision CNC Centerless Grinding Machine Small Centerless Grinder with Automatic Feeding Machine
Xieli Machinery Precision CNC Centerless Grinding Machine Small Centerless Grinder with Automatic Feeding Machine
Xieli Machinery Precision CNC Centerless Grinding Machine Small Centerless Grinder with Automatic Feeding Machine

Xieli Machinery Precision CNC Centerless Grinding Machine Small Centerless Grinder with Automatic Feeding Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
TypeCenterless Grinding Machine
Processing ObjectThread
AbrasivesGrinding Wheel
Controlling ModeCNC
Automatic GradeManual
PrecisionHigh Precision
CertificationGS, CE, ISO 9001
ConditionNew
Diameter0.6-60mm
Grinding Wheel SpecificationP350*125*127
Machine Dimension1300*960*1300mm
Machine Tool Weight Approx1000kg
OriginChina
Product Parameters
Description Specification
Longitudinal feed grindingGrinding workpiece diameter0.8-60mm
Grinding length (max)1000mm
Horizontal feed grindingGrinding workpiece diameter2-60mm
Grinding length (max)125mm
Grinding wheel rotating speed2000r/min
Guide wheel rotating speedStepless 5-240r/min
Guide wheel rotary angleIn the vertical plane-2° -5°
In the horizontal plane-10°-10°
Accuracy (ø 20× 75 )Roundness2 μ m
Cylindricity3 μ m
RoughnessRa0.2 μ m
Grinding feed0.002mm (per grid)
Equipment power5KW
Machine Features (WX-M2-60)
Width of grinding wheel guide wheel is 125mm, with larger grinding amount and better stability.
Layout of the machine adopts the single-sided movement mode of regulating wheel frame.
Sand wheel shaft adopts overhang structure, making it convenient to replace the grinding wheel.
Guide wheel shaft adopts overhang structure, easy to replace guide wheel.
Regulating wheel adopts frequency conversion to adjust speed for different diameter workpieces.
Equipped with cutting mechanism for grinding step surfaces and cone surfaces.
Can be equipped with long workpiece through-grinding brackets.
Compatible with various automatic feeding equipment and manipulators.
Product Description & Photos

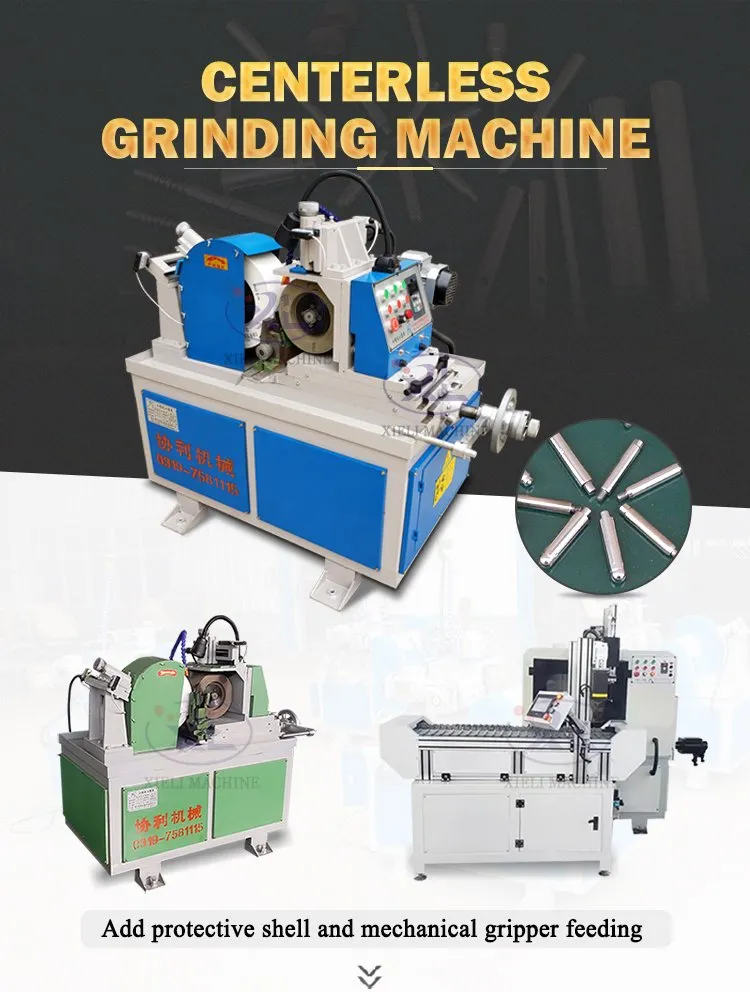

Grinding Machine Overview

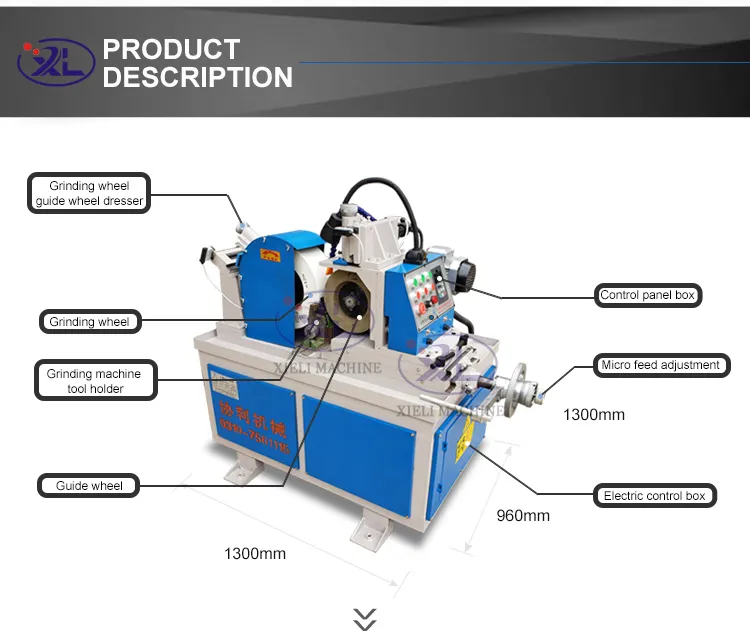

Grinder Side View
Detailed Photos

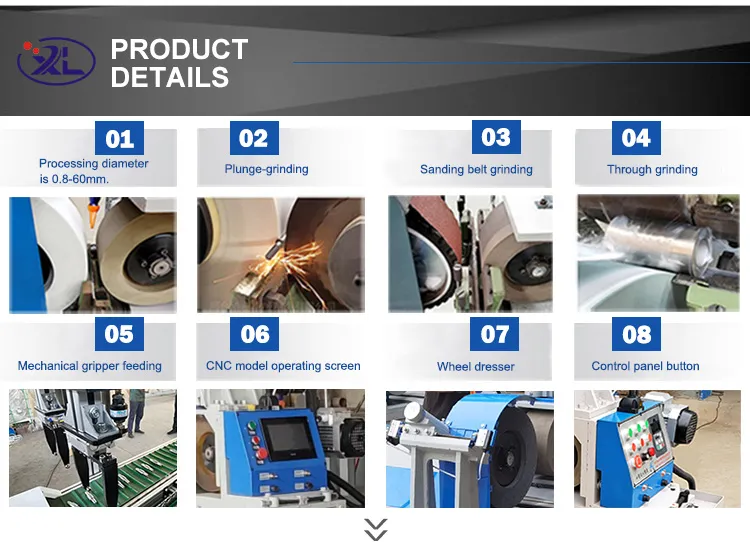

Detailed Component View
Other Optional Parts

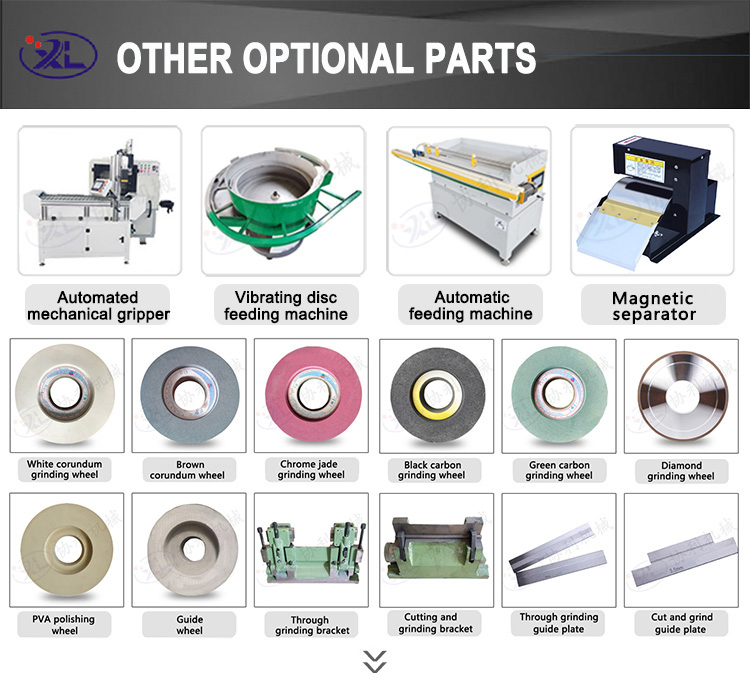

Optional Parts
Grinding Case
Application Case
Packaging & Shipping
Export Packaging
Buyer Feedback
Customer Feedback
Factory Visit
Factory Visit 1

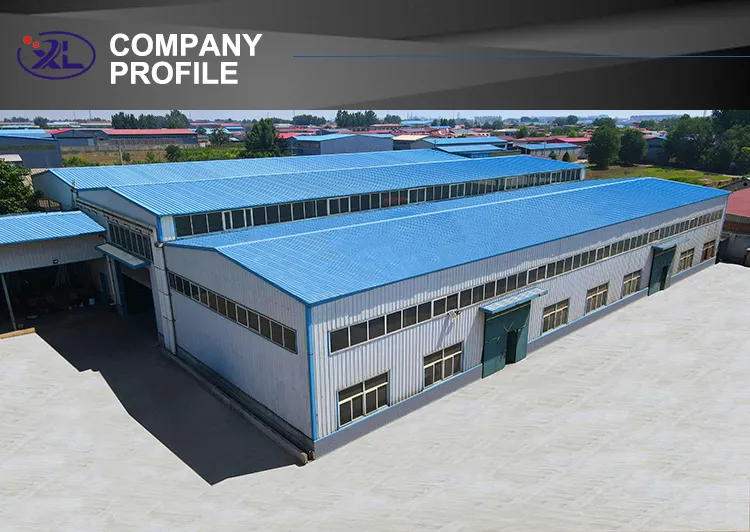

Factory Visit 2
Factory Visit 3
Frequently Asked Questions
What is the processing diameter range for this centerless grinder?
The machine can process workpiece diameters ranging from 0.8mm to 60mm for longitudinal grinding and 2mm to 60mm for horizontal feed grinding.
What level of grinding precision can be achieved?
The equipment achieves high precision with a roundness of 2μm, cylindricity of 3μm, and a surface roughness of Ra0.2μm.
Does this machine support automatic operation?
While the base model is manual grade with CNC control mode, it is designed to be easily matched with a variety of automatic feeding equipment and automatic manipulators for semi-automatic or automatic production.
Can it grind tapered or stepped surfaces?
Yes, the machine tool is equipped with a cutting mechanism specifically designed to realize the grinding of step surfaces and cone surfaces.
Is it easy to change the grinding wheels?
Yes, both the sand wheel shaft and the guide wheel shaft adopt an overhang structure, which makes replacing the wheels very convenient and efficient.
What are the power requirements for the equipment?
The total equipment power is 5KW, operating on a 380V 50Hz 3P power supply. This includes motors for the grinding wheel (4.0kw), guide wheel (0.75kw), and cooling pump (0.09kw).
