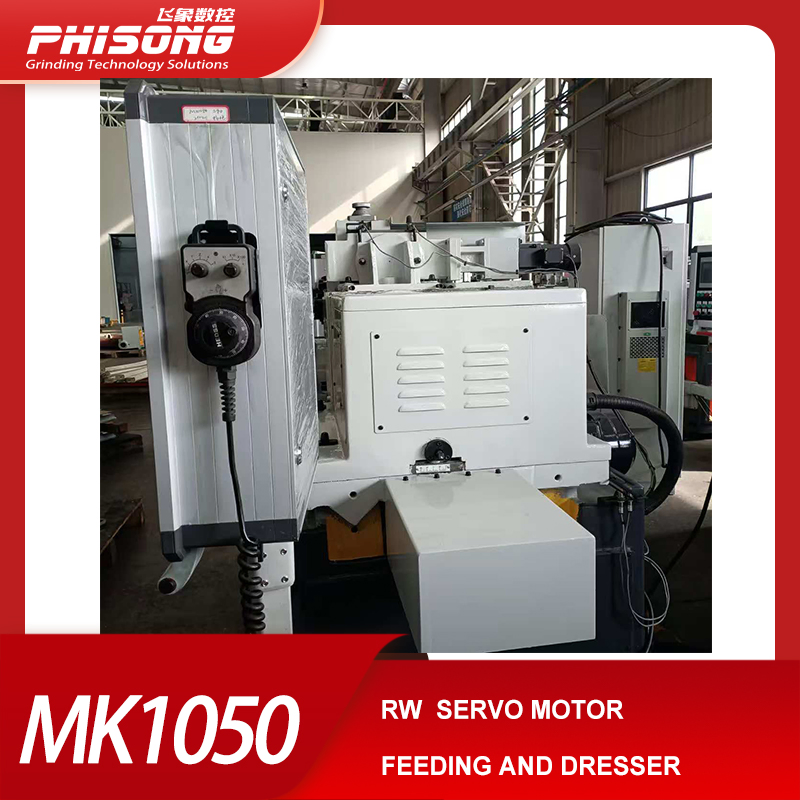

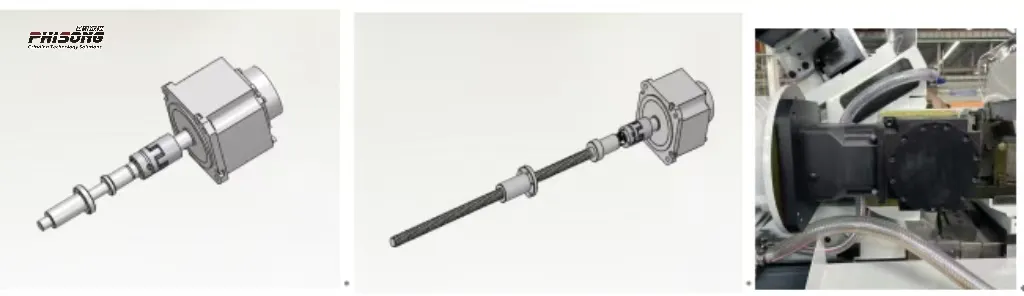

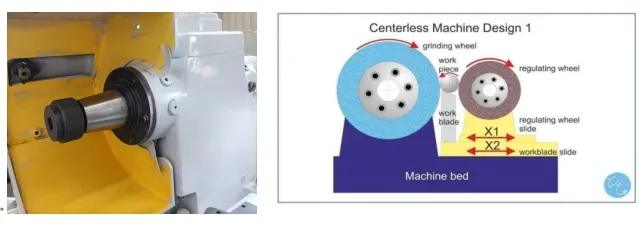

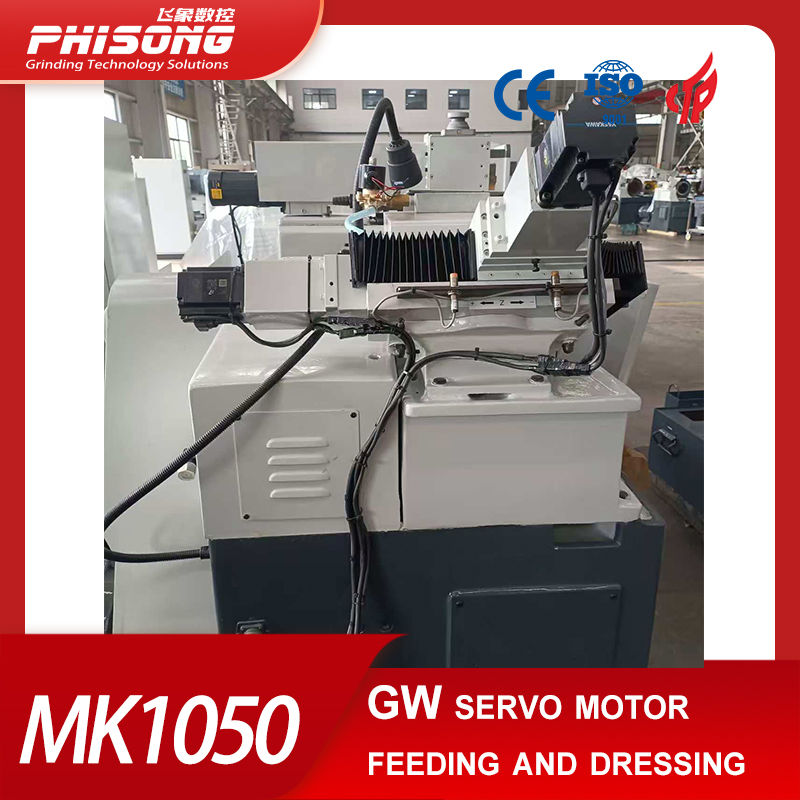

The cross shaped roller guideway & ball screw equipped servo motor supports the regulating wheel feeding. Servo motor drives ball-screw through shaft coupling, min. feed 0.001mm.
| Parameter Item | Specifications |
|---|---|

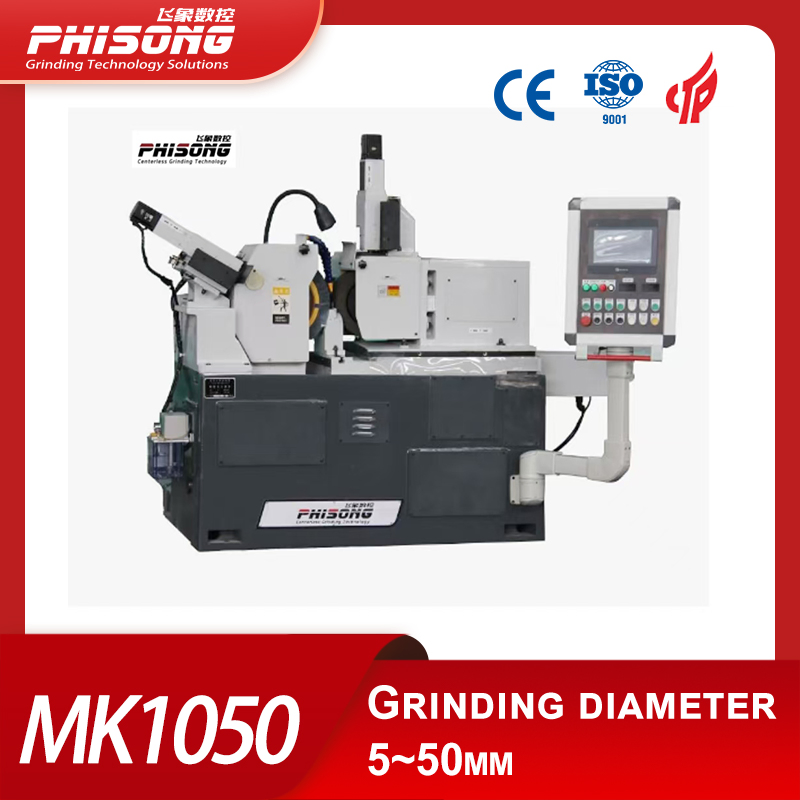

| Thru-feed Grinding Diameter | 5-50mm |
| Thru-feed Grinding Length | 120mm |
| Plunge feed Grinding Diameter | 7-50mm |
| Plunge feed Grinding Length | 120mm |
| Grinding Wheel Specifications | P400*150*203mm |
| Regulating Wheel Specifications | PSA300*150*127mm |
| Grinding Wheel Speed | 1668r/min |
| Regulating Wheel Speed | 20-200r/min (stepless) |
| Feed Handwheel Min Division | 0.001mm |
| Total Power | 13.78kw |
| Roundness | 0.002mm |
| Cylindricity | 0.003mm |
| Surface Roughness | Ra0.32um |
| Name | SPEC. | QTY | Brand |
|---|---|---|---|

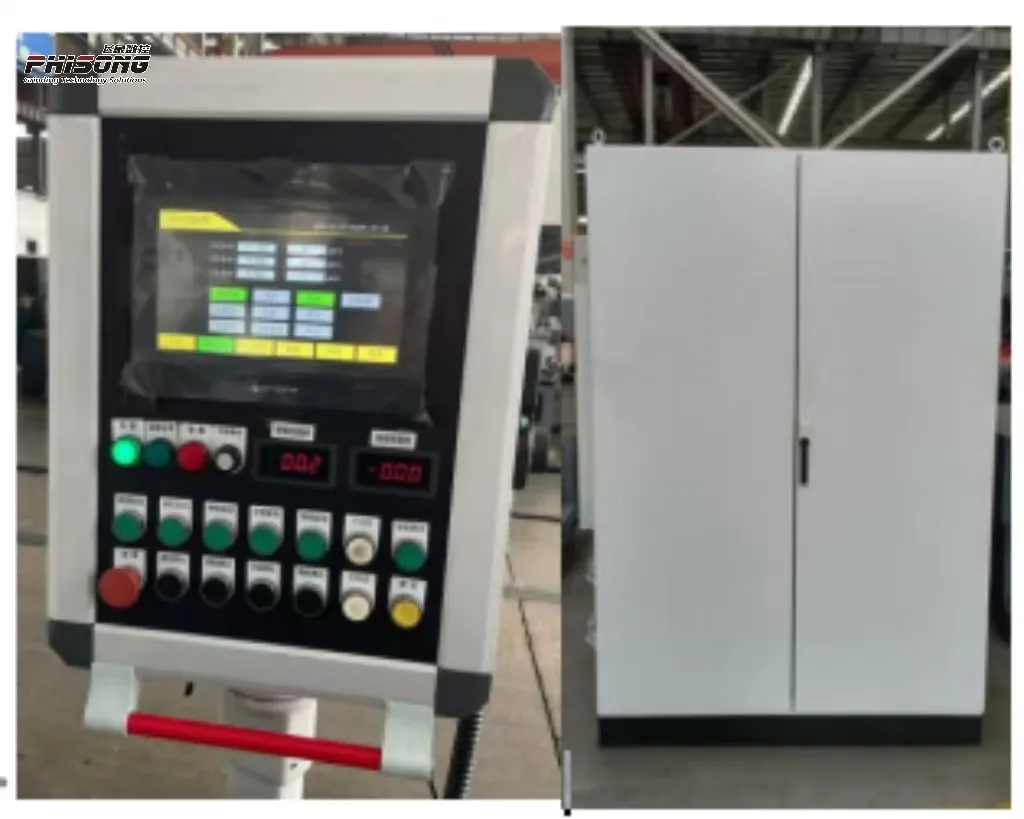

| Control system PLC | Q/R series | 1 set | Mitsubishi |
| Servo motor | - | 3 set | Yaskawa |
| Operation display screen | 10' | 1 set | Weinview |
| Ball screw | - | 3 sets | Nanjing |
| Grinding wheel motor | - | 1 pc | Chisheng |
| Low-voltage apparatus | - | 1 set | Chint |
Known for professional centerless grinding technology at home and abroad, our team inherits and absorbs the essence of the advantages on cylindrical grinding machines, centerless grinding machine design, production and manufacturing industry. Our products are selected by a number of famous Top-500 enterprises and exported to countries and regions in Europe, America, Russia, and Southeastern Asia.

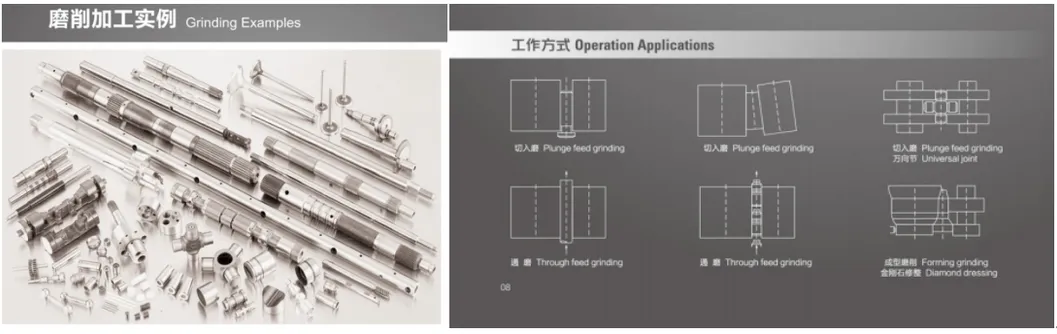

Adopted with ISO9001 international quality management system, we customized professional processing technology for customers to improve processing levels and production efficiency. From micro nozzle needles to high precision pump pistons to heavy rail shafts, we continue to develop centerless grinding technology, winning wide praise.
