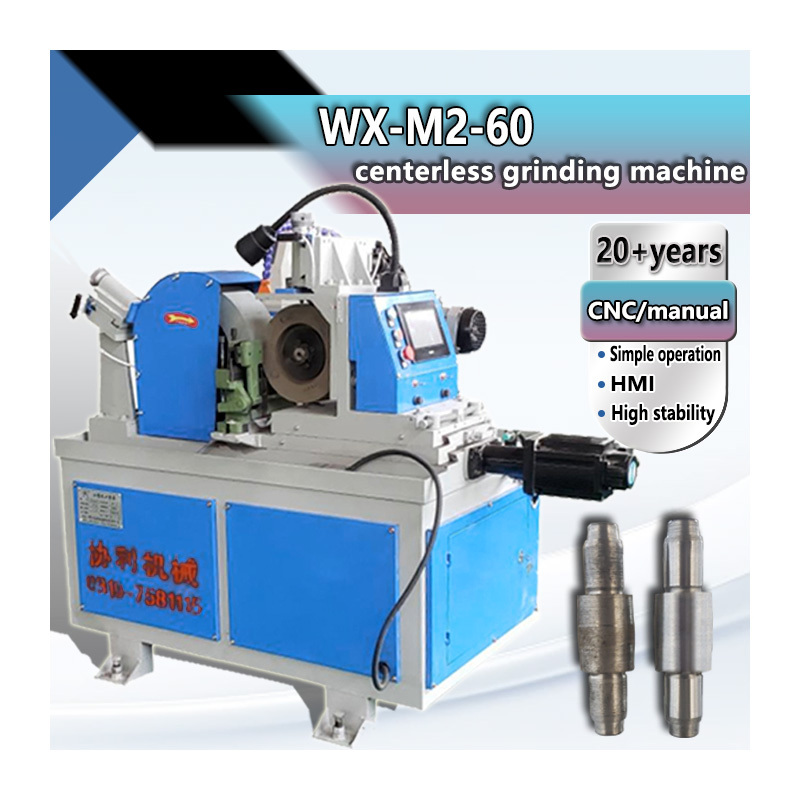

Xieli Machinery Automatic CNC Centerless Grinding Machine Precision Centerless Grinding Machine with Diamond Grinding Wheel
Xieli Machinery Automatic CNC Centerless Grinding Machine Precision Centerless Grinding Machine with Diamond Grinding Wheel
Xieli Machinery Automatic CNC Centerless Grinding Machine Precision Centerless Grinding Machine with Diamond Grinding Wheel
Xieli Machinery Automatic CNC Centerless Grinding Machine Precision Centerless Grinding Machine with Diamond Grinding Wheel
Xieli Machinery Automatic CNC Centerless Grinding Machine Precision Centerless Grinding Machine with Diamond Grinding Wheel
1 / 5
Xieli Machinery Automatic CNC Centerless Grinding Machine Precision Centerless Grinding Machine with Diamond Grinding Wheel
Xieli Machinery Automatic CNC Centerless Grinding Machine Precision Centerless Grinding Machine with Diamond Grinding Wheel
Xieli Machinery Automatic CNC Centerless Grinding Machine Precision Centerless Grinding Machine with Diamond Grinding Wheel
Xieli Machinery Automatic CNC Centerless Grinding Machine Precision Centerless Grinding Machine with Diamond Grinding Wheel
Xieli Machinery Automatic CNC Centerless Grinding Machine Precision Centerless Grinding Machine with Diamond Grinding Wheel

Xieli Machinery Automatic CNC Centerless Grinding Machine Precision Centerless Grinding Machine with Diamond Grinding Wheel

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.:WX-M2-60
Type:Centerless Grinding Machine
Processing Object:Curve
Abrasives:Grinding Wheel
Controlling Mode:CNC
Automatic Grade:Manual
Cylindrical Grinder:Plunge Cylindrical Grinder
Precision:High Precision
Certification:GS, CE, ISO 9001
Condition:New
Diameter:0.6-60mm
Grinding Wheel:P350*125*127
Guide Wheel:P250*125*75
Wheel Speed:2000r/Min
Guide Wheel Speed:Stepless 5-240r/Min
Weight:Approx 1000kg
📊 Product Parameters
Longitudinal feed grinding Grinding workpiece diameter 0.8-60mm
Grinding length (max) 1000mm
Horizontal feed grinding Grinding workpiece diameter 2-60mm
Grinding length (max) 125mm
Grinding wheel specification P350*125*127
Guide wheel specification P250*125*75
Grinding wheel rotating speed 2000r/min
Guide wheel rotating speed Stepless 5-240r/min
Guide wheel rotary angle In the vertical plane -2° -5°
In the horizontal plane -10°-10°
Test bar grinding accuracy (ø 20× 75 ) Roundness 2 μ m
Cylindricity 3 μ m
Roughness Ra0.2 μ m
⚙️ Machine Features

WX-M2-60 Core Advantages:

  • ▶Width of grinding wheel guide wheel is 125mm, providing larger grinding amount and better stability.
  • ▶Layout adopts the single-sided movement mode of regulating wheel frame.
  • ▶Sand wheel shaft and Guide wheel shaft adopt overhang structure for convenient replacement.
  • ▶Regulating wheel uses frequency conversion to adjust speed for different diameter workpieces.
  • ▶Equipped with cutting mechanism to realize grinding of step surfaces and cone surfaces.
  • ▶Compatible with long workpiece through-grinding brackets and various automatic feeding equipment.
🎯 Main Purpose & Application
  • ✔Supports both standard grinding wheels and PVA polishing wheels for high-light wet polishing.
  • ✔Ideal for grinding cylindrical surfaces of various ring and shaft parts.
  • ✔Suitable for semi-automatic and automatic cutting-grinding of stepped, tapered, and cylindrical rotating surfaces.
📸 Product Description & Photos

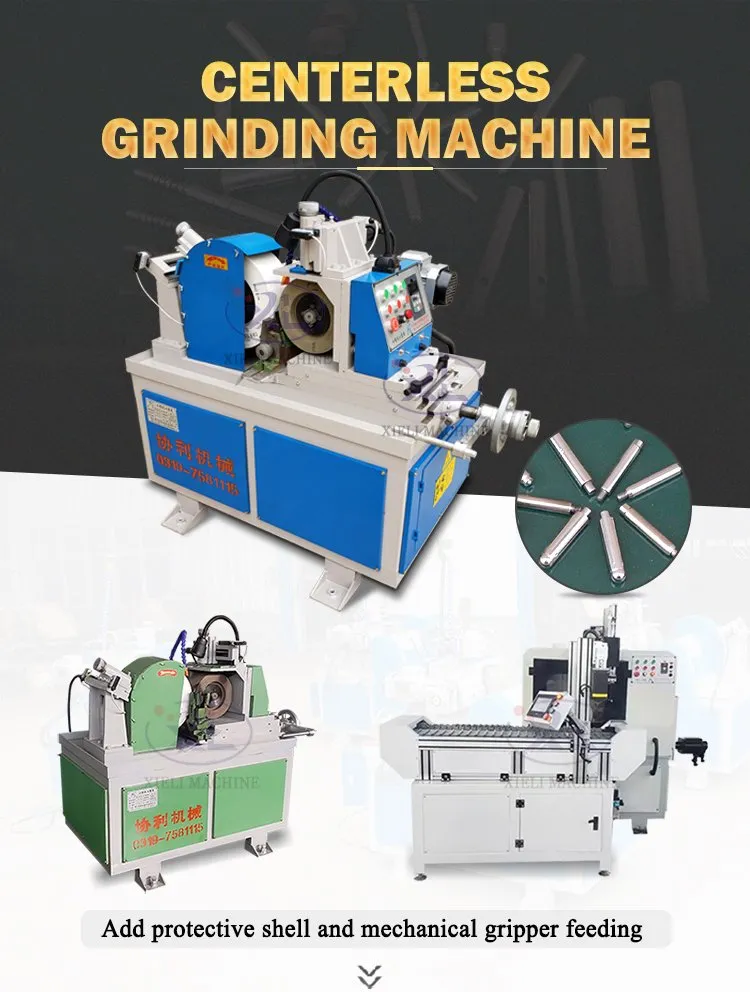

Centerless Grinding Machine Overview

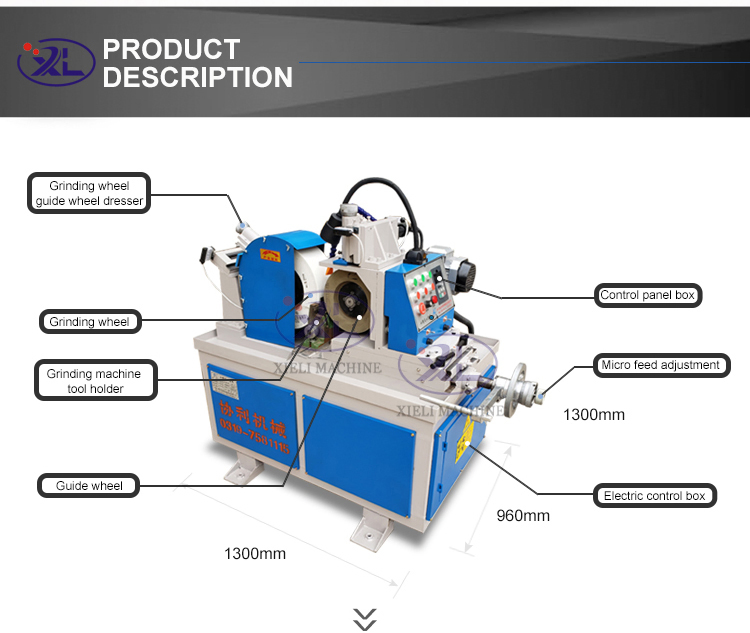

Precision Grinding Detail

Detailed Photos

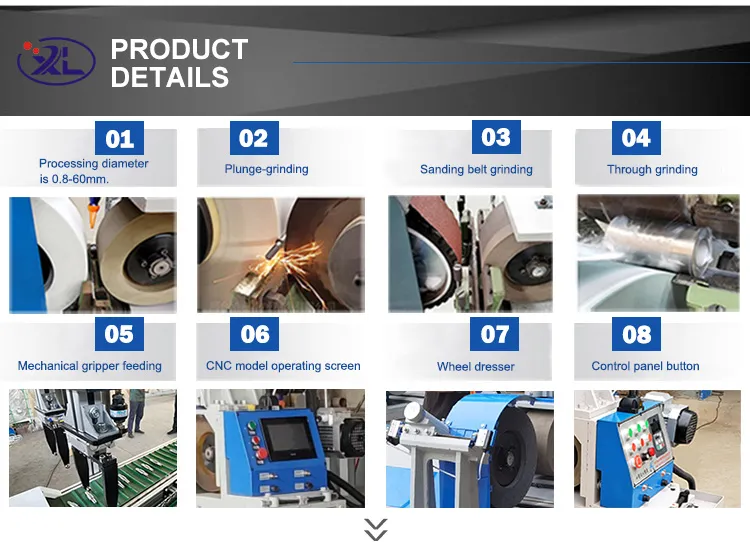

Machine Detail View

Other Optional Parts

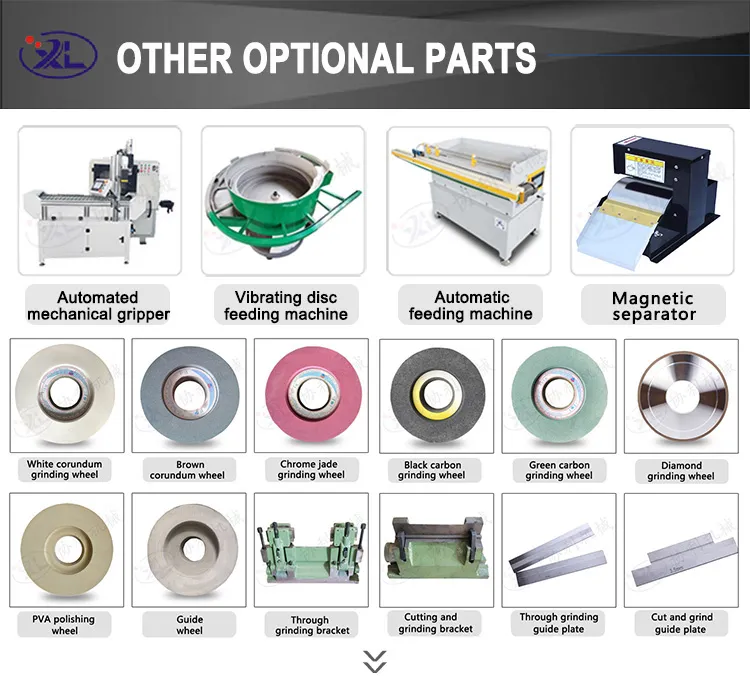

Optional Components

Grinding Case

Application Grinding Case
📦 Packaging & Factory Visits
Packing and Shipping
Buyer Feedback
Customer Visit 1

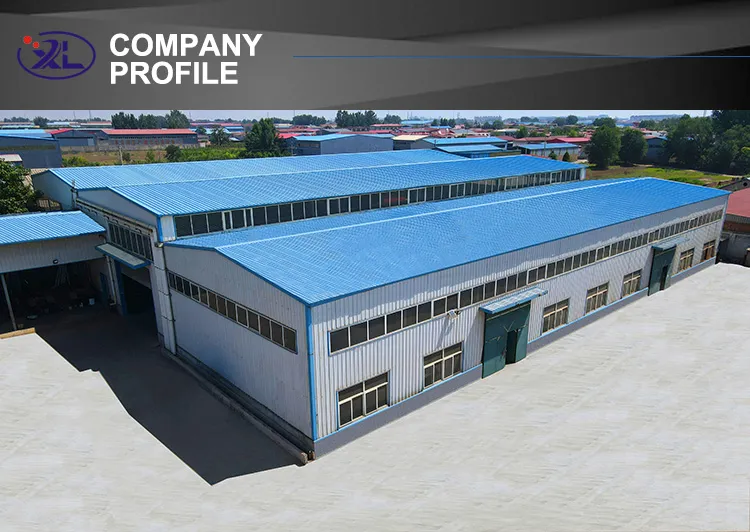

Customer Visit 2
Factory Overview
Frequently Asked Questions
What is the maximum grinding diameter of the WX-M2-60?
The WX-M2-60 can handle workpiece diameters ranging from 0.6mm up to 60mm.
What kind of precision can I expect from this machine?
It is a high-precision machine with roundness accuracy of 2 μm and cylindricity of 3 μm, reaching a roughness of Ra0.2 μm.
Is it easy to replace the grinding wheels?
Yes, both the sand wheel shaft and the guide wheel shaft adopt an overhang structure, making it very convenient to replace wheels.
Does the machine support automatic feeding?
Yes, the machine tool is designed to be matched with a variety of automatic feeding equipment and automatic manipulators for high efficiency.
What materials or parts is this machine best suited for?
It is primarily used for various ring and shaft parts, as well as stepped, tapered, and cylindrical rotating surfaces.
What are the power requirements for installation?
The machine requires a lead-in power supply of 380V 50Hz 3P, with a total equipment power of approximately 5KW.
