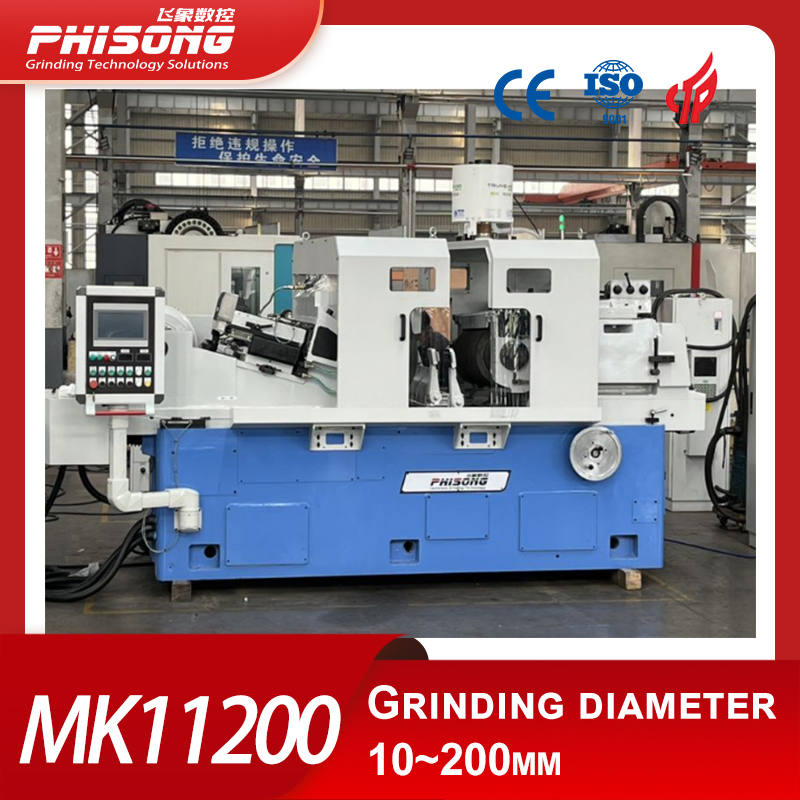

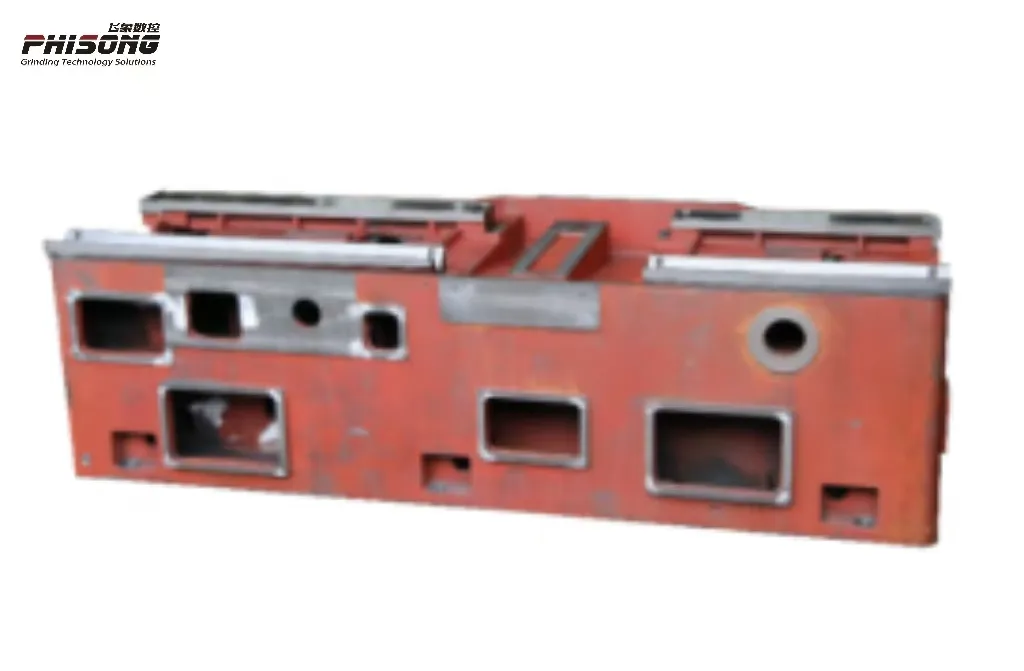

Casting, natural aging and artificial heat treatment ensure reasonable deformation and superior durability for long-term industrial use.

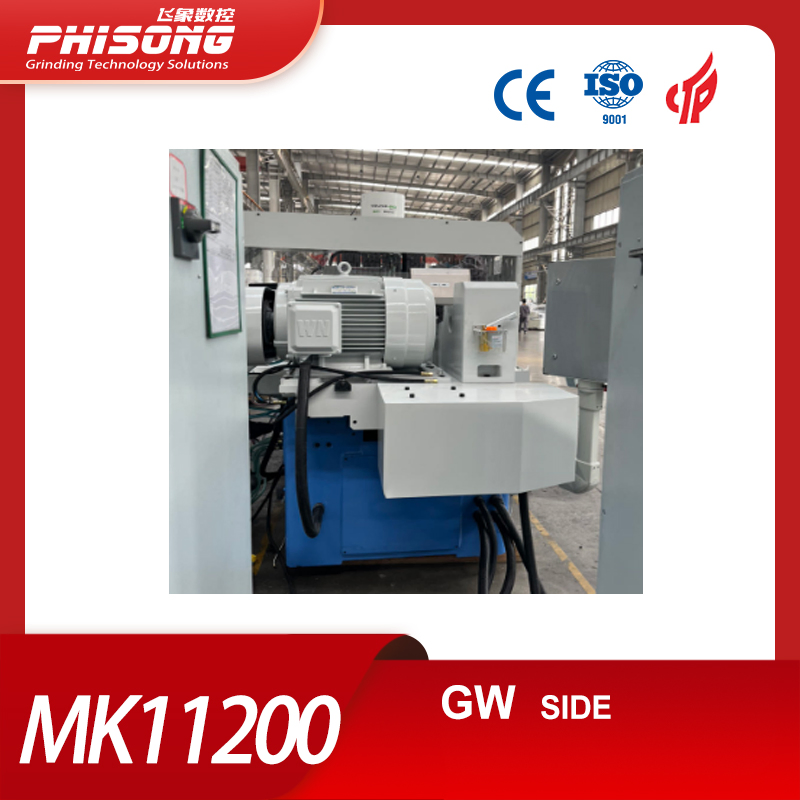

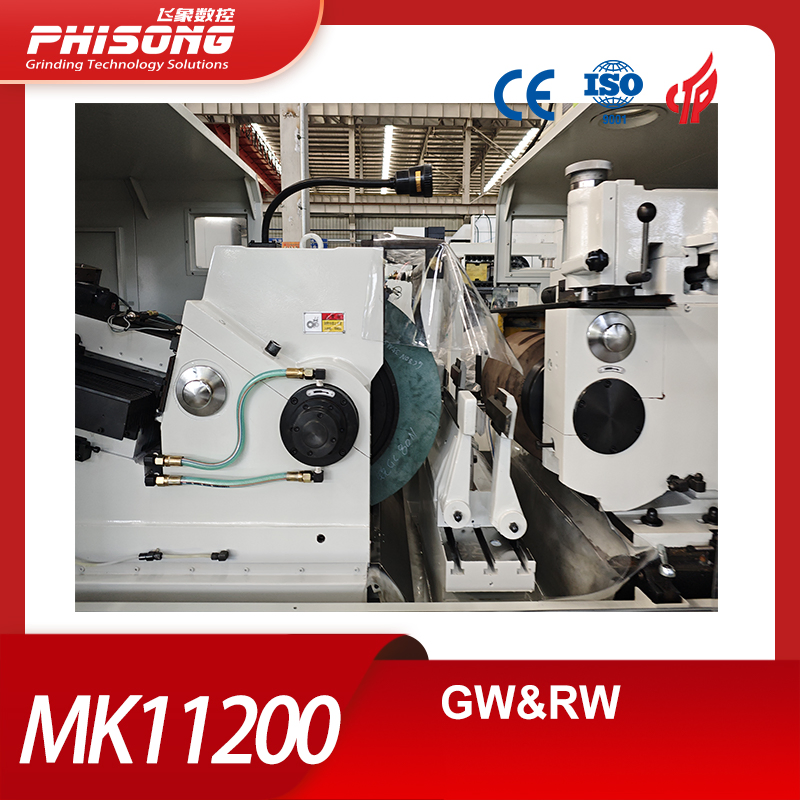

The Grinding Wheel (GW) features a 600mm diameter and 600mm width, allowing for larger grinding amounts and higher efficiency. Both GW and RW utilize a double-supported structure, providing enhanced reliability and stability during high-precision operations.

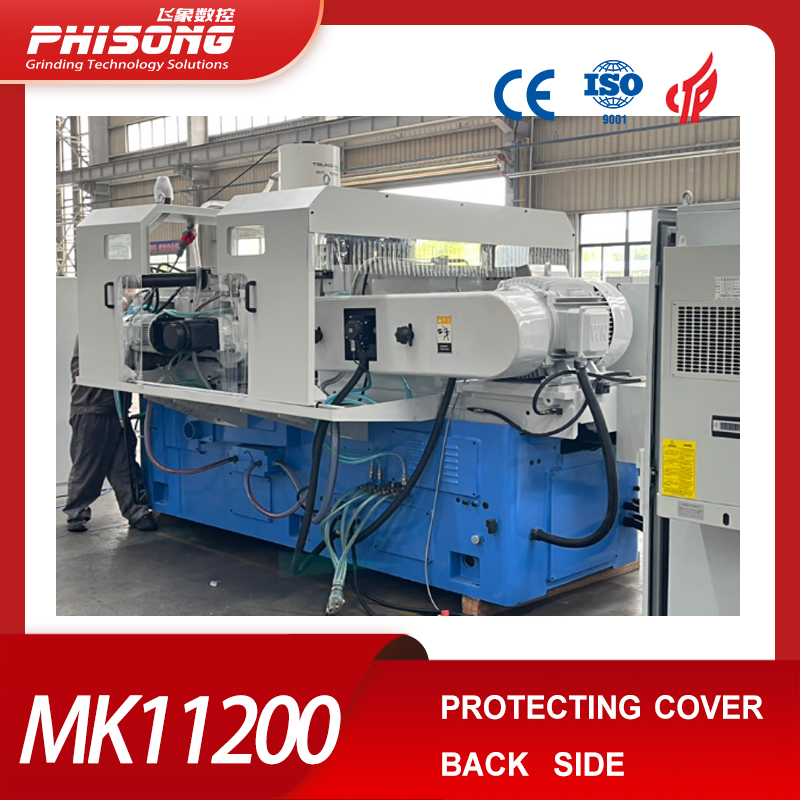

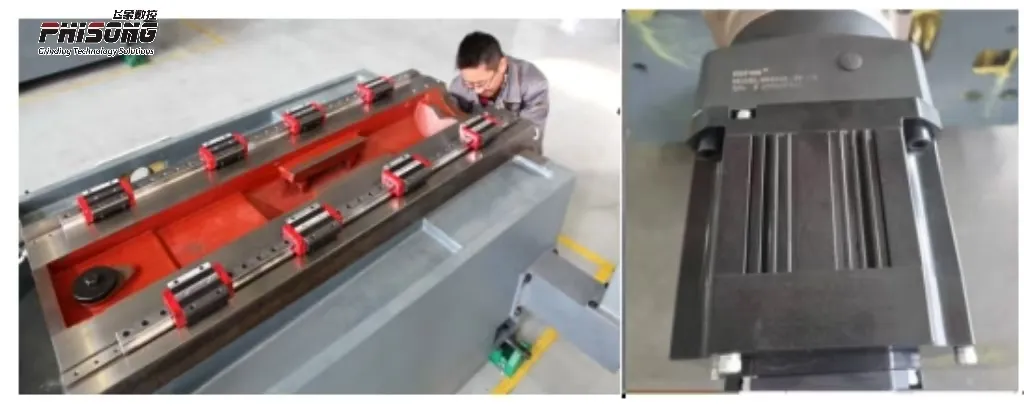

Equipped with Schneberg linear guide-rails for high motion sensitivity and vibration resistance. The servo motor drives the ball-screw through a shaft coupling, achieving a minimum feeding amount of 0.001mm.

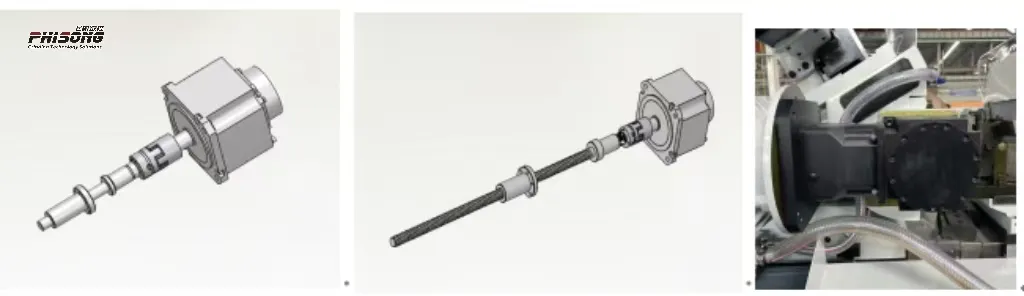

GW Dresser: Servo motors drive ball-screws for precise feeding and reciprocating movement.
RW Dresser: Utilizes hydraulic transmission for reciprocating, with step-less speed adjustment and a manual dial for feeding control.

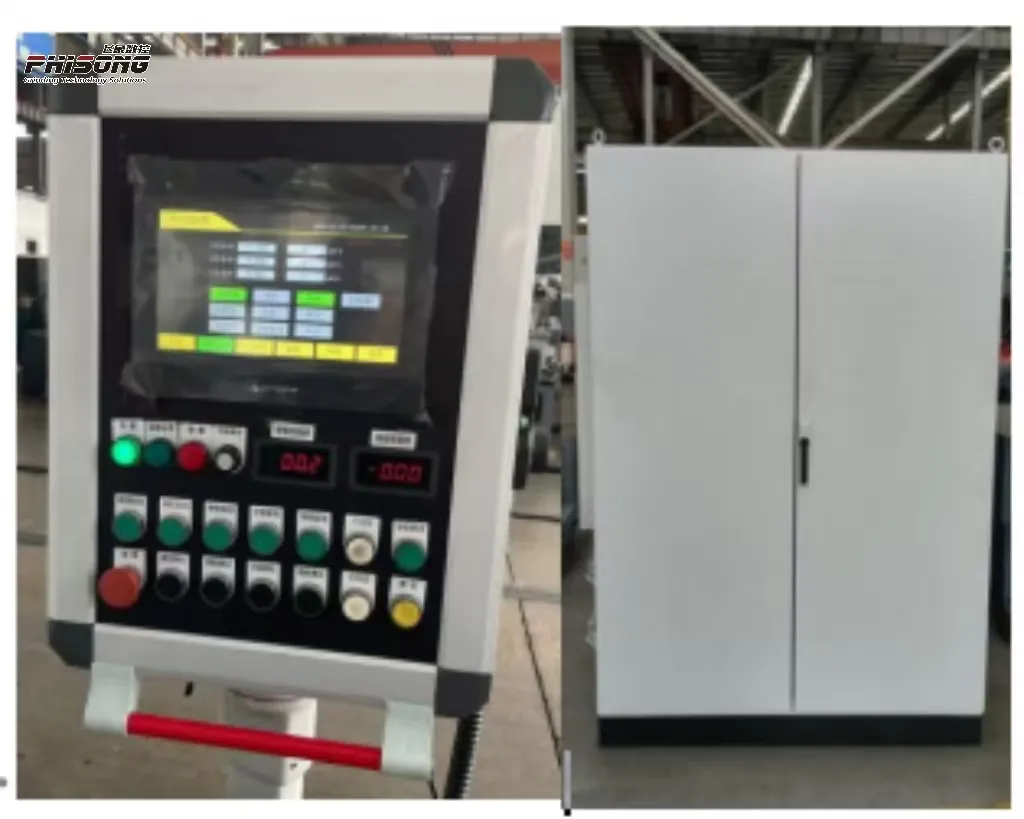

Features a converter for the RW motor for step-less speed adjustment. The operation panel includes dials and a touch screen for grinding, dressing, and feeding adjustments. Standard configuration uses a Mitsubishi PLC control system (Siemens optional).

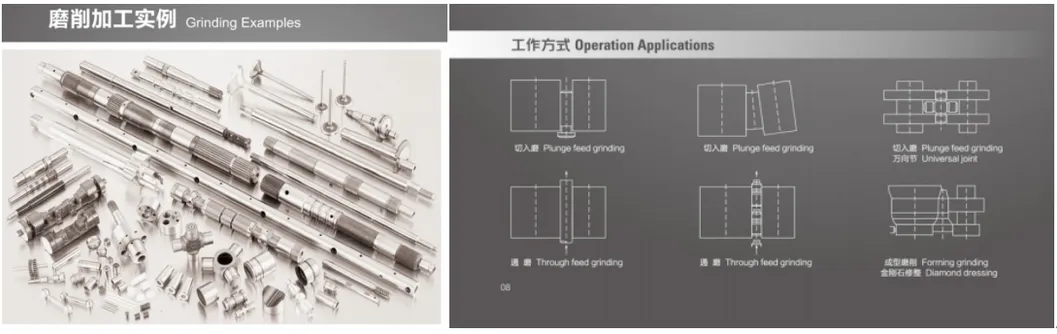

| Parameter | Specifications (3 Axes) | |
|---|---|---|
| In-feed Grinding | Diameter | 10-200mm |
| Length | 590mm | |
| Through Grinding | Diameter | 10-200mm |
| GW Specification (O.D.*W*I.D.) | P500*600*305mm | |
| RW Specification (O.D.*W*I.D.) | P350*600*203mm | |
| GW Speed | 1330 r/min | |
| RW Speed (Step-less) | 10-200 r/min | |
| Min. Feeding Amount | 0.001mm | |
| GW Motor Power | 37kw | |
| Accuracy | Roundness | 0.002mm |
| Cylindricity | 0.005mm | |
| Roughness | Ra 0.32μm | |
| Name | Specification | QTY | Brand |
|---|---|---|---|
| Control System PLC | Q Series | 1 set | Mitsubishi |
| Servo Motor | Standard | 3 sets | Mitsubishi |
| Operation Display Screen | 10 inch | 1 set | Weinview |
| Ball Screw | High Precision | 3 sets | Nanjing |
| Converter for RW | 3.7KW | 1 pc | Mitsubishi |
| GW Motor | 30KW / 37KW | 1 pc | Wannan |
| Low-voltage Apparatus | Standard | 1 set | Schneider |

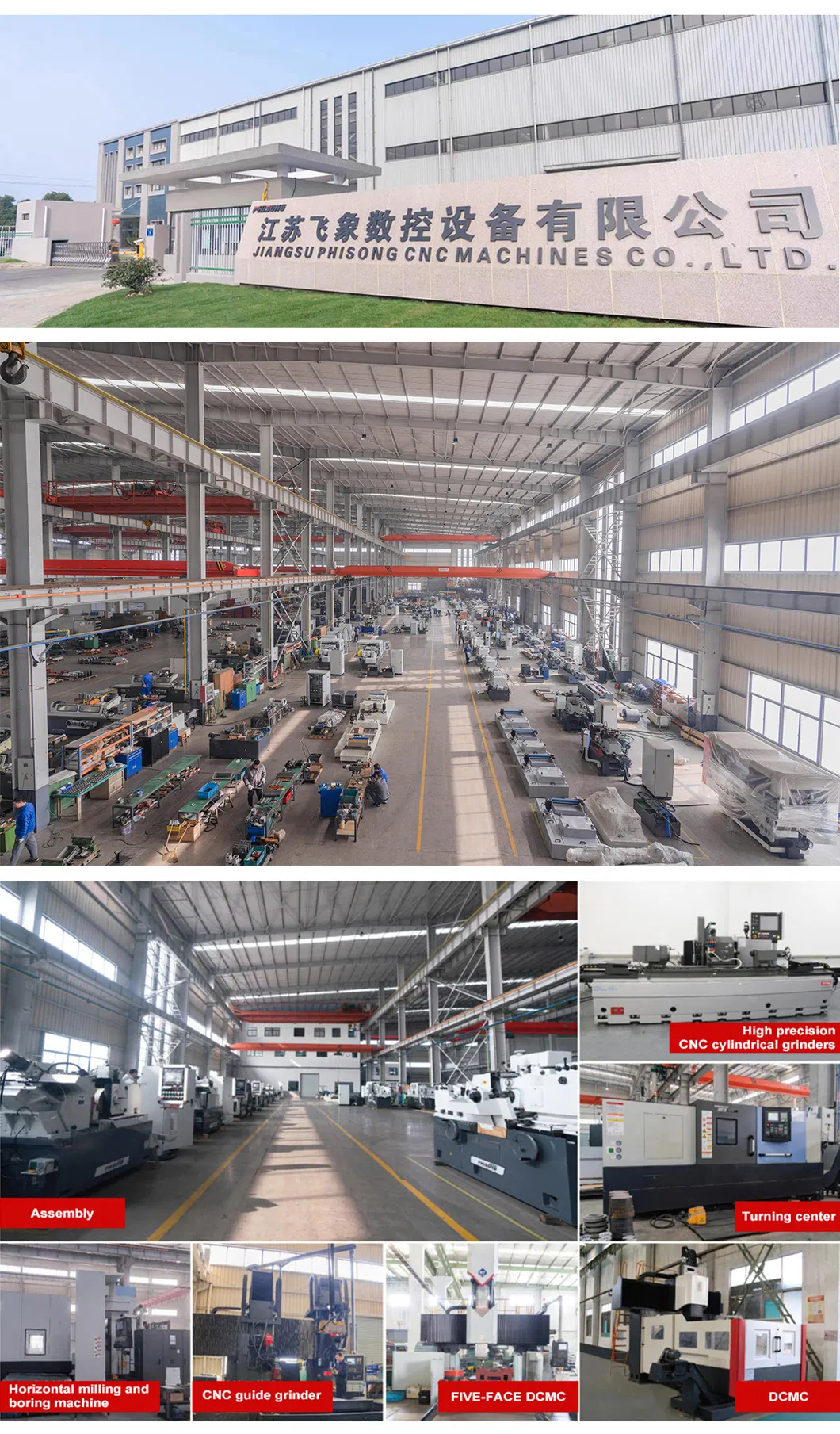

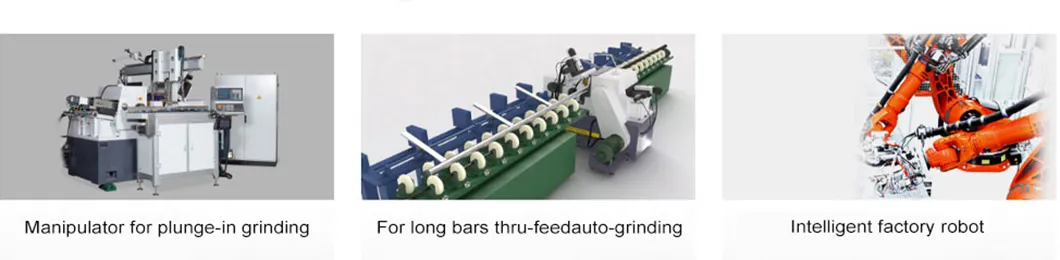

Our facility is recognized for professional centerless grinding technology globally. We inherit the essence of cylindrical and centerless grinding machine design, production, and manufacturing. Our products are utilized by numerous top-tier enterprises and exported across Europe, America, Russia, and Southeast Asia.

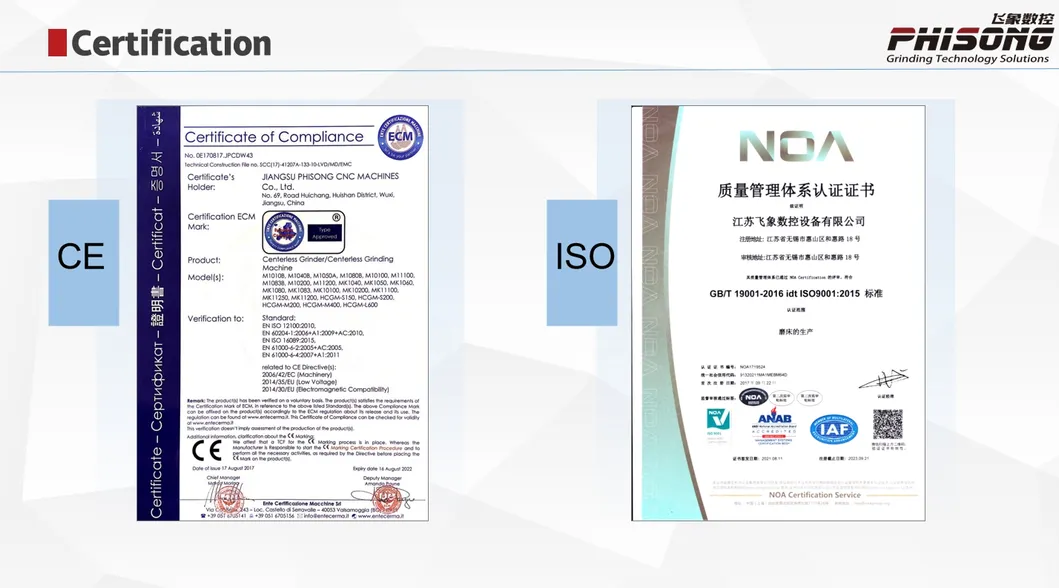

Operating under the ISO9001 international quality management system, we provide customized professional processing technology to improve production efficiency and precision levels for our clients.
