Customization: Available
After-sales Service: Long Term
Warranty: 1year
Send Inquiry

Product Description

Basic Information

Model NO.
MK10200
Type
Centerless Grinding Machine
Object
Bearing Rings / Shafts
Controlling Mode
CNC
Precision
High Precision (0.002mm)
Certification
CE, ISO 9001
GW Spec.
P600*400*305mm
Max Diameter
200mm
Package Size
380*220*190cm
Gross Weight
10500kg

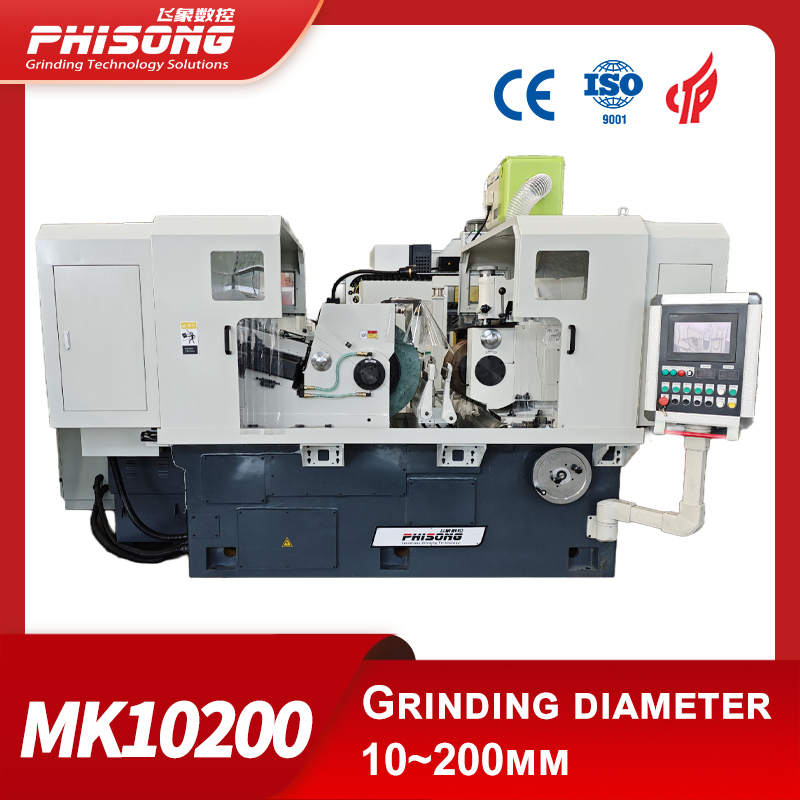

CNC Centerless Grinding Machine MK10200

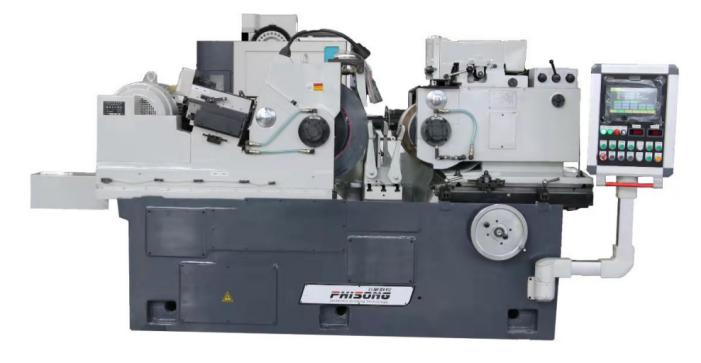

CNC Centerless Grinding Machine Wide Wheel
Precision Grinding Process
Machine Internal View
Industrial Grinding Equipment
Automatic Grinding System
Centerless Grinder Detail
Machine Control Interface
MK10200 Equipment Side View

Product Description & Features

Grinding & Regulating Wheel The wide grinding wheel increases the grinding allowance in a single pass, significantly raising efficiency. The spindles adopt five-plate short bearing bushed static-hydrodynamical oil film bearings for superior rigidity, supporting both heavy loading and precise grinding.
Advanced Electrical System Equipped with a plastic-coated guideway and Mitsubishi servo motors driving high-precision ball screws. Minimum feed is 0.001mm. AC frequency converters control regulating wheel speed.
Cooling & Design The system includes a magnetic coolant separator for debris management. The machine body is made of high-rigidity iron casting with natural aging for long-term stability.

Technical Specifications

Parameter Item Specification Data
Grinding Diameter (Plunge/Through)10 ~ 200mm
Max. Grinding Length (Plunge)390mm
Grinding Wheel SpecificationP600 × 400 × 305mm
Regulating Wheel SpecificationP350 × 400 × 203mm
Grinding Wheel Speed1114 r/min
Regulating Wheel Speed (Stepless)12 ~ 80 r/min (Work) / 80 ~ 200 r/min (Dressing)
Minimum Feed Amount0.001mm
Main Grinding Wheel Motor30KW
Machine Dimension (L*W*H)3600 × 1850 × 1720mm
Total Machine WeightApprox. 9000Kg

Main Accessories

Name Specification Brand
Control System PLCQ SeriesMitsubishi
Servo Motor3 SetsMitsubishi
Operation Display Screen10 InchWeilun
Ball Screw3 SetsNanjing
Converter for RW3.7KWMitsubishi
Low-voltage Apparatus1 SetSchneider

Frequently Asked Questions

What is the maximum grinding precision of the MK10200?
The MK10200 is a high-precision machine capable of achieving an accuracy of 0.002mm, with a minimum feed amount of 0.001mm.
What types of workpieces can this machine process?
It is designed primarily for processing bearing rings and various shafts with a diameter range between 10mm and 200mm.
Which control system components are used?
The machine utilizes high-quality international components, including a Mitsubishi PLC (Q series), Mitsubishi servo motors, and a Weilun touch display screen.
How does the "Wide Wheel" design benefit production?
The wide grinding wheel (400mm width) increases the grinding allowance in a single pass, which reduces the need for repeating passes and significantly raises overall production efficiency.
Is the machine suitable for heavy-duty grinding?
Yes. The spindles feature five-plate short bearing bushed static-hydrodynamical oil film bearings, providing the high rigidity necessary for heavy loading and precise results.
