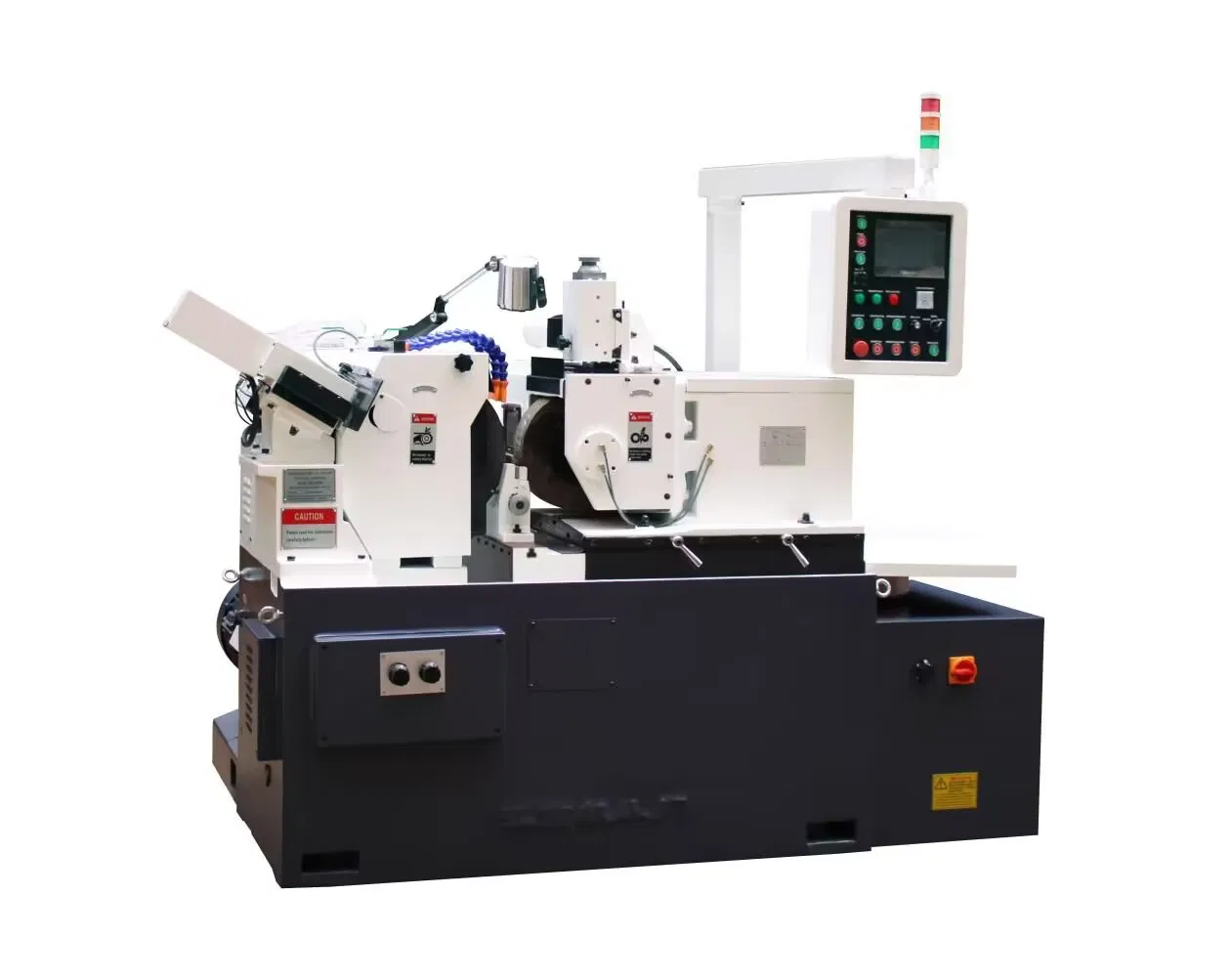

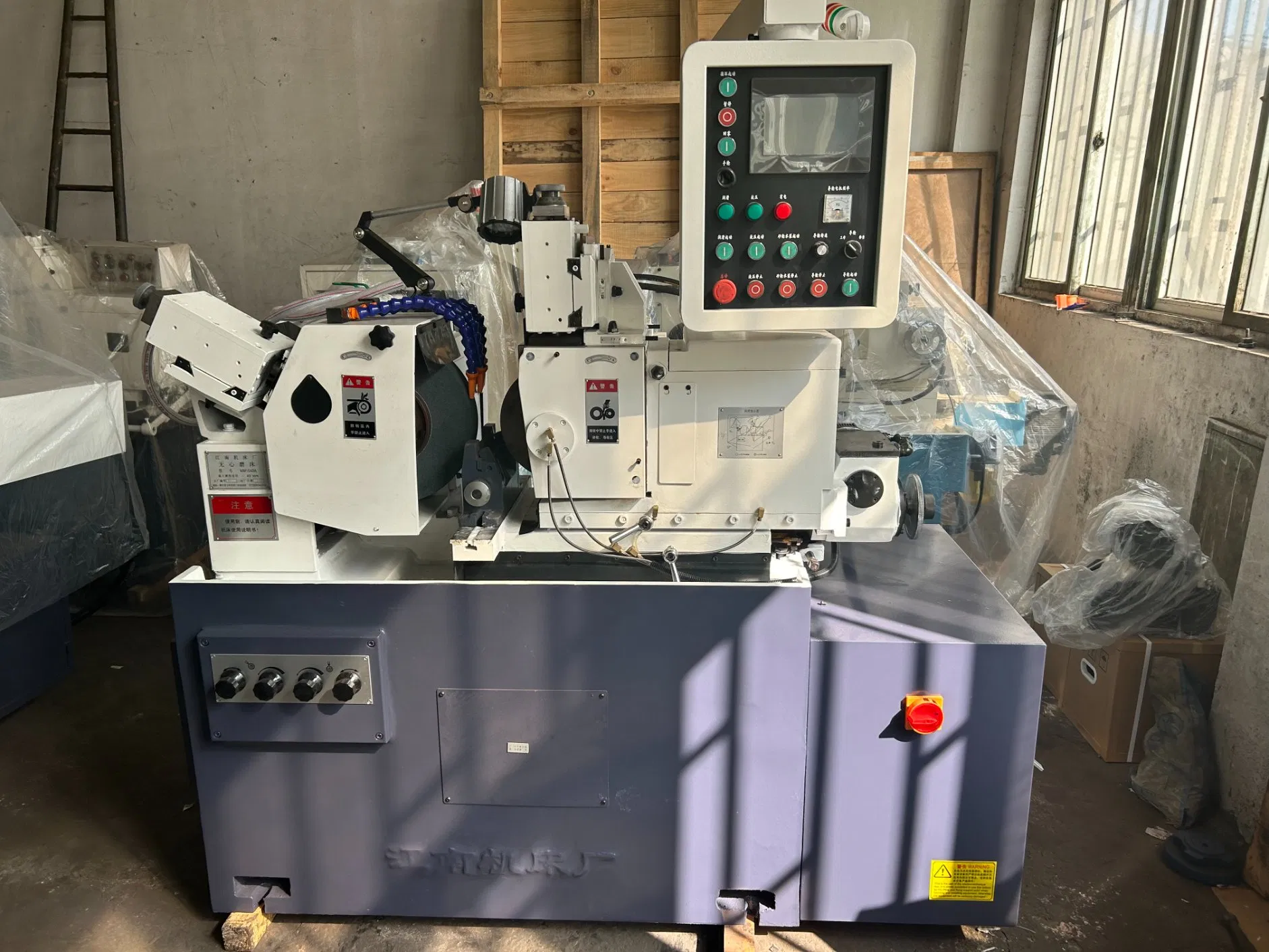

Mk1050A CNC Centerless Grinding Machine Used for Surface Treatment and Polishing
Mk1050A CNC Centerless Grinding Machine Used for Surface Treatment and Polishing
Mk1050A CNC Centerless Grinding Machine Used for Surface Treatment and Polishing
Mk1050A CNC Centerless Grinding Machine Used for Surface Treatment and Polishing
Mk1050A CNC Centerless Grinding Machine Used for Surface Treatment and Polishing
1 / 5
Mk1050A CNC Centerless Grinding Machine Used for Surface Treatment and Polishing
Mk1050A CNC Centerless Grinding Machine Used for Surface Treatment and Polishing
Mk1050A CNC Centerless Grinding Machine Used for Surface Treatment and Polishing
Mk1050A CNC Centerless Grinding Machine Used for Surface Treatment and Polishing
Mk1050A CNC Centerless Grinding Machine Used for Surface Treatment and Polishing

Mk1050A CNC Centerless Grinding Machine Used for Surface Treatment and Polishing

Customization: Available
After-sales Service: at Any Time
Warranty: 1 Year
Send Inquiry

Product Description

📑 Basic Information
Model NO.
MK1050A
Type
Surface Grinding Machine
Processing Object
Crank Shaft
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Condition
New
Weight
2600kg
Total Power
15kw
Grinding Diameter
1-50mm
Max Grinding Length
1-150mm
Working Accuracy
≤0.002mm
Wheel Speed
1668r/Min
Specification
2000*1600*1970
Production Capacity
500
📦 Packaging & Delivery
Package Size
2400.00cm * 2000.00cm * 1800.00cm
Package Gross Weight
2300.000kg
Transport Package
Wooden Box
⚙️ Product Description

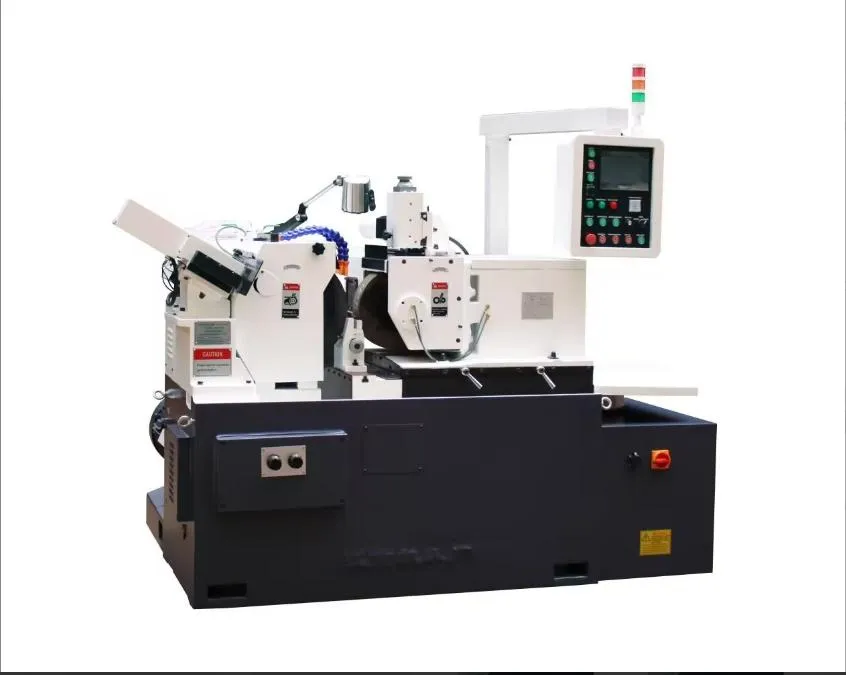

Mk1050A CNC Centerless Grinding Machine
CNC Grinding Machine Features

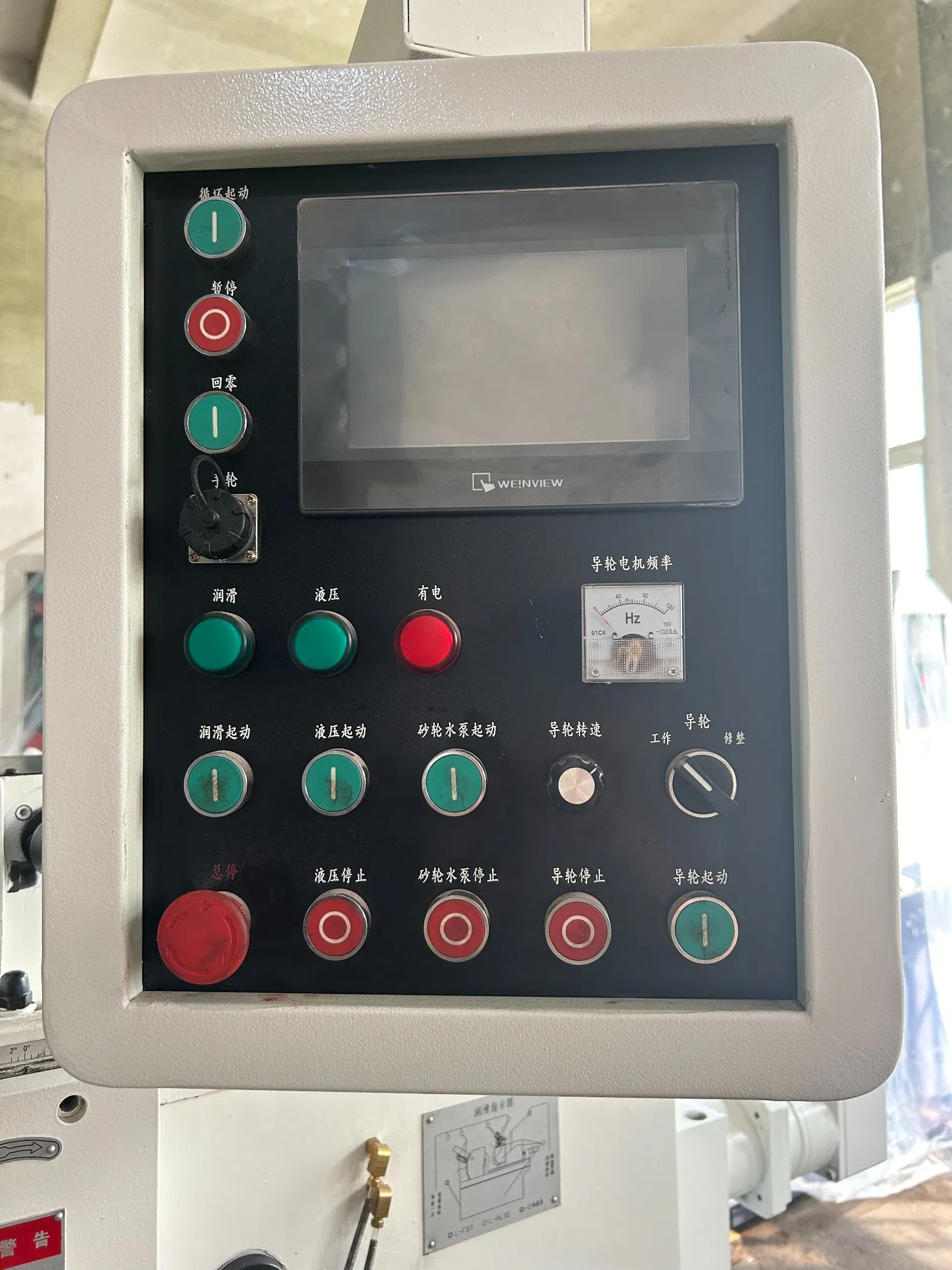

Customized System: Specially customized for the centerless grinding series. Features a touch screen human-machine interface for easy operation. Supports semi-automatic and fully automatic cyclic work. Programs can be set for segmented grinding and stopping. In fully automatic mode, output targets can be set for automatic shutdown (feed rate, speed, time, and counting are adjustable).

  • Single-sided movement method of the guide wheel frame layout.

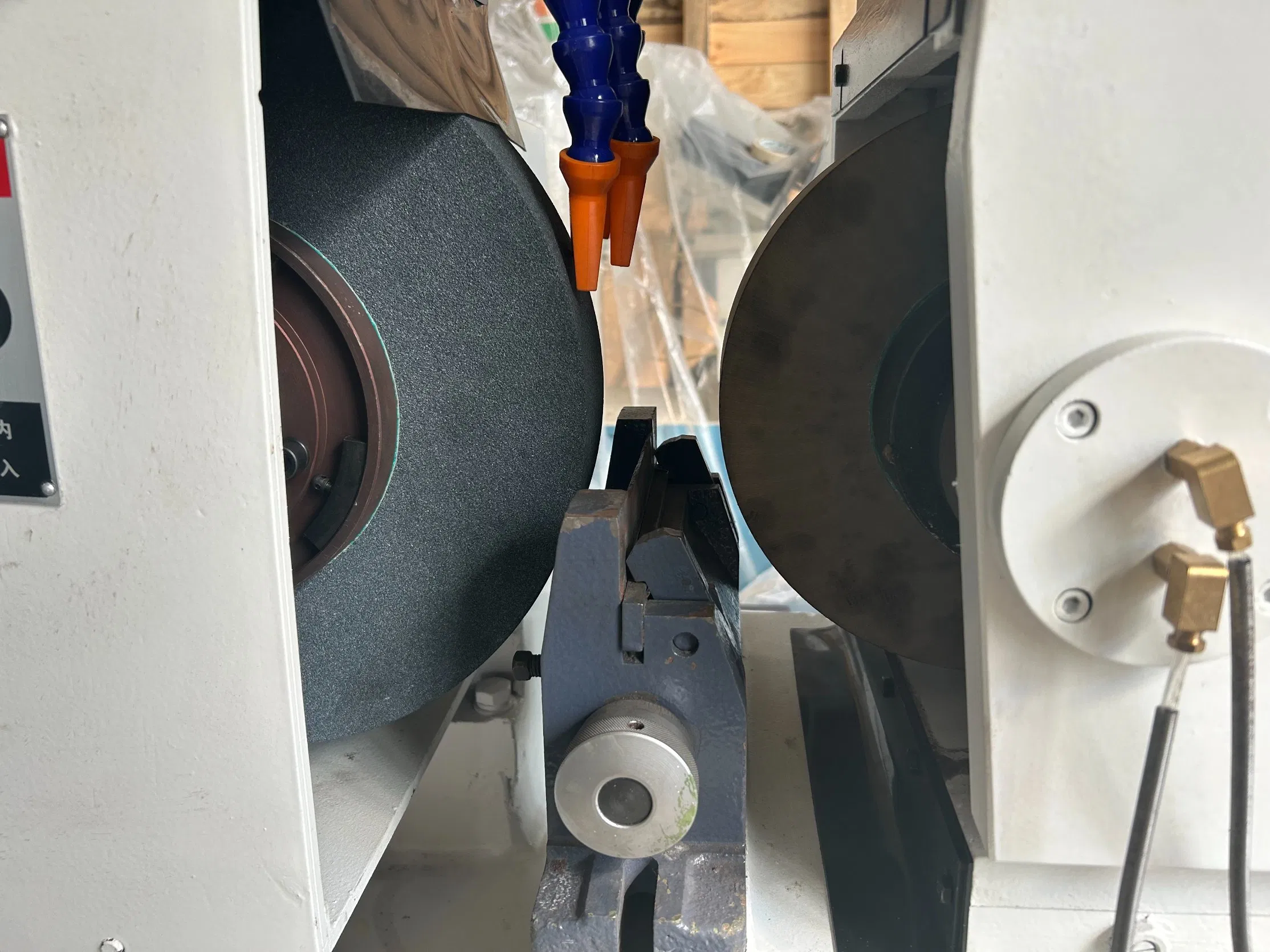

  • Suspended structure for grinding wheel shaft, ensuring easy replacement.
  • Multi-piece dynamic pressure oil film bearings for the grinding wheel shaft.
  • Suspended structure for the guide wheel shaft for simplified maintenance.
🛠️ Technical Features of MK1050A
  • High Accuracy: Guide wheel shaft uses a 1:30 integral cone sliding bearing structure with double support.
  • Speed Regulation: AC variable frequency stepless speed regulation for the guide wheel.
  • Auto Dressing: Grinding wheel dresser driven by a servo motor for automatic contour dressing.
  • Versatile Trimming: Guide wheel trimmer supports hydraulic, reduction motor, or servo motor drives for automatic contour trimming (arc, slope, multi-step).
  • Cooling System: Equipped with a magnetic separator filtration device.
  • Precision Components: V-shaped or high rigidity linear guide rails; imported servo motor technology for fast response and accurate positioning.
Parameter Specification
Cutting in Grinding Diameter2-50mm
Max Grinding Length150mm
Grinding Wheel SpecificationPSA400 * 150 * 203mm
Max Specification of Guide WheelPSA300 * 150 * 127mm
Grinding Wheel Speed1668r/min
Guide Wheel Speed20-200r/min
Total Power of Machine Tool14.9kw
Working Accuracy≤0.002mm
📋 Main Configuration List
Order Name Quantity Specifications Remarks
1Lathe Bed1 unitMK1050A (Standard)-
2Ball Screw3 pairs--
3Hydraulic Station1 unit-Wuxi
4Frequency Transformer1 unit2.2KWEURA
5PLC Control System1 set-Weinview
6Servo Motor/Drive1 set20A/0.75KWTECO
7Main Motor1 unit11KWWannan/Yongan
8Guide Motor1 unit1.5KW-
❓ Frequently Asked Questions (FAQ)
Q1: What is the maximum grinding accuracy of the MK1050A?
The machine offers high-precision performance with a working accuracy of ≤0.002mm, making it suitable for high-precision components like crank shafts.
Q2: Can the machine perform fully automatic operations?
Yes, the MK1050A features a customized CNC system that supports both semi-automatic and fully automatic cyclic work, including automated feeding, counting, and stopping.
Q3: How easy is it to replace the grinding wheels?
The machine is designed with a suspended structure for both the grinding wheel shaft and the guide wheel shaft, which facilitates quick and easy replacements.
Q4: What types of workpiece shapes can be processed?
It is designed for continuous grinding of cylindrical parts, as well as cutting-in grinding for conical and formed rotating bodies.
Q5: What cooling and filtration system does the machine use?
The machine tool is equipped with a cooling system that utilizes a magnetic separator filtration device to ensure clean operation and longevity of the tools.
Q6: What is the packaging standard for international shipping?
The machine is packed in a robust wooden box to ensure safety during transport. The total package weight is approximately 2300kg.
