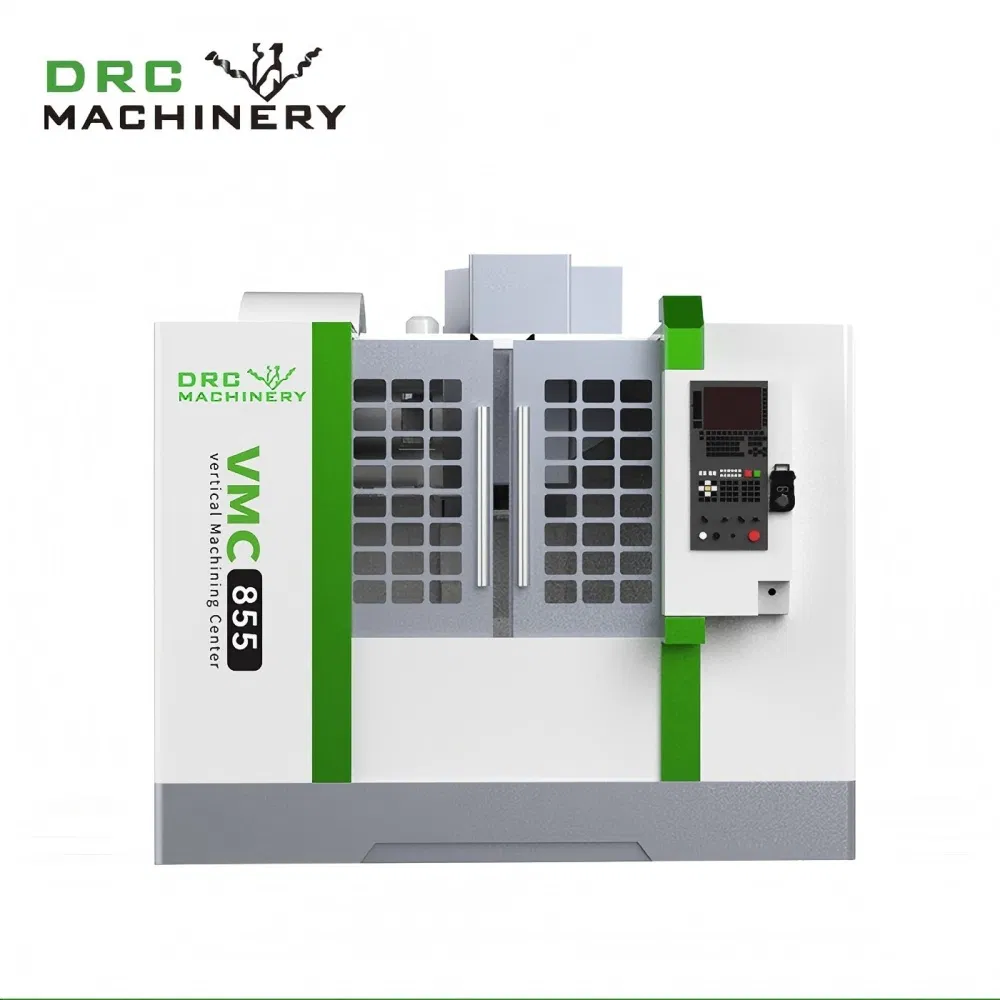

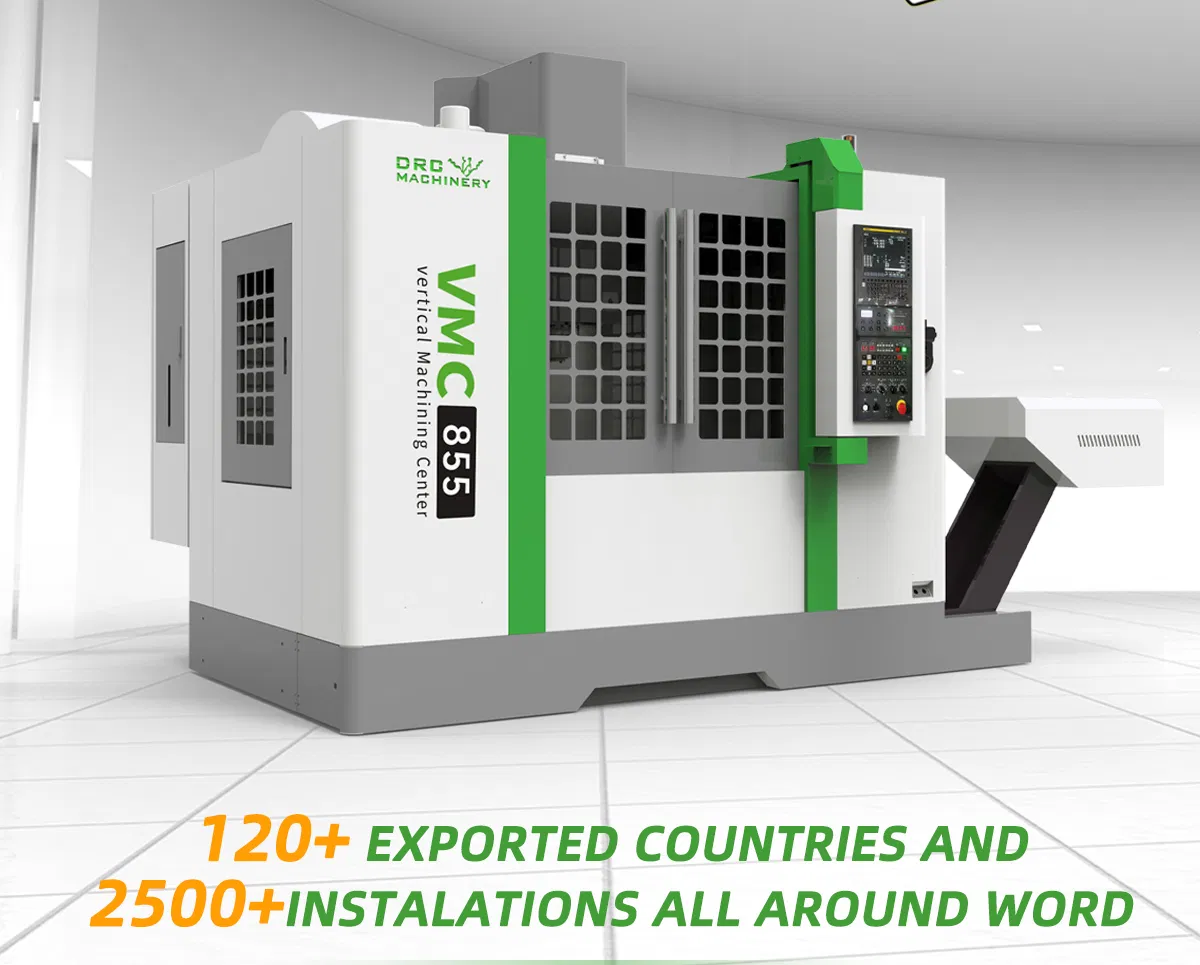

High Precision Milling Machine Machining Center Vmc850 Vmc855 4 Axis/5 Axis Cnc Milling Machine Center
Machine Center Features:
High quality resin sand
Taiwan spindle, Taiwan ball screw and locking nut
Taiwan pressure cylinder, Taiwan linear railway
Japanese NSK bearing, Germany R+W coupling

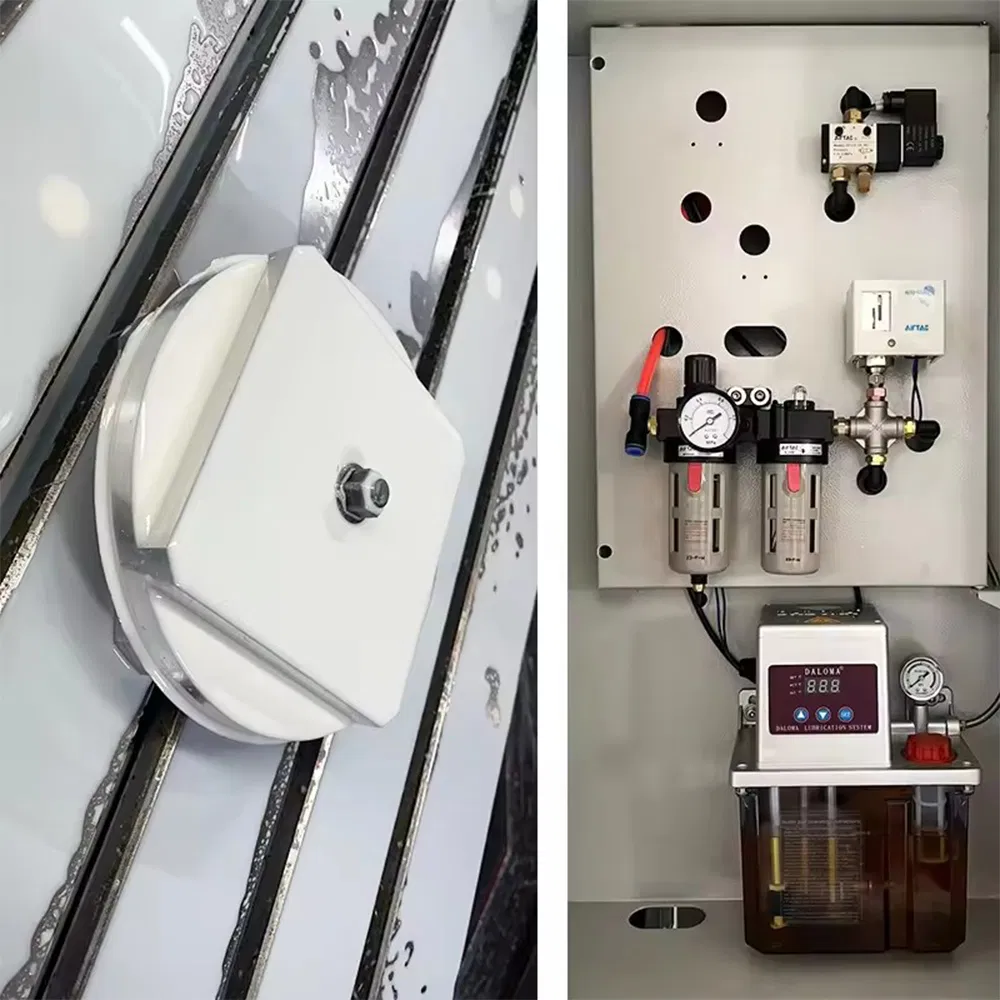

Automatic lubrication system
Chip conveyor (Optional)
Technical Specifications Comparison
Model
VMC600
VMC855
VMC1055
Travel Parameters
X/Y/Z axis travel
900/350/500mm
800/550/550mm
1000/500/500mm
Spindle face to table
100-600mm
120-670mm
120-670mm
Worktable Parameters
Worktable size
1250×360mm
1000×550mm
1000×550mm
Max load bearing
400kg
600kg
600kg
Feeding Parameters
Rapid movement rate
10/10/10 m/min
48/48/48 m/min
48/48/48 m/min
Feed velocity
1-6 m/min
1-12 m/min
1-12 m/min
Spindle Parameters
Spindle speed
8000rpm
8000rpm
8000rpm
Spindle motor power
5.5kW
11kW
11kW
Weight and Size
Machine size
3300×2280×2550mm
2800×2360×2450mm
2800×2360×2450mm
Weight
3800kg
5300kg
5300kg

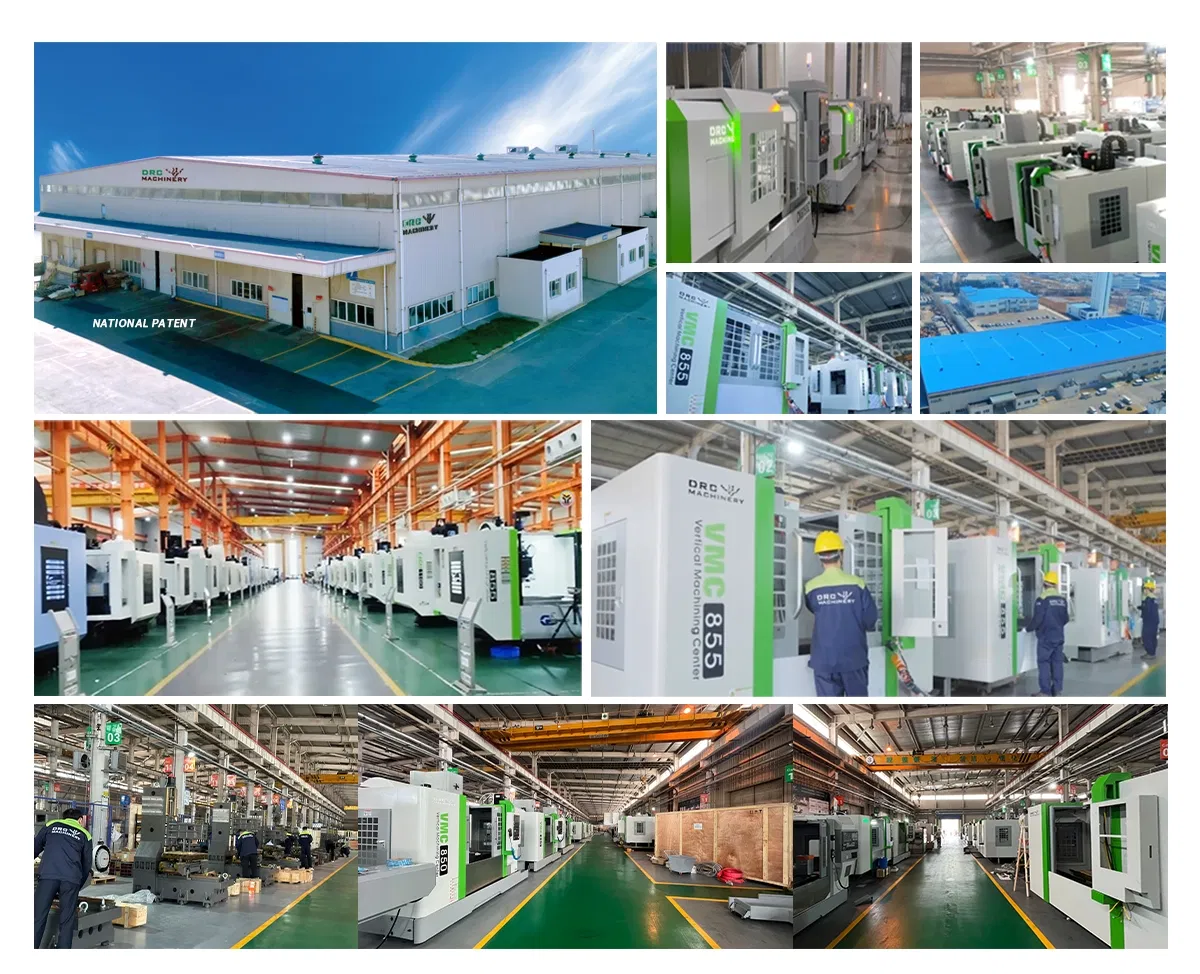

Exhibition & Production Bases
With over 30 years of experience in CNC machine tool production, our facility is dedicated to R&D and manufacture of advanced precision machining solutions. Our core products serve aerospace, automotive manufacturing, petroleum industry, and wind power industry. With 13 years of export experience, we serve over 180 countries and regions globally, completing over 20,000 installation cases.
Certifications

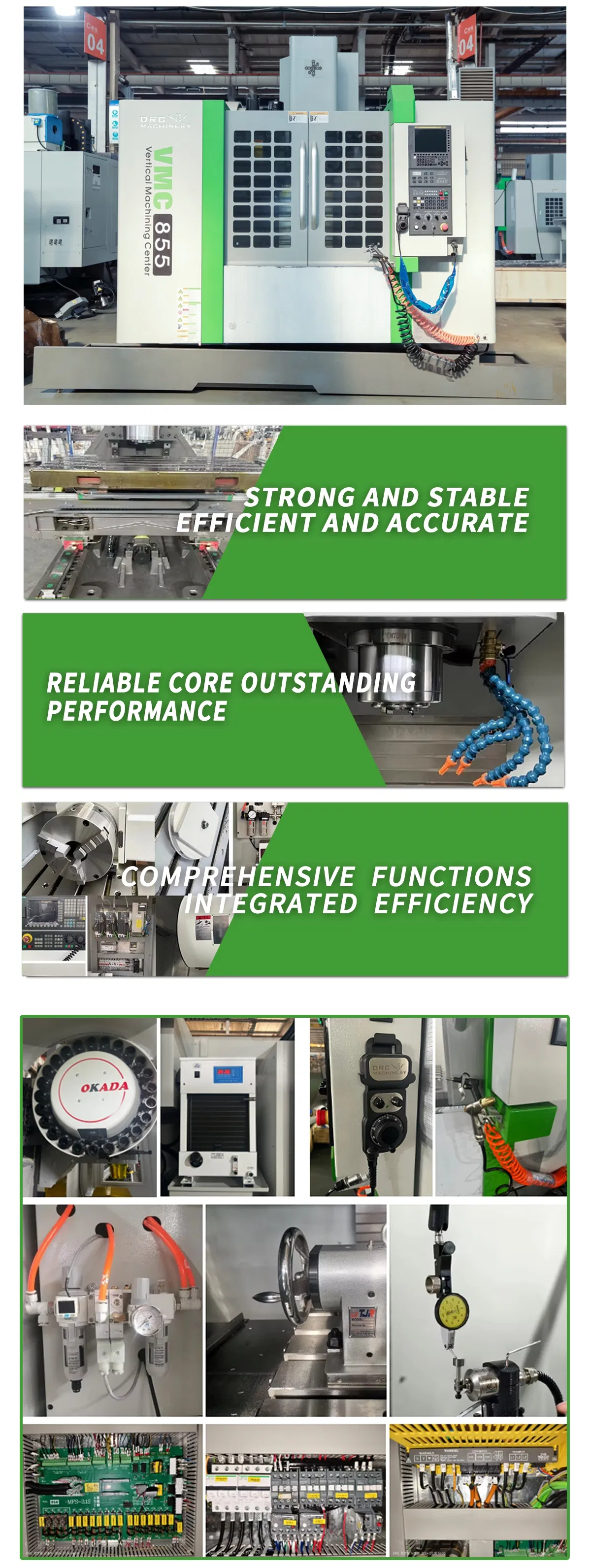

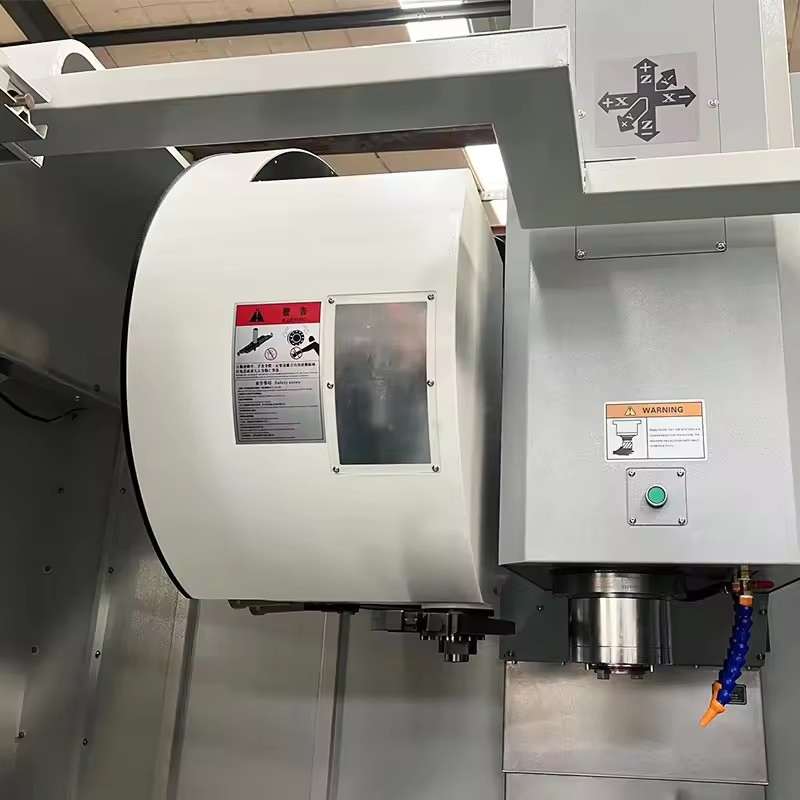

Product Details & Processing

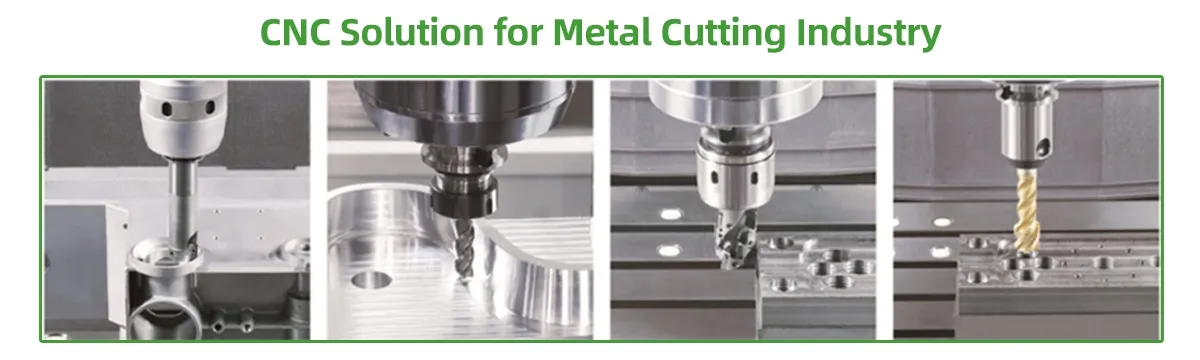

Sample Processing Display
Shipment & Packaging
Frequently Asked Questions
Is your company a factory or trading company?
We are a comprehensive company that has integrated manufacturing and trading operations.
What are your payment terms?
For in-stock machines, 100% payment is required in advance. For non-stock items, a 30% down-payment is required after contract signing, with the remaining 70% paid before shipment.
What is the estimated delivery time?
Delivery times depend on specific machine configurations. Please contact us to confirm current stock availability.
What is the warranty period for the machinery?
The machines are warranted for 13 months after the B/L date or 12 months from arrival, whichever is earlier. This covers faulty workmanship and defective materials.
Do you provide on-site engineering services?
Yes, we can dispatch service engineers to install machines at the destination according to the buyer's schedule. The buyer is responsible for associated expenses.
What industries do your machines serve?
Our CNC solutions are widely used in aerospace, automotive manufacturing, the petroleum industry, and wind power generation.
