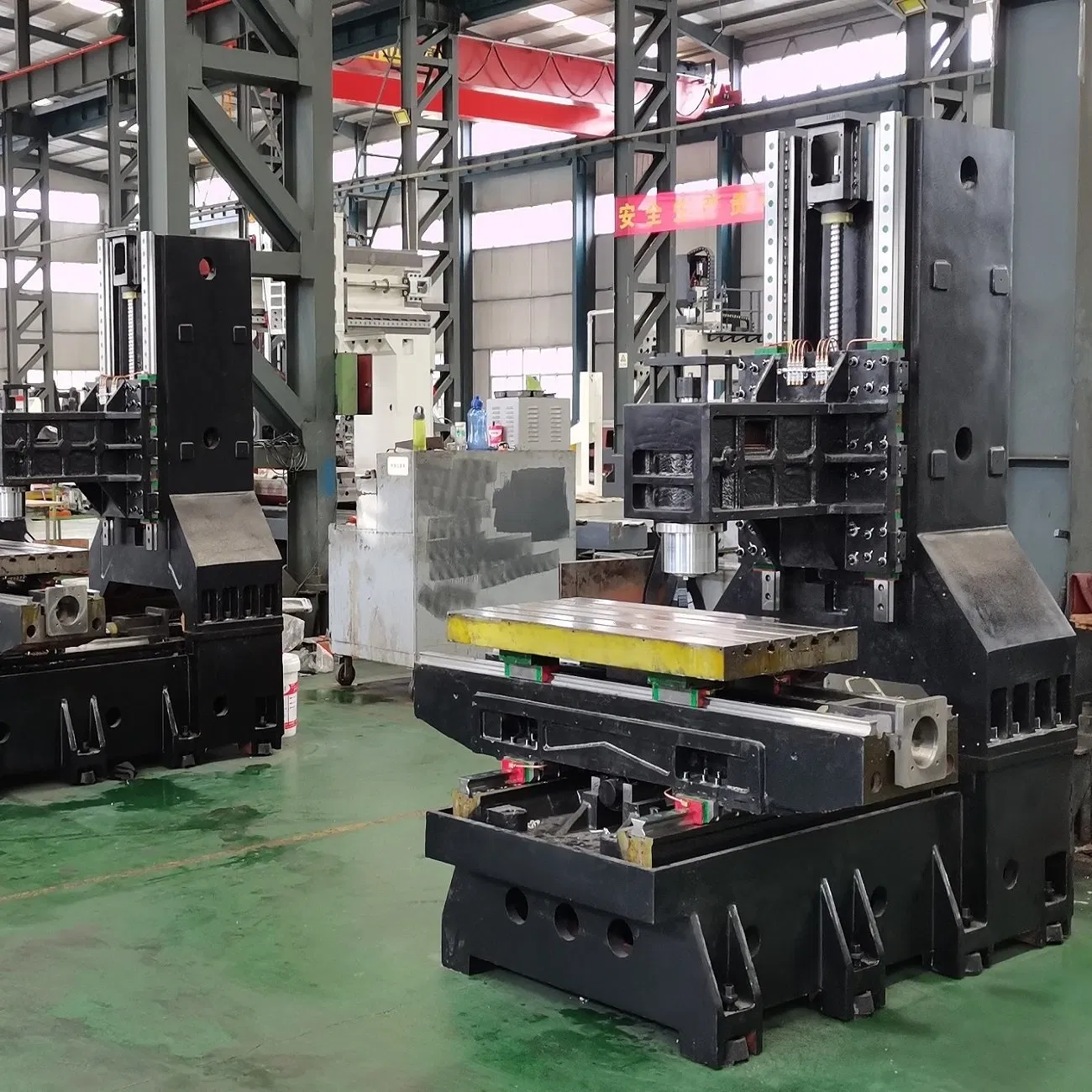

1. Resin sand castings, after aging treatment, inside with mesh stiffeners, ensure good stability of structure.
2. 3-axis roller linear guideways, Z-axis designed with six sliding blocks, high speed, high rigidity, low friction, low noise.
3. 3-axis large pitch ball screws, pre-drawing treatment, good rigidity, good accuracy, high speed.
4. Direct connection structure between servo motors and ball screws, ensures positioning accuracy.
• High-quality spindle unit, P4 bearings, high speed and rigidity.
• Mandatory automatic lubrication system for guideways and ball screws.
• Full protection guard and disc type tool magazine as standard features.

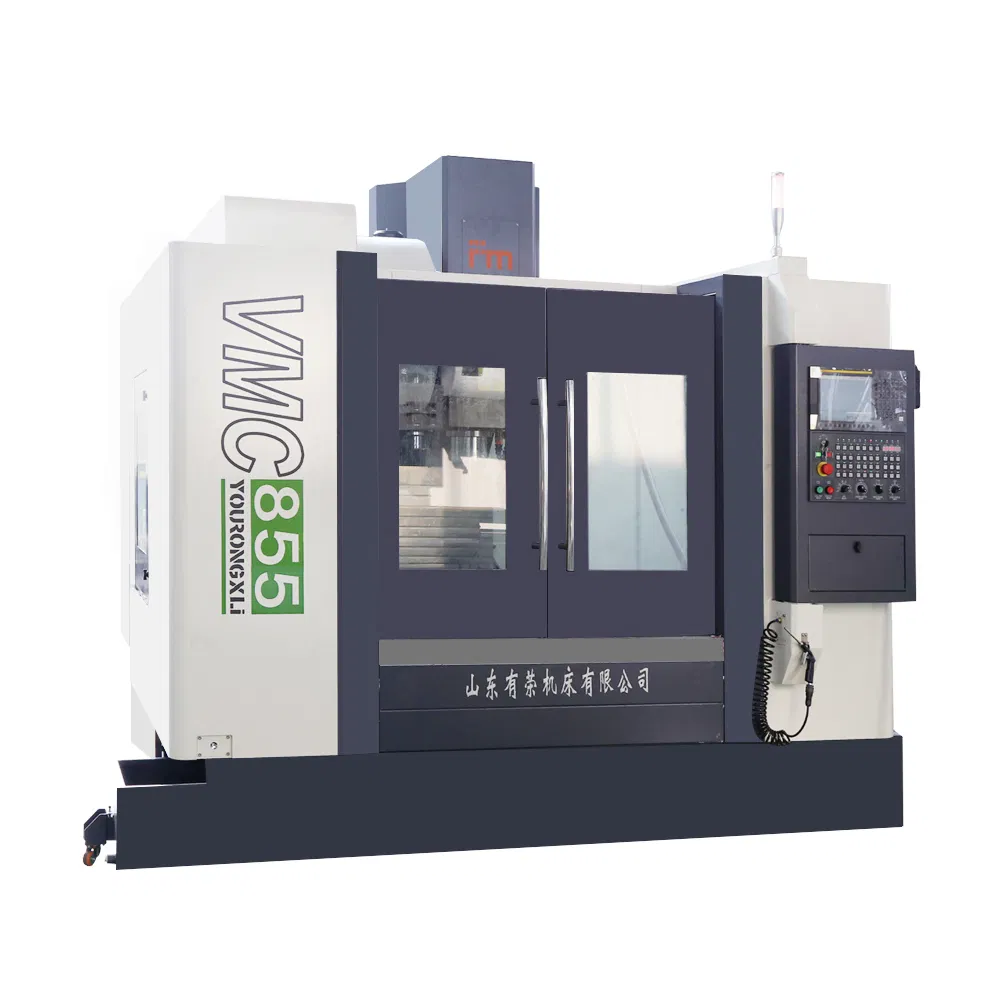

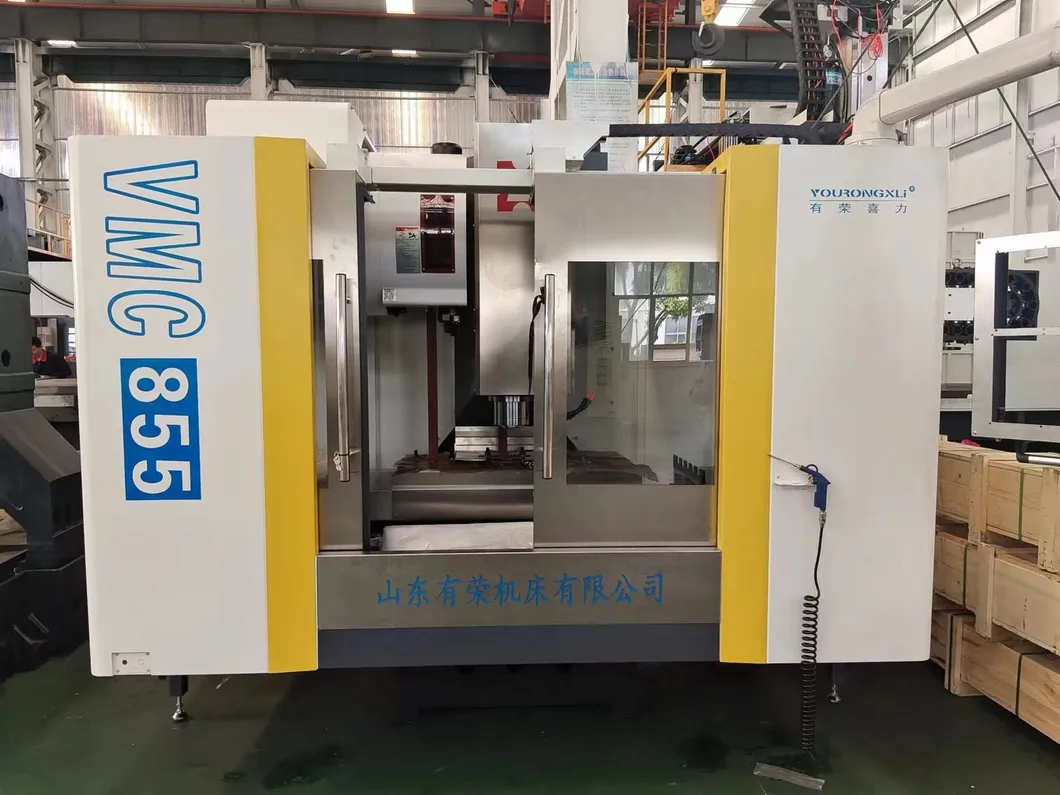

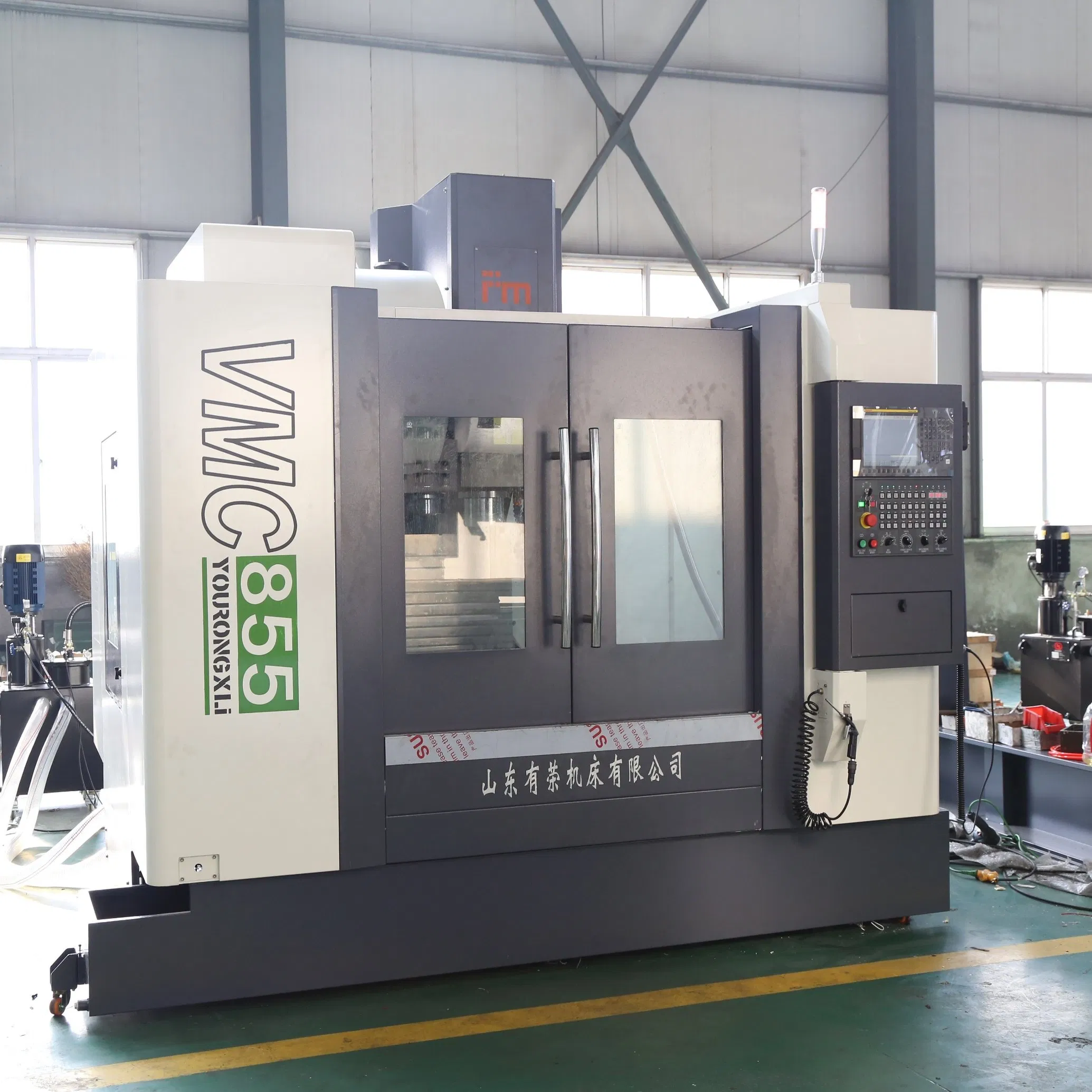

| Items | Unit | VMC1160 | VMC855 | VMC750 |
|---|---|---|---|---|
| Table size | mm | 1200x600 | 1000x550 | 900x500 |
| Max. load of table | kg | 800 | 500 | 400 |
| X axis travel | mm | 1100 | 800 | 700 |
| Y axis travel | mm | 600 | 550 | 500 |
| Z axis travel | mm | 600 | 550 | 500 |
| Spindle taper | - | BT40 | BT40 | BT40 |
| Spindle speed | rpm | 8000 | 8000 | 8000 |
| Main motor power | kw | 11 | 7.5 | 5.5 |
| Rapid speed (X/Y) | m/min | 24 | 36 | 36/48 |
| Tool magazine | Type | Disc 24T | Disc 24T | Disc 20T |
| Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
Delivery Time: Generally 30-45 days production time after order confirmation.

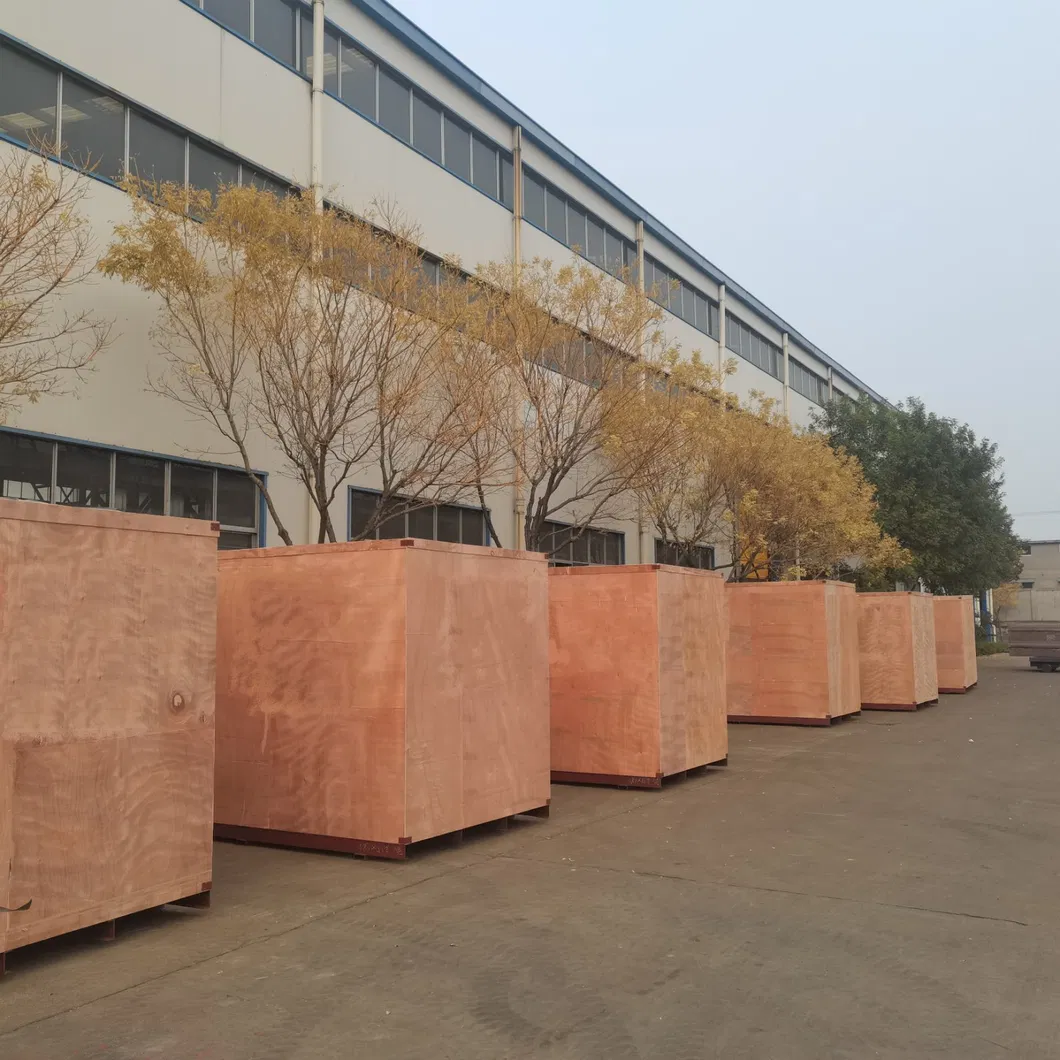

Packing Type: Machine is covered with damp-proof plastic film, then packed in plywood case with steel pallet.
Packing Size: 2100 x 2200 x 2250mm (L/W/H), compatible with 20GP container.
We supply sufficient spare parts and accessories with our milling machines during shipment. Within one year of receiving the machine, if there are any damaged parts or accessories, we will provide replacements via air-mail free of charge.
