5 Axis CNC Horizontal Vertical Machining Center Multi Surface Machining for Complex Parts
5 Axis CNC Horizontal Vertical Machining Center Multi Surface Machining for Complex Parts
5 Axis CNC Horizontal Vertical Machining Center Multi Surface Machining for Complex Parts
5 Axis CNC Horizontal Vertical Machining Center Multi Surface Machining for Complex Parts
5 Axis CNC Horizontal Vertical Machining Center Multi Surface Machining for Complex Parts
1 / 5
5 Axis CNC Horizontal Vertical Machining Center Multi Surface Machining for Complex Parts
5 Axis CNC Horizontal Vertical Machining Center Multi Surface Machining for Complex Parts
5 Axis CNC Horizontal Vertical Machining Center Multi Surface Machining for Complex Parts
5 Axis CNC Horizontal Vertical Machining Center Multi Surface Machining for Complex Parts
5 Axis CNC Horizontal Vertical Machining Center Multi Surface Machining for Complex Parts

5 Axis CNC Horizontal Vertical Machining Center Multi Surface Machining for Complex Parts

Customization: Available
After-sales Service: Video Technical Support, Online Support, Spare
Warranty: 5 Years
Send Inquiry

Product Description

Technical Specifications

Application
Metal
Processing Precision
0.01~0.02(mm)
Number of Axis
3-5 Axis
Positioning Accuracy
0.005mm
Repeatability
0.003mm
Spindle Speed
40 - 8000 r.p.m
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Certification
GS, CE, RoHS, ISO 9001
Spindle Taper
BT40 - 80
Tool Capacity
24 Tools
Production Capacity
50000 Pieces/Week

VMC Series Machining Center

5 Axis CNC Horizontal Vertical Machining Center for Complex Multi-Surface Machining

Machining Center Overview
Core Features
High-precision & high-rigidity spindle
Advanced Servo motor drive system
Low noise and low vibration operation
Belt-type spindle for maximum reliability
Semi-closed loop X/Y/Z axis control

Model Comparison Specs

Specifications VMC650 VMC850 VMC855 VMC1060 VMC1270
X axis Travel650mm800mm800mm1000mm1200mm
Y axis Travel400mm500mm550mm600mm700mm
Z axis Travel500mm500mm550mm600mm700mm
Workbench Area800×400mm1000×500mm1000×550mm1200×600mm1300×700mm
Spindle Speed8000 rpm8000 rpm8000 rpm8000 rpm8000 rpm
Weight Capacity400Kg500Kg500Kg600Kg700Kg
Positioning Accuracy±0.005/300mm±0.005/300mm±0.005/300mm±0.005/300mm±0.005/300mm

Product Gallery

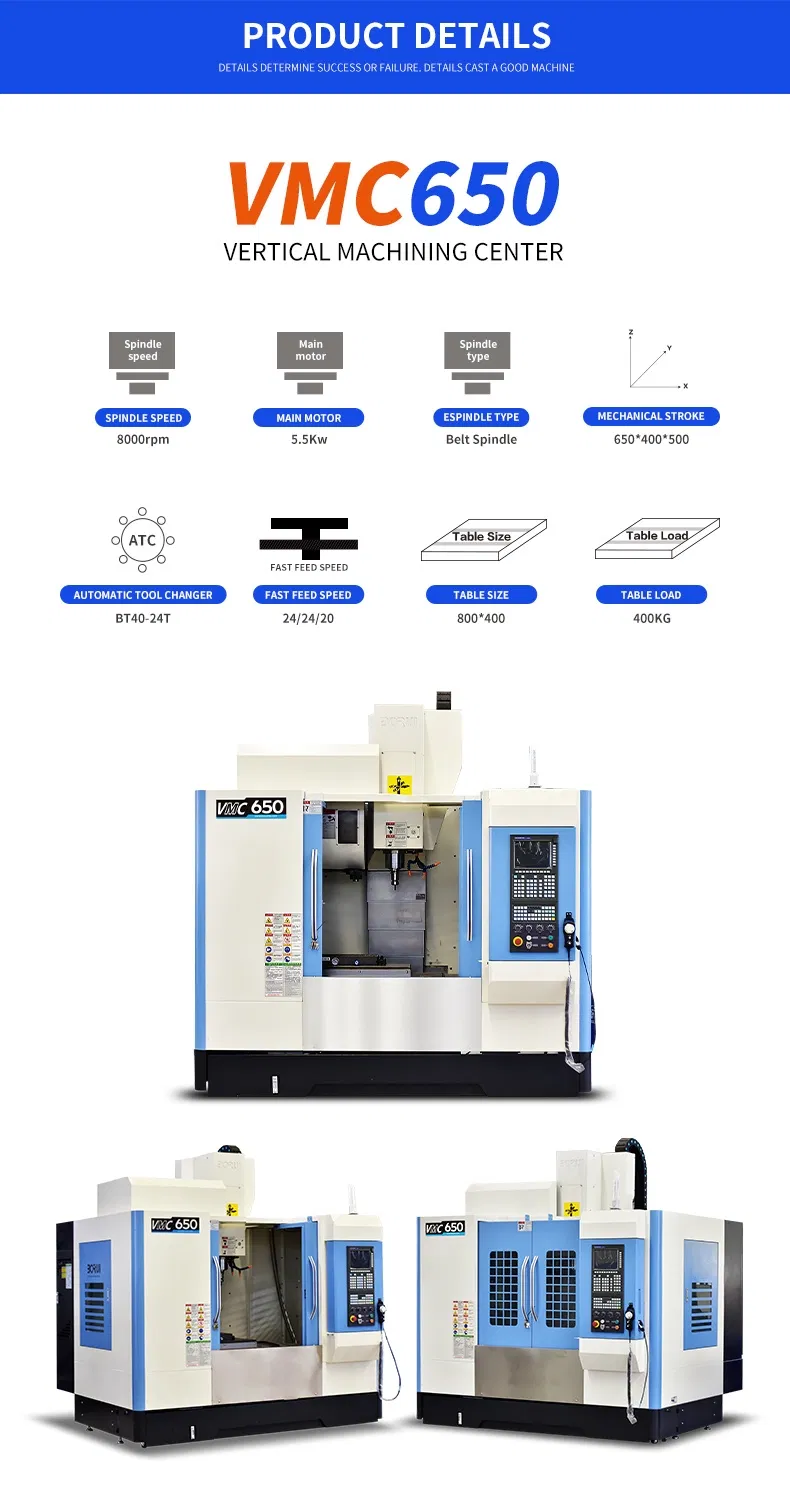

VMC Detail 1
VMC Detail 2

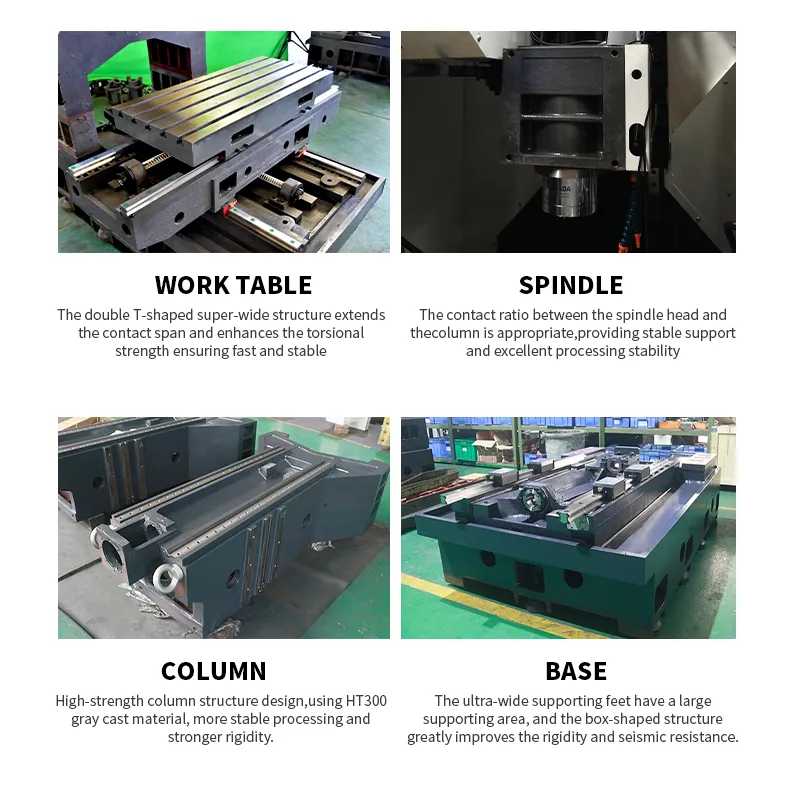

VMC Detail 3
VMC Detail 4

Logistics Information

Package Size
2200.00cm * 1200.00cm * 1200.00cm
Gross Weight
2000.000kg
Lead Time
7 Days (1-10 Pieces)

Frequently Asked Questions

What is the positioning accuracy of the VMC series?
The machines achieve a high positioning accuracy of ±0.005mm according to JIS standards, with a repeatability of ±0.003mm.
How many axes can these machining centers support?
The VMC series supports flexible configurations ranging from standard 3-axis up to complex 5-axis surface machining.
What are the main applications for this equipment?
These vertical machining centers are primarily designed for high-precision metal cutting, forming, and CNC non-conventional machining.
What spindle speeds are available?
The spindle speed range is highly adjustable from 40 to 8000 r.p.m, suitable for various cutting intensities and materials.
What certifications do your machines have?
All our CNC machines are fully certified with GS, CE, RoHS, and ISO 9001 standards to ensure international quality compliance.
What is the typical lead time for an order?
For quantities between 1 to 10 pieces, the standard lead time is 7 days. Larger orders are subject to negotiation.
