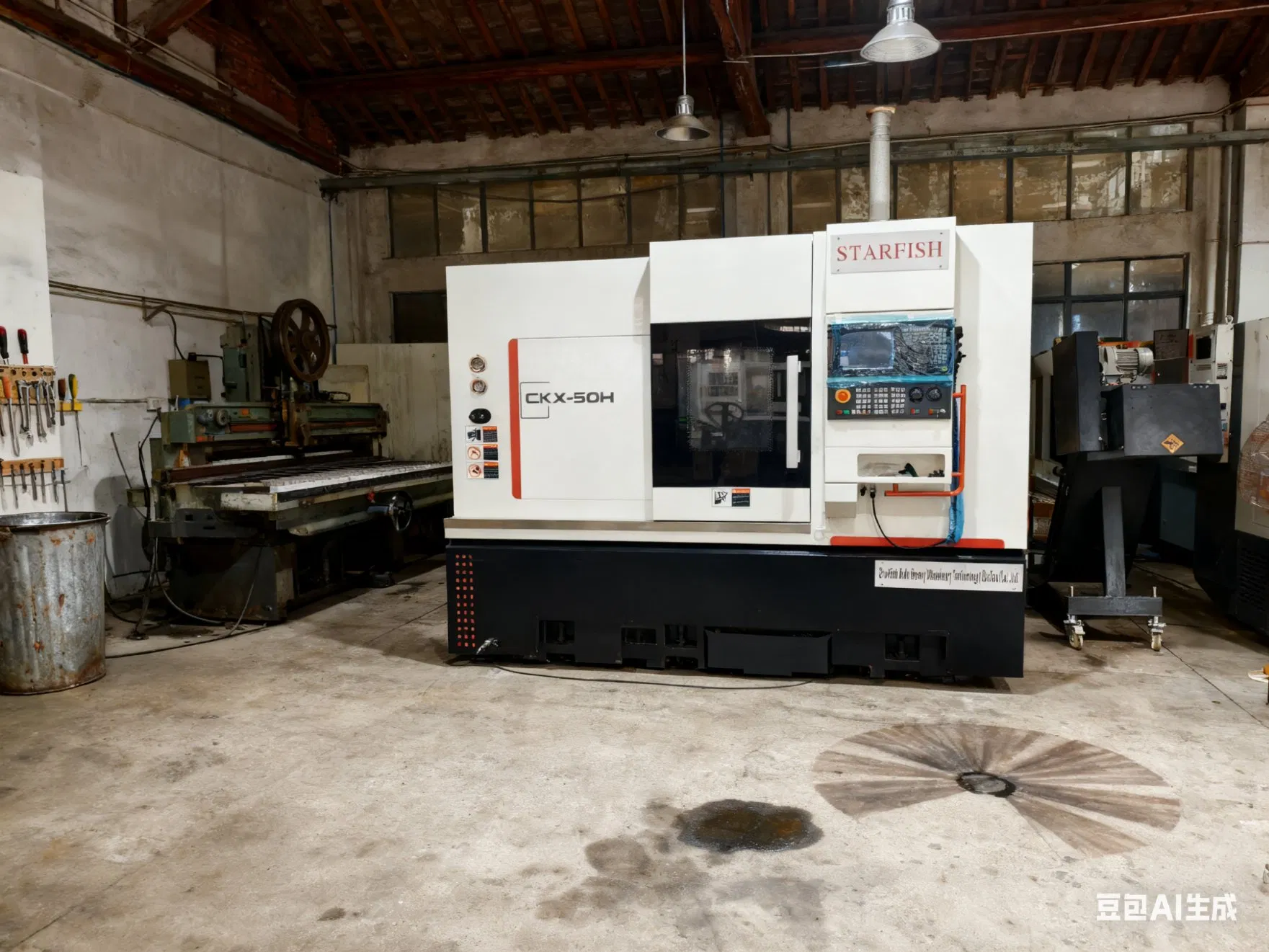

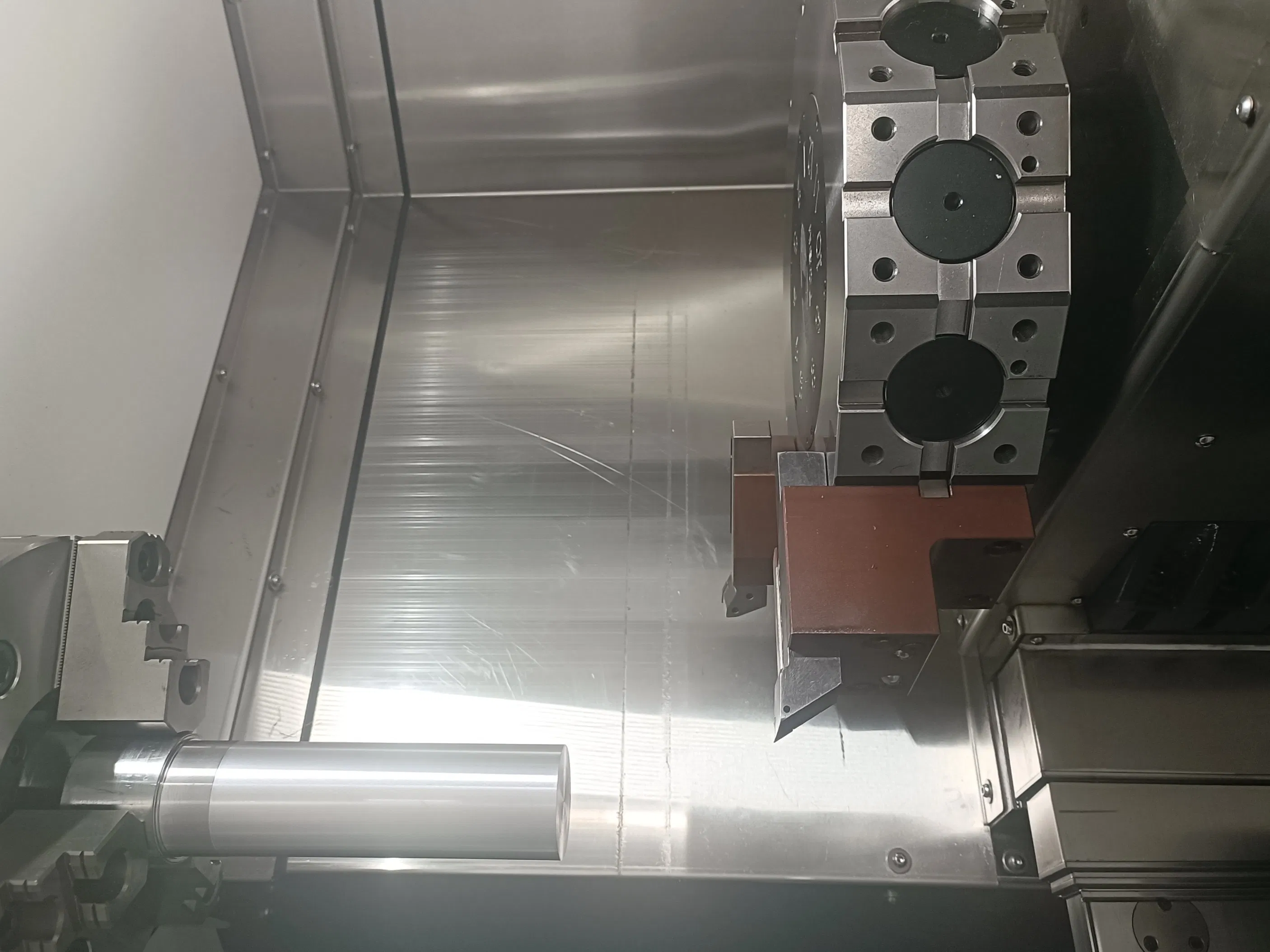

One-Setup Machining Multi-Axis Mill-Turnintegrated Turning & Milling Live Tooling & Milling Center

1 / 5

One-Setup Machining Multi-Axis Mill-Turnintegrated Turning & Milling Live Tooling & Milling Center

Customization:	Available
After-sales Service:	Provided
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Information

Model NO.:

CKX40H, CKX50H. CKX60H

Type:

Horizontal Lathe

Processing:

Centre CNC Lathe

Guide Rail:

Horizontal Guide Rail

Power Source:

Electric

Controlling Mode:

CNC

Automatic Grade:

Automatic

Precision:

High Precision

Certification:

Capacity:

300 Sets Per Month

📦 Packaging & Delivery

Package Size:

500.00cm * 200.00cm * 200.00cm

Gross Weight:

12000.000kg

📍 Product Description

Item	Unit	CKX40H	CKX50H	CKX60H
Max. swing over bed	mm	Ф460	Ф560	Ф700
Max.swing over carriage	mm	Ф230	Ф280	Ф320
Max.Turning diameter: dics/shaft	mm	Ф280/Ф220	Ф310/Ф260	Ф400/Ф300
Max. turning length	mm	250	400	630
Spindle bore diameter	mm	Ф56	Ф66	Ф93
Spindle motor power	kW	7.5/11	11/15	15/18.5
Spindle speed range	RPM	30-4000	30-4000	50-2500
Axis travel X/Z/Y	mm	230/470/±35	235/480/±50	250/720/±50
Position accuracy (X/Z)	mm	0.005/0.006	0.006/0.007	0.008/0.008
Machine tool weight	kg	Approx. 3000	Approx. 4000	Approx. 5700

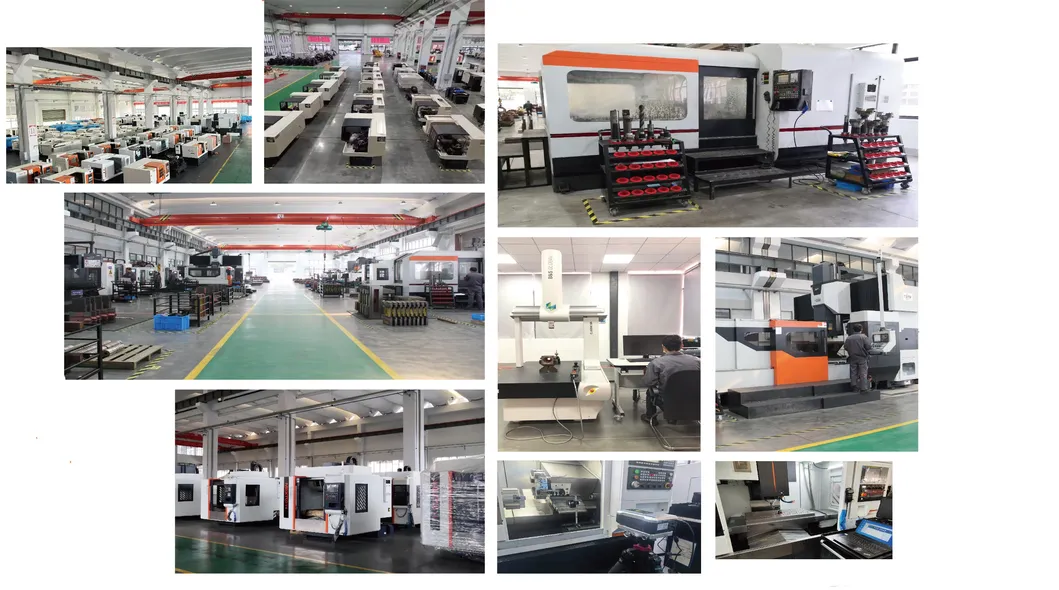

🏭 Our Factory & Profile

The company has a clear vision of where key industries are headed and how we can help customers reach their goals by thinking our way around obstacles, creating solutions and finding answers to complex technical and engineering challenges. We own CE, ISO, SGS certificate.

🎖 Certifications

❓ FAQ

Q1: What is the process for machine acceptance?

The pre-acceptance is conducted based on the machine acceptance standard and a precision inspection sheet to ensure all technical requirements are met.

Q2: What preparations are needed for installation?

The buyer should prepare the foundation according to the chart provided. Additionally, preparations for three-phase power supply, cables, and compressed air source must be completed before the supplier arrives for debugging.

Q3: Do you provide operator training?

Yes, we offer 1-2 days of training including component identification, machine operation calibration using customer workpieces, and routine maintenance methods.

Q4: How long is the warranty period?

The warranty period is 14 months from the date of debugging in the customer's workshop.

Q5: How do you handle troubleshooting and technical support?

For simple issues, we provide solutions via email, WhatsApp, or video calls. For complex technical problems, we can dispatch engineers for onsite repair and debugging.

Q6: What happens if parts fail after the warranty period?

After the warranty period, we continue to support customers by providing replacement parts at a reasonable and lower cost.
