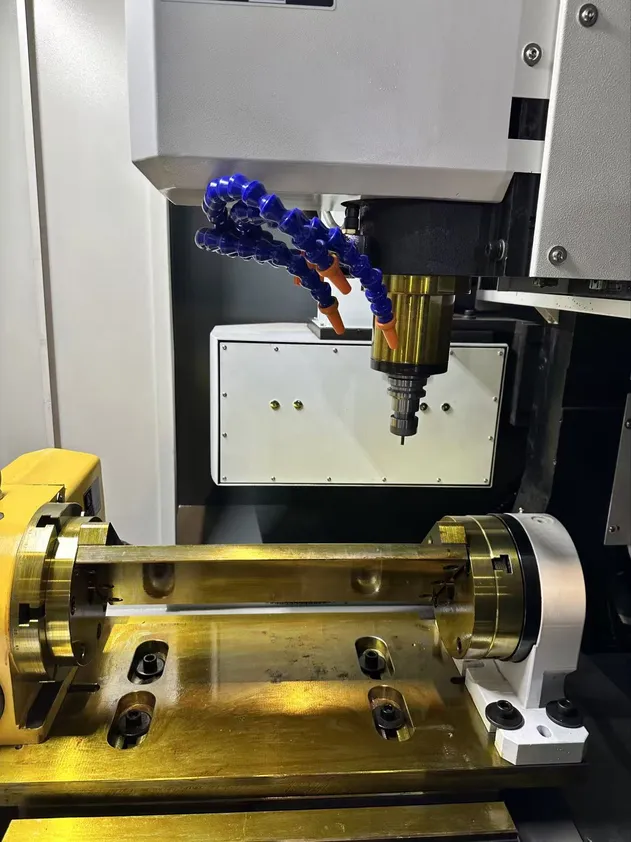

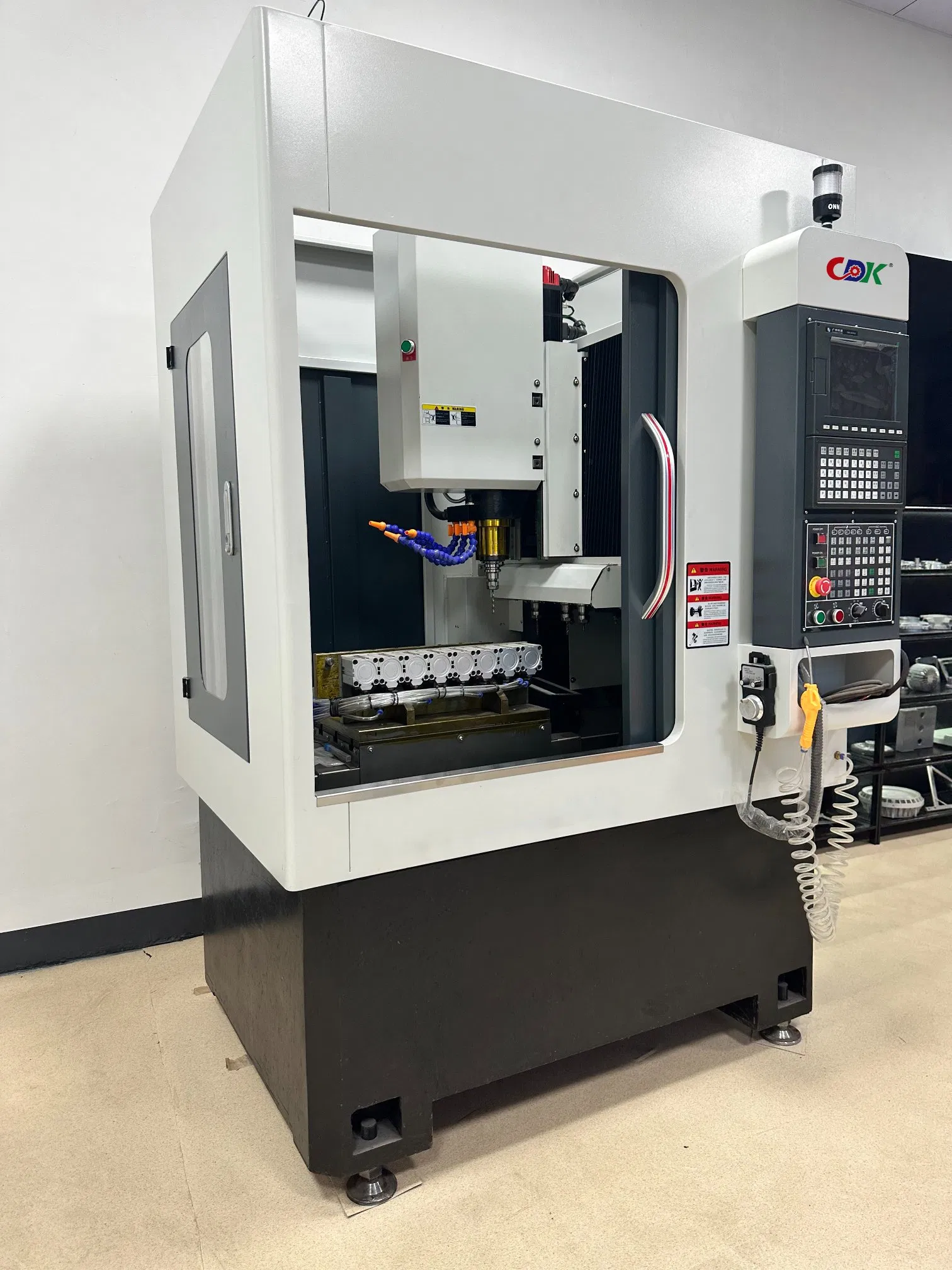

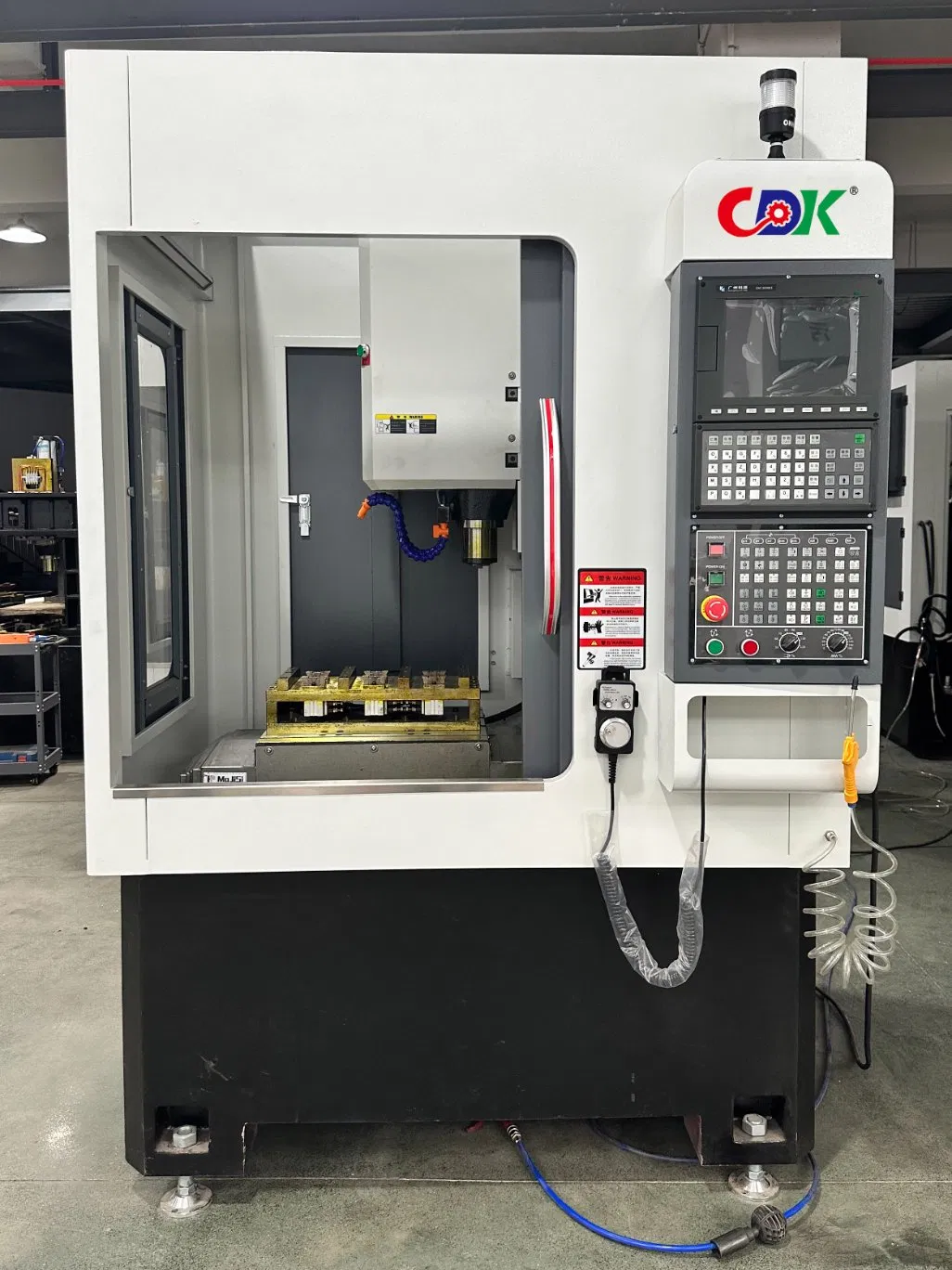

The high-speed drilling and tapping center is a modern processing machine equipped with a five-axis, four-link control system and automatic tool exchange. It can automatically and continuously complete multiple machining processes, including milling, drilling, boring, reaming, and tapping, all in a single clamping operation.
It is suitable for machining various planes, holes, and complex surfaces in medium-volume production, especially for porous small box parts. It is an ideal processing equipment for the 3C components, automotive parts, textile machinery parts, housings, and other machining industries.

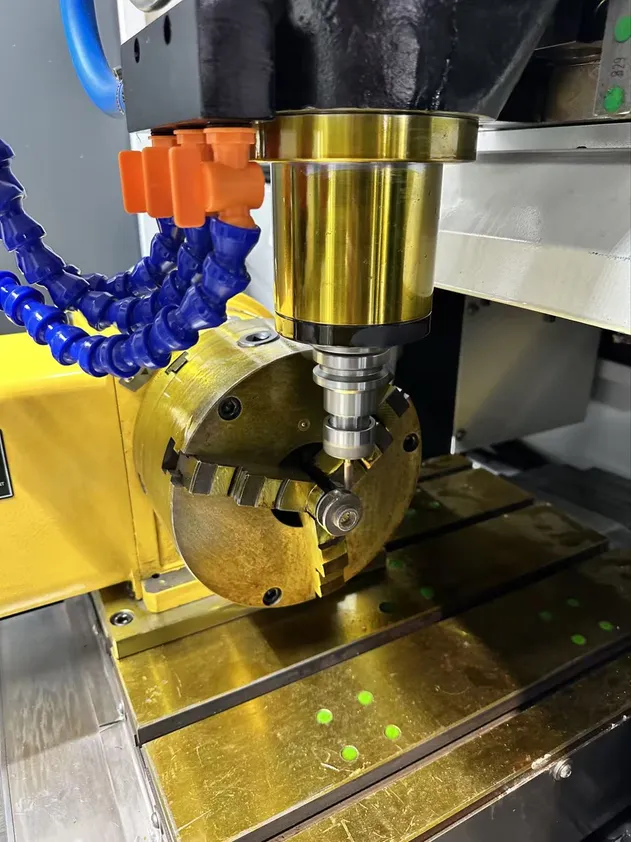

Spindle taper BT30, max speed 5000 rpm, mechanical spindle. Standard motor 2.6KW, optional 3.8KW.

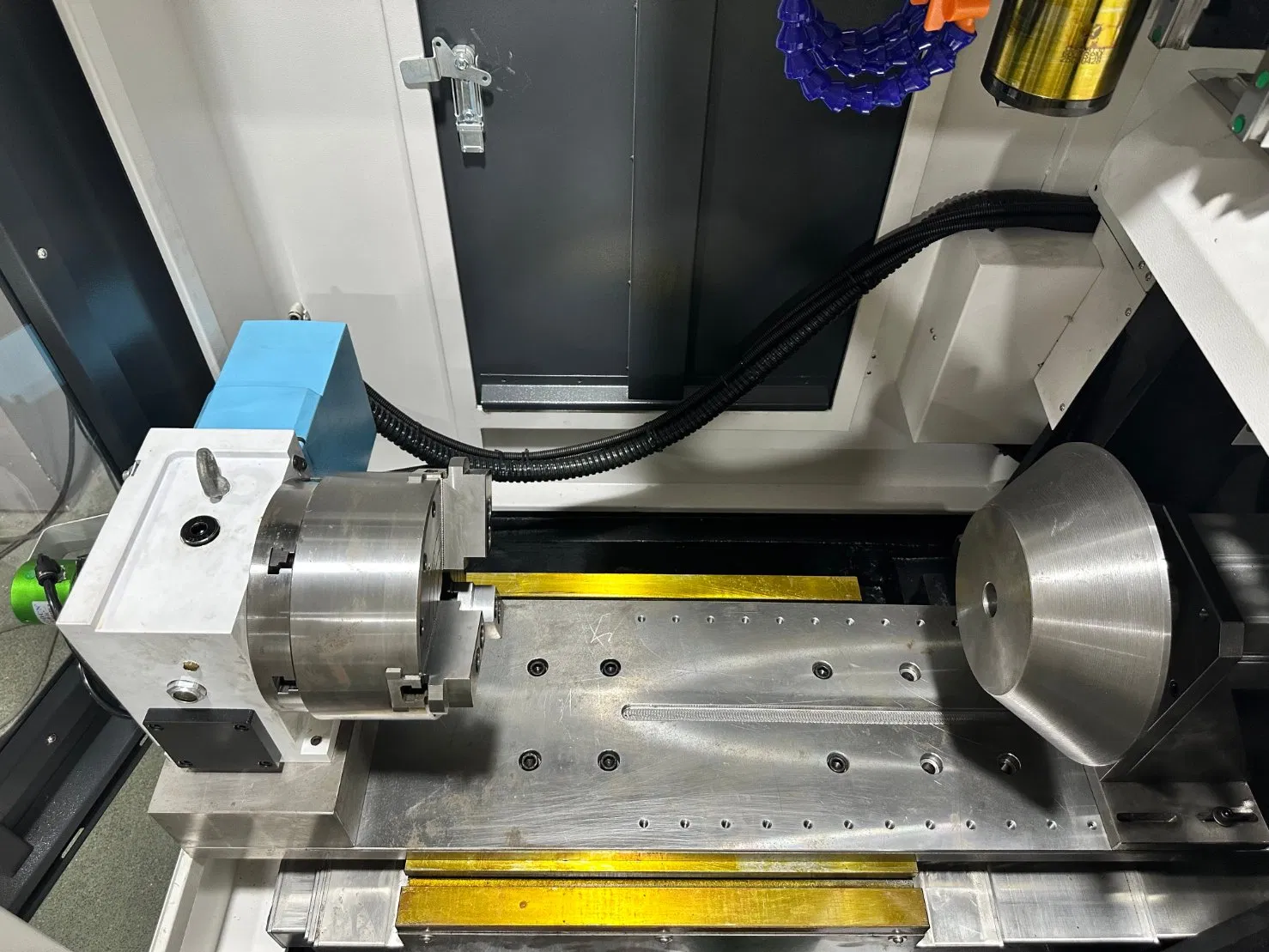

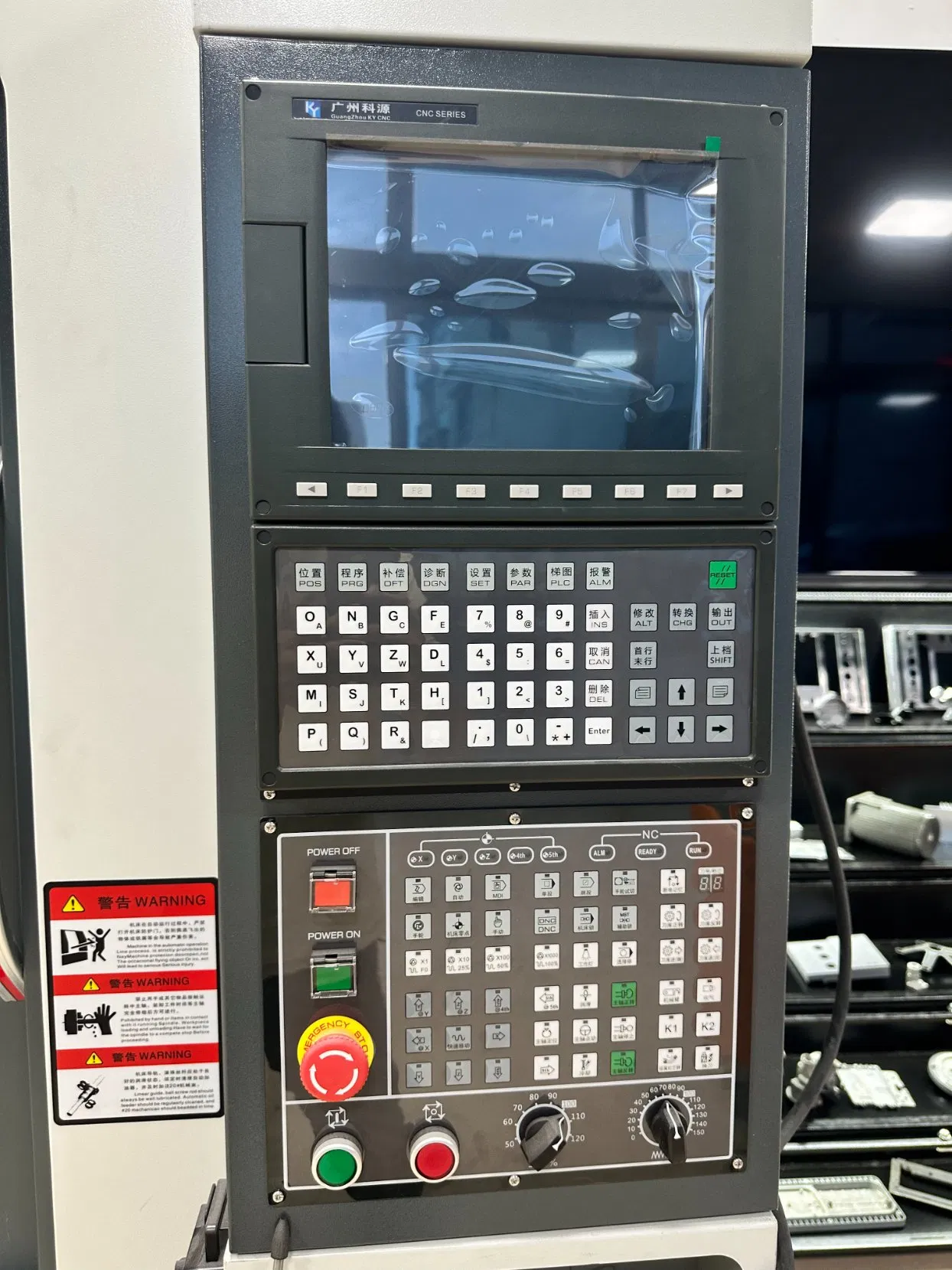

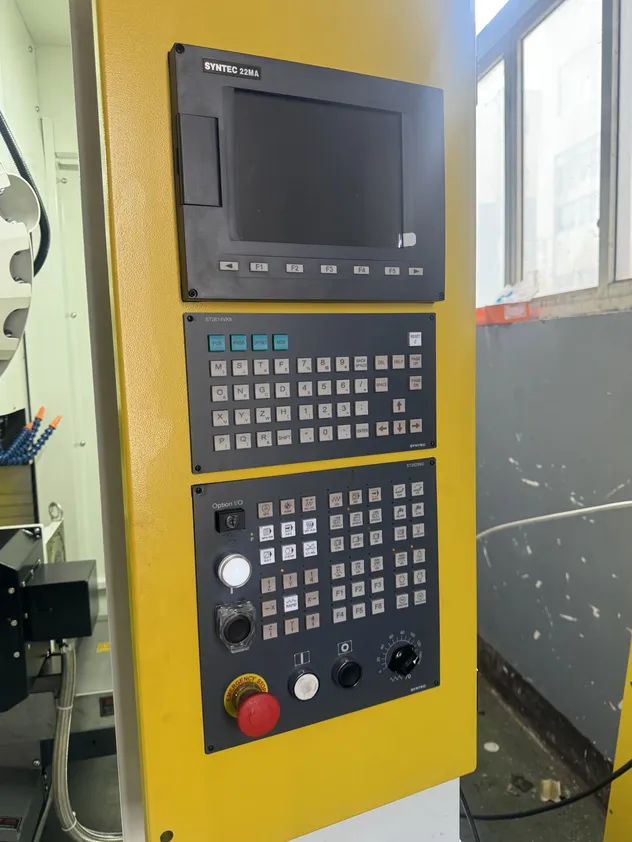

Standard: SYNTEC/Mitsubishi Control. Optional: FANUC, etc. Supports fourth/fifth axis integration.
Equipped with high-precision P-grade ball screws and C3-grade guide rails for superior accuracy.

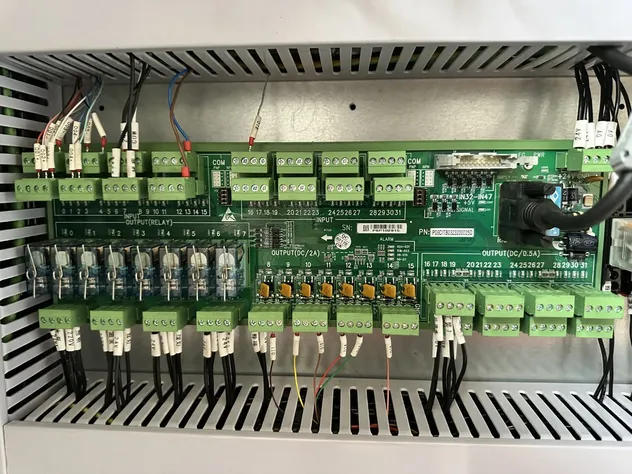

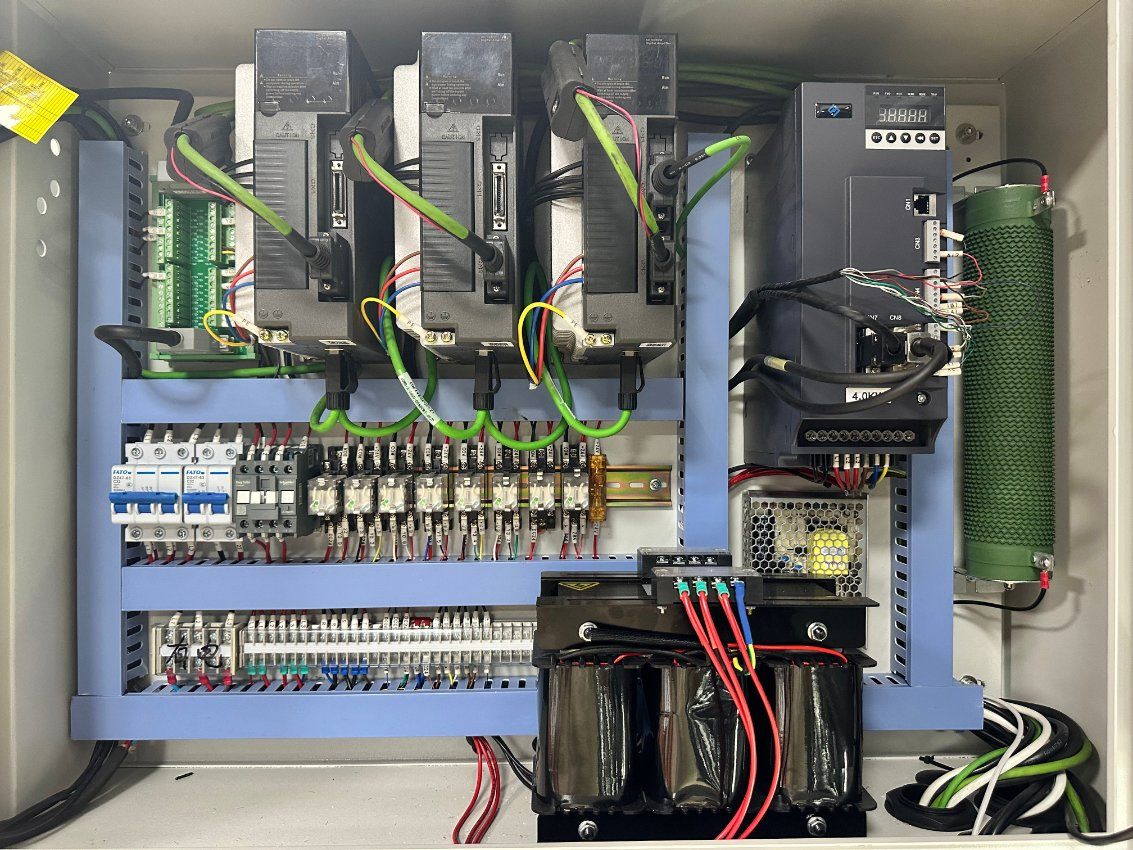

SCHNEIDER COMPONENTS
LUBRICATION SYSTEM
| ITEM | Unit | L550 | L660 |
|---|---|---|---|
| Table Dimensions (W*L) | mm | 500*400 | 600*500 |
| Maximum Load Capacity | kg | 200 | 300 |
| Spindle Speed | r/min | 6000 - 24000 | 8000 - 24000 |
| Spindle Taper | - | BT30 | BT40 |
| X/Y/Z Travel | mm | 400/500/200 | 600/600/300 |
| Tool Magazine Capacity | - | 6-tool Inline | 10 Servo Magazine |
| Repeatability | mm | 0.01 | 0.01 |
| Machine Weight | kg | 2400 | ~3800 |

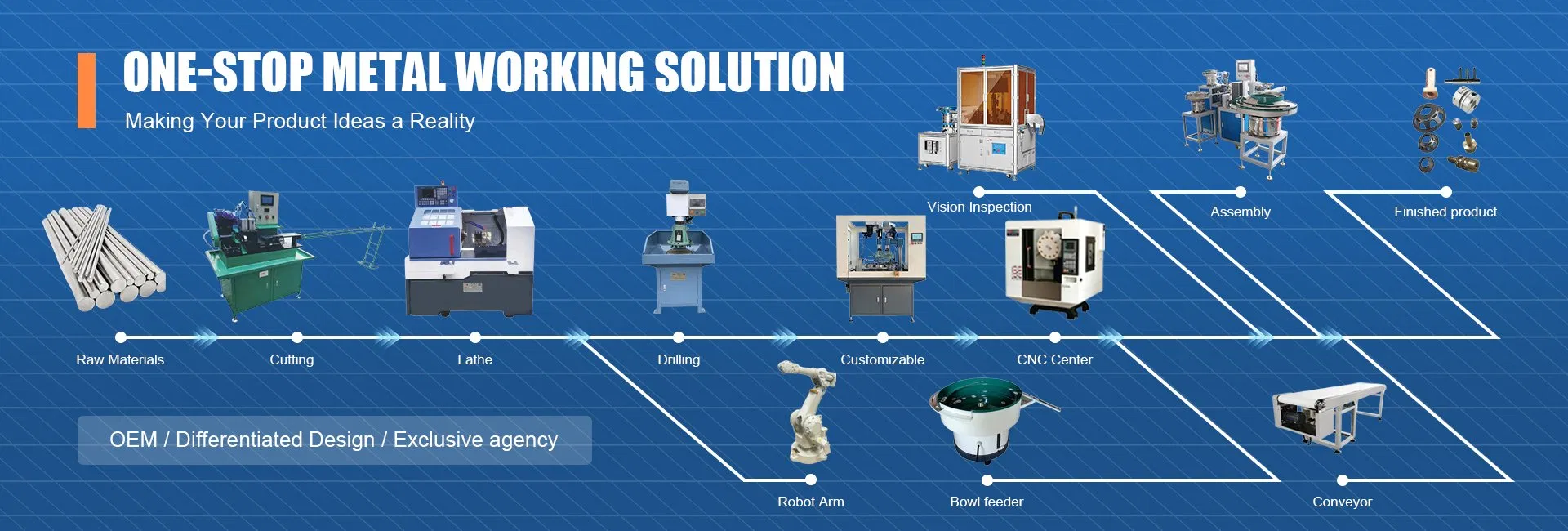

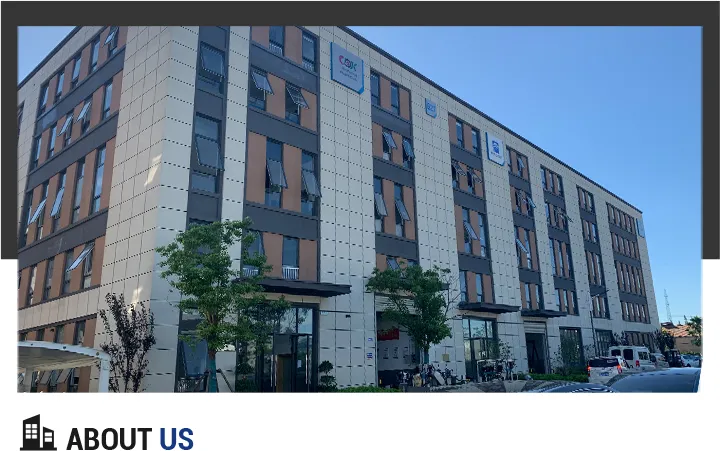

With over 20 years of expertise, our facility is ISO9001 and CE certified. We specialize in pneumatic, hydraulic, and CNC automatic drilling and tapping machinery. We provide one-stop customization services including taps, drill bits, chucks, and fixtures.
