| Model NO. | GDM-1940NC |
| Application | Metal |
| Process Usage | Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools |
| Numerical Control | CNC/MNC |
| Certification | GS, CE, RoHS, ISO 9001 |
| X/Y/Z-Axis Travel | 800*350*400 mm |
| Worktable Size | 1900X650 mm |
| Max. Load | 3000 mm |

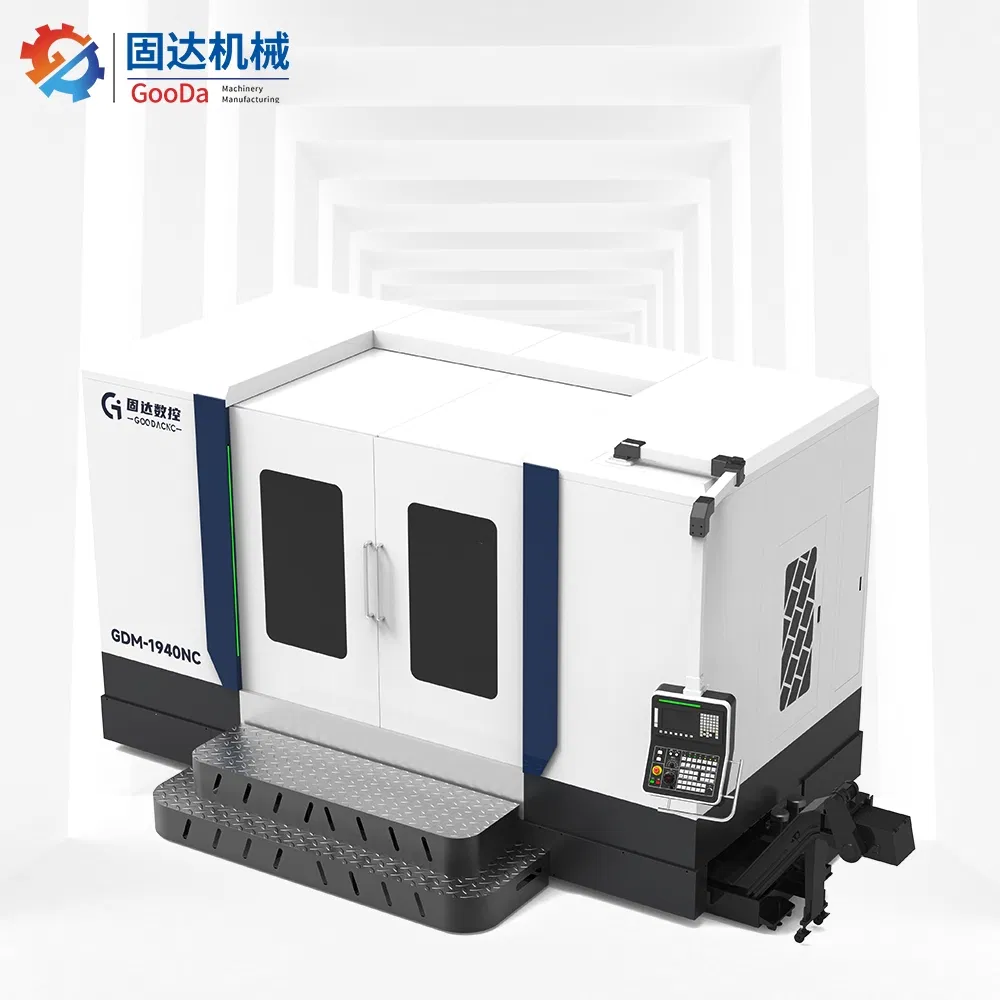

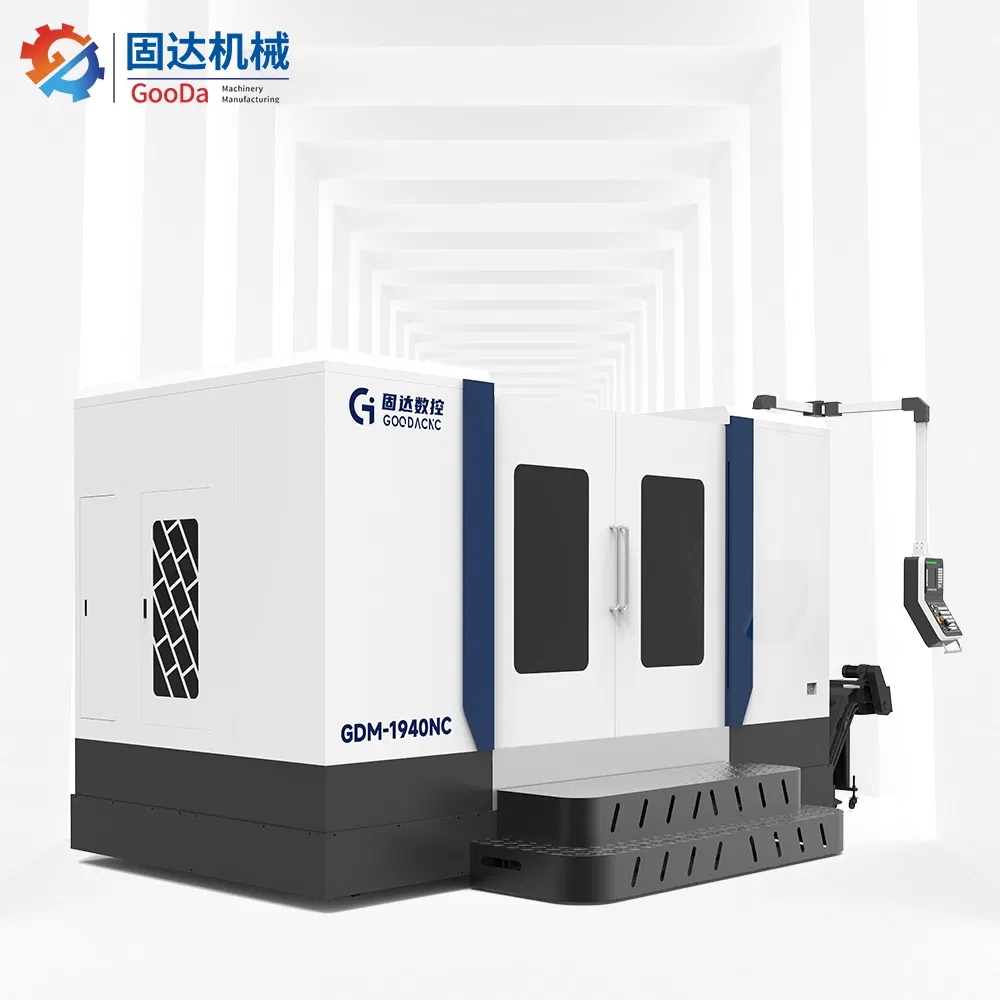

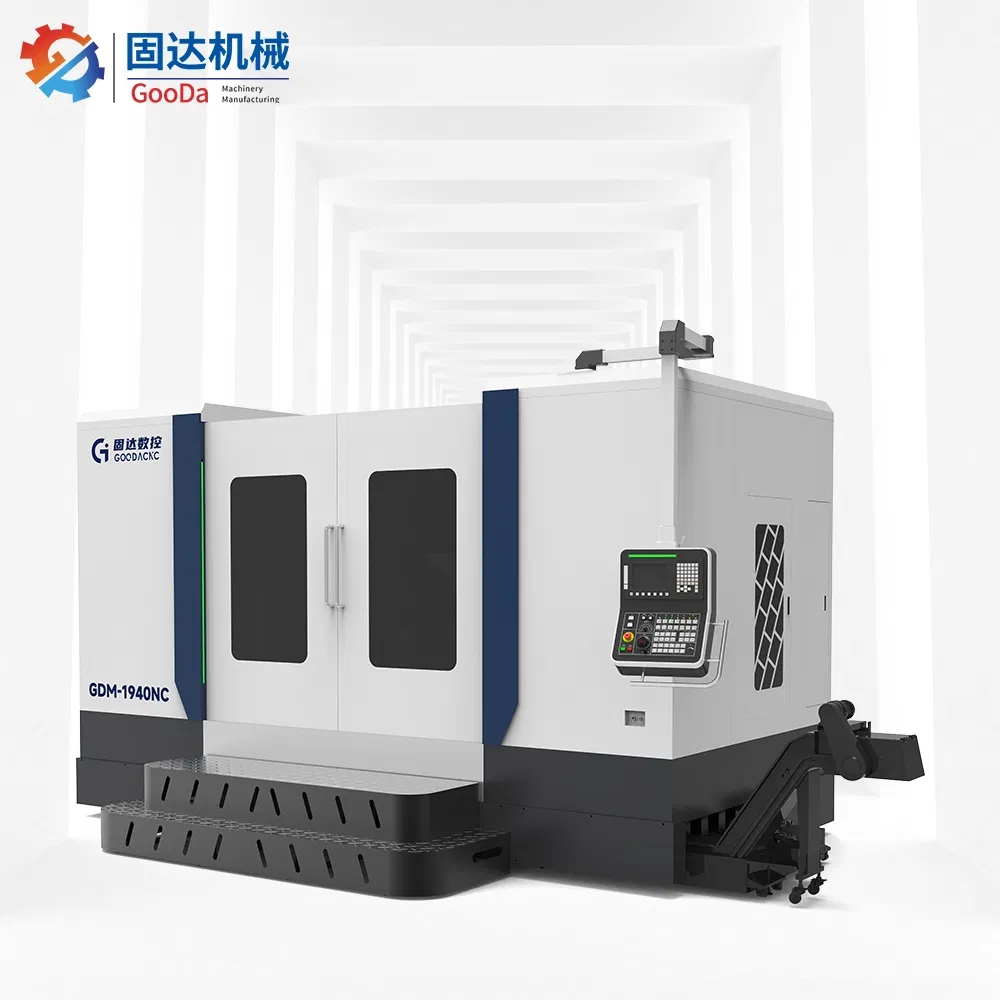

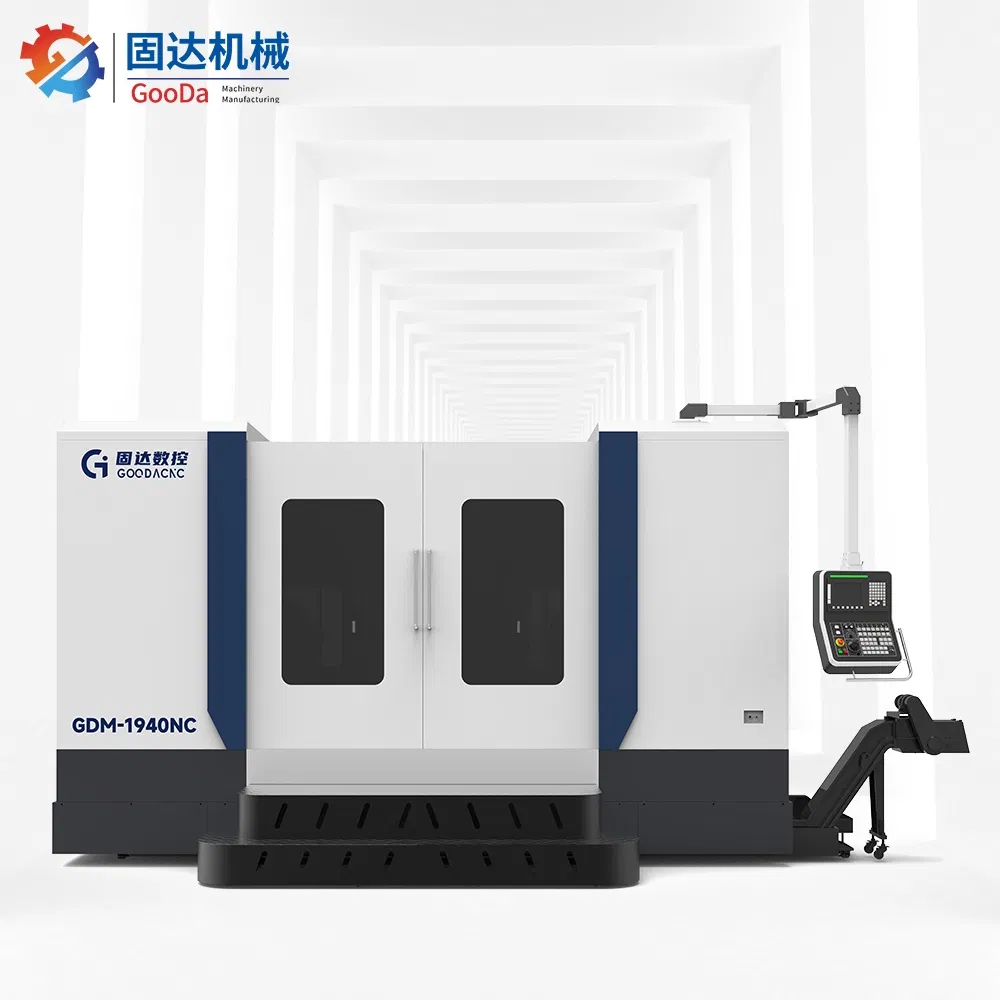

Double-Spindle Horizontal Machining Center GDM-1940NC: This innovative machine adopts an advanced composite dual-channel system control. It enables simultaneous processing of identical features on both ends of the workpiece, while also allowing for the handling of workpieces with distinct characteristics at each end. Each processing unit can operate independently, moving and functioning autonomously, offering unparalleled flexibility and precision.
Experience the versatility of multi-process machining technologies, including surface milling, drilling, and tapping, all in one seamless operation. With its capability for one-time clamping and forming, the machine's mechanical spindle is engineered to handle high torque cutting power, ensuring exceptional processing efficiency and smooth, flawless operation without interruption.

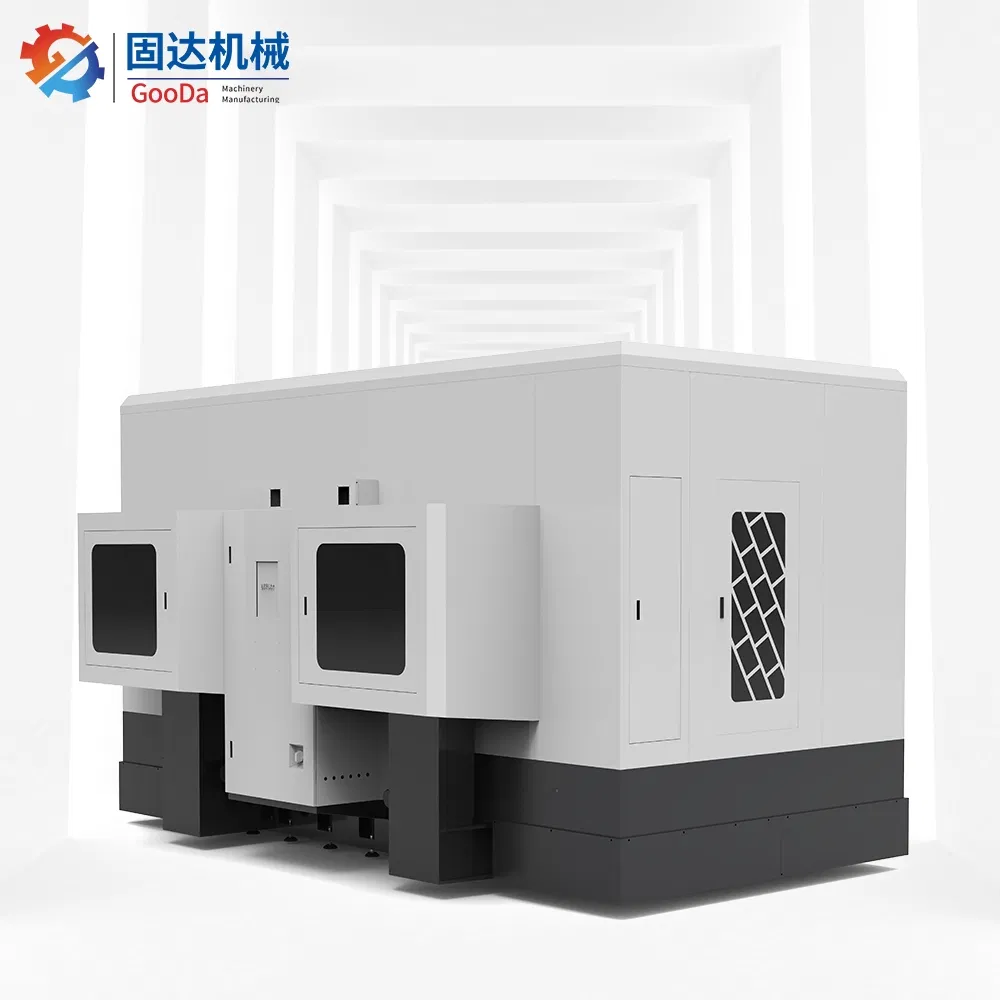

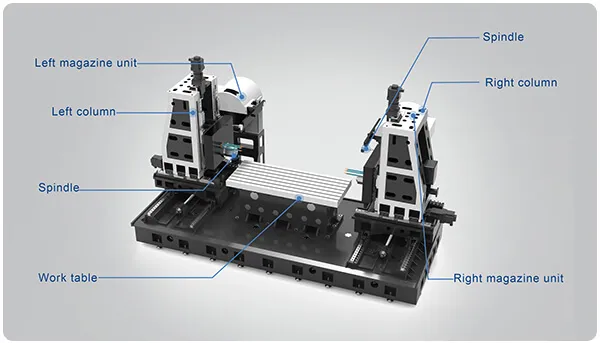

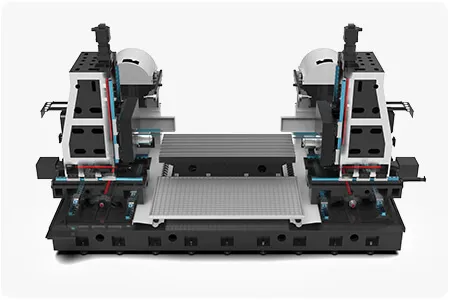

Double-Spindle System
Our sophisticated double-spindle system allows each unit to function independently, facilitating simultaneous processing of similar or varied workpiece features. This not only amplifies production efficiency but also significantly curtails production expenses.
Fast Positioning
Equipped with high-precision ball screws on the X, Y, and Z axes, this machine ensures precise positioning and swift responsiveness, reducing vibrations during high-speed operations and eliminating creep during low-speed feeds for impeccable accuracy and reliability.

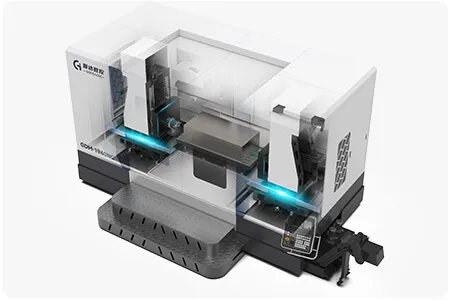

Z-axis
The Z-axis features complete column movement, maintaining consistent rigidity throughout its full travel, which significantly reduces tool vibration during deep cavity machining, ensuring precise and high-quality results.

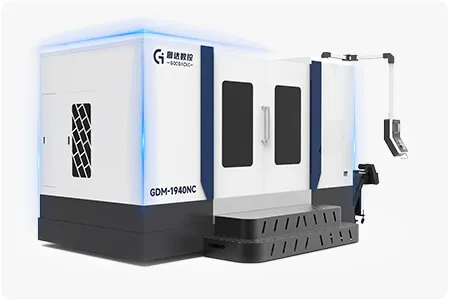

Machine Tool Protection
The durable stainless steel protective covers on the machine tool guideways extend their lifespan and maintain precision. Meanwhile, the electrical control cabinet ensures long-term stable operation, safeguarding your investment.
| Category | Attribute | Value | Unit |
|---|---|---|---|
| Travel | X-axis travel | 800 | mm |
| Y-axis travel | 350 | mm | |
| Z-axis travel | 400 | mm | |
| Worktable | Table size | 1900x650 | mm |
| Max. load | 3000 | mm | |
| Spindle | Tool holder | BT50-190 | / |
| Spindle speed | 20-3000 | rpm | |
| Power | Spindle motor | 15/18.5 | KW |
| Accuracy | Positioning | 0.02/1000 | mm |
| Repeatability | 0.015/1000 | mm |
