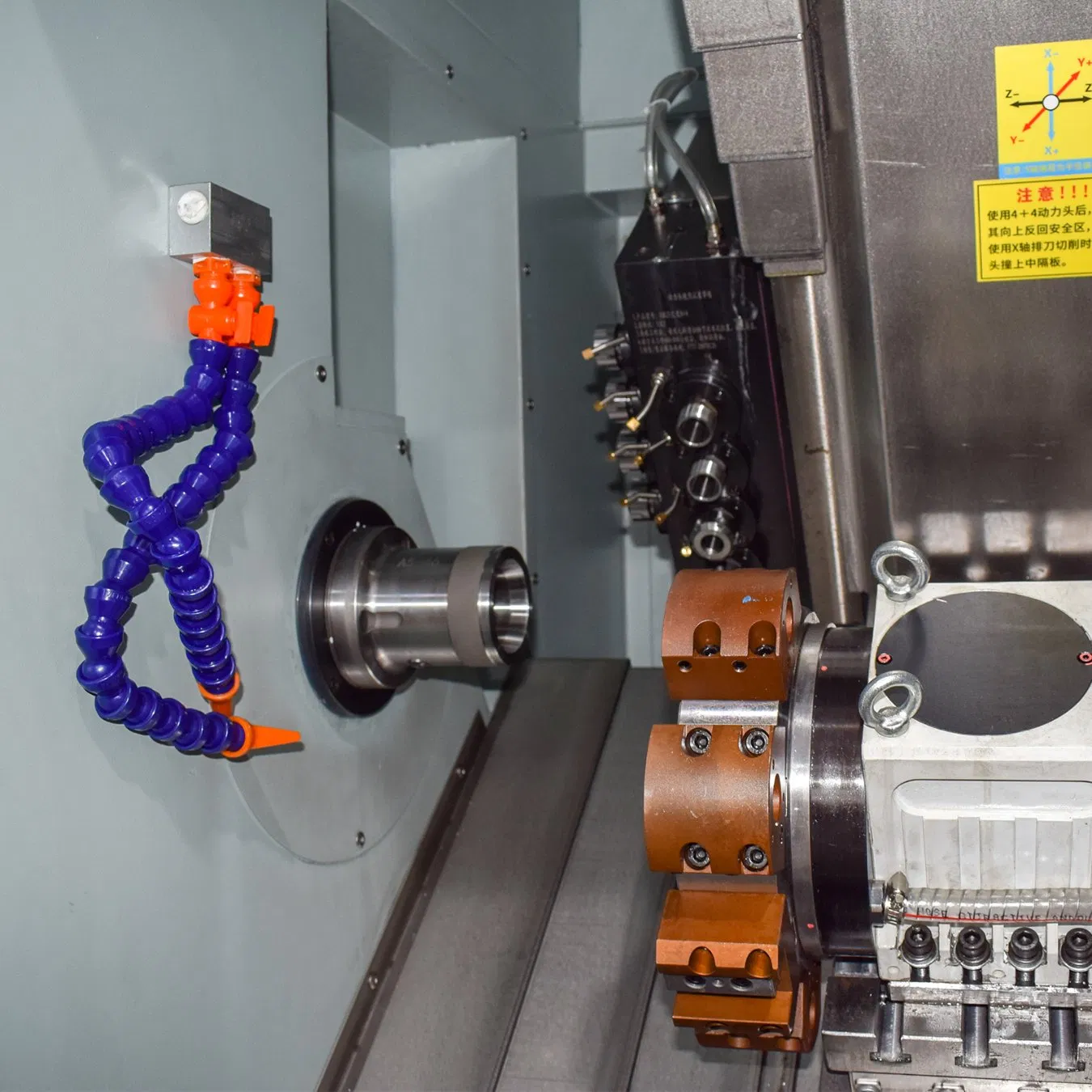

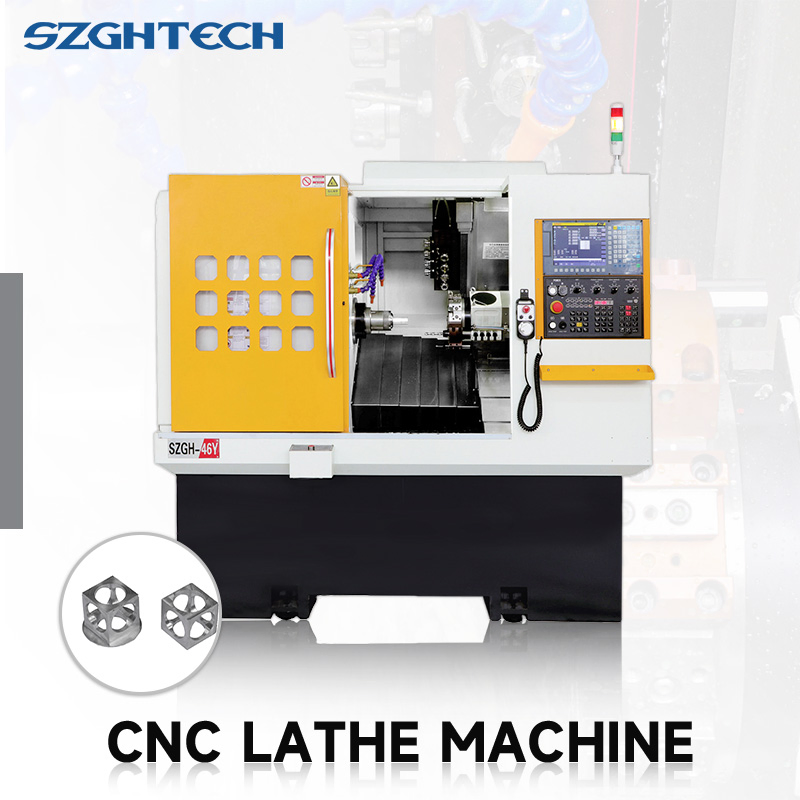

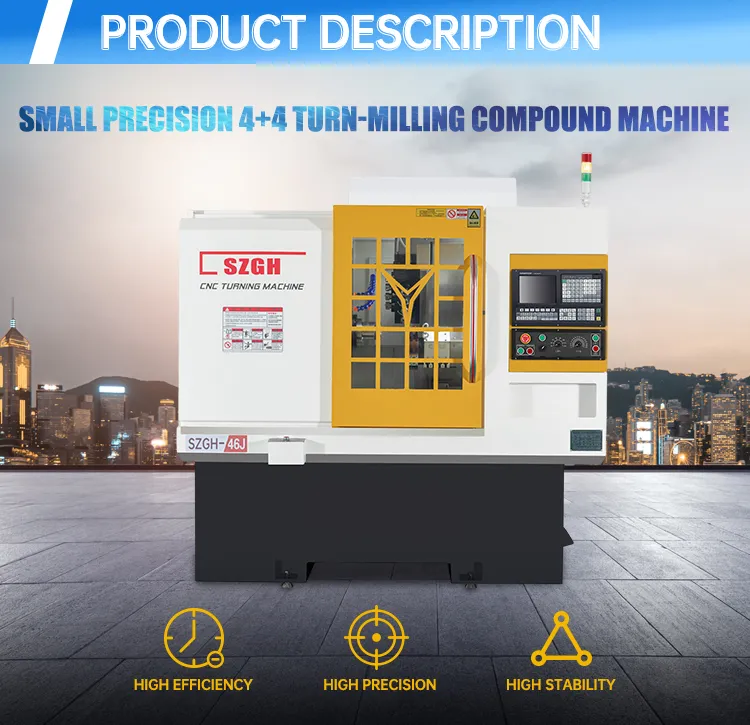

Hot Sale CNC Turn - Mill Machine Lathe Machine with 5.5kw Spindle Servo Motor

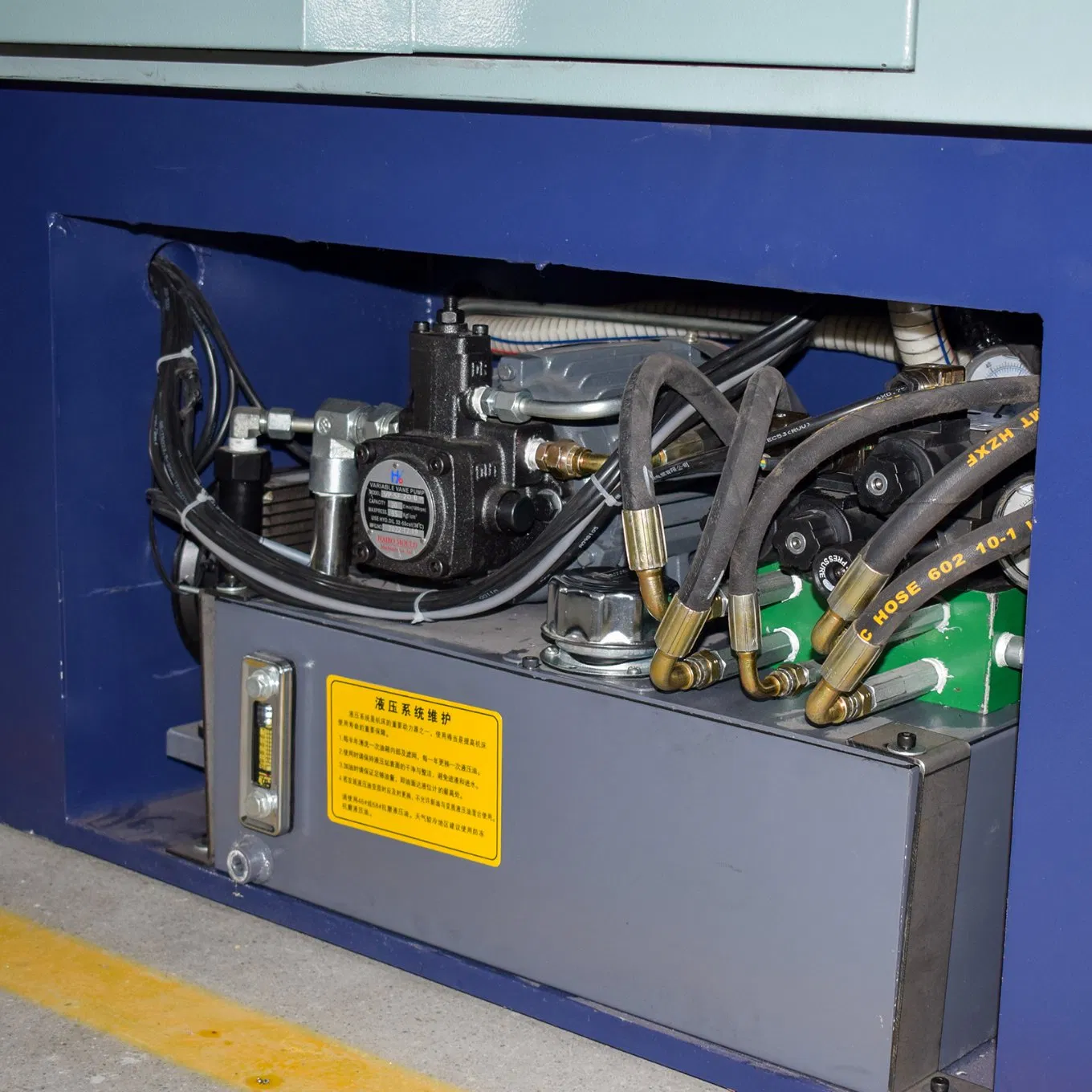

The system is suitable for batch production of copper, iron, aluminum and stainless steel bars within 45mm, and batch production of open-type forged parts with automatic feeding of pellets within 60mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 350mm. Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 4mm, precision tolerance within ±0.0075mm, and smoothness within 1.6. It is widely used in the processing of large parts with high precision and rigidity.
| Item Category | Technical Parameter | Unit | Standard Value |
|---|---|---|---|
| Processing Capacity | Max. diameter of bar bore | mm | 45 |
| Processing Capacity | Max. length of workpiece | mm | 380 |
| Processing Capacity | Machining accuracy | mm | ±0.0075 |
| Processing Capacity | Surface roughness | Ra | 1.6 |
| Travels | X-axis effective travel | mm | 1000 |
| Travels | Z-axis effective travel | mm | 400 |

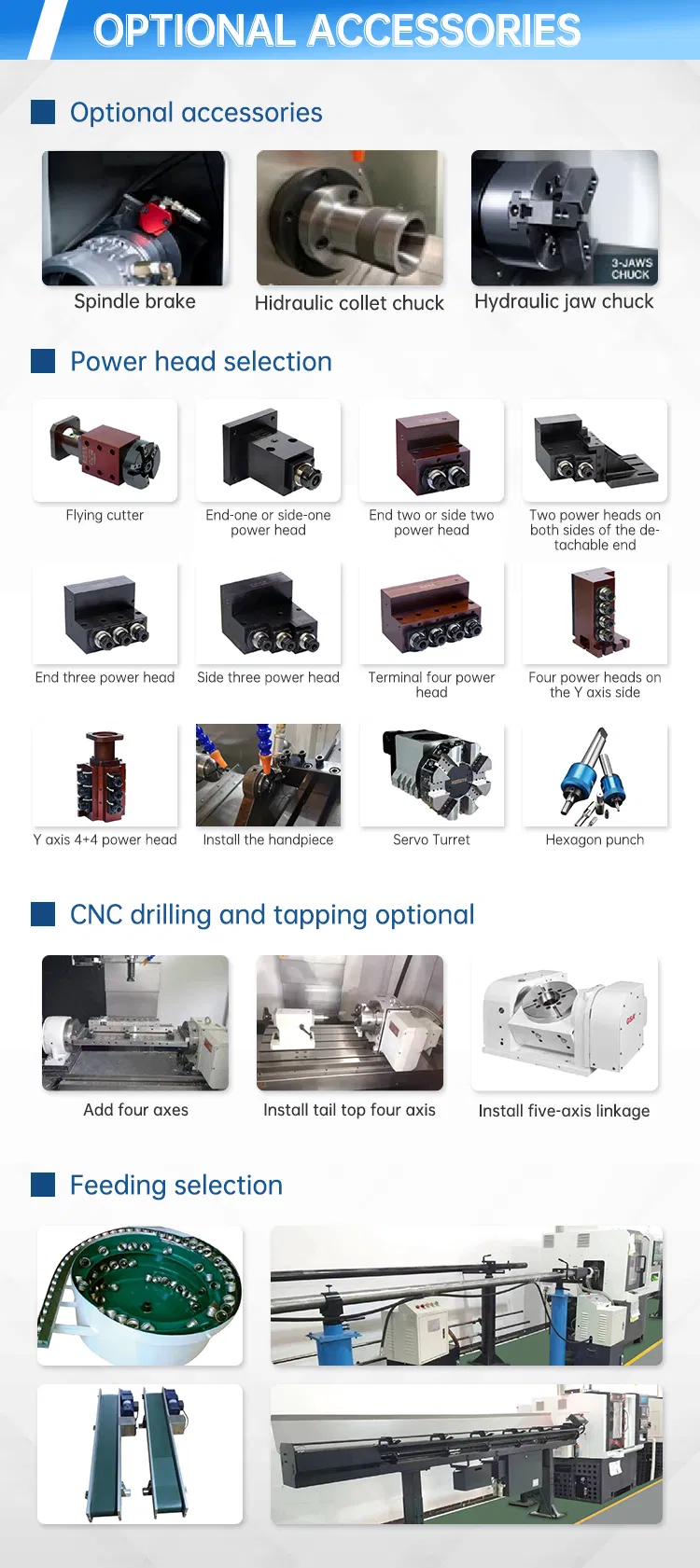

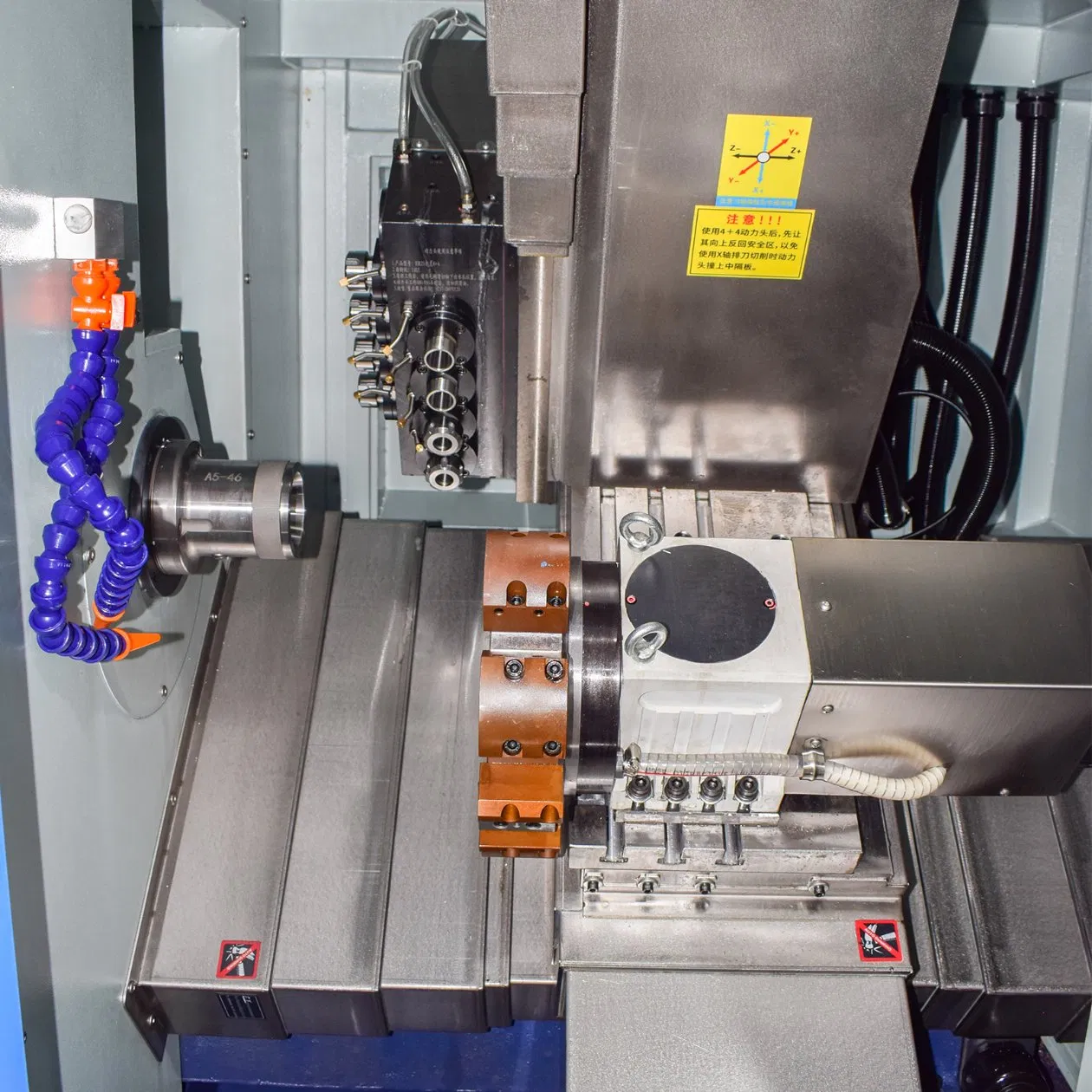

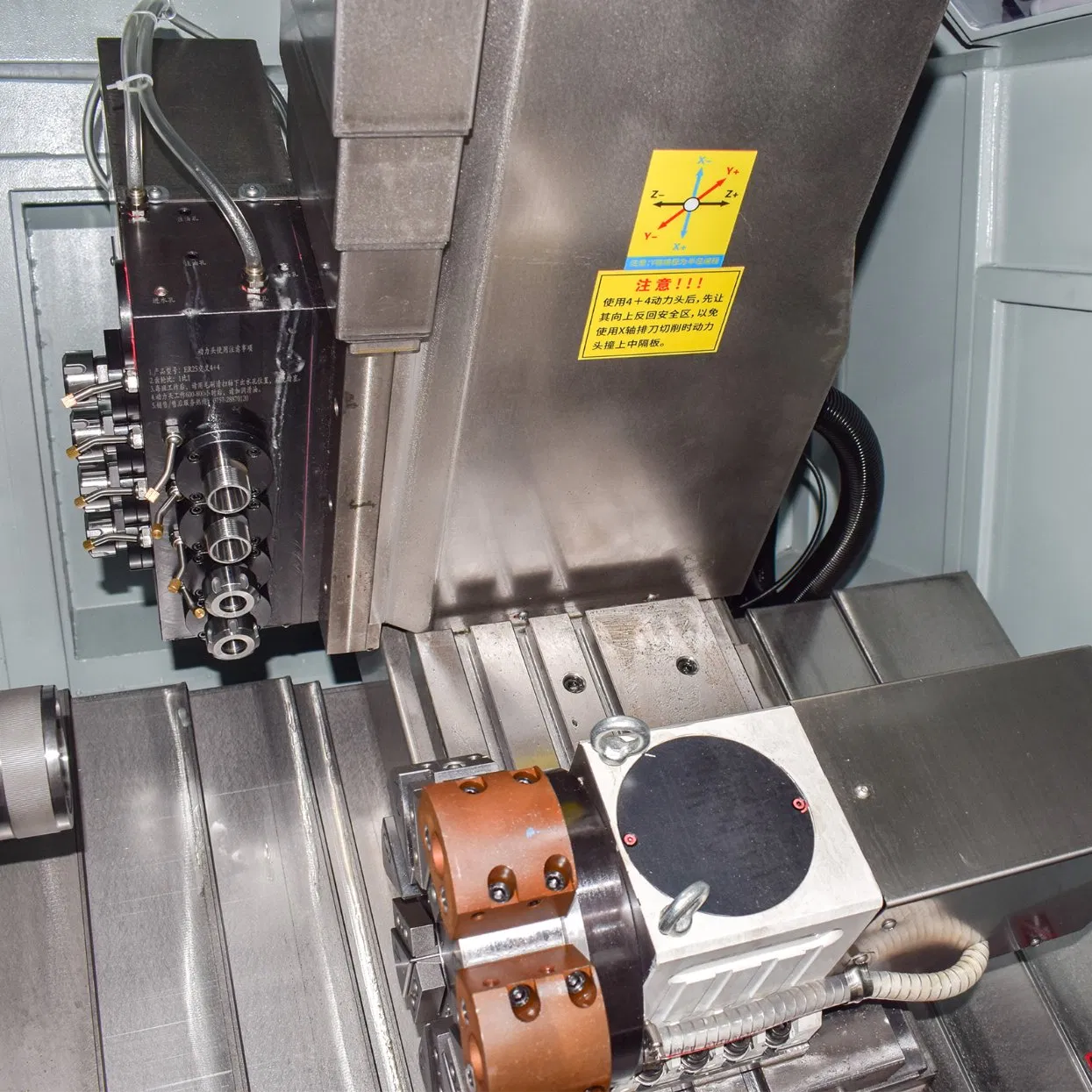

| Y-axis | Y-axis mode | - | Side 4 + End 4 power head |
| Y-axis | Y-axis travel | mm | 220 |
| Feed | X/Z-axis rapid traverse | m/min | 25 |
| Spindle | Max. Spindle Speed | rpm | 3500 |
| Spindle | Spindle Motor Power | kW | 5.5kw servo |
