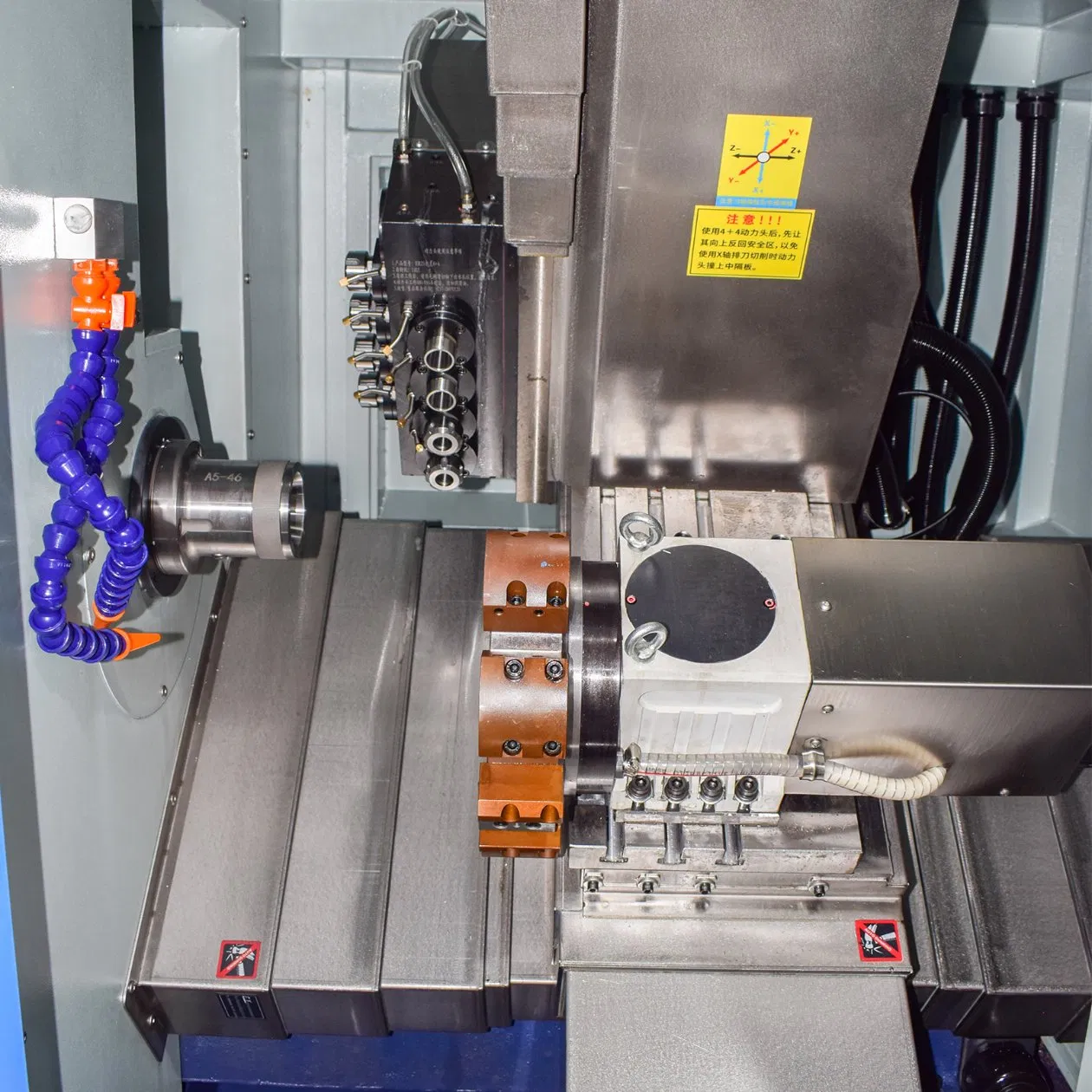

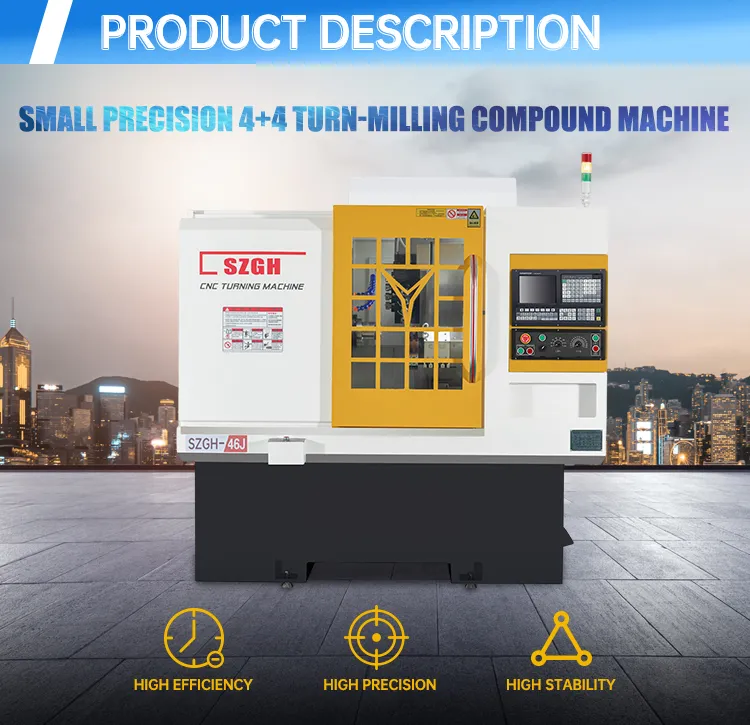

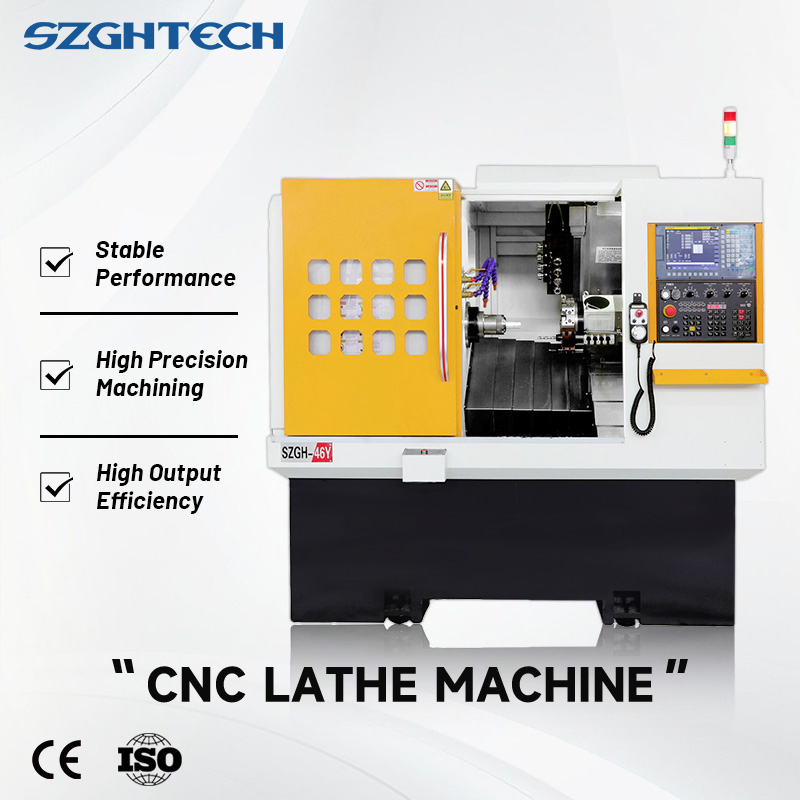

The 46Y is suitable for batch production of copper, iron, aluminum, and stainless steel bars within 45mm, and open-type forged parts with automatic feeding within 60mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 350mm. Using multiple patented technologies such as high rigidity and anti-deformation structures, it is suitable for processing products with a single-side cutting amount within 4mm, precision tolerance within ±0.0075mm, and smoothness within 1.6 Ra.
| Technical Parameter Item | Unit | Standard Value | Max Value |
|---|---|---|---|
| Max. diameter of bar bore | mm | 45 | - |
| Max. particle diameter (disk type) | mm | 400 | 420 |
| Max. length of workpiece | mm | 380 | 400 |
| Cutting amount of stainless steel (one side) | mm | 3 | 4.5 |
| Machining accuracy | mm | ±0.0075 | - |
| Surface roughness | Ra | 1.6 | 1.6 |
| X-axis effective travel | mm | 1000 | - |
| Z-axis effective travel | mm | 400 | - |
| Y-axis travel | mm | 220 | - |
| Max. Spindle Speed | rpm | 3500 | 4000 |
| Component Item | Specification | Standard Configuration |
|---|---|---|
| Screw | 32mm | Taiwan ball grinding precision grade |
| Guide rail | 30mm | Taiwan H-class linear guide rail |
| Spindle | - | High rigidity barrel spindle |
| Spindle motor | 5.5kW | Servo host |
| CNC Control | Ac8F-G | High-speed CNC system |
| Bed Type | 45° | Slant Bed |

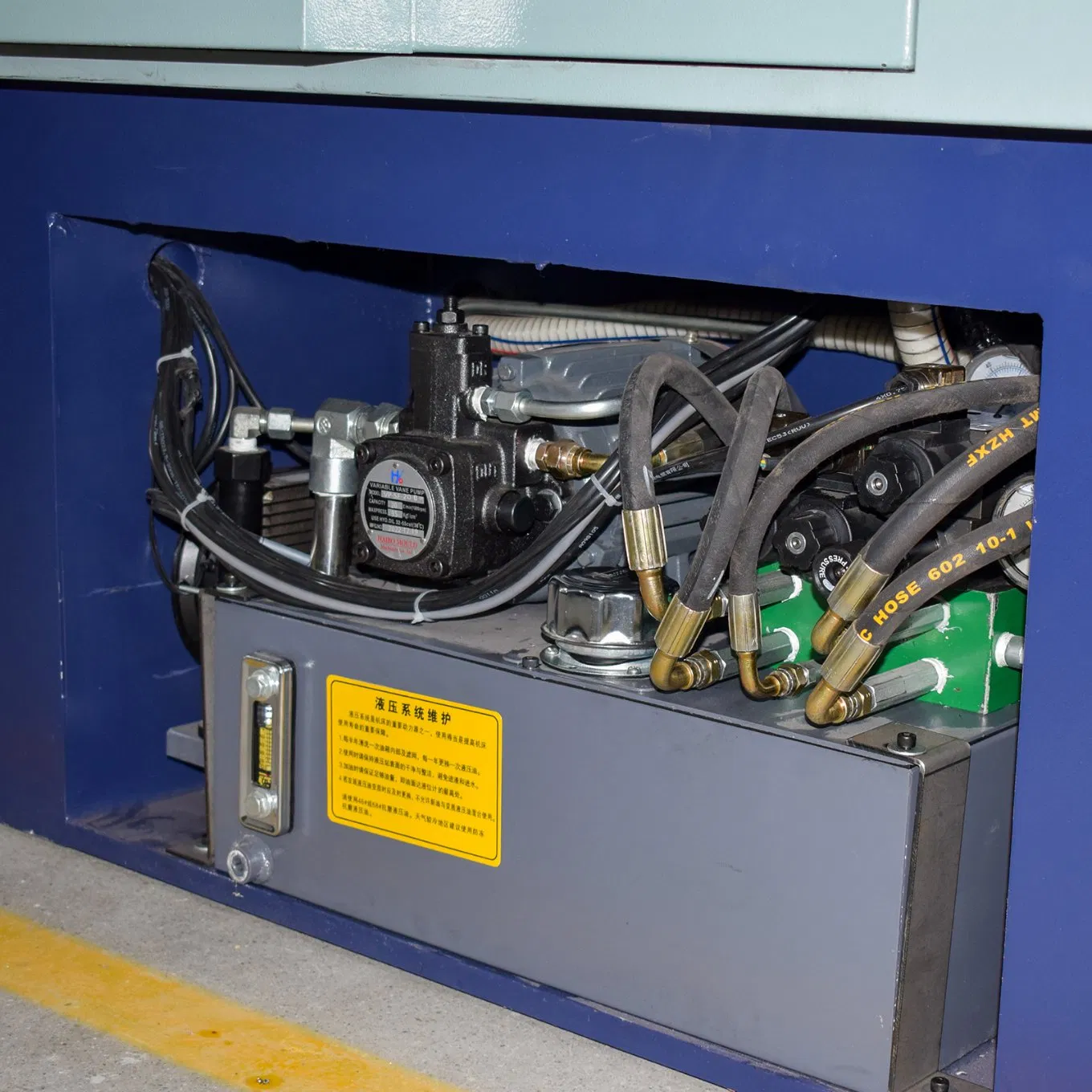

| Clamping method | - | Hydraulic clamping |
