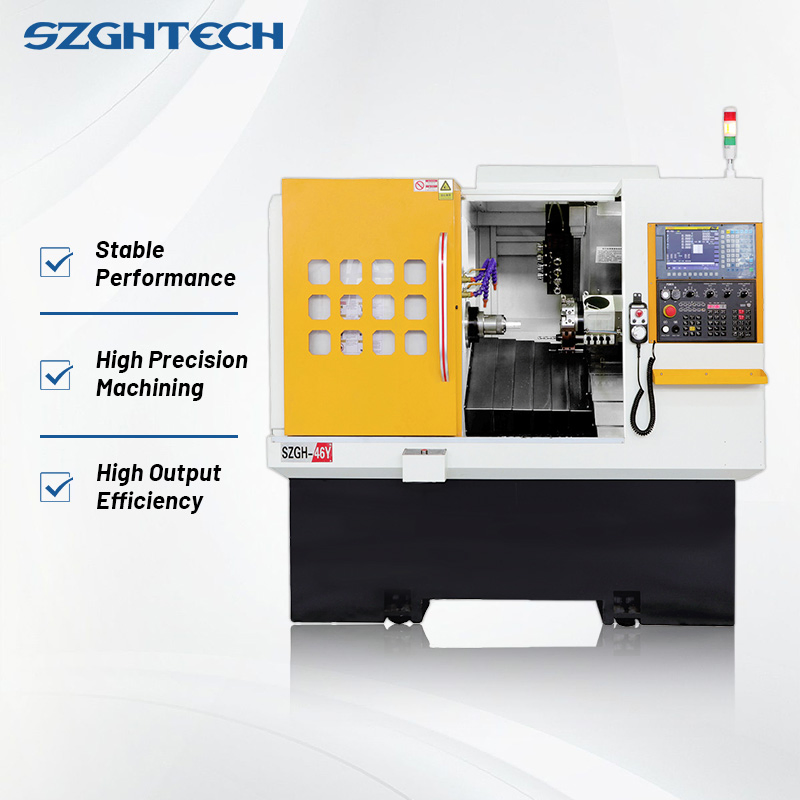

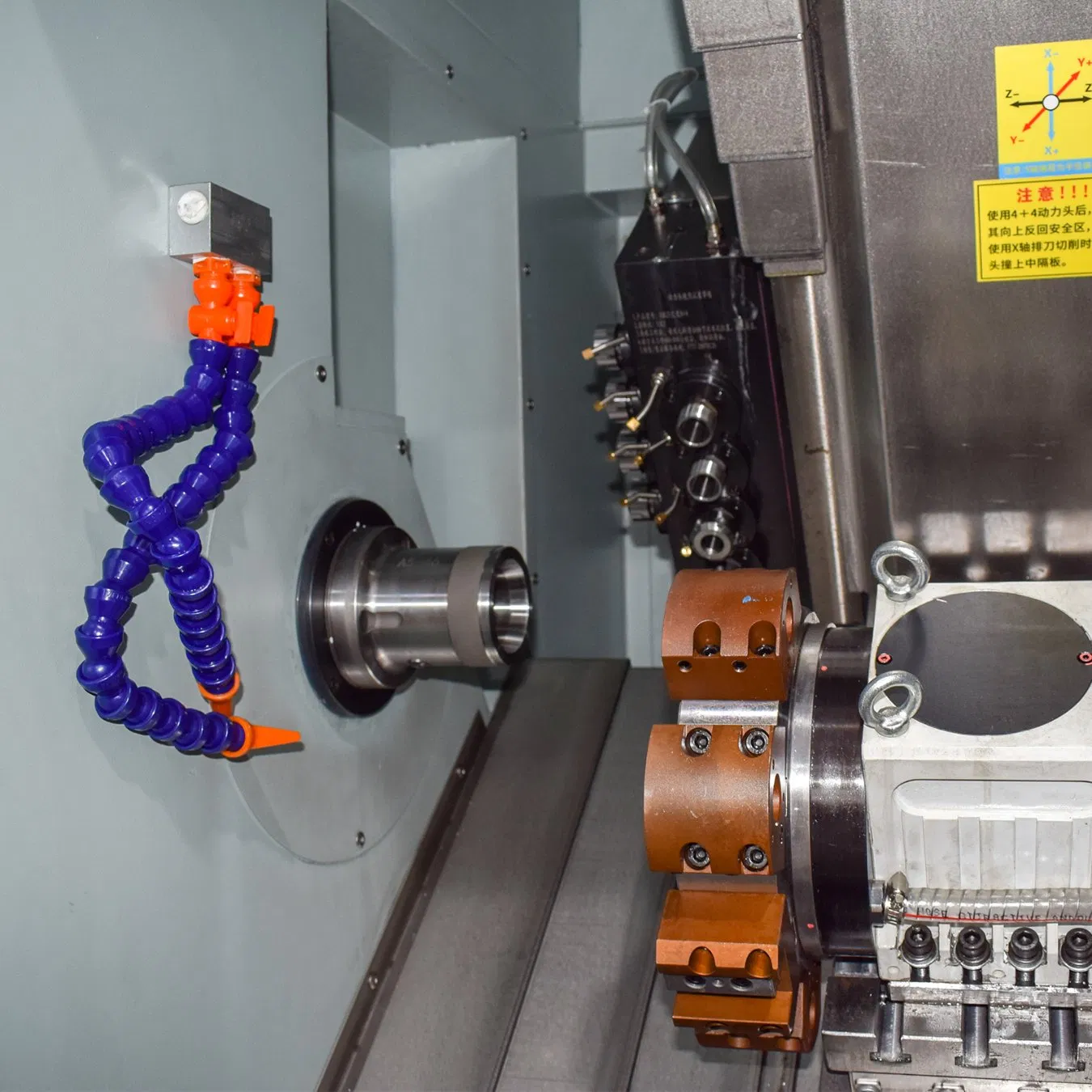

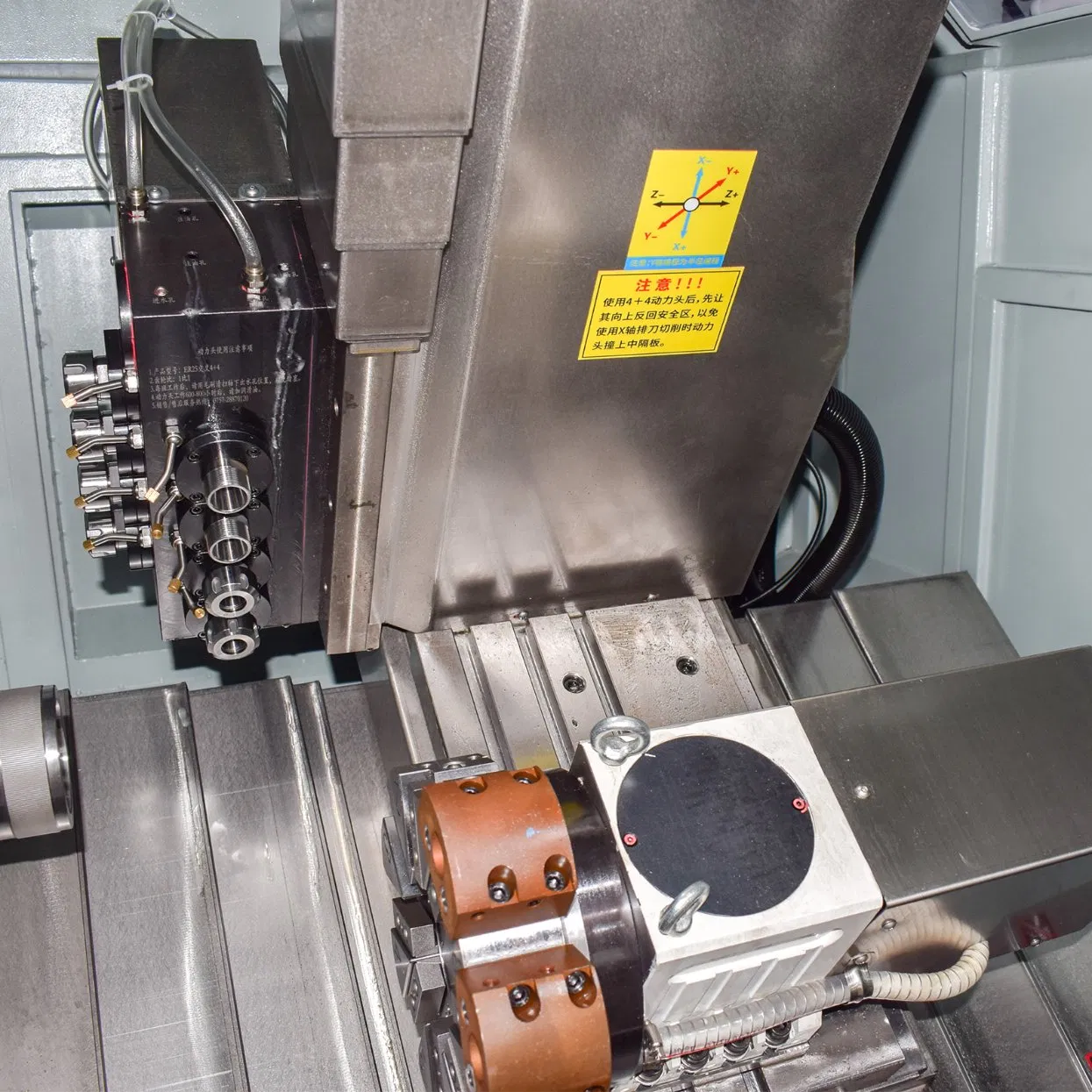

High-Performance CNC Turn-Mill Machine with 5.5kW Spindle Servo Motor
The SZGH-46Y is expertly designed for the batch production of copper, iron, aluminum, and stainless steel bars within 45mm, as well as open-type forged parts with automatic feeding within 60mm. For single-piece production, it can be equipped with hydraulic chucks to handle parts up to 350mm. Incorporating multiple patented technologies, including a high-rigidity and anti-deformation structure, it achieves a single-side cutting amount of up to 4mm with precision tolerances within ±0.0075mm.
| Category | Technical Parameter Item | Unit | Standard Value |
|---|---|---|---|
| Processing Capacity | Max. diameter of bar bore | mm | 45 |
| Processing Capacity | Max. length of workpiece | mm | 380 |
| Processing Capacity | Surface roughness | Ra | 1.6 |
| Travels | X-axis effective travel | mm | 1000 |
| Travels | Z-axis effective travel | mm | 400 |
| Y-axis | Y-axis travel | mm | 220 |
| Y-axis | Y-axis maximum speed | rpm | 2500 |
| Feed | X/Z-axis rapid traverse | m/min | 25 |
| Spindle | Max. Spindle Speed | rpm | 3500 |
| Spindle | Spindle Motor Power | kW | 5.5kw servo |
| Dimensions | Total Weight | kg | 2800 |
