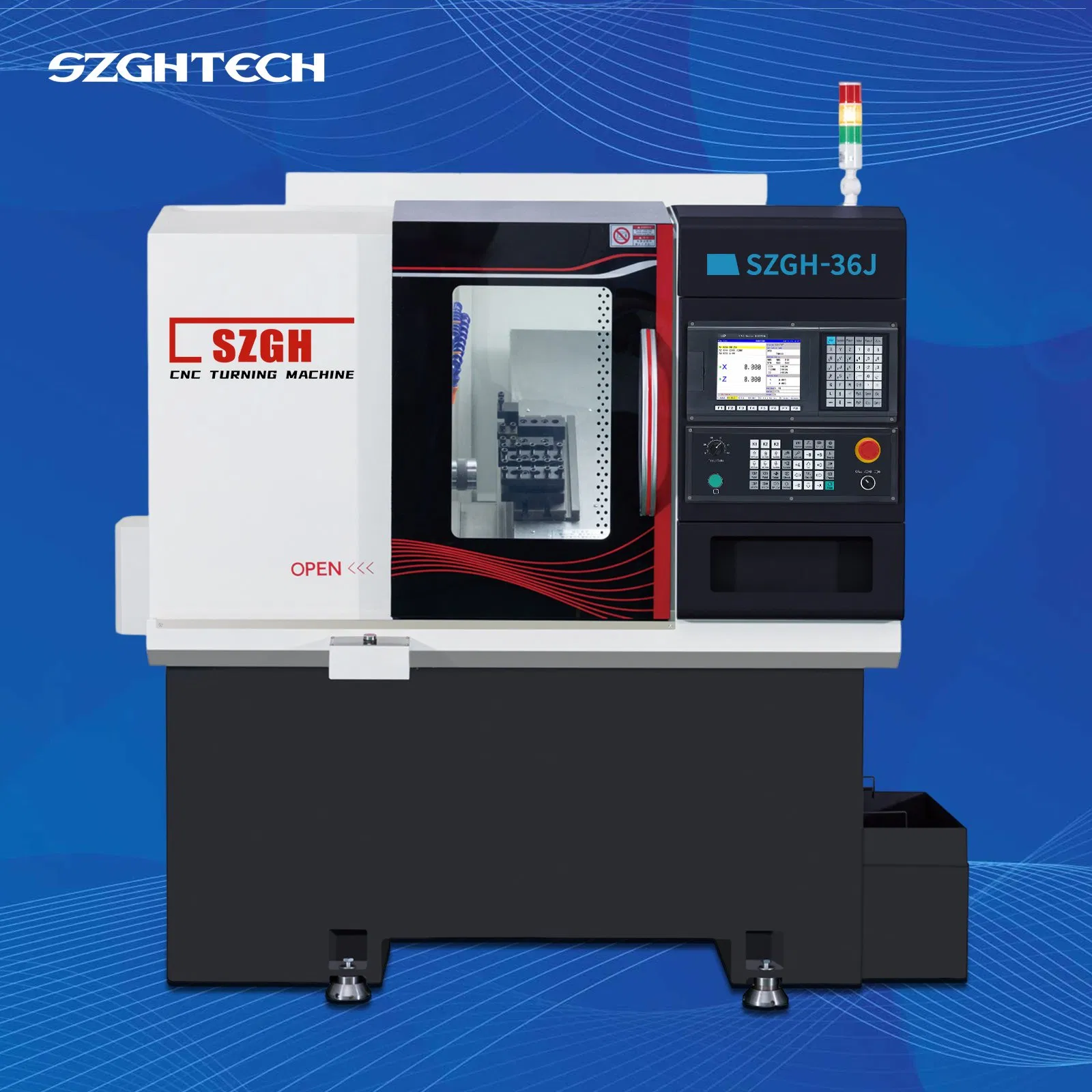

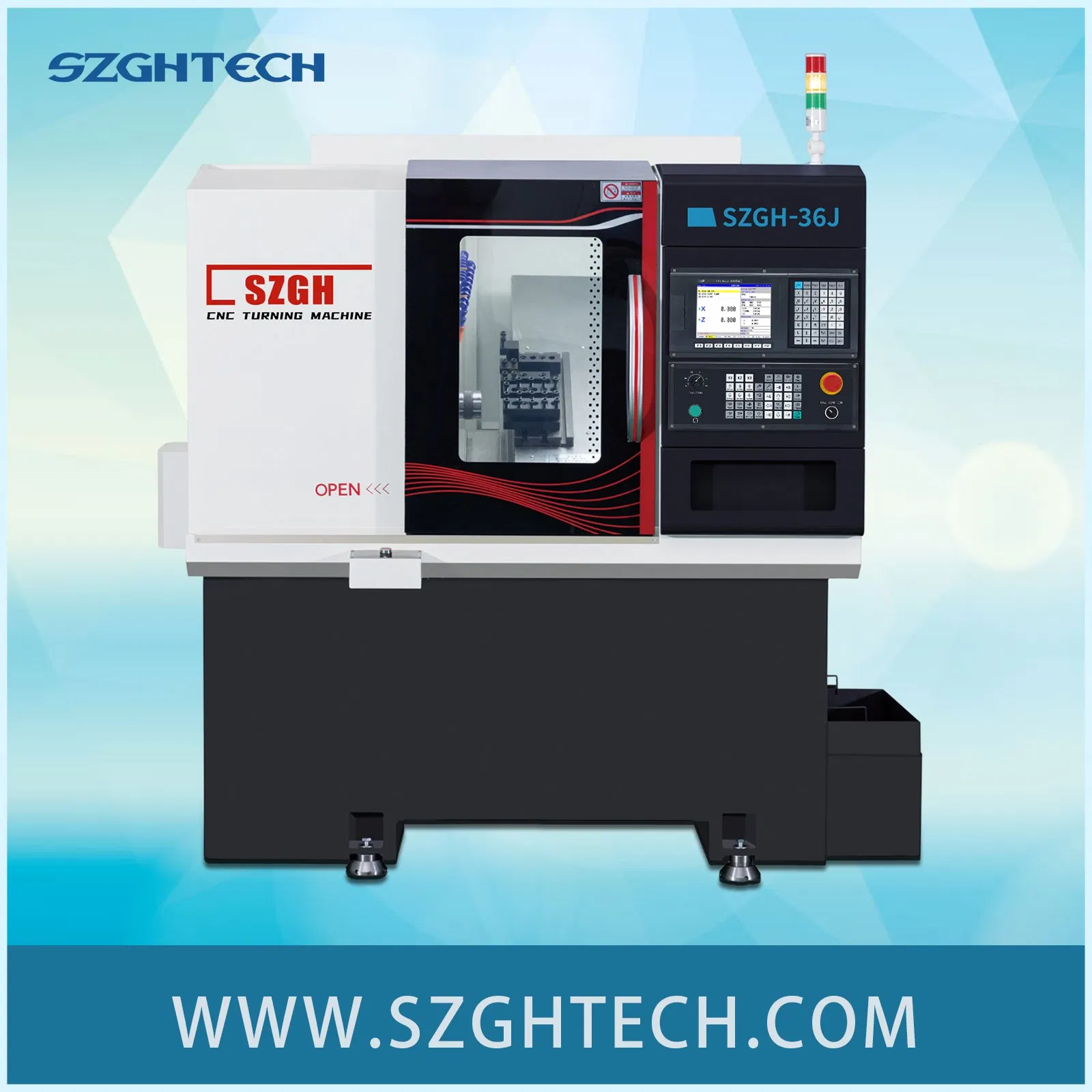

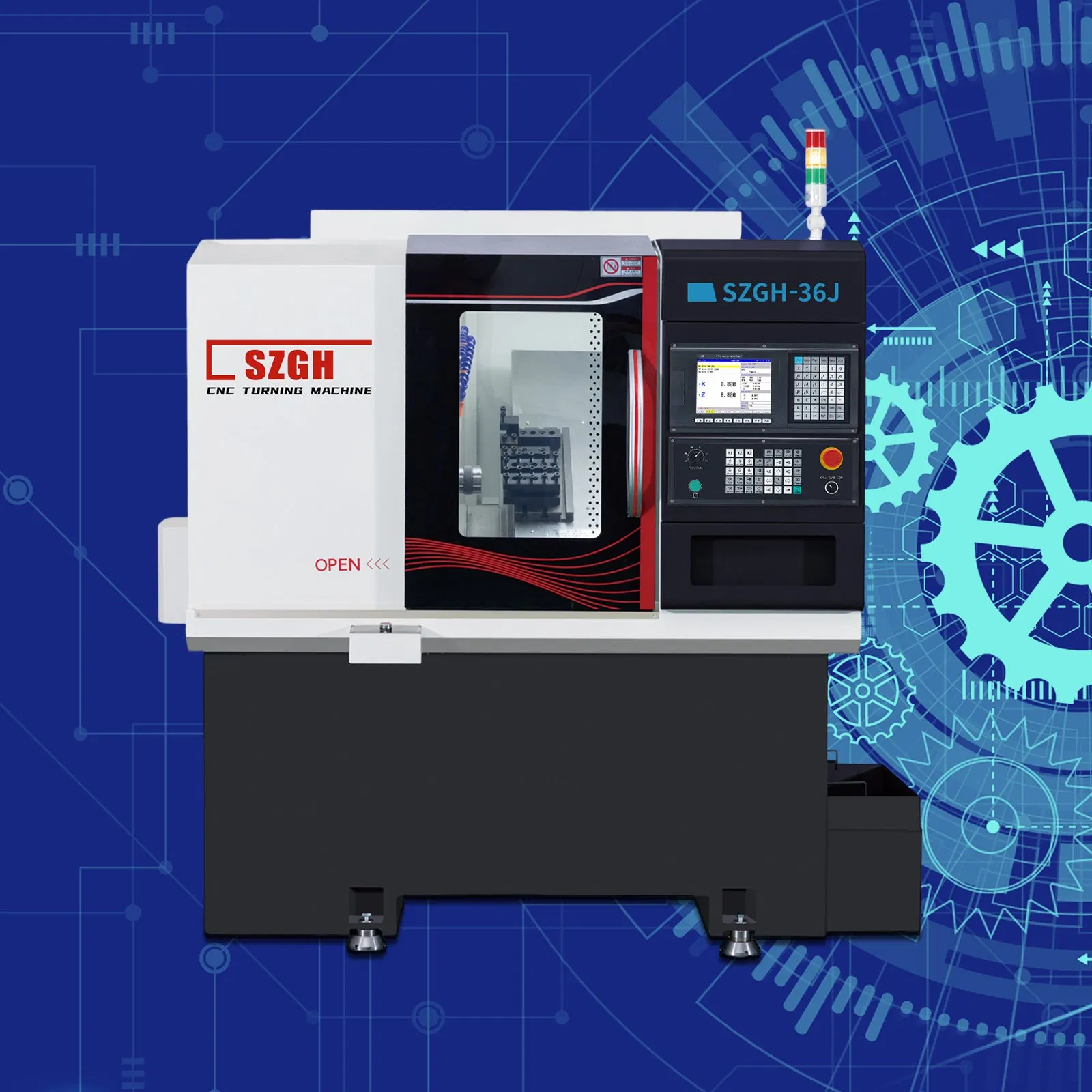

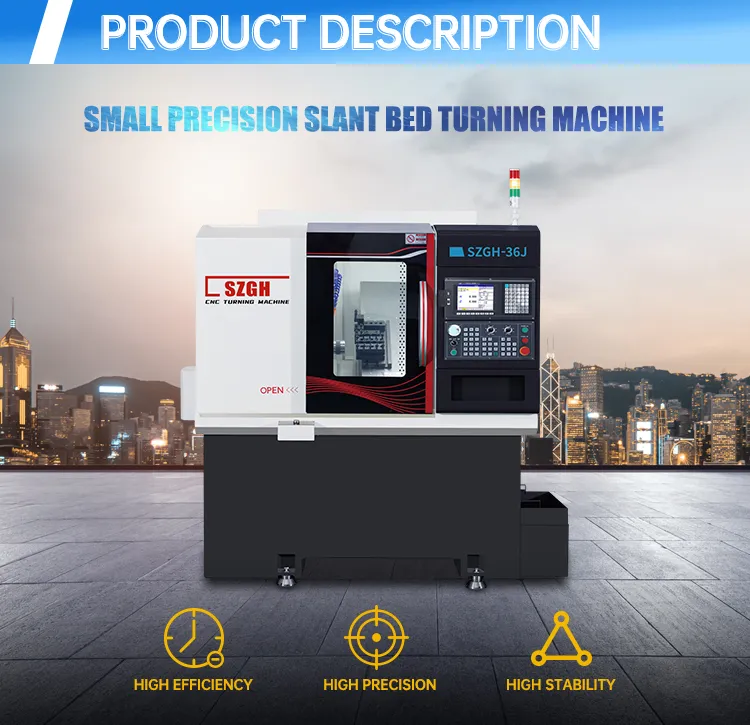

Szgh Manufacturer Low Cost Combination CNC Lathe and Milling Machine China Horizontal CNC Metal Lathe Machine Mini Lathe CNC

Customization: Available
After-sales Service: Professional After-Sales Team
Warranty: 1 Year

Product Description

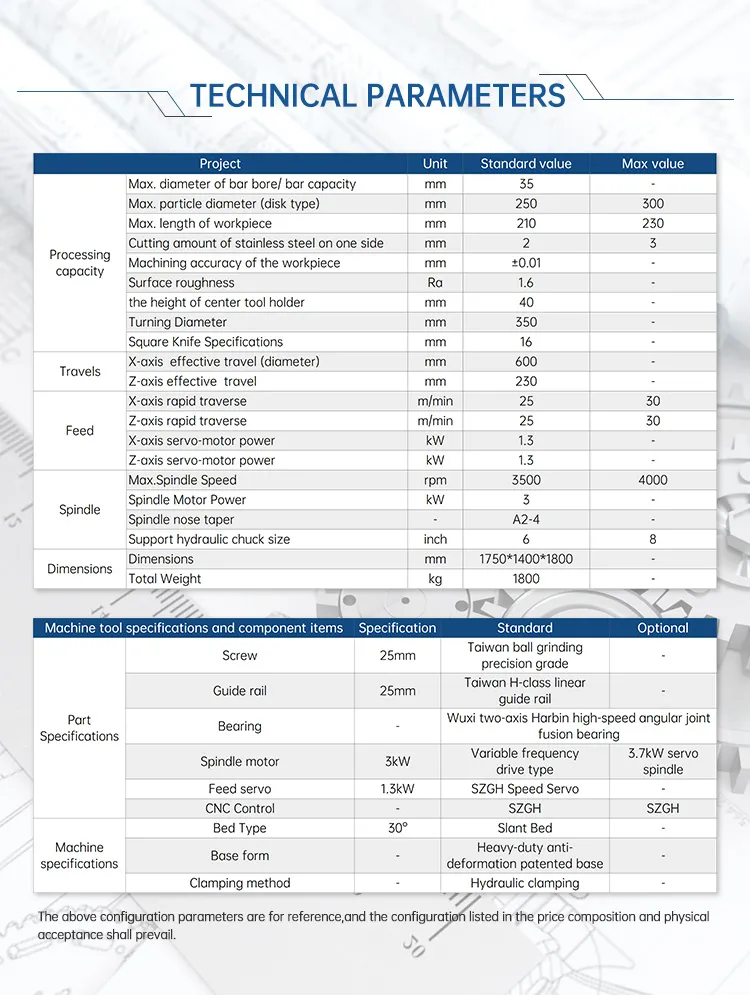

Basic Information
Model NO.
36J
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Certification
GS, CE, RoHS, ISO 9001
Max. Spindle Speed
4000 r.p.m
Width of Bed
25 mm
Positioning Accuracy
±0.01 mm
Repeatability (X/Y/Z)
±0.01 mm
Product Name
CNC Mini Lathe Machine
X/Z Axis Travel
500*180mm
Max. Bar Bore
35 mm
Spindle Power
3.7 Kw
Weight
1800 Kgs
Product Overview
Model 36Y is based on the 36 CNC lathe, featuring 4 power heads on the Y-axis to realize turning-milling compound functions with 6 rows of cutters and 4 side milling. It is widely used for workpieces requiring side drilling, tapping, and slotting. The one-time clamping process overcomes secondary clamping errors, improves automation, and enhances processing accuracy. Suitable for bars within 35mm and pellets within 100mm.

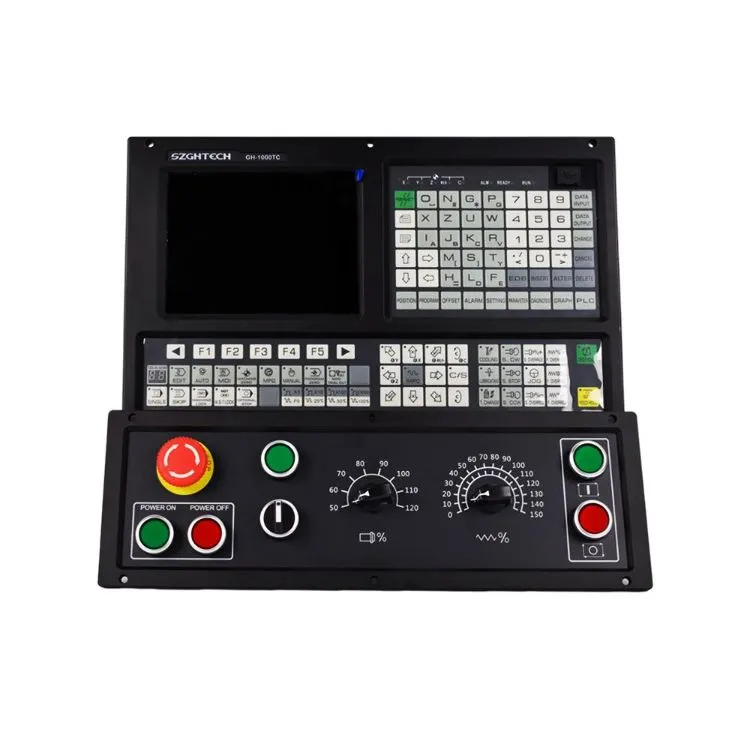

Matched CNC Controller Features
  • 2-5 Axis Fully English Type CNC lathe controller
  • 800x600 8.4 inch real color LCD displayer
  • Electric Turret & Binary code turret (Max: 99 pcs tools)
  • Support ATC, Macro function and PLC function
  • Max speed 60m/min, feeding speed 24m/min
  • Adapted servo spindle for continuous position and rigid tapping
  • USB interface supports flash disk file operation and software upgrade
  • 32 bits ARM microprocessor + FPGA Technology
Core Advantages

1) High-quality Products: Advanced manufacturing technology and strict quality control ensure reliability and stability. Products are rigorously tested to comply with industry standards.

2) Technological Innovation: Continuous research and development in efficient and intelligent solutions for mechanical engineering and automation.

3) Customer Customization: Customized solutions including turrets and kits to meet specific requirement needs.

4) Global Support: Established international sales network with in-depth understanding of market trends.

5) After-sales Service: Comprehensive technical support, training, and maintenance to ensure normal equipment operation.

Frequently Asked Questions
How is product quality guaranteed?
We ensure quality through full pre-testing by professional engineers and a final 100% inspection before shipment.
Can the machine be customized for my production schedule?
Yes, our machine tools use a complete set of CNC systems. We can modify configurations such as turrets and kits according to your needs to solve debugging and refitting issues in advance.
What is the control mode for feeding axes?
Normal CNC supports Pulse+Direction signals; Modbus CNC supports EtherCAT / Powerlink modbus for feeding axes drivers.
Does the system support ATC (Automatic Tool Changer) functions?
Yes, the system supports most turrets (Electric, Servo, Counting, etc.) and tool magazines (Linear, Umbrella, Arm, and Turret types). Special macro programs and PLC can also be edited.
What is the control mode for spindle axes?
There are dual analog voltage outputs (0~10V) for speed control. Modbus CNC also supports pulse speed spindle control for servo systems.
Is it possible to customize the booting logo?
Yes, booting logo exchange is fully supported.
