Product Description

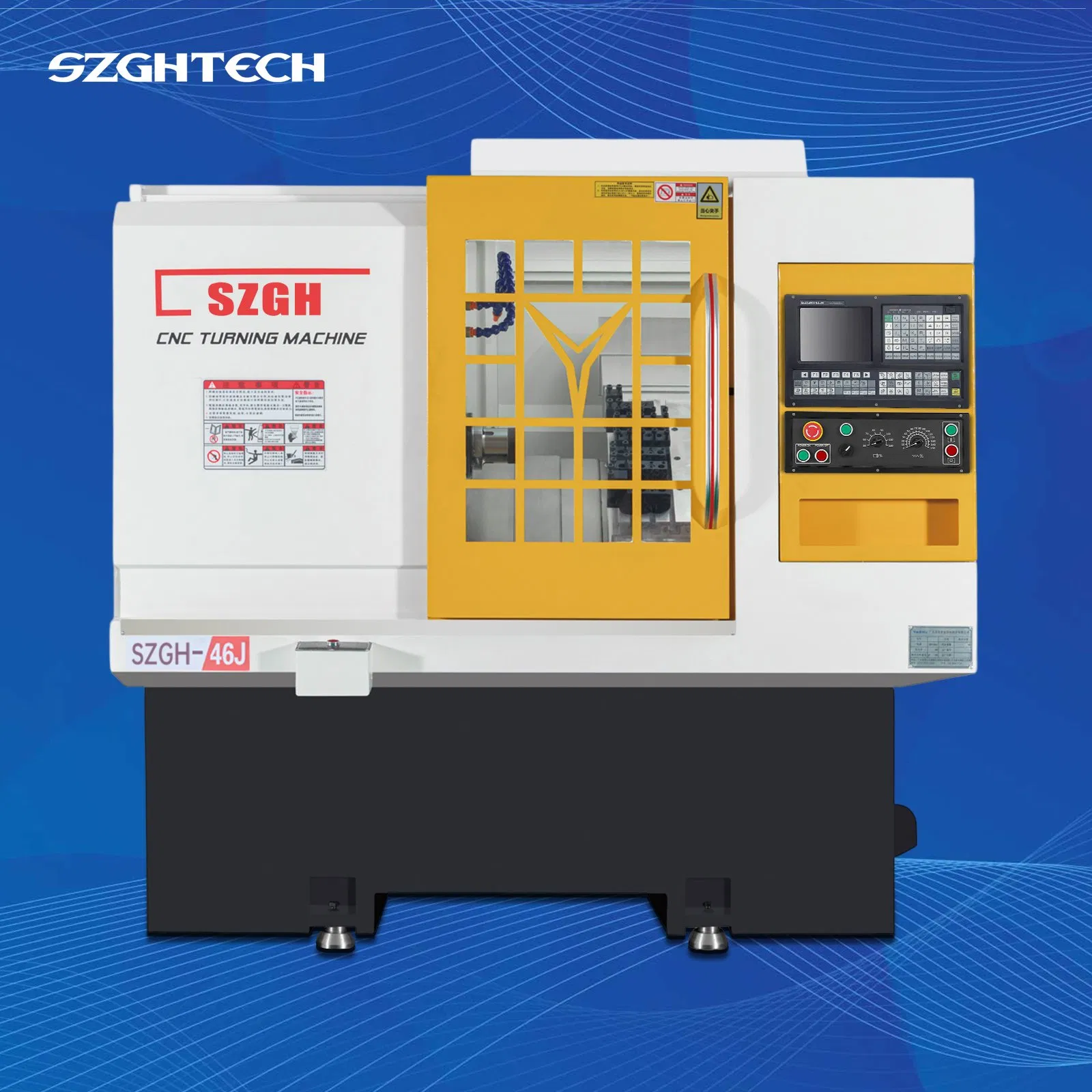

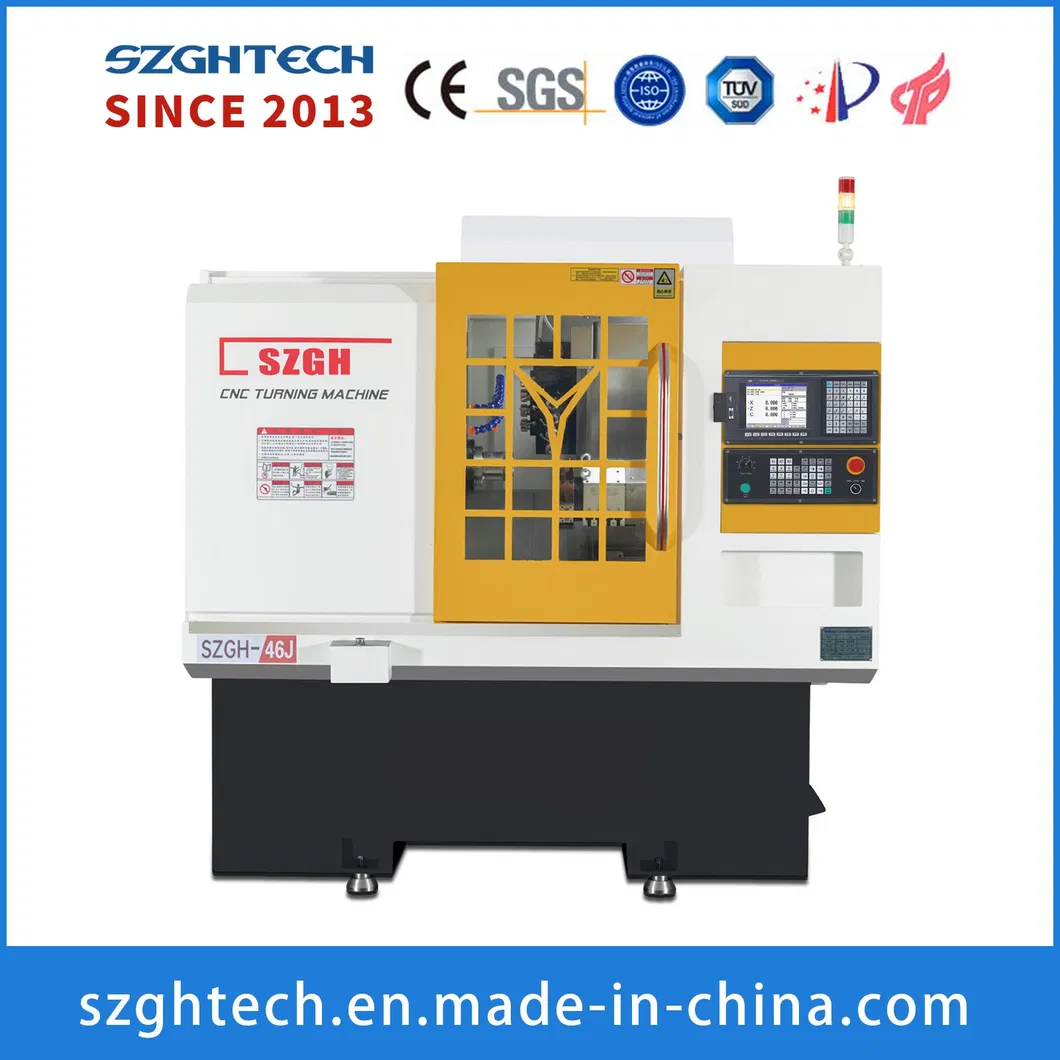

The 46J CNC lathe is suitable for batch production of copper, iron, aluminum and stainless steel bars within 45mm, and batch production of open-type forged parts with automatic feeding of pellets within 60mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 350mm. Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 4mm, precision tolerance within ±0.0075mm, and smoothness within 1.6. It is widely used in the processing of large parts with high precision and rigidity.
💡 High Precision Control Package
Adopting high precision CNC control package makes the process more highly efficient!

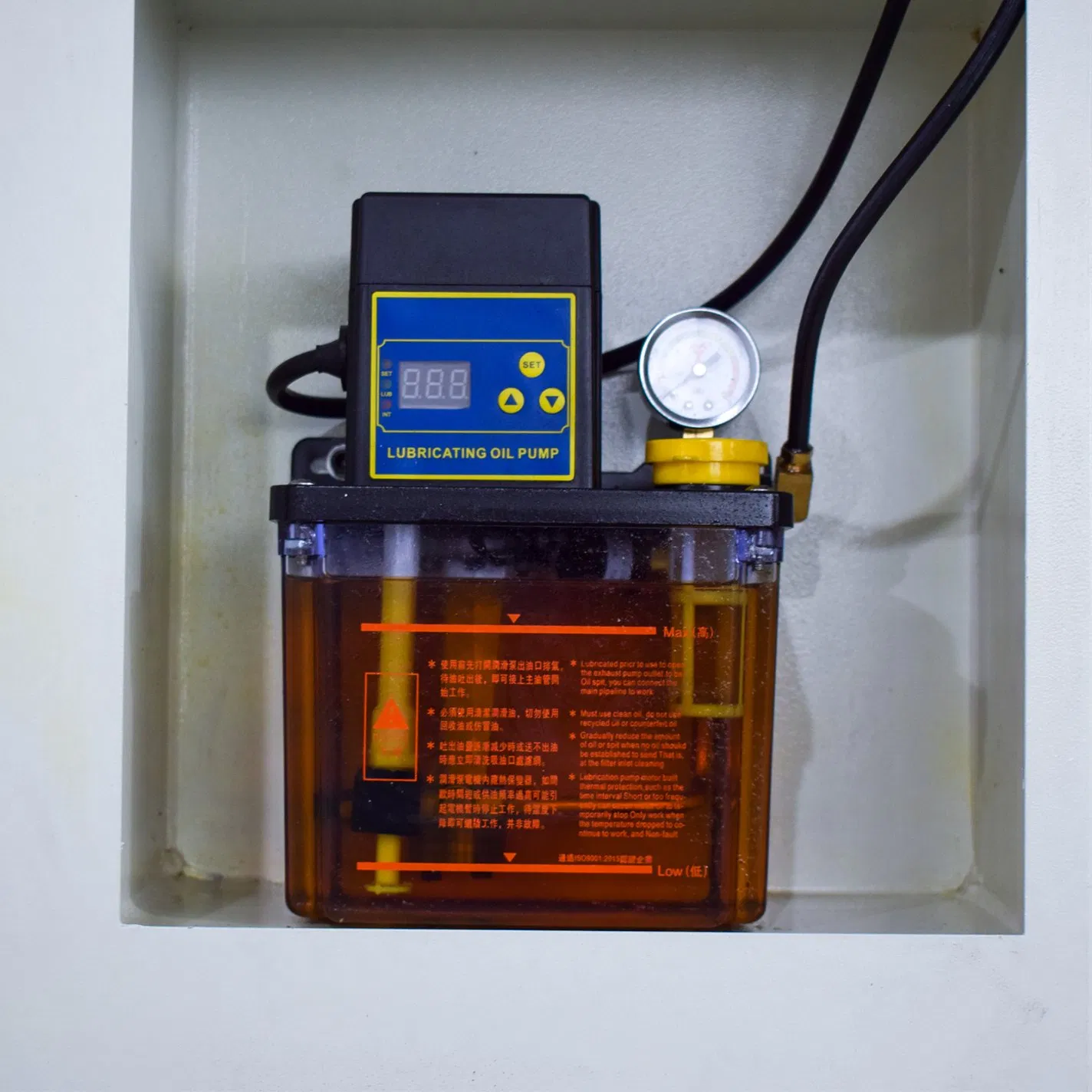

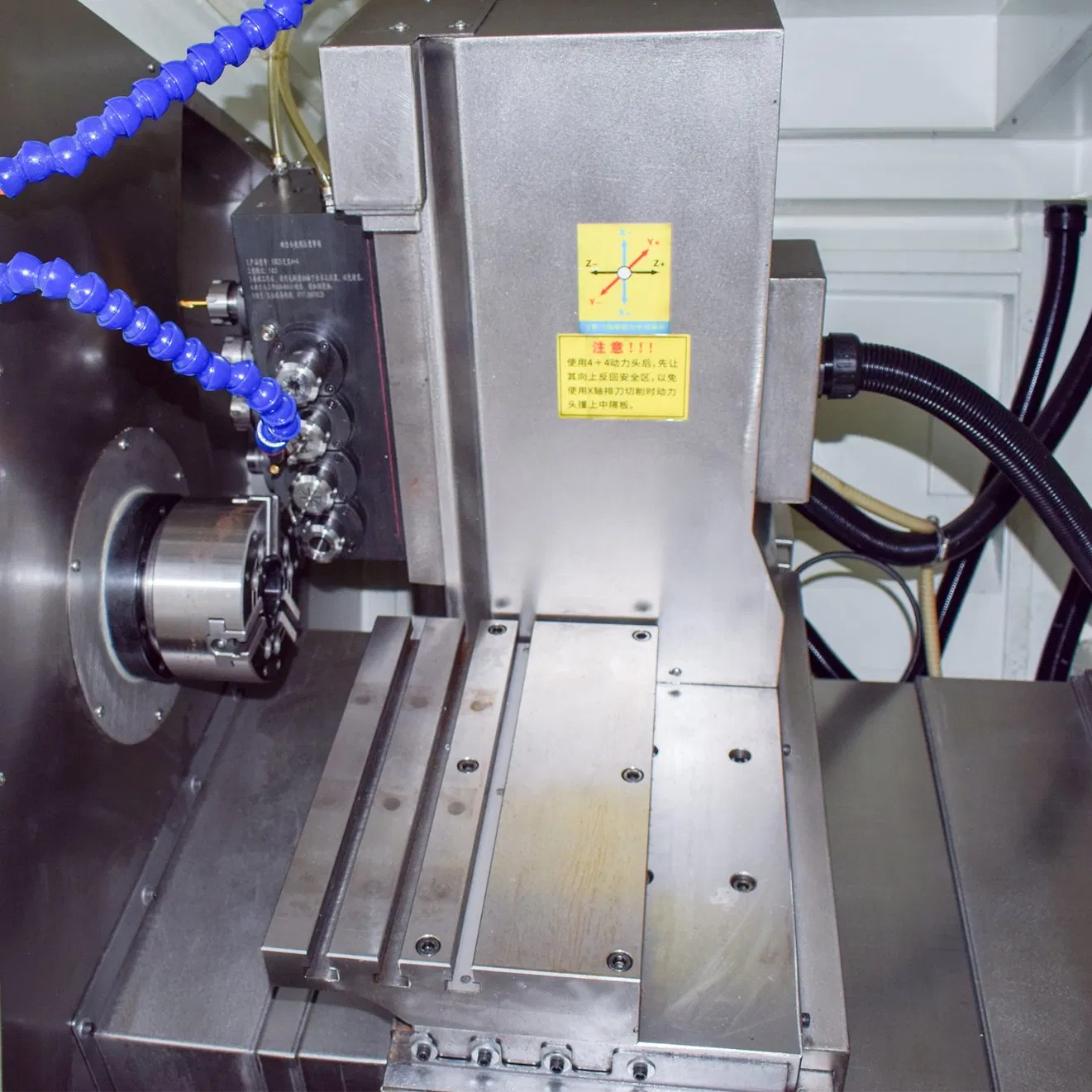

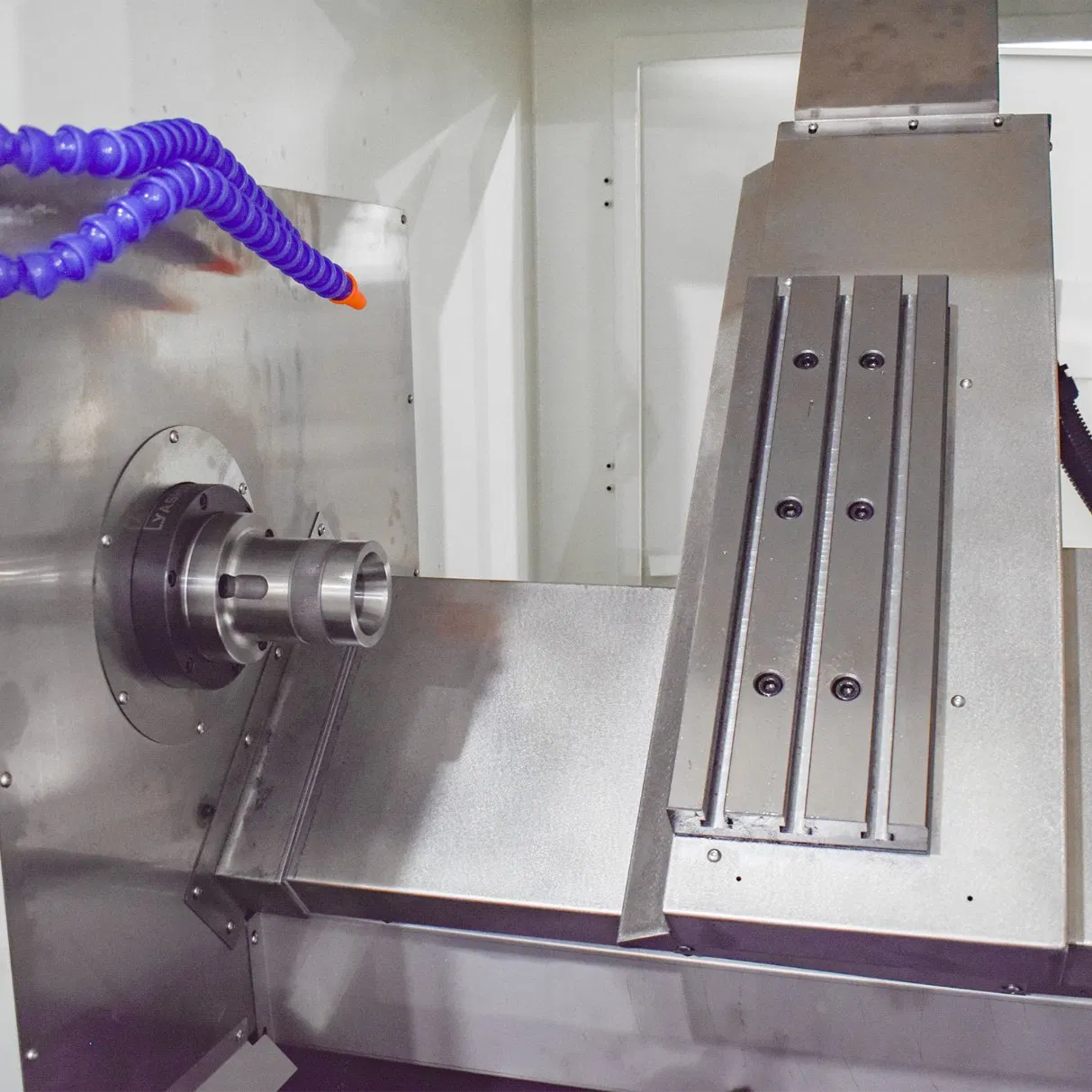

Detailed Photos
Product Parameters
| Technical Parameter Item |
Unit |
Standard Value |
| Processing Capacity | Max. diameter of bar bore | mm | 45 |
| Max. length of workpiece | mm | 380 |
| Machining accuracy | mm | ±0.0075 |
| Surface roughness | Ra | 1.6 |
| Travels | X-axis effective travel | mm | 1000 |
| Z-axis effective travel | mm | 400 |

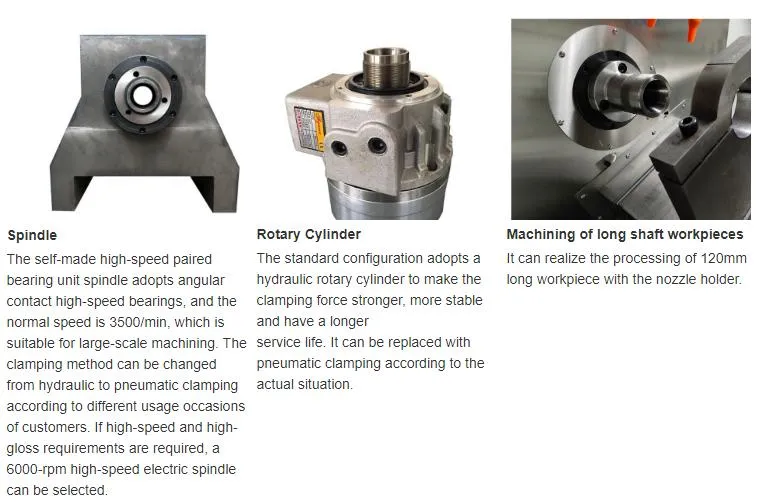

| Spindle | Max. Spindle Speed | rpm | 3500 |
| Spindle Motor Power | kW | 5.5kw servo |
| Weight | Total Weight | kg | 2800 |
Key Features & Technical Specifications
- Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity.
- Anti-deformation patented heavy-duty base, heavy enough to support bars and large parts, anti-vibration.
- Key components adopt high-quality wear-resistant configurations; sleeve and spindle are dynamically balanced.
- Bed adopts flat bed, slide board adopts 30° slant design, high rigidity.
- Super compact design, big inside space, modern appearance.

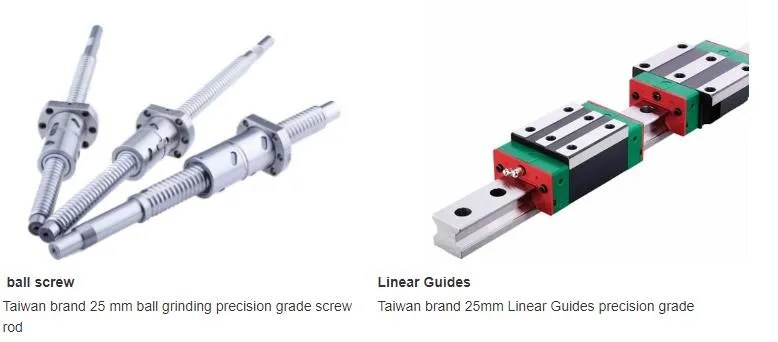

- Adopt high precision pre-stretched ball screw (double nuts) for μ-class precise turning.

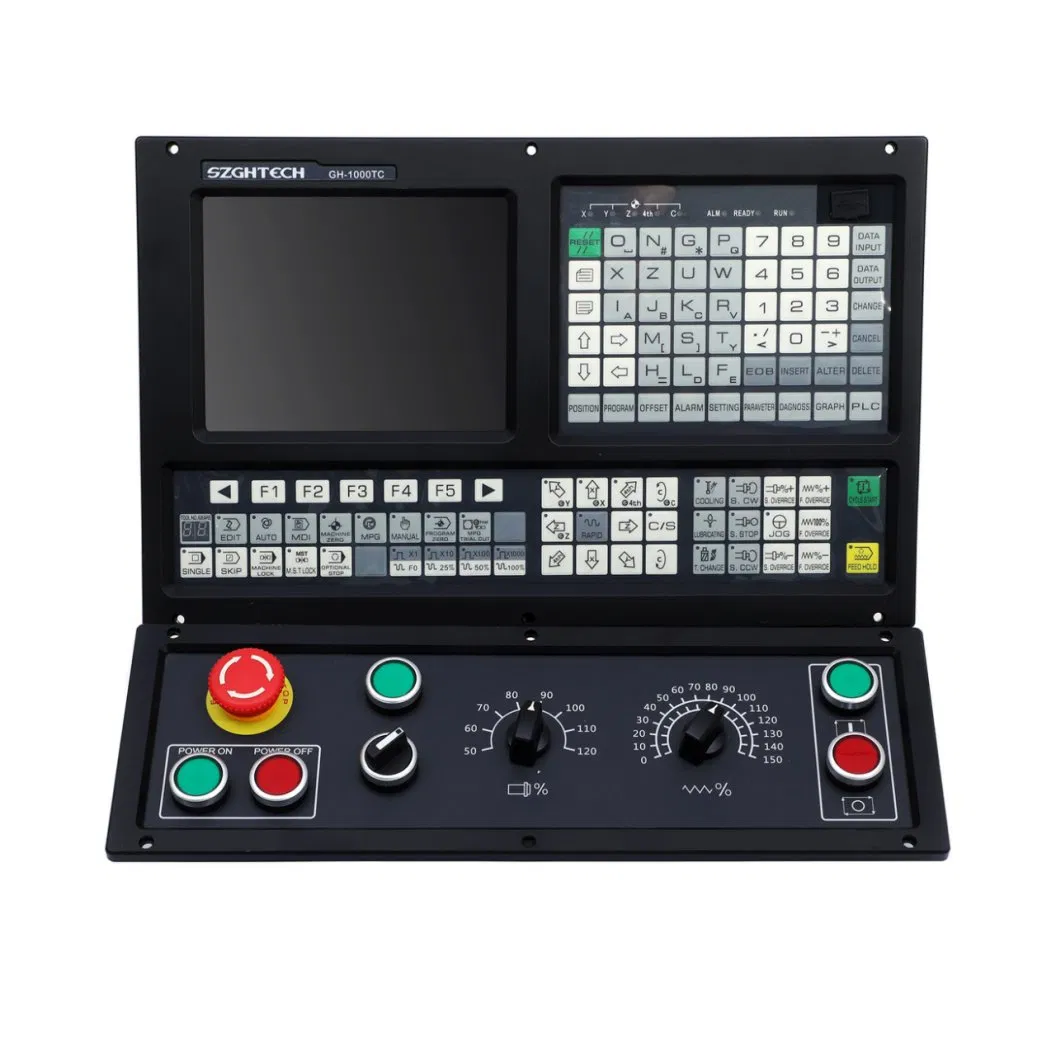

⚙ CNC Controller System
• 2-5 Axis Full English CNC controller
• 8.4 inch real color LCD display
• Support ATC, Macro and PLC functions
• Max speed: 60m/min
• 64MB Memory, USB interface
• 32 bits ARM microprocessor + FPGA
Frequently Asked Questions
?How is the quality guaranteed?
Quality is guaranteed through a pre-full testing process by professional engineers and a final 100% inspection before shipment.
?What is the typical delivery time?
Full series of standard models are generally in stock. For customized requirements, the delivery time depends on specific modifications.
?What is the warranty period for the machines?
The warranty period is 12 months. We also provide free online technical support with responses available within 12 hours.
?How can I choose the most suitable machine?
Please provide your technical specifications or product drawings, and our team will recommend the most suitable model for your processing needs.
?Does the CNC system support custom booting logos?
Yes, the CNC system supports booting logo exchange to meet your requirements.
?What payment methods are accepted?
We accept various payment types including T/T, L/C, D/P, Credit Card, PayPal, and Western Union in multiple currencies such as USD, EUR, and CAD.
