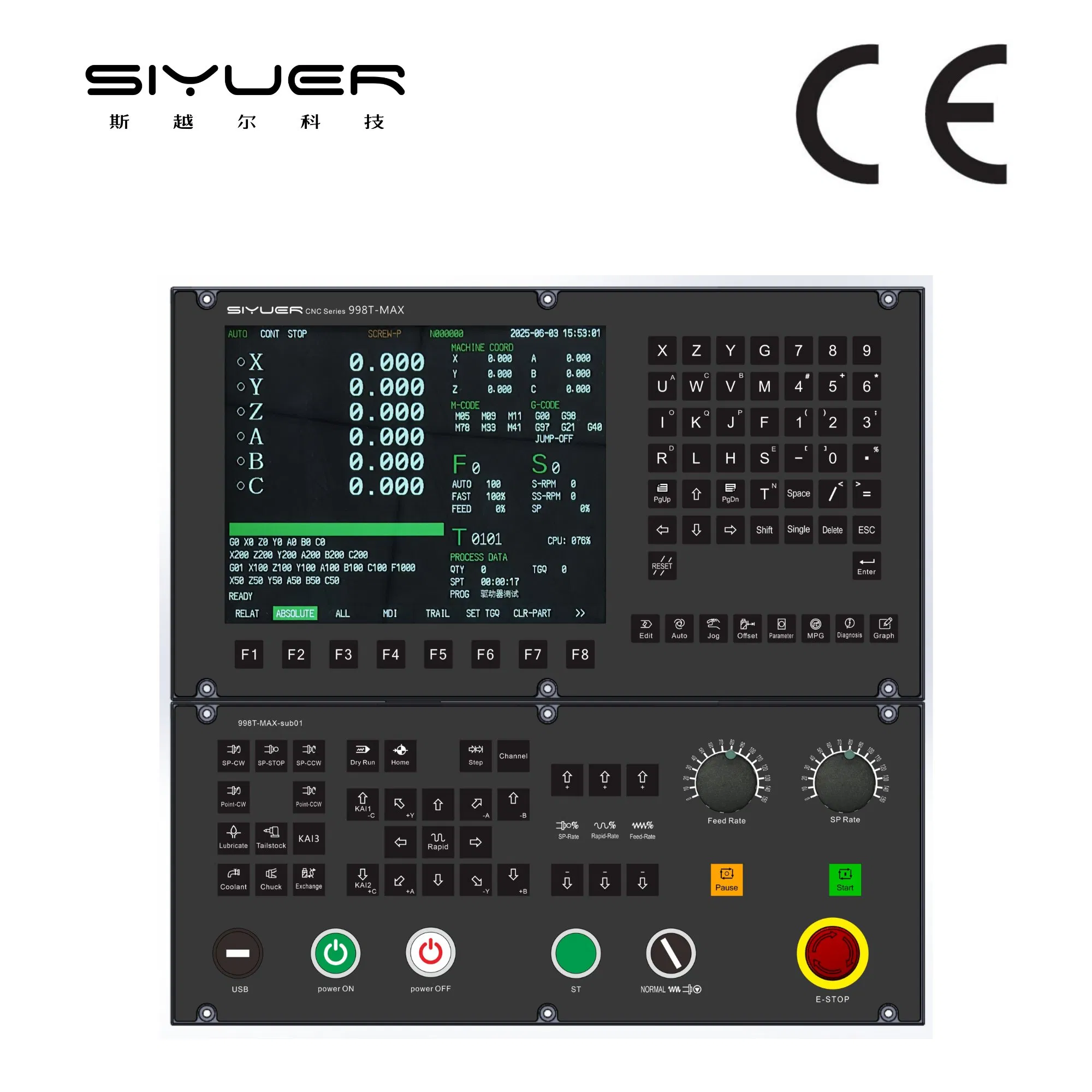

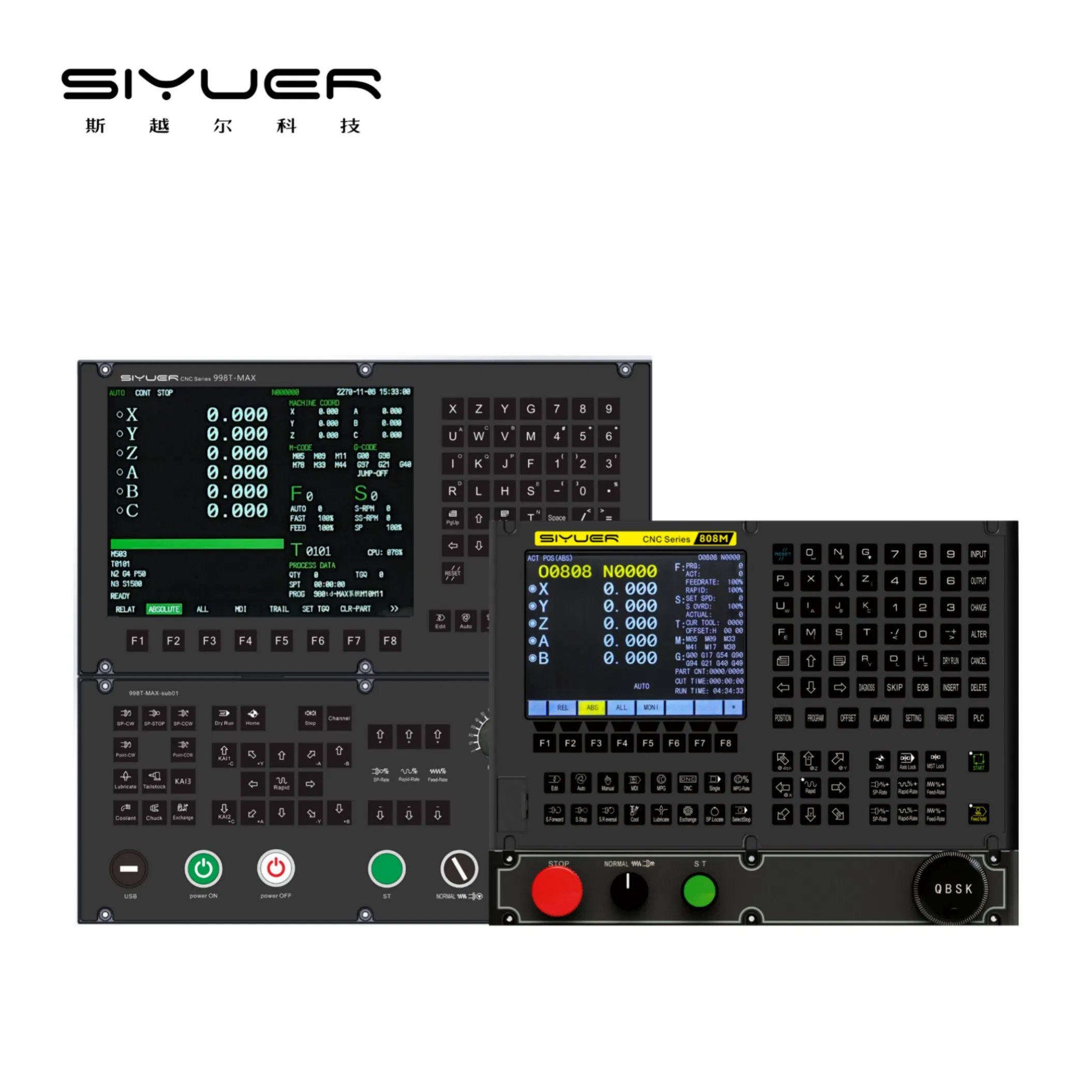

Professional CNC System with Multi-Axis Lathe and Milling Machine Support for Industrial Applications

1 / 5

Professional CNC System with Multi-Axis Lathe and Milling Machine Support for Industrial Applications

Customization:	Available
Warranty:	3 Years
Logo Printing:	with Logo Printing

Send Inquiry

Product Description

📊 Basic Info

Model NO.

998T-MAX

Size

Large

Type

CNC Controller

Material

Stainless Steel

Certification

GS, CE

Axis Num

2-6 Axis

CPU

32bits + FPGA

Display Screen

10.4 Inch

Accuracy

0.1um

Interpolation Cycle

1ms

User Store Room

128MB

Production Capacity

50000 Sets/Year

🛠️ Product Description

⚙️ Technical Specifications

Movement Control	X, Z, Y, A, B, C axes; Servo spindle C axis; Pulse + direction output; Min unit: 0.001mm; Max speed: 30000mm/min.
G Function	29 kinds of G codes including G00-G04, G32, G33, G71-G76, G90-G99, and G65 macro instructions.
Thread Machining	Metric straight, tapered, end face, and variable pitch threads. Pitch range: 0.0001mm to 500mm.
Accuracy	Reverse gap compensation (0-2.000mm); Pitch error compensation (512 points); Tool compensation (32 sets).
Spindle	Dual-channel 0-10V analog voltage control; Supports four gears and frequency conversion.

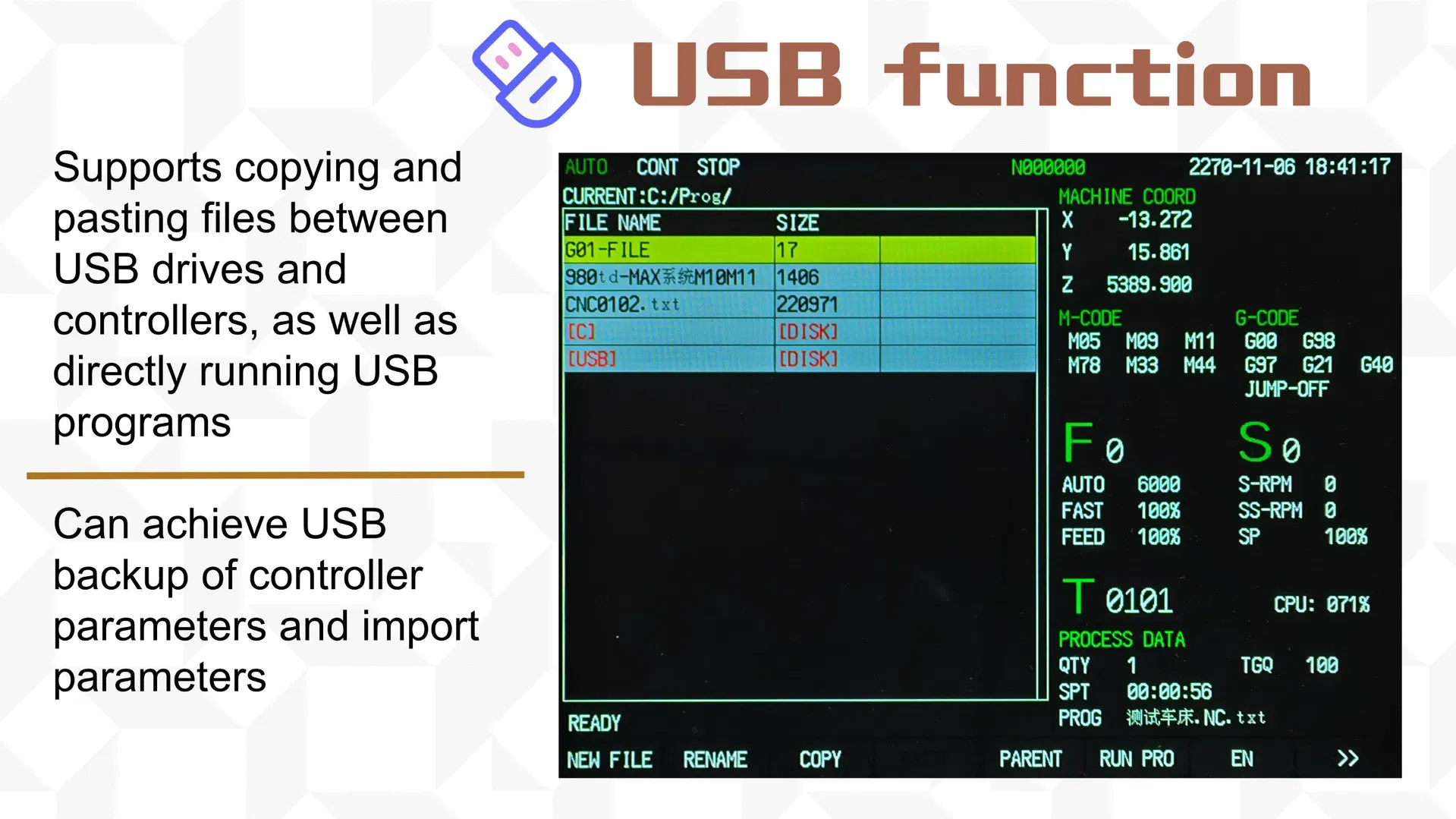

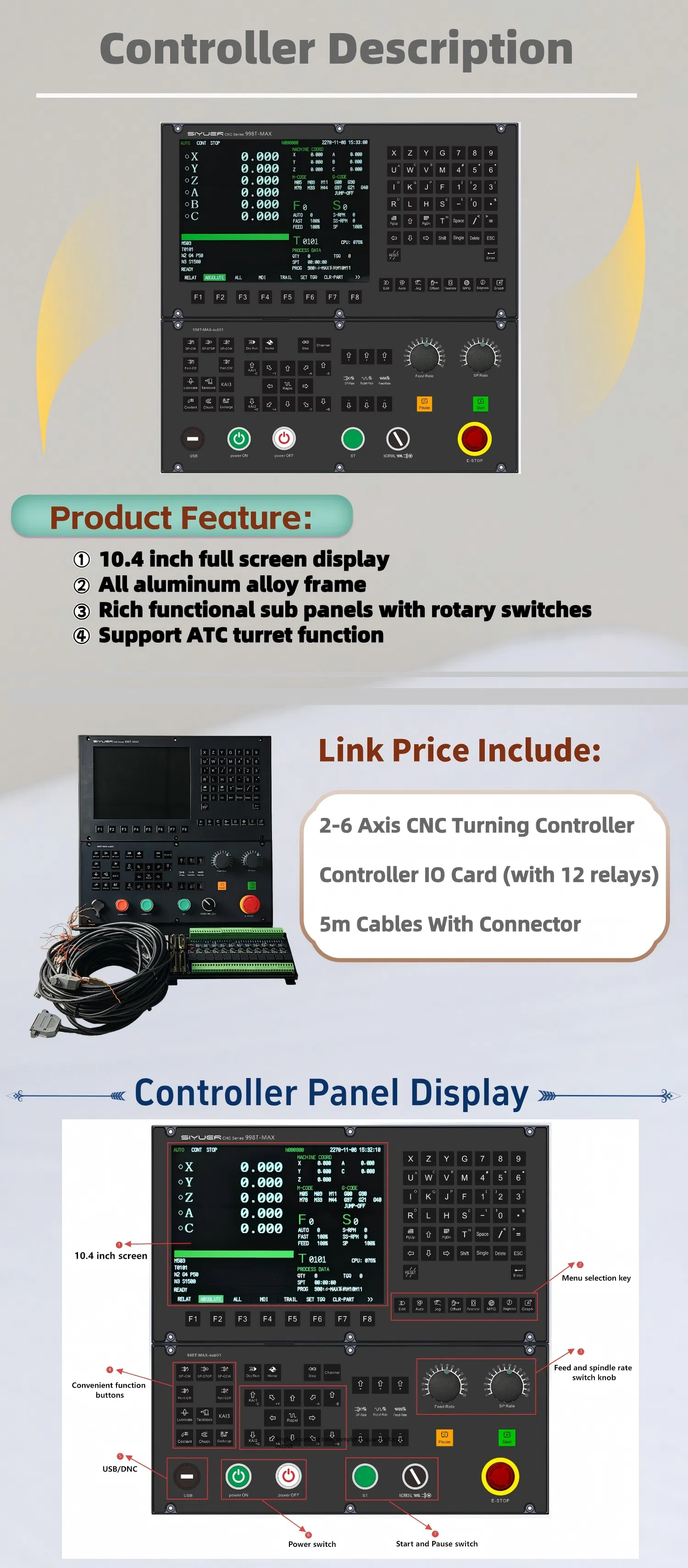

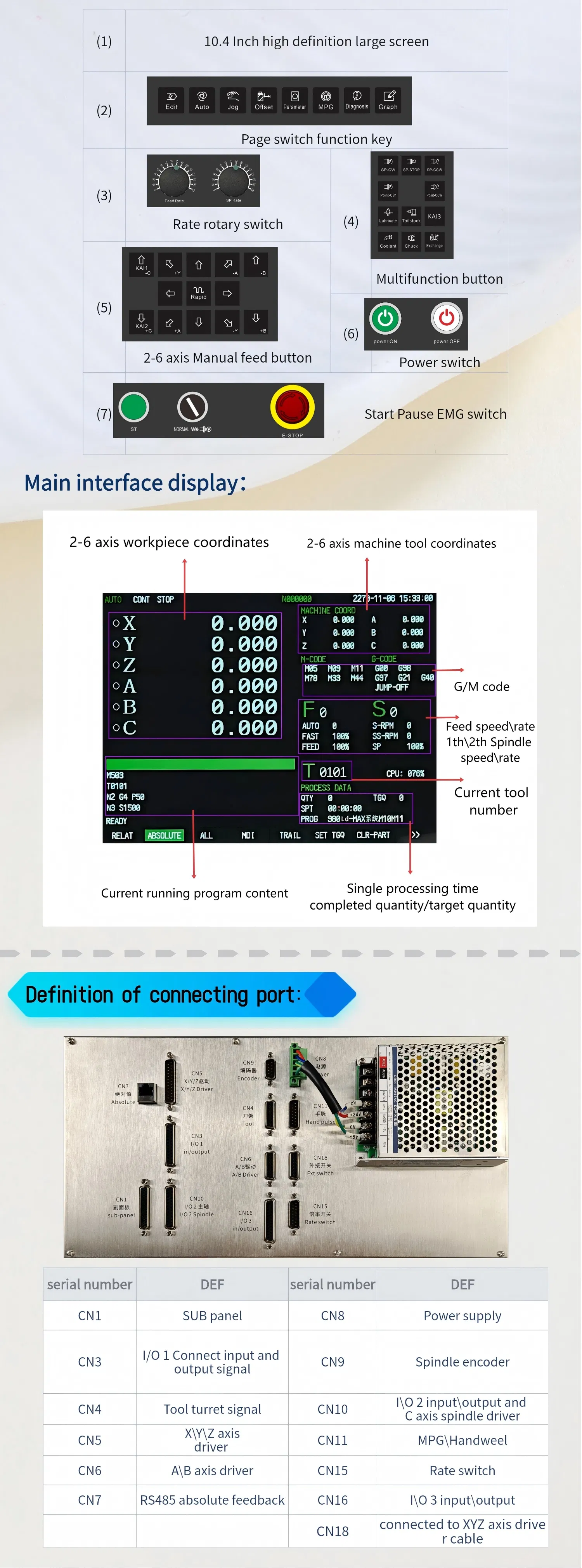

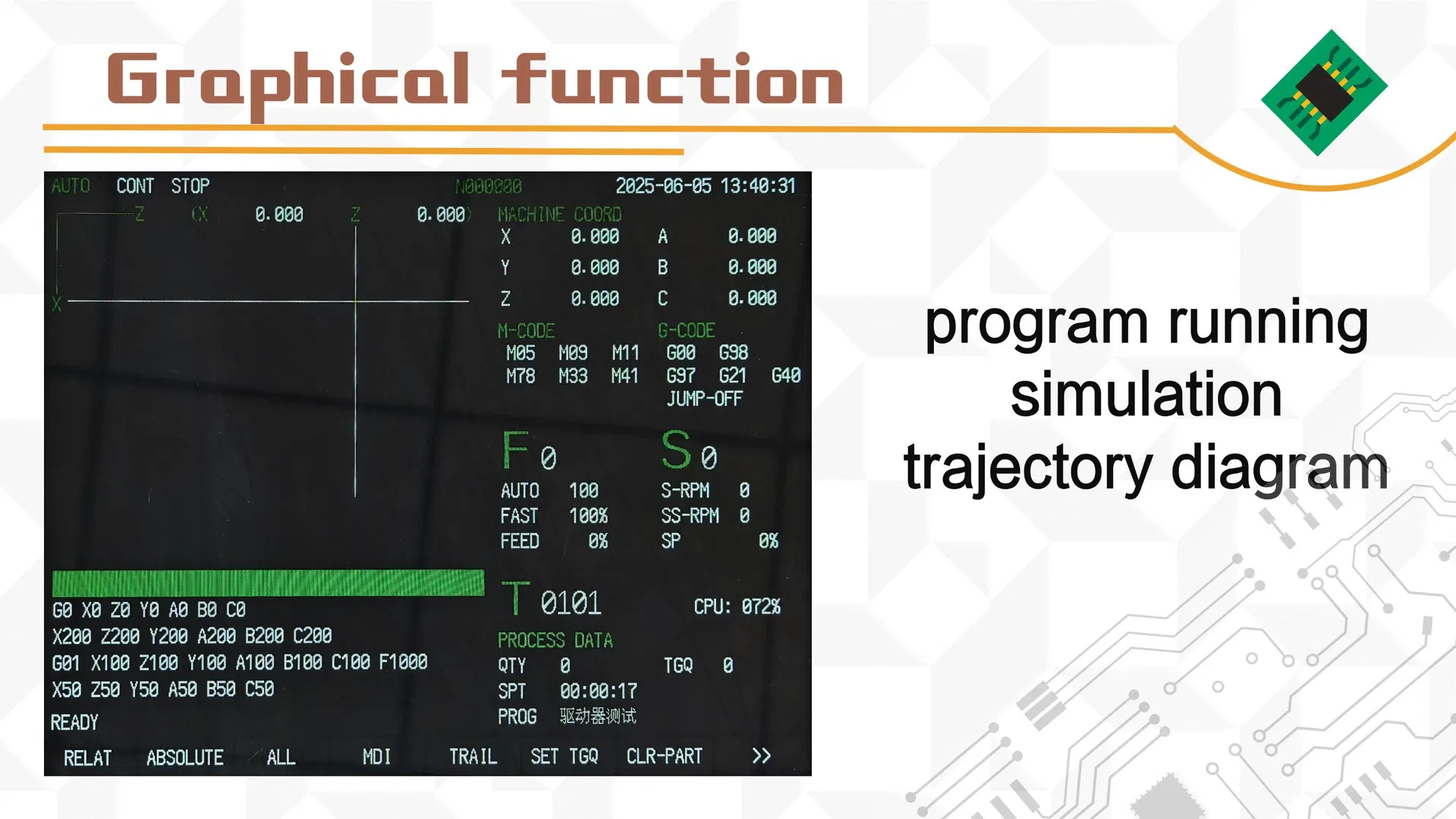

Interface	10.4-inch LCD display (800x600); Chinese/English interface; Processing trajectory graphics.

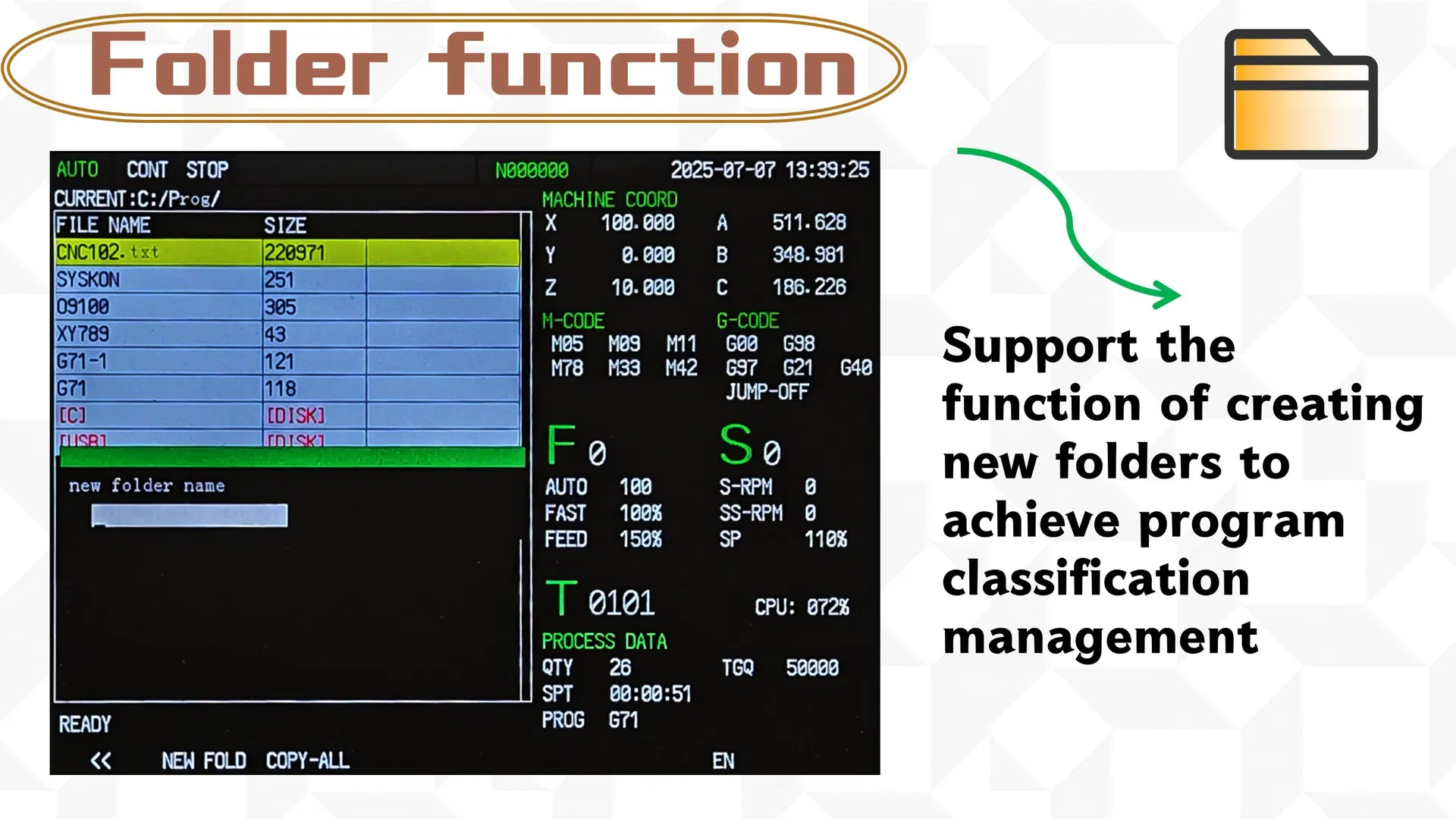

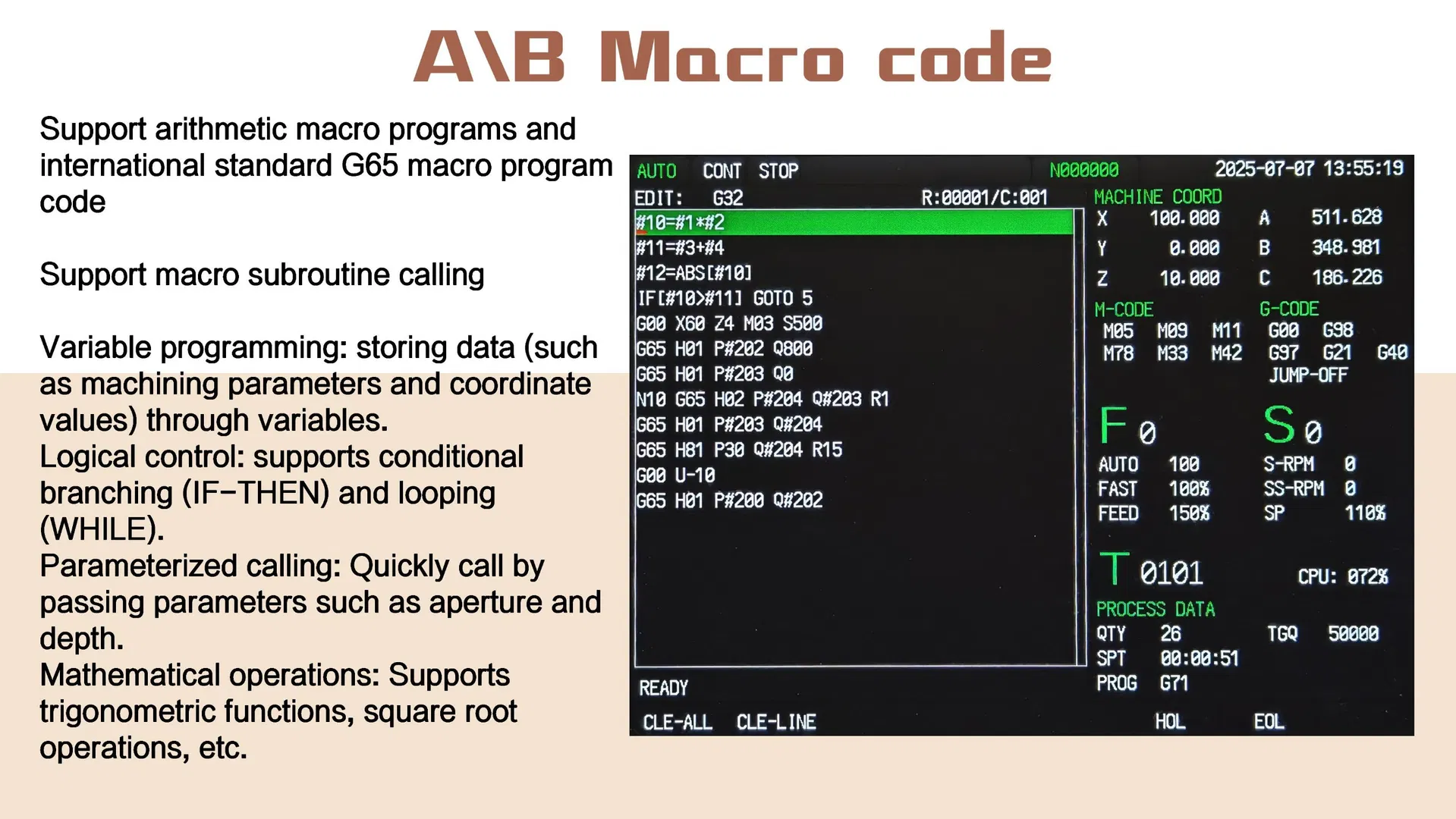

Program	100M capacity; Up to 10,000 programs; Supports user macro program calls and subroutines.

📦 Packaging & Delivery

Package Size

55.00cm * 33.00cm * 42.00cm

Gross Weight

12.000kg

Lead Time

7 days (1-10 Pieces); Negotiable (>10 Pieces)

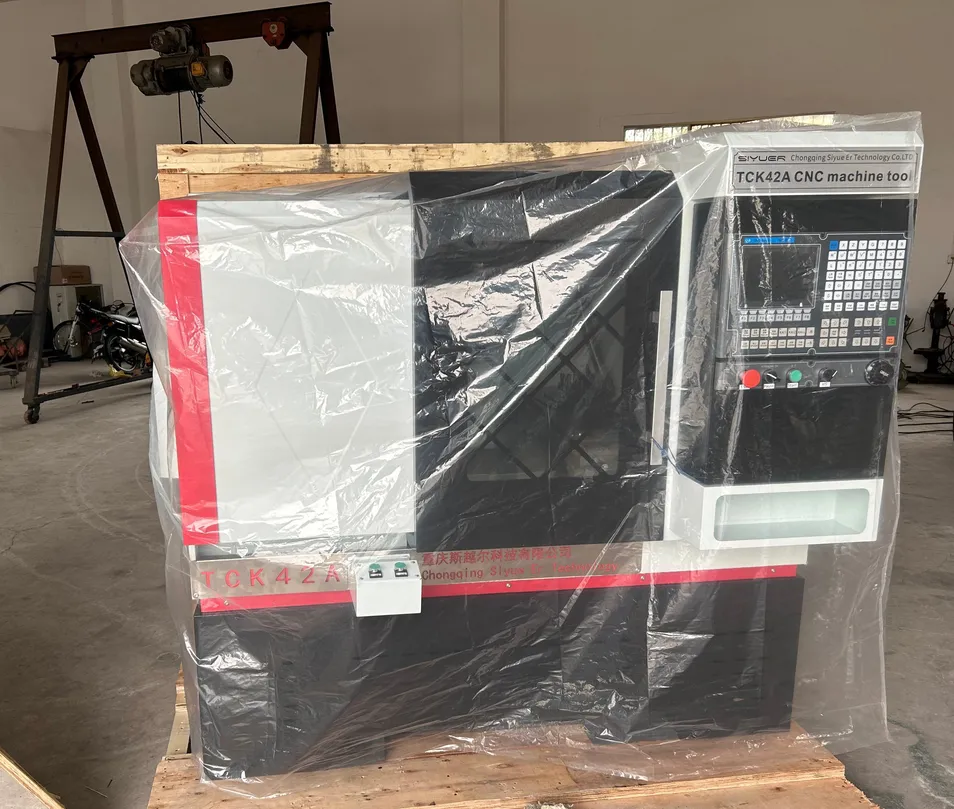

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided, including export wooden crates for lathes.

❓ Frequently Asked Questions

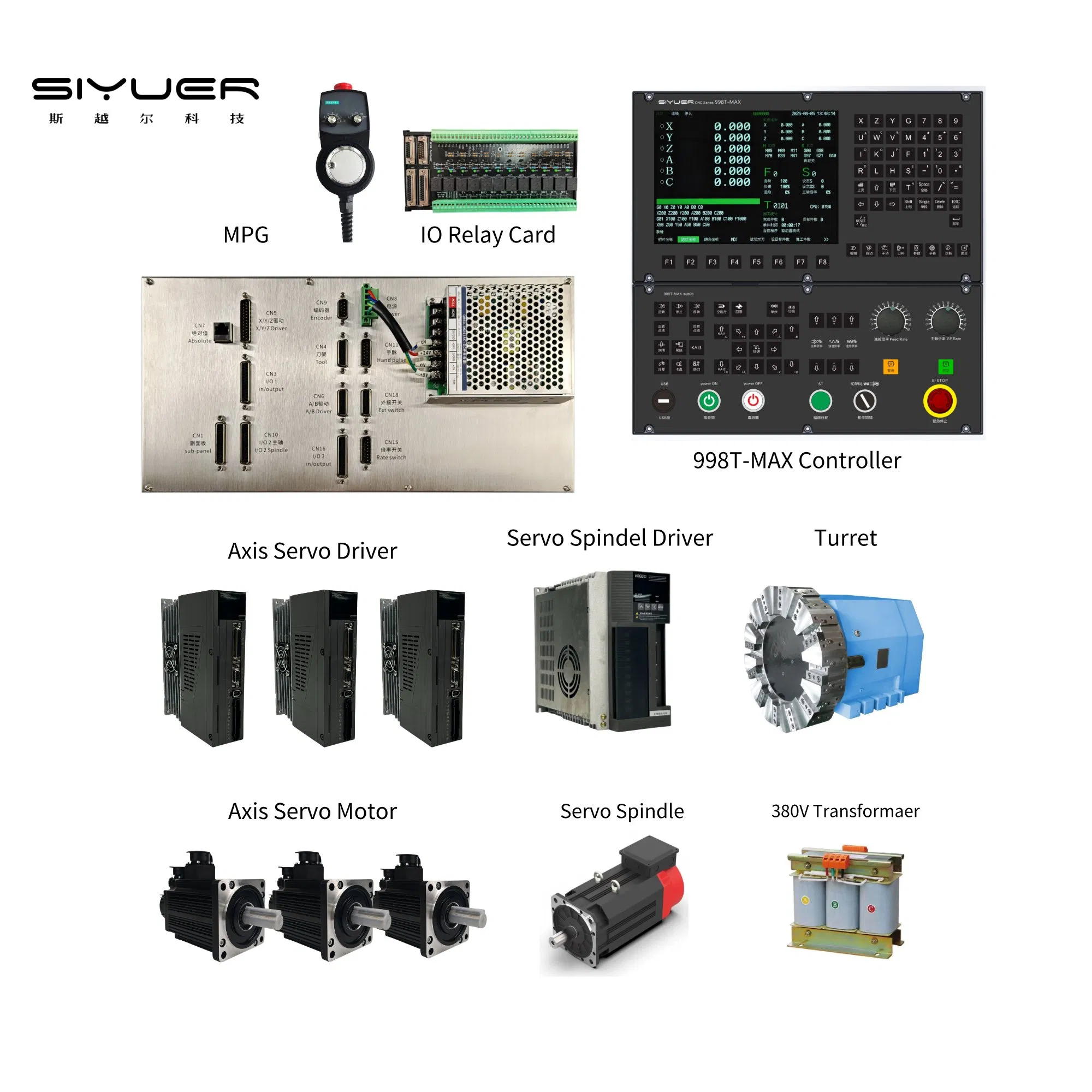

1. What does the total CNC system supply include?

We provide comprehensive plug-and-play CNC systems, including CNC controllers, spindle and axes drivers/motors, as well as all necessary cables and accessory kits.

2. How is quality assurance handled?

All products undergo strict pre-production testing by professional engineers and a 100% final inspection before shipment to ensure optimal performance.

3. What are the standard lead times for orders?

Standard orders typically have a lead time of 5–7 workdays. For highly customized solutions, the delivery schedule is negotiable.

4. Does the controller support Automatic Tool Changers (ATC)?

Yes. For CNC Lathes, it supports electric, servo, and counting turrets via custom macros. For CNC Milling, it supports linear, umbrella, arm, and turret-type tool magazines.

5. What spindle control modes are available?

The system supports analog voltage (0–10V) for precise speed control and can be equipped with servo spindles for positioning modes.

6. Is custom branding or boot logos supported?

Yes, we support custom boot logos to help meet your specific branding requirements.
